Used Ross HDM-40 Gallon Double Planetary Mixer – Vacuum Rated, 316SS, 15 HP (Approx.)

Manufacturer

Charles Ross & Son Company is a leading manufacturer of industrial mixing, blending, and dispersion equipment serving the pharmaceutical, cosmetic, chemical, adhesive, food, and specialty materials industries. Ross Double Planetary Mixers are recognized worldwide for their ability to process medium- to high-viscosity materials under vacuum while delivering exceptional batch consistency.

Description

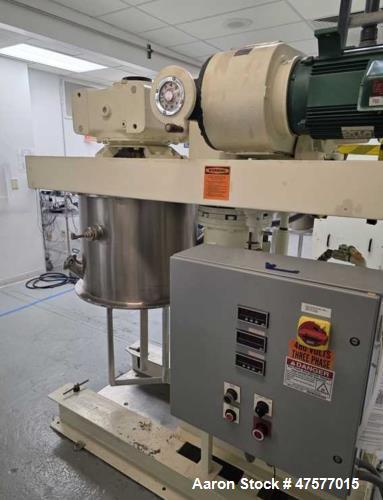

The Used Ross HDM-40 Double Planetary Mixer is a heavy-duty vacuum processing system designed for 5 to 40-gallon working capacities. Engineered for mixing high-viscosity materials under full vacuum (29-1/2" Hg), this mixer is ideal for applications requiring thorough blending, deaeration, and precise batch control.

The mixer features an air-over-oil hydraulic lift system that raises and lowers the drive assembly and mixing blades for easy vessel loading, unloading, and cleaning. All product contact surfaces are fabricated from 316 stainless steel with a 150-grit sanitary finish, while exterior stainless steel surfaces feature an 80-grit finish. Carbon steel components are protected with a durable two-component epoxy coating for long service life.

Power is provided by a 15 HP mechanical variable-speed drive (horsepower to be confirmed), allowing operators to adjust mixing speeds for a variety of products and viscosities. The mixer is equipped with standard rectangular-profile planetary mixing blades and includes a 480-volt control panel.

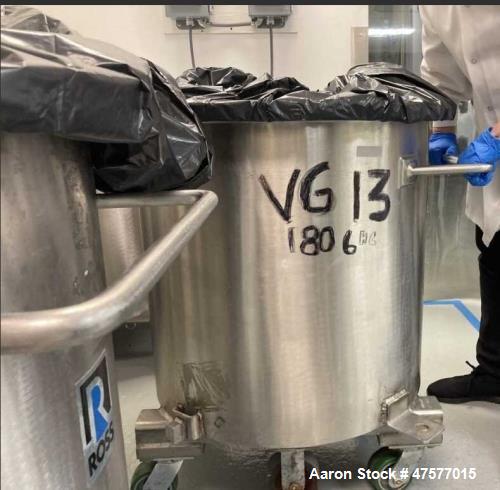

The vacuum hood includes a 2-inch sight port, vacuum exhaust connection, integrated light fixture, and an additional 80-watt, 120-volt explosion-proof light for improved process visibility. Included is one 316 stainless steel non-jacketed mixing can, internally machined for compatibility with a discharge press and fitted with a 4-inch Tri-Clover® flush plug bottom outlet. The vessel is mounted on casters with a push/pull handle for easy movement.

Previously used in the manufacture of oral care products, this Ross HDM-40 is well suited for sanitary production environments requiring reliable vacuum mixing performance.

Specifications

Applications

This Ross mixer is commonly used for:

• Toothpaste manufacturing
• Oral care product production
• Cosmetic cream mixing
• Pharmaceutical compounding
• Ointment production
• Adhesive manufacturing
• Sealant processing
• Silicone blending
• Specialty chemical mixing
• Ink manufacturing
• Polymer blending
• High-viscosity product processing

Common Products Mixed

• Toothpaste
• Oral gels
• Cosmetic creams
• Lotions
• Ointments
• Adhesives
• Sealants
• Silicone compounds
• Resins
• Epoxies
• Specialty chemical formulations
• High-viscosity pastes

Features & Benefits

• 5 to 40-gallon working capacity
• Designed for full vacuum mixing (29-1/2 in. Hg)
• Air-over-oil hydraulic lift system
• 316 stainless steel product contact surfaces
• Sanitary 150-grit internal finish
• Mechanical variable-speed drive
• Standard rectangular-profile planetary blades
• Includes non-jacketed 316 stainless steel mix can
• 4-inch Tri-Clover® flush plug bottom outlet
• Vacuum hood with sight port and explosion-proof lighting
• Includes 480V control panel
• Previously used in sanitary oral care production

Frequently Asked Questions

What is the working capacity of this mixer?

The Ross HDM-40 has a working capacity of 5 to 40 gallons, making it suitable for pilot-scale and production batch processing.

Can the mixer operate under vacuum?

Yes. The mixer is designed to operate under full vacuum (29-1/2 inches of mercury) for effective deaeration and high-quality mixing of viscous products.

What materials are in contact with the product?

All product contact components, including the mixing can and agitators, are constructed of 316 stainless steel with a 150-grit sanitary finish.

Is a mixing vessel included?

Yes. The mixer includes one non-jacketed 316 stainless steel mixing can with a 4-inch Tri-Clover® flush plug bottom outlet, mounted on casters with a push/pull handle.

What industries is this mixer suitable for?

This mixer is ideal for pharmaceutical, cosmetic, oral care, adhesive, sealant, specialty chemical, and other sanitary processing applications requiring vacuum mixing.
