Stock No.: 51909006

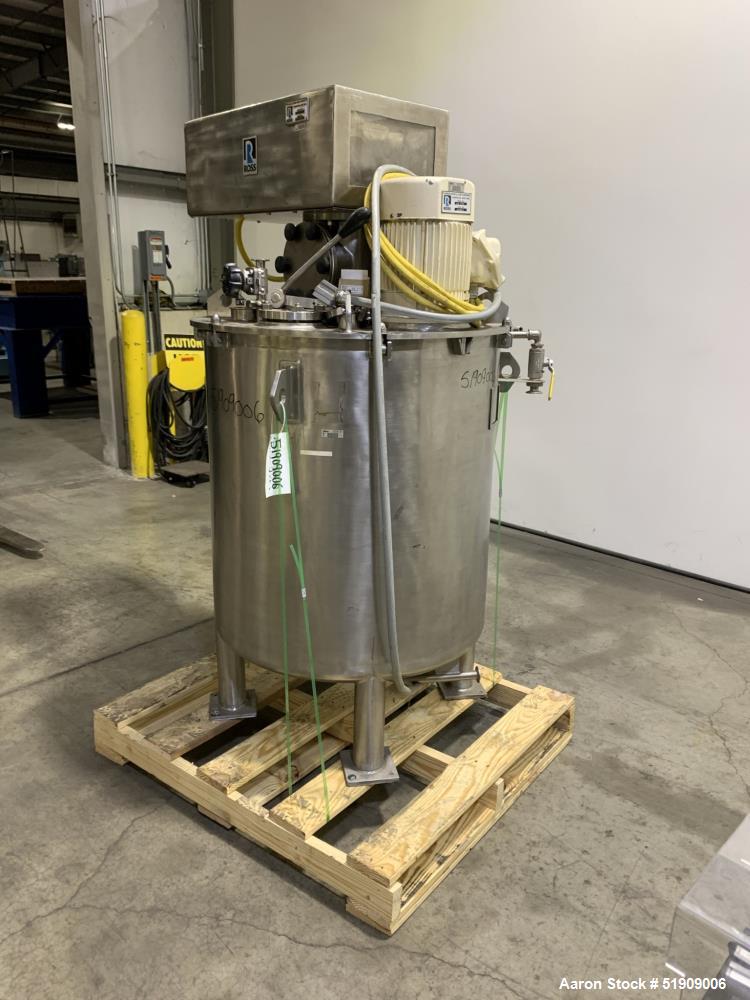

Used Ross Planetary Mixer – 400L, 316L SS, Jacketed with Dual Agitation & Emulsifier

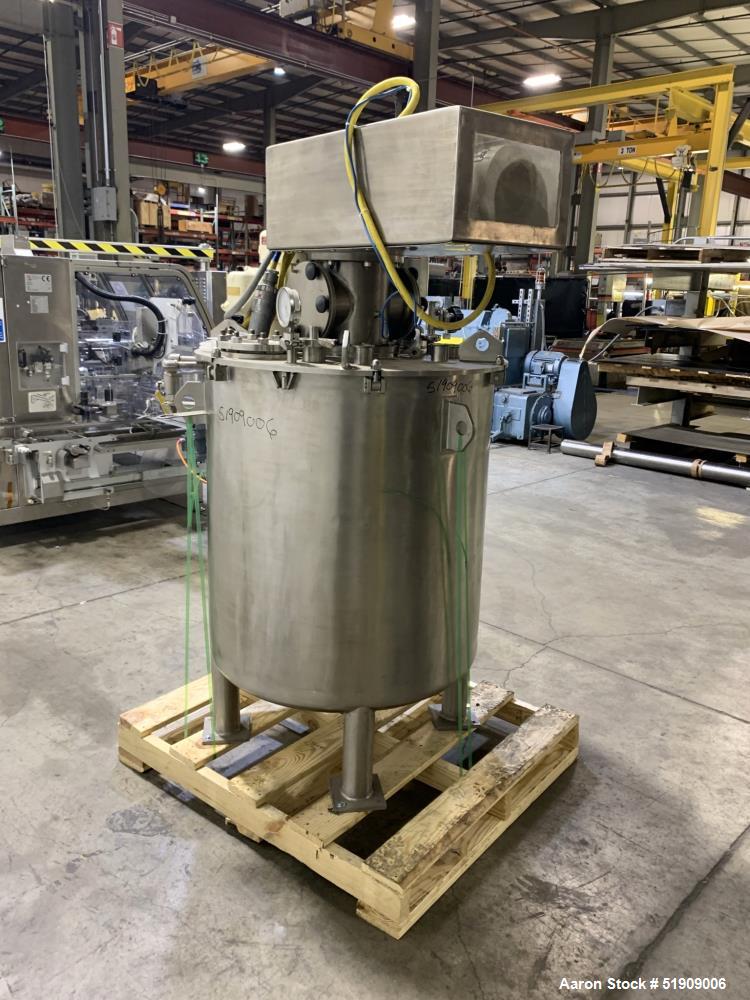

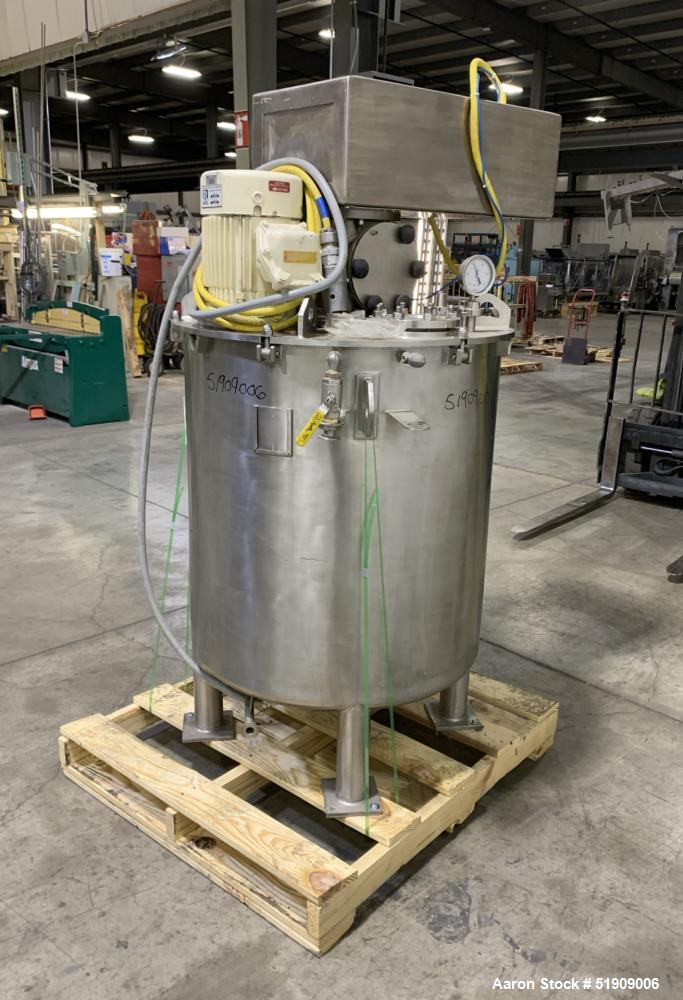

Used- Ross Planetary Mixer, Model: 400 liter vessel, 316L Stainless Steel. 400L (105 Gal) working capacity. Approximately 32" diameter x 35" straight side. Flat top, dished bottom. Internal design pressure rated 5 psi at 77 degrees F. Jacket rated 10 psi at 77 degrees F. Top off center entering emulsifier, driven by a 5hp, 3/60/208-230/460 volt, 3480 rpm motor. Top center agitator with (2) 3 blade propeller, driven by a 2hp, 3/60/208-230/460 volt, 1730 rpm motor thru reducer 46.65:1. Opening Top: 7" for agitator, 5", 4-3/4", 3-1/2" with sight glass, 3", (2) 2-1/2", (2) 2", 1", 1-1/2" for agitator, approximately 1" center bottom outlet. Includes spray ball. Mounted on (4) legs. Serial# SF-509A.
-
ManufacturerRoss Industries
-
Model400
-
Serial #609A
-
CategoryMixers
-
SubcategoryPlanetary Mixer
Used equipment facts about this machine
Manufacturer Information
Manufacturer Details
-
Manufacturer: Charles Ross & Son Company
-
Model: Planetary Mixer – 400 Liter
-

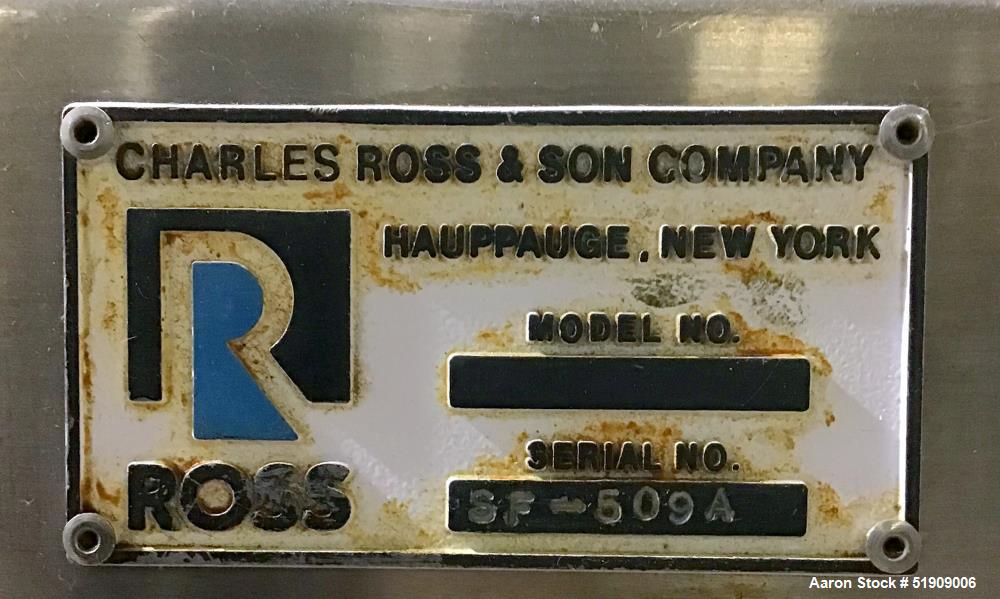

Serial Number: SF-509A
-
Material of Construction: 316L Stainless Steel (sanitary-grade)
Product Details
-
Working Capacity: 400 Liters (approx. 105 Gallons)
-
Vessel Dimensions: ~32" diameter x 35" straight side
-
Vessel Design:
-
Flat top
-

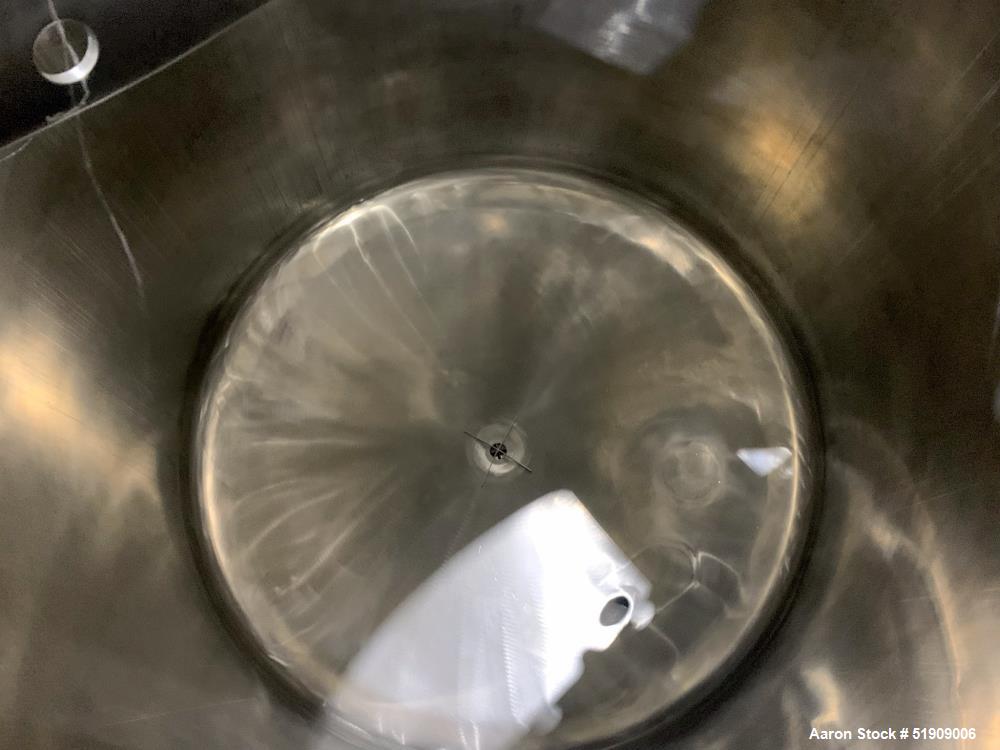

Dished bottom
-
Mounted on four legs
-
-
Pressure Ratings:
-
Internal vessel: 5 PSI @ 77°F
-
Jacket: 10 PSI @ 77°F
-
-
Agitation System:
-

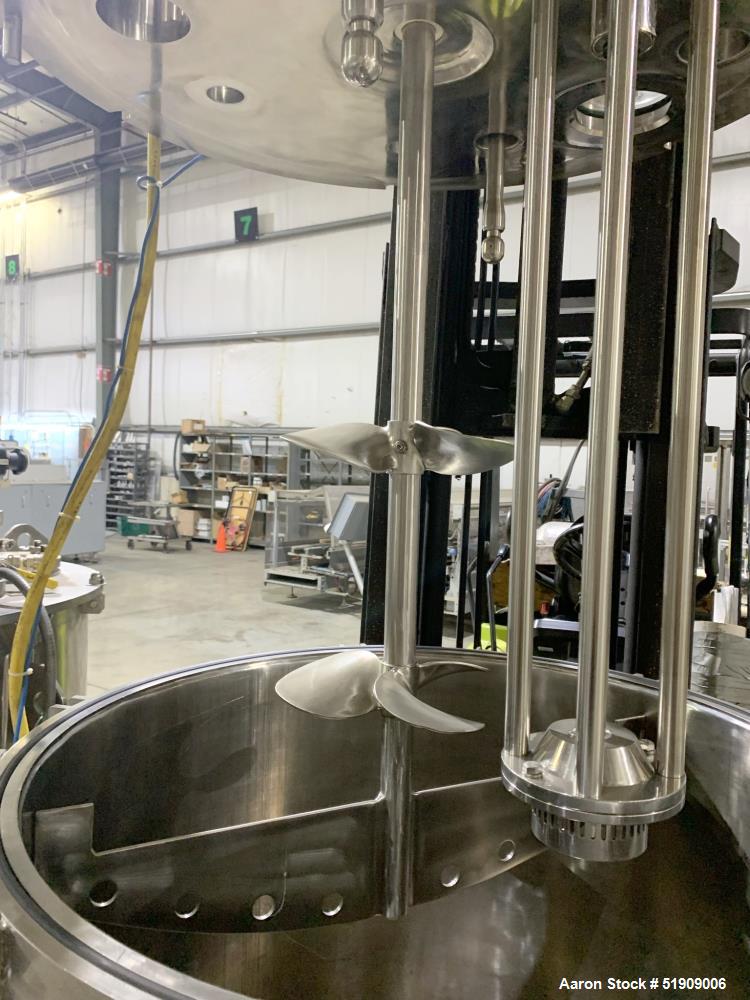

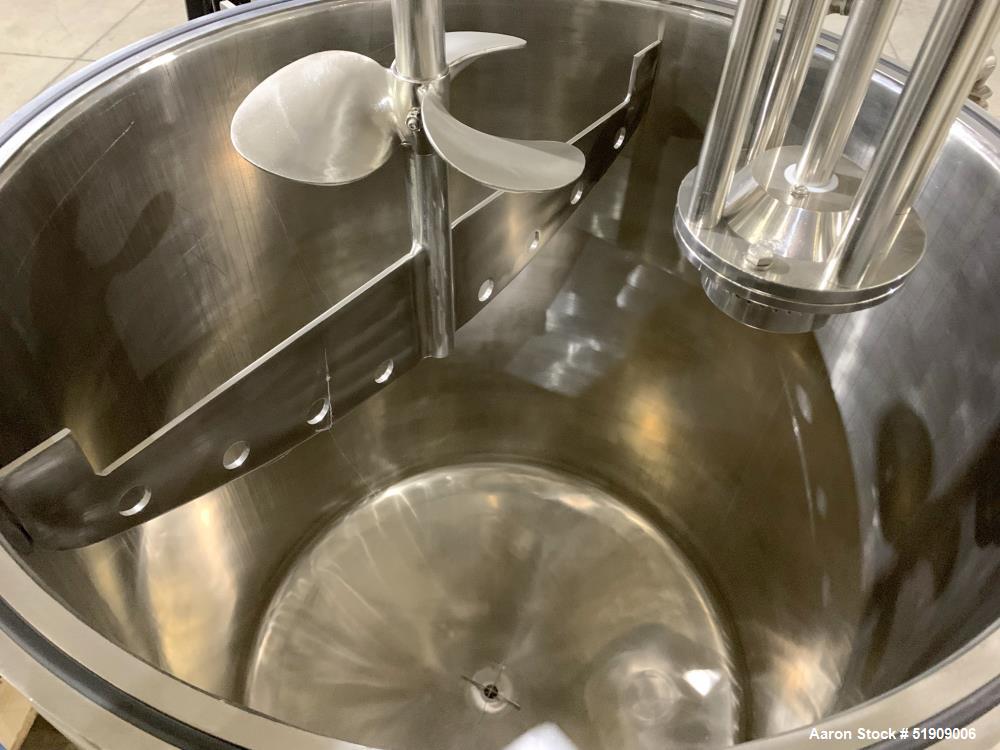

Top Center Agitator:
-
(2) 3-blade propellers
-

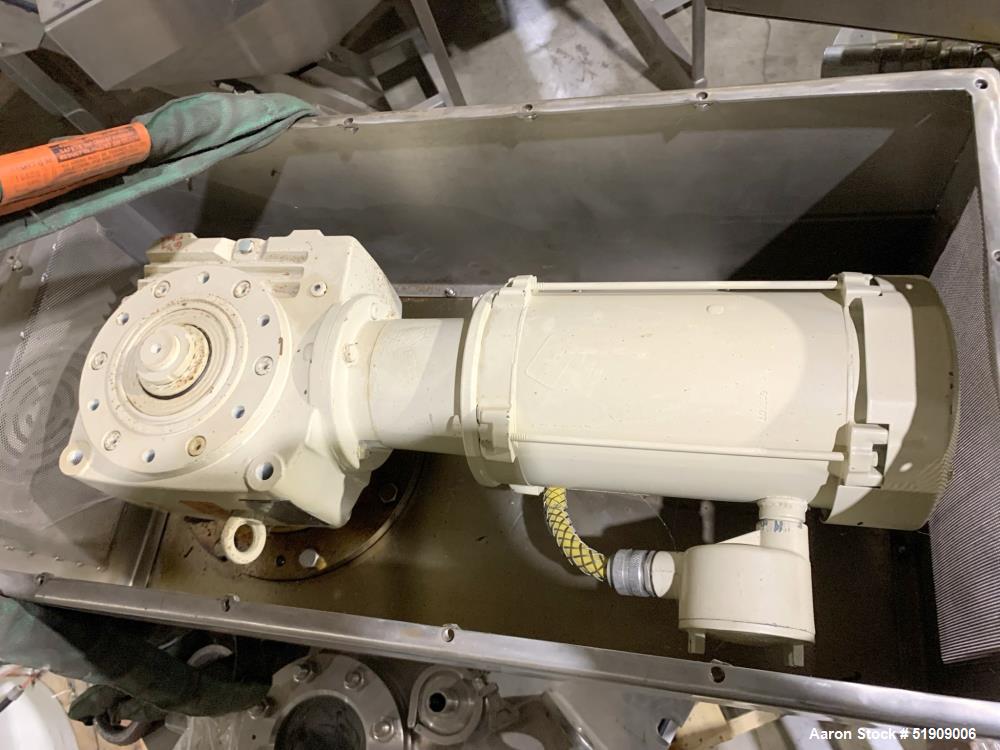

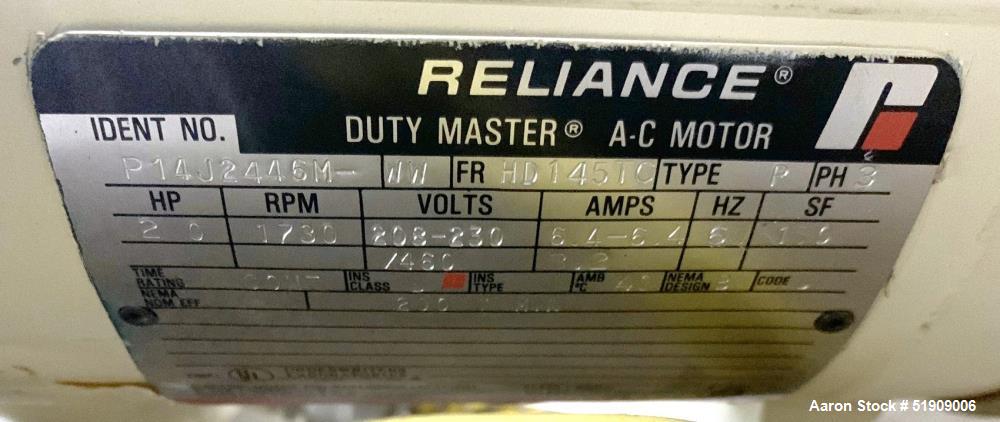

2 HP motor, 3/60/208-230/460V, 1730 RPM
-

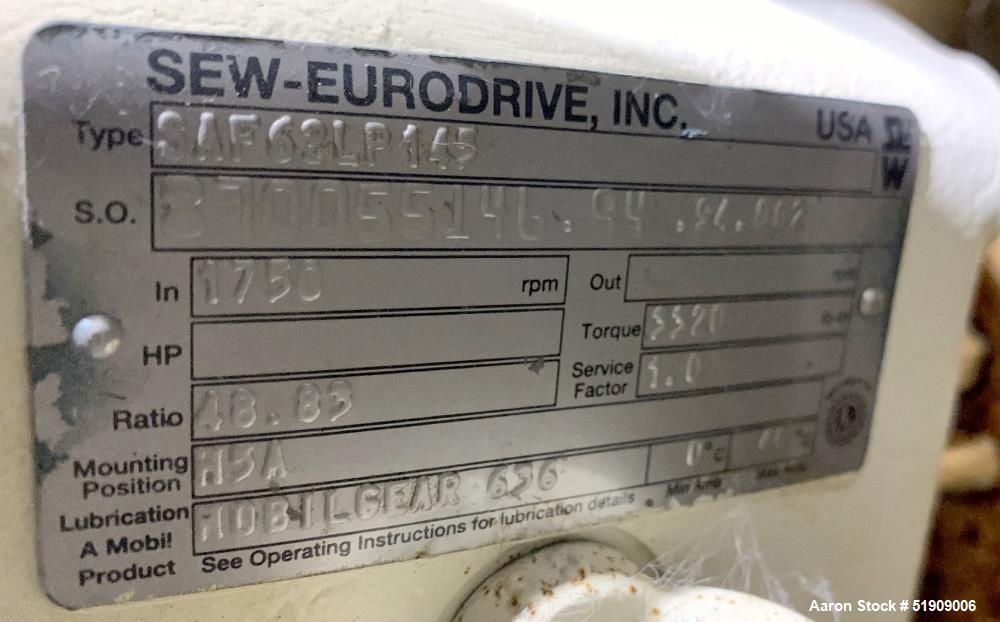

Gear Reducer: 46.65:1
-
-

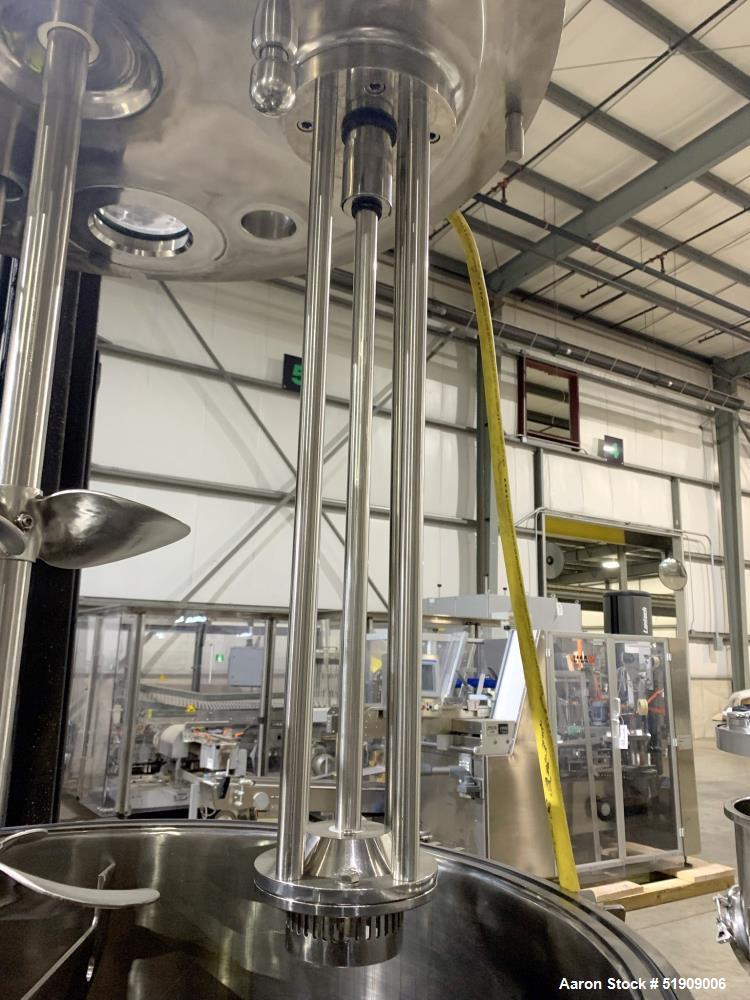

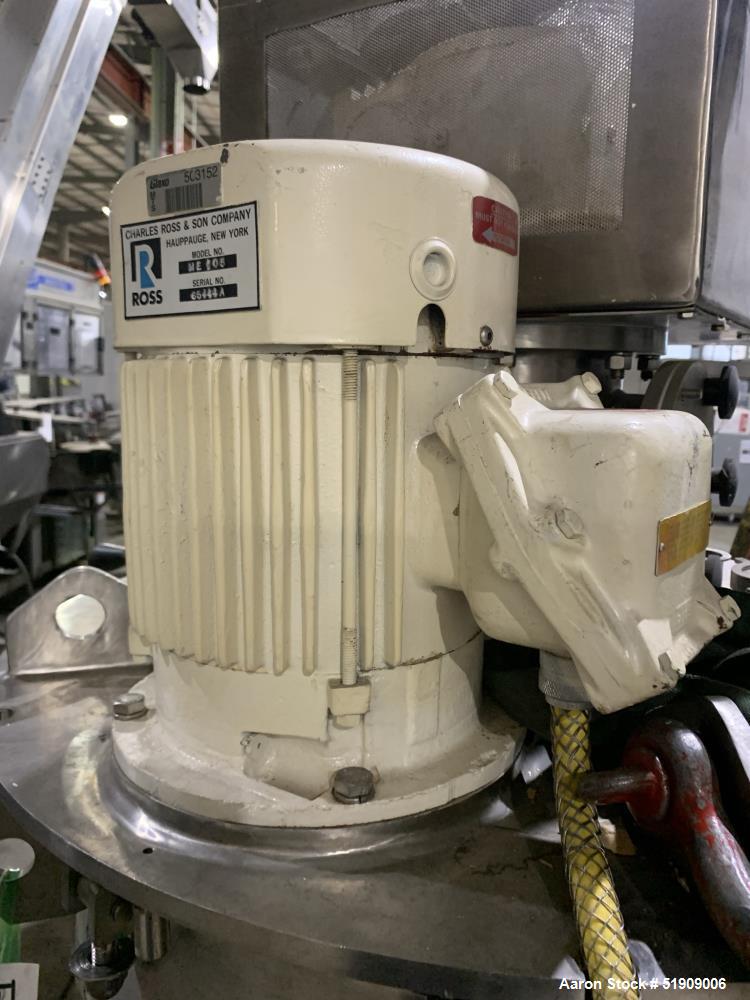

Top Off-Center Emulsifier:
-

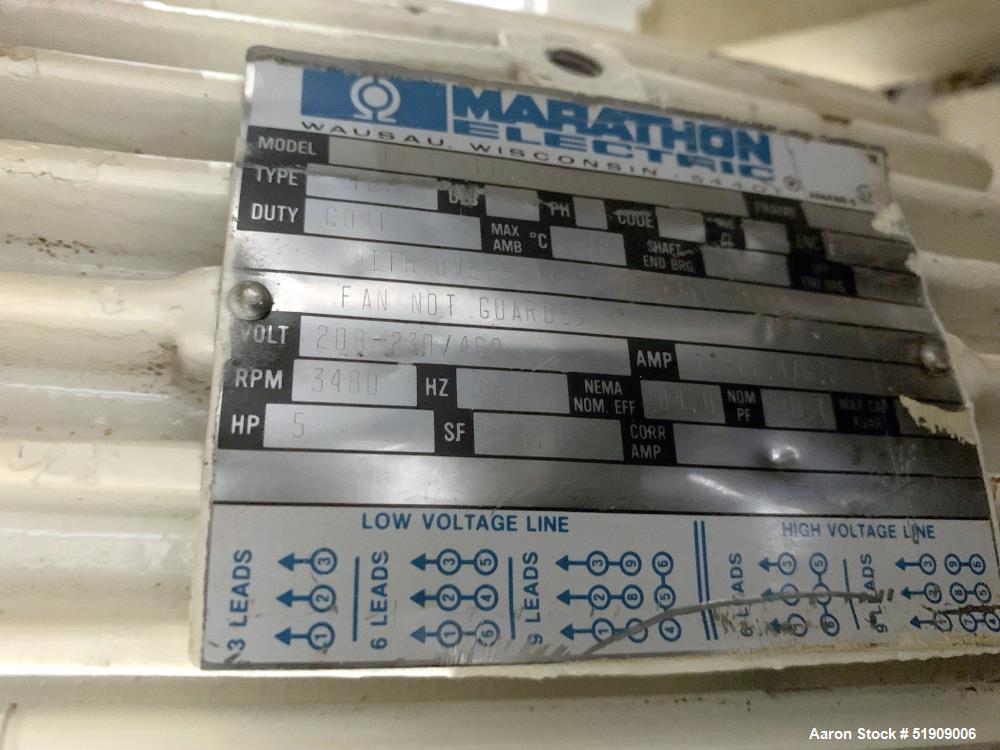

Driven by 5 HP motor, 3/60/208-230/460V, 3480 RPM
-
-
-

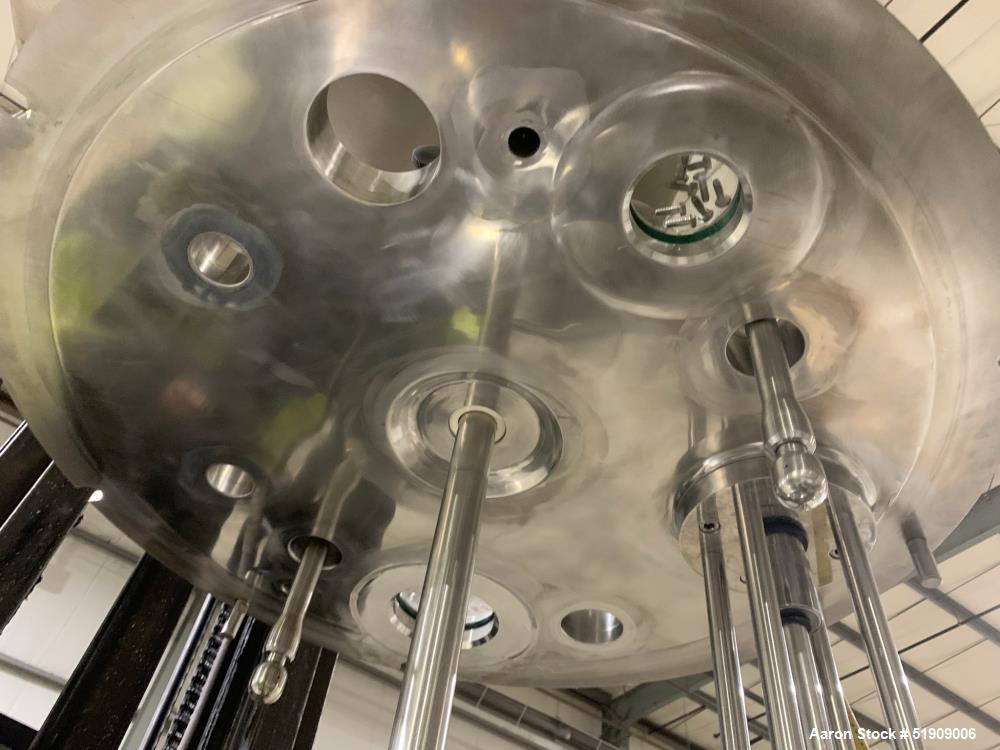

Vessel Ports (Top):
-
7" (agitator)
-
5", 4-3/4", 3-1/2" w/ sight glass
-
3", (2) 2-1/2", (2) 2", 1", 1-1/2"
-
-

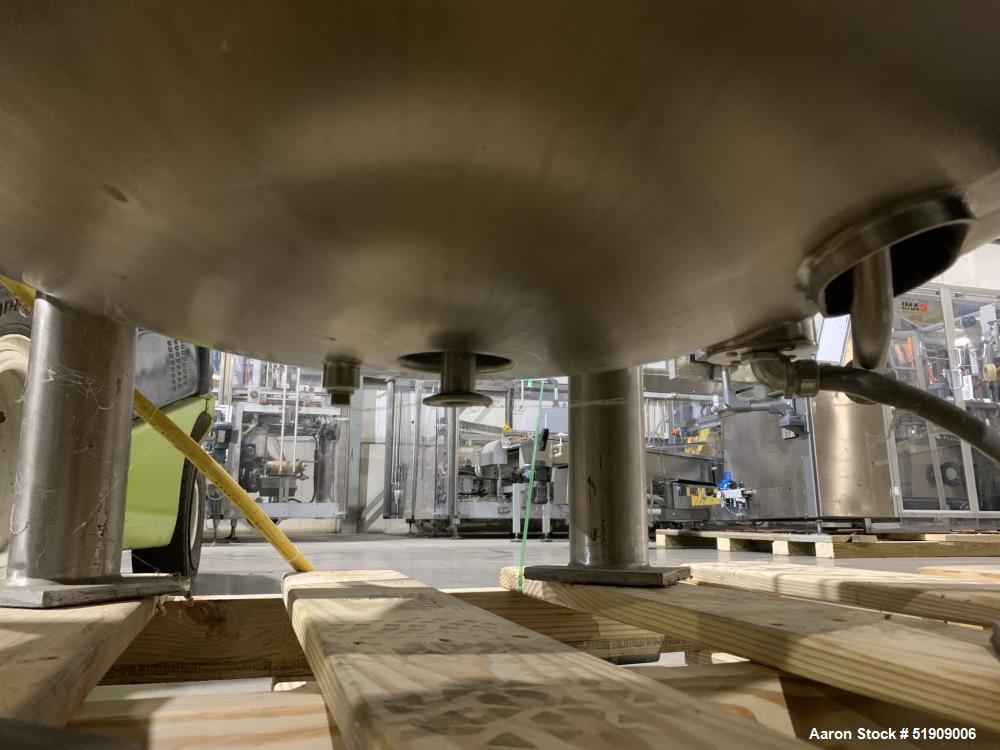

Bottom Outlet: Approx. 1" center discharge
-
Features:
-
Spray ball for CIP (clean-in-place)
-
Sanitary fittings and polished internal surfaces
-
Heavy-duty build for high-viscosity mixing
-
What This Product Might Be Good For
-
Production of creams, gels, pastes, and emulsions
-
Pharmaceutical and cosmetic manufacturing
-
Mixing under pressure or gentle vacuum
-
Incorporating shear-sensitive or viscous materials
-
Emulsifying, dispersing, or blending thick compounds
-
Batch processing in regulated or cleanroom environments
-
Specialty chemical formulation
-
Nutraceutical or skincare product production
-
Medium-scale commercial mixing operations
-
Sanitary, CIP-ready mixing system
