Stock No.: 10128082

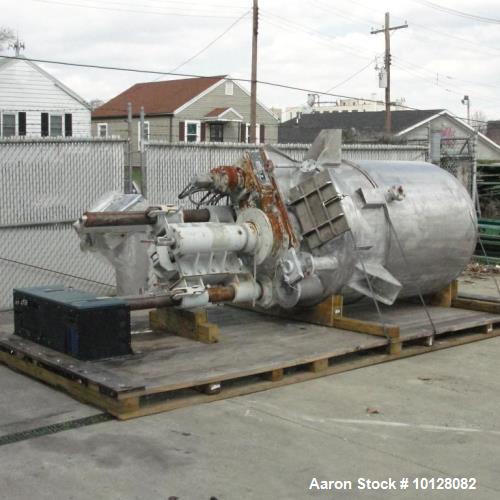

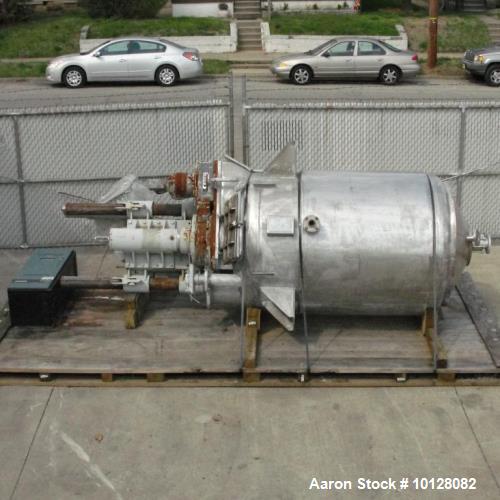

Used Bühler 1500 liter (400 gallon) Stainless Steel Vacuum Mixer

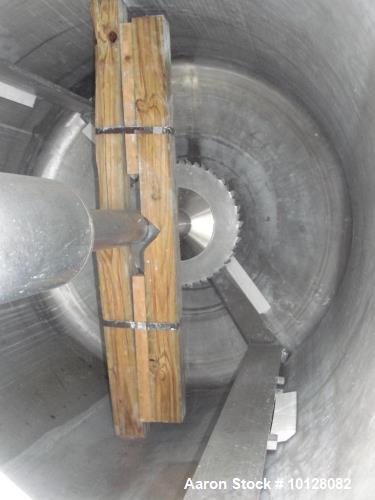

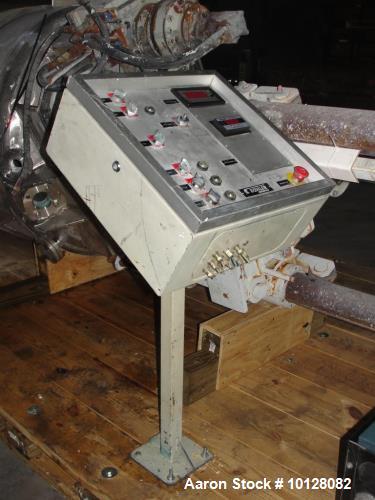

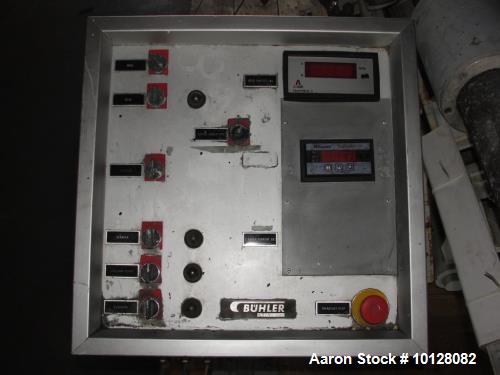

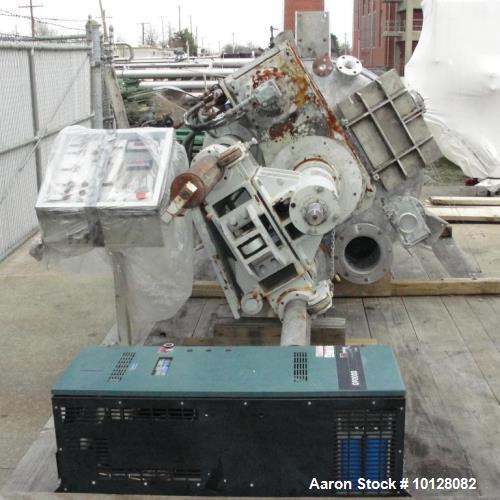

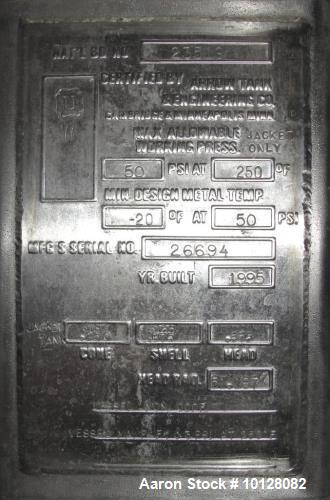

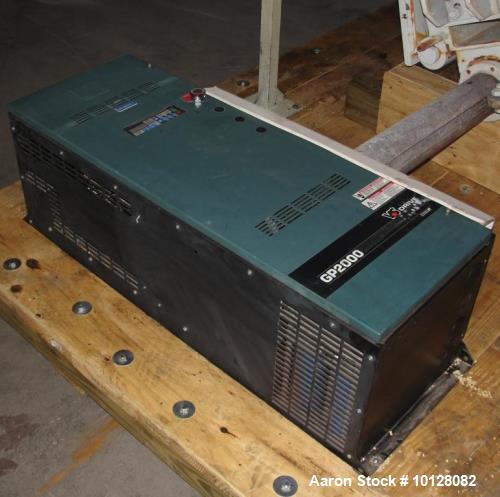

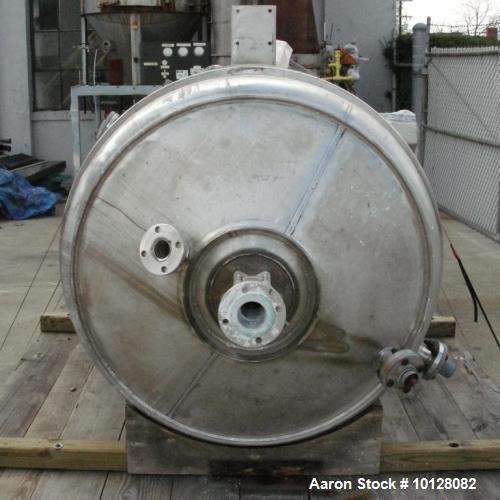

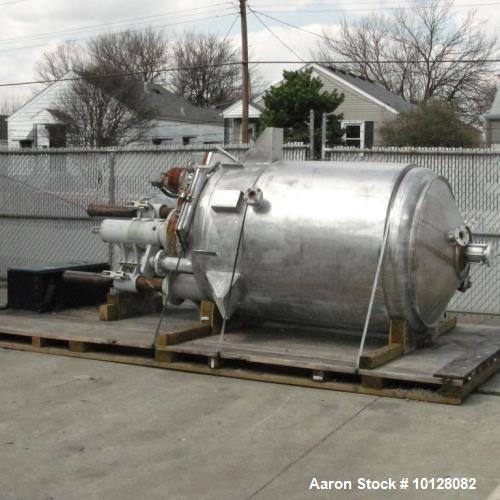

Used- Buhler 1500 liter (400 gallon) Stainless Steel Vacuum Mixer. Vessel is rated for full vacuum & 3 psi at 250 F. The jacket is rated for 50 psi at250 F. The interior diameter is 51" with a 66" straight side height, 12" cone bottom and 10" dish top. The top has (3) 2" flanged fittings, (1) 1" flanged fitting, (1) 4" flanged fitting, (1) 8" flanged fitting and a 3" sight glass. The bottom as a 3" flanged center discharge connected to a ball valve. The jacket is fed by 2" flanged fittings. The scrape agitation is power by a hydraulic motor. The high speed disperser blade is driven by an electric motor that is missing. The 12" disperser blade has a 19" adjustment in depth using a hydraulic lift system. The vacuum processing kettle comes with a control panel and a Reliance Electric GP2000 VS Drive model 2GU41100, variable speed, constant torque, AC controller for a 100 hp motor. The unit was mounted on a mezzanine with three stainless steel mounting lugs. The overall dimensions are 160" tall x 54". Good Condition. Built 1995.
-
ManufacturerBuhler Inc.
-
CategoryMixers
-
SubcategoryPlanetary Mixer
Product Details
- Used Buhler 1500-Liter Stainless Steel Vacuum Mixer for Sale
- Industrial Jacketed Mixing Vessel with Vacuum & Disperser
- High-Capacity Vacuum Processing Kettle for Food & Pharma
- 400-Gallon Stainless Steel Mixer with Hydraulic Lift & Scraper
- Used Industrial Mixer with Full Vacuum & Temperature Control
- Variable Speed Drive Vacuum Mixer for Chemical & Cosmetic Processing
- Stainless Steel Jacketed Kettle with Sight Glass & Multiple Fittings
- Used Buhler Processing Equipment for Viscous & Powder-Based Products
- Used Buhler 1500-liter vacuum mixer with jacketed vessel for sale
- Best industrial vacuum mixing system for pharmaceutical and food applications
- High-performance stainless steel mixer with hydraulic-powered scrape agitation
- Used 400-gallon vacuum kettle with high-speed disperser and AC drive
- Industrial vacuum processing system with full jacketed heating capabilities
- Best-used vacuum mixer for cosmetics, pharmaceuticals, and specialty chemicals
- Large-capacity stainless steel mixing vessel with hydraulic lift system
- Used vacuum mixer with tri-clamp fittings, sight glass, and flanged discharge
- Where to buy a used Buhler 1500-liter stainless steel vacuum mixer for industrial processing
- Best industrial vacuum mixer with jacketed vessel for food, pharmaceutical, and cosmetic production
- Used jacketed vacuum mixing system with hydraulic scraper agitation for high-viscosity products
- High-capacity stainless steel mixing kettle with temperature-controlled jacket and vacuum rating
- Best-used processing vessel for emulsions, creams, and adhesives in food and chemical industries
- Large-scale vacuum mixer with Reliance Electric GP2000 VS Drive for speed and torque control
- Used stainless steel mixer for paints, coatings, and high-viscosity industrial formulations
- Best vacuum processing kettle with disperser blade and pneumatic discharge for bulk processing
