Used Winkworth ZX500-6 Z-Blade Mixer/Extruder | 500L Working | Vacuum Lid | Jacketed | 304 SS | With Tool Temp Units

🏭 Manufacturer Information

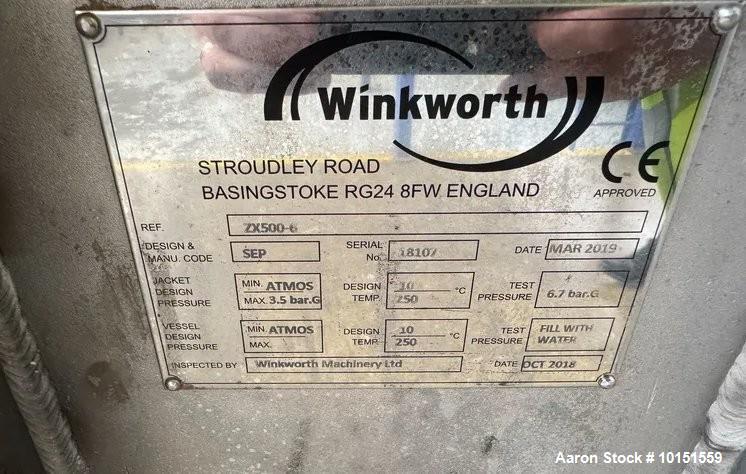

Brand: Winkworth

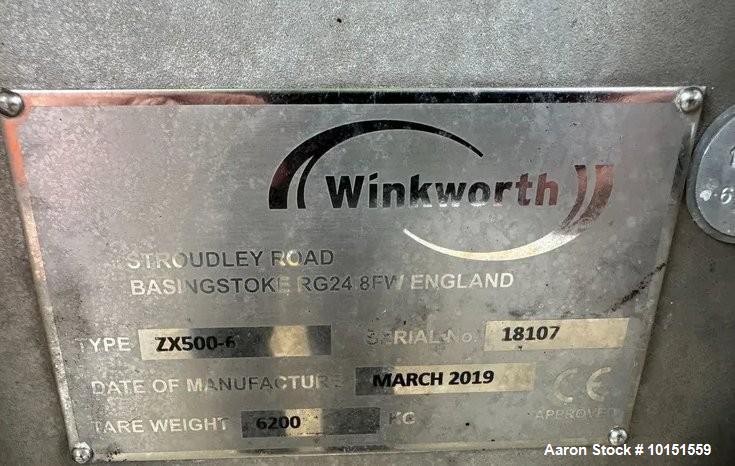

Model: ZX500-6
Type: Z-Blade Mixer/Extruder
Condition: Used
Chamber Material: 304 Stainless Steel

📦 Product Description

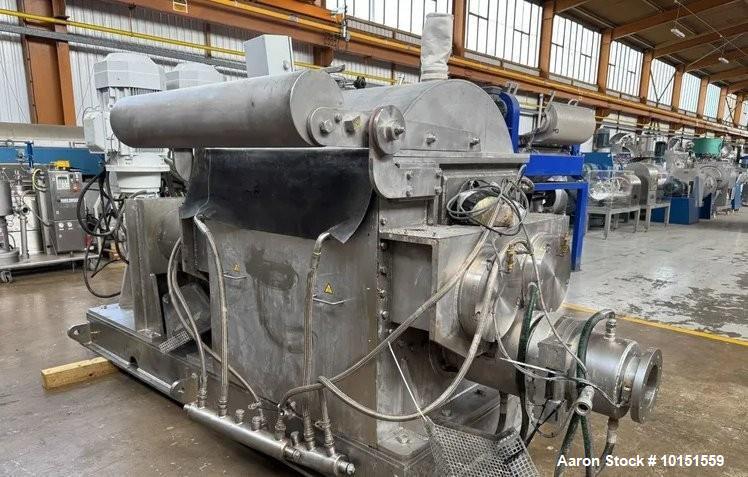

This Used Winkworth ZX500-6 Z-Blade Mixer/Extruder is a robust, high-torque processing system designed for mixing, kneading, and extrusion of highly viscous or cohesive materials. Built with a working capacity of approximately 500 liters and a total volume of 778 liters, the chamber is constructed from 304 stainless steel and measures 1,090mm (L) x 956mm (W) x 735mm (D).

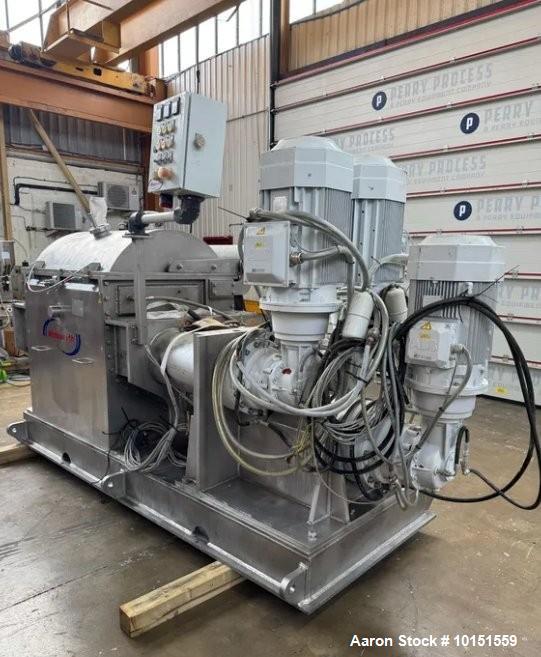

It features a vacuum-rated domed hood, jacketed chamber for thermal regulation, and dual 30 kW Z-blade drives. A stainless steel screw discharge system, powered by a 22 kW motor/gearbox, allows for efficient unloading.

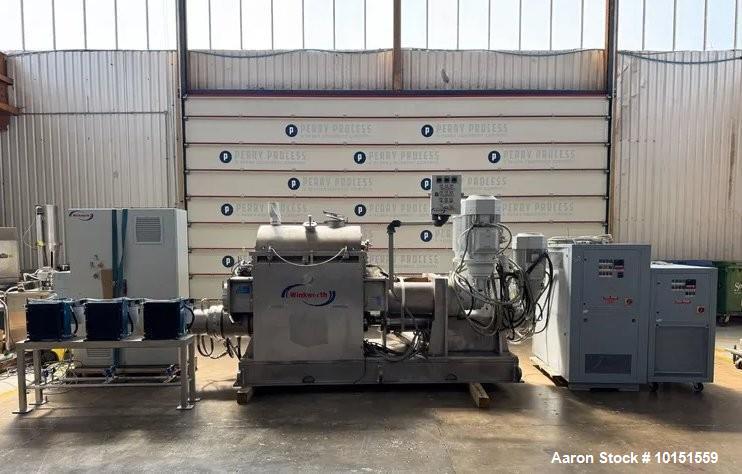

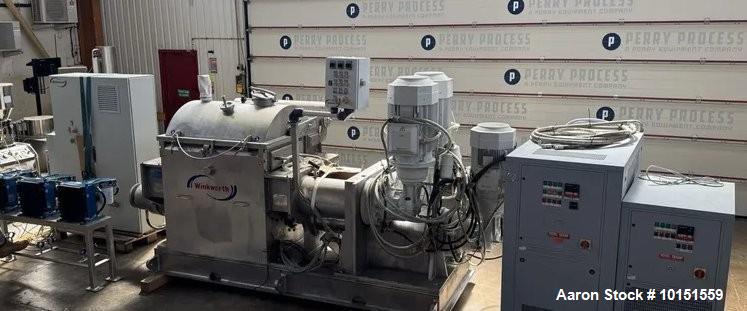

Included with the system are a Tool Temp TT-14500 H and a Tool Temp TT-508 X heating/cooling unit, plus (3) Hydac oil coolers mounted on a shared frame. The system is equipped with a main control panel and local operator interface, offering fully integrated process control.

⚙️ Technical Specifications

• Model: ZX500-6

• Working Capacity: Approx. 500 liters

• Total Capacity: 778 liters (product-dependent)

• Chamber Dimensions: 1,090mm (L) x 956mm (W) x 735mm (D)

• Material: 304 stainless steel (chamber & jacket)

• Jacketed: Yes – 304 SS external jacket for heating/cooling

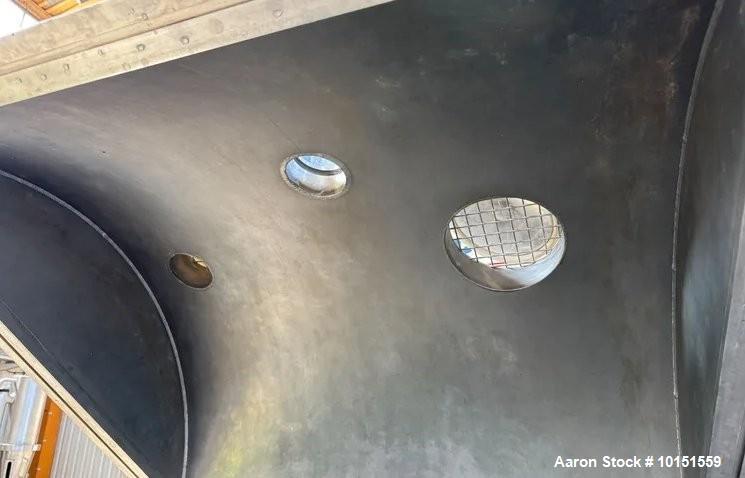

• Hood: Vacuum-rated domed lid

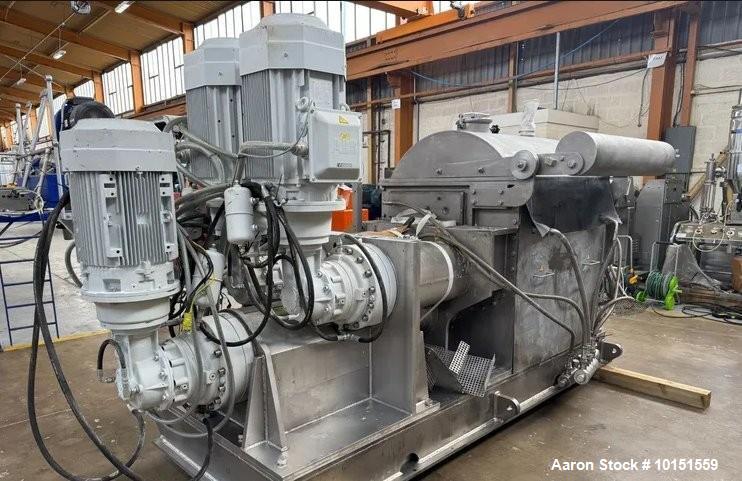

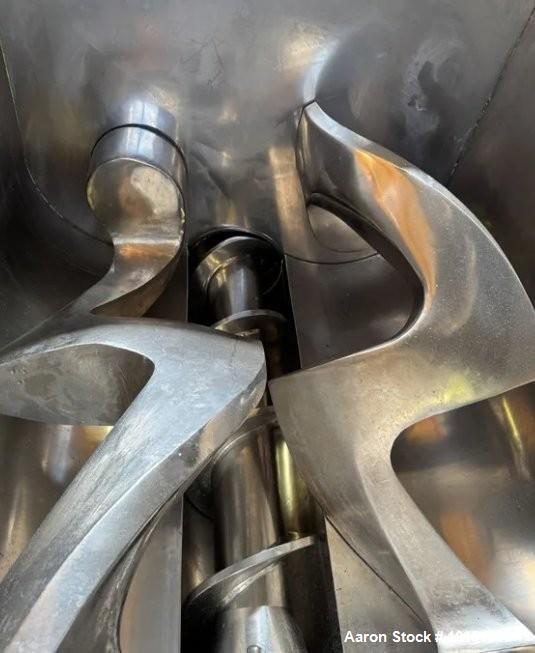

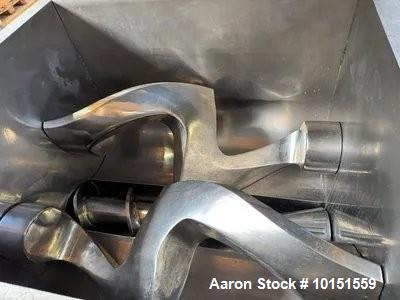

• Z-Blade Drive: Dual 30 kW motors with gearboxes

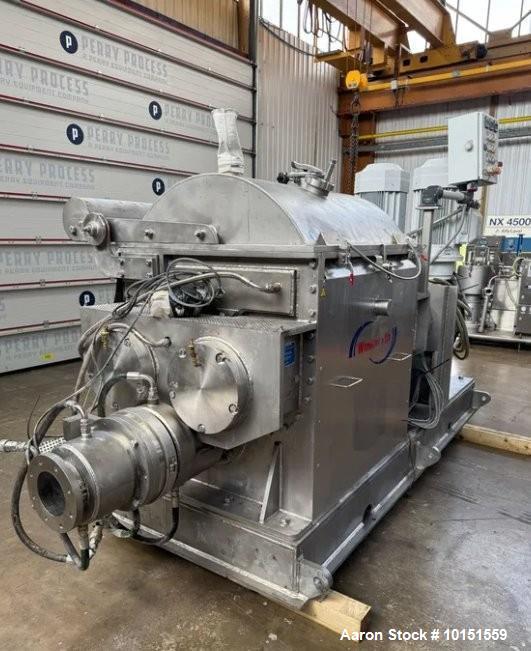

• Screw Discharge Drive: 22 kW motor with gearbox

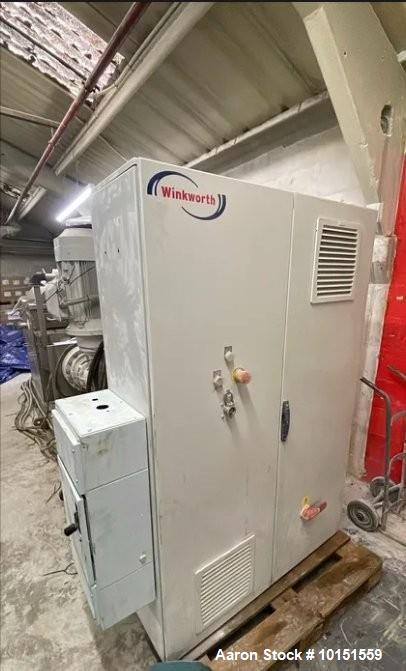

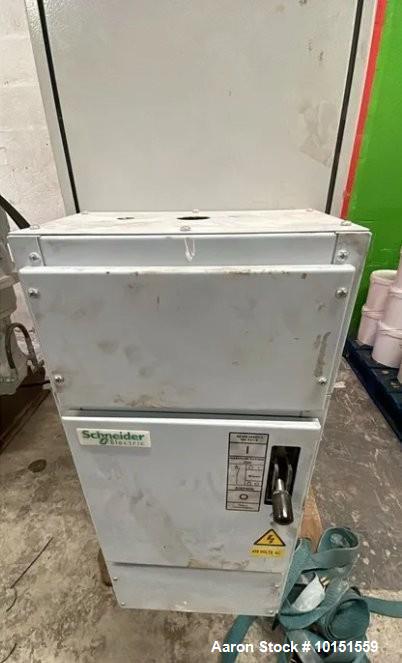

• Control System: Main control panel + local operator controls

• Heating/Cooling Units Included:

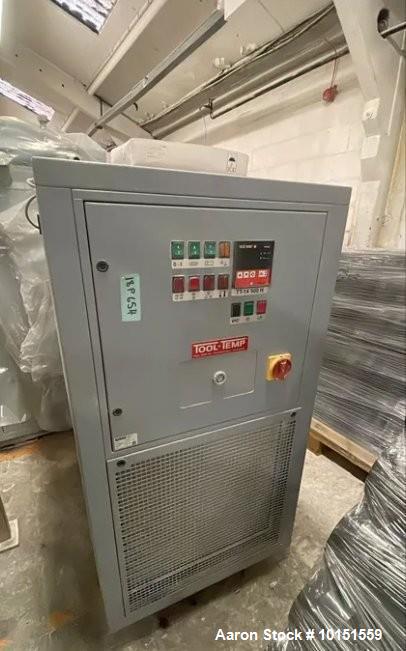

  • (1) Tool Temp TT-14500 H

  • (1) Tool Temp TT-508 X

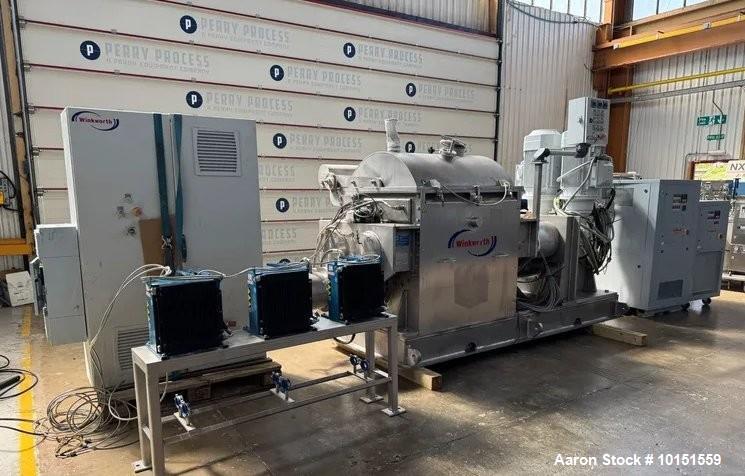

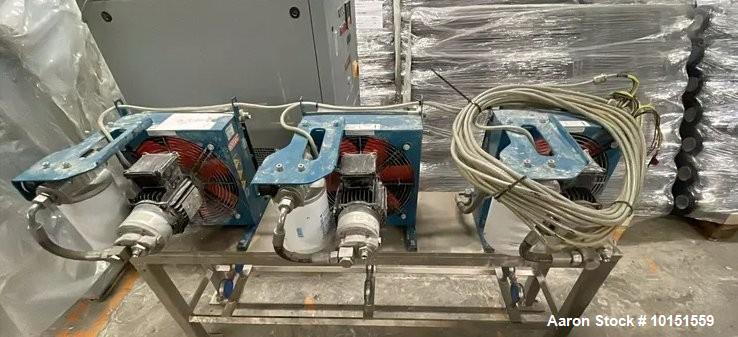

  • (3) Hydac oil coolers (mounted on common frame)

🔧 Applications

Ideal for high-viscosity, cohesive, or shear-sensitive materials across industries such as:

• Rubber and silicone compounding

• Adhesives and sealant production

• Plasticine and modeling compounds

• Battery and conductive pastes

• High-solid food products (e.g. doughs, confections)

• Resin and epoxy preparation

• Pigment and ink formulations

• Ceramic and refractory masses

• Bitumen-based compounds

• Pharmaceutical wet granulation and matrix preps

📌 What Products Would This Be Used For?

• Silicone sealants

• Battery slurries

• Adhesive pastes

• Pigmented inks and coatings

• Clay-based or ceramic compounds

• Hot melt adhesive formulations

• Heavy confectionery doughs

• Rubber-based matrixes

• Composite resin prep materials

• Refractory batch materials
