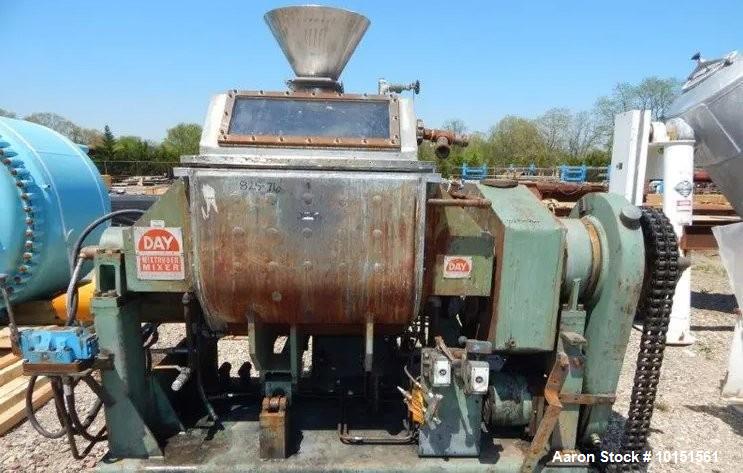

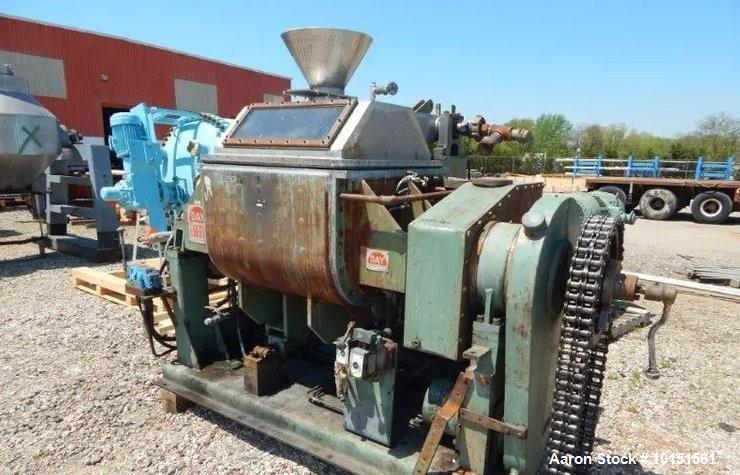

Used J.H. Day Stainless Steel Jacketed Mixtruder | 75 Gallon Working Capacity | 30+25 HP Hydraulics

Manufacturer Information

Brand: J.H. Day
Model: Mixtruder

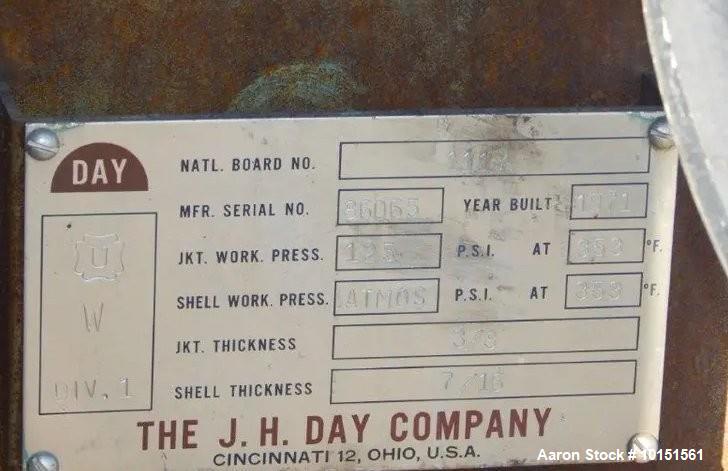

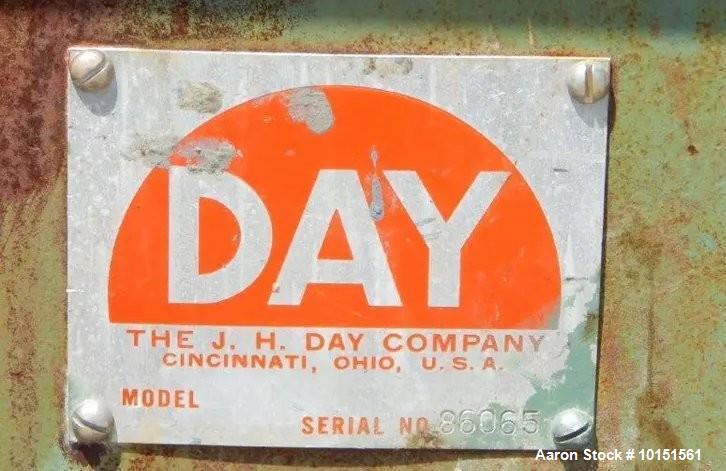

Serial #: 86065
National Board #: 1117
Year Built: 1971
Construction: Stainless Steel
Type: Jacketed Dispersion Mixer with Extruder Screw

Description

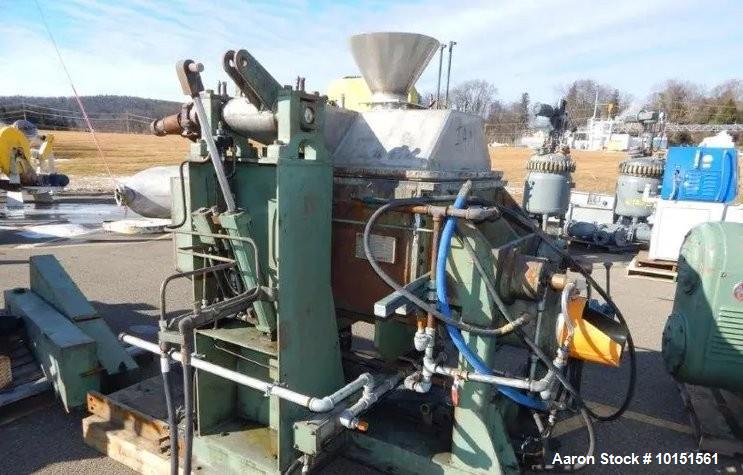

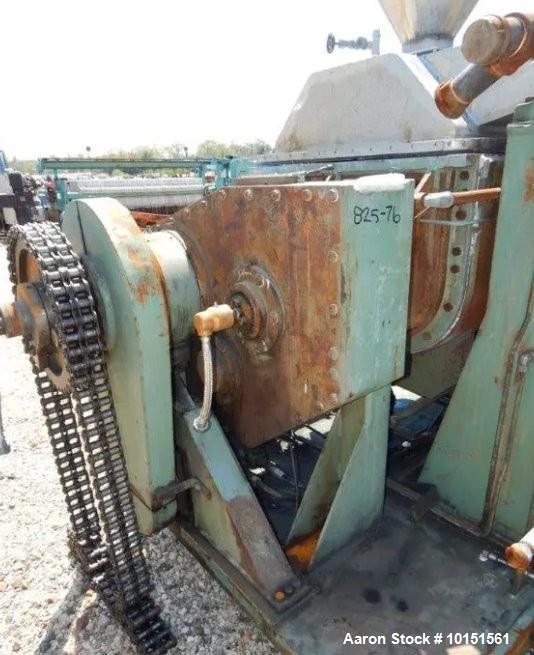

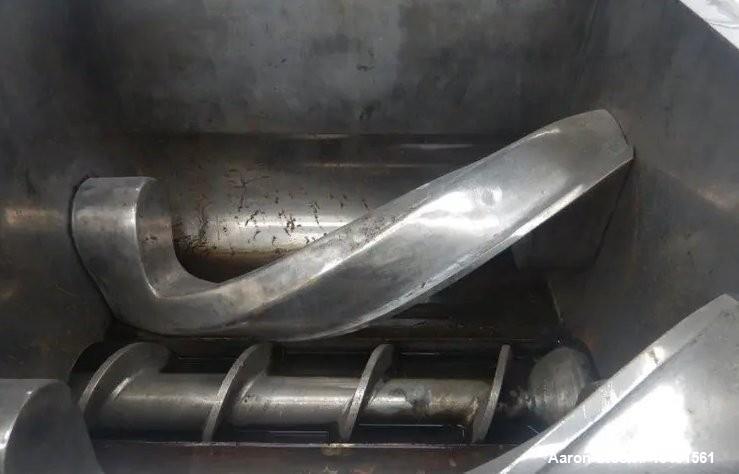

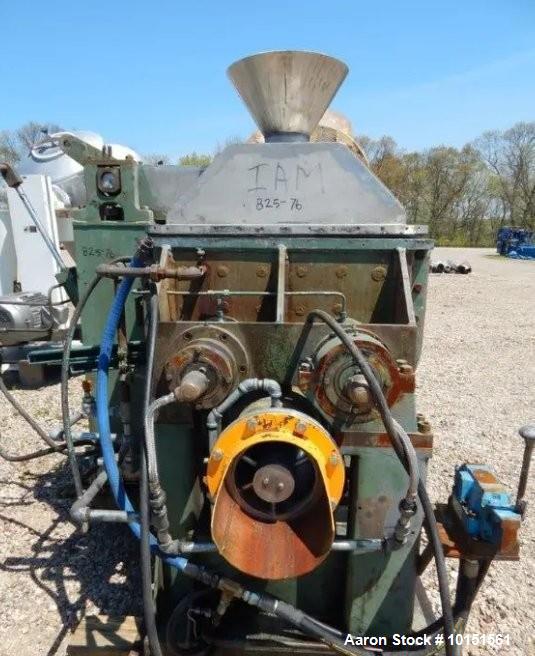

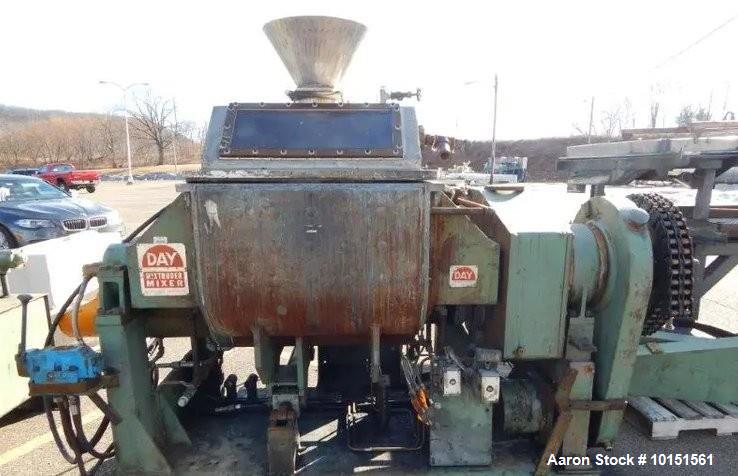

This Used J.H. Day Stainless Steel Mixtruder combines high-shear mixing and extrusion in a jacketed pressure-rated vessel for heavy-duty dispersion, kneading, and compounding processes. With an approximate 75-gallon working capacity (110-gallon total), it features dispersion blades, an 8" diameter extruder screw with hydraulic discharge, and full stainless steel construction. The system is equipped with a 30 HP Vickers hydraulic power pack (230/460V) for the extruder and tilt discharge, and a 25 HP US Varidrive motor driving the blades via chain and sprocket, producing an effective blade speed of 15–62.5 RPM.

The jacketed design supports up to 125 psi at 353°F, ideal for thermal control in high-viscosity mixing applications such as adhesives, plastisols, food, or chemical compounding.

Specifications

• Working Capacity: Approx. 75 gallons

• Total Capacity: Approx. 110 gallons

• Internal Pressure Rating: Atmospheric @ 353°F

• Shell Thickness: 7/16"

• Jacket Pressure Rating: 125 psi @ 353°F

• Jacket Thickness: 3/8"

• Mixer Dimensions: 32" x 32" x 25" (H)

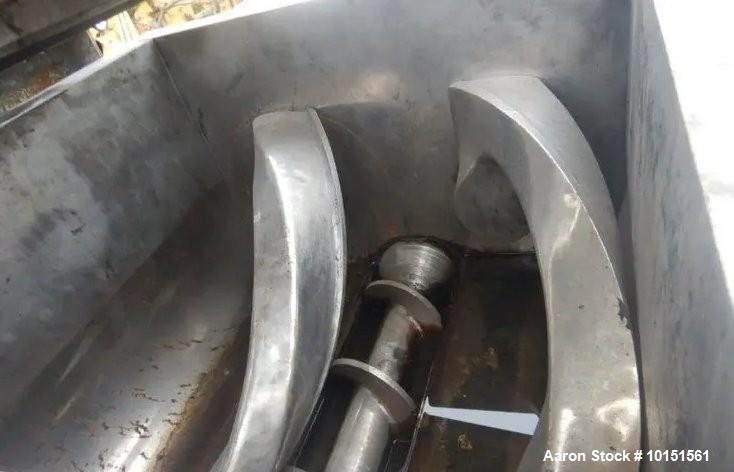

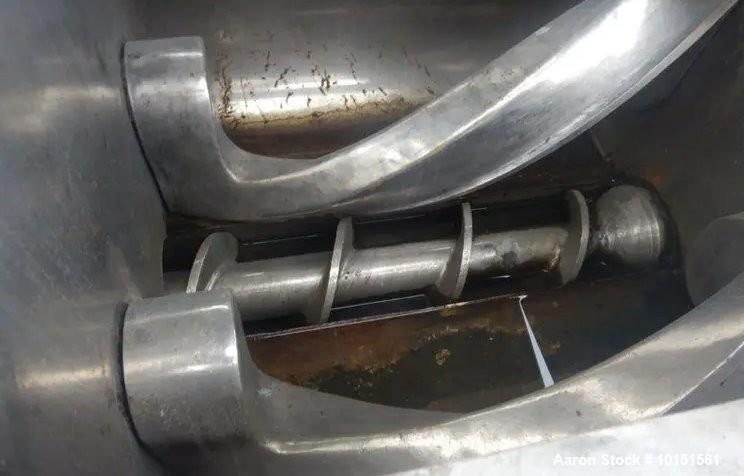

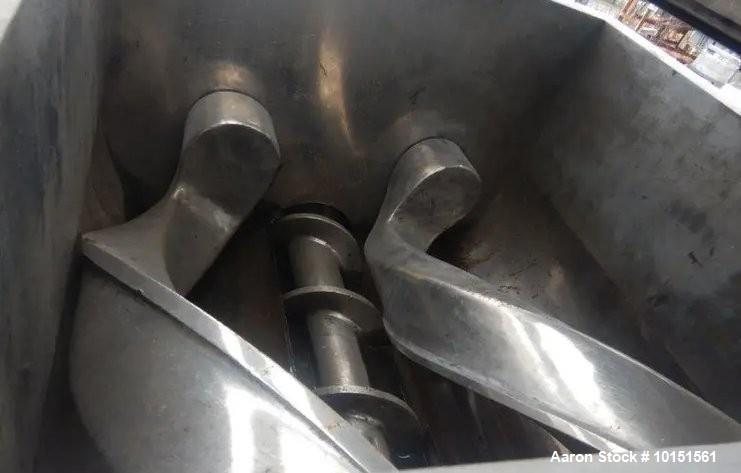

• Extruder Screw: 8" diameter, hydraulic drive

• Discharge Type: Hydraulic tilt and screw extrusion

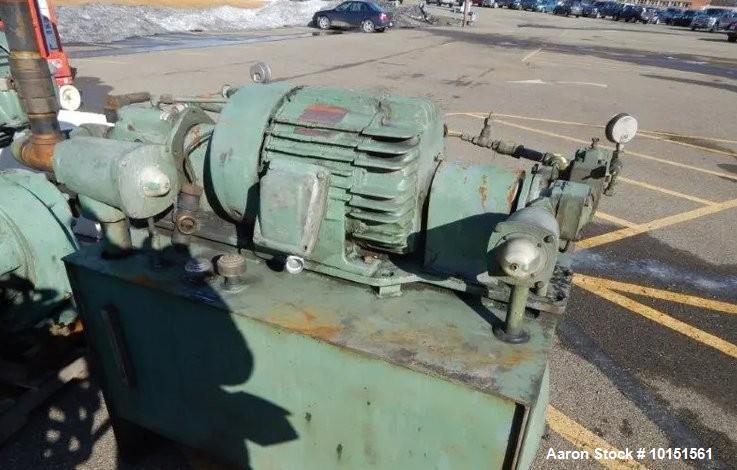

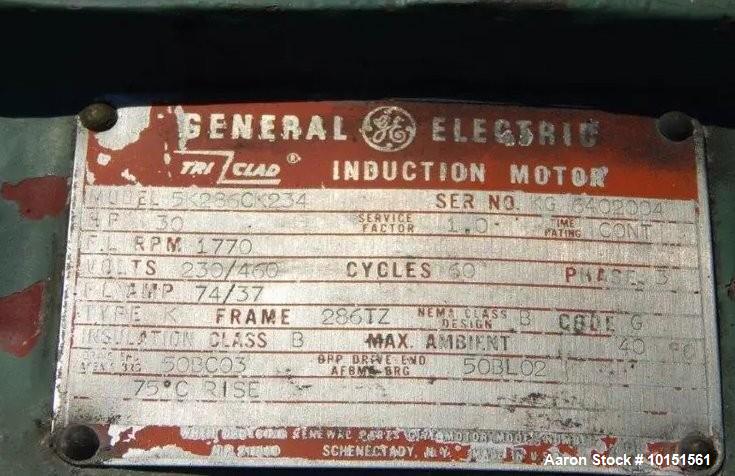

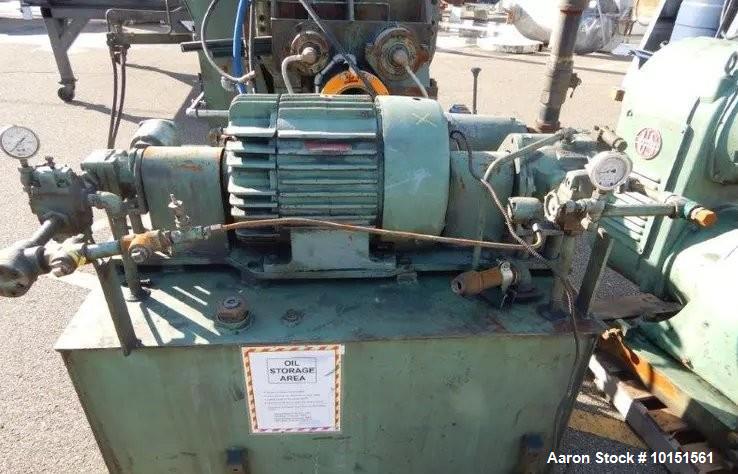

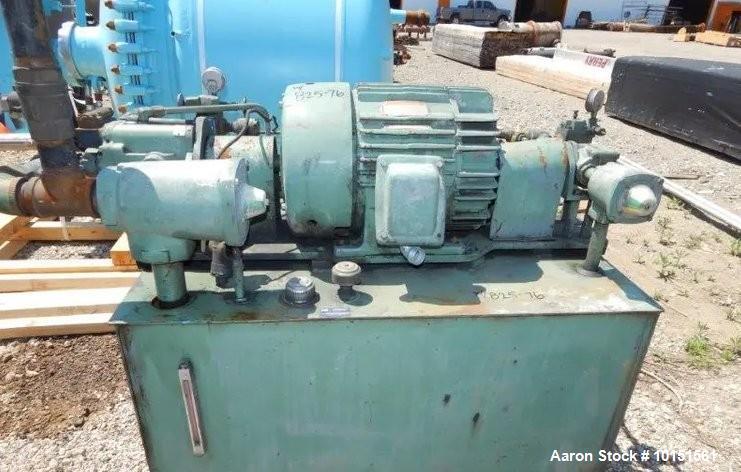

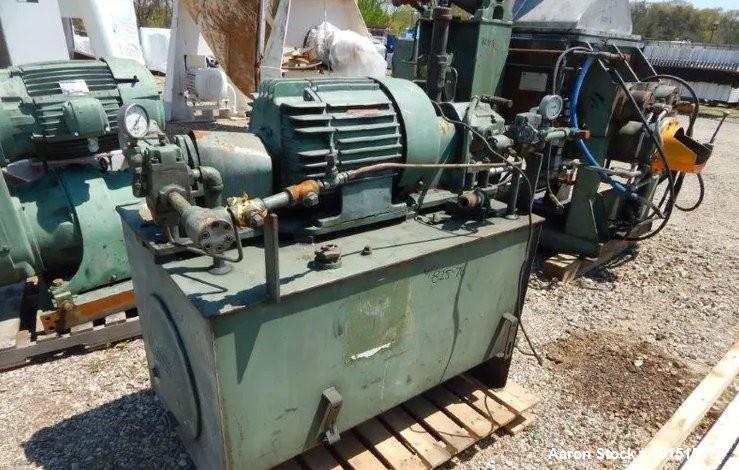

• Extruder Drive: 30 HP Vickers hydraulic system (230/460V)

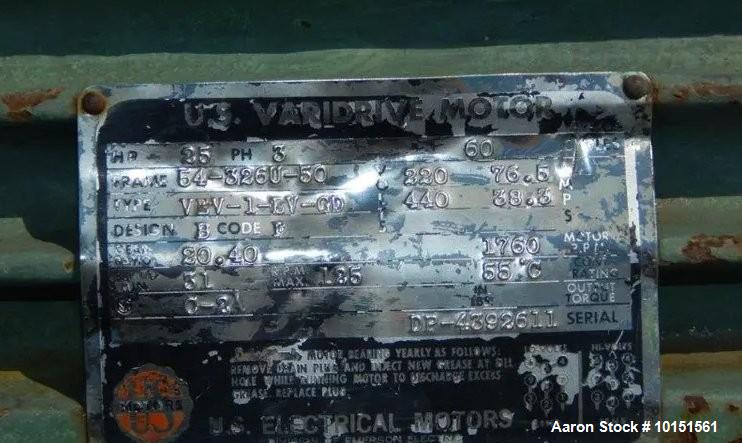

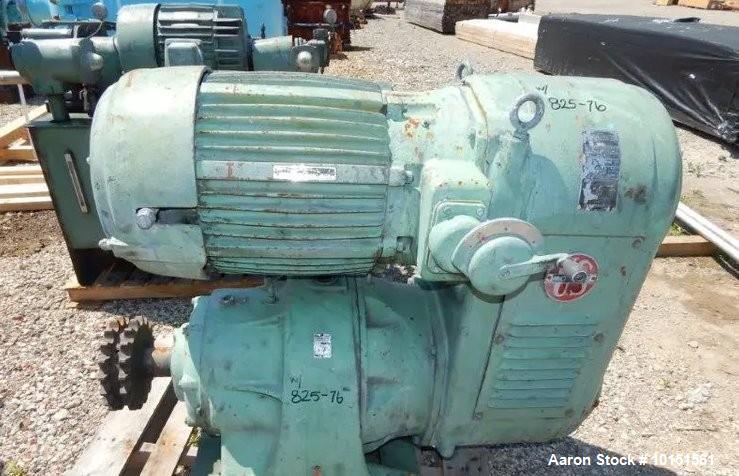

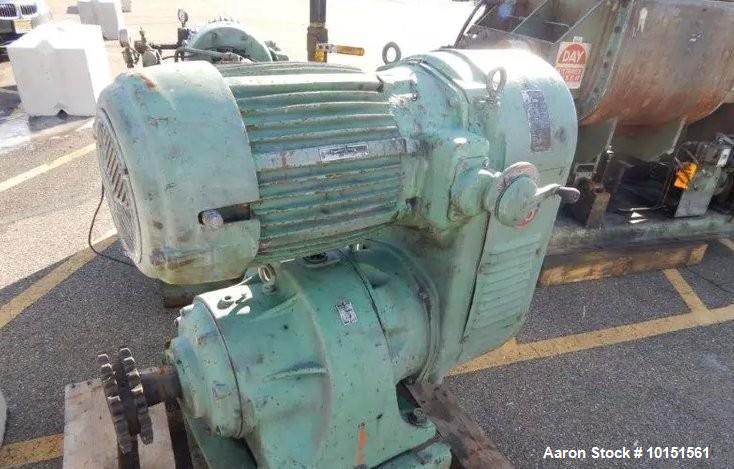

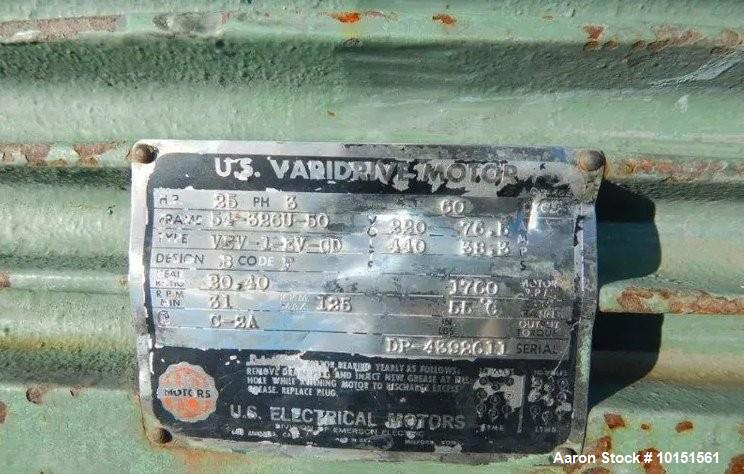

• Mixer Drive: 25 HP US Varidrive motor (220/440V)

• Blade Speed: 31–125 RPM input; 15–62.5 RPM output

• Construction: Stainless steel shell and components

• National Board #: 1117

• Serial #: 86065

What Might This Be Used For?

• Rubber, silicone, or elastomer mixing and extrusion

• Plastic compound dispersion

• Adhesive blending and extrusion

• High-viscosity slurry or paste mixing

• Food product formulation (e.g., dough, fillings, starch pastes)

• Battery electrode slurry mixing

• Industrial sealant and caulk production

• Ceramic or pigment compounding

• Chemical paste or putty processing

• Resins, inks, or plastisol preparation
