Ross 125 Gallon Agitated Mix Kettle - Stainless Steel, Double Motion Drive, Used

Manufacturer Information

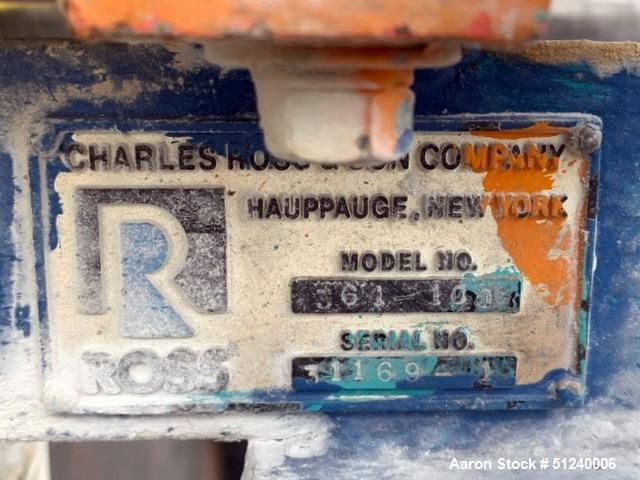

• Manufacturer: Ross
• Model: 361-100
• Material: Stainless Steel (Tank), Carbon Steel (Agitator Bridge & Legs)
• Condition: Used
• Serial Number: 51039041
• Meter Included: Series 800C Fill-Rite Meter

Description

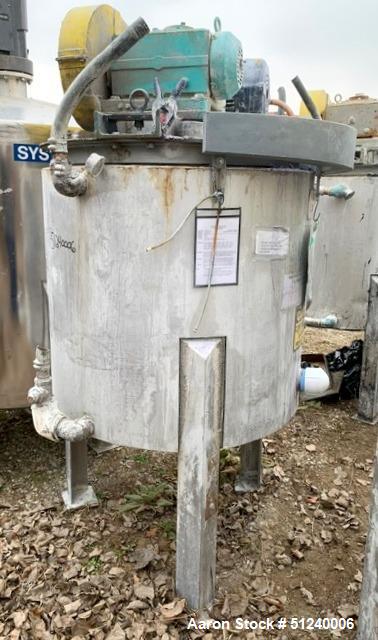

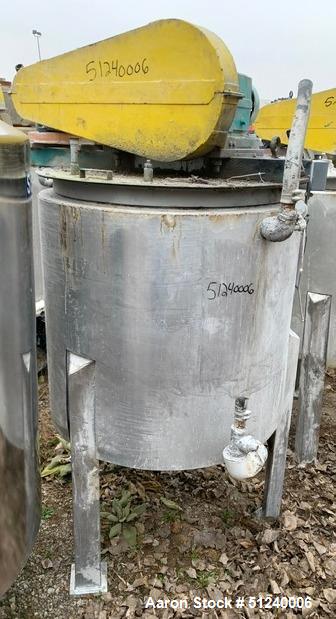

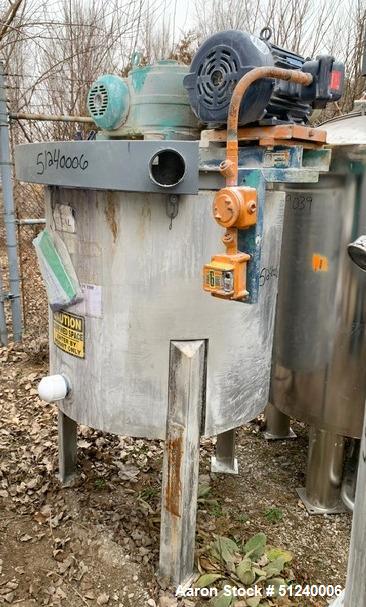

The Ross Model 361-100 125-Gallon Stainless Steel Mix Kettle is a high-performance industrial mixing vessel, designed for efficient blending, emulsification, and batch processing. This vertical mix kettle features a 35” diameter x 30” straight-side tank, with a flat top and bottom for durability and ease of operation.

Equipped with a bolt-on cover with a hinged access panel, this kettle allows for easy ingredient addition and monitoring. The jacketed design (no rating) supports temperature-controlled processing, making it ideal for heating or cooling applications.

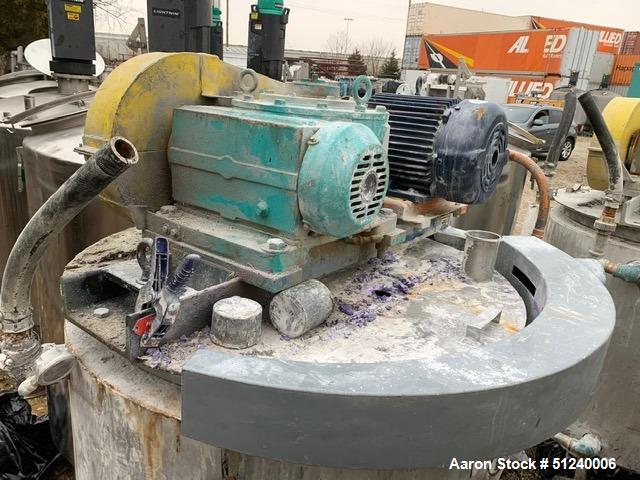

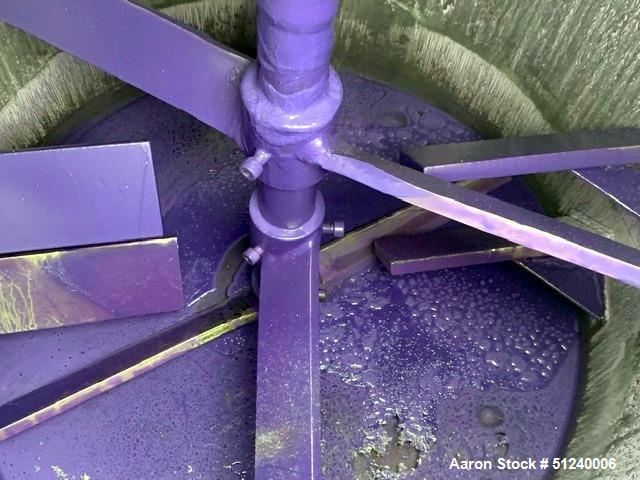

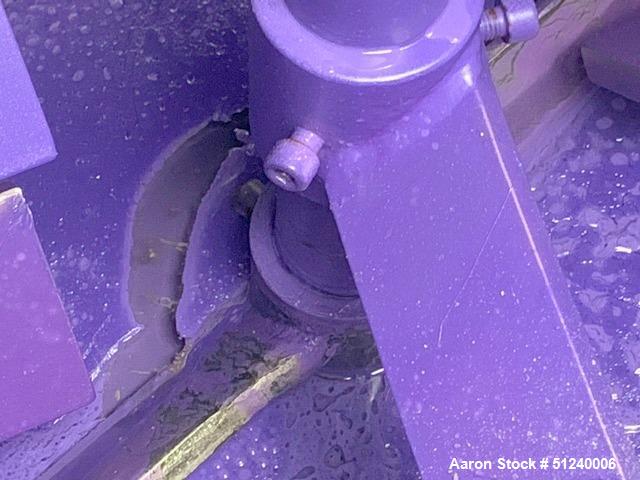

The carbon steel agitator bridge supports a top-mounted double motion drive system, which powers three-tier dual-blade impellers and four wall-mounted baffles for enhanced mixing efficiency and uniform consistency.

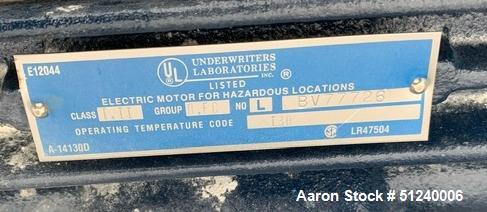

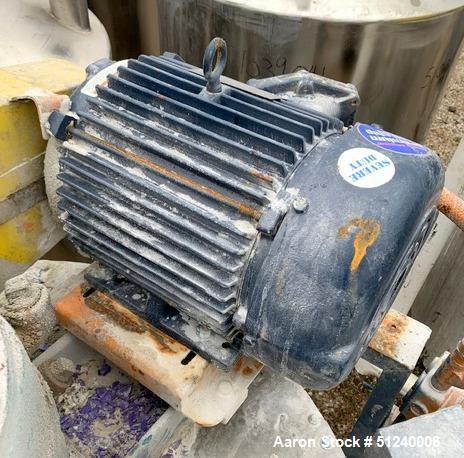

This unit is driven by a 10 HP / 7.5 HP belt-driven motor (3/50/60Hz, 208-230/460V or 190/380V, 1765/1470 RPM) through a 14-2/3:1 reducer, ensuring precise speed control and optimal torque delivery. The kettle has an approximate 6” center bottom outlet (CBO) with a bolt-on cover and is mounted on three carbon steel legs, providing a discharge height of 25 inches.

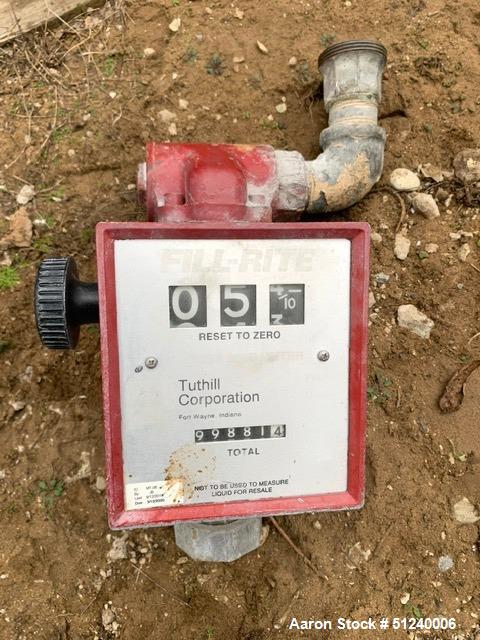

Additionally, the unit includes a Series 800C Fill-Rite Meter, offering accurate flow measurement and process control.

Specifications

• Model: 361-100
• Capacity: 125 Gallons
• Material: Stainless Steel (Tank), Carbon Steel (Agitator Bridge & Legs)
• Tank Dimensions: 35” Diameter x 30” Straight Side
• Top & Bottom: Flat
• Cover: Bolt-On with Hinged Access Panel
• Jacket: Yes (No Rating)
• Agitator Type: Double Motion Drive
• Impeller System: 3-Tier Dual Blade Impellers with (4) Wall-Mounted Baffles

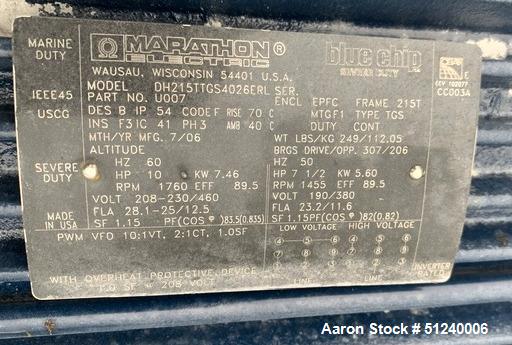

• Motor: 10 HP / 7.5 HP, 3/50/60Hz, 208-230/460V or 190/380V, 1765/1470 RPM
• Drive Type: Belt-Driven with 14-2/3:1 Reducer

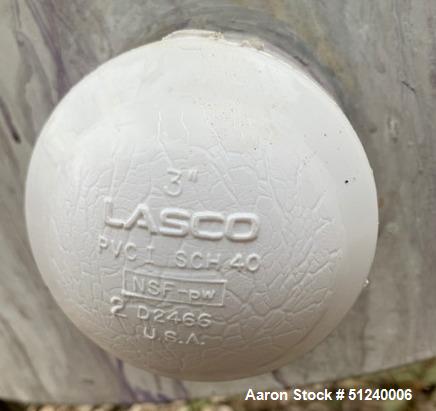

• Outlet: 6” Center Bottom Outlet (CBO) with Bolt-On Cover

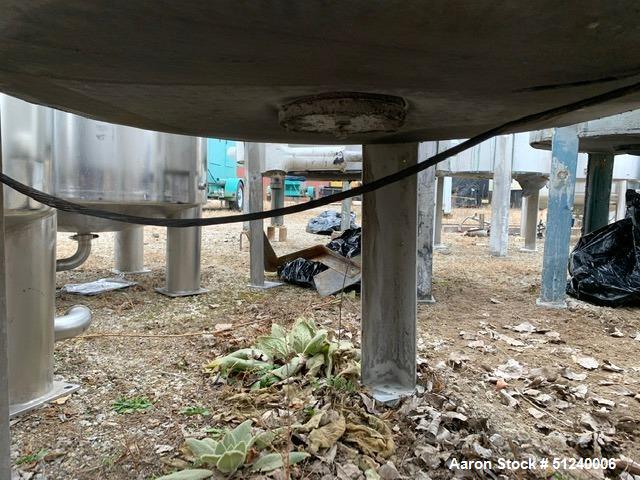

• Mounting: 3 Carbon Steel Legs
• Discharge Height: 25”
• Additional Features: Series 800C Fill-Rite Meter
• Condition: Used

Applications

This Ross 125-gallon mix kettle is ideal for batch mixing, blending, and emulsification across multiple industries, including:

• Food & Beverage Processing: Sauces, soups, dairy, and confectionery production
• Pharmaceuticals: Granulation, liquid formulations, and active ingredient mixing
• Chemical Processing: Blending industrial chemicals, coatings, and adhesives
• Cosmetics & Personal Care: Lotions, creams, gels, and emulsions
• Paints & Coatings: Pigment dispersion and liquid formulation
• Petroleum & Lubricants: Oil blending and refining applications

Compatible Products & Uses

• Ingredient mixing for food and beverage applications
• Liquid blending and temperature-controlled processing
• Emulsion and high-viscosity product mixing
• Cosmetic and pharmaceutical formulation preparation
• Chemical and industrial fluid processing
