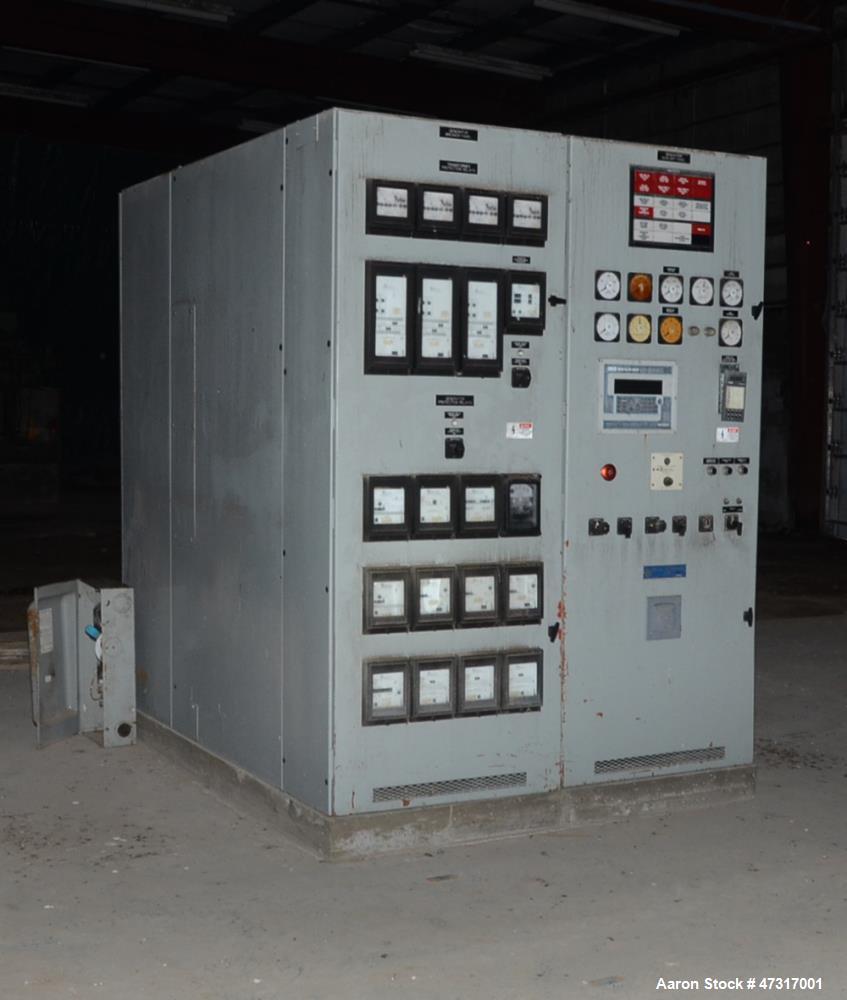

Used Dresser-Rand/Murray Steam Turbine, Model RD6M. 3507 kW of power at 5250 RPM, using 60,000 lb./hr. steam at 390 psig and 446 deg. F. With a controlled extraction of 31,900 lb./hr. at 14 psig. Exhausting to 4" HgA, turbine drives a generator through a Lufkin Model N1600C gearbox. Generator is an Ideal Type SAB horizontal brushless synchronous rated 4875 KVA, 3900 KW, 1800 RM, 0.8 P.F. 3Phase, 60 Hz, 4160 Volts with TEWAC enclosure. Generator control unit consists of a Woward DG505E governor, DSM synchronizer, real power sensor, voltage regulator system, panalarm annunciator. Mfg. 1997.
Used Dresser-Rand/Murray Steam Turbine, Model RD6M. 3507 kW of power at 5250 RPM, using 60,000 lb./hr. steam at 390 psig and 446 deg. F. With a controlled extraction of 31,900 lb./hr. at 14 psig. Exhausting to 4" HgA, turbine drives a generator through a Lufkin Model N1600C gearbox. Generator is an Ideal Type SAB horizontal brushless synchronous rated 4875 KVA, 3900 KW, 1800 RM, 0.8 P.F. 3Phase, 60 Hz, 4160 Volts with TEWAC enclosure. Generator control unit consists of a Woward DG505E governor, DSM synchronizer, real power sensor, voltage regulator system, panalarm annunciator. Mfg. 1997.
