Used Howden 7 MW Twin Condensing Steam Turbine Generator – Siemens SST-110, 8750 kVA

Manufacturer:
Howden / Siemens Turbomachinery Equipment / TD Power Systems

Description:
For sale: Used Howden 7 MW Twin Condensing Steam Turbine Generator Set, Model Twin-CA 56, part of the Siemens SST-110 series, offering a reliable 7.0 MW power output. Designed for industrial steam applications, it operates on superheated steam at 900°F and 800 psi, with a main steam temperature of 445°C (833°F). The system also supplies plant process steam at 375°F and 46 psi, making it ideal for cogeneration (CHP) applications.

The unit is paired with a brushless AC generator featuring an AC exciter and rotating rectifier, built to NEMA MG-1 standards. With a continuous rated output of 7000 kW / 8750 kVA at 1800 RPM, the generator features a cylindrical rotor, IP54 enclosure, and IC 81W cooling for robust and efficient operation in industrial environments.

Specifications:

Steam Turbine:

• Manufacturer: Howden / Siemens Turbomachinery Equipment / TD Power Systems
• Model: Twin-CA 56 (SST-110 Series)
• Power Output: 7.0 MW
• Main Steam Temperature: 445°C (833°F)
• Steam Inlet Pressure: 800 psi (superheated steam at 900°F)
• Process Steam Output: 375°F at 46 psi
• Type: Twin Condensing

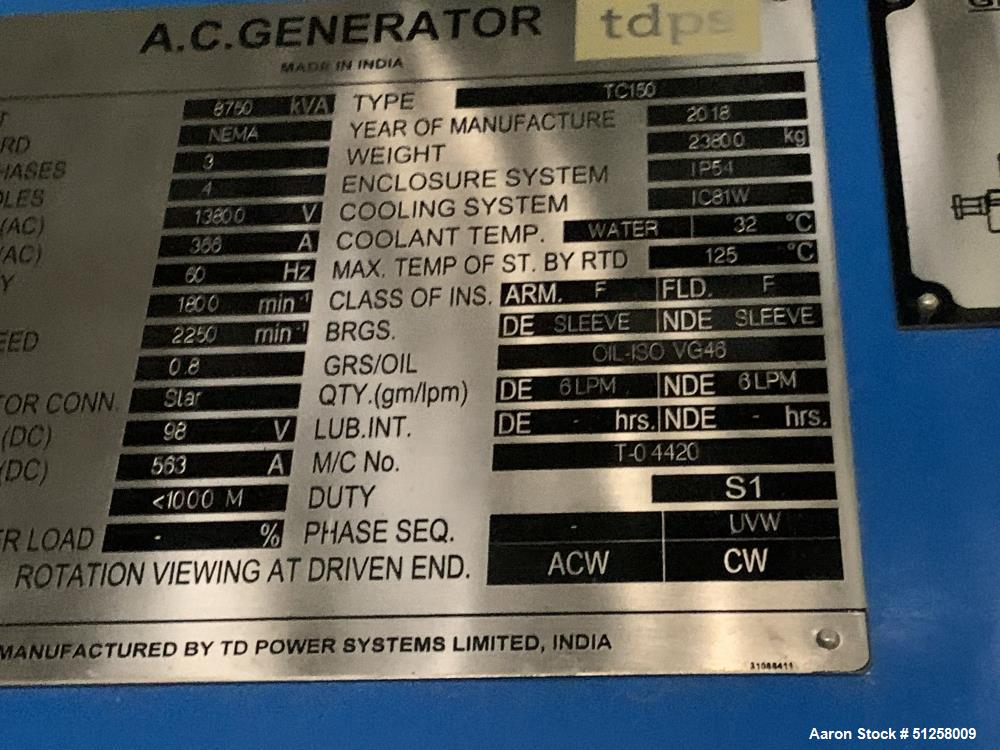

AC Generator:

• Type: Brushless AC Generator
• Exciter: AC Exciter with Rotating Rectifier
• Rotor: Cylindrical Rotor
• Standards: NEMA MG-1
• Power Rating: 7000 kW / 8750 kVA Continuous
• Speed: 1800 RPM
• Enclosure: IP54
• Cooling System: IC 81W

Applications:

• Industrial steam power generation
• Combined heat and power (CHP) plants
• Pulp and paper mills
• Oil & gas refineries
• Petrochemical and chemical plants

What Products Would This Be Used For?

• Steam-based electricity and heat generation
• Industrial cogeneration (CHP) systems
• Process steam supply for manufacturing
• Renewable energy projects (biomass, waste-to-energy)
