Stock No.: 53459011

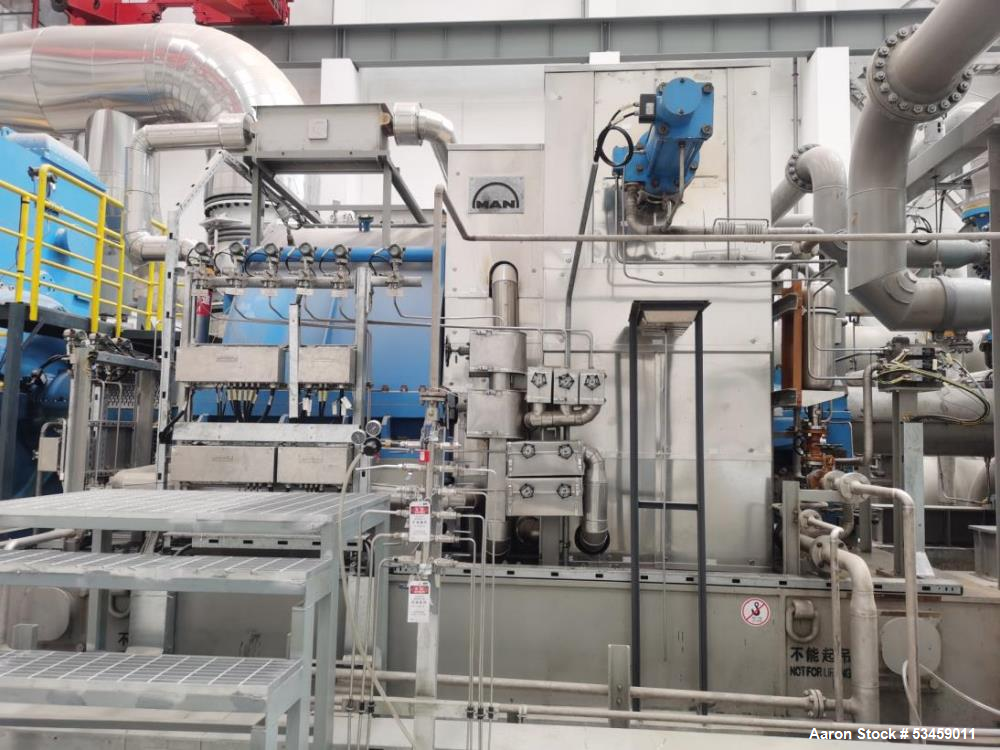

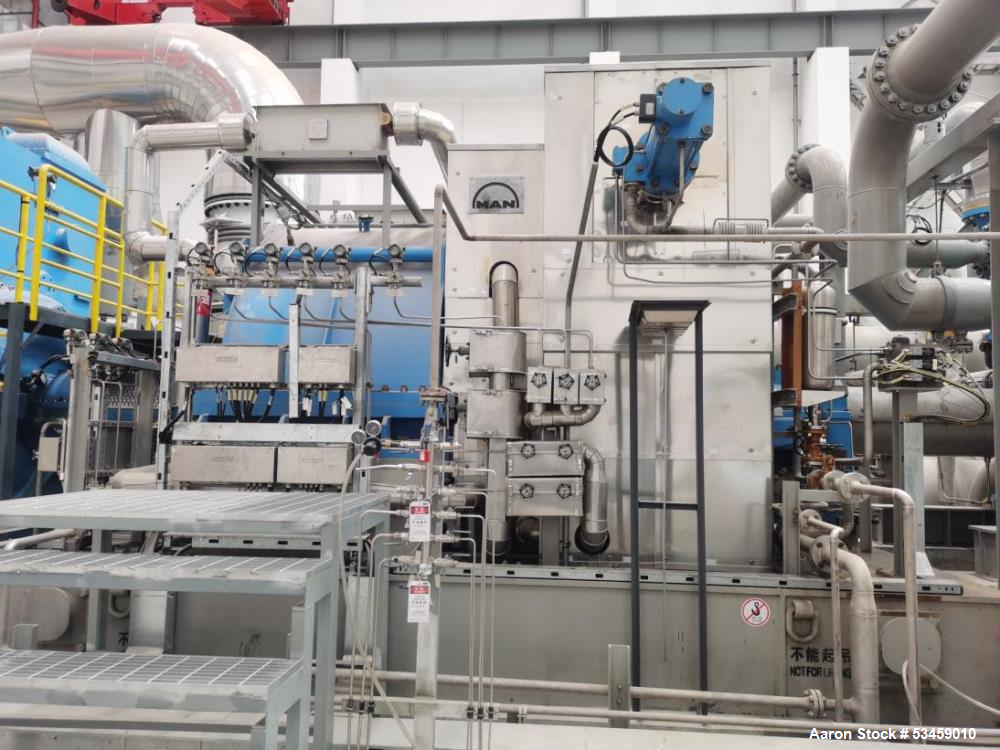

MAN Diesel & Turbo SE Model DK080/250R Diesel Steam Turbine
MAN Diesel & Turbo SE Model DK080/250R Diesel Steam Turbine 40554 KW; speed 4648 rpm; Inlet pressure Normal/Max 97/101 bar, (Normal/Max 1455/1515 PSI). Inlet Temperature Normal/Max 525/535 ?; (Normal/Max 977/995 F). includes HTAC extractor, Sulter Dalian Condensate Pump, and additional infrastructure. New year 2018, installed in 2020, started up in production in October 2020. Was taken out of service in July 2022, 13993 hours in service. Overall dimensions 5900 mm x 5330 mm x 5170 mm high (192" x 173" x 168" high). Weight 100 tonnes (45454 lbs.). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
-
ModelDK080/250R
-
Serial #24064
-
CategoryGenerators
-
SubcategorySteam Turbine
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Brand: MAN Diesel & Turbo SE
- Model: DK080/250R
- Manufactured Year: 2018
- Installed: 2020
- Operational Start: October 2020
- Taken Out of Service: July 2022
- Total Operating Hours: 13,993
Description
The Used MAN Diesel & Turbo SE DK080/250R Diesel Steam Turbine is a high-power industrial turbine designed for large-scale energy production and steam-driven applications. It features a 40,554 kW power output, operating at 4,648 RPM with high inlet pressure and temperature ratings.
This unit supports normal/max inlet pressure of 97/101 bar (1,455/1,515 PSI) and normal/max inlet temperature of 525/535°C (977/995°F), making it an efficient and durable solution for industrial steam applications.
Includes:
- HTAC Extractor
- Sulter Dalian Condensate Pump
- Additional Infrastructure
With overall dimensions of 5,900 mm x 5,330 mm x 5,170 mm (H), this turbine is suited for heavy-duty industrial applications.
Specifications
- Power Output: 40,554 kW
- Speed: 4,648 RPM
- Inlet Pressure:
- Normal: 97 bar (1,455 PSI)
- Maximum: 101 bar (1,515 PSI)
- Inlet Temperature:
- Normal: 525°C (977°F)
- Maximum: 535°C (995°F)
- Total Operating Hours: 13,993
- Auxiliary Equipment Included:
- HTAC Extractor
- Sulter Dalian Condensate Pump
- Additional Infrastructure
- Overall Dimensions: 5,900 mm x 5,330 mm x 5,170 mm (H)
Applications
This high-capacity steam turbine is ideal for:
- Power Plants – Steam-based electricity generation
- Petrochemical & Refining – High-temperature steam processing
- Steel & Metallurgy – Industrial power and steam-driven operations
- Pulp & Paper Industry – Steam-based energy recovery
- Sugar & Ethanol Plants – Co-generation and process steam applications
- Chemical Processing Plants – Steam turbine-driven system
Product Details
- Used MAN Diesel & Turbo steam turbine
- DK080/250R industrial steam turbine
- 40,554 kW steam turbine for sale
- 4,648 RPM diesel steam turbine
- High-pressure steam turbine 97/101 bar
- 525°C/535°C industrial steam turbine
- Power generation steam turbine
- HTAC extractor and Sulter Dalian pump
- Large-scale industrial turbine
- Steam turbine with 13,993 hours of service
