Used- Alar Rotary Vacuum Filter, Model 330

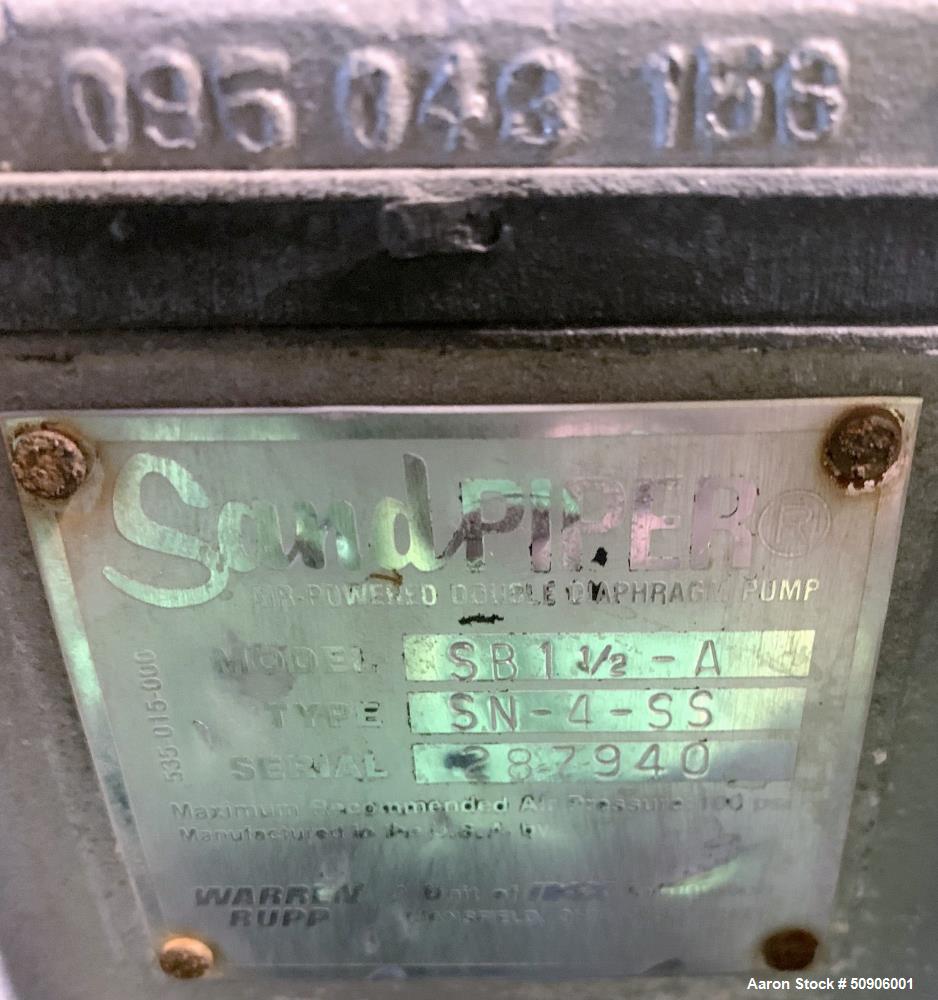

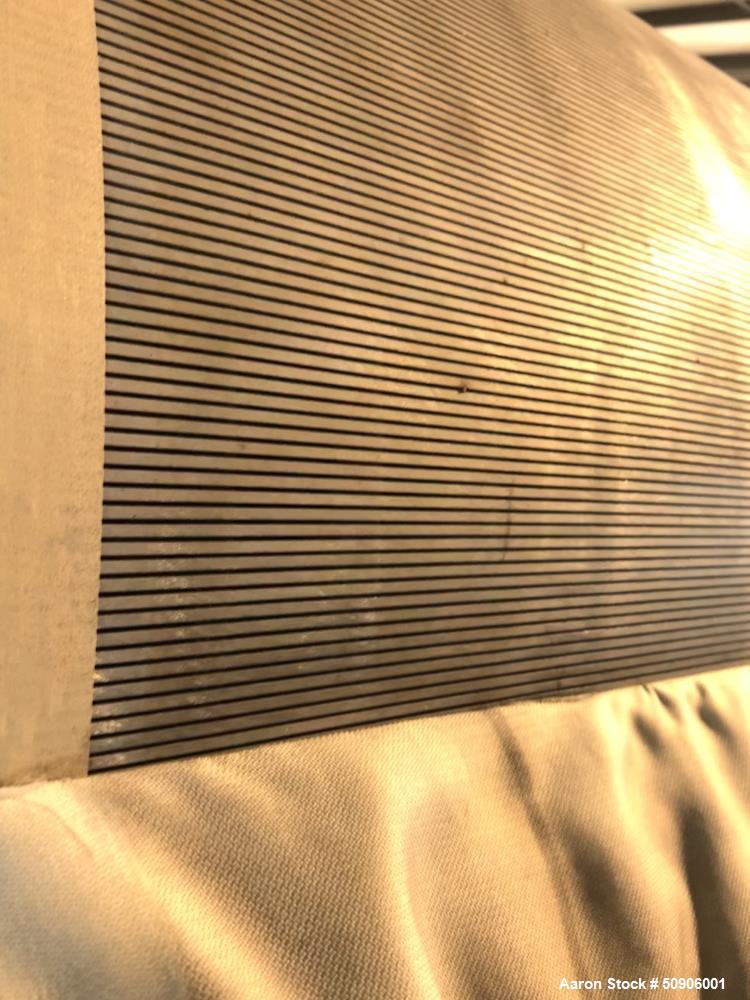

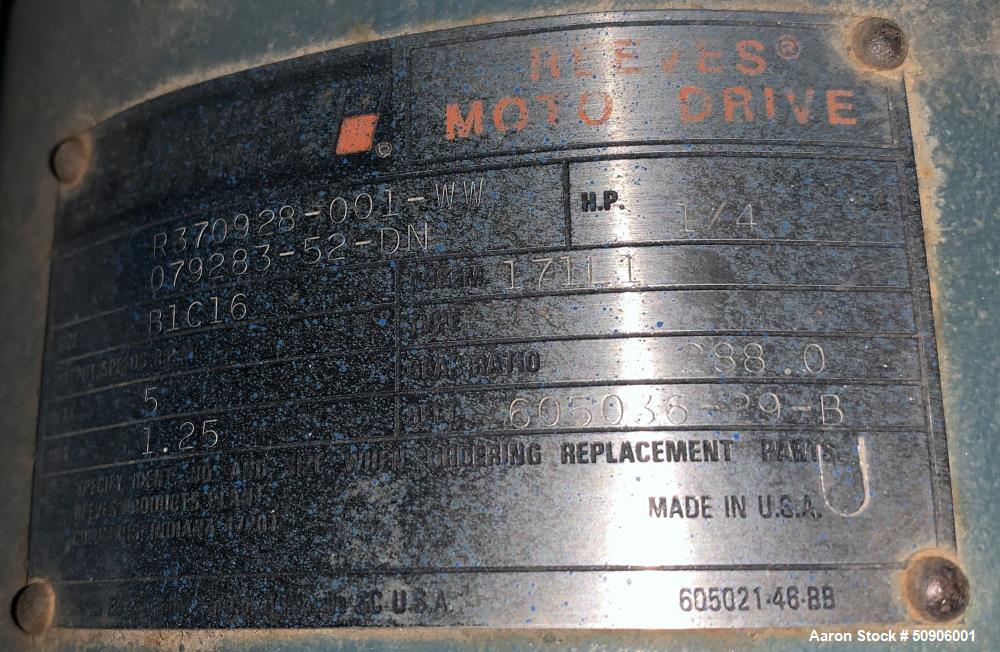

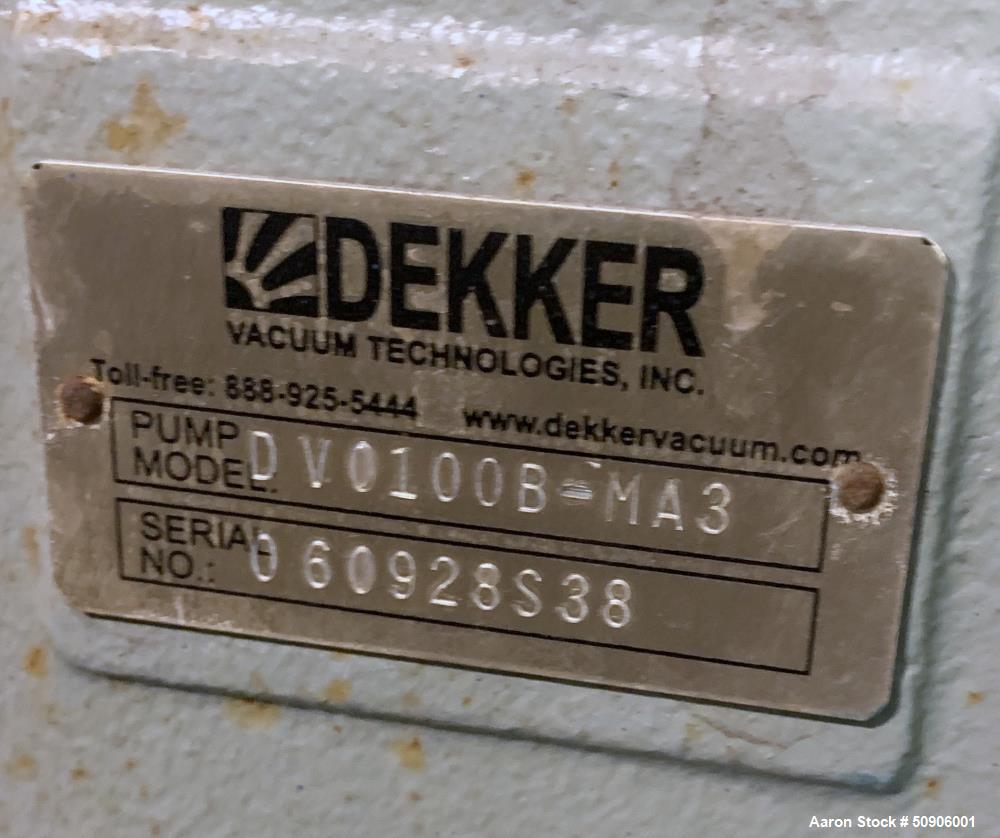

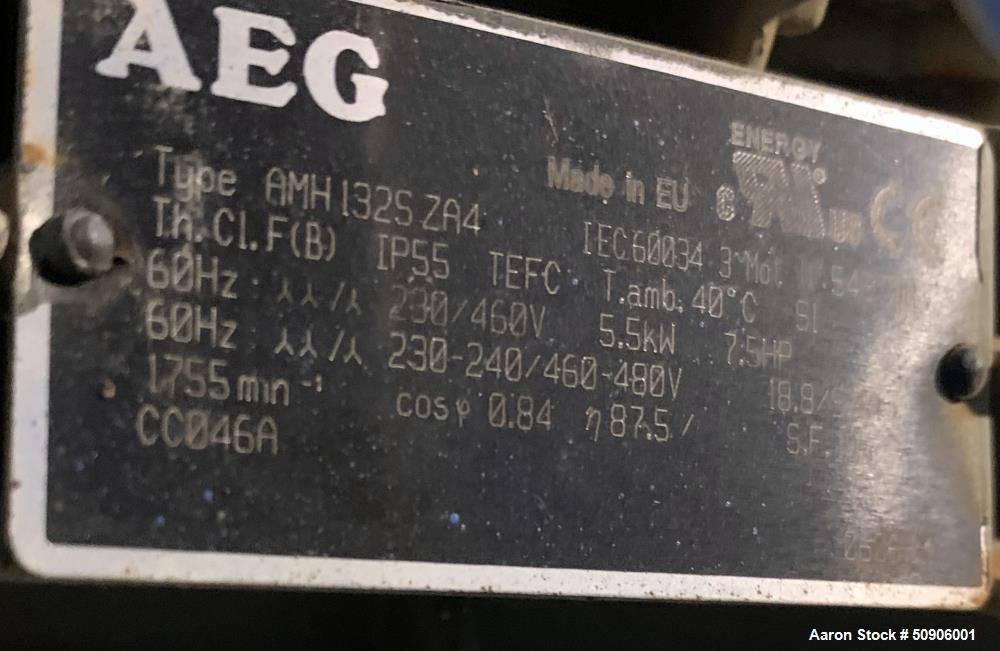

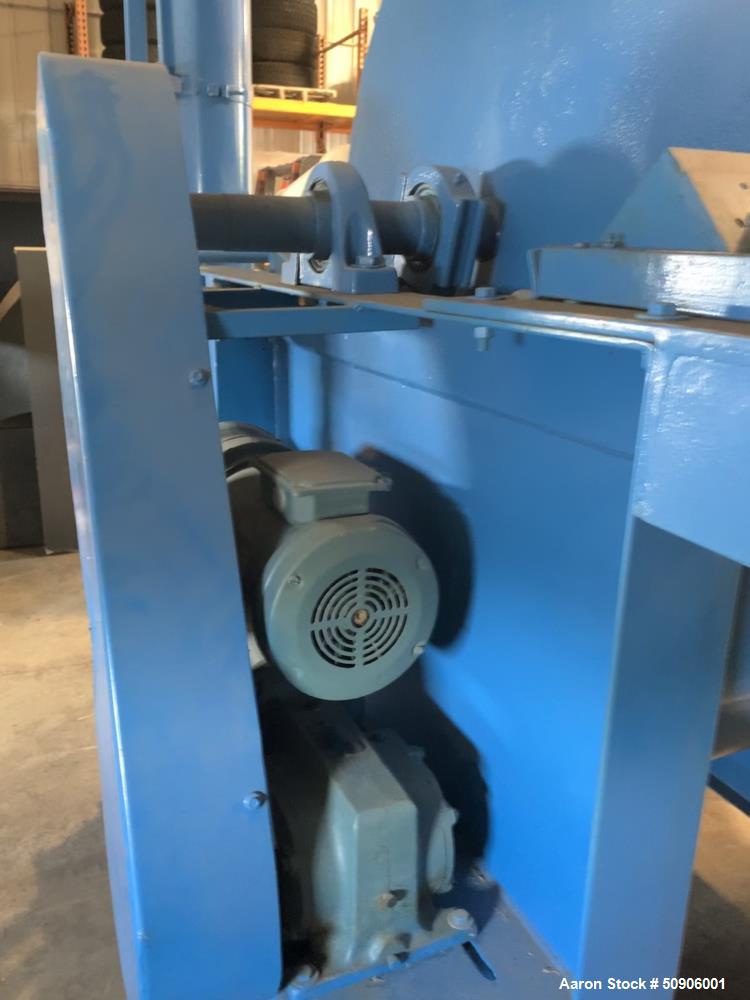

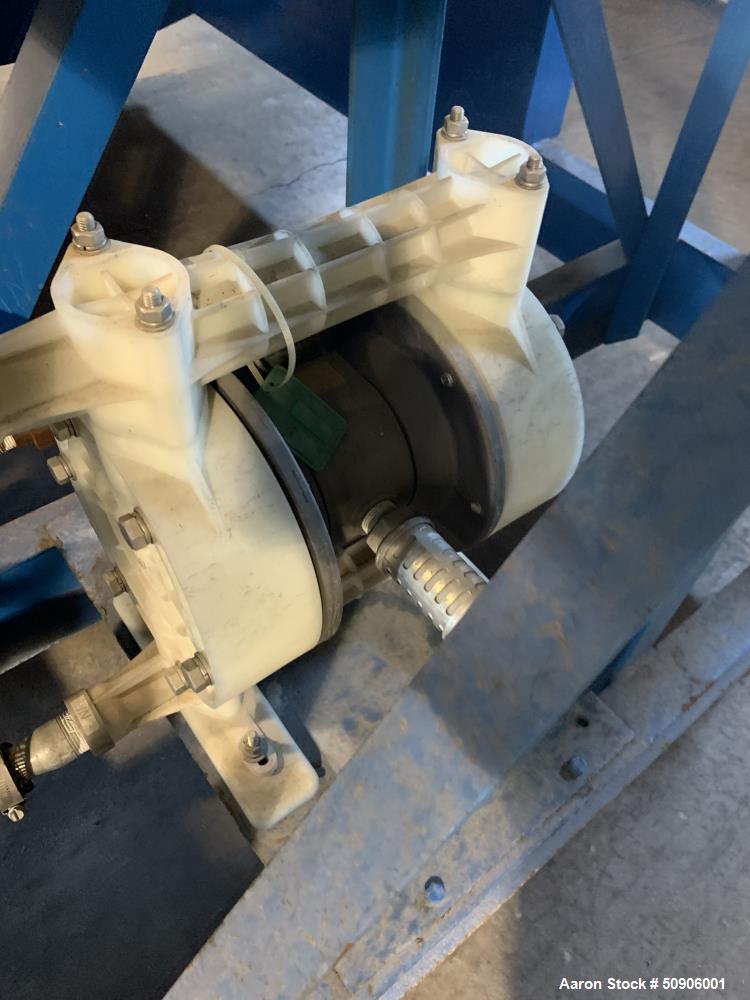

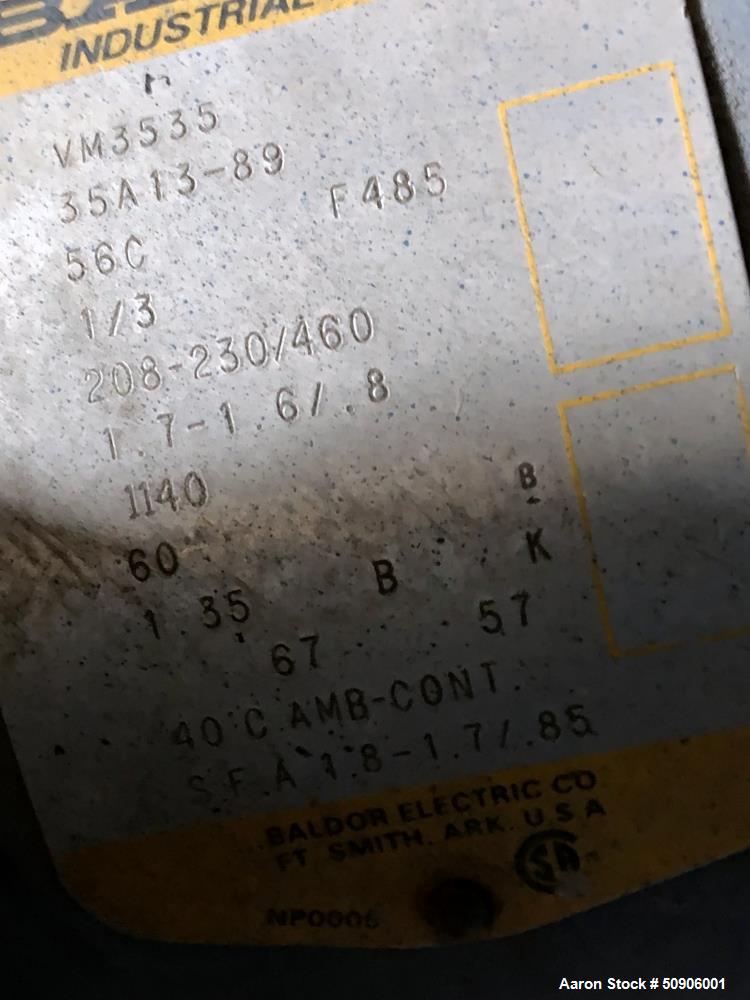

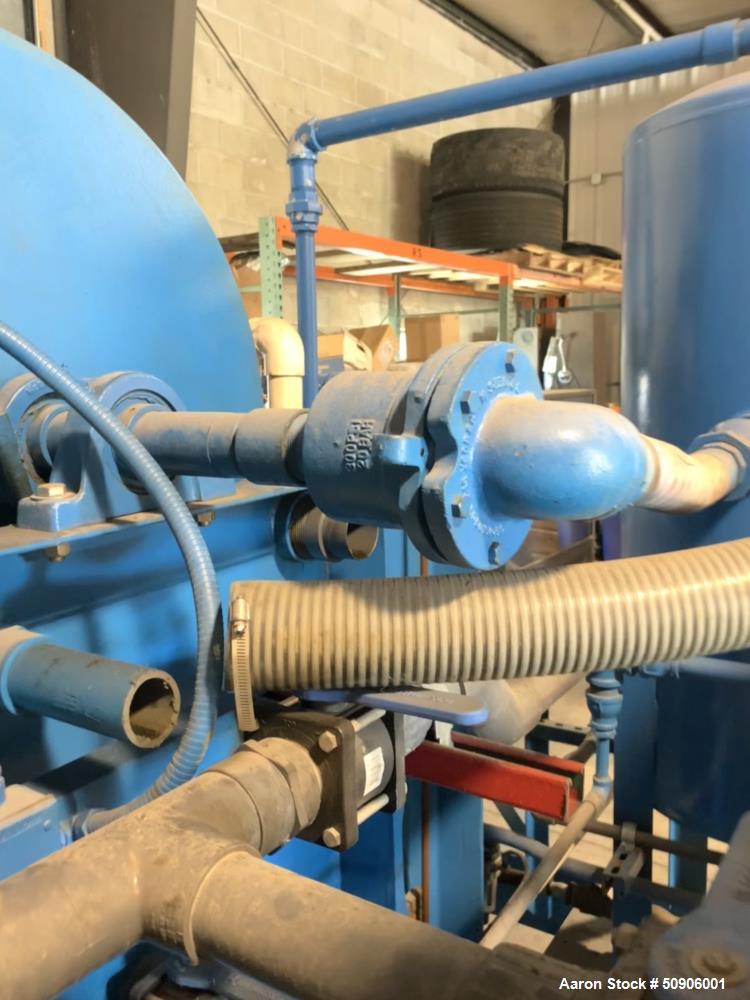

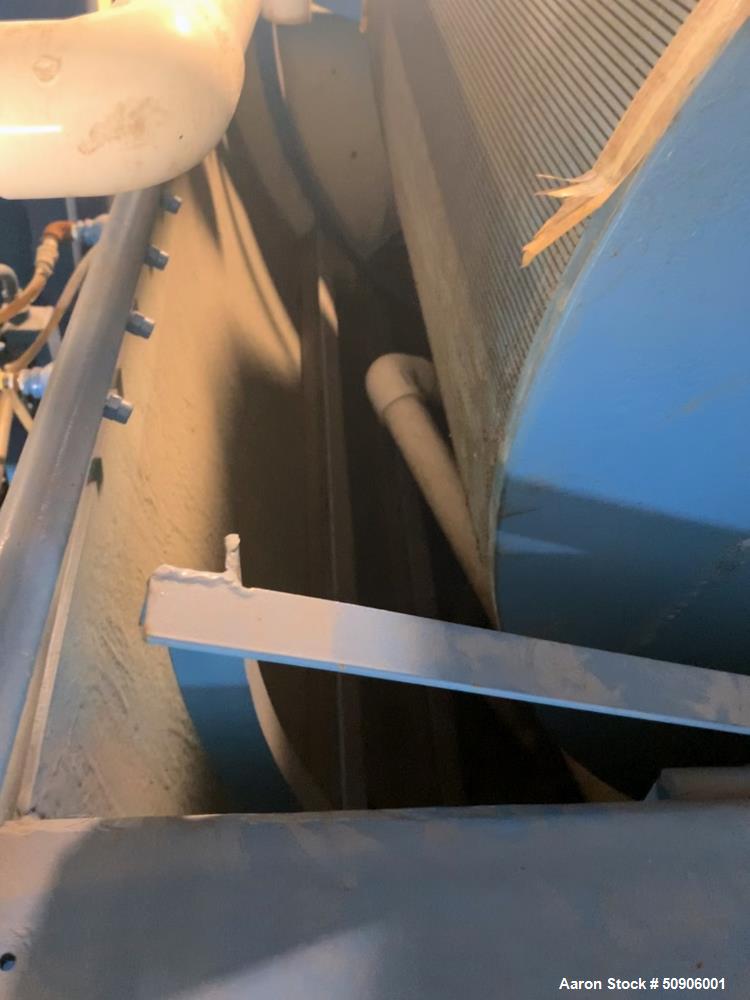

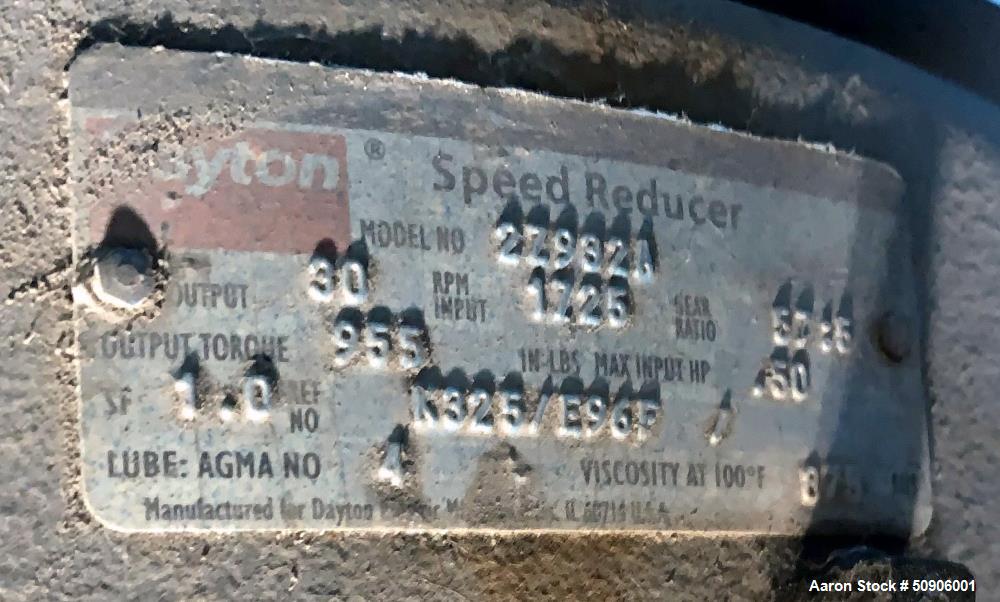

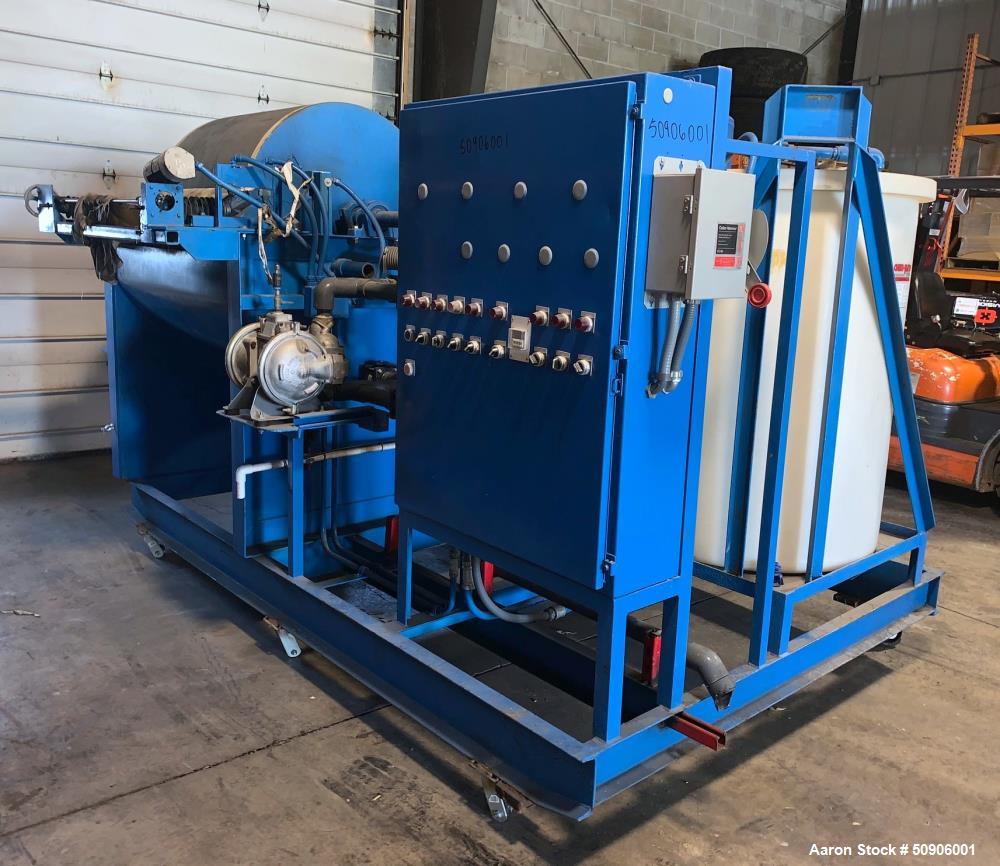

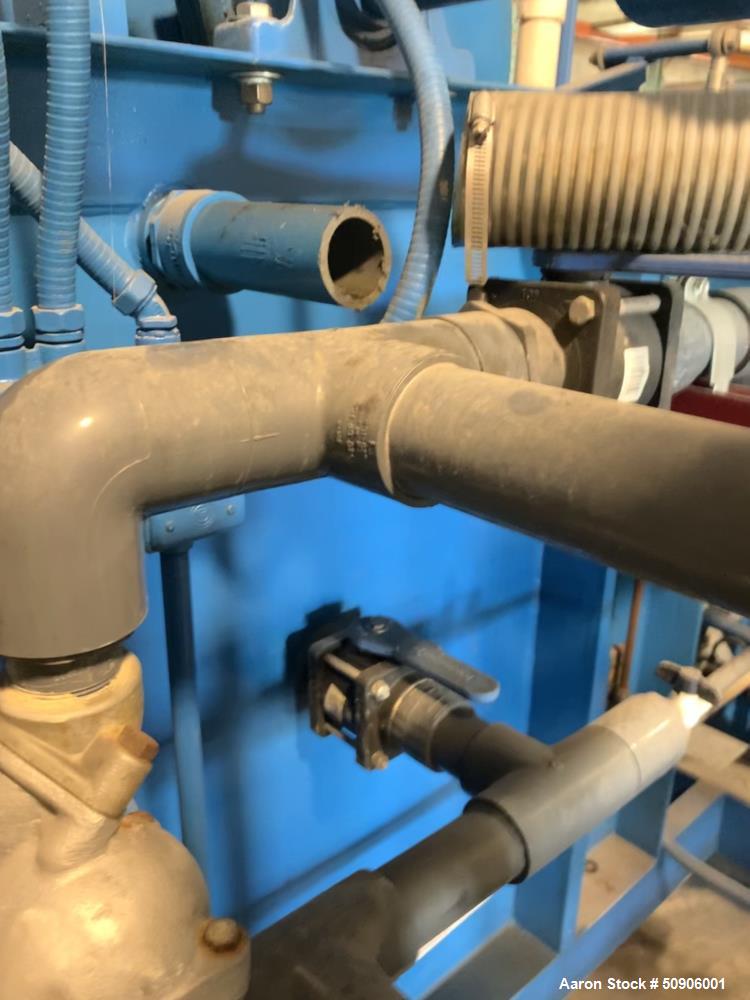

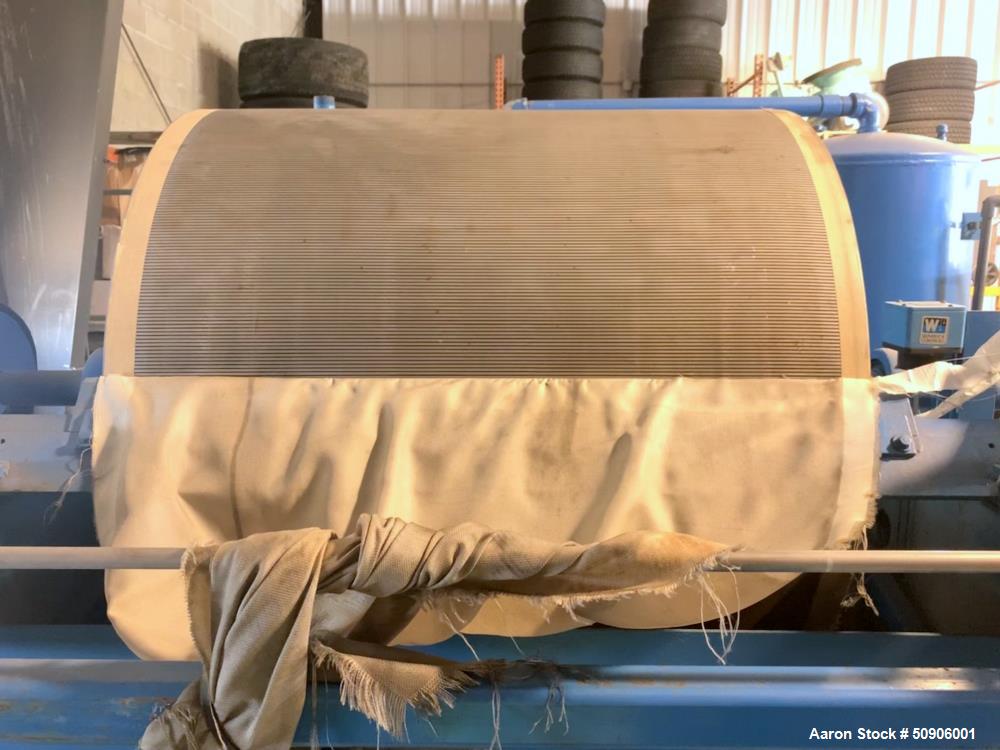

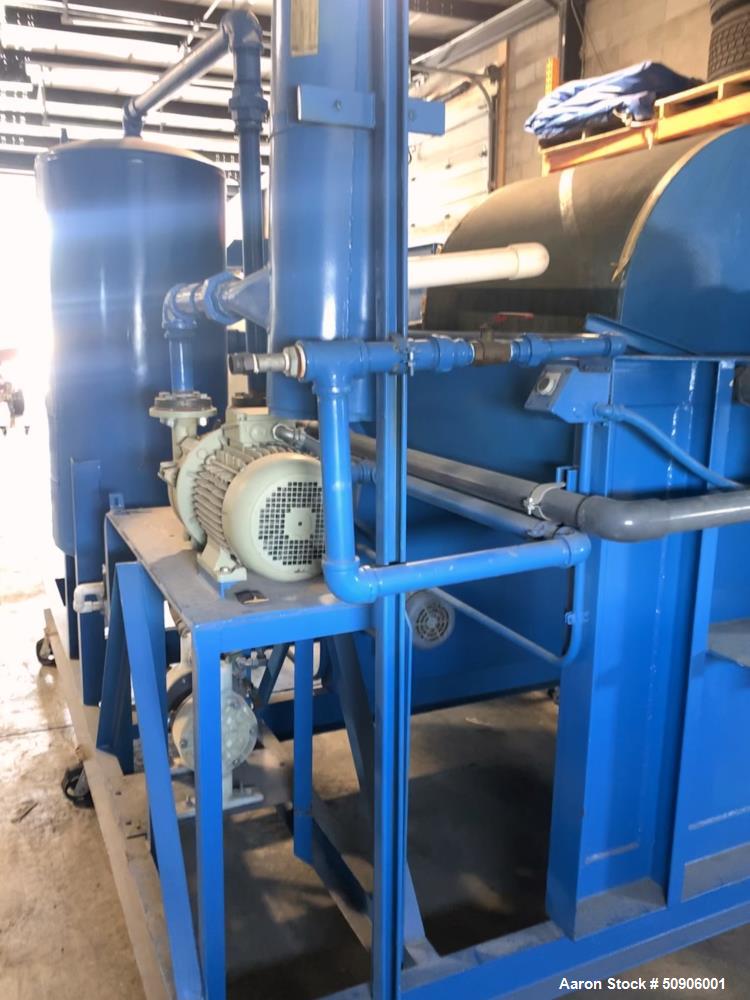

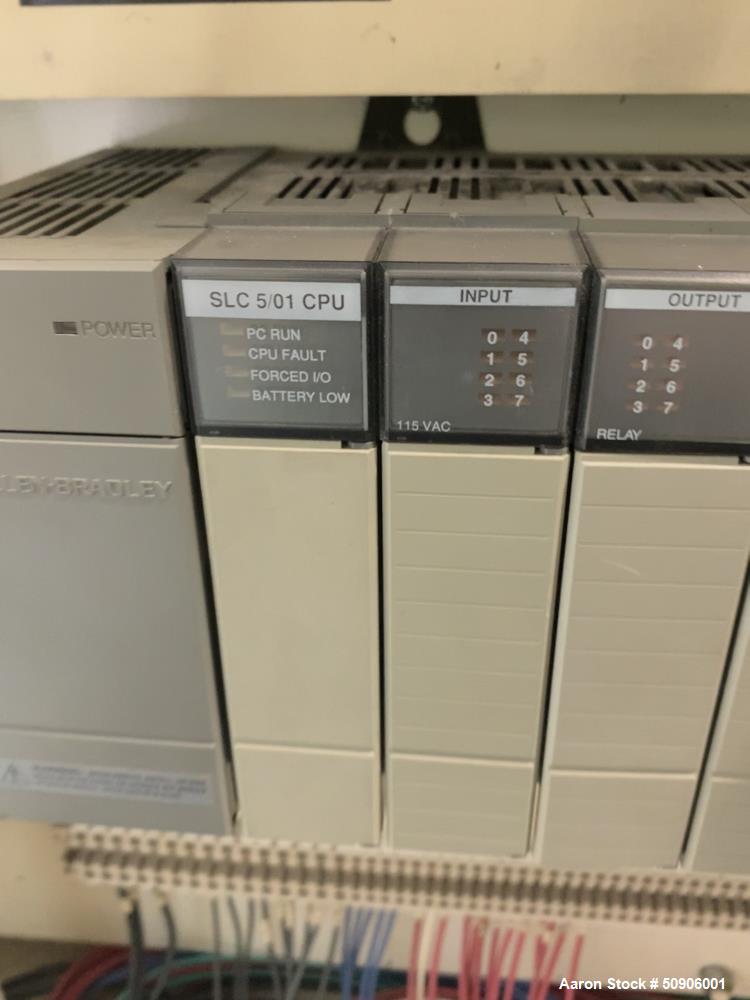

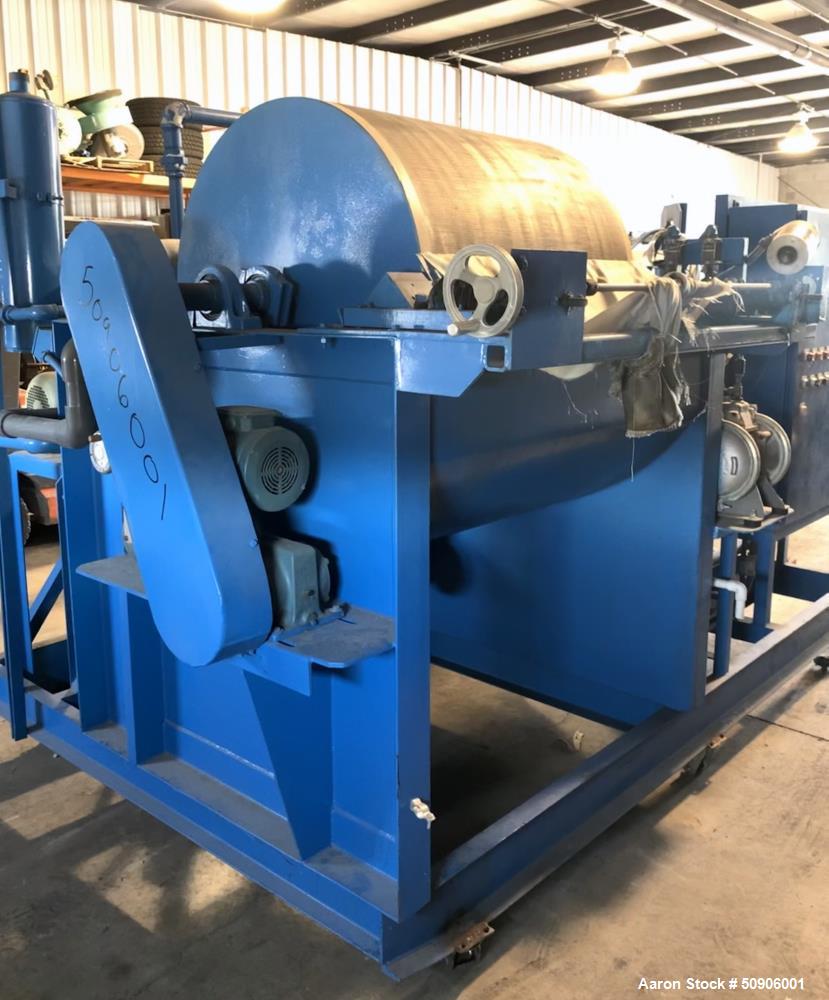

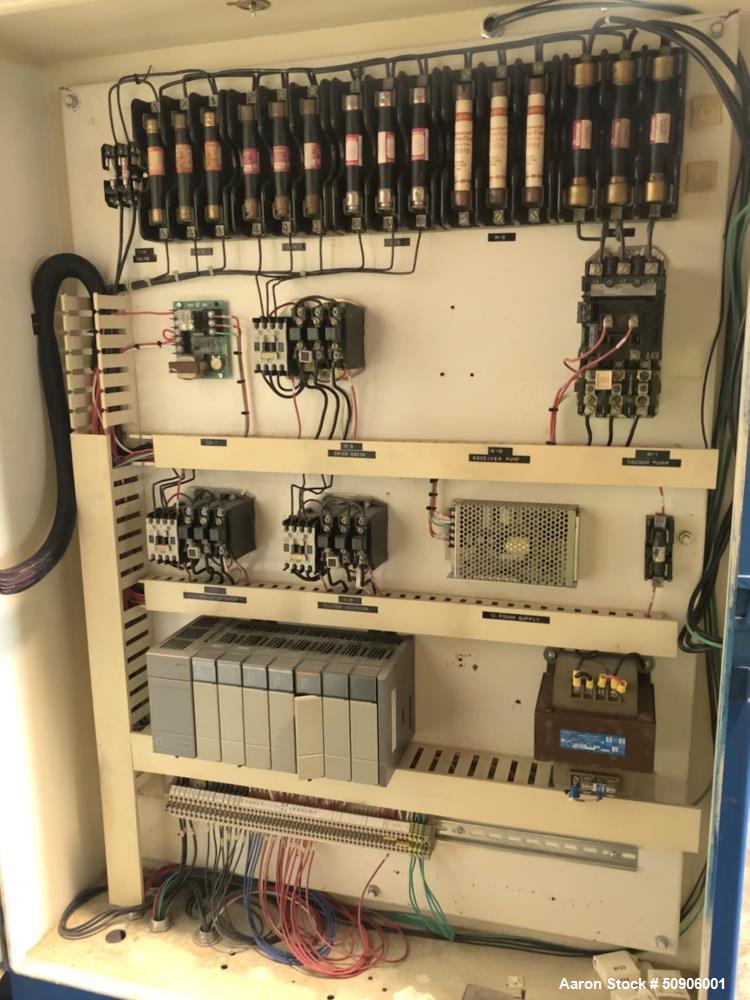

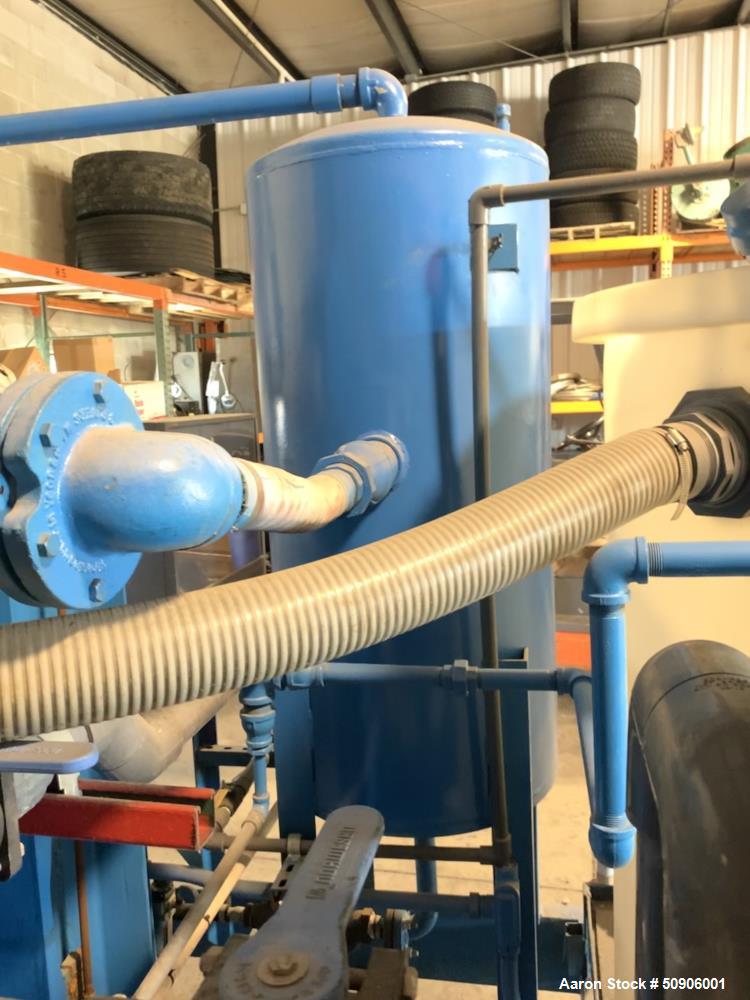

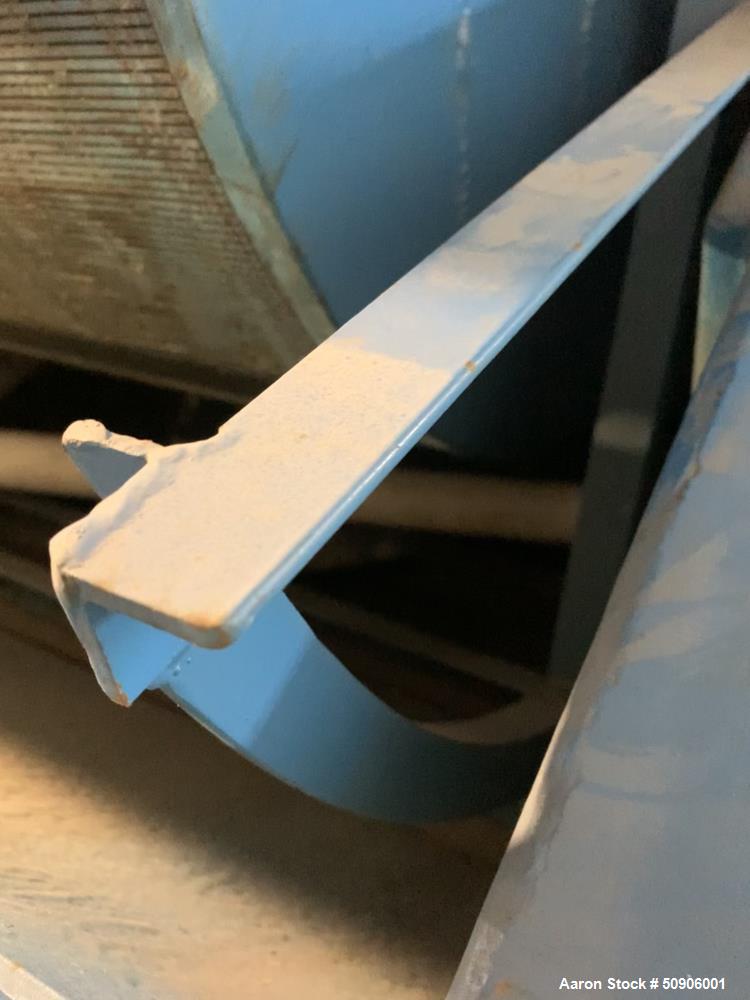

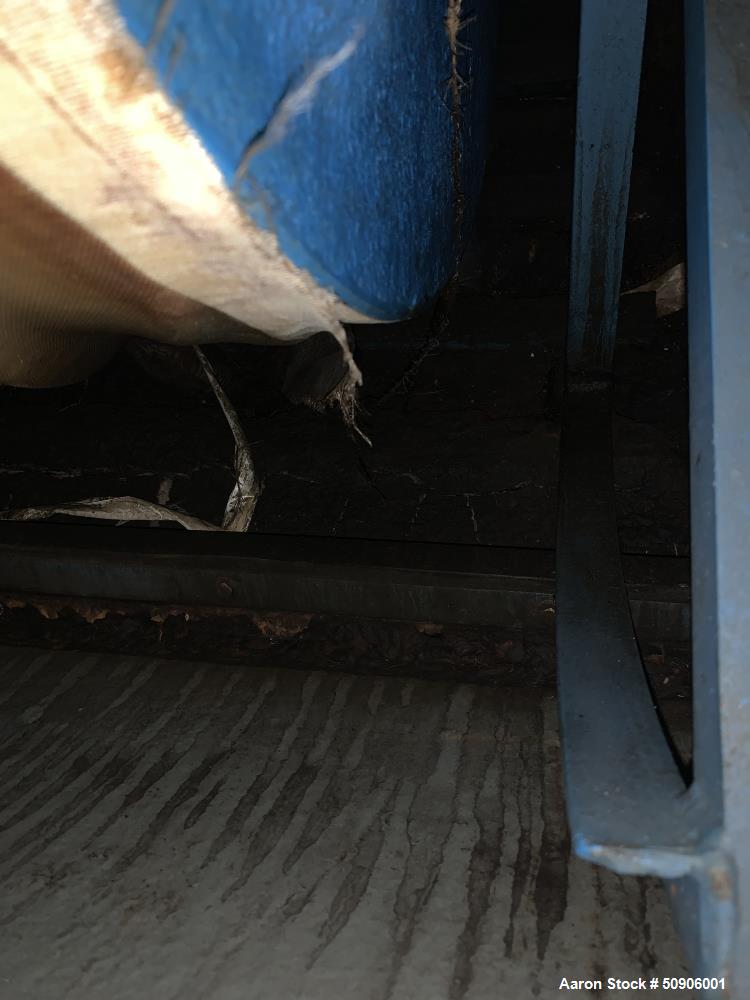

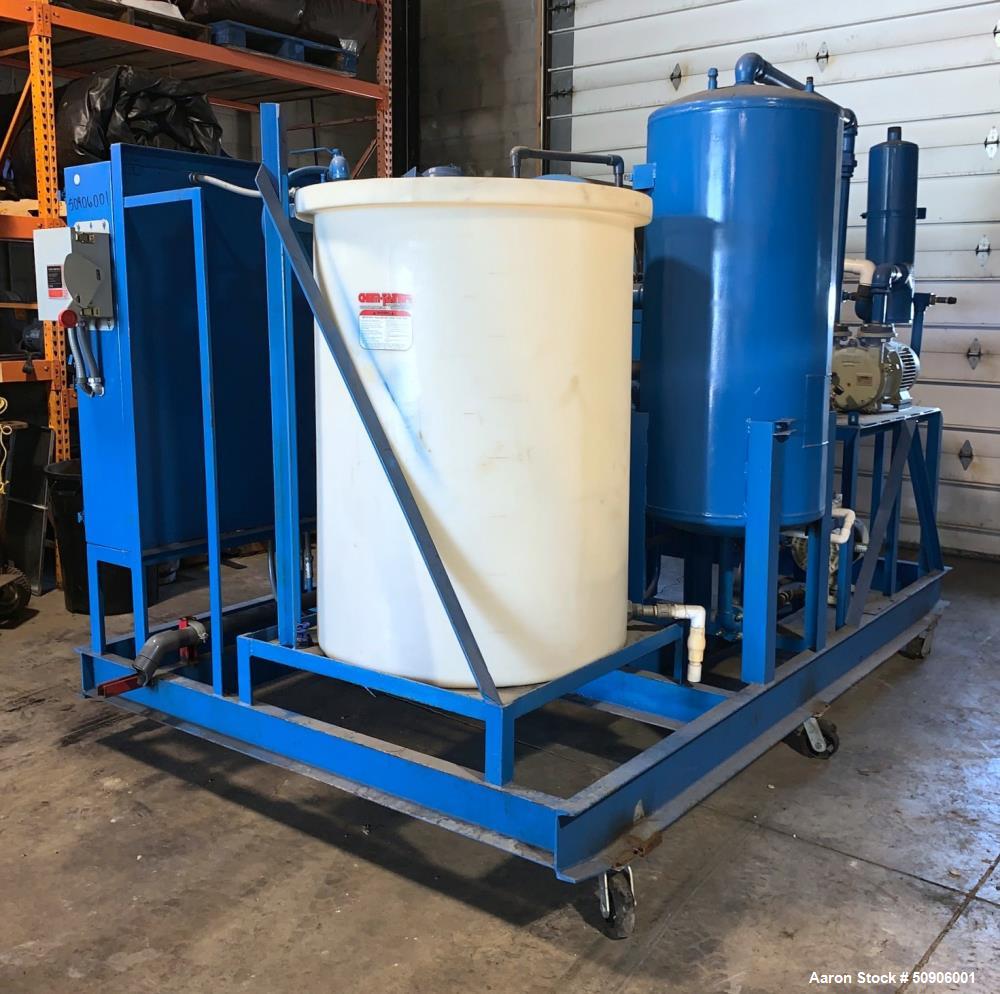

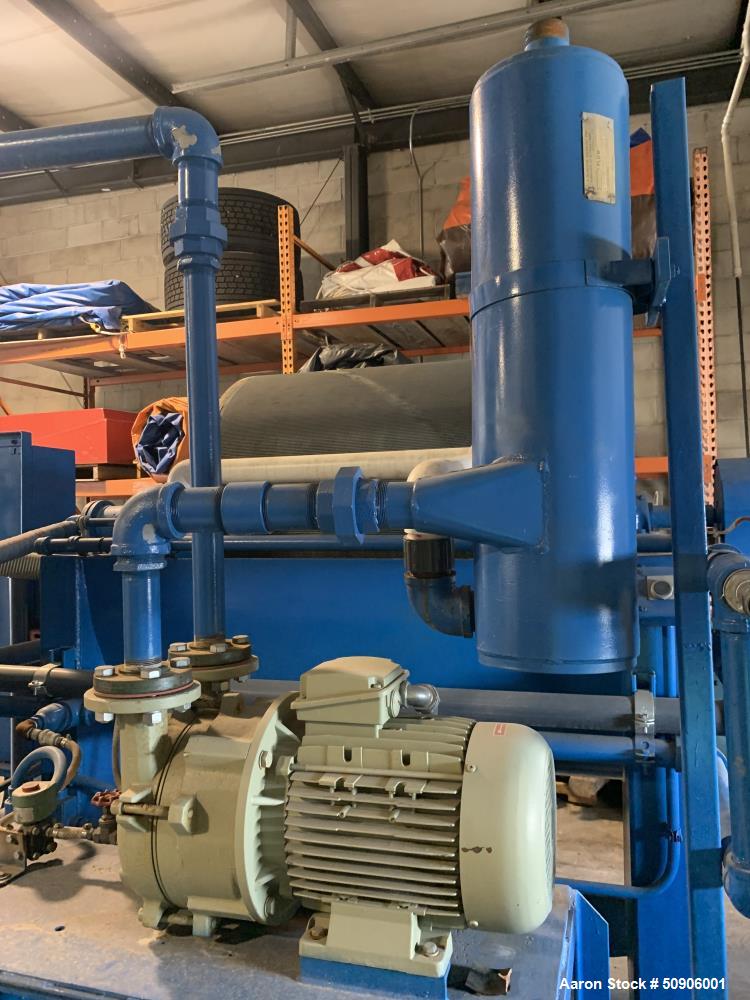

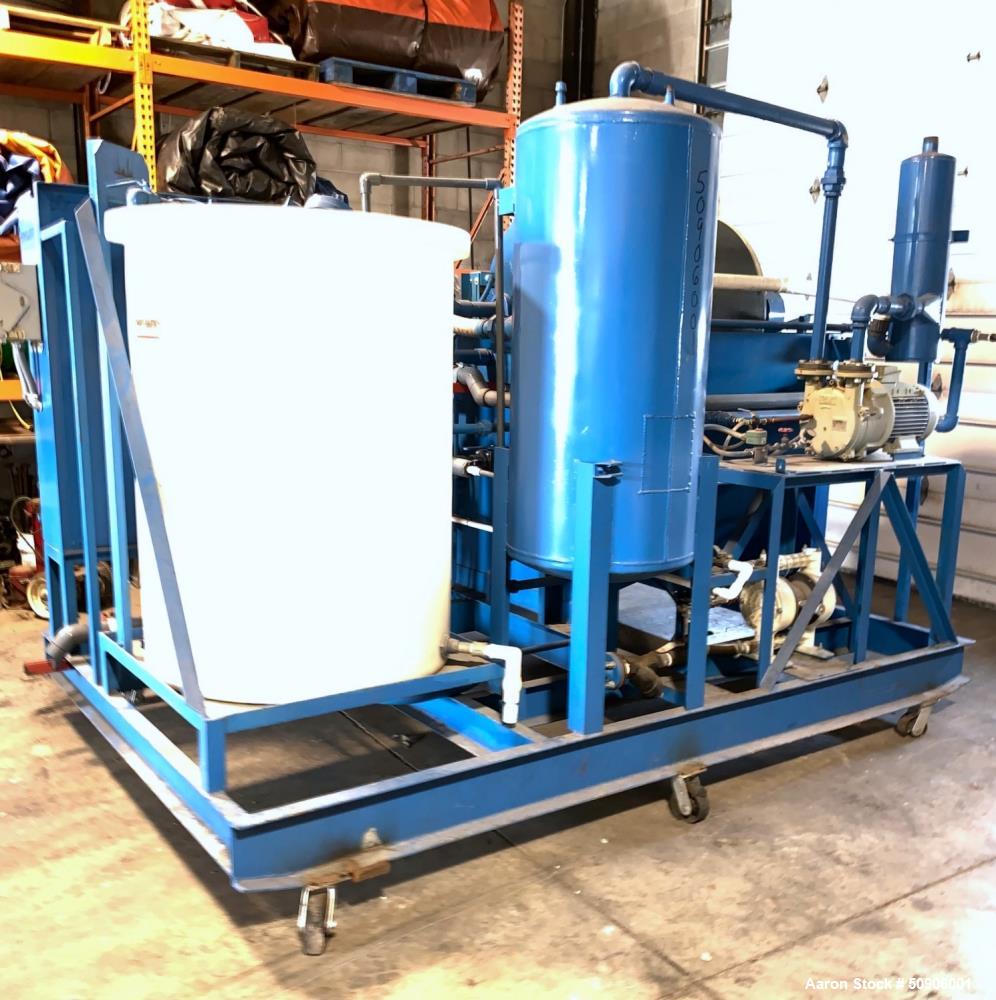

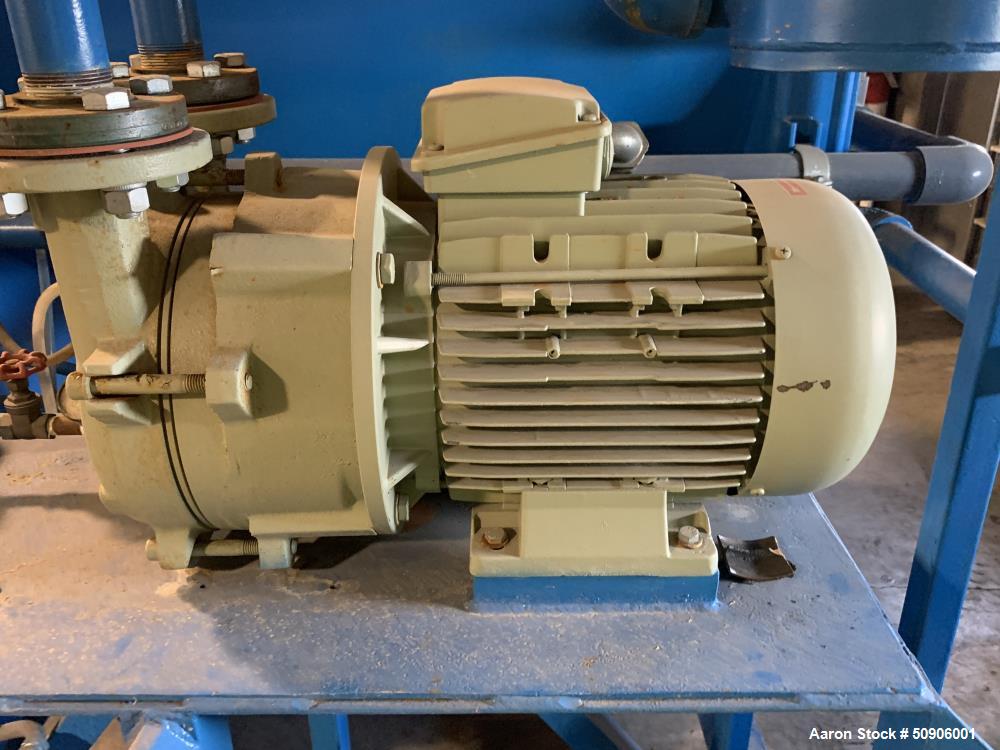

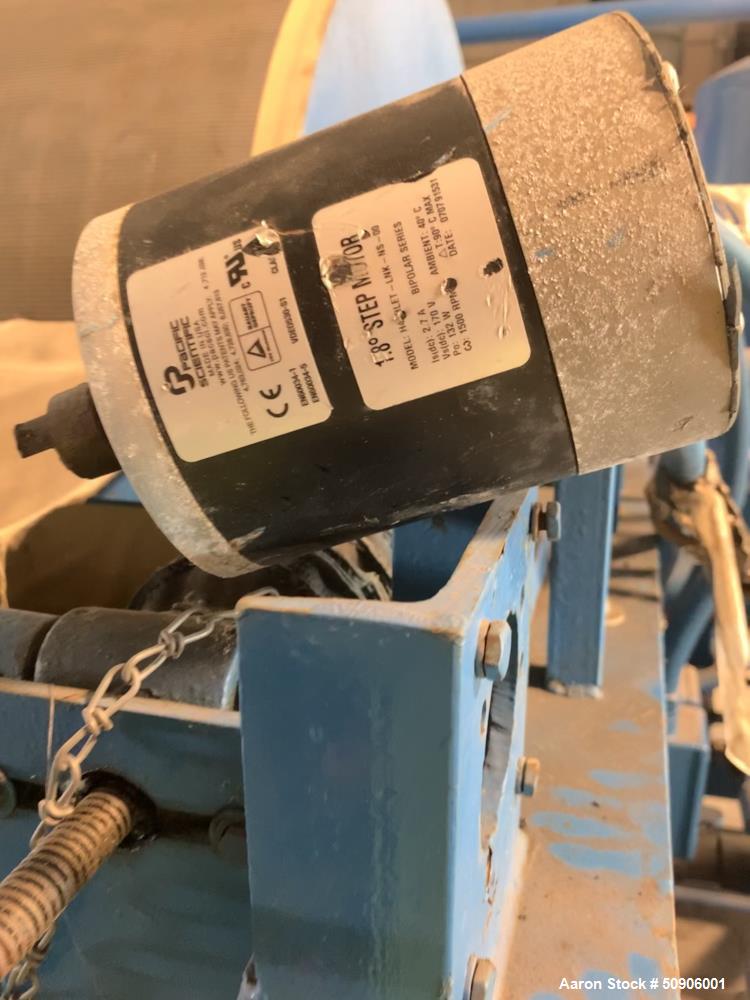

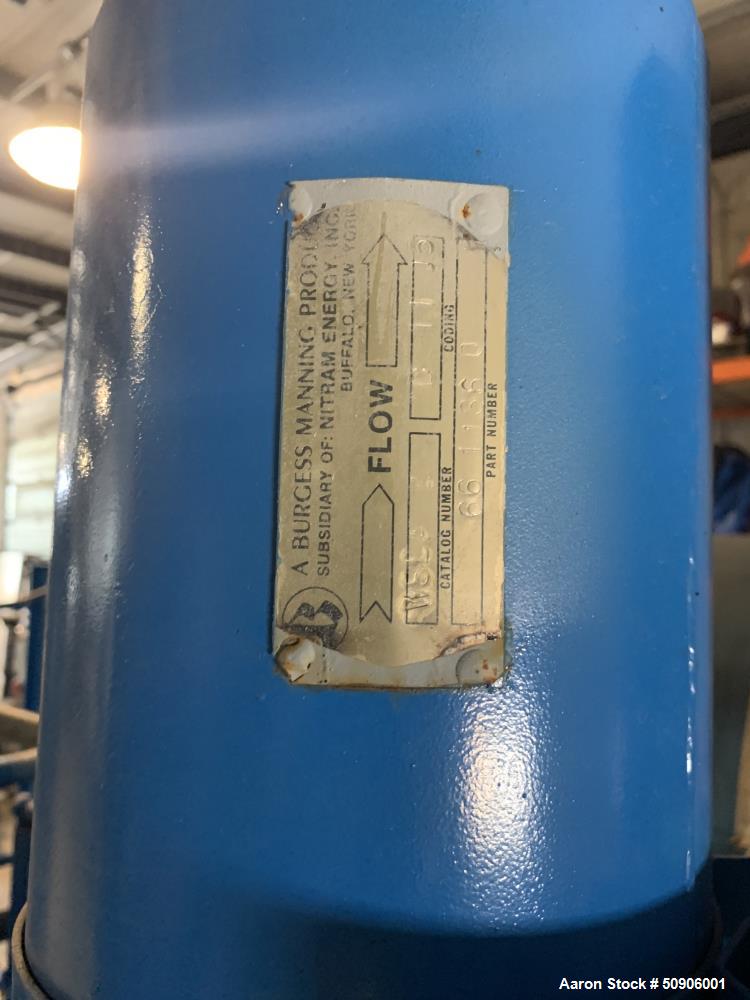

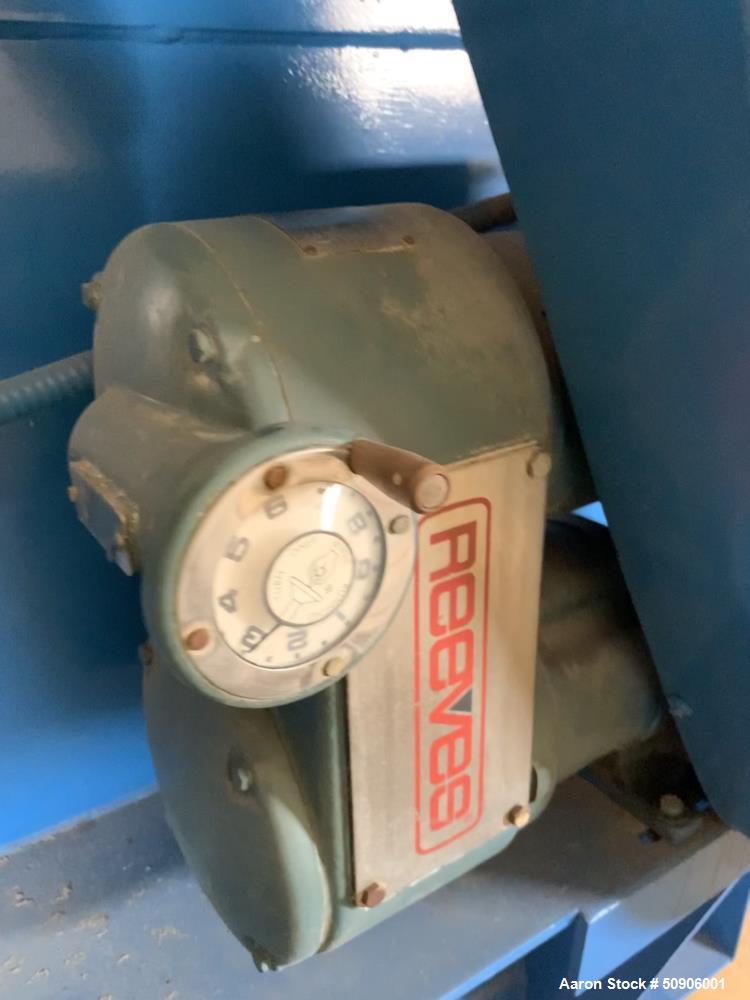

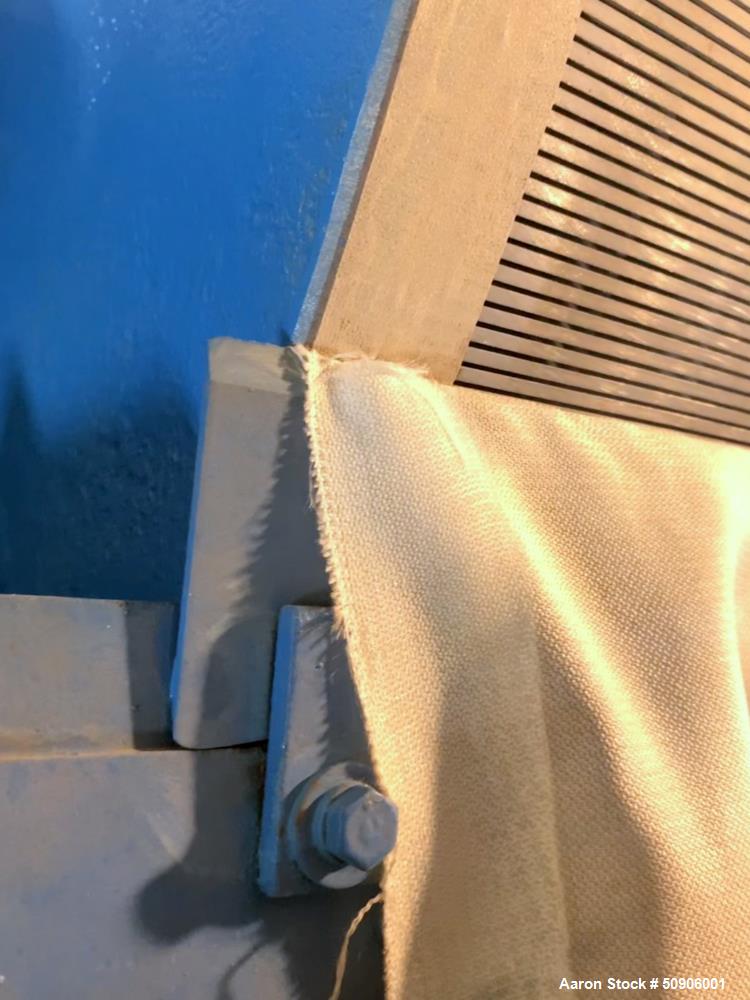

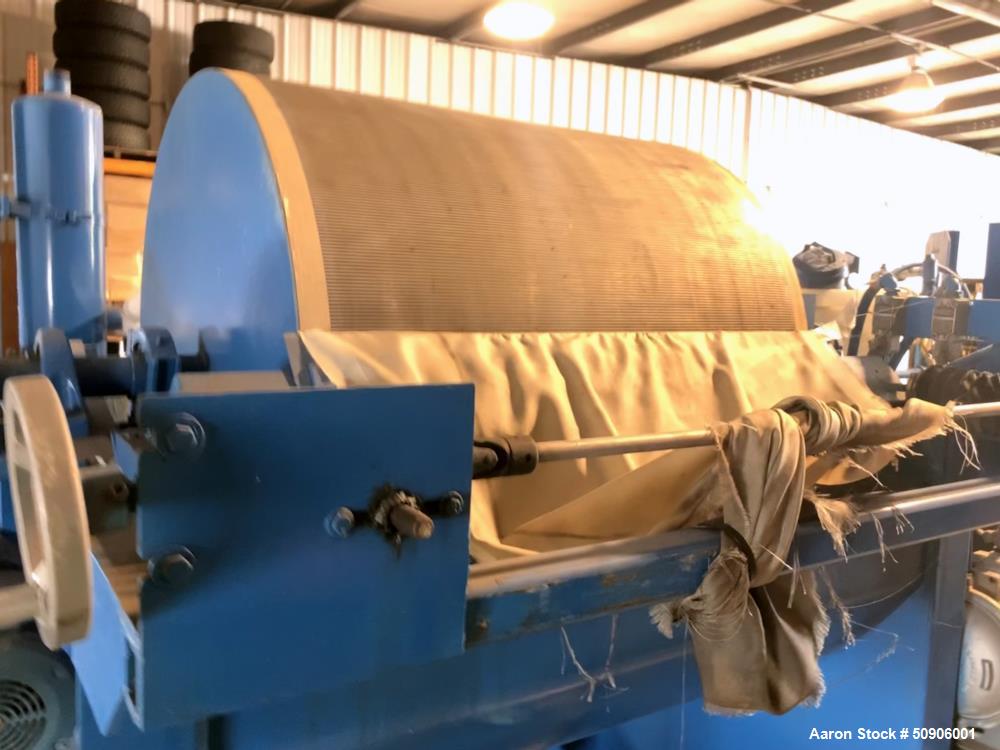

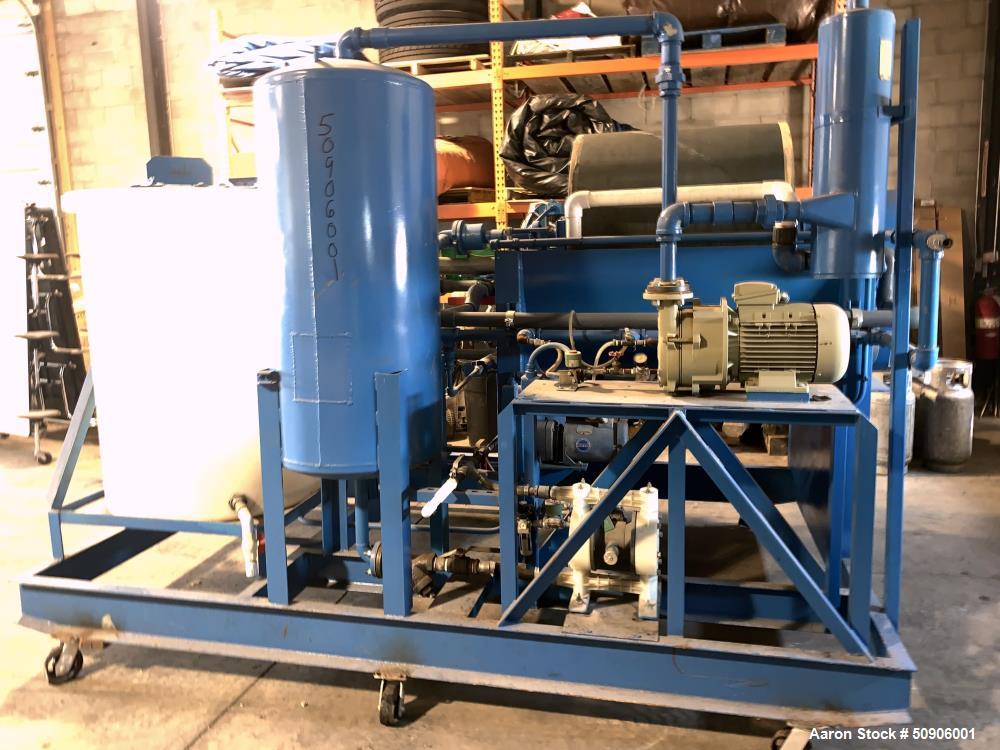

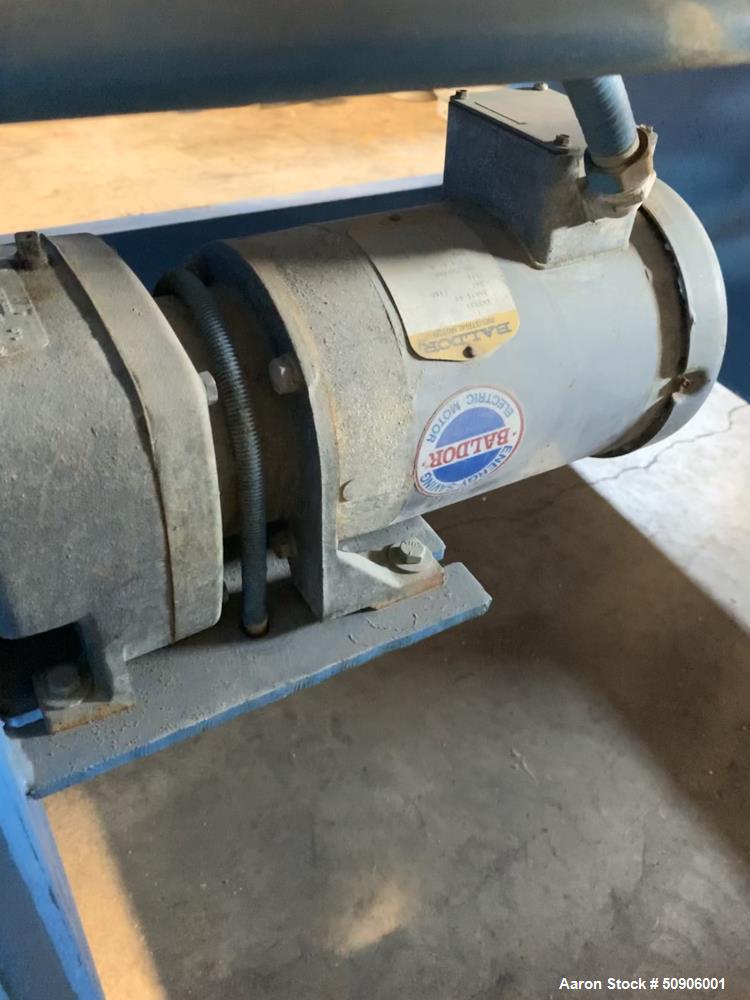

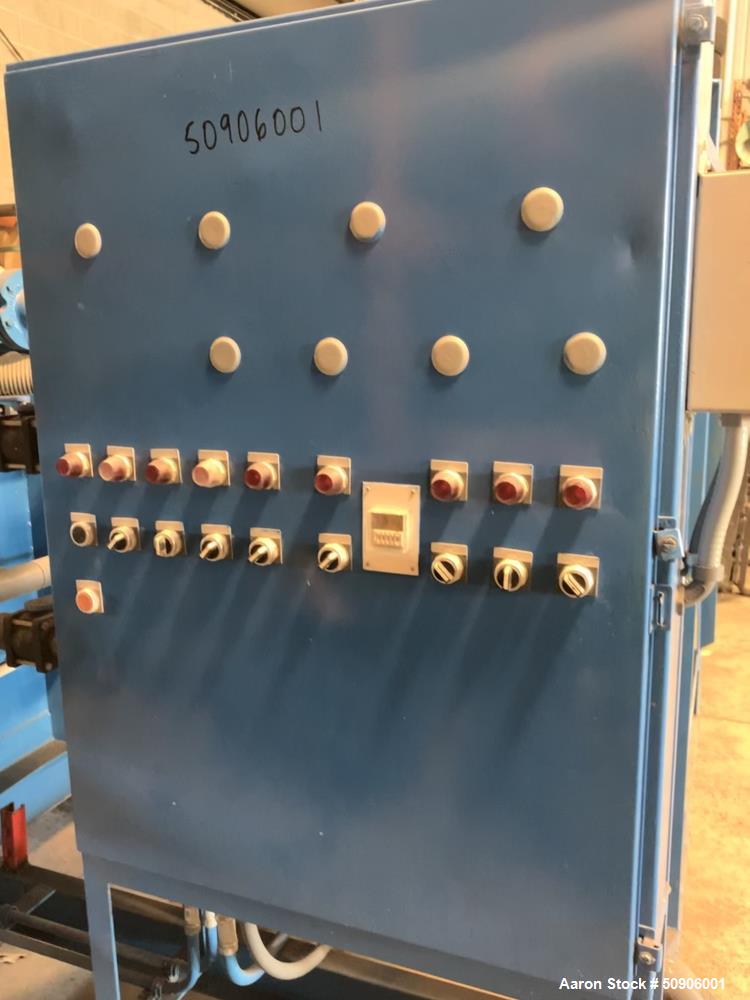

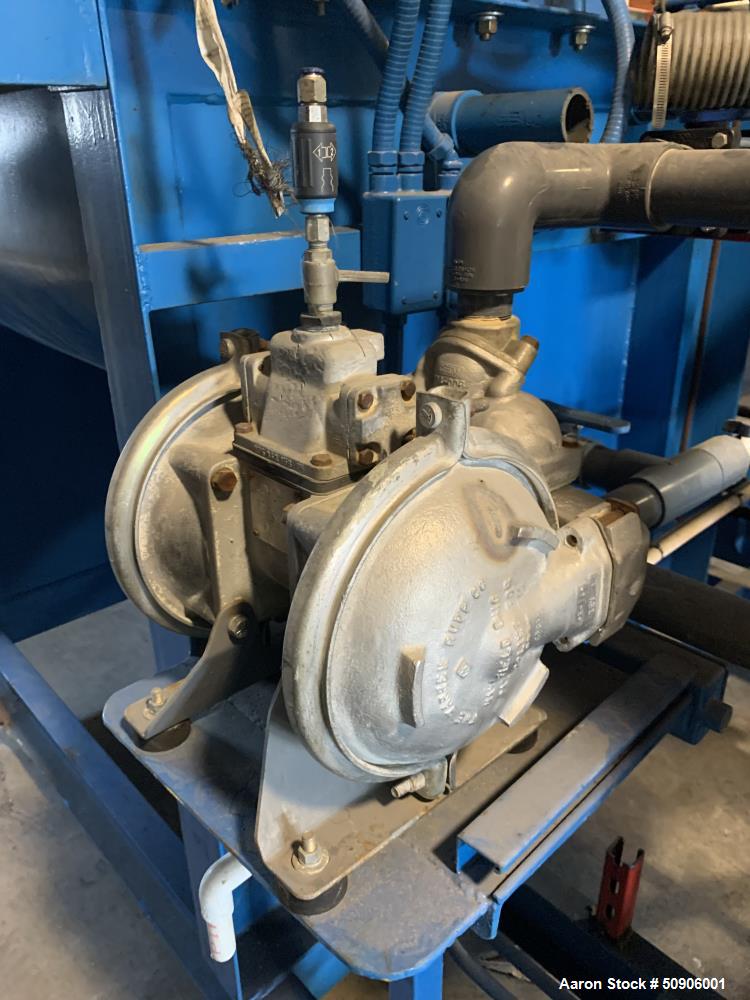

Used- Alar Auto-Vac Filter System Consisting Of: (1) Alar Rotary Vacuum Filter, Model 330. 36" Diameter x 36" face, carbon steel drum with stainless steel screen. 28.3 Square feet filtering area. Driven by 1/4hp, 3/60/208-230/460 volt, 1740 rpm gear motor, 288 to 1 ratio. Has holding tank with rack agitator, driven by 1/2 hp, 3/60/208-230/460, 1140 rpm gear motor, 57.5 to 1 ratio. Dry solids discharge with manual knife retract, impulse drive knife advance (motor driven). Includes 200 gallon poly filter aid tank with 3-blade turbine agitator, Dekker vacuum pump, model DV0100B-MA3, driven by 7.5 hp, 1755 rpm motor, stainless steel receiver tank with 1-1/2 hp centrifugal pump, (2) diaphragm pumps, control panel and misc. piping. All unitized on a common carbon steel frame.
