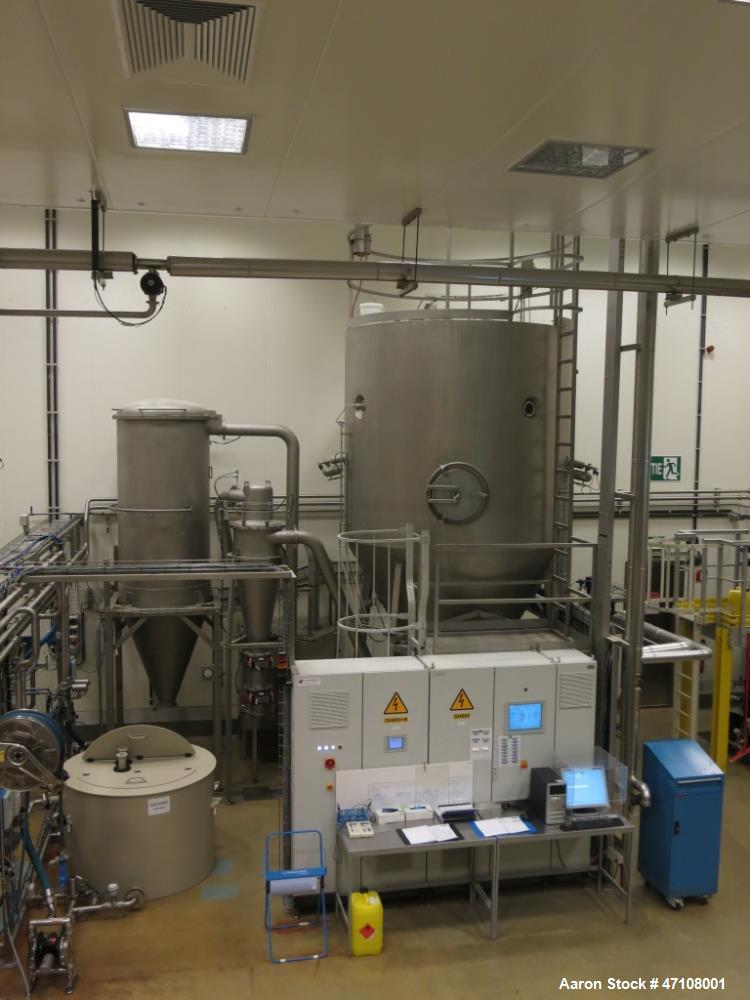

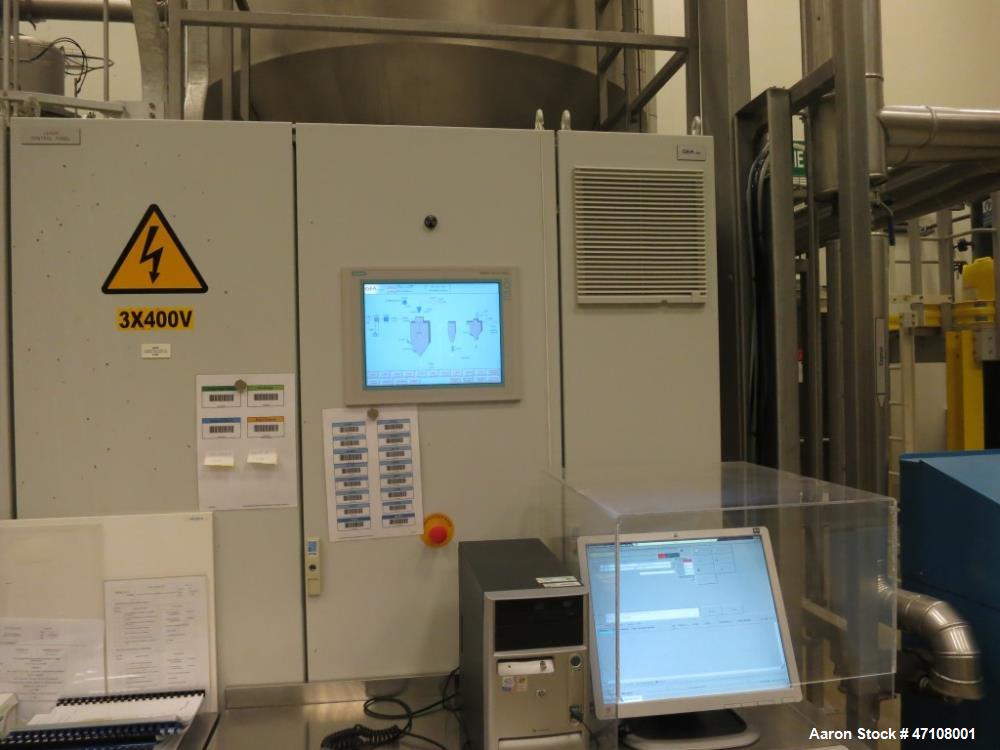

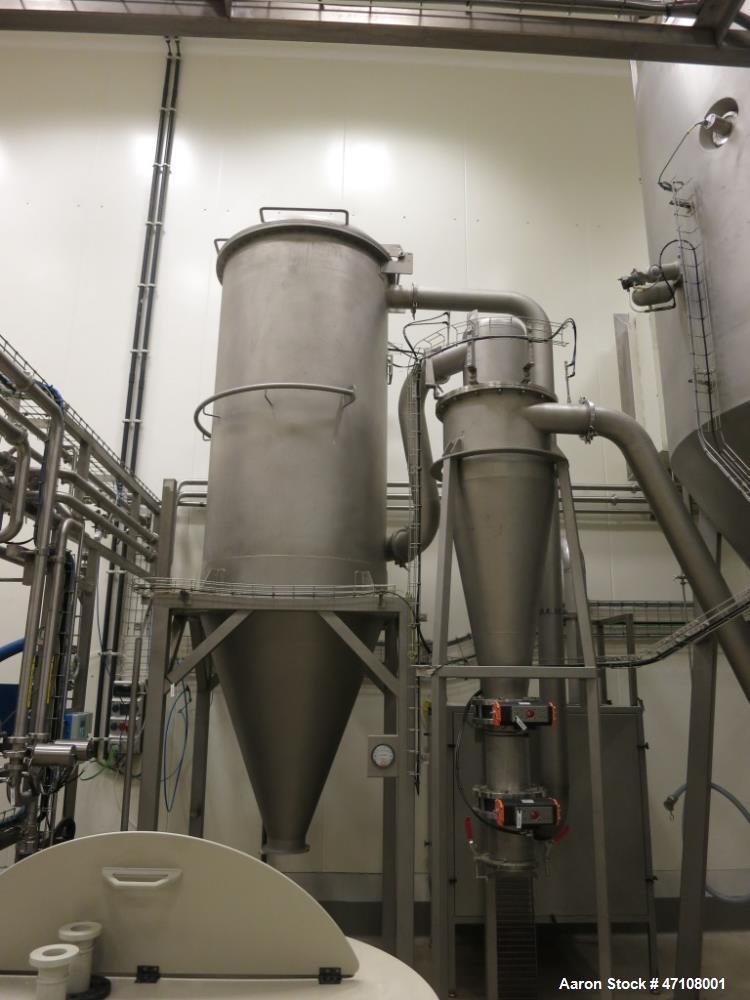

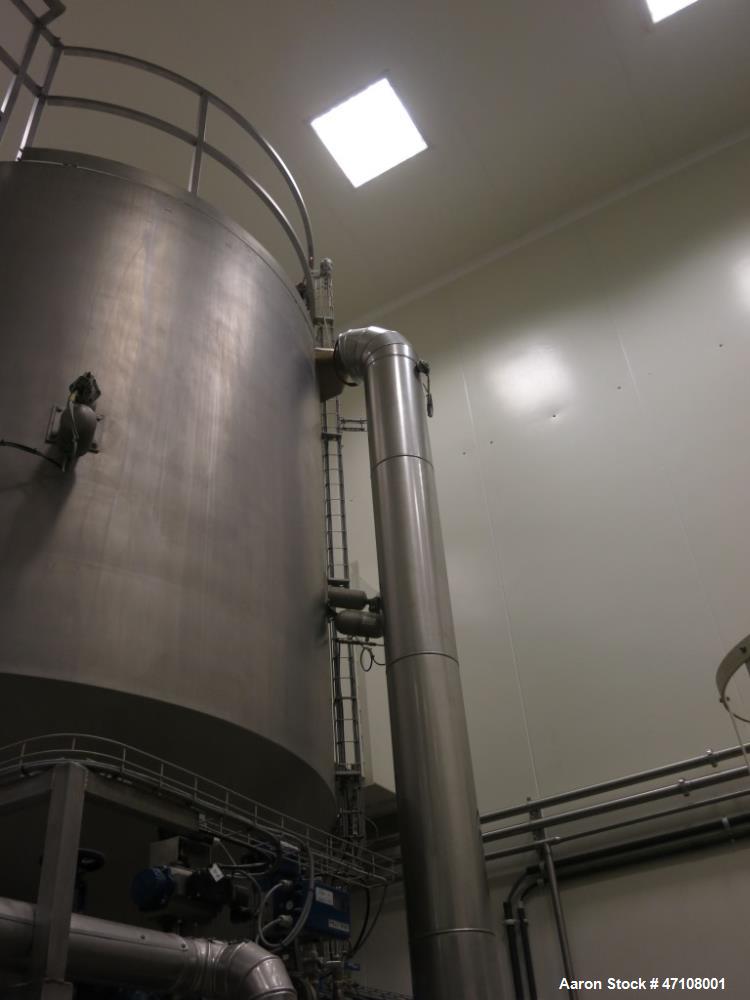

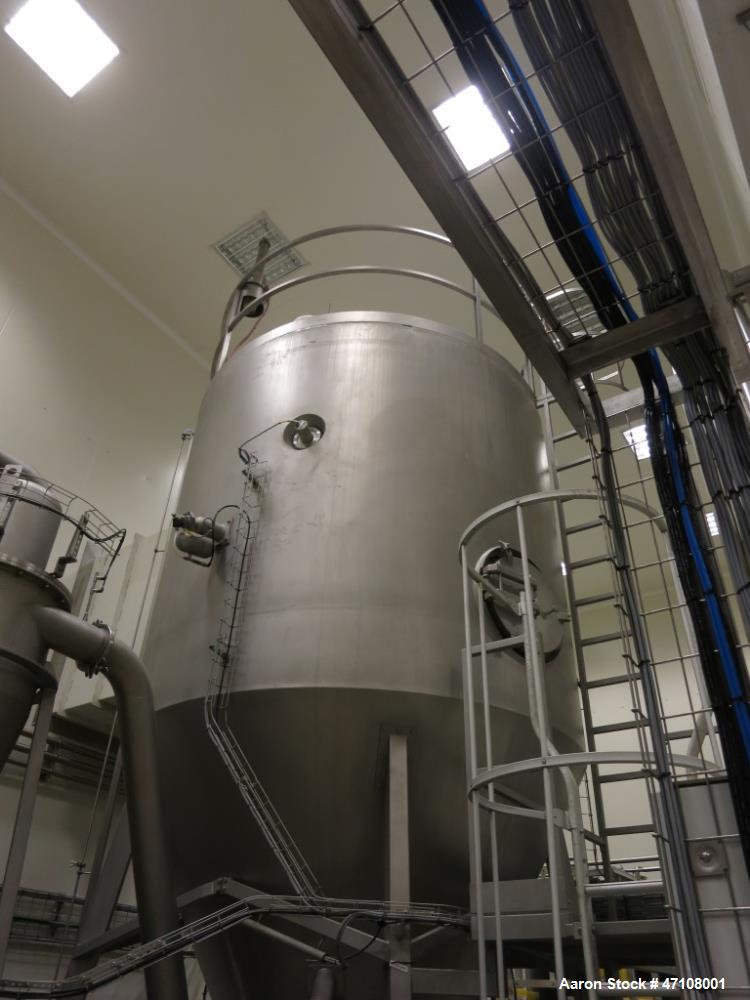

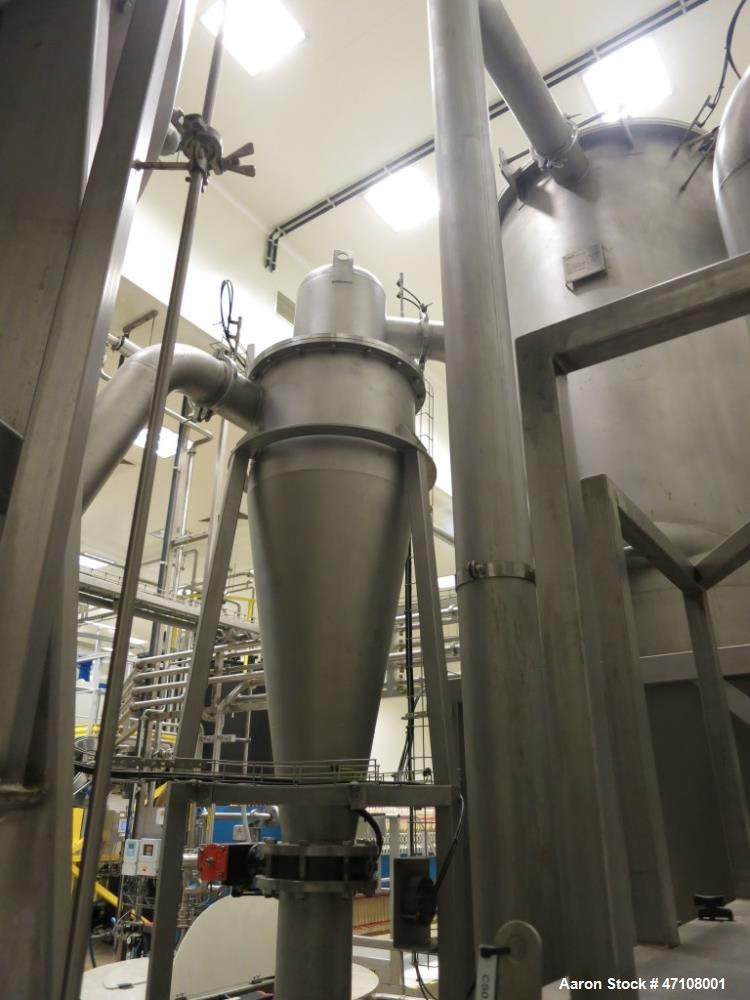

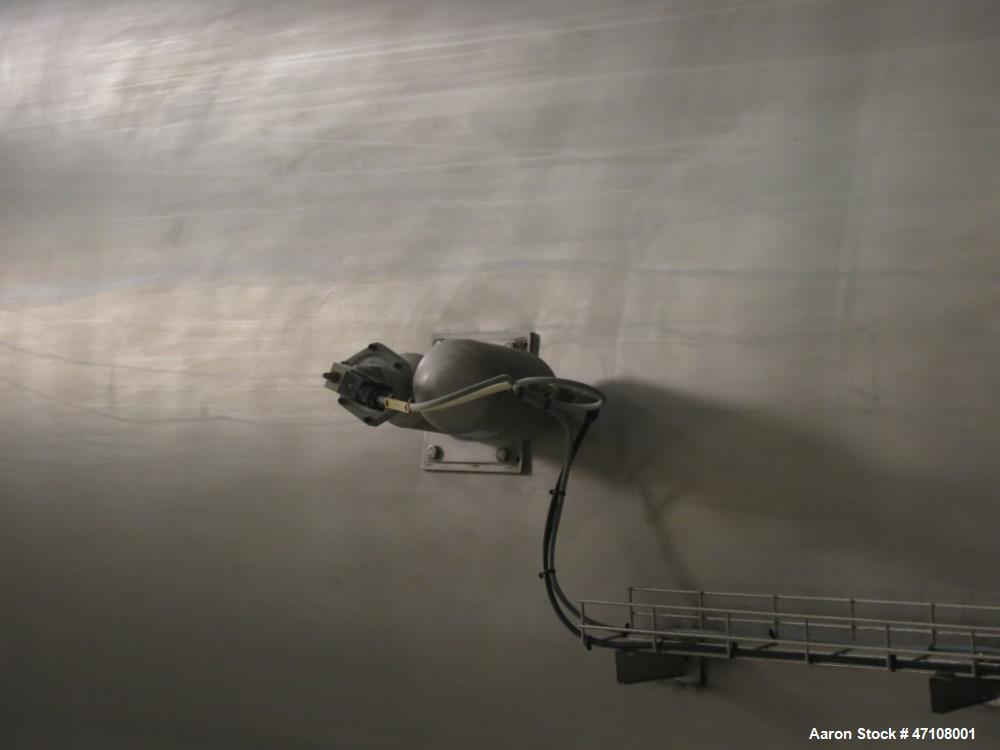

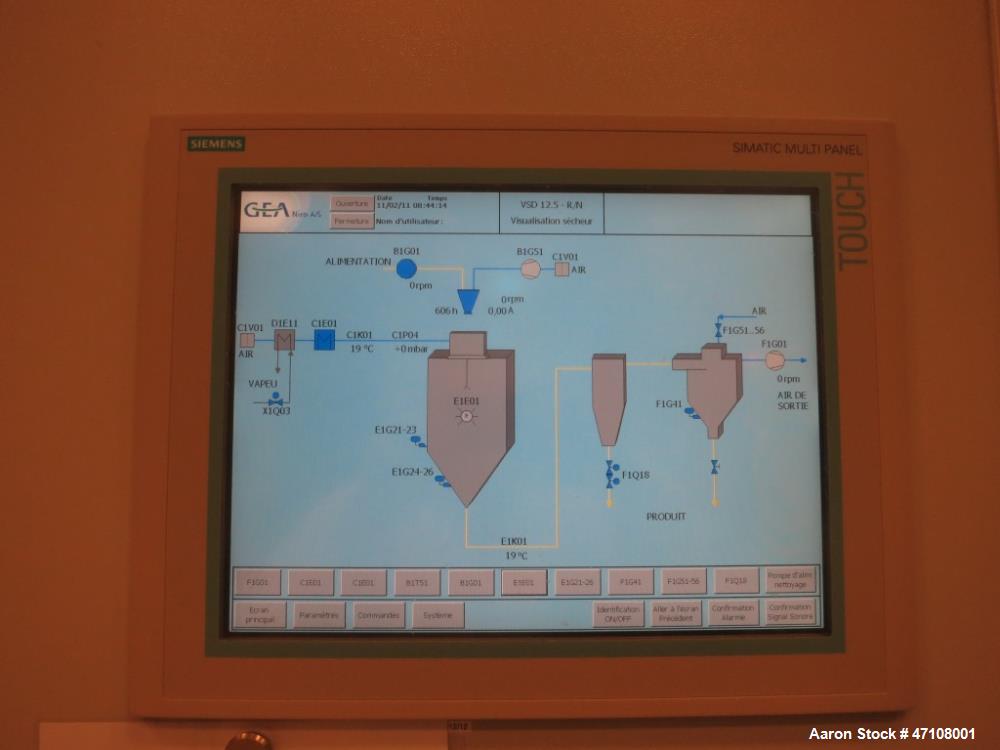

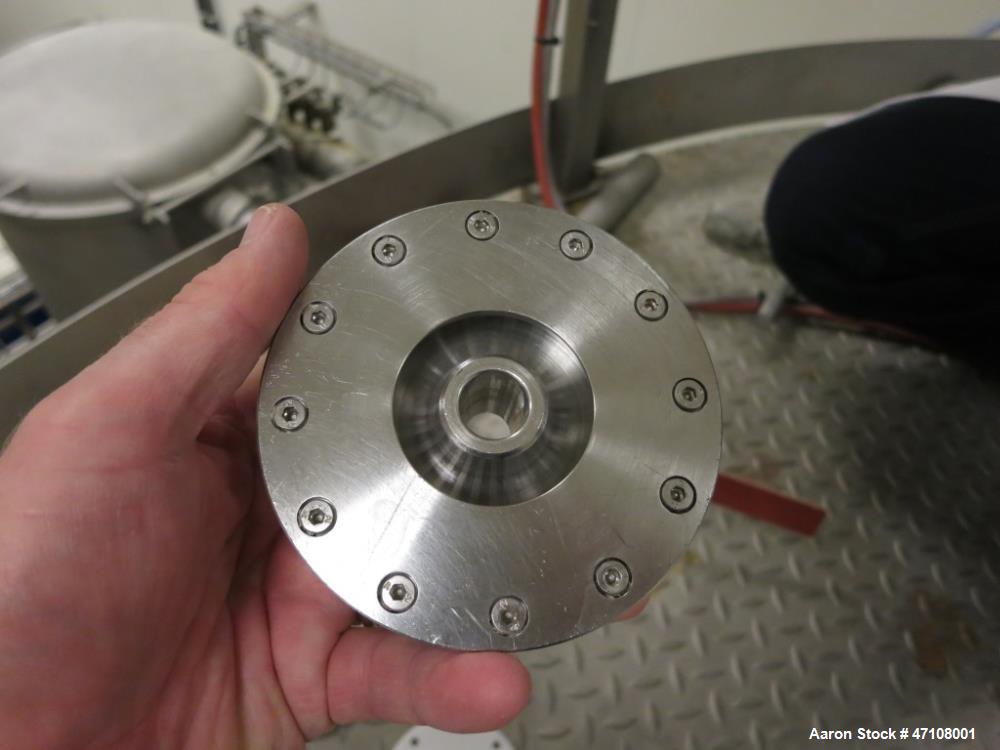

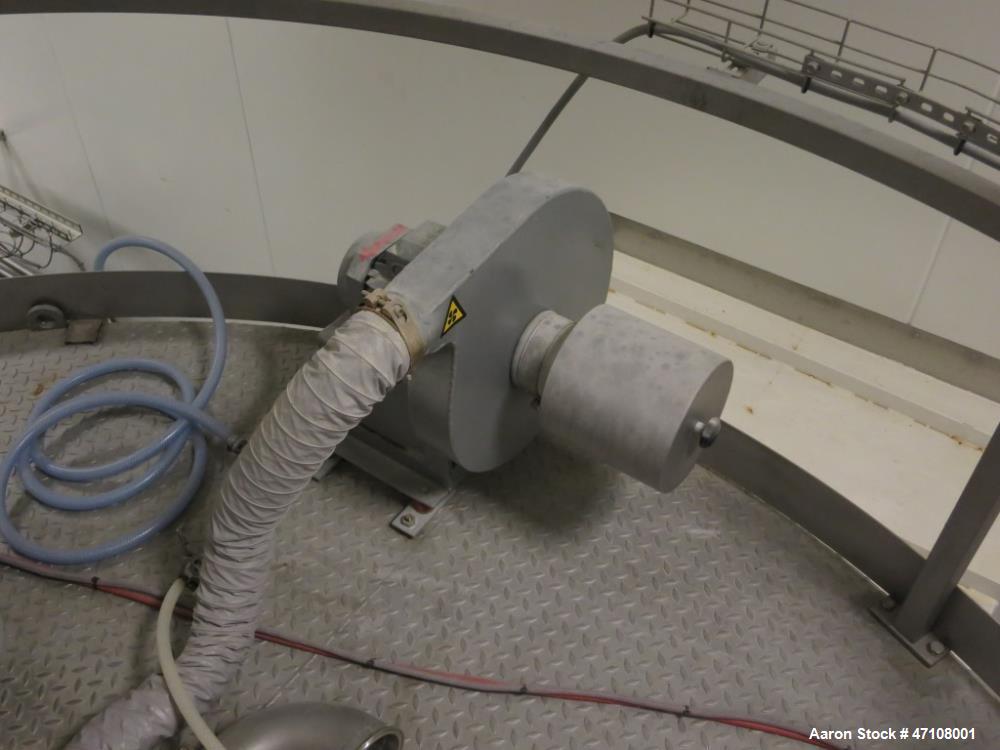

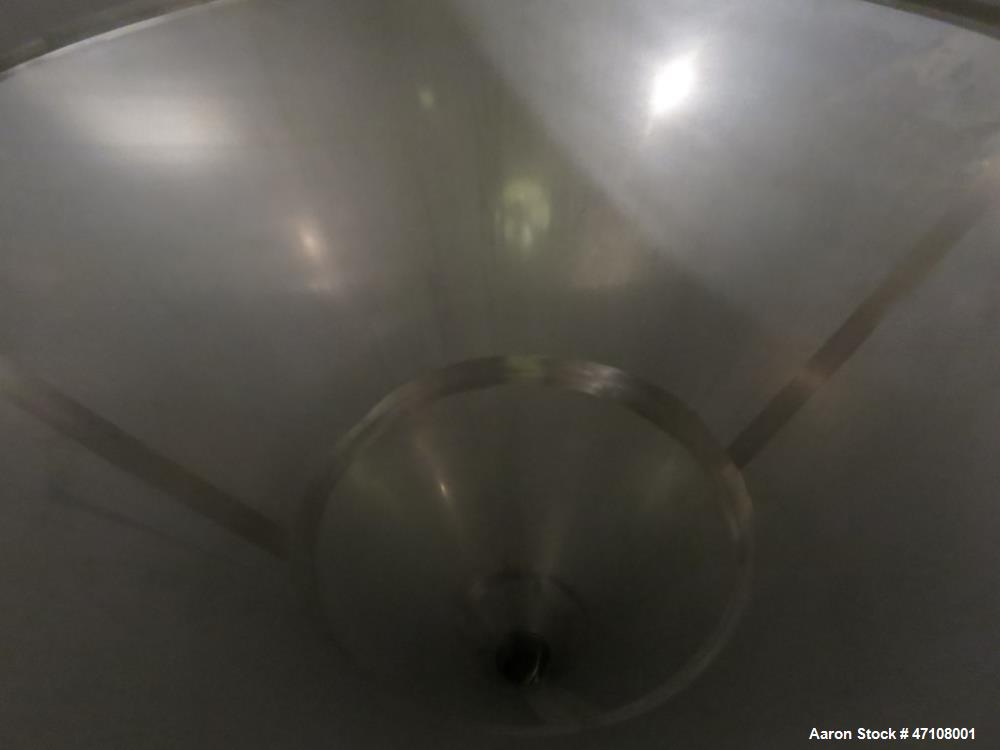

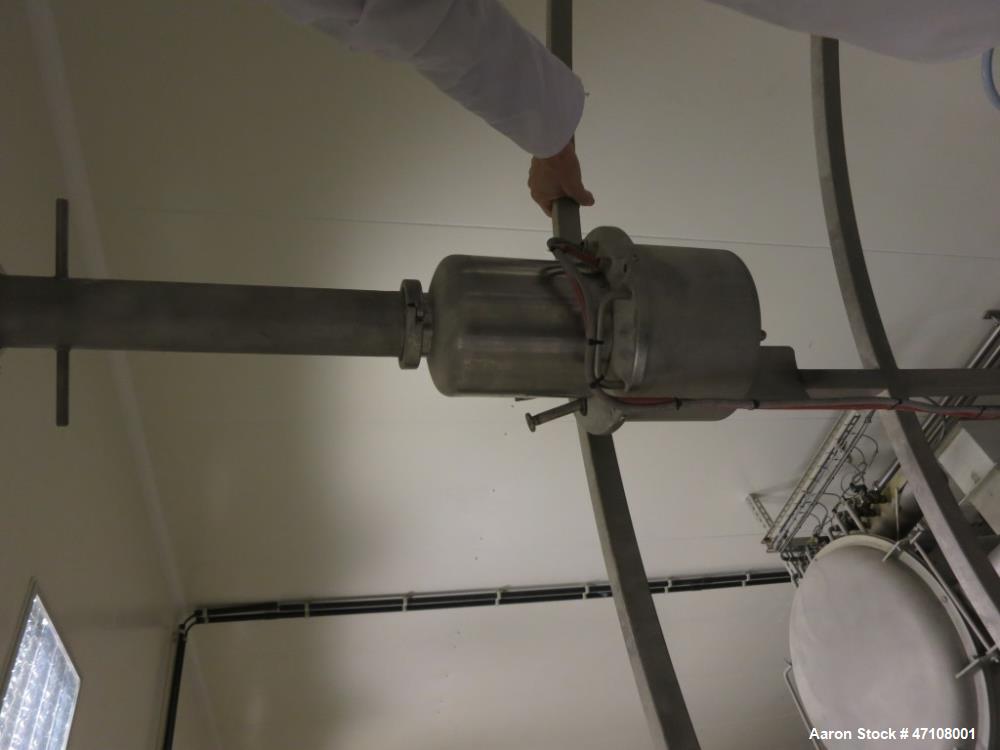

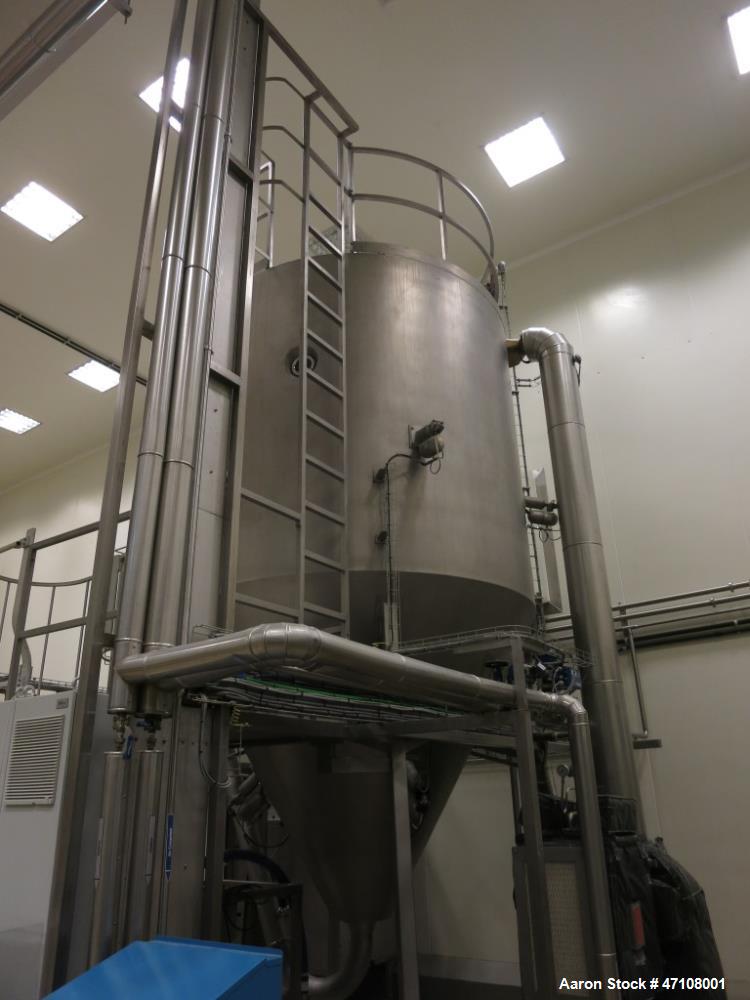

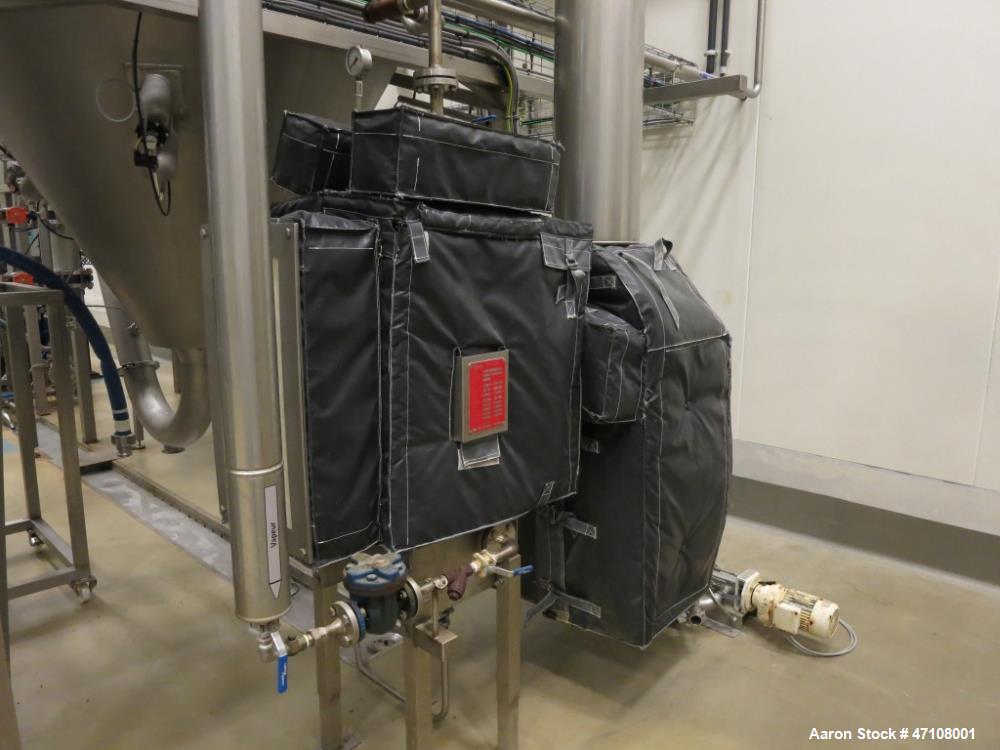

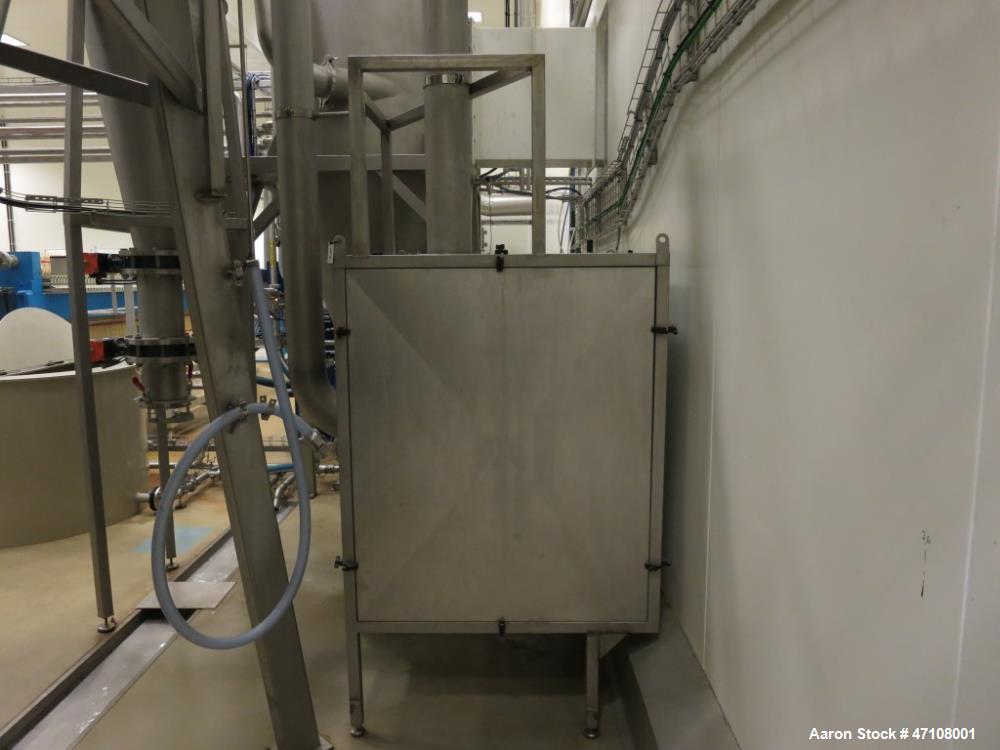

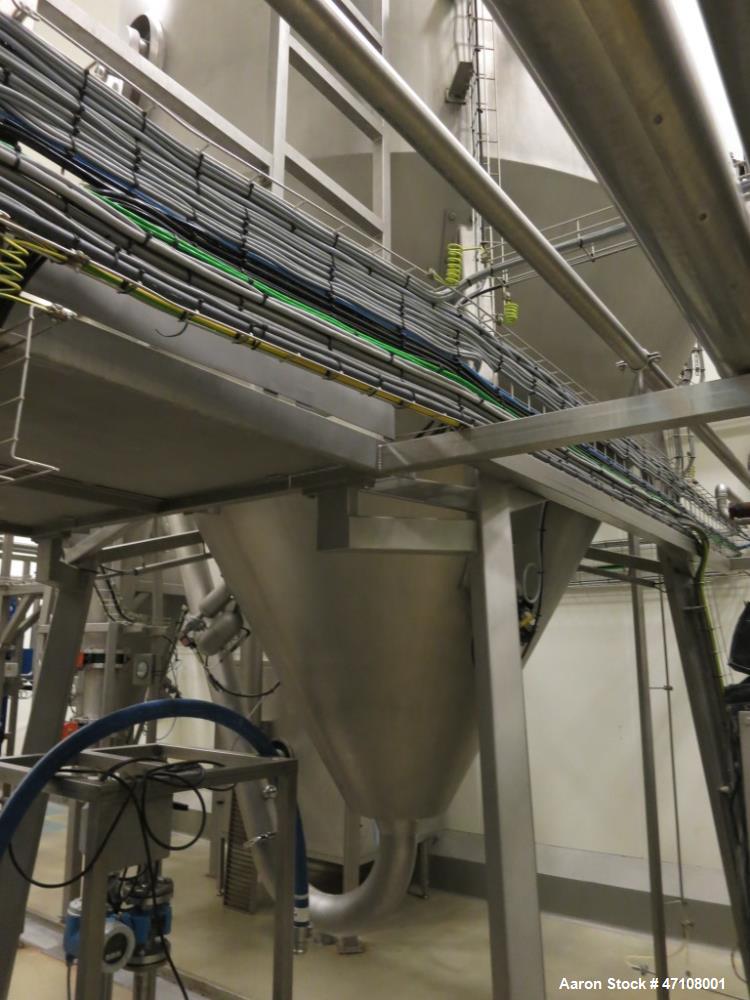

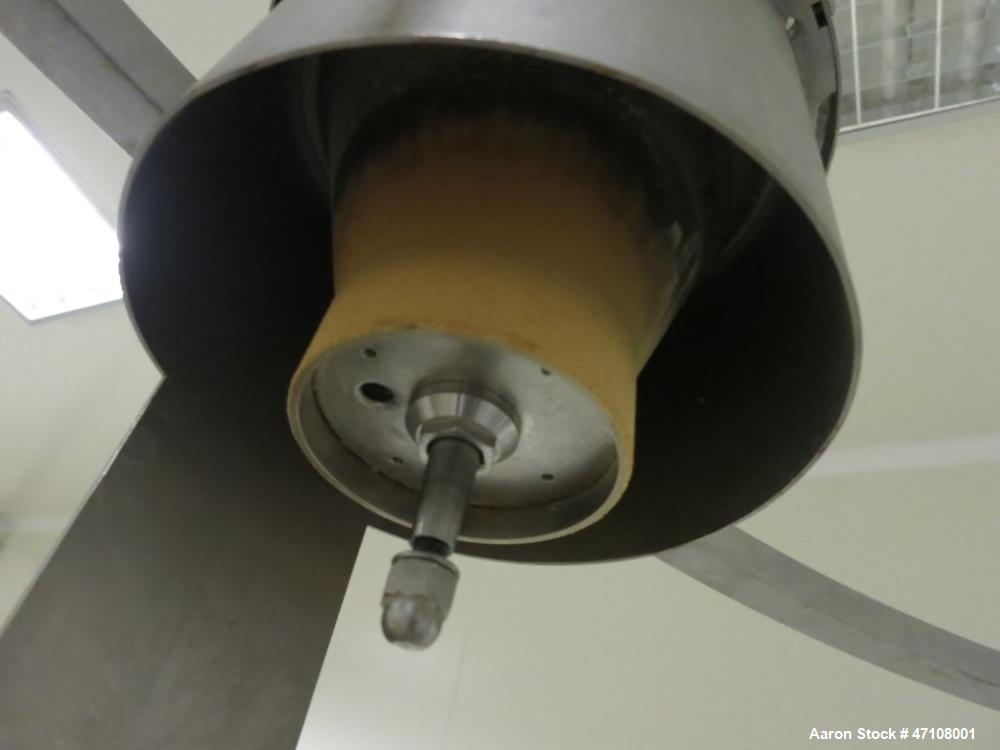

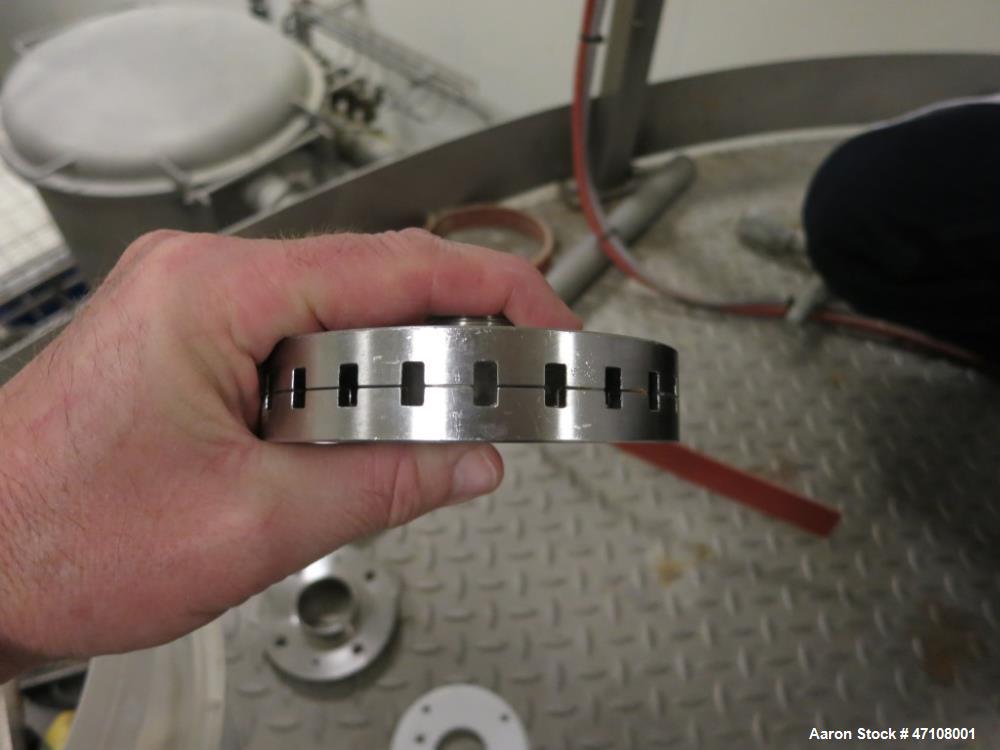

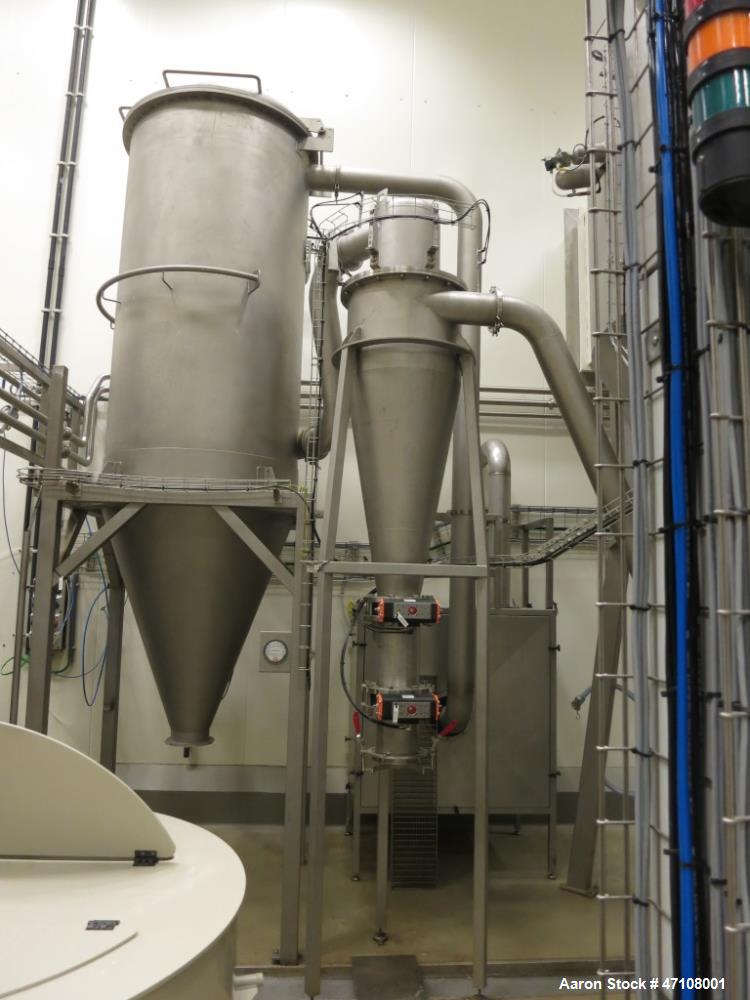

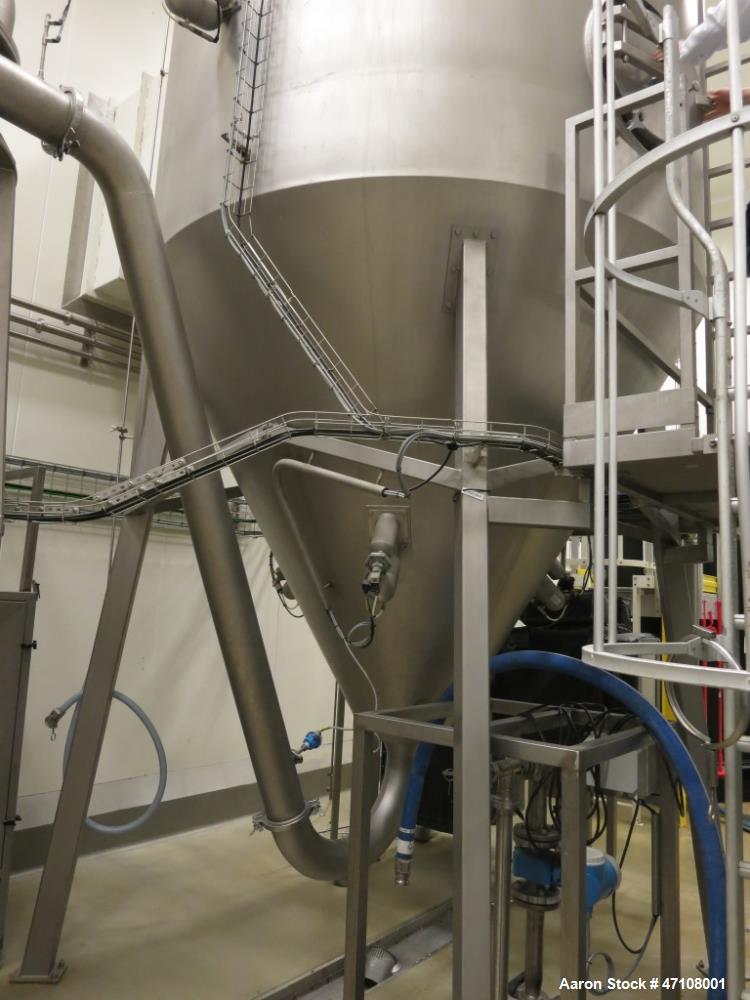

Used Niro Spray Dryer, Type SD 12.5 R/N. Material of construction is AISI 316 stainless steel on product contact parts. AISI 304 stainless steel on the outside parts. 44-220 lbs/hour (20-100 kgs/hour) water evaporation (depending on the parameter chosen). Maximum input 364 lbs/hour (120 kgs/hour). 8'2" diameter x 6'5" straight side (2500 mm diameter x 2000 mm st side), cone 60 deg drying chamber. Rotary atomizer with standard wheel. Electrically heated, 105 kW for a maximum inlet temperature of 662 degree F (350 degree C) and steam head booster of maximum 120 psi (8 bar). Dry air inlet 2750 lbs/hour (1250 kgs/hour) at 392 degree F (200 degree C). 5 Pneumatic hammers with air regulating equipment. On 4 legs with support. Includes (1) Seepex screw pump, variable remote control, (1) exhaust system including cyclone 21.8" (560 mm) diameter and bag bucket filter with removable tops, double flap valve, mounted on platform with 4 legs, (1) air fan in soundproofed box, (1) 79.4 gallon (300 liter) feed/water tank, (1) Siemens 5 door main control panel, (1) operating panel on 4 wheels. Relevant misc. platforms, stairs, hand rails and pipe infrastructure. New 2007.
Used Niro Spray Dryer, Type SD 12.5 R/N. Material of construction is AISI 316 stainless steel on product contact parts. AISI 304 stainless steel on the outside parts. 44-220 lbs/hour (20-100 kgs/hour) water evaporation (depending on the parameter chosen). Maximum input 364 lbs/hour (120 kgs/hour). 8'2" diameter x 6'5" straight side (2500 mm diameter x 2000 mm st side), cone 60 deg drying chamber. Rotary atomizer with standard wheel. Electrically heated, 105 kW for a maximum inlet temperature of 662 degree F (350 degree C) and steam head booster of maximum 120 psi (8 bar). Dry air inlet 2750 lbs/hour (1250 kgs/hour) at 392 degree F (200 degree C). 5 Pneumatic hammers with air regulating equipment. On 4 legs with support. Includes (1) Seepex screw pump, variable remote control, (1) exhaust system including cyclone 21.8" (560 mm) diameter and bag bucket filter with removable tops, double flap valve, mounted on platform with 4 legs, (1) air fan in soundproofed box, (1) 79.4 gallon (300 liter) feed/water tank, (1) Siemens 5 door main control panel, (1) operating panel on 4 wheels. Relevant misc. platforms, stairs, hand rails and pipe infrastructure. New 2007.
