Used Equipment Facts About This Machine
Manufacturer: GEA Niro / TVR
Model: MSD800 Spray Dryer System
Equipment Type: Fully Integrated Evaporation & Spray Drying Plant
Capacity: 5.2 Tons/Hour (Nominal)
Condition: Used
Previous Use: Dairy Processing
Description
Used GEA Niro MSD800 fully integrated evaporation and spray drying plant engineered for high-capacity dairy and liquid concentration applications. This advanced system is designed to handle total solids (TS) up to 55% and delivers efficient, consistent drying and evaporation performance.
The plant features a compact multi-stage spray dryer with an externally cladded drying chamber, eliminating internal insulation materials for improved hygiene and maintenance. Equipped with an 8-nozzle spray atomization system, internal static fluid bed, and external horizontal fluid bed, the system ensures optimal drying, heating, and cooling of product.

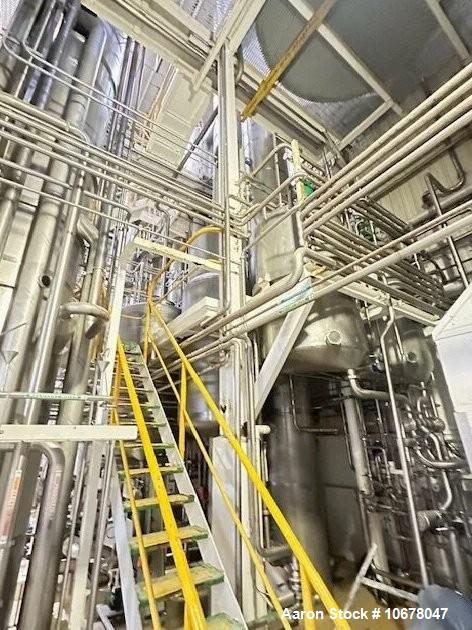

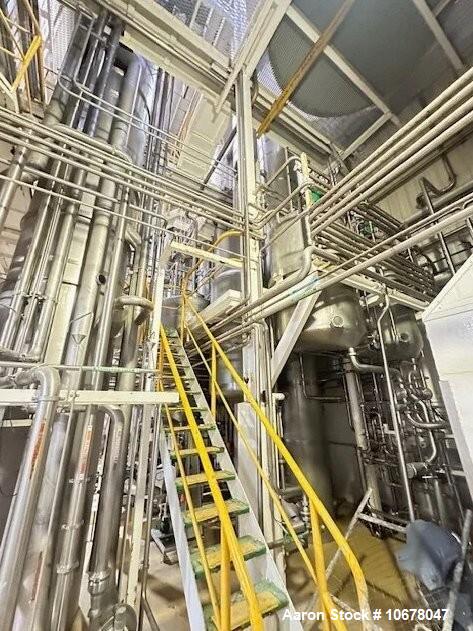

The integrated evaporation system includes a sophisticated multi-stage falling film evaporator combining Mechanical Vapor Recompression (MVR) and Thermal Vapor Recompression (TVR), maximizing energy efficiency through vapor reuse while maintaining product quality. The system also includes a GEA-designed baghouse, powder handling equipment, and full automation controls with frequency inverters.
Rebuilt CDI-800 + BF in 2005, with a GEA baghouse upgrade in 2007, this plant offers proven performance and reliability for industrial-scale dairy processing.
Specifications
Spray Dryer System
- Manufacturer: GEA Niro
- Model: MSD800
- Capacity: 5.2 tons/hour (nominal)
- Type: Multi-stage spray dryer

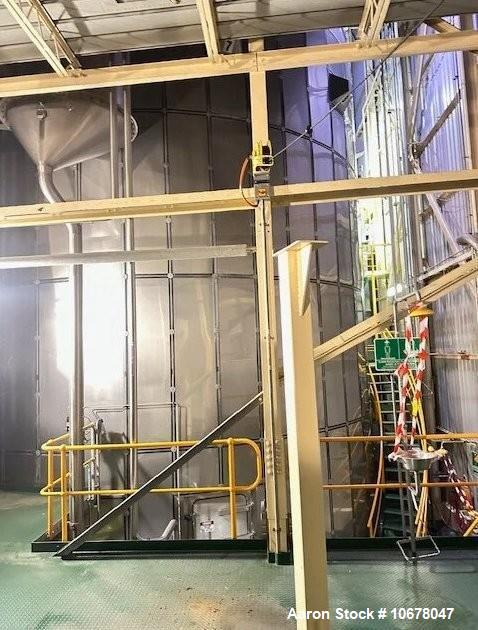

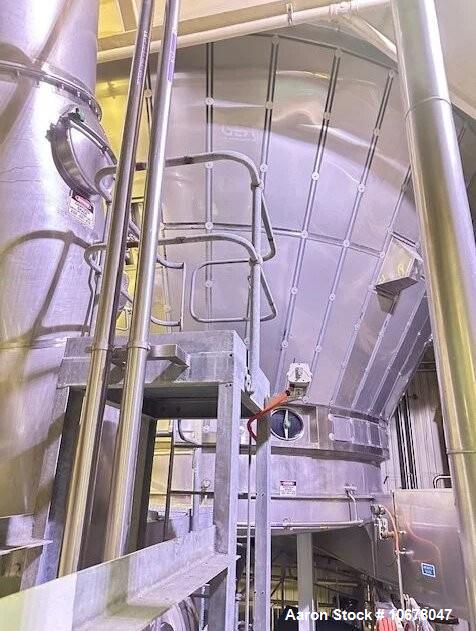

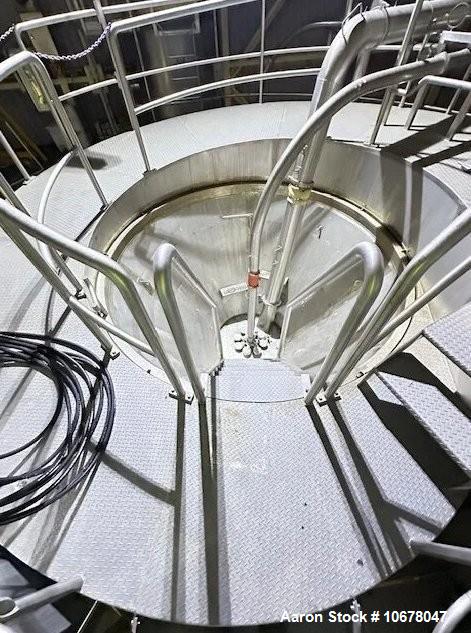

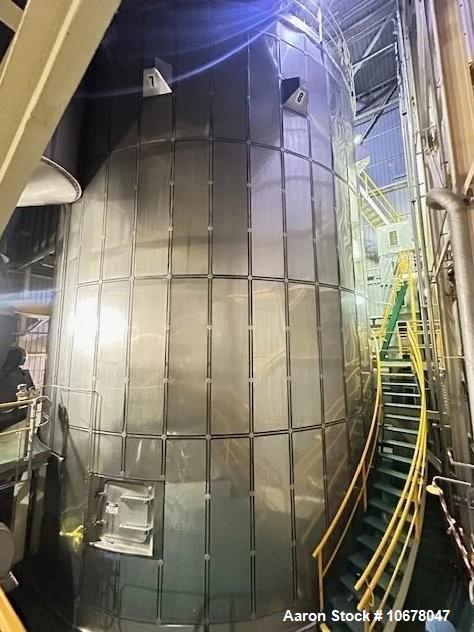

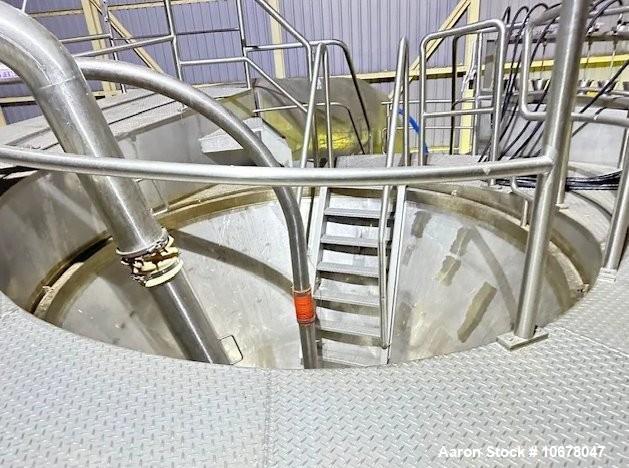

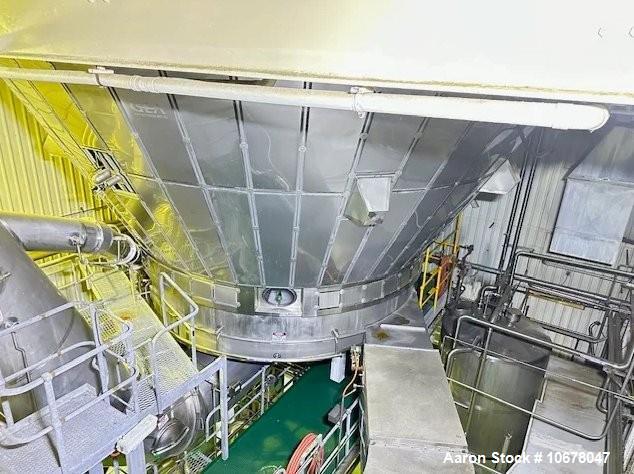

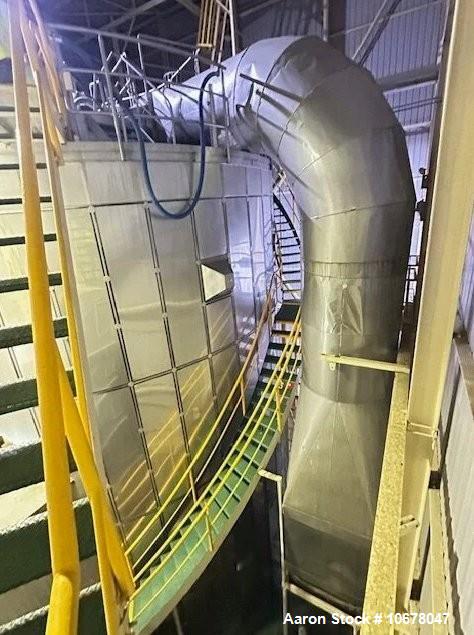

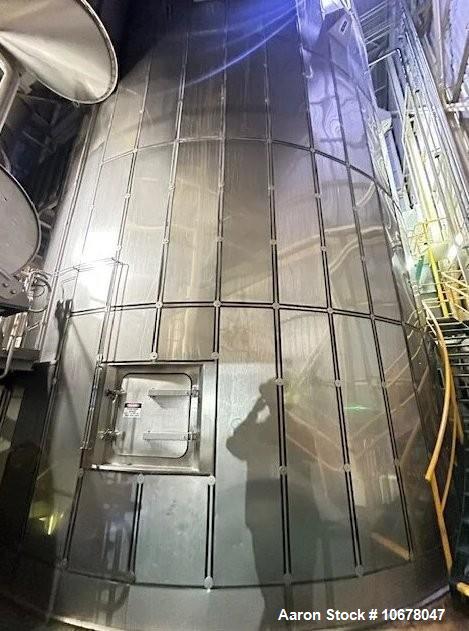

- Drying Chamber: Externally cladded, no internal insulation

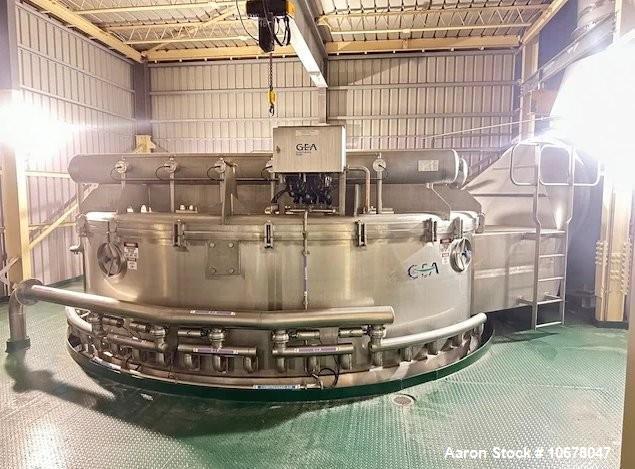

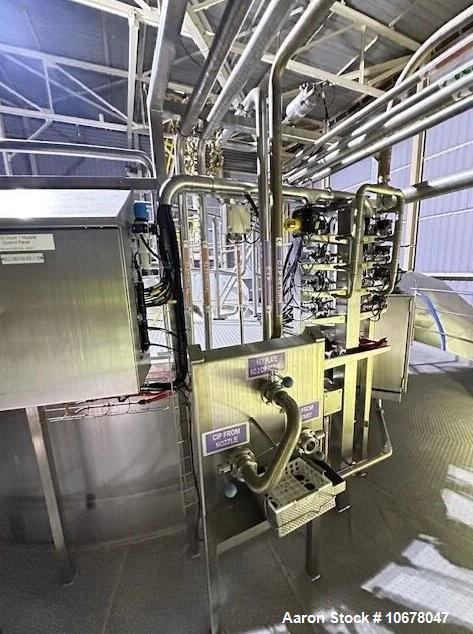

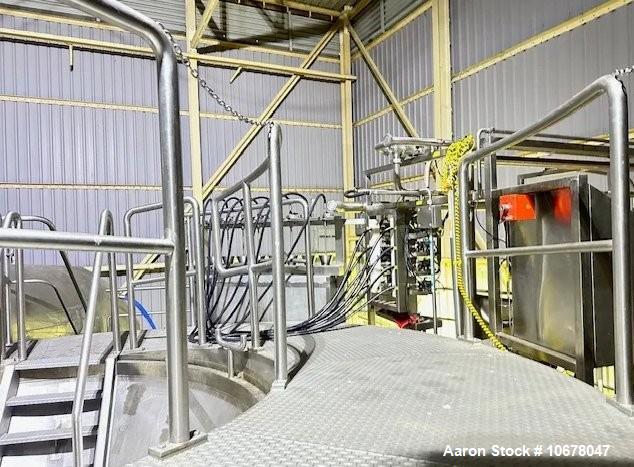

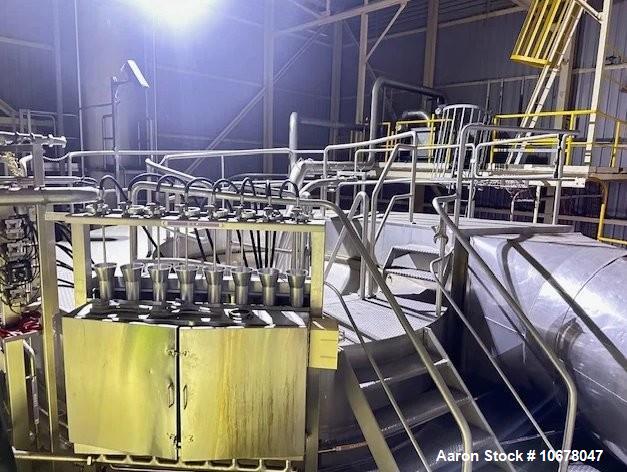

- Atomization: (8) spray nozzles
- Fluid Beds:
- Internal static fluid bed
- External horizontal fluid bed (heating & cooling)
- Filtration: GEA-designed baghouse system
- Air Heating: Steam with electrical top-up

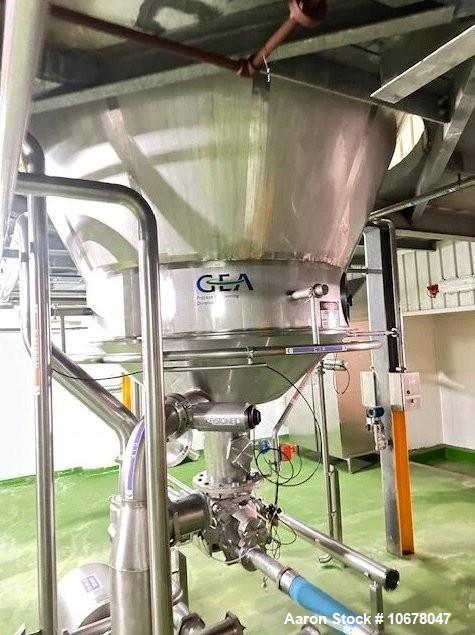

- Powder Handling: Integrated discharge and conveying system
- Controls: Panels with frequency inverters

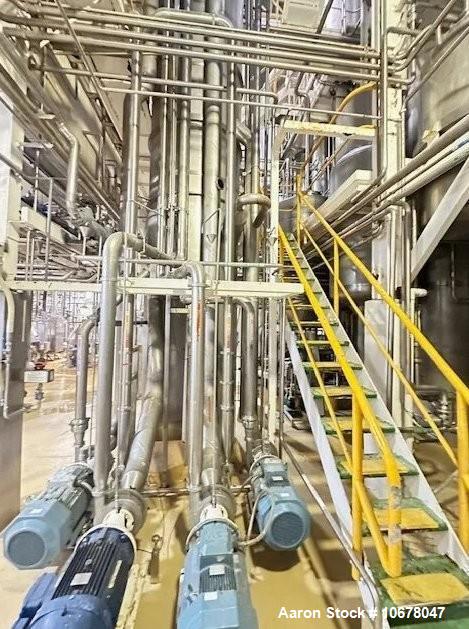

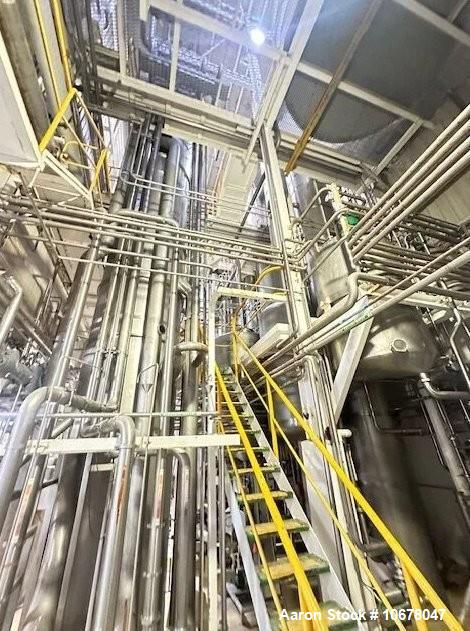

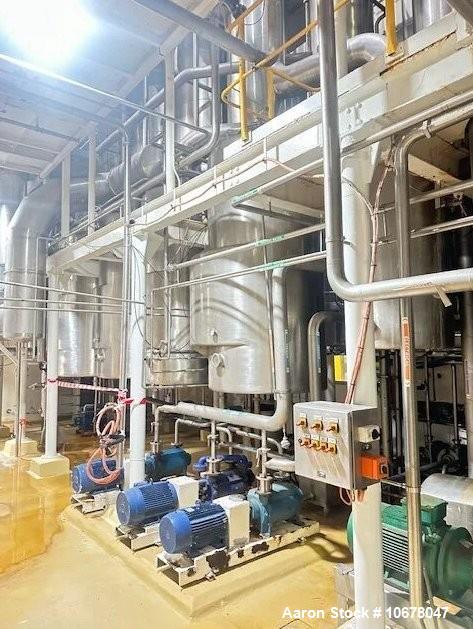

Evaporation System

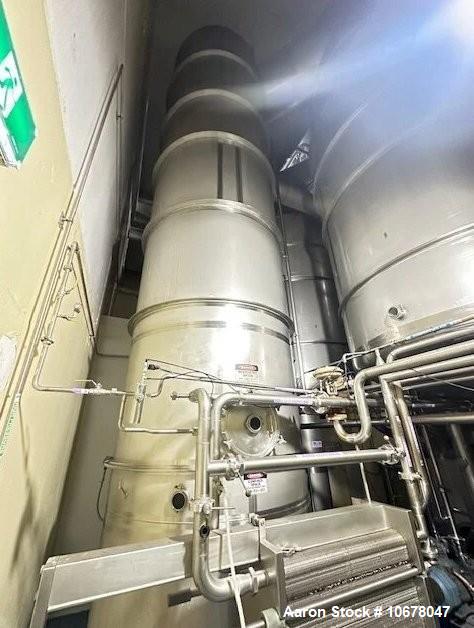

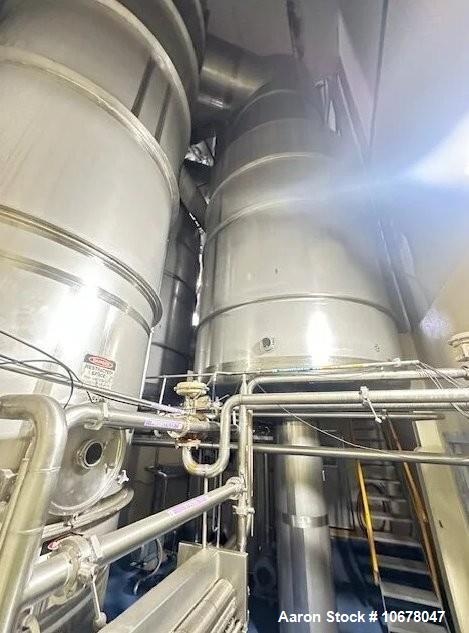

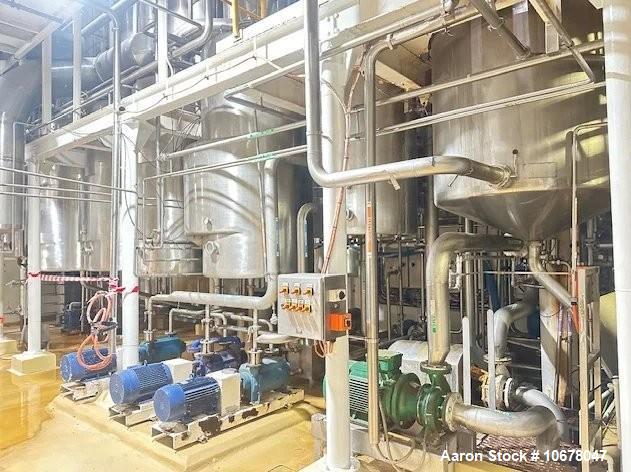

- Type: Multi-stage falling film evaporator
- Configuration:

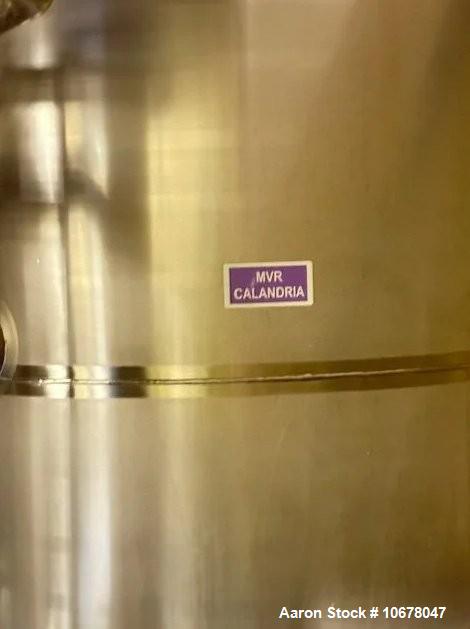

- 1 x 3-stage MVR system
- 1 x 5-effect TVR system + high finisher
- Vapor Systems:
- Mechanical Vapor Recompression (MVR)
- Thermal Vapor Recompression (TVR)
- Heating: Direct steam injection with regenerative section
- Pre-heater: Shell & tube heat exchanger
- Vacuum System: Complete with vacuum pumps
- Efficiency: Designed for vapor reuse and reduced steam consumption
Applications
Ideal for large-scale concentration and drying of dairy and liquid food products requiring high efficiency and consistent powder quality.
Products This Equipment Would Be Used For
- Milk powder
- Infant formula
- Whey powder
- Dairy proteins
- Skim milk powder
- Whole milk powder
- Nutritional powders
- Plant-based powders
- Coffee extracts
- Food ingredient powders
