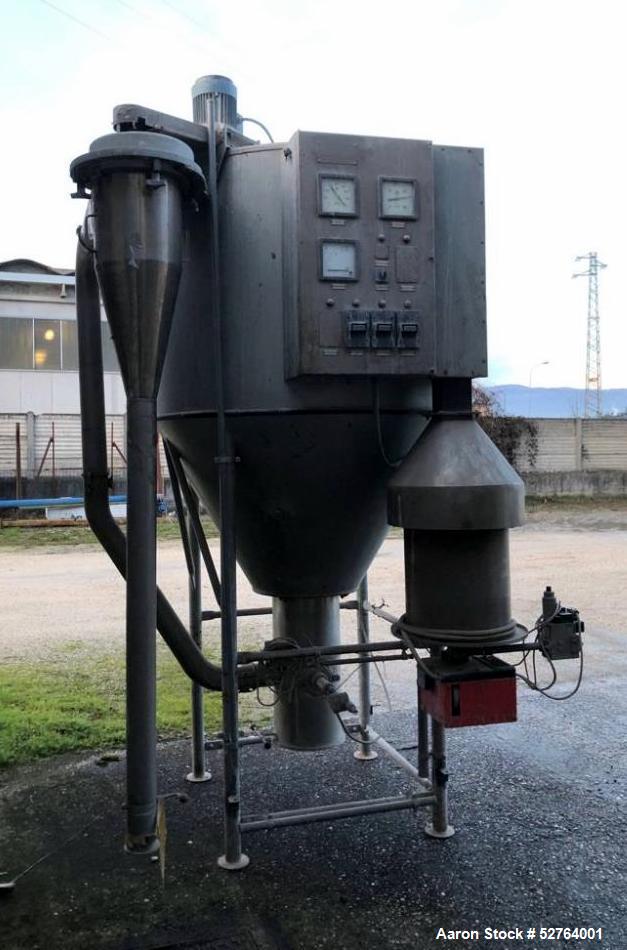

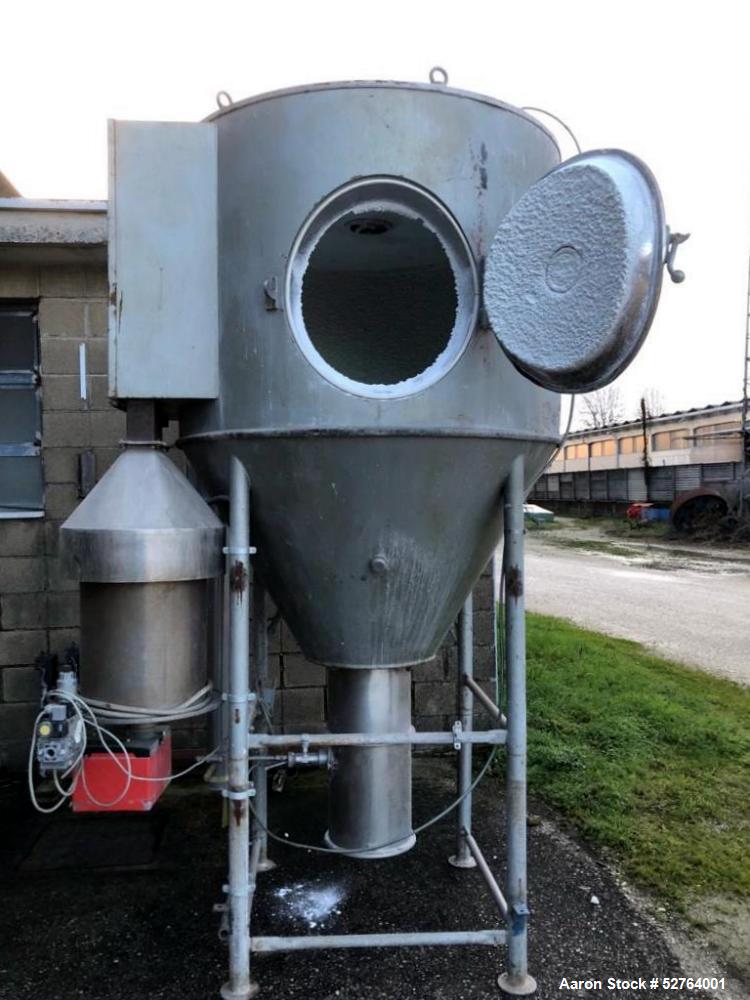

Used GEA Niro Production Minor Spray Dryer, Stainless Steel. Approximate 46.8" (1200 mm) diameter x 31.2" (800 mm) straight side x 31.2" (800 mm) cone bottom. Center bottom outlet. Drying capacity approximate 22 - 33 lbs (10-15 kg) an hour. Natural gas heated by a Rillo FS5D series one stage gas burner. Bottom-up nozzle atomization by a Niro pressure nozzle in fountain mode. Includes cyclone, 2.25HP/1.5 Kw motor, control panel, piping, and additional infrastructure. On 4 legs. Previously used in a ceramic application.
Manufacturer | NiroNiro |
Model | Production Minor |
Category | Dryers - Drying EquipmentDryers - Drying Equipment |
Subcategory | Spray DryerSpray Dryer |
Diameter | 46.8" |
Straight Side | 31.2" |
Bottom | Coned Bottom |
Side Access Door | Yes |
Mounted | Mounted on 4 Legs |
Manufacturer: GEA Niro
Model: Production Minor
Material: Stainless Steel
Condition: Used
The GEA Niro Production Minor Spray Dryer is a versatile, small-scale spray drying system ideal for pilot production and specialty applications. Constructed from stainless steel, the unit features a drying chamber with an approximate 46.8" (1200 mm) diameter, 31.2" (800 mm) straight side, and a 31.2" (800 mm) cone bottom with a center bottom outlet. It offers a drying capacity of approximately 22 – 33 lbs (10 – 15 kg) per hour and uses natural gas heating through a Rillo FS5D series one-stage gas burner. The bottom-up nozzle atomization is achieved via a Niro pressure nozzle operating in fountain mode. The system includes a cyclone separator, 2.25 HP (1.5 kW) motor, control panel, piping, and additional infrastructure, all mounted on four legs. Last used for ceramic applications, this spray dryer is well-suited for food, chemical, and pharmaceutical industries.
Used GEA Niro Production Minor Spray Dryer, Stainless Steel. Approximate 46.8" (1200 mm) diameter x 31.2" (800 mm) straight side x 31.2" (800 mm) cone bottom. Center bottom outlet. Drying capacity approximate 22 - 33 lbs (10-15 kg) an hour. Natural gas heated by a Rillo FS5D series one stage gas burner. Bottom-up nozzle atomization by a Niro pressure nozzle in fountain mode. Includes cyclone, 2.25HP/1.5 Kw motor, control panel, piping, and additional infrastructure. On 4 legs. Previously used in a ceramic application.
Manufacturer: GEA Niro
Model: Production Minor
Material: Stainless Steel
Condition: Used
The GEA Niro Production Minor Spray Dryer is a versatile, small-scale spray drying system ideal for pilot production and specialty applications. Constructed from stainless steel, the unit features a drying chamber with an approximate 46.8" (1200 mm) diameter, 31.2" (800 mm) straight side, and a 31.2" (800 mm) cone bottom with a center bottom outlet. It offers a drying capacity of approximately 22 – 33 lbs (10 – 15 kg) per hour and uses natural gas heating through a Rillo FS5D series one-stage gas burner. The bottom-up nozzle atomization is achieved via a Niro pressure nozzle operating in fountain mode. The system includes a cyclone separator, 2.25 HP (1.5 kW) motor, control panel, piping, and additional infrastructure, all mounted on four legs. Last used for ceramic applications, this spray dryer is well-suited for food, chemical, and pharmaceutical industries.
Manufacturer | Niro |
Model | Production Minor |
Category | Dryers - Drying Equipment |
Subcategory | Spray Dryer |
Diameter | 46.8" |
Straight Side | 31.2" |
Bottom | Coned Bottom |
Side Access Door | Yes |
Mounted | Mounted on 4 Legs |
