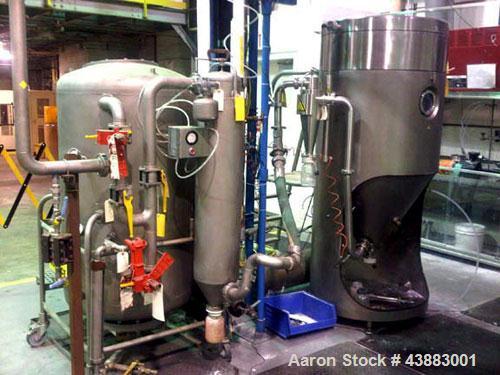

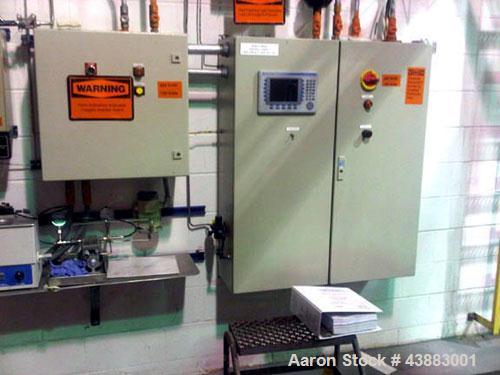

Used Niro MM-XP Mobile Minor Spray Dryer / Catalyst Spray Dryer, Solvent and Recovery System. 316 Stainless steel product contact areas. Unit designed to dry aqueous and non-aqueous feeds. Drying operation includes (3) stages, atomization of feed liquid into a spray contacting the spray with hot air, or nitrogen to promote solvent evaporation, separation of dried product from air or nitrogen in a cyclone. Solvent recovery unit for non-aqueous feeds, (2) atomizing systems, rotary atomizer wheel rated for 33,000 rpm, fountain (2) flow nozzle, water evaporation rate at air heating 1.7 kg/hour depending on temperature. Outlet discharge temperature 150 degrees maximum. 7.5 kw electric heater. Open cycle spray dryer type includes (3) major assemblies. (1) Main dryer system, control panel, and the exhaust gas filter/carbon bed. Main dryer is mounted on a portable frame with electric inlet process gas heater and supply flow control. Drying chamber is on a pneumatic lift cylinder. Drying chamber approximately 2.7’ diameter x 2’ straight side x 60 degree angle coned bottom. Allen-Bradley control panel. Exhaust gas filter/carbon bed assembly mounted on a portable frame. Includes a Watson Marlow peristaltic pump, model 521CC, and miscellaneous piping.
Used Niro MM-XP Mobile Minor Spray Dryer / Catalyst Spray Dryer, Solvent and Recovery System. 316 Stainless steel product contact areas. Unit designed to dry aqueous and non-aqueous feeds. Drying operation includes (3) stages, atomization of feed liquid into a spray contacting the spray with hot air, or nitrogen to promote solvent evaporation, separation of dried product from air or nitrogen in a cyclone. Solvent recovery unit for non-aqueous feeds, (2) atomizing systems, rotary atomizer wheel rated for 33,000 rpm, fountain (2) flow nozzle, water evaporation rate at air heating 1.7 kg/hour depending on temperature. Outlet discharge temperature 150 degrees maximum. 7.5 kw electric heater. Open cycle spray dryer type includes (3) major assemblies. (1) Main dryer system, control panel, and the exhaust gas filter/carbon bed. Main dryer is mounted on a portable frame with electric inlet process gas heater and supply flow control. Drying chamber is on a pneumatic lift cylinder. Drying chamber approximately 2.7’ diameter x 2’ straight side x 60 degree angle coned bottom. Allen-Bradley control panel. Exhaust gas filter/carbon bed assembly mounted on a portable frame. Includes a Watson Marlow peristaltic pump, model 521CC, and miscellaneous piping.
