Used Equipment Facts About This Machine

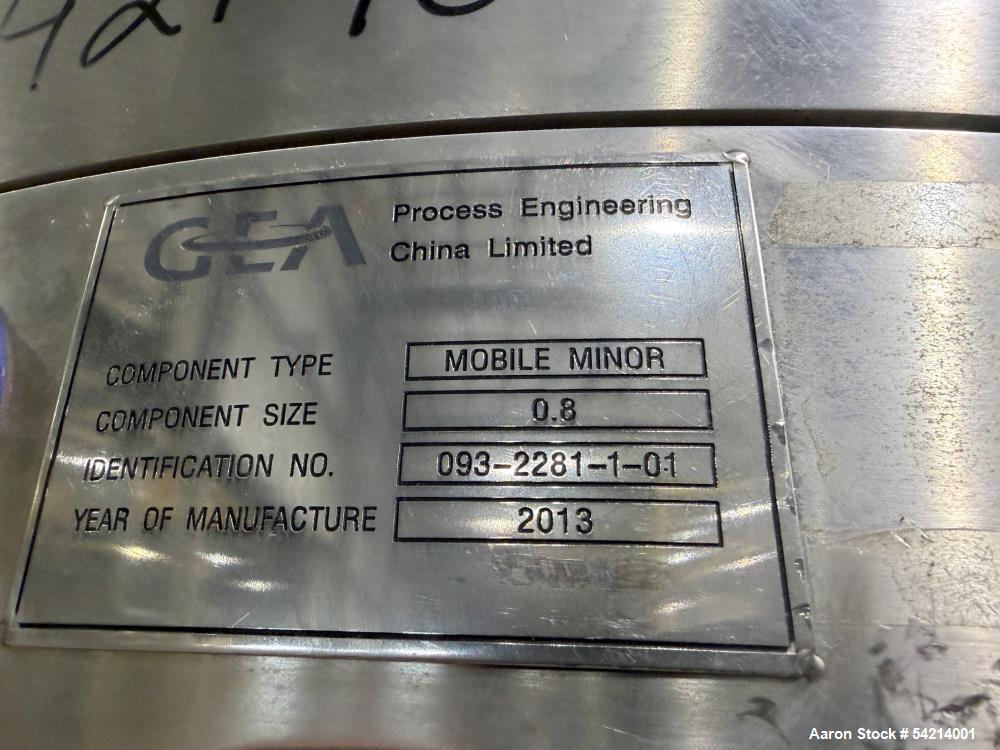

Manufacturer Information
Manufacturer: GEA Niro (GEA Group)
Model: Mobile Minor Spray Dryer
Component Size: 0.8
Serial Number: 093-2281-01
Year Built: 2013
Construction: Stainless Steel
Application: Pilot scale spray drying for pharmaceuticals, food, chemical, biotech, and cosmetics
GEA Niro is a global leader in spray drying technology and advanced powder processing systems used across pharmaceutical, food, chemical, and biotech industries. Their Mobile Minor systems are widely used for research, pilot production, and small-batch commercial spray drying.
Description

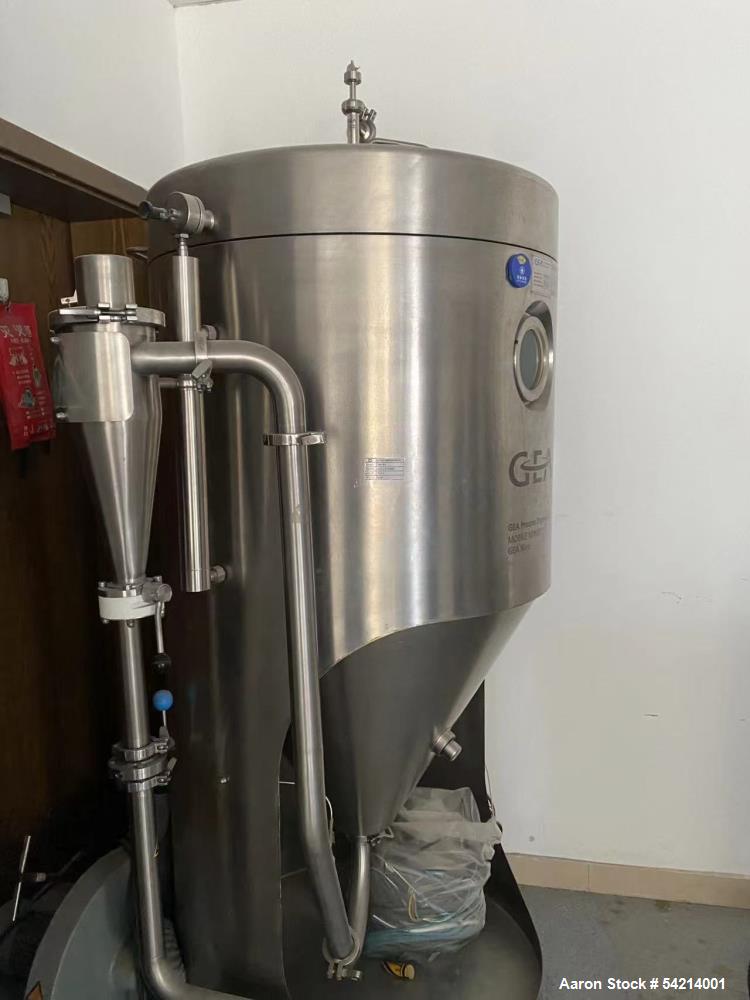

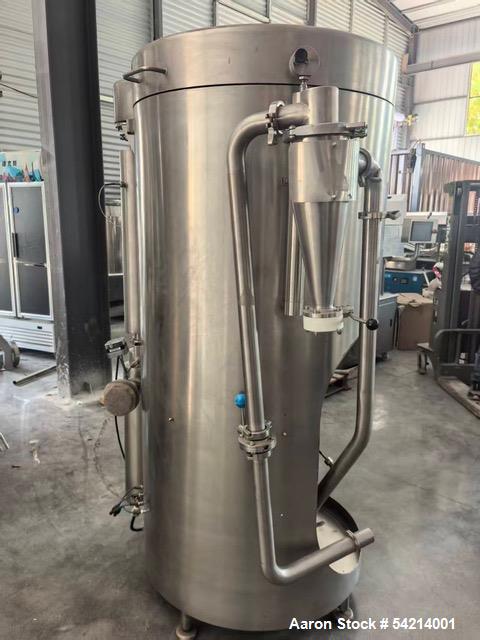

This Used GEA Niro Mobile Minor Spray Dryer is a compact pilot-scale spray drying system designed for laboratory development, small-batch production, and product formulation testing.
The system has an evaporation capacity of approximately 0.5–8 kg/hr of water, making it ideal for R&D environments or specialty powder production. The unit operates with a main process gas flow of approximately 100 kg/h, producing powders with an average mean particle size of approximately 80 µm.

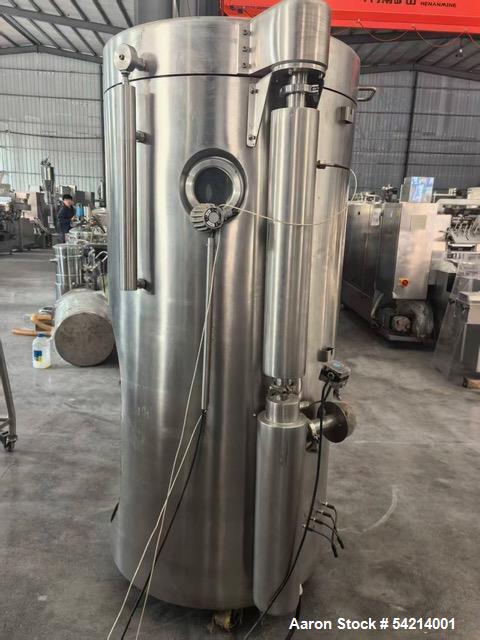

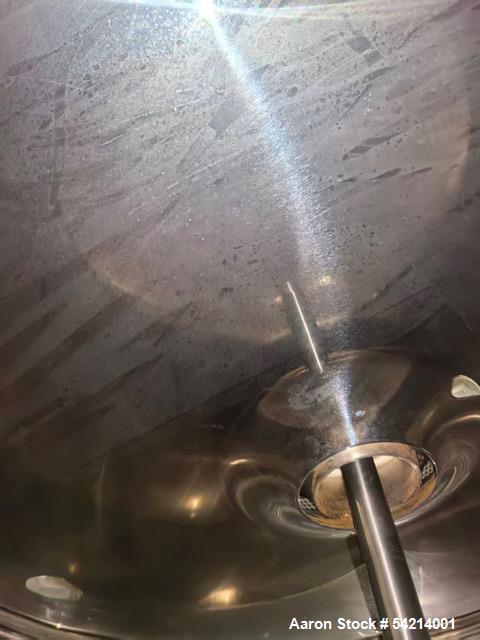

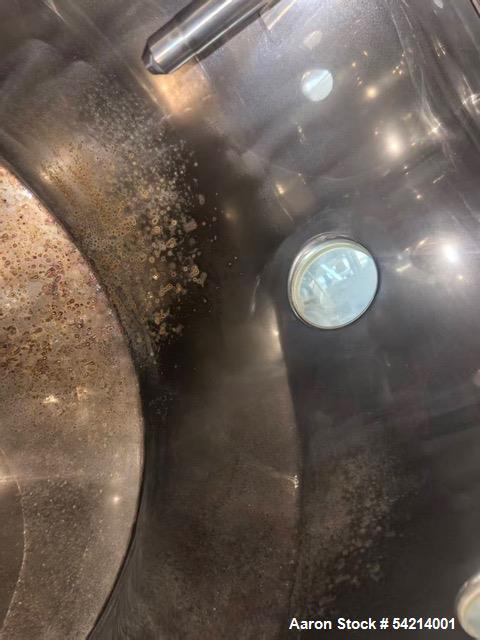

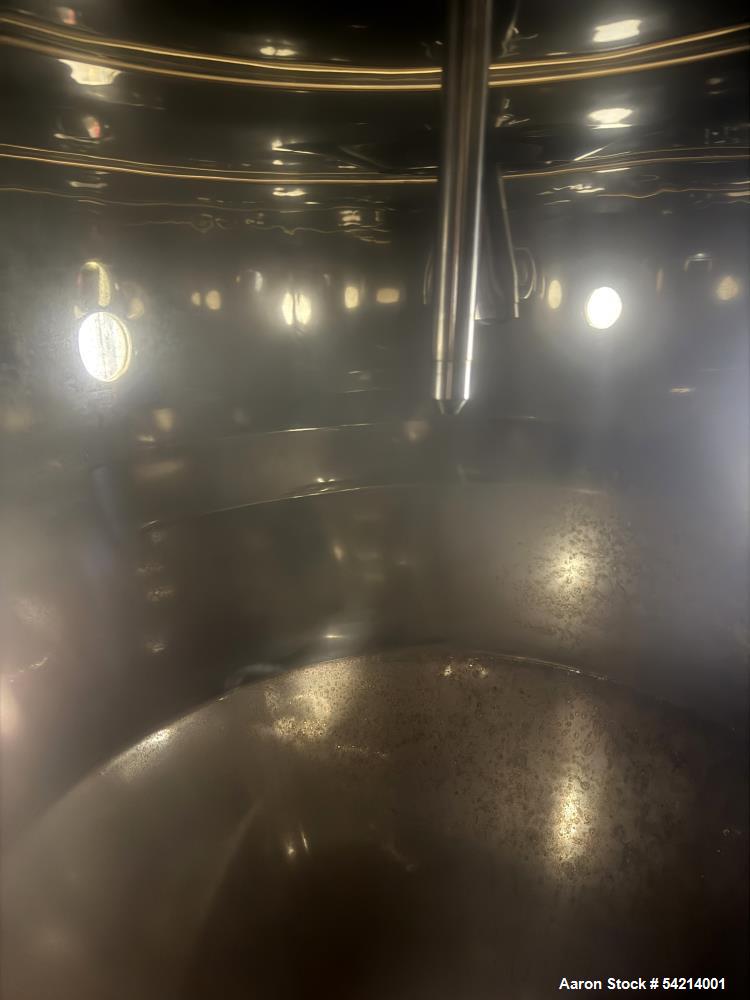

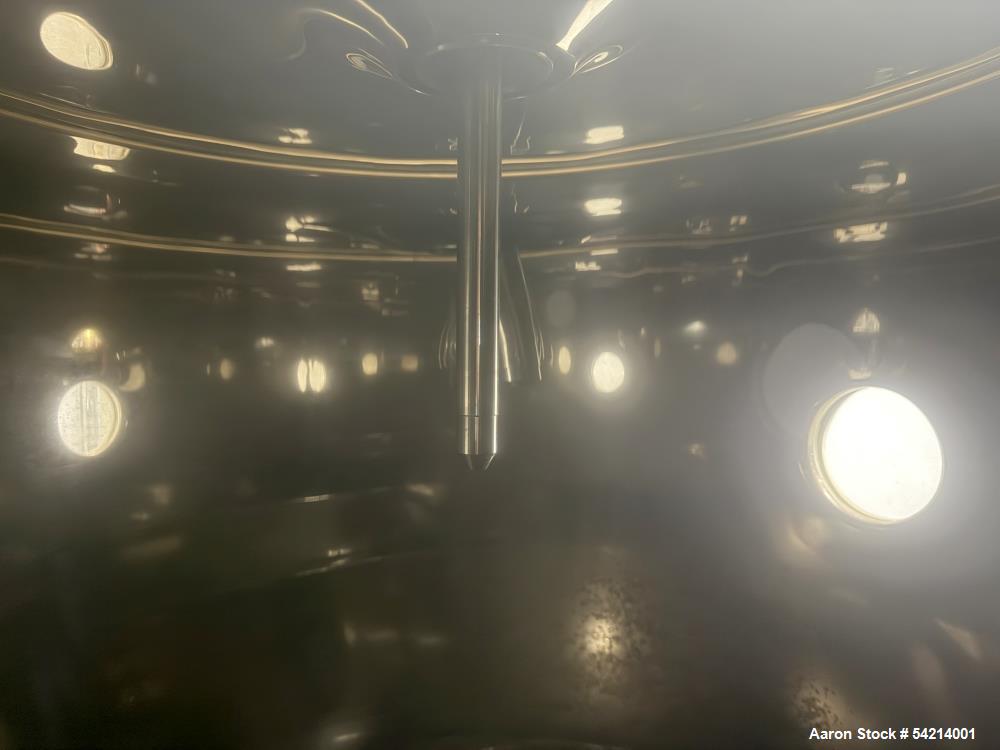

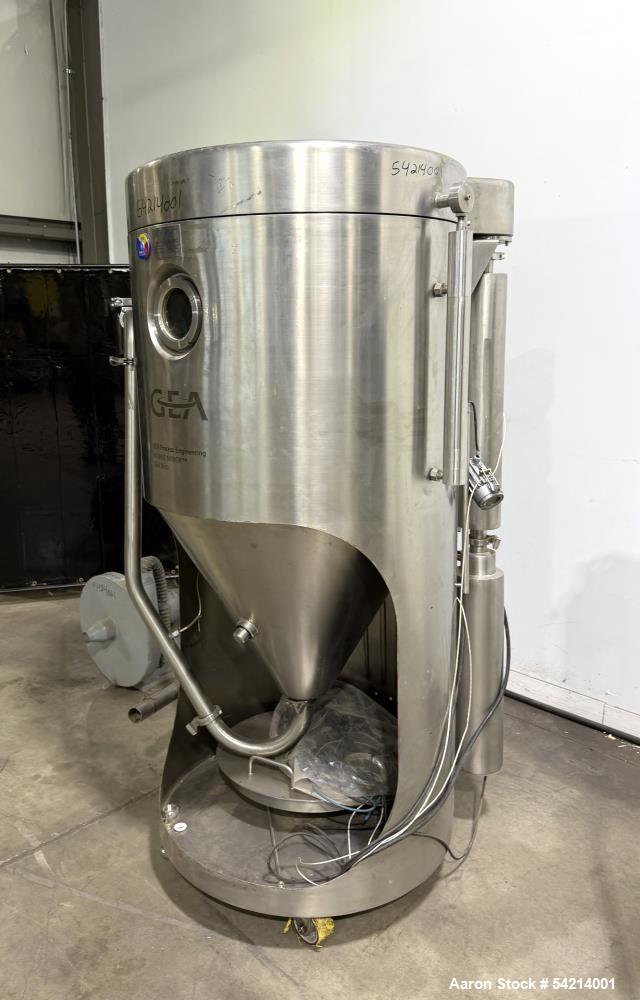

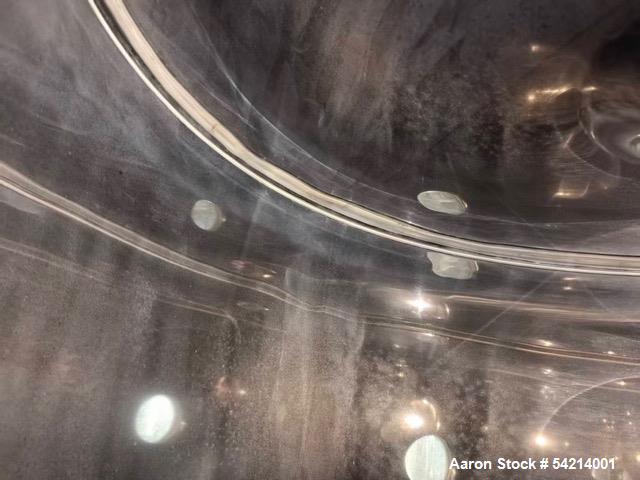

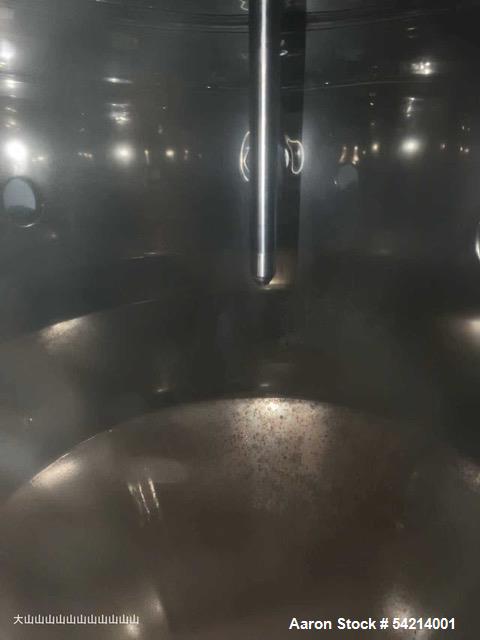

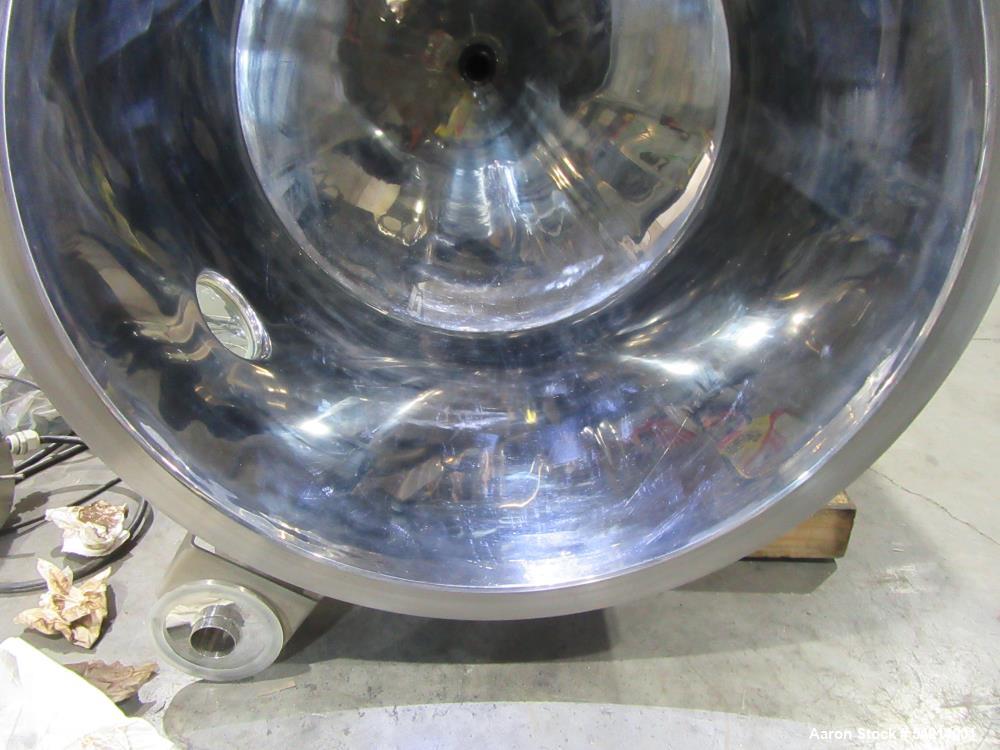

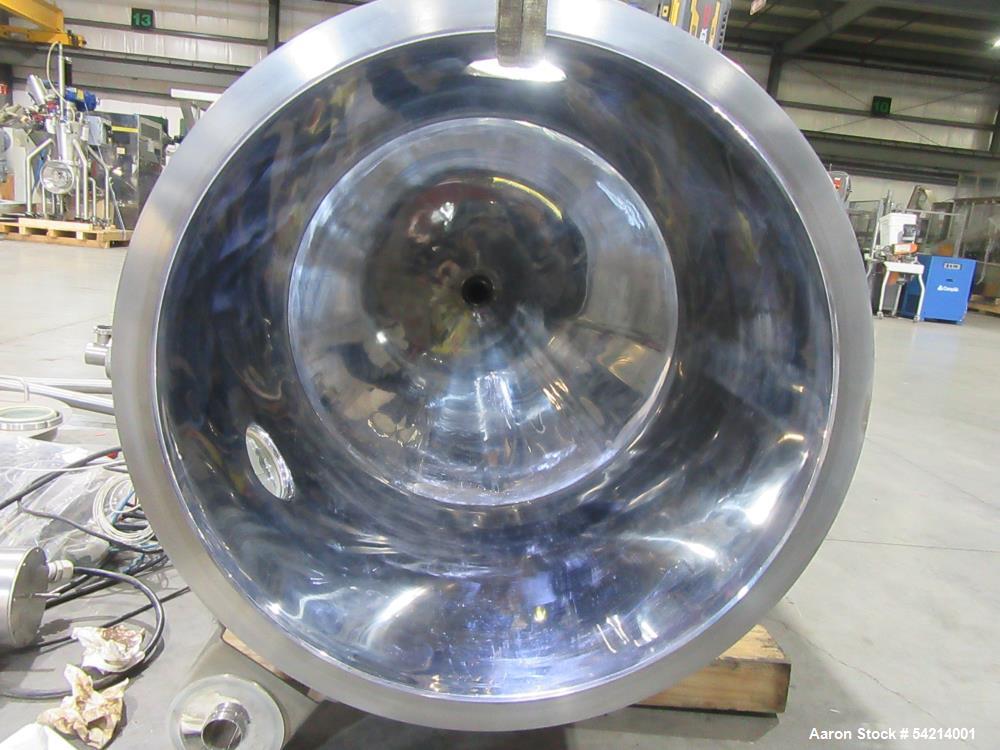

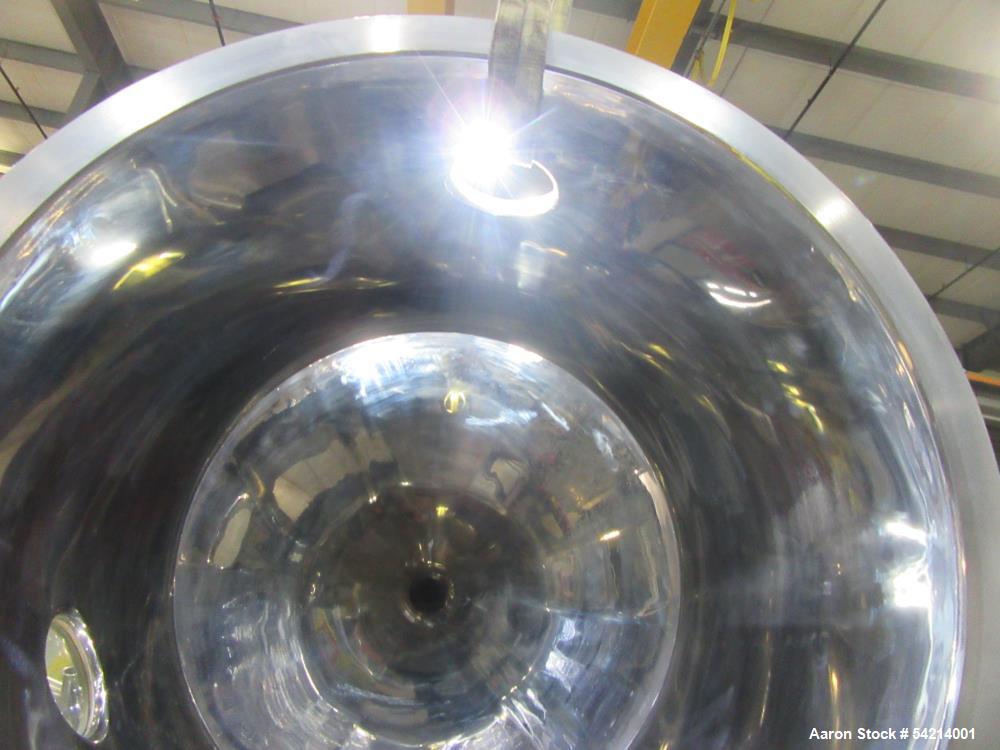

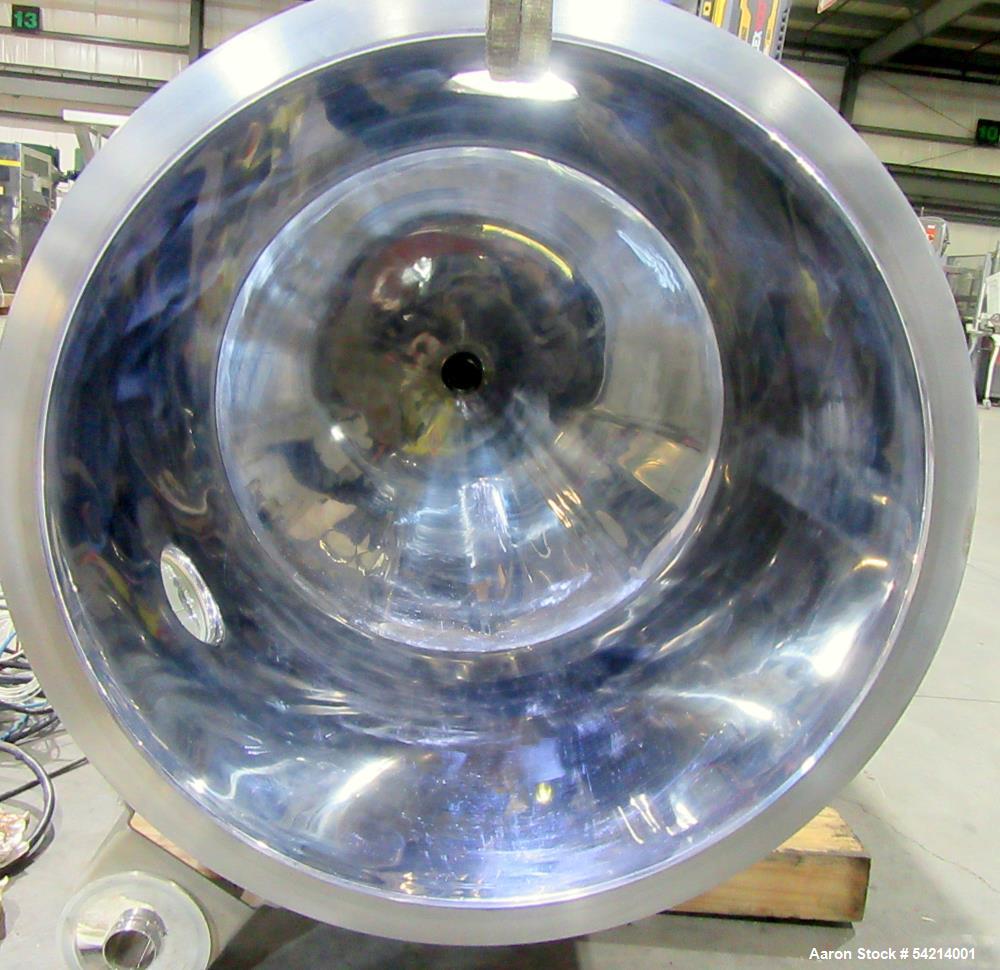

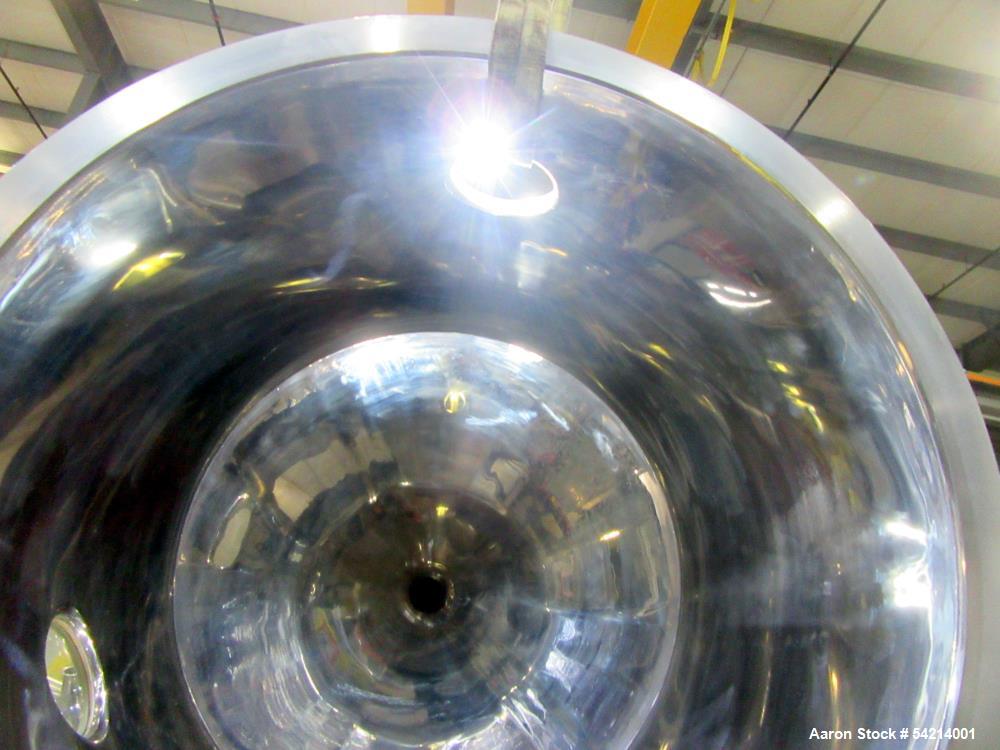

The spray drying chamber measures approximately 30 inches in diameter with a 26-inch straight side, constructed entirely of stainless steel for hygienic processing.

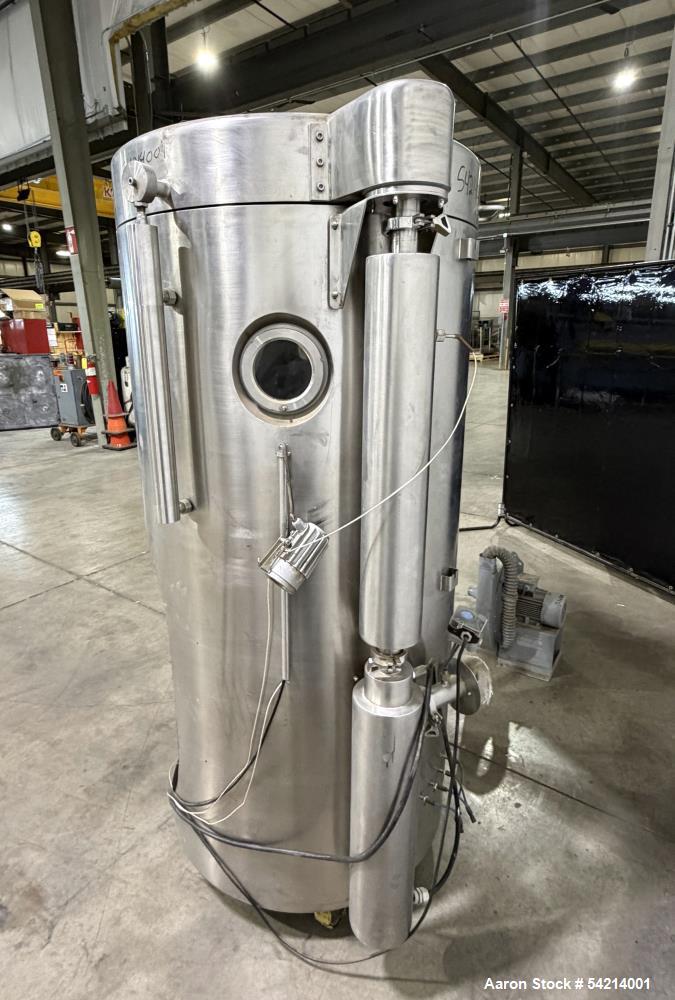

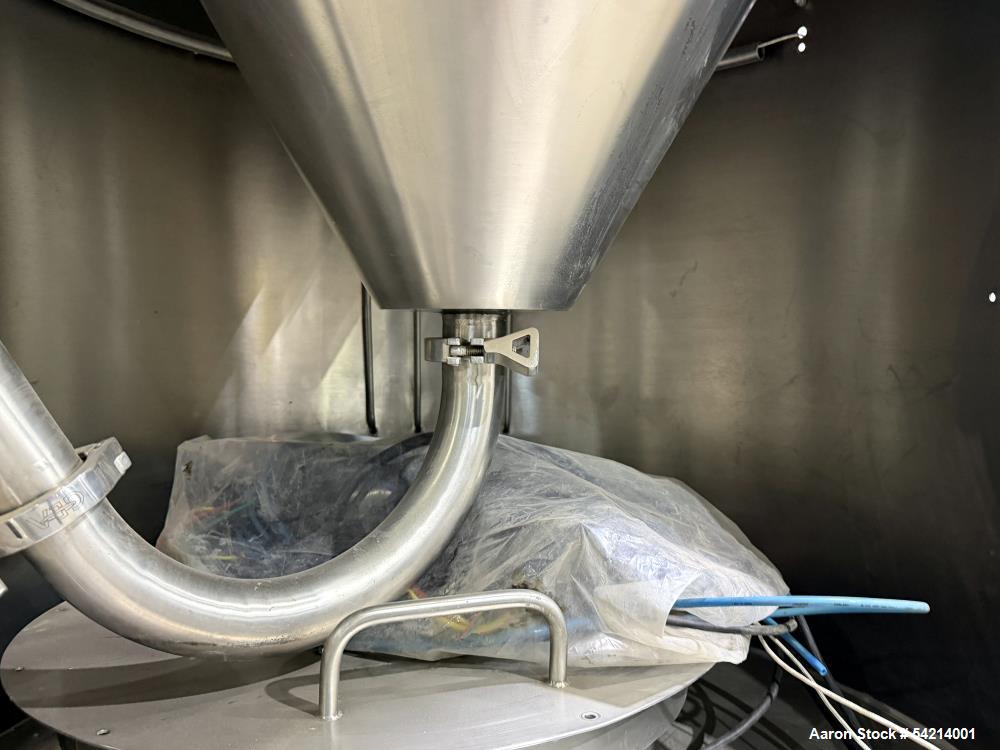

The system includes two 4.5-inch diameter sight glasses for process observation and a 2-inch center bottom outlet for powder discharge. The entire system is mounted on casters, allowing mobility within laboratory or pilot plant environments.

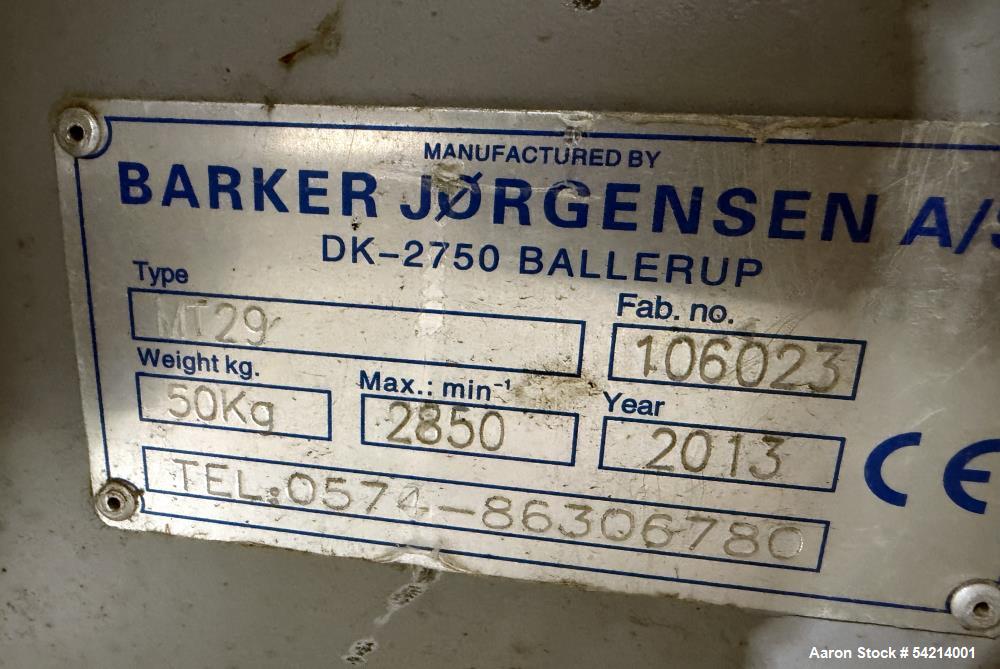

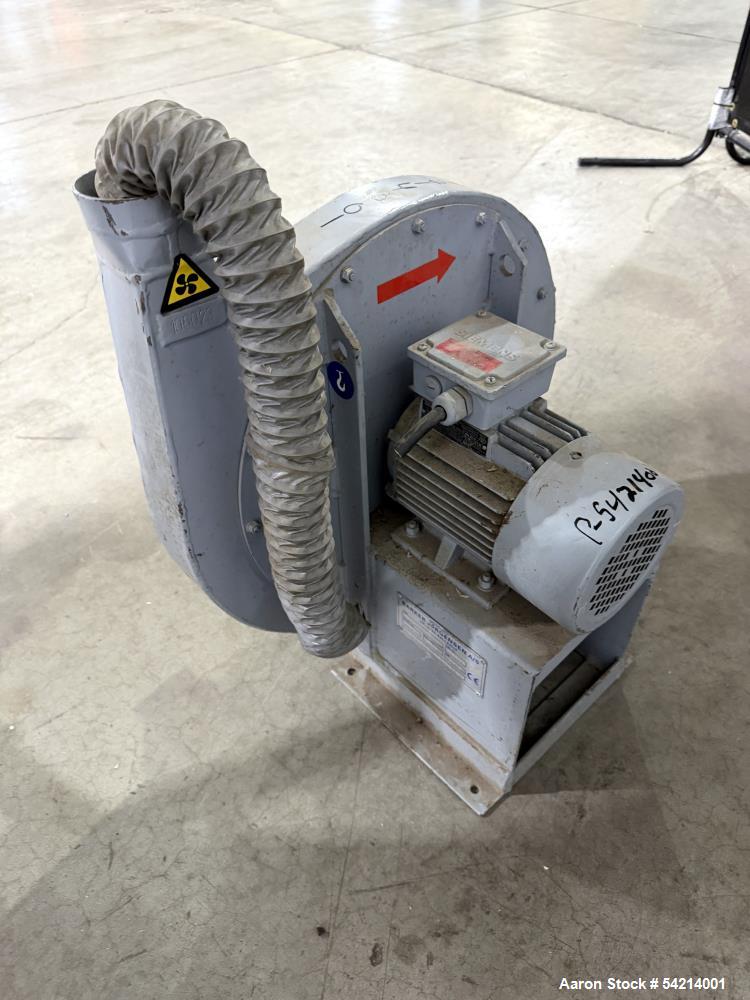

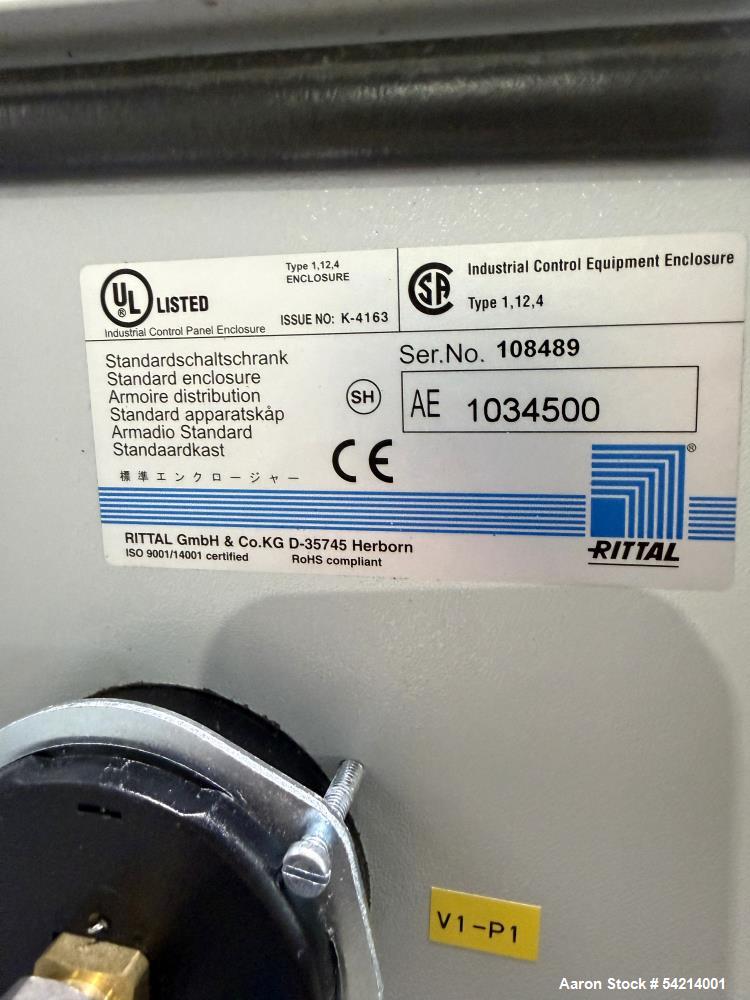

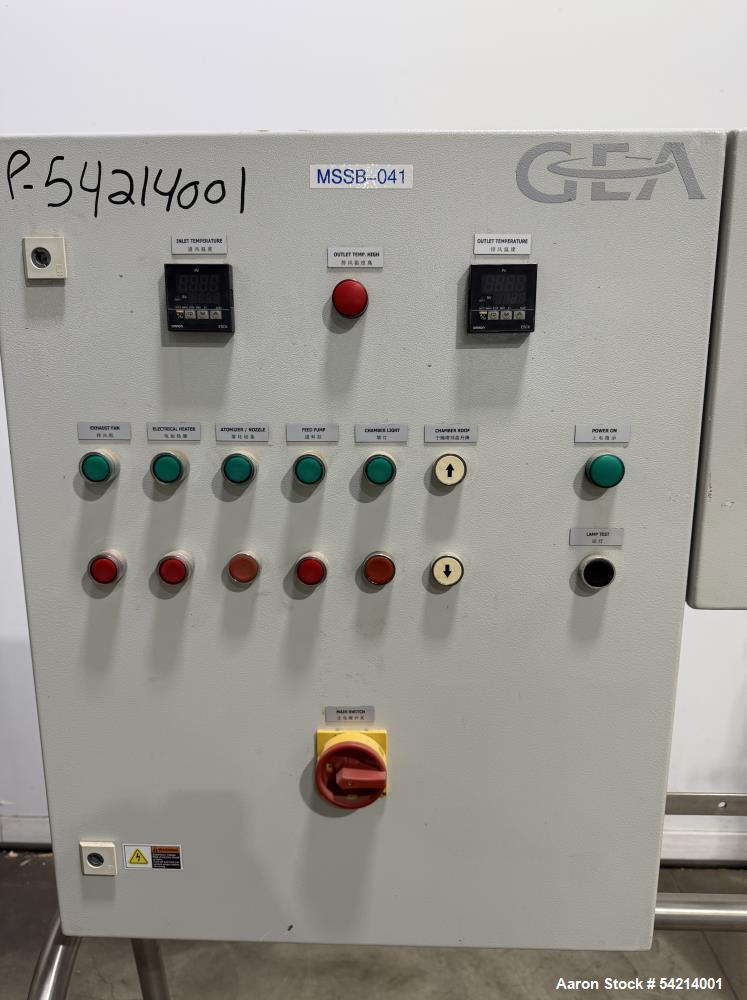

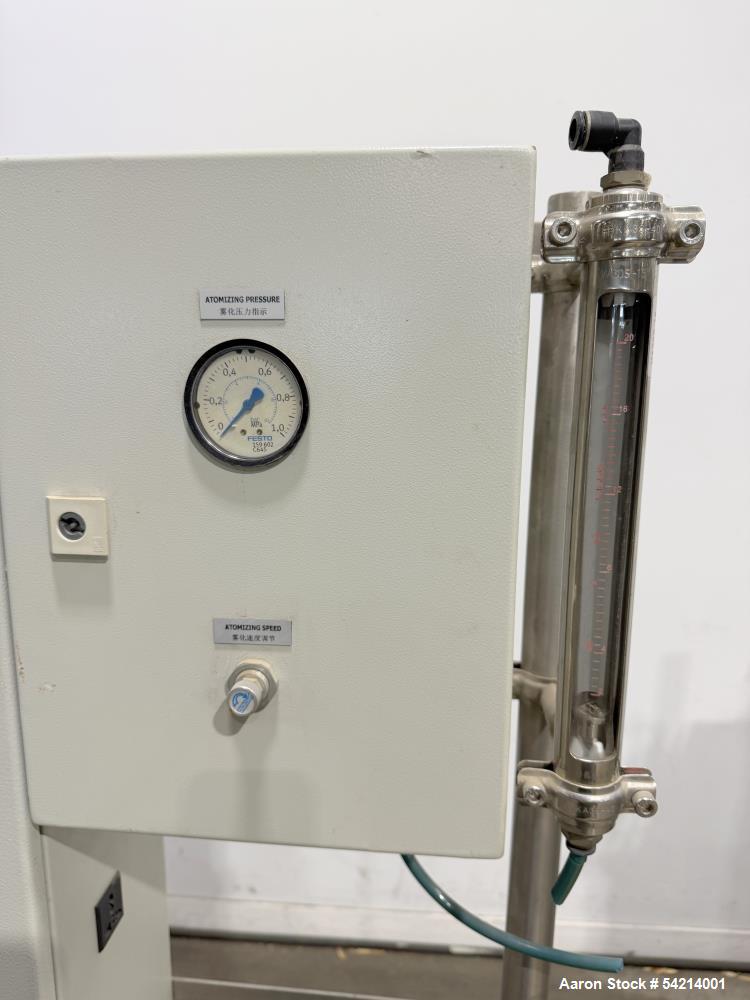

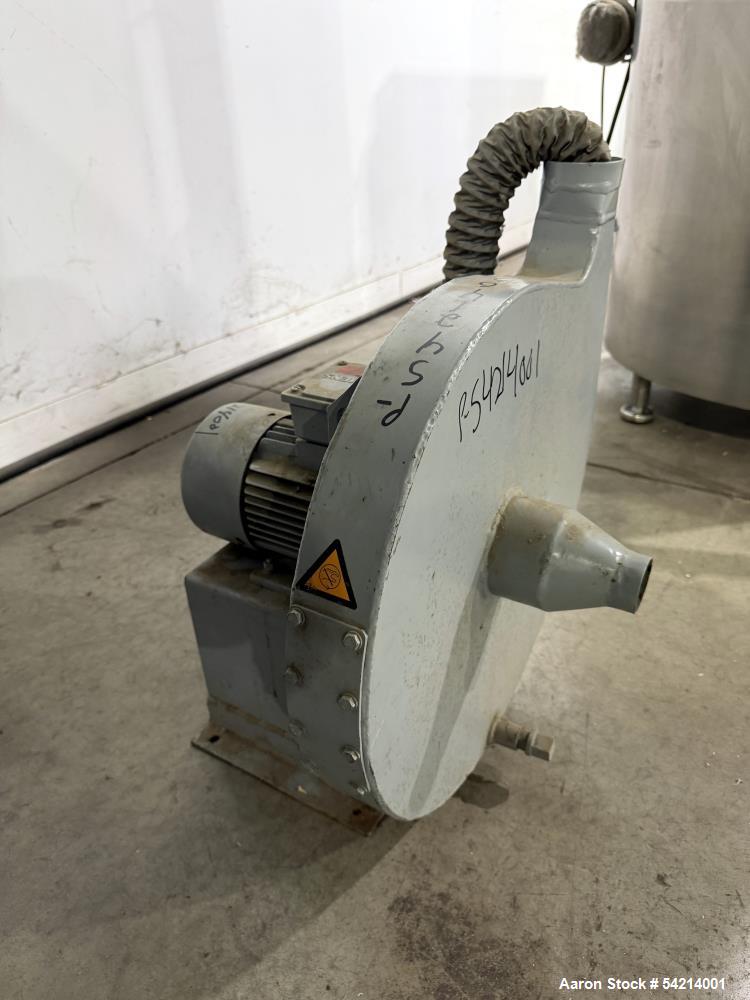

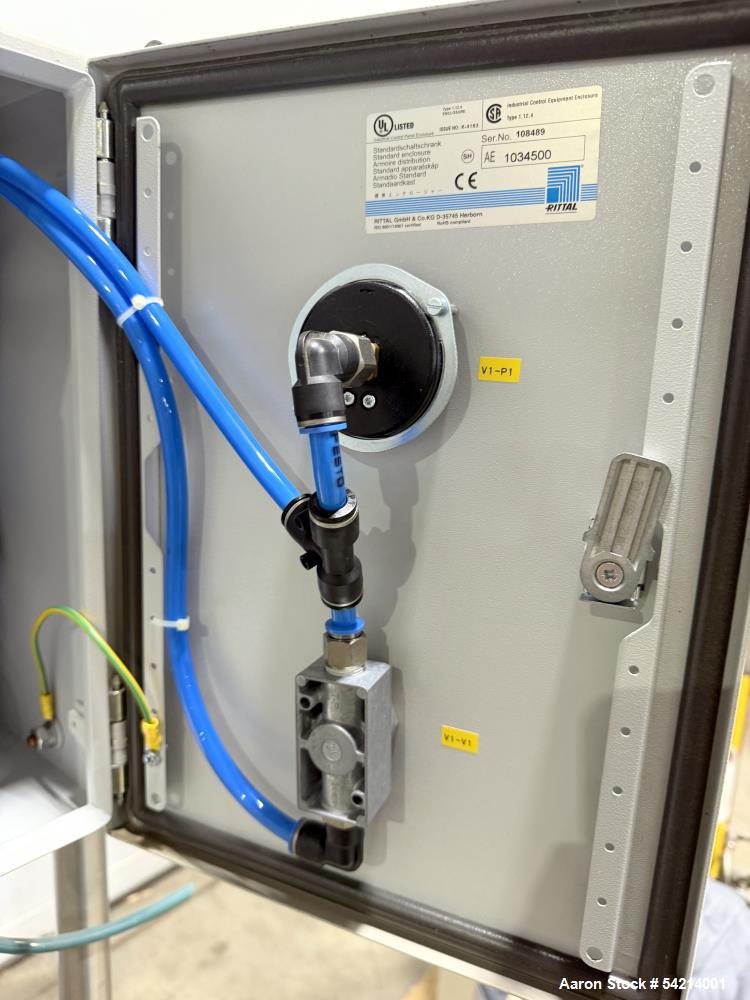

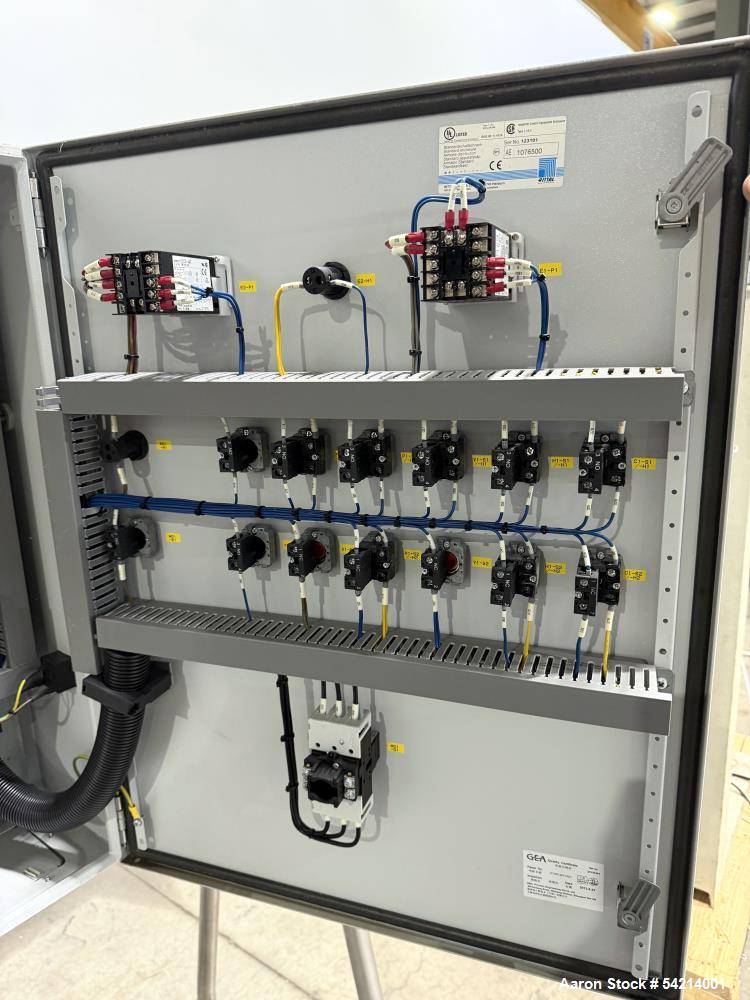

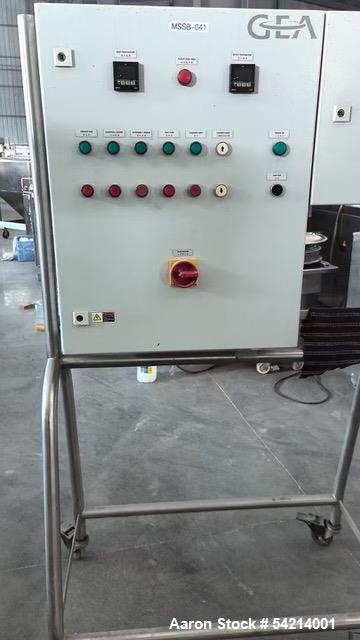

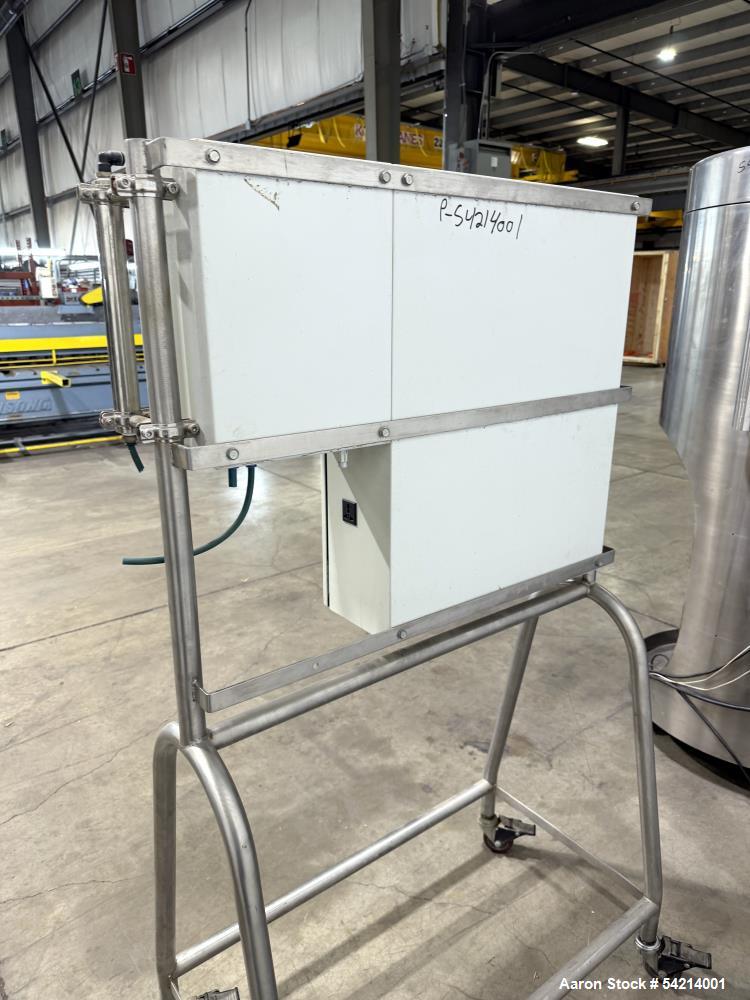

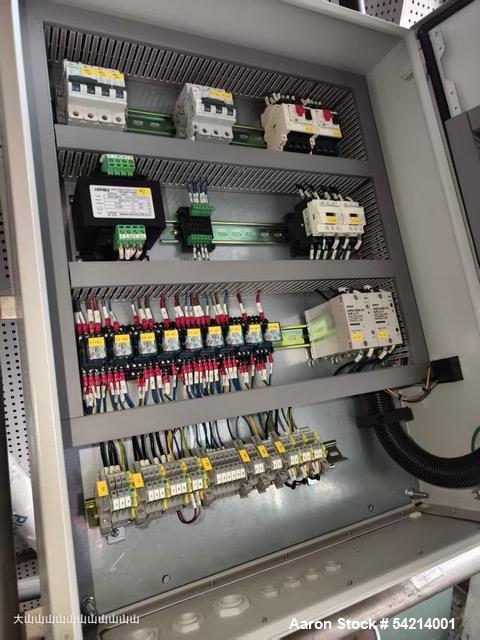

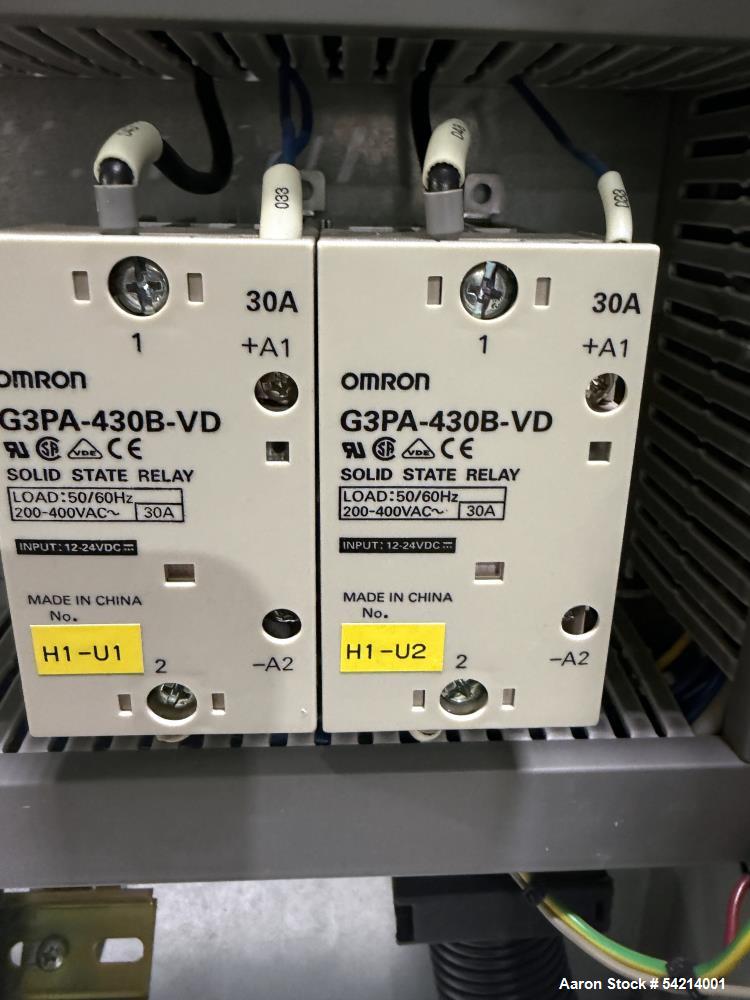

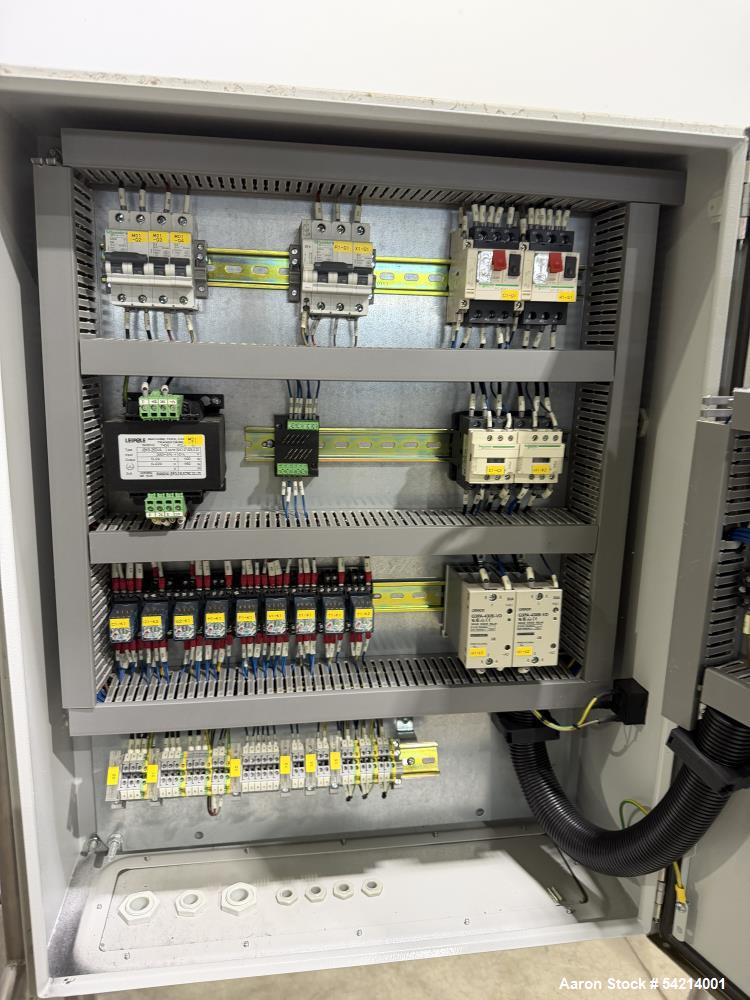

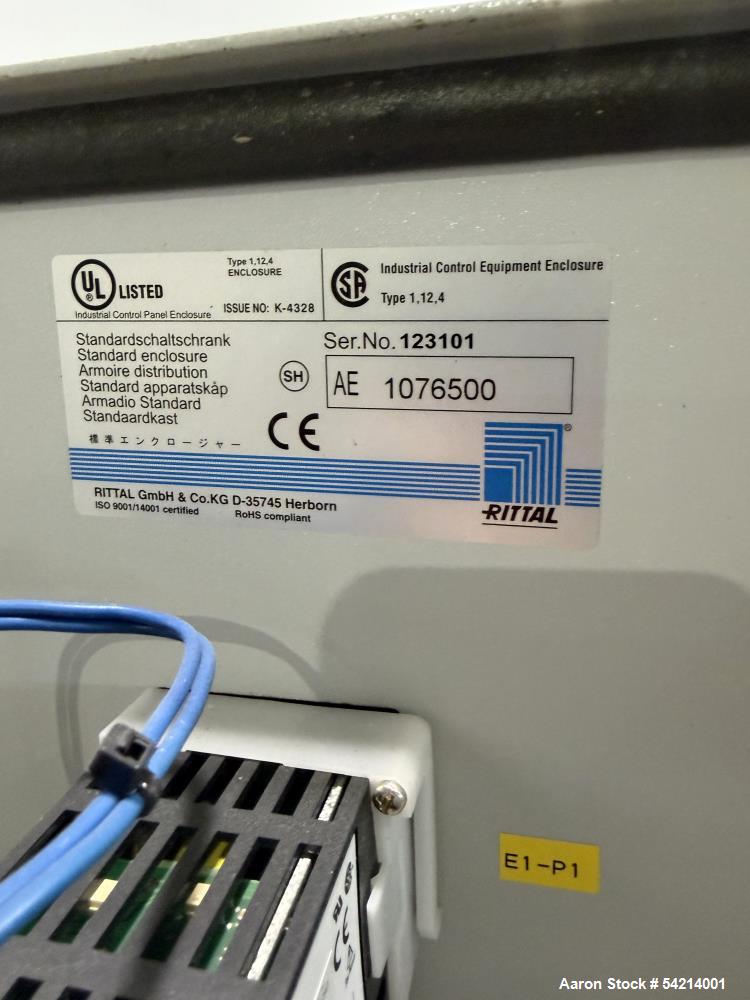

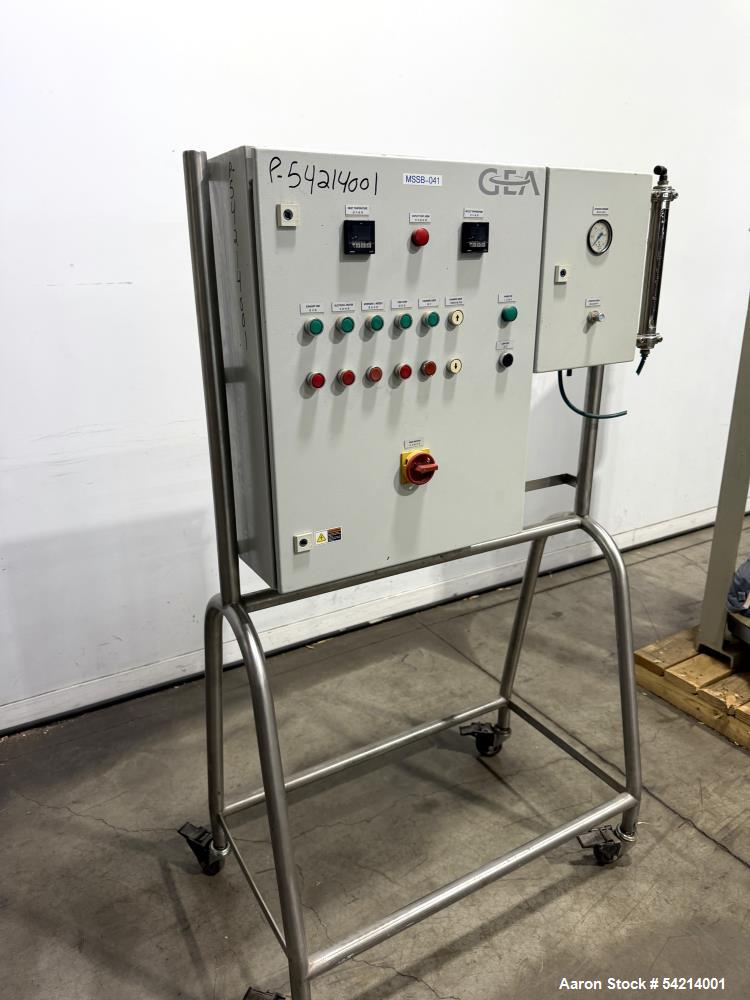

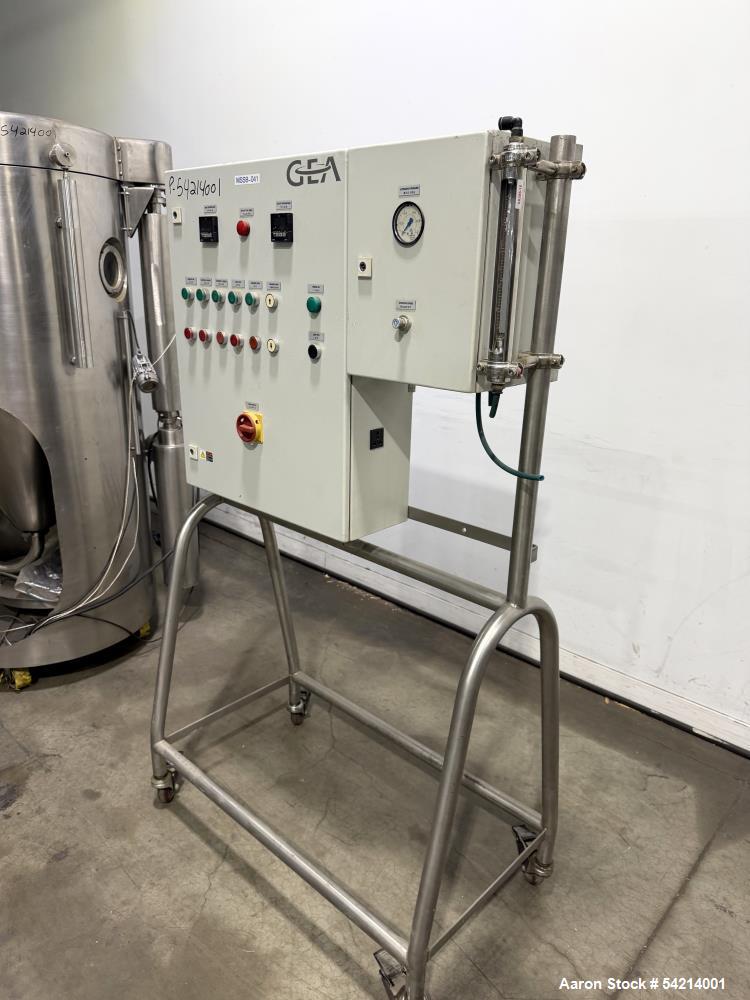

Included with the unit are a control panel and Barker Jorgensen Type MT29 blower, providing the necessary airflow and operational control for efficient spray drying.
Specifications
General
-
Manufacturer: GEA Niro
-
Model: Mobile Minor Spray Dryer
-
Component Size: 0.8
-
Serial Number: 093-2281-01
-
Year Built: 2013
-
Construction: Stainless Steel
-
Mounting: Mobile unit on casters
Spray Dryer Capacity
-
Water Evaporation Capacity: 0.5 – 8 kg/hr
-
Main Process Gas Flow: 100 kg/hr
-
Mean Particle Size: Approx. 80 µm
Chamber
Features
Included Equipment
Applications
-
Pharmaceutical powder production
-
Nutraceutical ingredient drying
-
Food ingredient spray drying
-
Chemical powder production
-
Biotech material processing
-
Cosmetic ingredient drying
-
Research and development
-
Pilot plant product development
-
Specialty powder manufacturing
-
Laboratory scale spray drying
What Might This Be Used For?
-
Product formulation development
-
Pilot-scale powder production
-
Ingredient encapsulation
-
Converting liquid formulations to powders
-
R&D testing of spray drying processes
-
New product scale-up studies
-
Specialty ingredient manufacturing
-
Contract pilot spray drying
-
Controlled particle size powder production
-
Experimental pharmaceutical processing
