Stock #
53943001

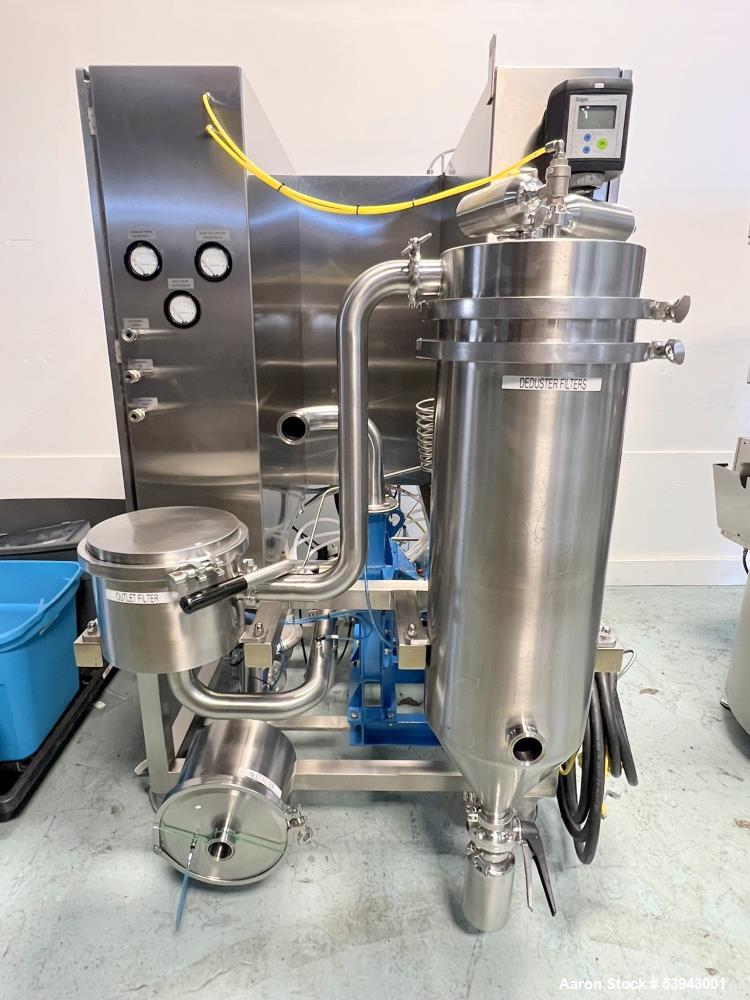

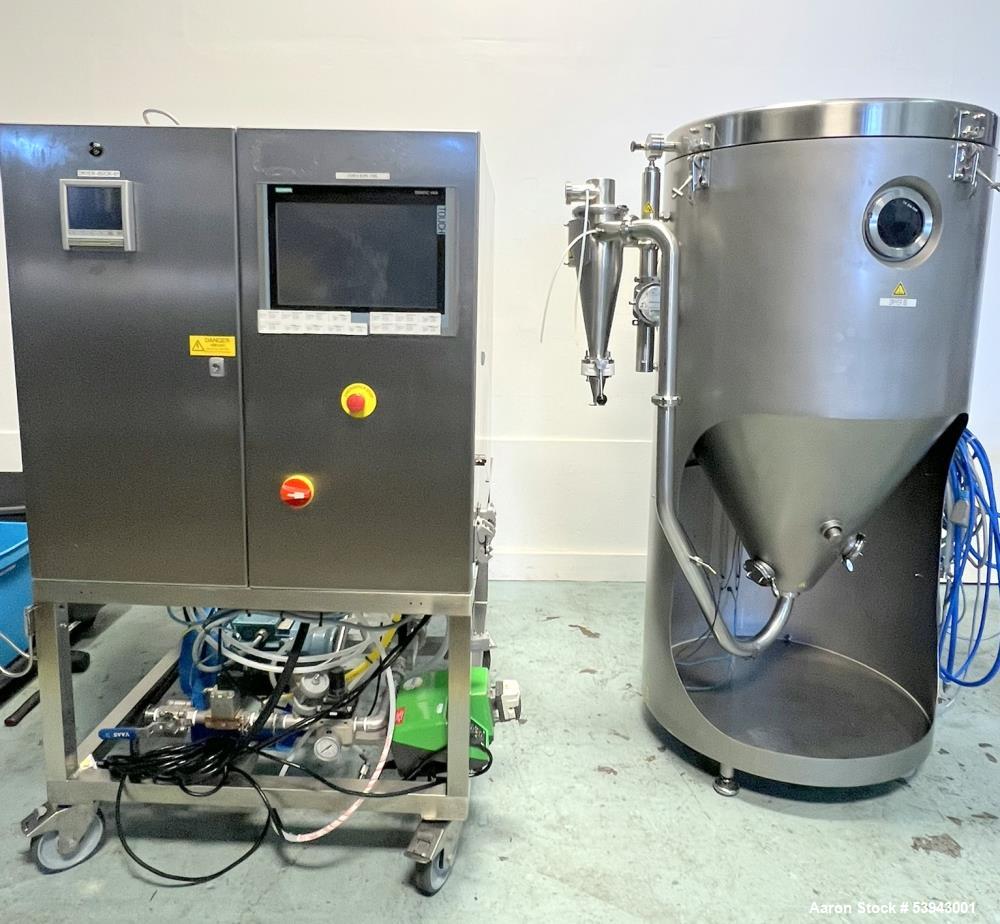

Used GEA Niro A/S Type MM-PSR Mobile Minor Spray Dryer, Size 0.8, 316 Stainless Steel. Approximately 1 to 7 kilograms an hour (2.2 to 15.4 pounds) water evaporation capacity. 7.5/9kw Electrically heated chamber 800mm (31.4") diameter x 620mm (24.4") straight side x 60 degree coned bottom, maximum inlet 350 degrees C. (662 F.). Air operated lift off top. Includes separate unitized portable skid which has a control panel with Siemens PLC & HMI, Danfuss VLT drive. Nitrogen Pump, Peristaltic Pump, Drager volatile compound sensor and Halifax fan. The equipment includes (3) Spray nozzles, second Watson Marlow Pump, San Electric 9,000 Watt heating element, intrinsically safe panel, 3X Plastic totes of misc. parts and spares. Space requirements approximate (m), 2.5 L X 2 W X 2.3. Serial# 3266.
Used Equipment Facts About This Machine
🏭 Manufacturer Information
Manufacturer: GEA Niro A/S
Model: MM-PSR Mobile Minor, Size 0.8
Material: 316 Stainless Steel

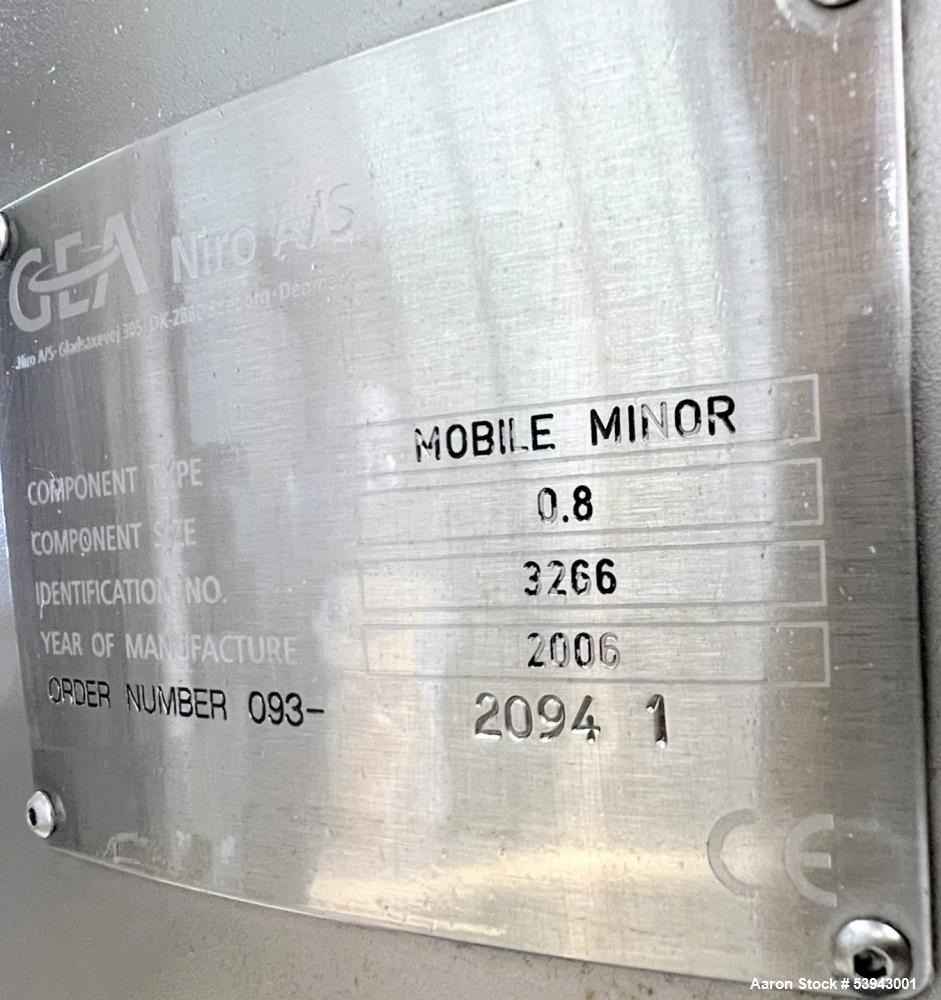

Serial Number: 3266
Country of Manufacture: Denmark
Reputation: A trusted leader in spray drying solutions for pharmaceutical, food, and chemical industries.
📝 Description
The Used GEA Niro A/S MM-PSR Mobile Minor Spray Dryer is a compact, lab-scale spray drying system ideal for small-scale production and R&D environments. Built from 316 stainless steel, it offers a 1–7 kg/hr water evaporation capacity, with electrical heating (7.5/9 kW). The system includes advanced automation and safety features, making it a robust solution for precision drying applications.

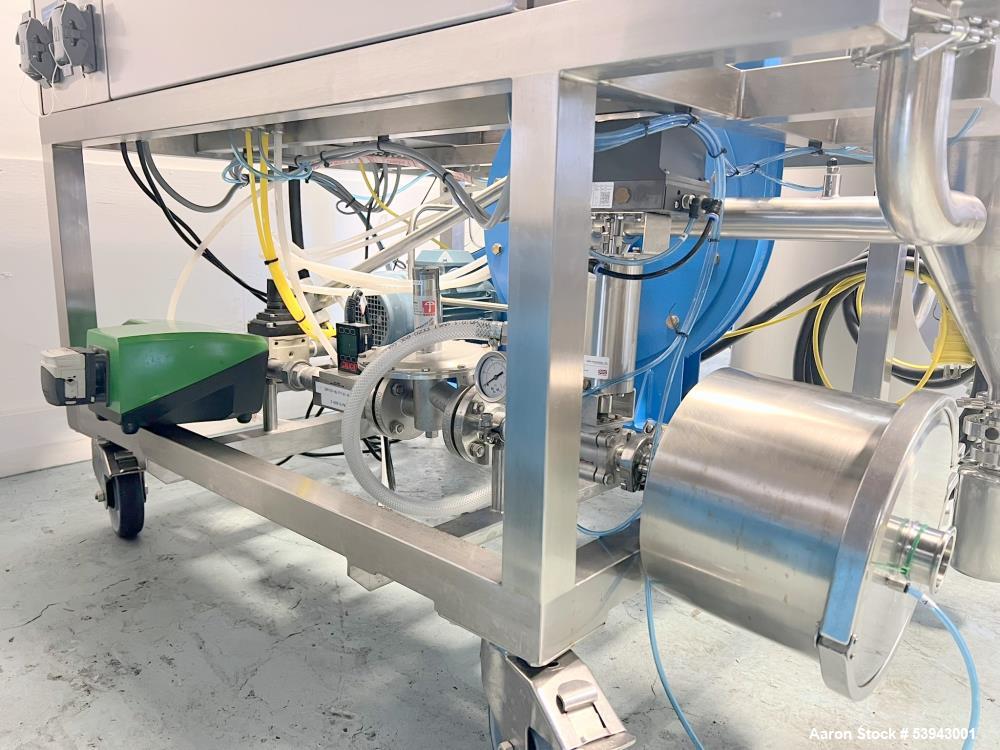

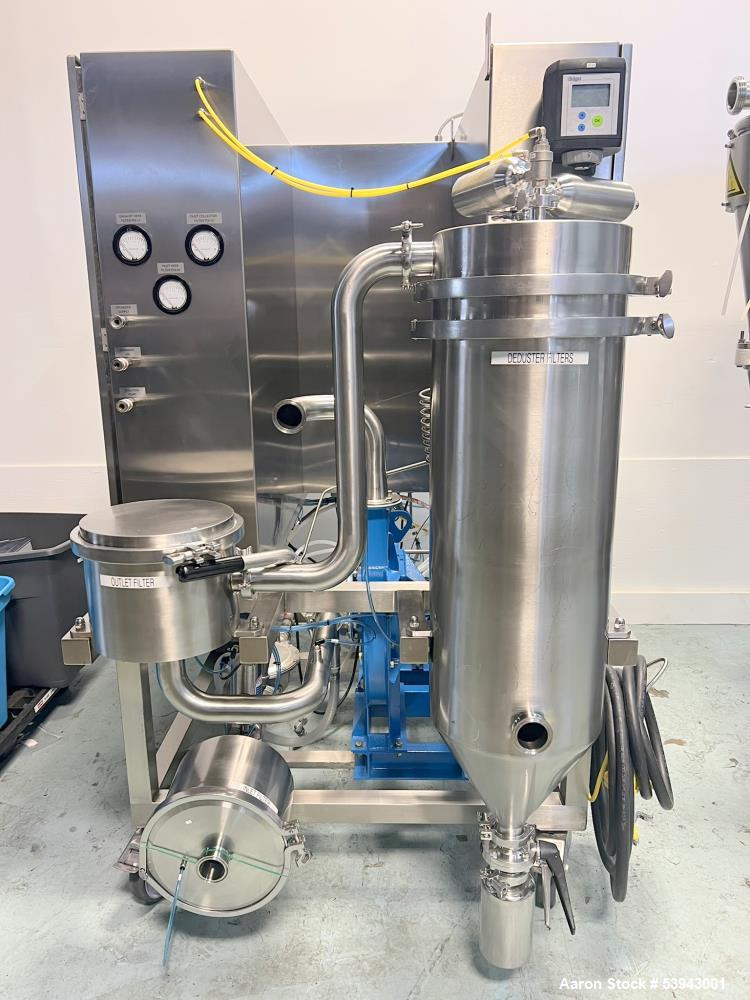

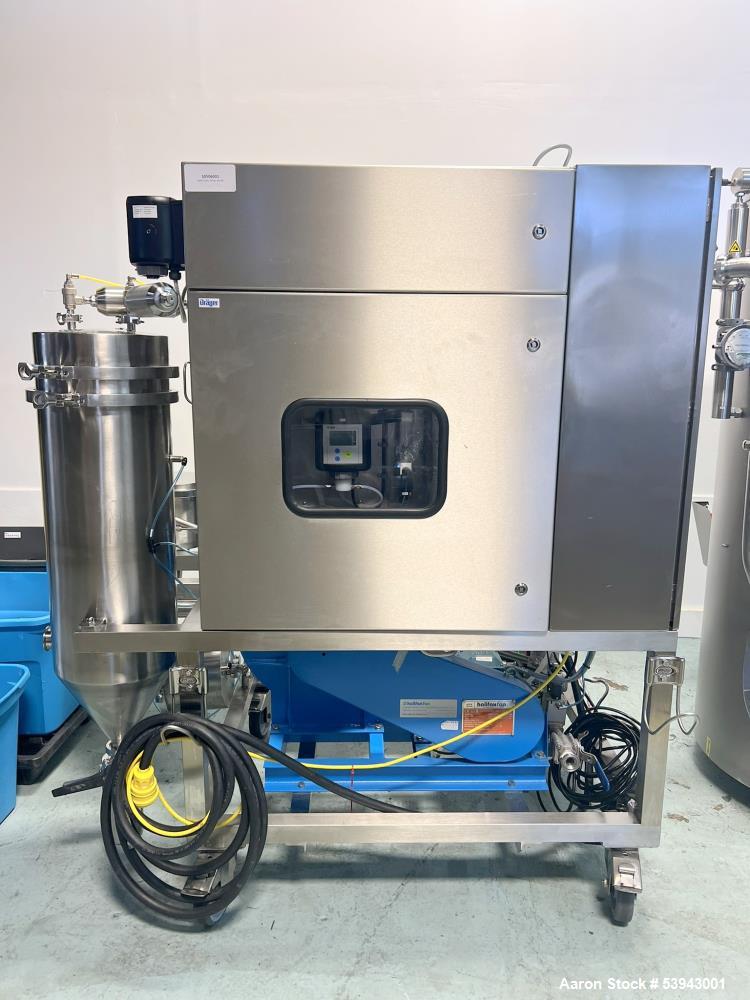

Included is a unitized portable skid with:
-

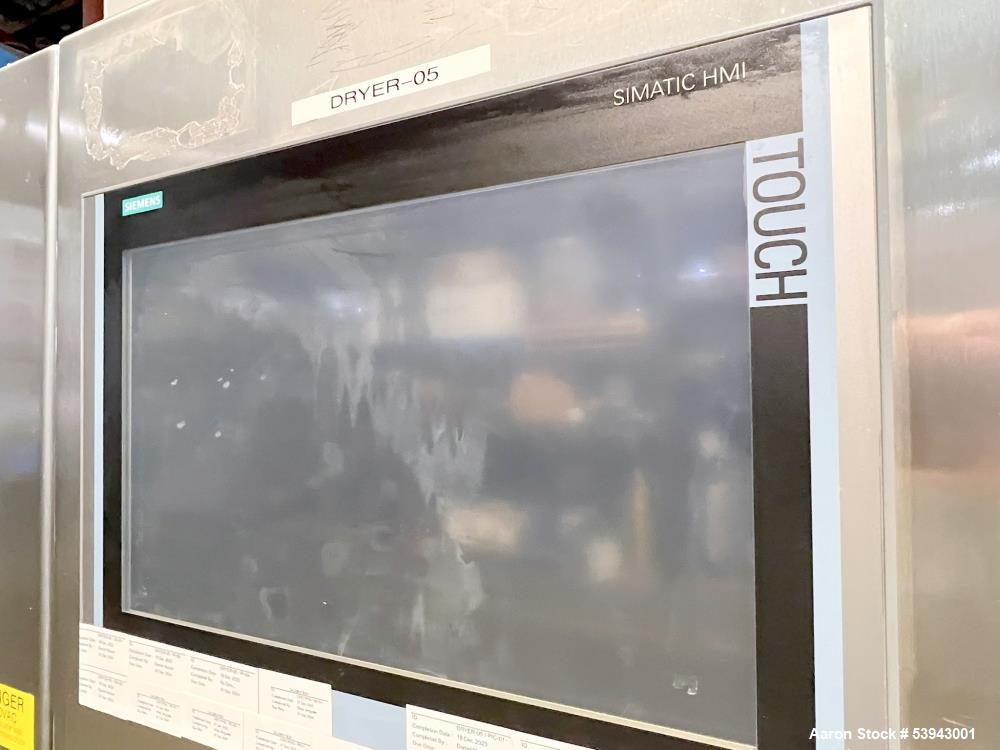

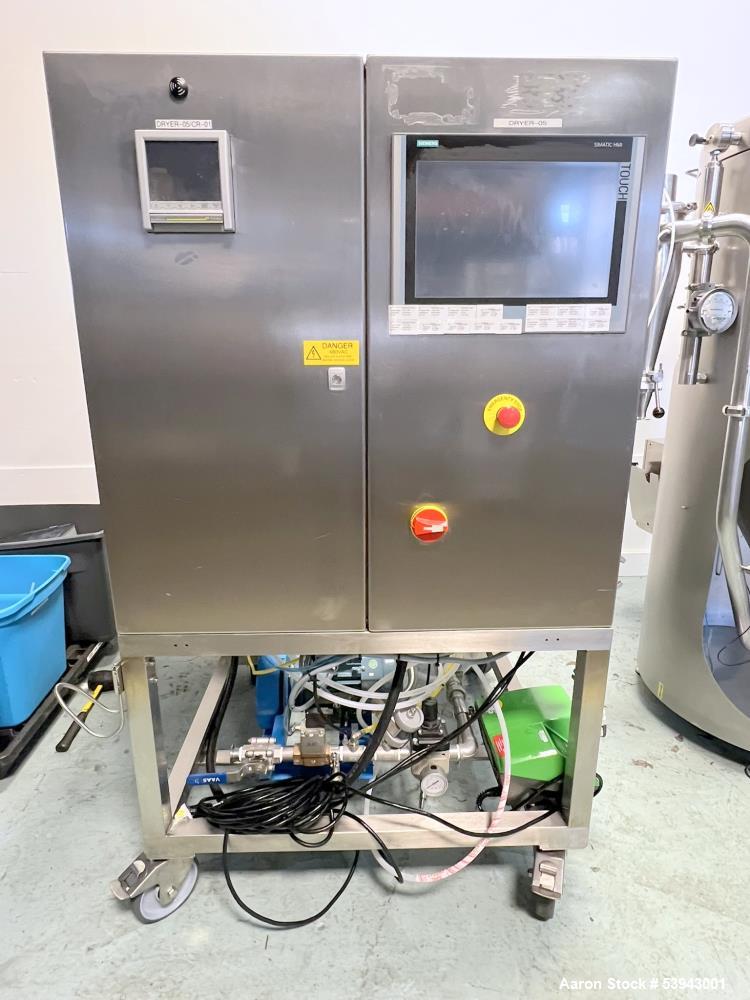

Siemens PLC & HMI control panel
-
Danfoss VLT drive
-
Nitrogen pump
-

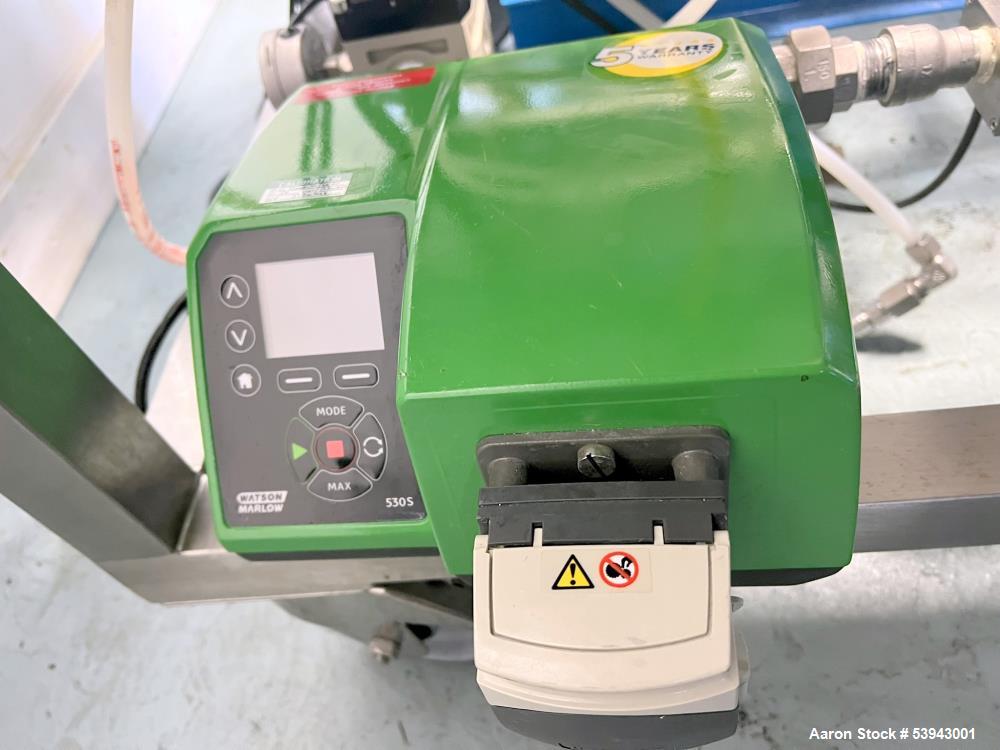

Peristaltic & Watson Marlow pumps
-

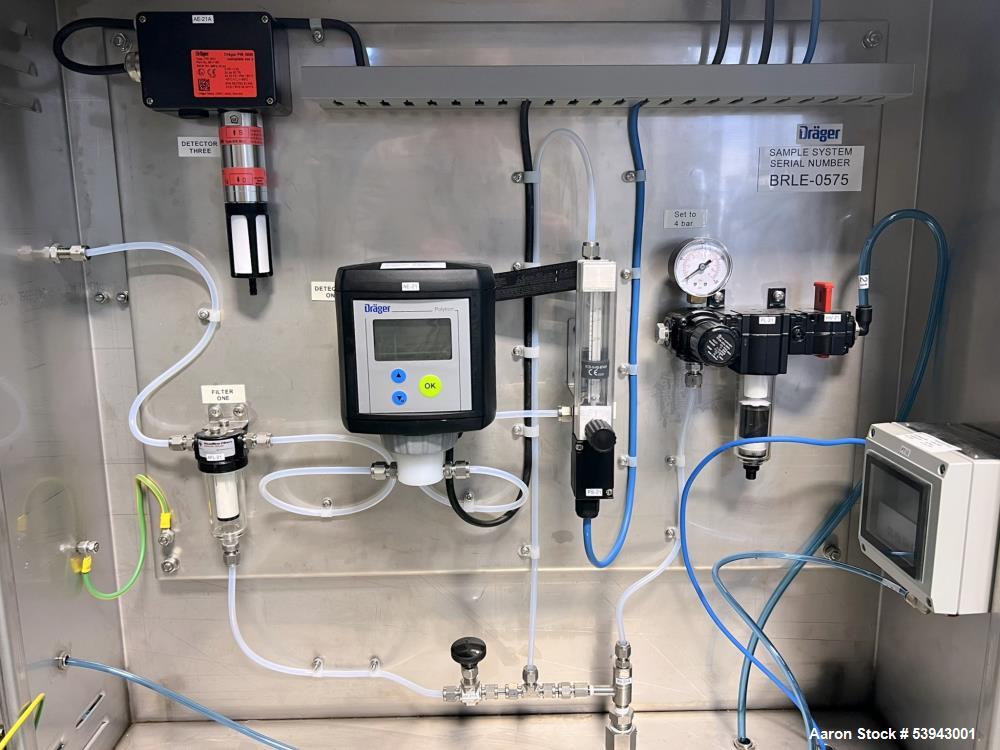

Drager VOC sensor
-

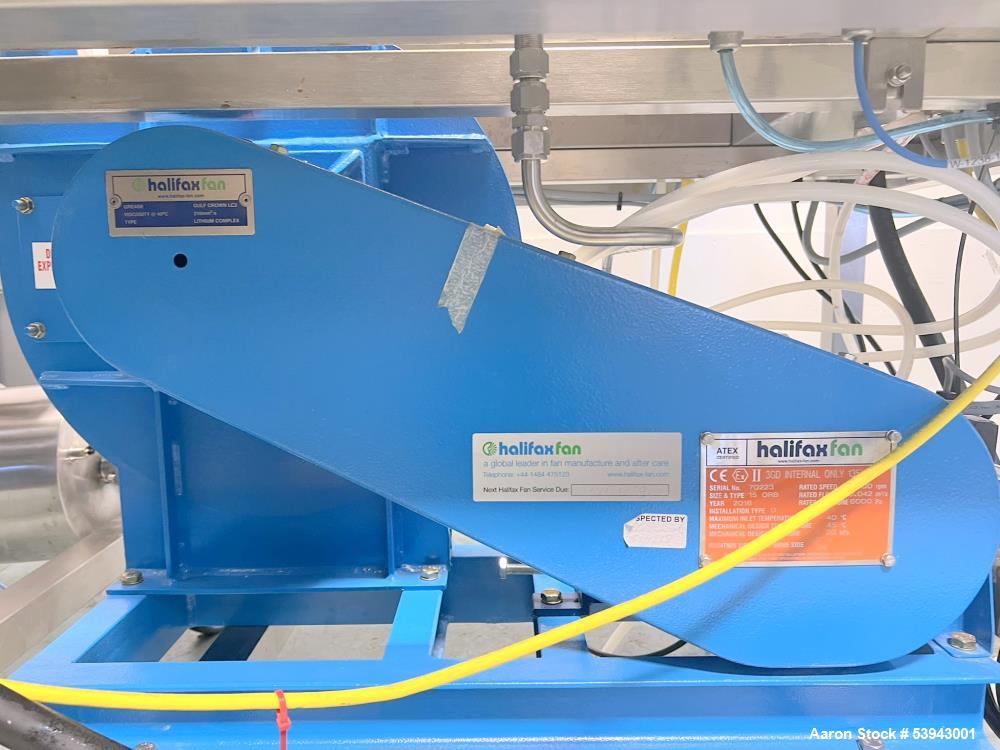

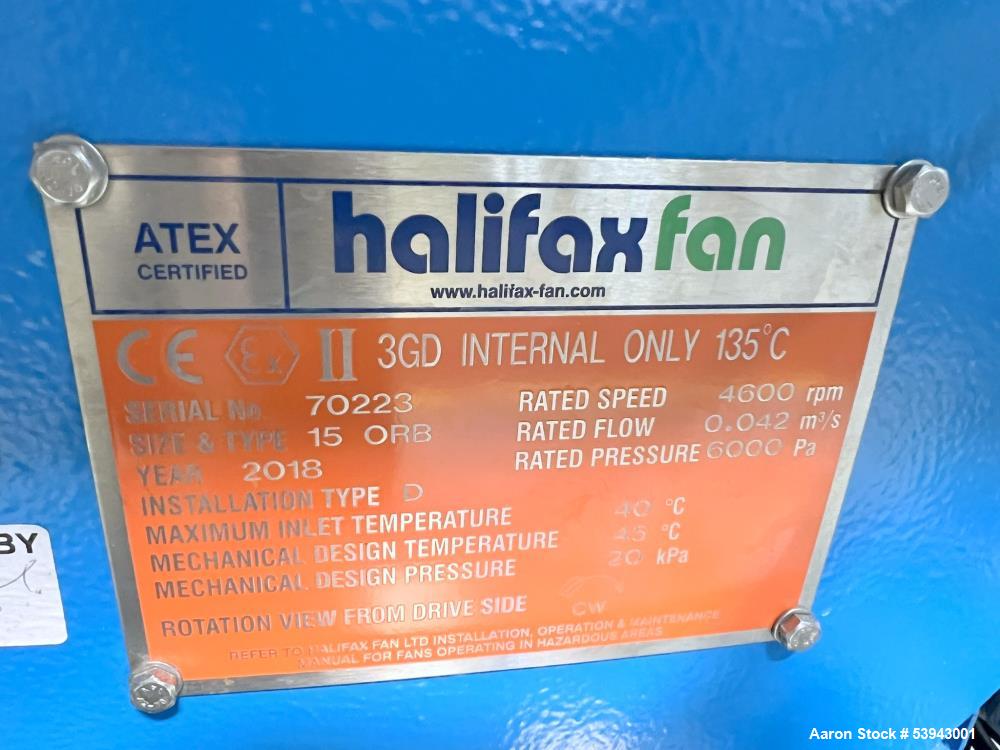

Halifax fan
-

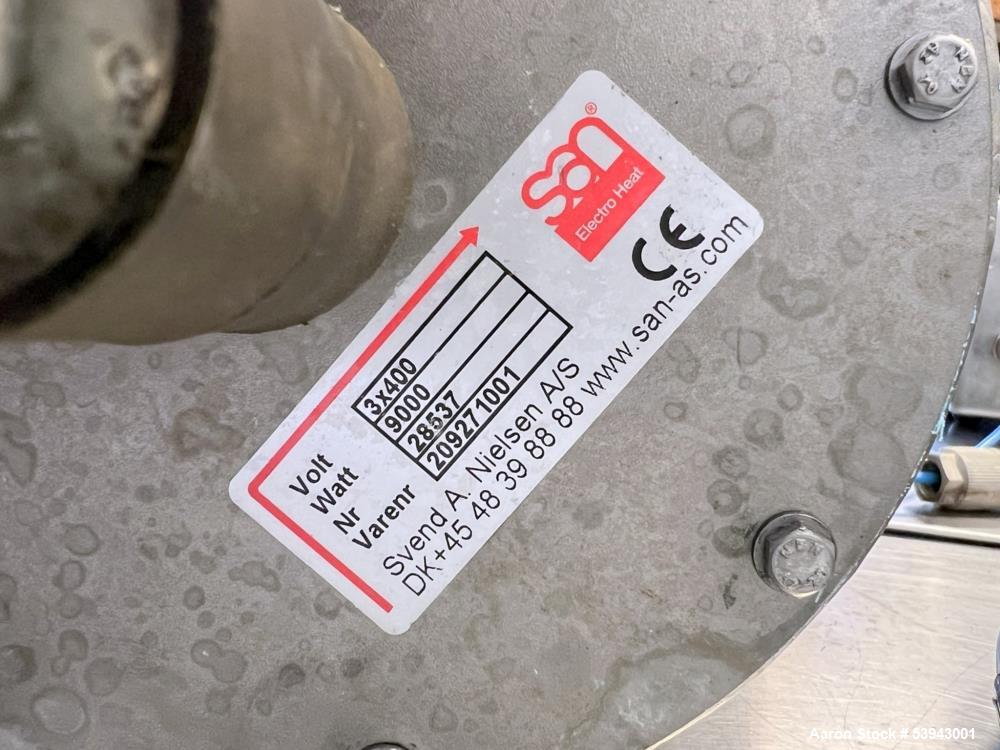

San Electric 9000W heating element
-

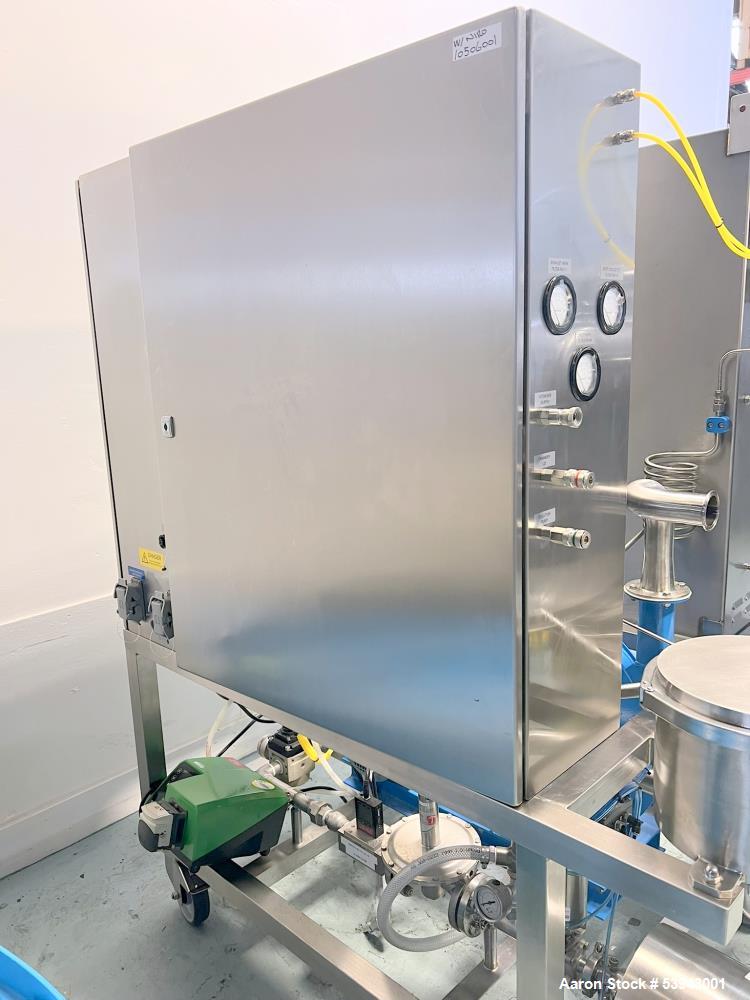

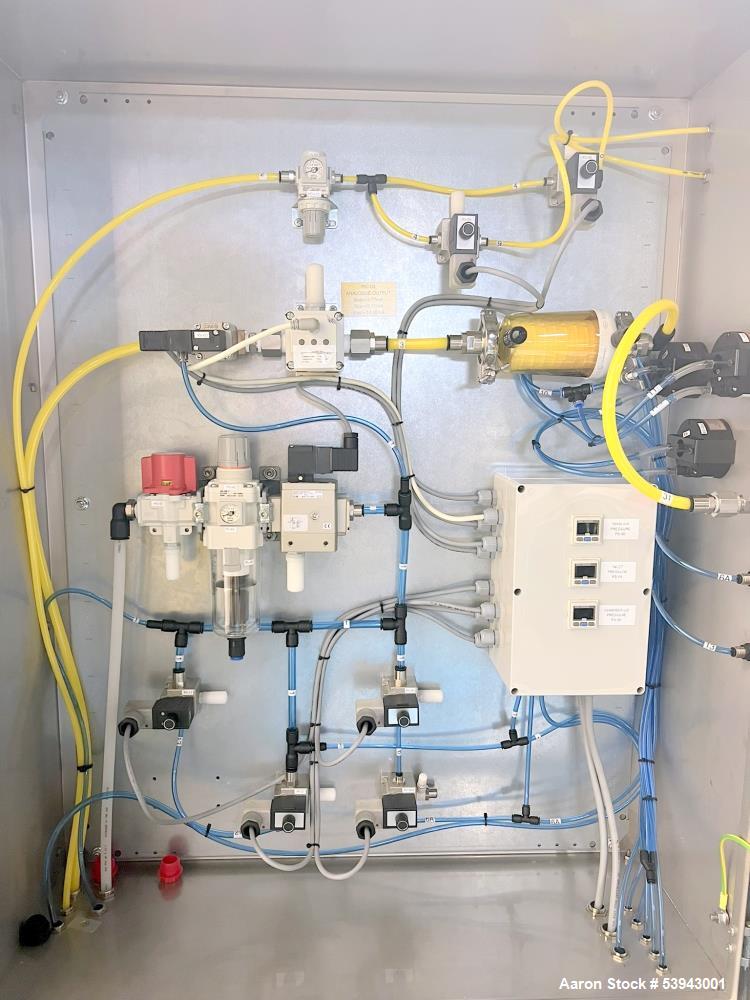

Intrinsically safe panel
-

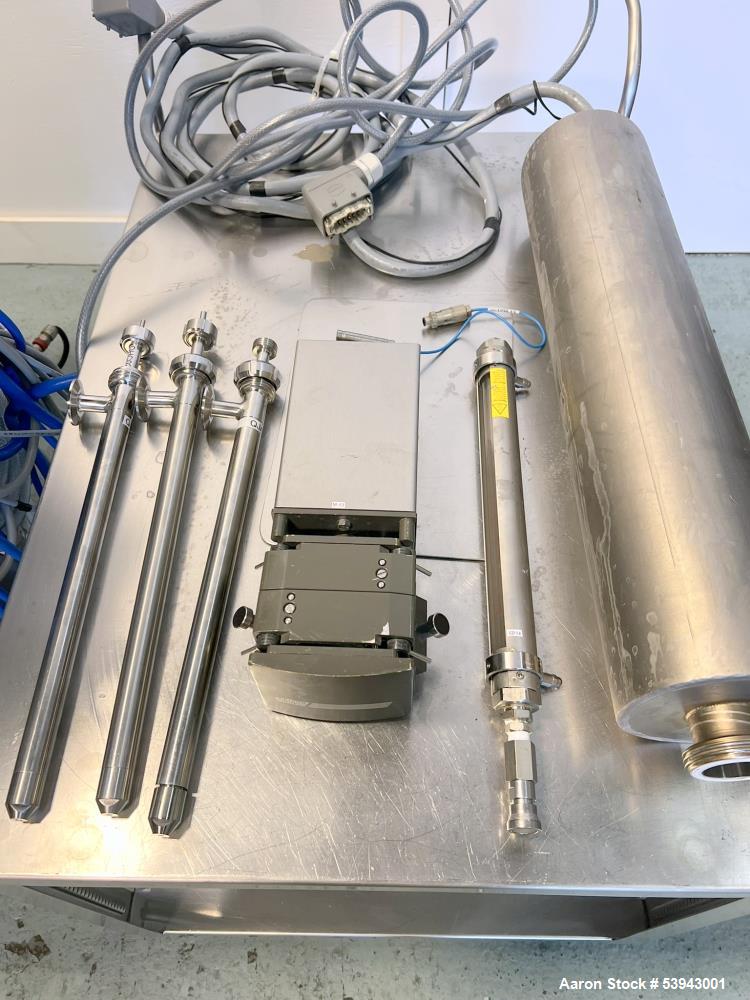

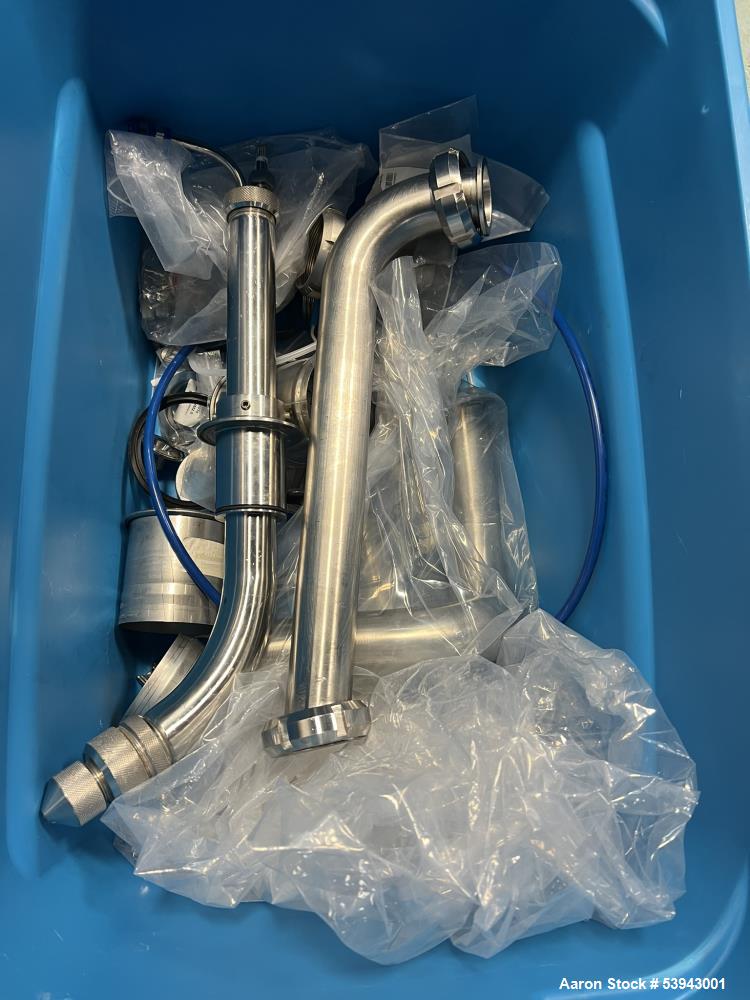

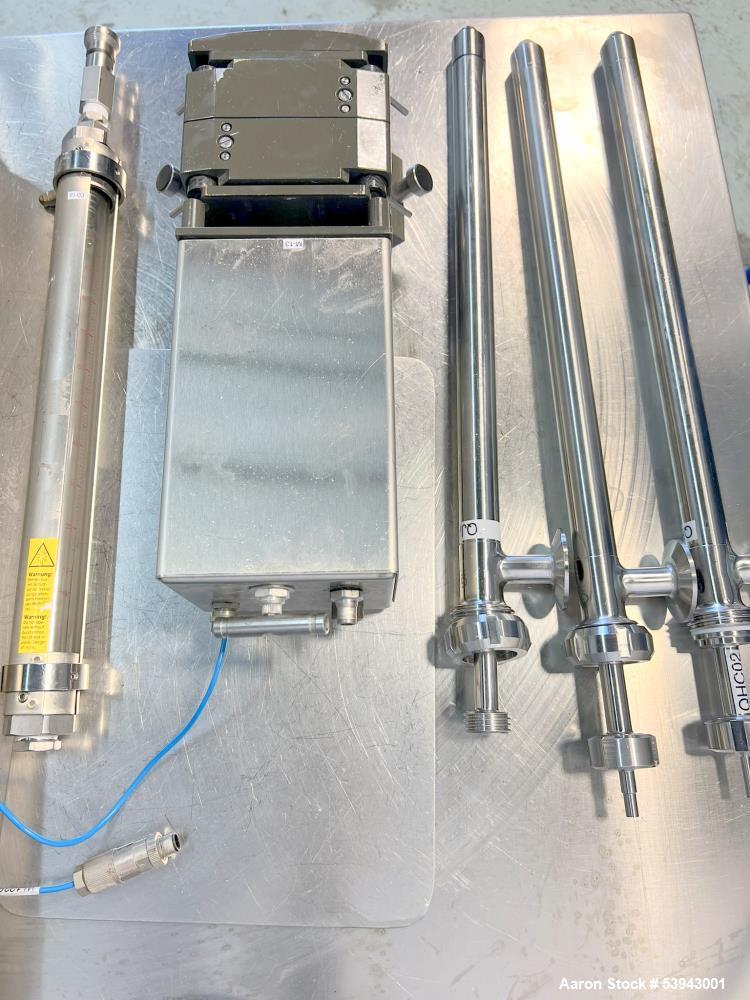

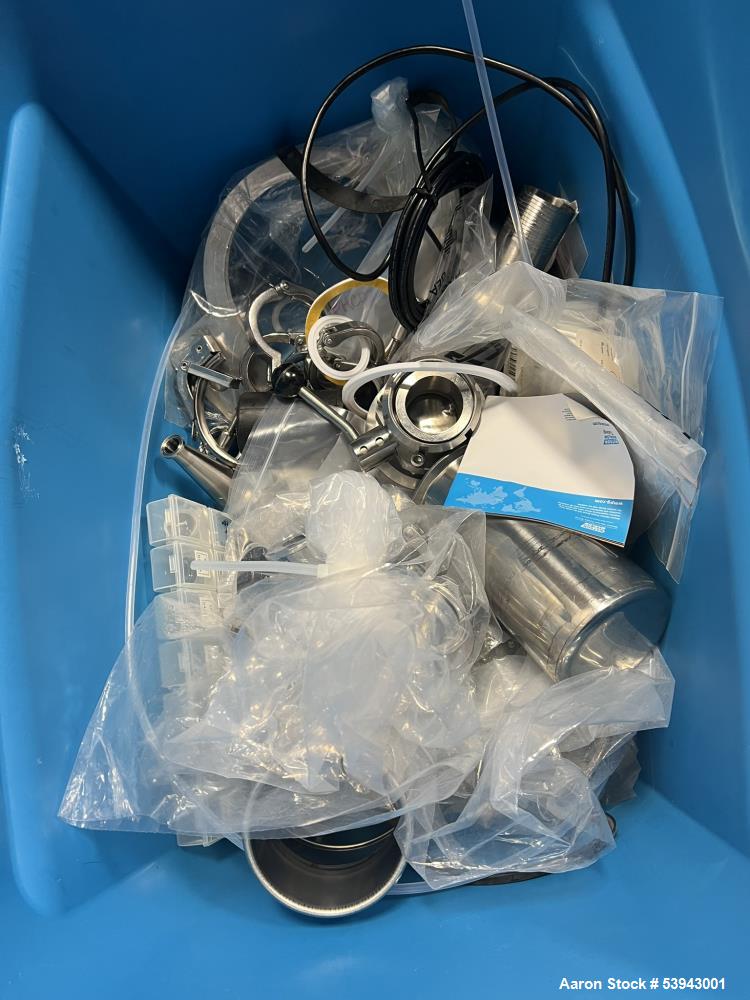

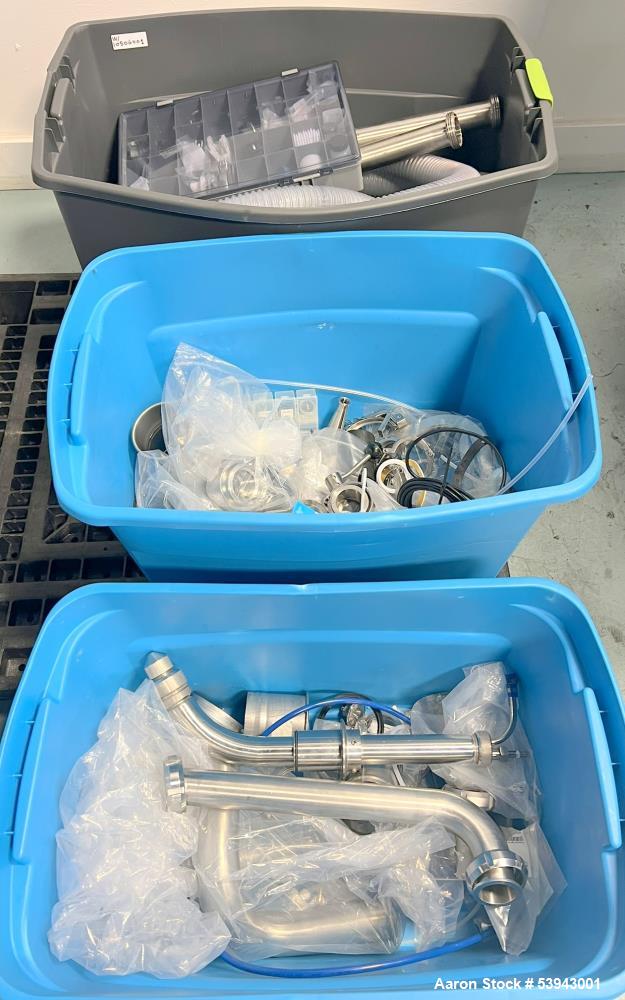

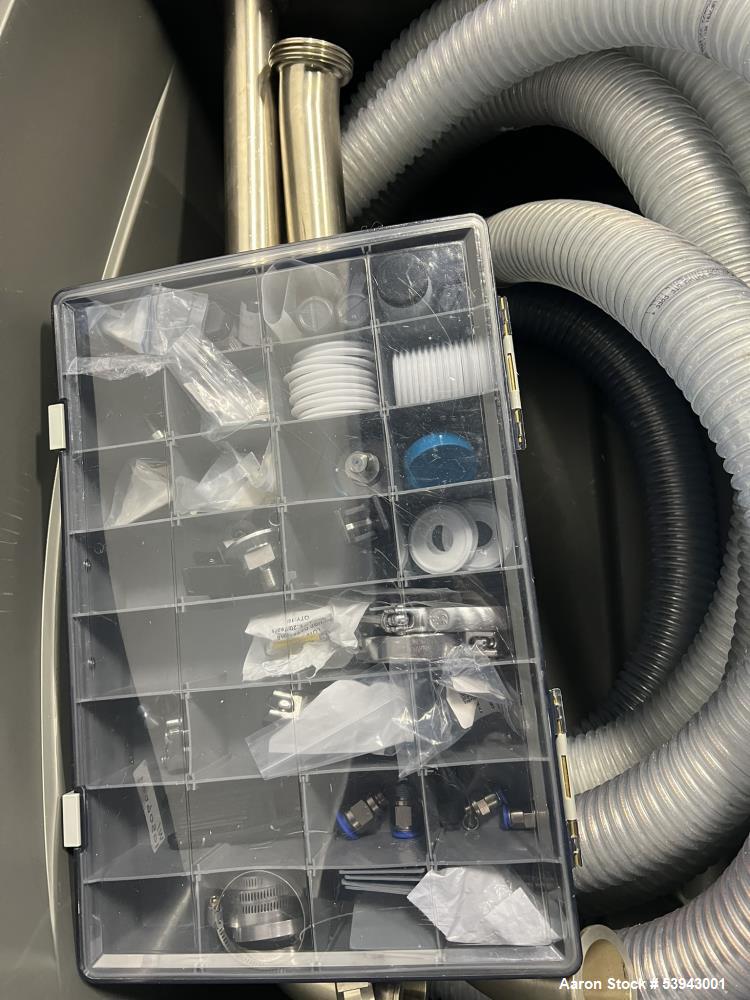

3x Spray nozzles and spare parts in totes

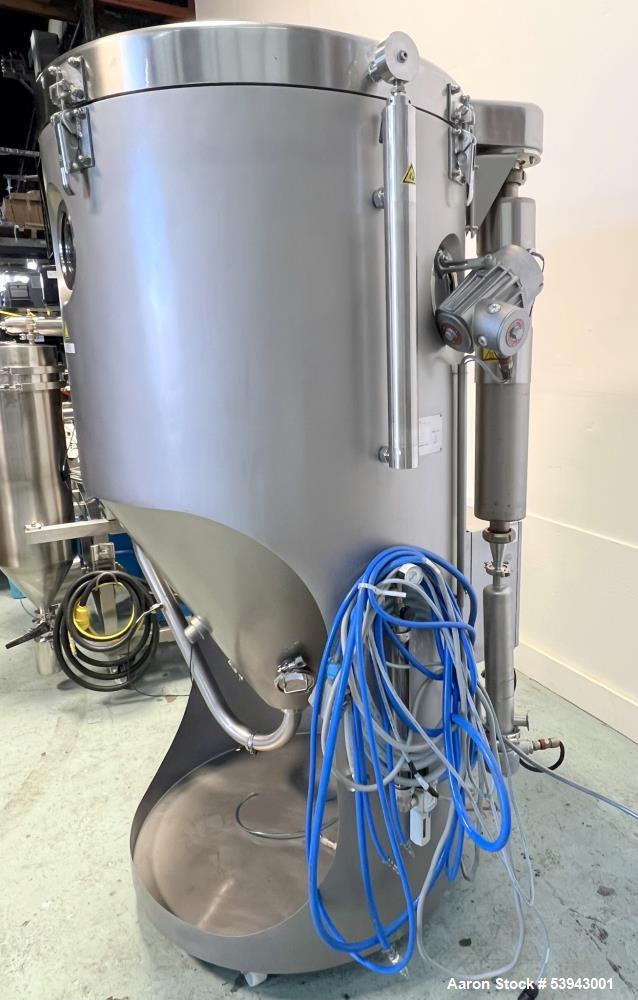

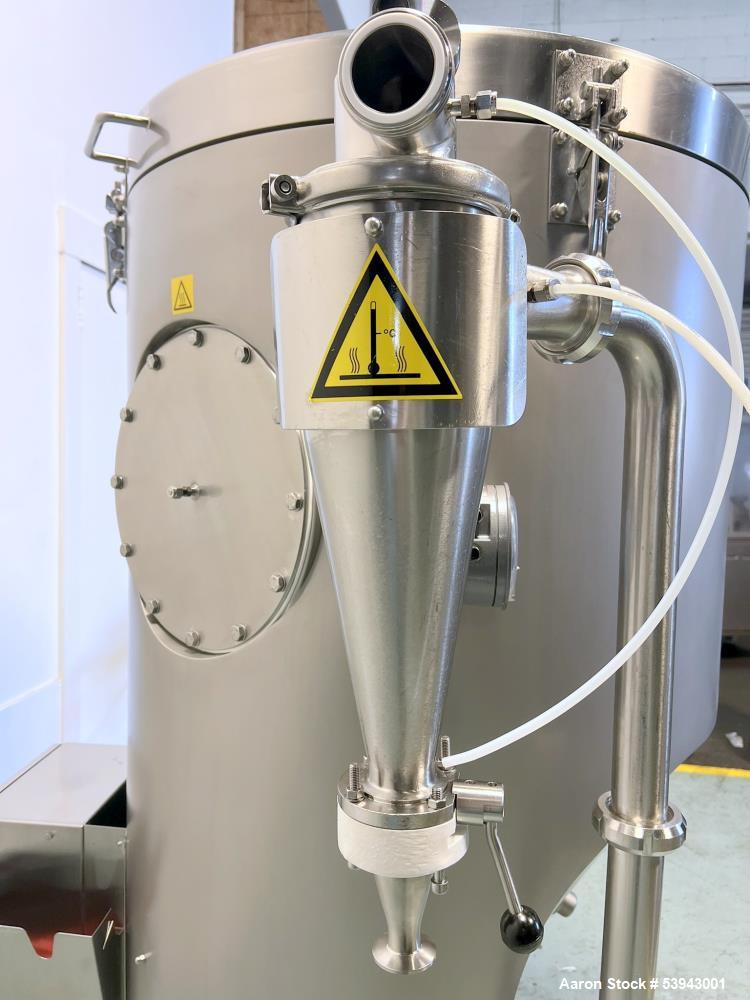

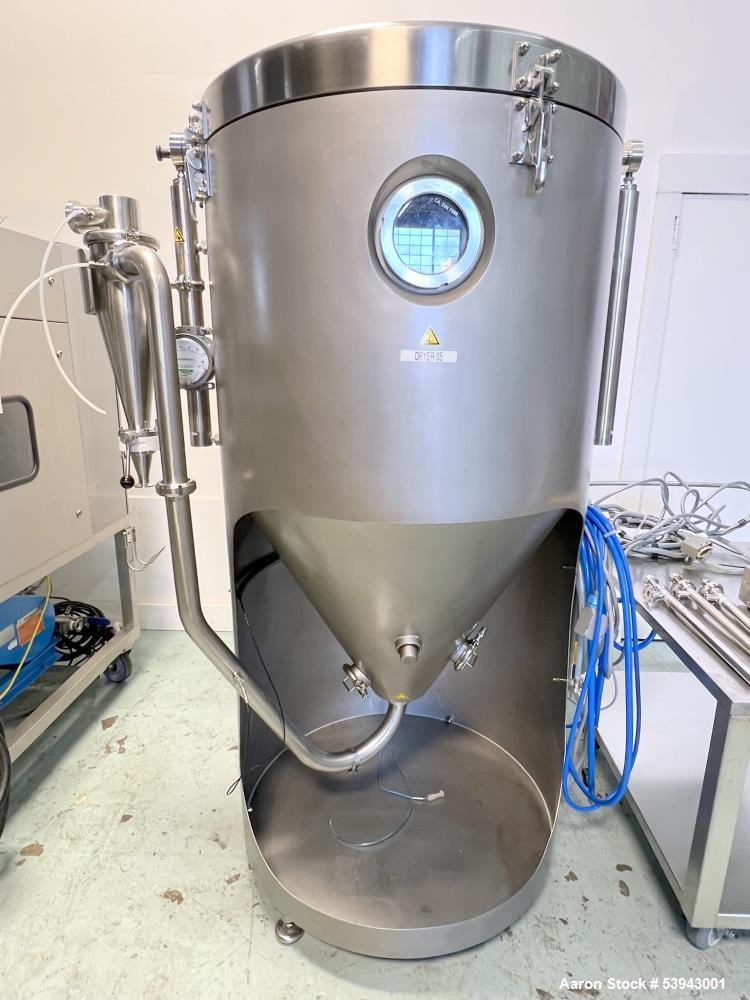

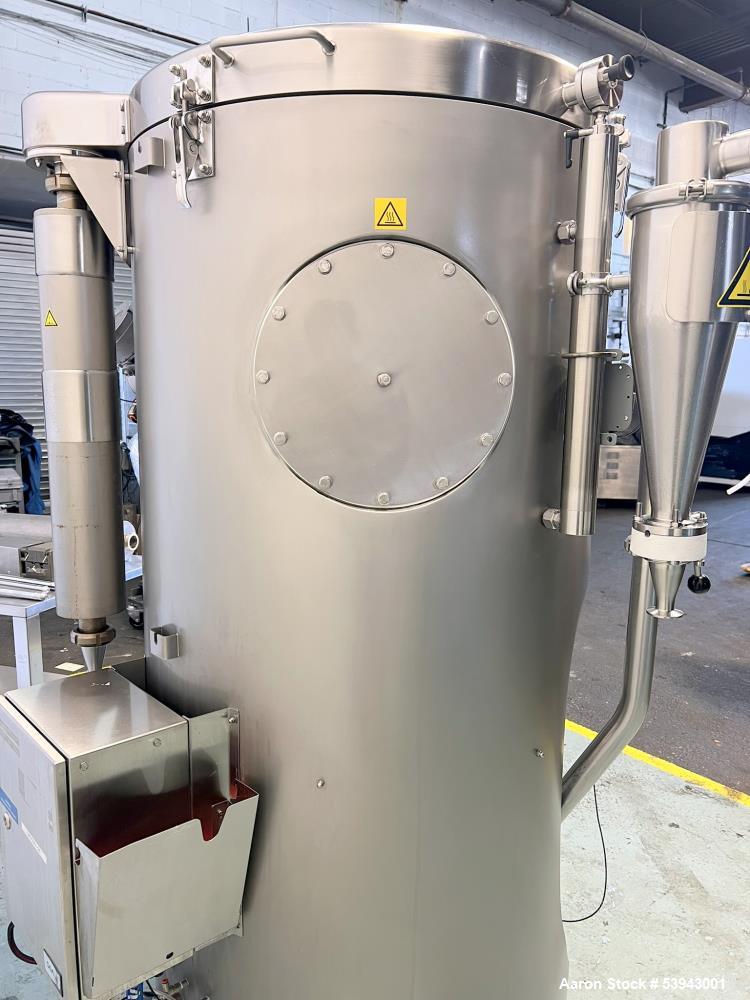

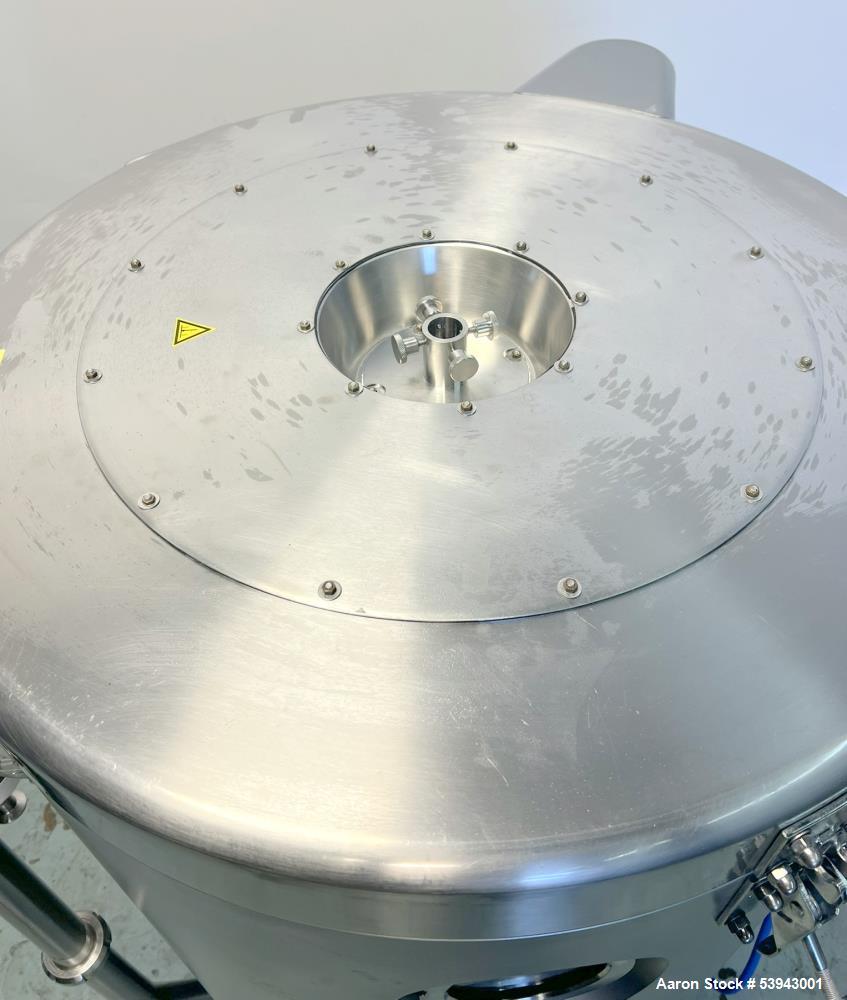

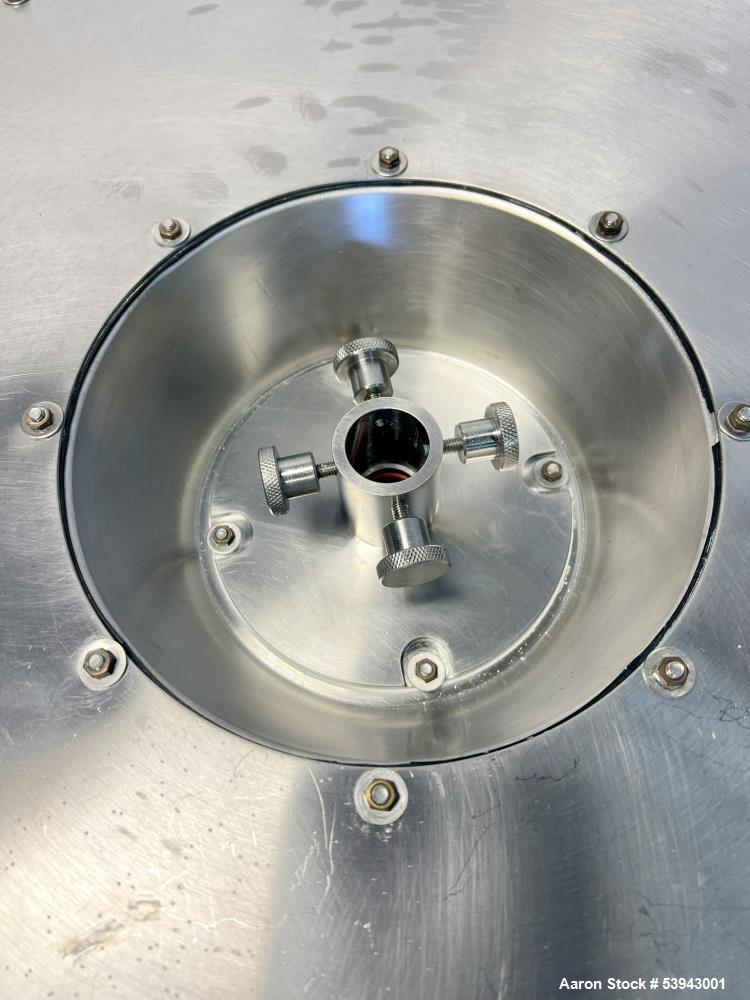

The chamber measures 800mm diameter x 620mm straight side with a 60° coned bottom, designed for up to 350°C inlet temperature, and includes air-operated lift-off top access.
📐 Specifications
| Feature |
Detail |
| Model |
MM-PSR Mobile Minor, Size 0.8 |
| Material |
316 Stainless Steel |
| Water Evaporation Capacity |
1 to 7 kg/hr (2.2–15.4 lbs/hr) |
| Heating |
7.5/9 kW Electric |
| Inlet Temp Max |
350°C (662°F) |
| Chamber Size |
800mm Dia x 620mm Straight x 60° Cone |
| Control |
Siemens PLC with HMI, VLT Drive |
| Pumps |
Nitrogen, Peristaltic, Watson Marlow |
| Safety |
Drager VOC sensor, Intrinsically safe panel |
| Included |
Spray nozzles, heating element, totes w/ spares |
| Footprint (Approx.) |
2.5m L x 2.0m W x 2.3m H |
| Serial Number |
3266 |
🧪 Applications
-
Pharmaceutical R&D
-
Chemical powder development
-
Flavor and food additive processing
-
Dairy or protein drying trials
-
Fine chemical spray drying
-
Pilot-scale batch drying
-
Nutraceutical formulation
-
Biotechnology and enzyme work
-
Thermal testing of formulations
-
Aromatics and essential oil encapsulation
🎯 Typical Products Dried
-
Active Pharmaceutical Ingredients (APIs)
-
Milk powders / whey protein
-
Enzymes & probiotics
-
Fruit and vegetable extracts
-
Flavorings and fragrances
-
Detergents and cleaning agents
-
Vitamins & supplements
-
Pigments and dyes
-
Microencapsulated compounds
-
Herbal extracts
