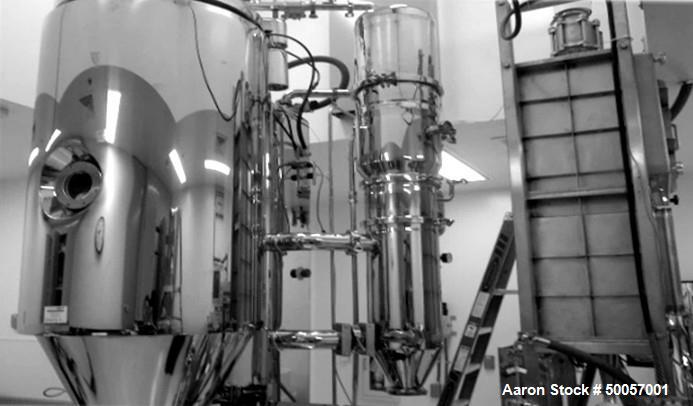

Used - Anhydro Micro Spray Dryer, Model MS75, Serial # 2490-2522, Year: 2009. All equipment parts and components including the primary spray drying chamber with rupture disc for protection against powder explosions, atomizer, exhaust cabinet, air supply system with heater, feed system, cyclone, nozzle spray Schlick 970, CIP spray ball, control panel with frequency converters, PLC, data logging facility, touch screen operator interface and additional infrastructure; (2) miscellaneous items including collection containers, feed supply parts, gaskets, o-rings, et. al.; and (3) all technical documents (e.g. manuals, parts list, certs, etc.) in the possession of the current owner. All product parts are stainless steel AISI 316. External parts are made in stainless steel AISI 304. Drying capacity is 165 lbs./hr. (75Kg/hr.) gas flow rate. Working temperature of 230 deg. C Max. Inlet Air Temp, 30-120 deg. C Outlet depending on the application/product. On 3 legs. This is a custom built MS75, not a standard design. Internal chamber dimensions : 24” dia X 42” straight side. Overall height” 10’. Overall footprint: 6’ width X 3.5’ depth.
Used - Anhydro Micro Spray Dryer, Model MS75, Serial # 2490-2522, Year: 2009. All equipment parts and components including the primary spray drying chamber with rupture disc for protection against powder explosions, atomizer, exhaust cabinet, air supply system with heater, feed system, cyclone, nozzle spray Schlick 970, CIP spray ball, control panel with frequency converters, PLC, data logging facility, touch screen operator interface and additional infrastructure; (2) miscellaneous items including collection containers, feed supply parts, gaskets, o-rings, et. al.; and (3) all technical documents (e.g. manuals, parts list, certs, etc.) in the possession of the current owner. All product parts are stainless steel AISI 316. External parts are made in stainless steel AISI 304. Drying capacity is 165 lbs./hr. (75Kg/hr.) gas flow rate. Working temperature of 230 deg. C Max. Inlet Air Temp, 30-120 deg. C Outlet depending on the application/product. On 3 legs. This is a custom built MS75, not a standard design. Internal chamber dimensions : 24” dia X 42” straight side. Overall height” 10’. Overall footprint: 6’ width X 3.5’ depth.
