Used Buss AG Loop Reactor High Pressure Hydrogenation Plant for Xylitol Production

Manufacturer Information

This complete xylitol hydrogenation plant features major equipment manufactured by Buss AG, Hebler, Biral-Buss, Sunitrol, and Braun + Luebbe. Designed for continuous high-pressure catalytic hydrogenation of xylose into xylitol, the system incorporates industrial-grade 316L stainless steel process equipment suitable for food, pharmaceutical, and specialty chemical production.

Description

Available for sale is a complete Used Buss AG Loop Reactor High Pressure Hydrogenation Plant designed for the production of xylitol from xylose feedstocks. Xylitol is a high-value sugar alcohol commonly used in food, beverage, pharmaceutical, and personal care applications. The production process utilizes catalytic hydrogenation under elevated pressure and temperature conditions, typically employing Raney nickel catalyst to convert purified xylose into food-grade xylitol.

This system is currently in operation and includes a Hebler high-pressure reaction autoclave, Buss loop reactor piping system, Biral-Buss circulation pump, feed and dosing systems, catalyst preparation vessels, shell and tube heat exchangers, process filtration equipment, and associated support structure. Manufacturer drawings and process prints are available.

Additional information, equipment inspections, and process documentation are available upon request.

Specifications

• Application: Xylitol production via catalytic hydrogenation
• Product: Food-grade xylitol sweetener
• Reactor Manufacturer: Hebler
• Reactor Capacity: 1,950 gallons
• Reactor Material: 316L stainless steel

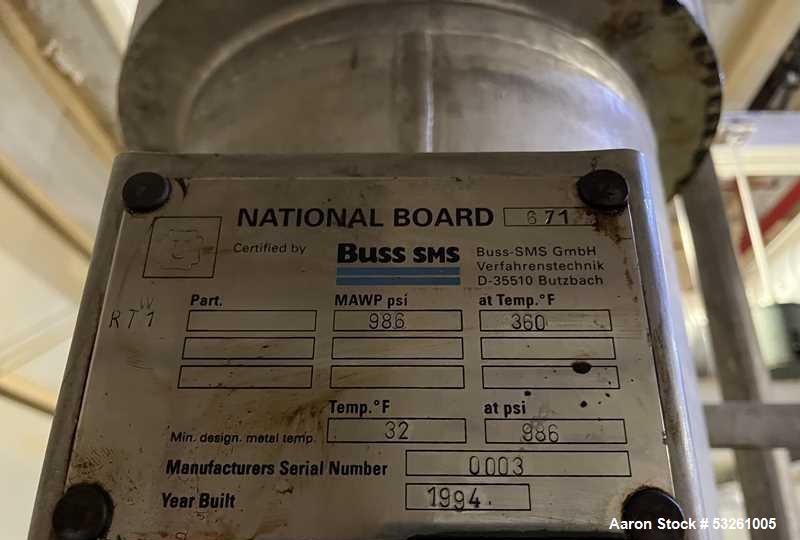

• Reactor Rating: 985 PSI at 360°F

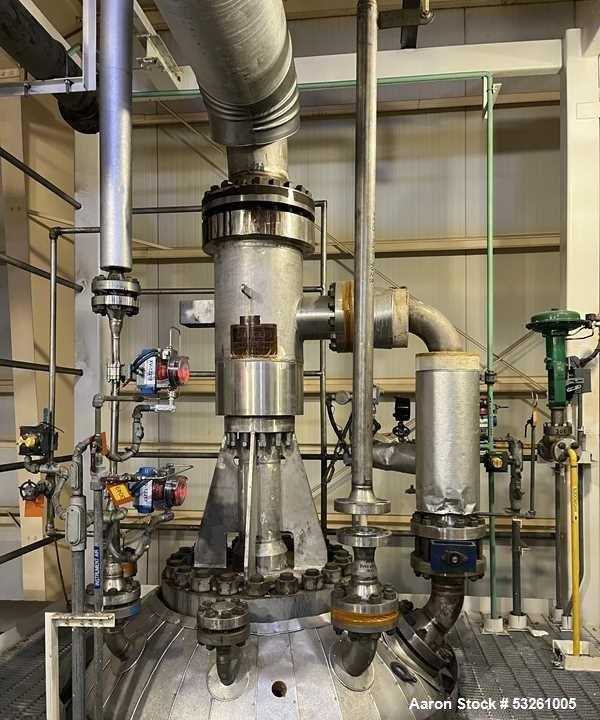

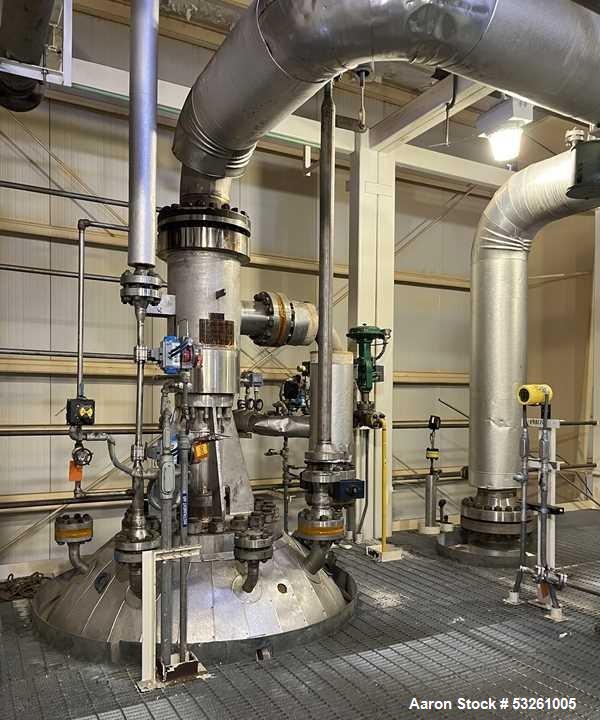

• Reactor Type: High-pressure autoclave with Buss loop reactor circulation system
• Loop Reactor Piping: Upper and lower circulation loops included
• High Pressure Pump: Biral-Buss Type NZP 340R-200-1
• Raw Material Feed Pump: Sunitrol 316 stainless steel, 120 GPM
• Additive Dosing Pump: Braun + Luebbe 316L stainless steel
• Mixing Vessel: Buss 316L stainless steel
• Catalyst Preparation Tanks: Multiple vessels with agitators
• Additive Feed Tanks: Multiple vessels with agitators

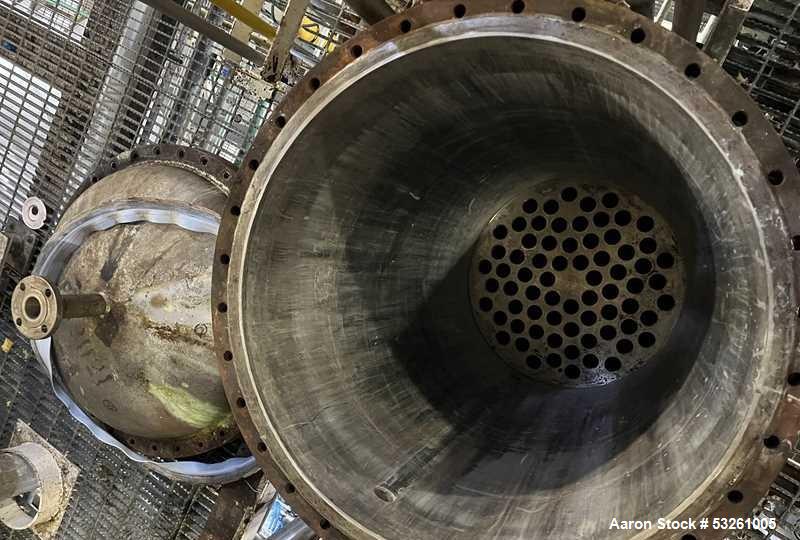

• Product Coolers and Heaters: 316L stainless steel shell and tube design

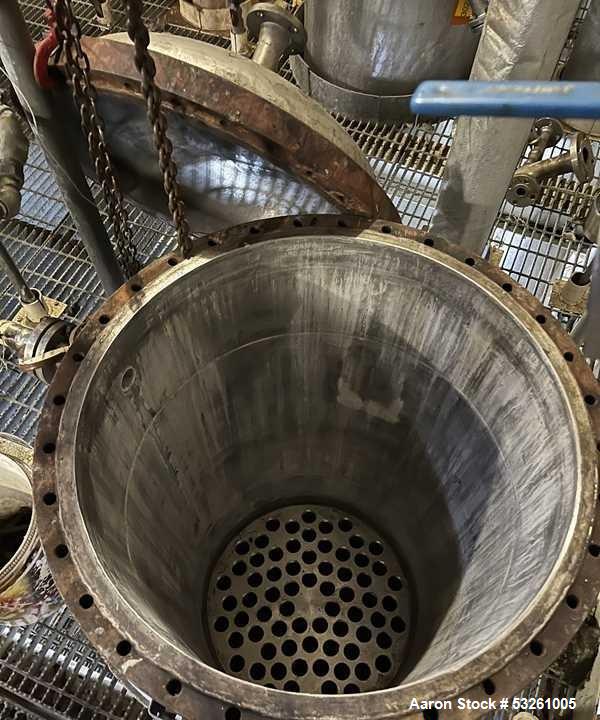

• Filtration System: Process filters included
• Process Pumps: Multiple stainless steel pumps included
• Structural Steel: Available
• Documentation: Manufacturer prints and process drawings available
• Operating Status: Currently in operation

Applications

• Xylitol production
• Sugar alcohol manufacturing
• Biomass-derived sweetener production
• Xylose hydrogenation
• Food ingredient manufacturing
• Pharmaceutical ingredient production
• Polyol manufacturing
• Specialty carbohydrate processing
• Catalytic hydrogenation operations
• Fine chemical production

Products This Equipment Can Produce

• Xylitol
• Food-grade xylitol crystals
• Pharmaceutical-grade xylitol
• Polyol sweeteners
• Sugar alcohol products
• Specialty carbohydrate derivatives
• Biomass-derived sweeteners
• Reduced-calorie sweeteners
• Oral care sweetener ingredients
• Functional food ingredients

Frequently Asked Questions

What is the primary use of this plant?

This plant is designed to convert xylose into xylitol through catalytic hydrogenation using hydrogen gas and Raney nickel catalyst.

Is the system currently operating?

Yes. The complete plant is currently in operation and available for inspection.

What pressure is the reactor rated for?

The Hebler reactor is rated for 985 PSI at 360°F.

What materials of construction are used?

The primary wetted process components are constructed from 316L stainless steel.

Are manufacturer drawings included?

Yes. Manufacturer prints and process documentation are available.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment can coordinate dismantling, rigging, loading, transportation, export documentation, and worldwide logistics services for qualified buyers.
