Stock #
53732001
Used 30 TPD ASU with NLU Plant designed & supplied by Cosmodyne USA in 1995. Argon purification unit non-cryogenic (H2 used for O2 removal). Power 1,361 kW. Main products; Liquid Oxygen (LOX) purity 99.6% O2 Liquid Nitrogen (LIN) purity 5 ppm O2 Liquid Argon (LAr) purity 99.999% Ar. Main equipment; Main air compressor; Ingersoll Rand Nitrogen compressors; Ingersoll Rand Expansion turbines; ACD Pre-purification unit; Cosmodyne Refrigeration units Coldbox; Cosmodyne Control system Siemens PCS7; ASU had been in operation since commissioning in 1996 and was stopped in Q3 2023 due to commissioning of new ASU. Refurbished rotor assemblies for air compressor available as spare. Refurbished spare motor available that can be used for air or nitrogen compressors. ASU major turnaround maintenance required before restart. The plants expansion turbine, nitrogen & main compressors, pre-purification, refrigeration units and all other machinery are in good condition, and the plant itself is in fully working and operational condition. Additionally, the control panel is modified to the latest PCS-7M Siemens Control System. Plat equipment: (3) Centec main air compressors; (2) ACD turbines; (1) Jalal cooling tower; (3) cooling water pumps; (3) Copland refrigeration systems; (1) Cosmodyne purification skid; (1) Cosmodyne argon purification skid; (1) Cosmodyne cold box; (1) Cosmodyne Control Room and LV Power distribution panels (containerized); (3) Servomax O2 analyzers; (1) Teledyne N2% analyzer; (1) Teledyne hydrogen % analyzer; (1) Horiba PPM CO2 analyzer; (1) Cryogenic Batch tank (12000Sm3 Liquide Oxygen); (1) Cryognic Liquid Oxygen transfer pump.
Used Equipment Facts About This Machine
Manufacturer Information
- Designer/Supplier: Cosmodyne USA
- Year Built: 1995
- Commissioned: 1996
- Stopped Operation: Q3 2023 (due to commissioning of new ASU)
- Condition: Fully operational prior to shutdown, requires major turnaround maintenance before restart
- Control System: Upgraded Siemens PCS7M
Description
This 30 TPD Air Separation Unit (ASU) with NLU Plant, designed and supplied by Cosmodyne USA, is capable of producing high-purity cryogenic gases. The system includes non-cryogenic argon purification, using hydrogen for oxygen removal, delivering ultra-high purity liquid argon (LAr), liquid oxygen (LOX), and liquid nitrogen (LIN).
With a total power requirement of 1,361 kW, this plant was operational from 1996 to 2023, and is now available due to the commissioning of a newer ASU system. The ASU has undergone regular maintenance, and major equipment including compressors, turbines, and cold box are in good condition. The plant has an upgraded Siemens PCS7 control system for modernized process control.
Additionally, refurbished rotor assemblies and a spare motor are included, providing additional flexibility and maintenance readiness for future operation.
Main Product Specifications
- Liquid Oxygen (LOX): 99.6% O₂ Purity
- Liquid Nitrogen (LIN): 5 ppm O₂ Purity
- Liquid Argon (LAr): 99.999% Ar Purity
Power Consumption
- Total Power Requirement: 1,361 kW
Main Equipment Included
- Air Separation Unit (ASU): 30 TPD Capacity

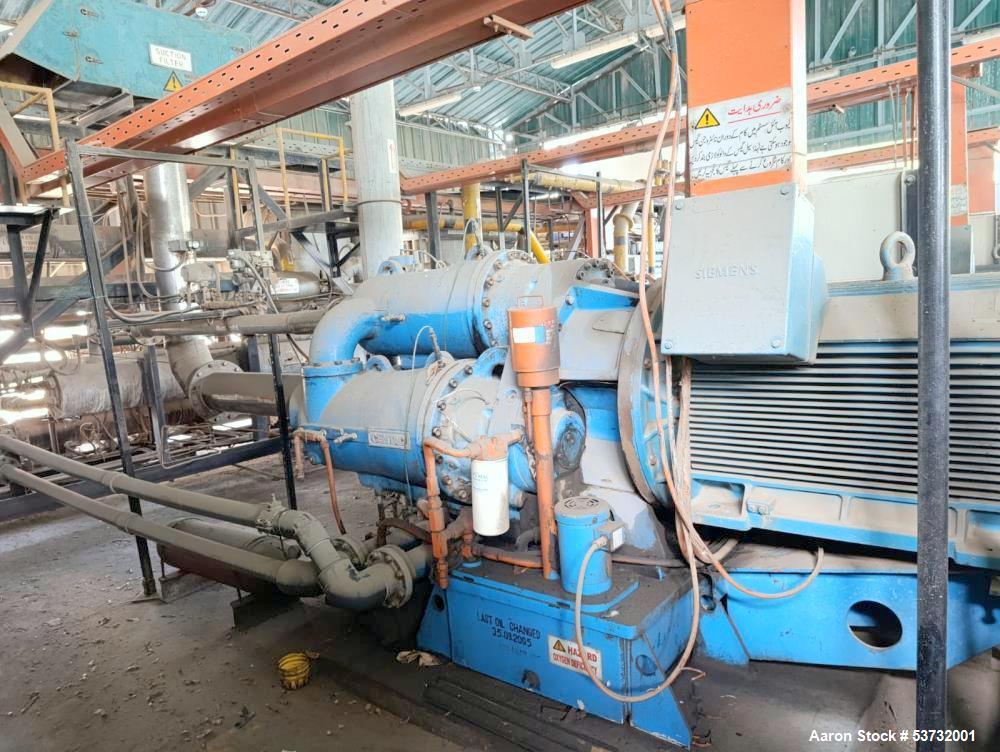

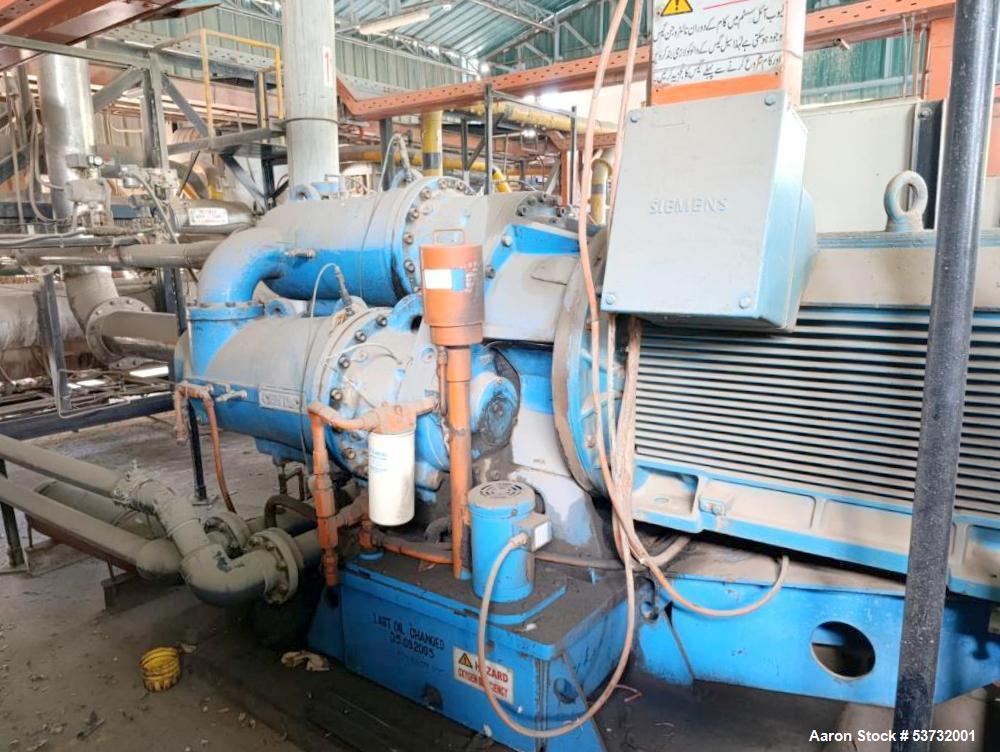

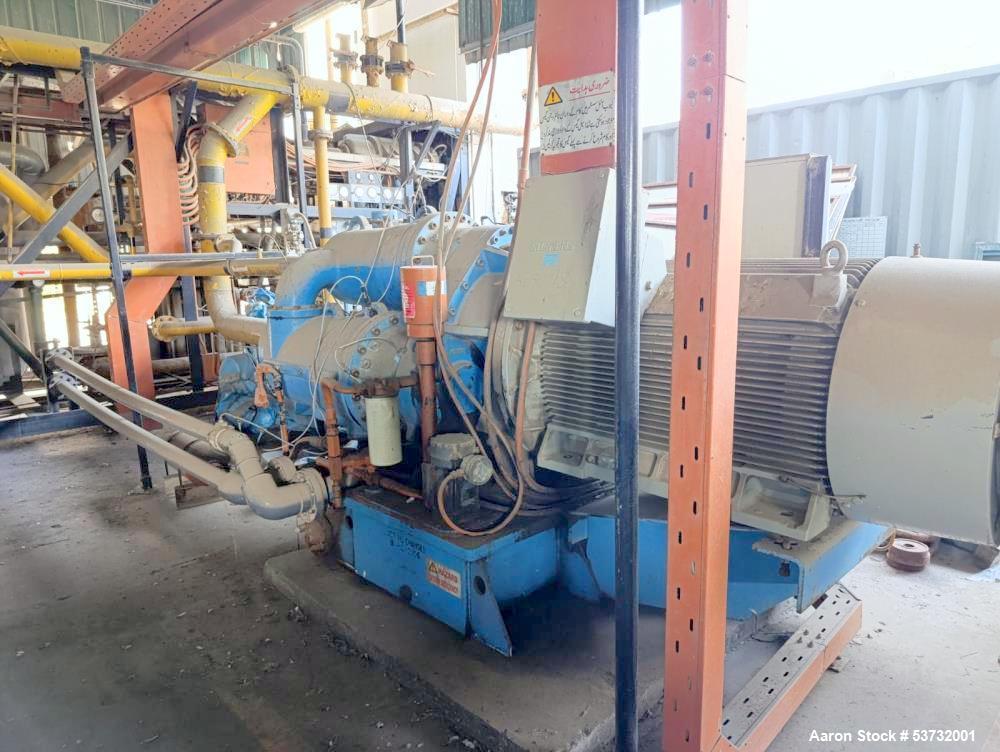

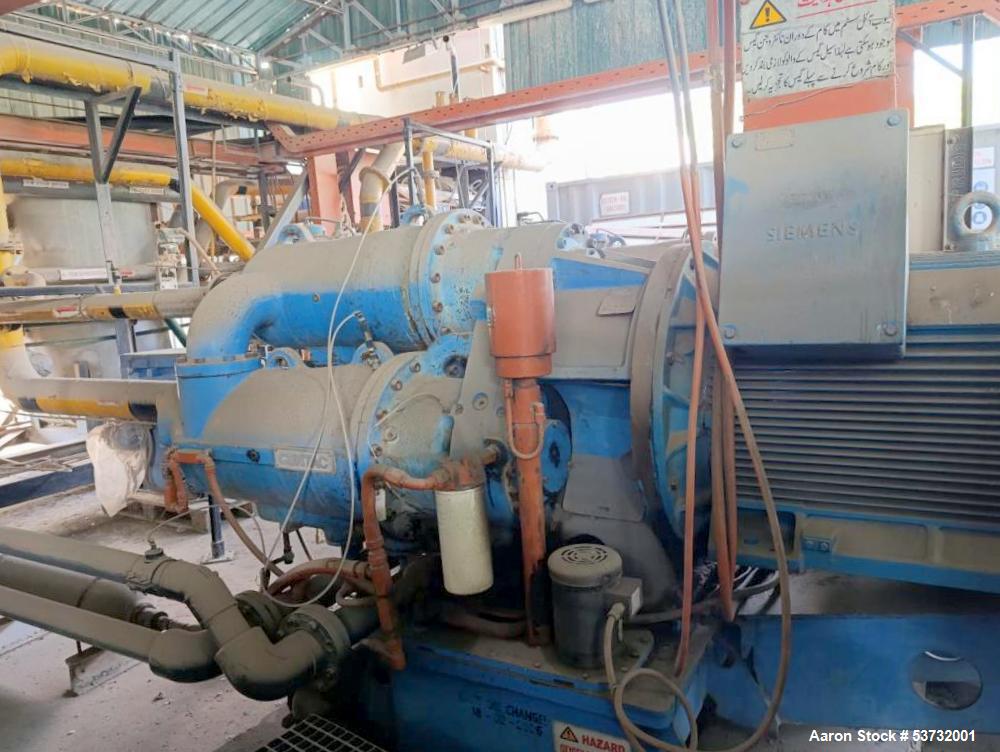

- Main Air Compressors (3): Centec (refurbished rotor assemblies available as spare)
- Nitrogen Compressors: Ingersoll Rand (refurbished spare motor available)
- Expansion Turbines (2): ACD
- Pre-Purification Unit: ACD
- Cosmodyne Refrigeration Units

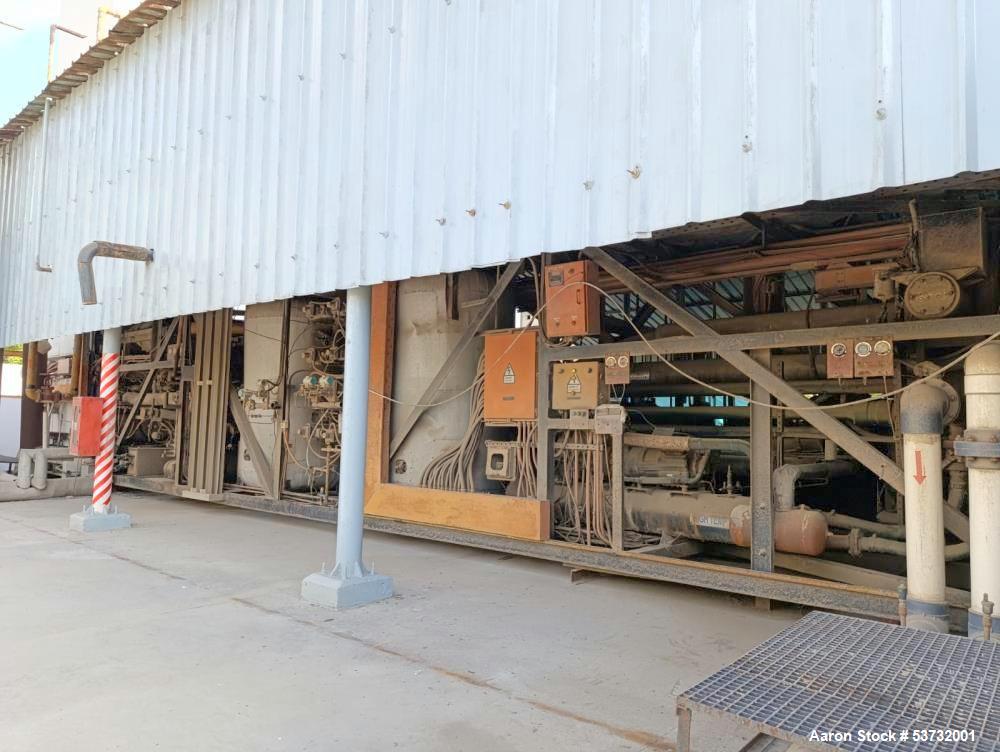

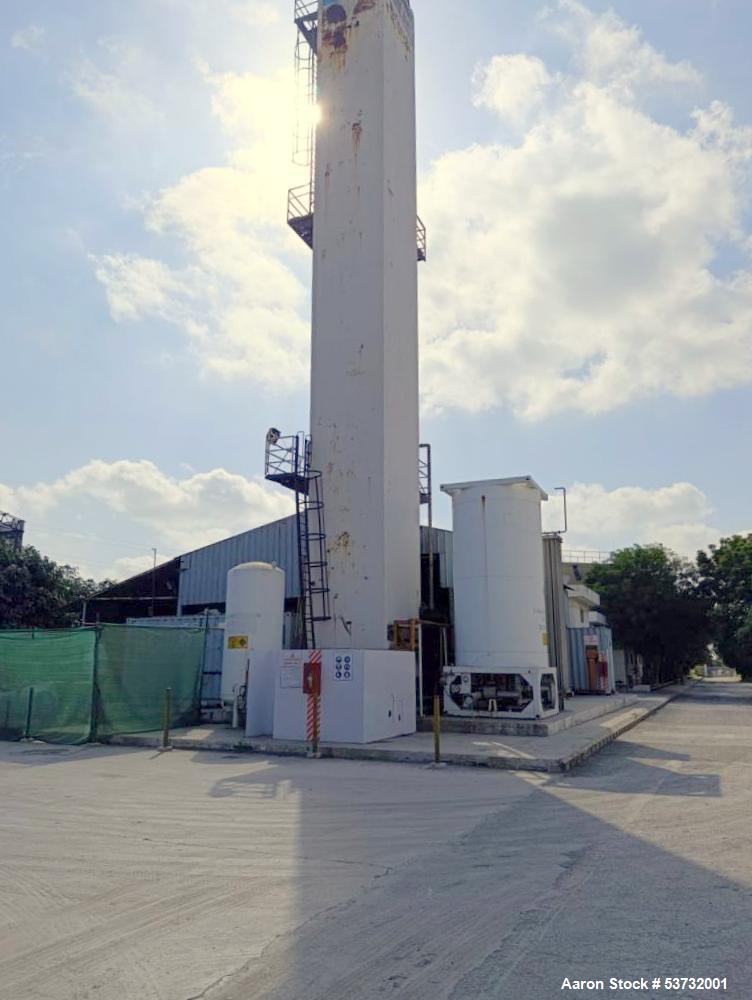

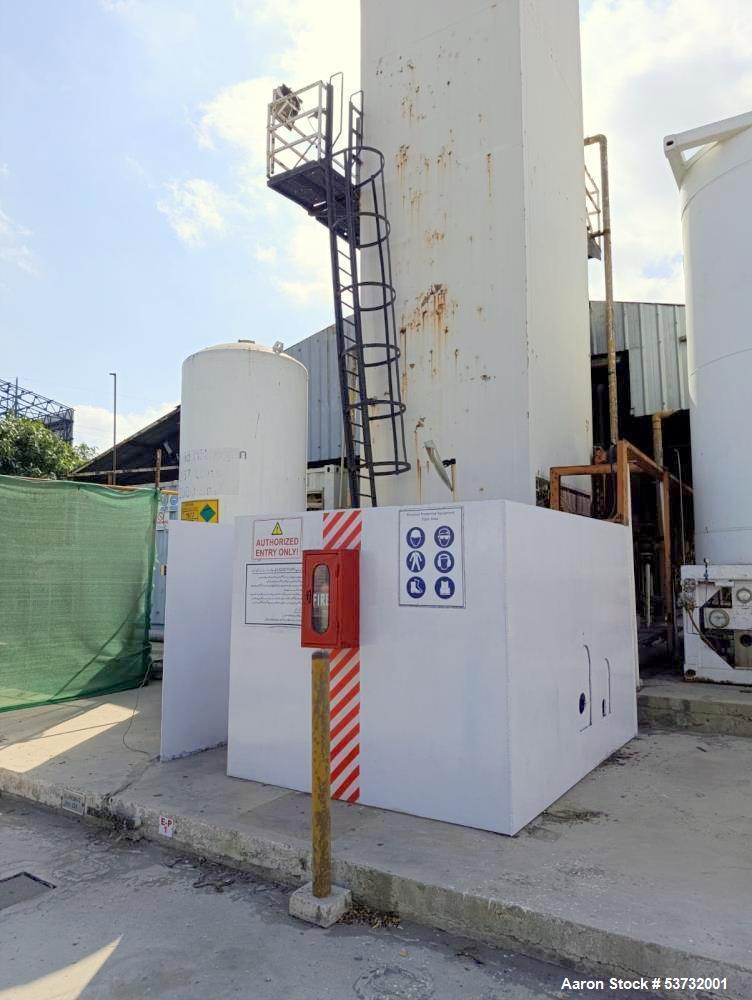

- Coldbox: Cosmodyne

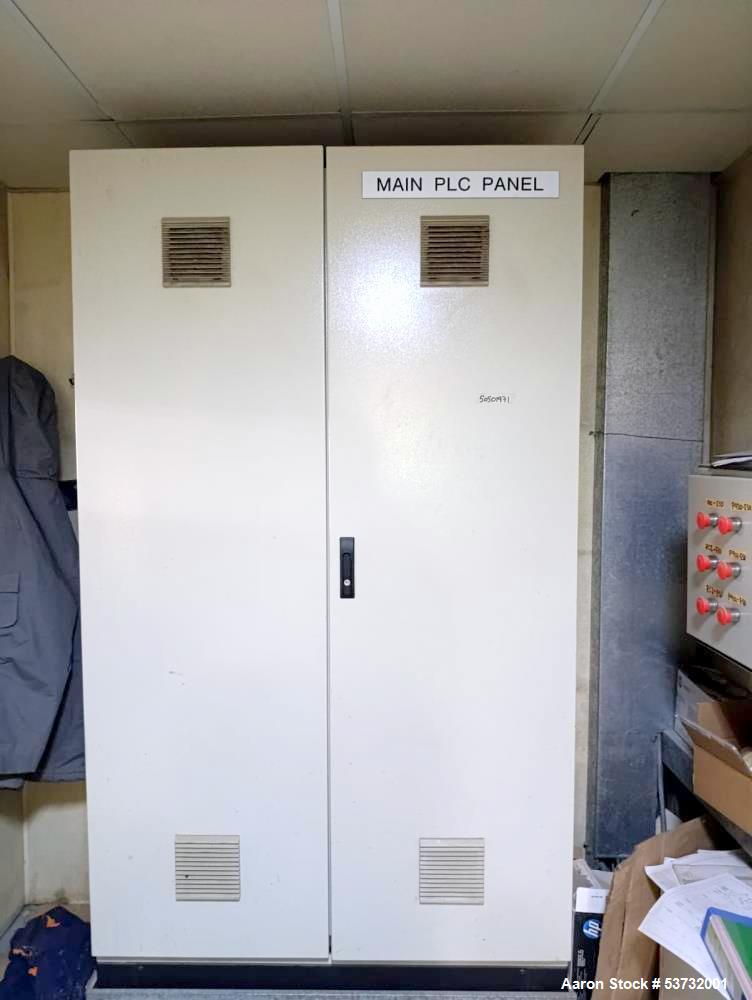

- Control System: Siemens PCS7 (PCS7M latest version)

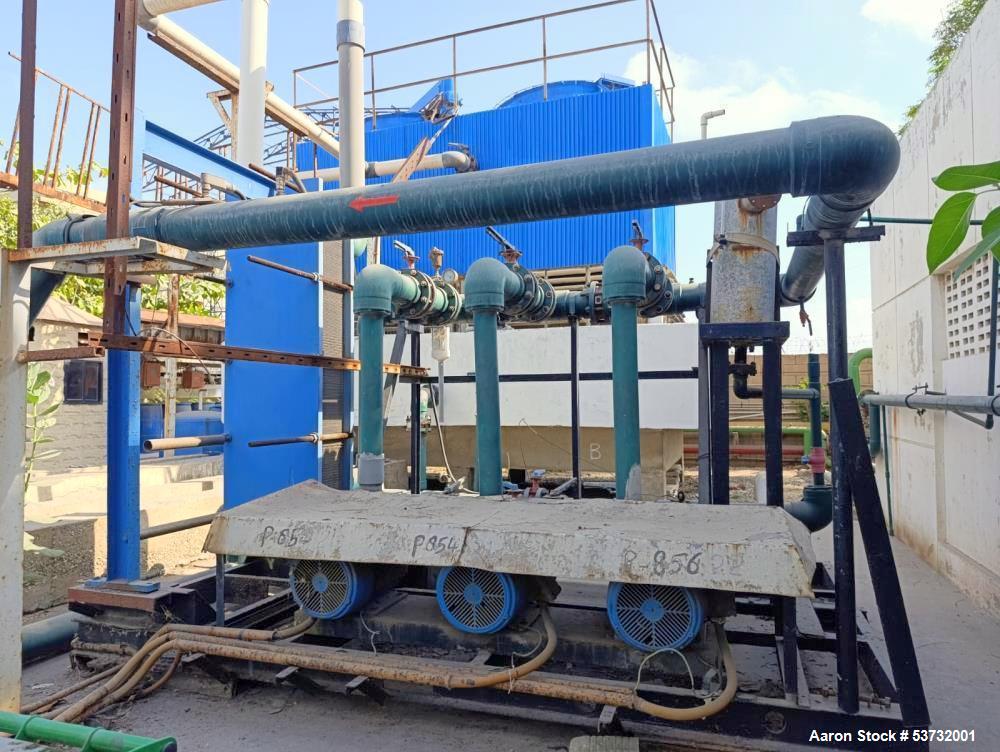

- Cooling Tower: Jalal

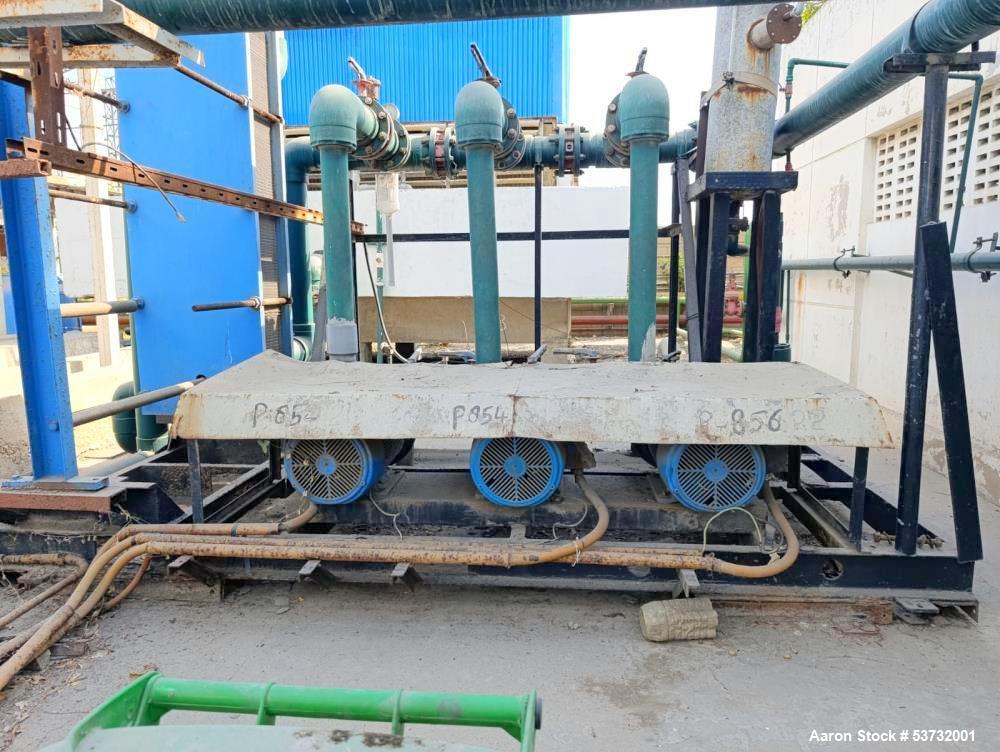

- Cooling Water Pumps (3)
- Refrigeration Systems (3): Copland

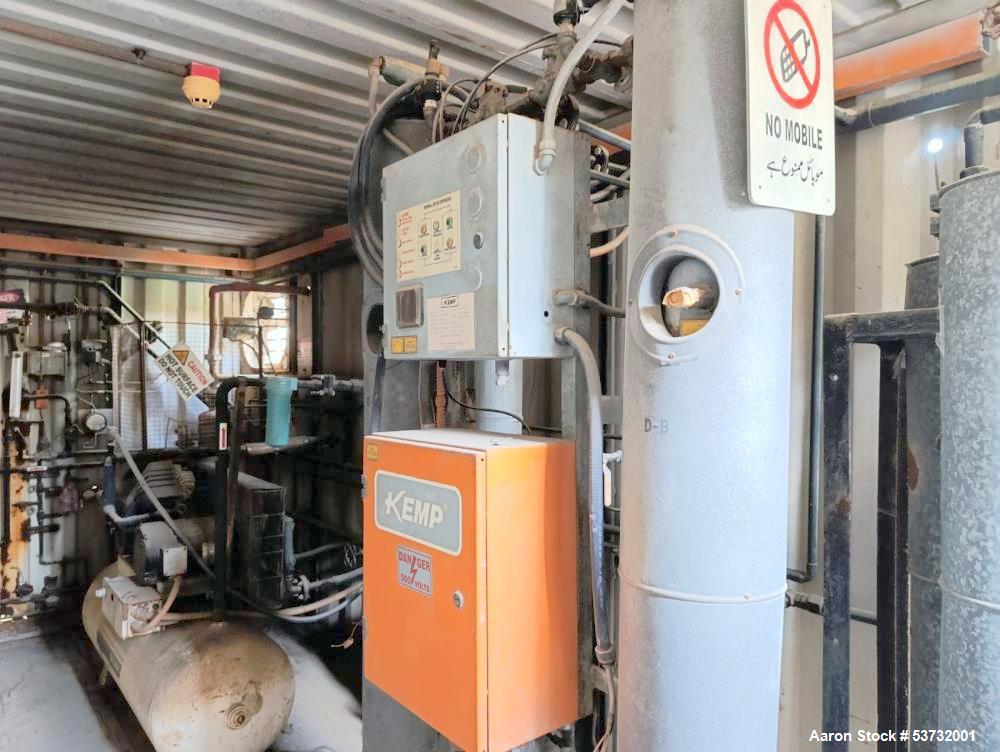

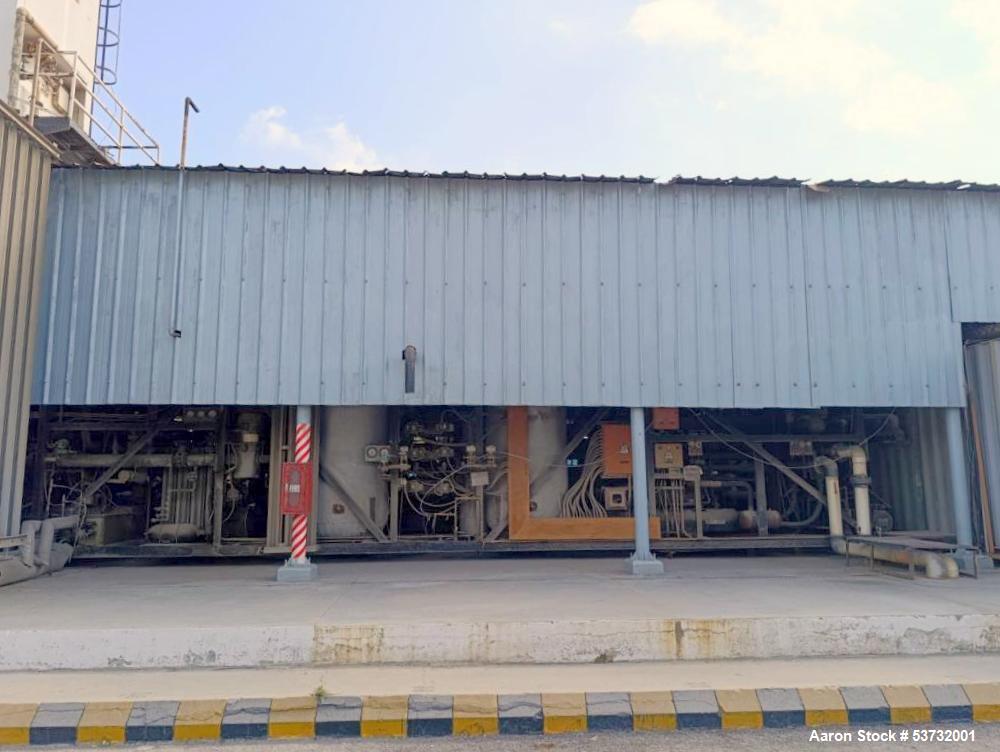

- Cosmodyne Purification Skid
- Cosmodyne Argon Purification Skid (non-cryogenic, H2 for O2 removal)

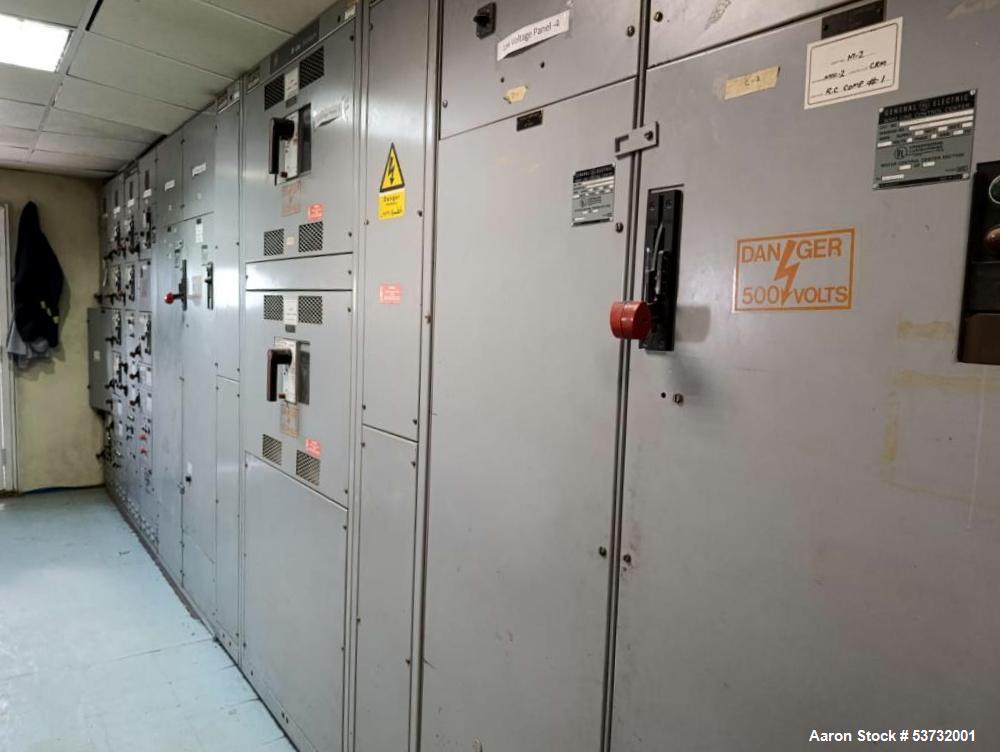

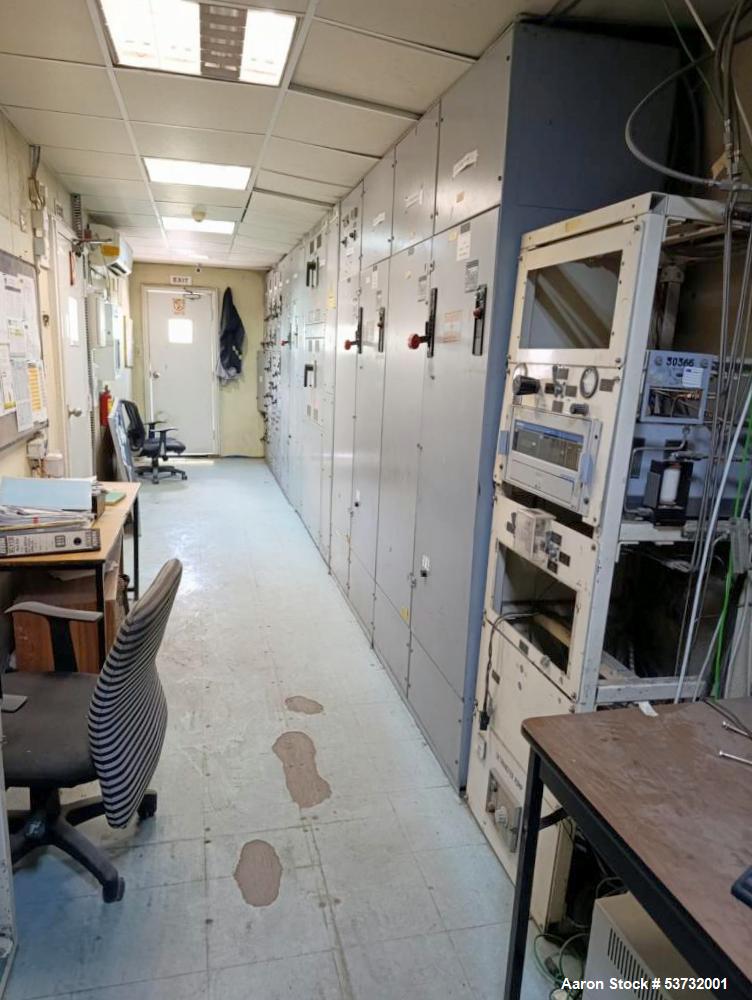

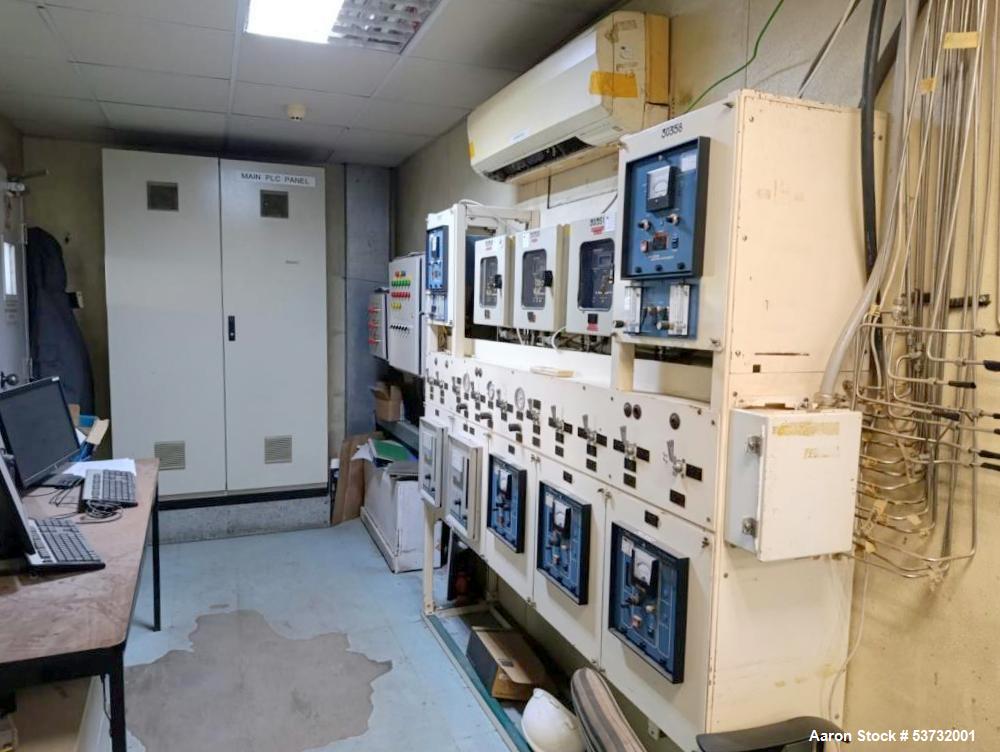

- Control Room and LV Power Distribution Panels (containerized)

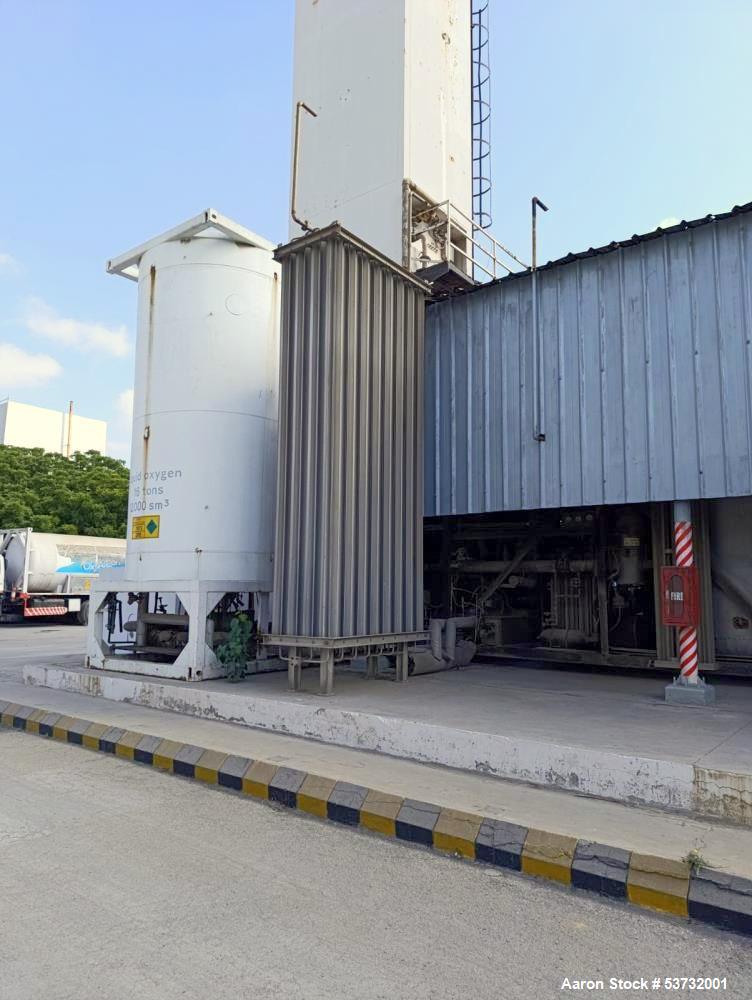

- Cryogenic Storage Tank: 12,000 Sm³ Liquid Oxygen
- Cryogenic Liquid Oxygen Transfer Pump
Analytical & Monitoring Equipment
- Servomax O₂ Analyzers (3)
- Teledyne N₂% Analyzer (1)
- Teledyne H₂% Analyzer (1)
- Horiba PPM CO₂ Analyzer (1)
Current Condition
- Operational Status: Fully operational until Q3 2023
- Maintenance: Major turnaround maintenance required before restart
- Equipment Condition: Compressors, turbines, refrigeration, cold box in good condition
- Control System: Modified and upgraded to Siemens PCS7M
Applications
- Industrial Gas Supply – LOX, LIN, LAr for industrial and medical use
- Steel Industry – High-purity oxygen and nitrogen for steel manufacturing processes
- Electronics and Semiconductor Industry – Ultra-high purity argon
- Chemical Processing – Nitrogen and oxygen for inerting and reactions
- Cryogenic Liquid Distribution & Storage – Onsite production and storage
Compatible Industries
- Oil & Gas
- Petrochemical & Chemical Plants
- Steel & Metallurgy
- Electronics & Semiconductors
- Industrial Gas Suppliers
