Stock No.: 54687015
Used 1995 Bühler 400 Gallon Vacuum Processing Mixer With Disperser
-
ManufacturerBuhler Inc.
-
Model2GU41100
-
Serial #26694
-
CategoryMixers
-
SubcategoryHomogenizer Mixers
Used equipment facts about this machine
Manufacturer Information
MANUFACTURER INFORMATION
Bühler manufactures industrial process equipment used for mixing, dispersing, grinding and formulation applications. Vacuum processing mixers combine controlled agitation, high-speed dispersion, vacuum capability and jacketed temperature control for products requiring blending, deaeration, heating, cooling or dispersion.
PRODUCT DESCRIPTION

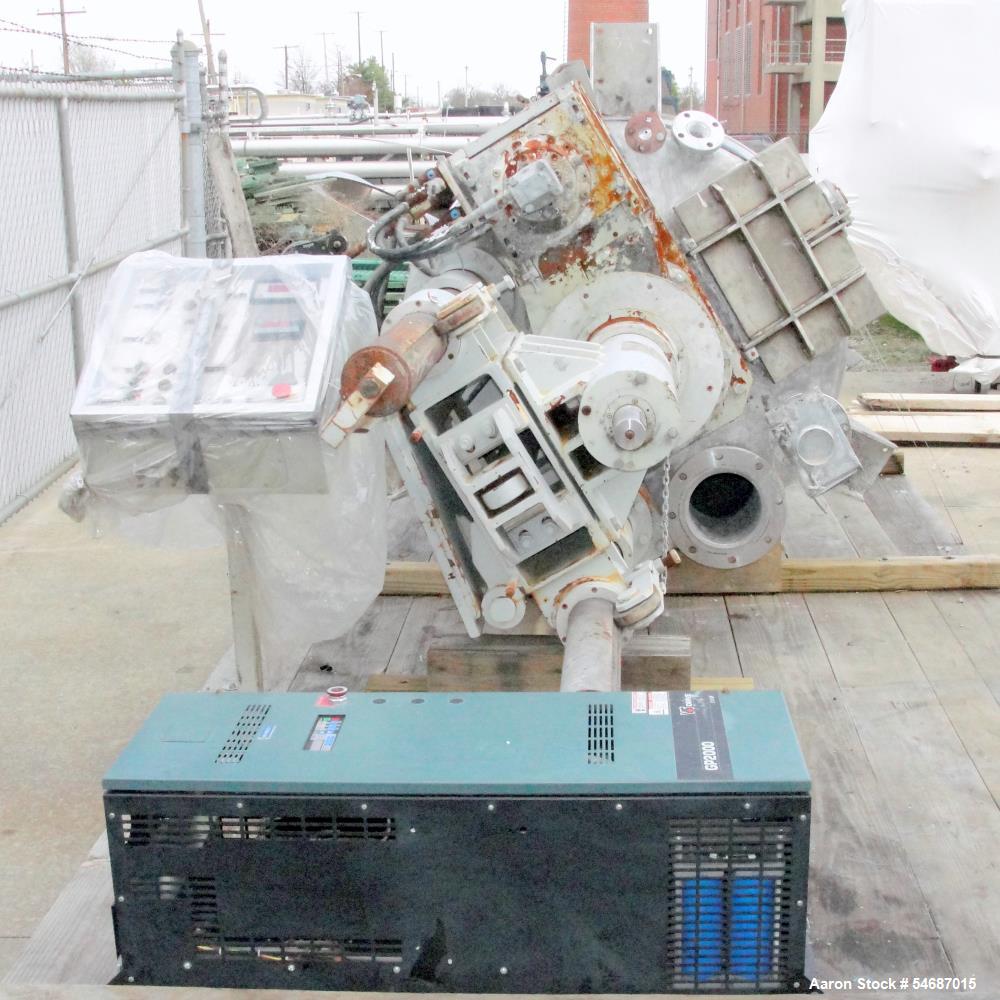

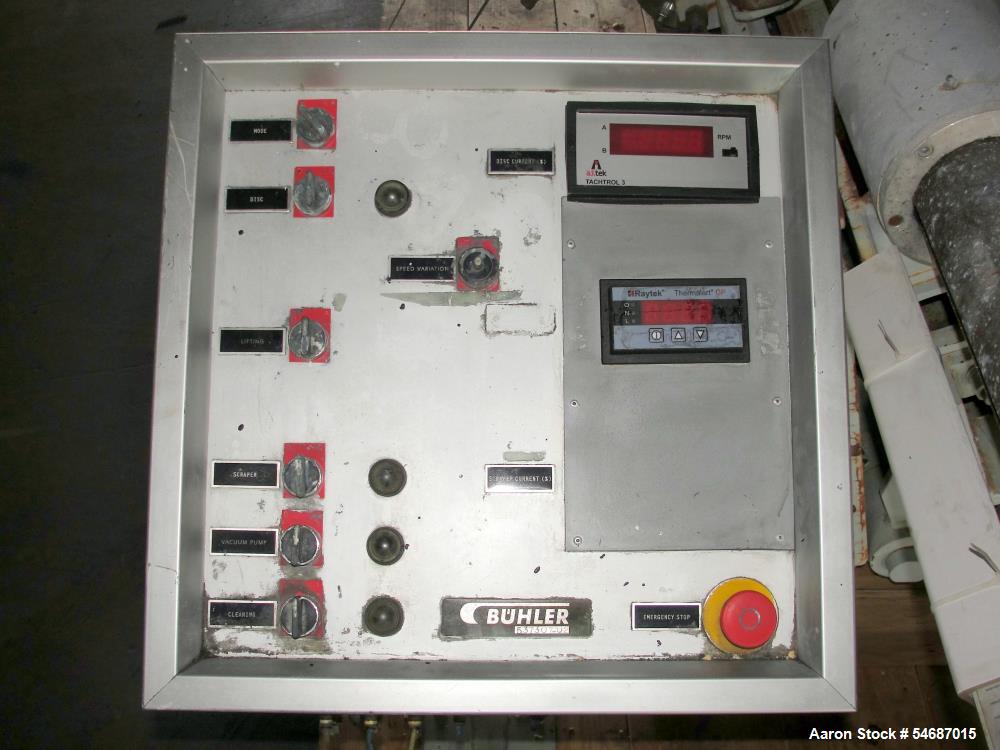

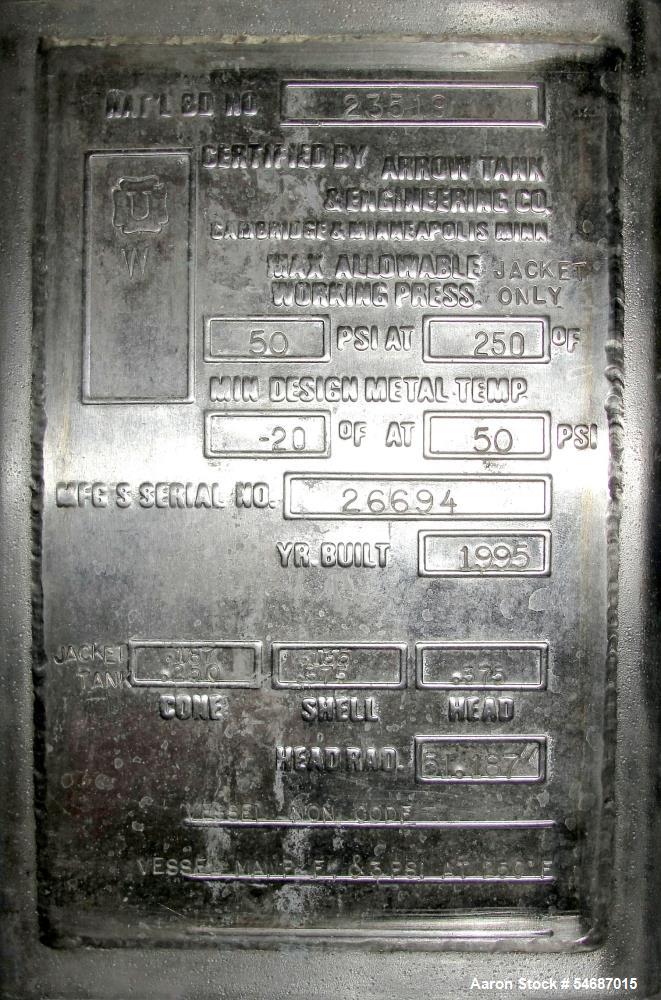

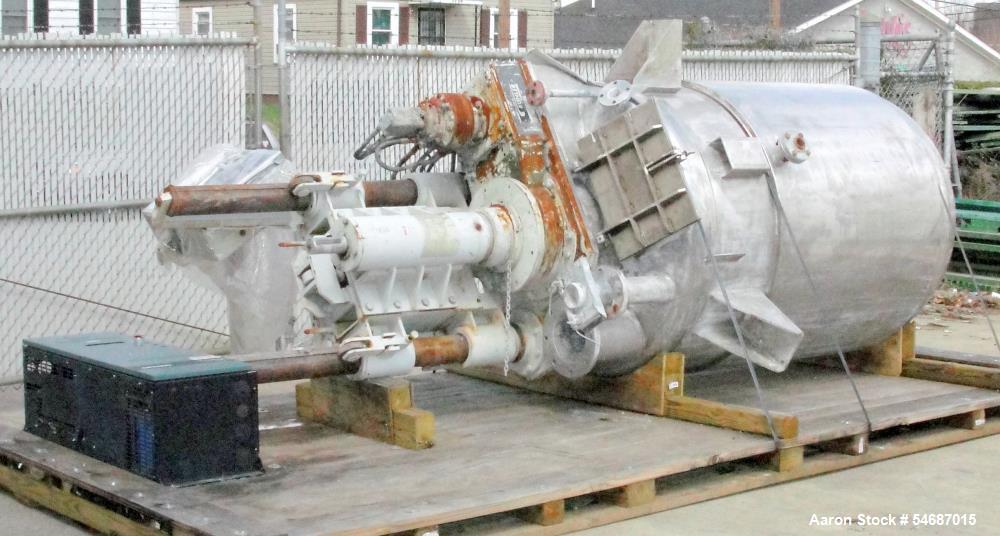

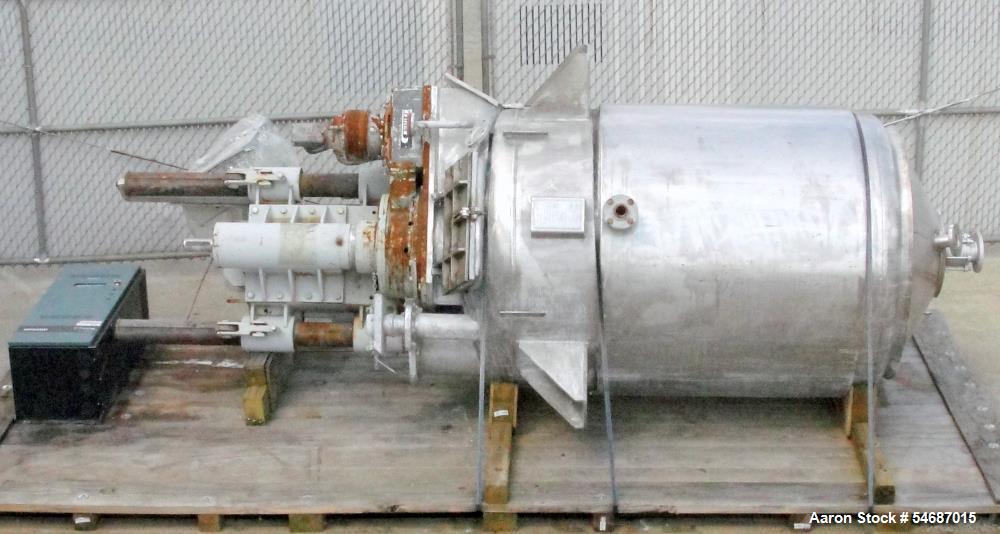

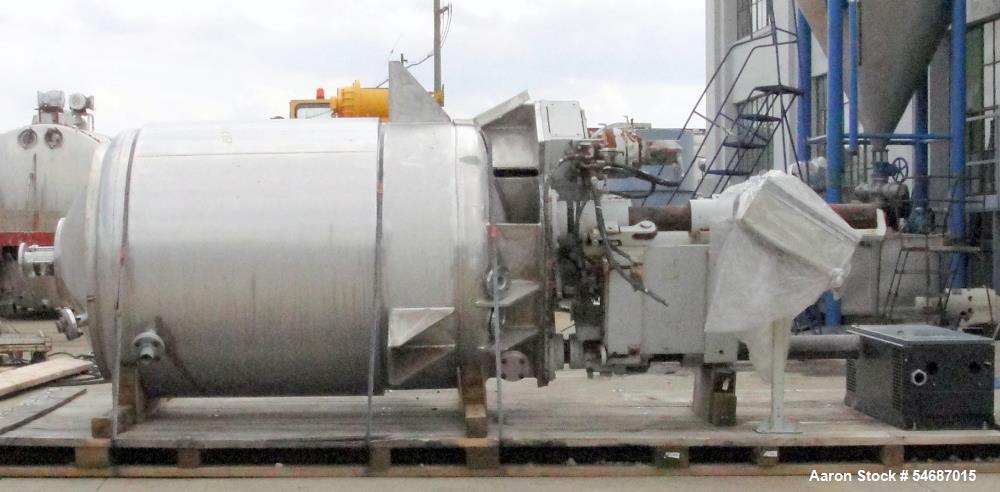

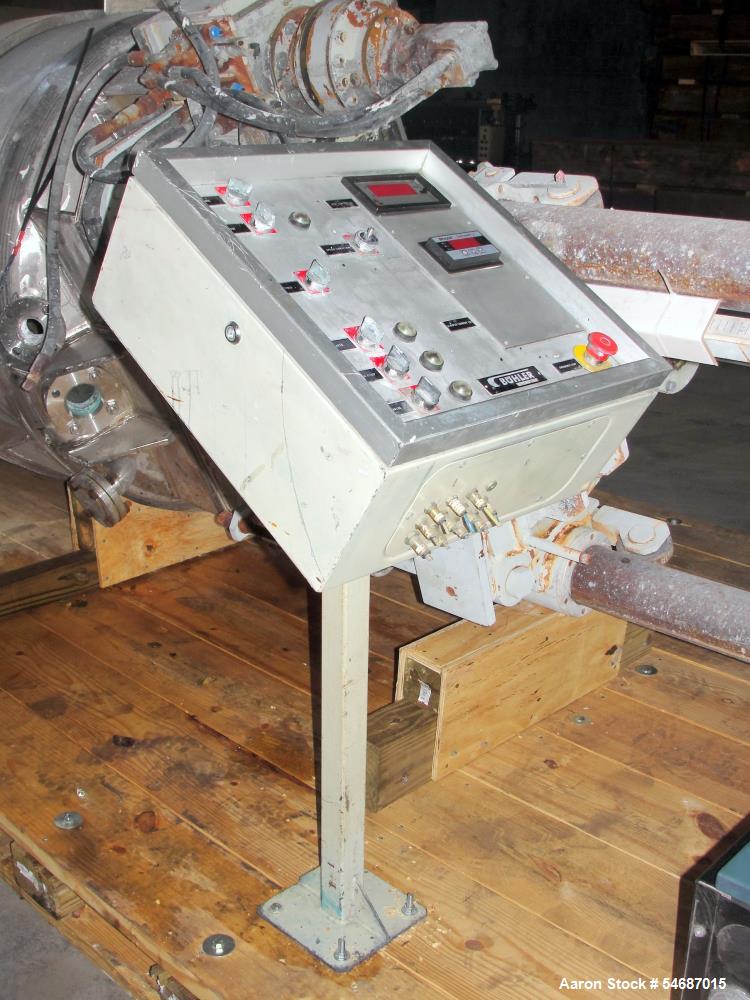

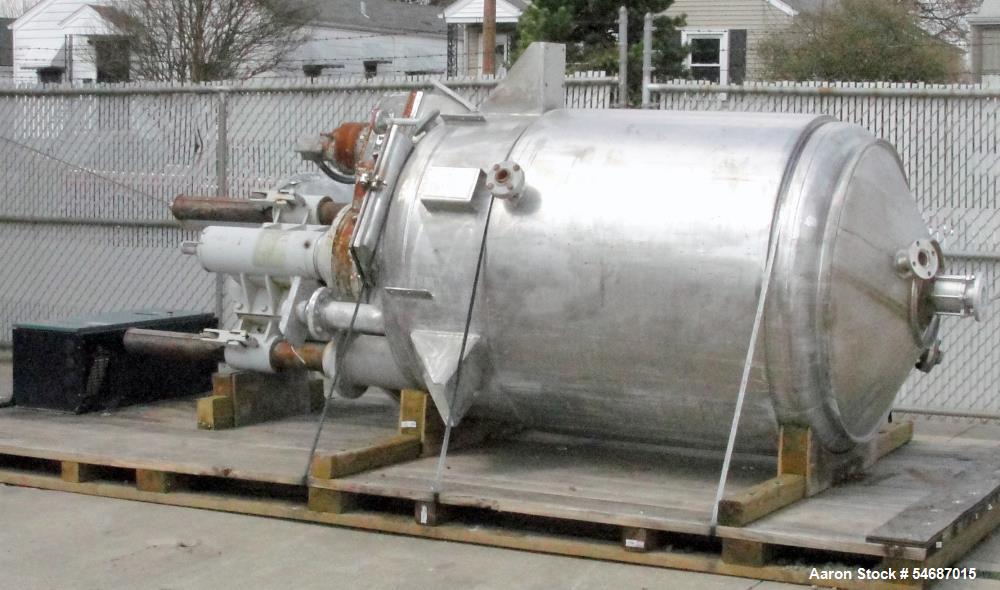

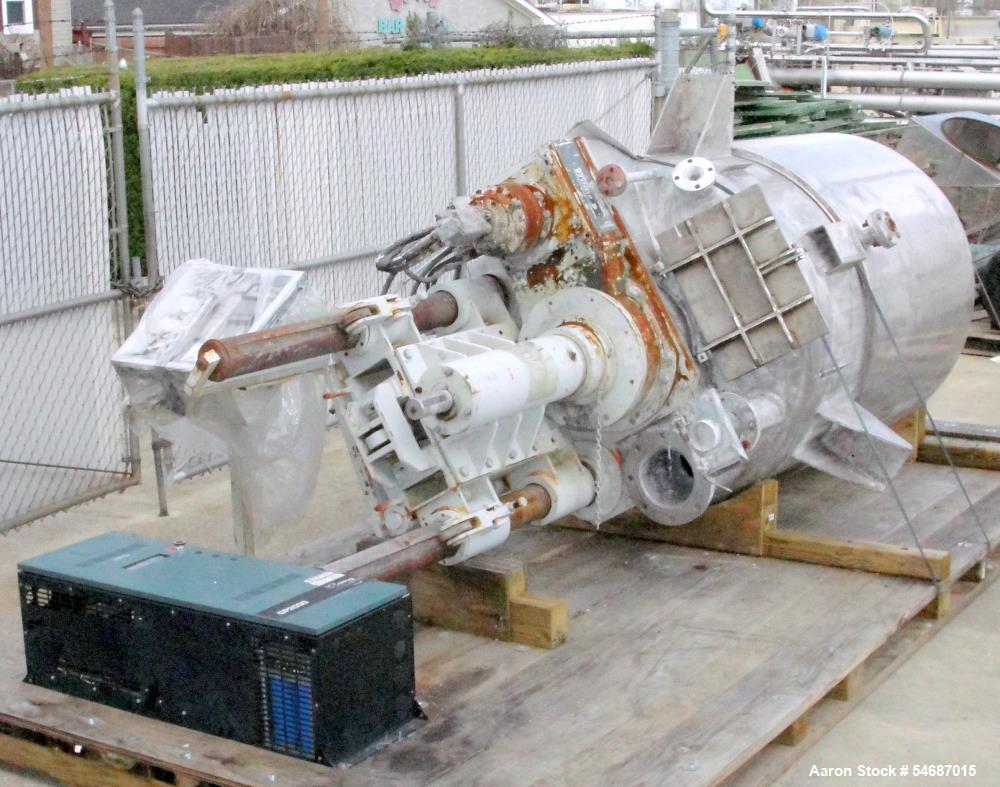

Used 1995 Bühler 1,500-liter / 400-gallon stainless steel jacketed vacuum processing mixer, Serial #26694, National Board #23519. The vessel is rated for full vacuum and 3 PSI at 250°F, with the jacket rated for 50 PSI at 250°F. Vessel interior measures approximately 51" diameter x 66" straight side with a 12" cone bottom and 10" dished top. The mixing system combines a hydraulic-motor-driven scrape agitator with a 12" high-speed disperser blade for processing compatible liquid and viscous formulations. The disperser assembly provides approximately 19" of vertical depth adjustment through a hydraulic lift system. The electric drive motor for the high-speed disperser is missing. Included controls consist of a control panel and Reliance Electric GP2000 VS Drive, Model 2GU41100, a variable-speed constant-torque AC controller designed for a 100 HP motor. The top head includes three 2" flanged fittings, one 1" flanged fitting, one 4" flanged fitting, one 8" flanged fitting and a 3" sight glass. Bottom discharge is through a 3" flanged center outlet connected to a ball valve, with 2" flanged jacket connections. The vessel was previously mezzanine mounted and includes three stainless steel mounting lugs. Approximate overall dimensions are 160" high x 54" wide. Unit is reported in good condition. Possible applications include vacuum processing, blending, dispersion, heating and cooling of compatible coatings, adhesives, inks, chemical formulations, cosmetics, personal-care products and other liquid or viscous materials.
SPECIFICATIONS
-
Manufacturer: Bühler
-
Equipment Type: Jacketed vacuum processing mixer
-
Serial Number: 26694
-
National Board Number: 23519
-
Year: 1995
-
Capacity: Approximately 1,500 liters / 400 gallons
-
Construction: Stainless steel
-
Vessel Rating: Full vacuum / 3 PSI at 250°F
-
Jacket Rating: 50 PSI at 250°F
-
Inside Diameter: Approximately 51"
-
Straight Side: Approximately 66"
-
Cone Bottom: Approximately 12"
-
Dished Top: Approximately 10"
-
Primary Agitation: Scrape agitator
-
Scrape Agitator Drive: Hydraulic motor
-

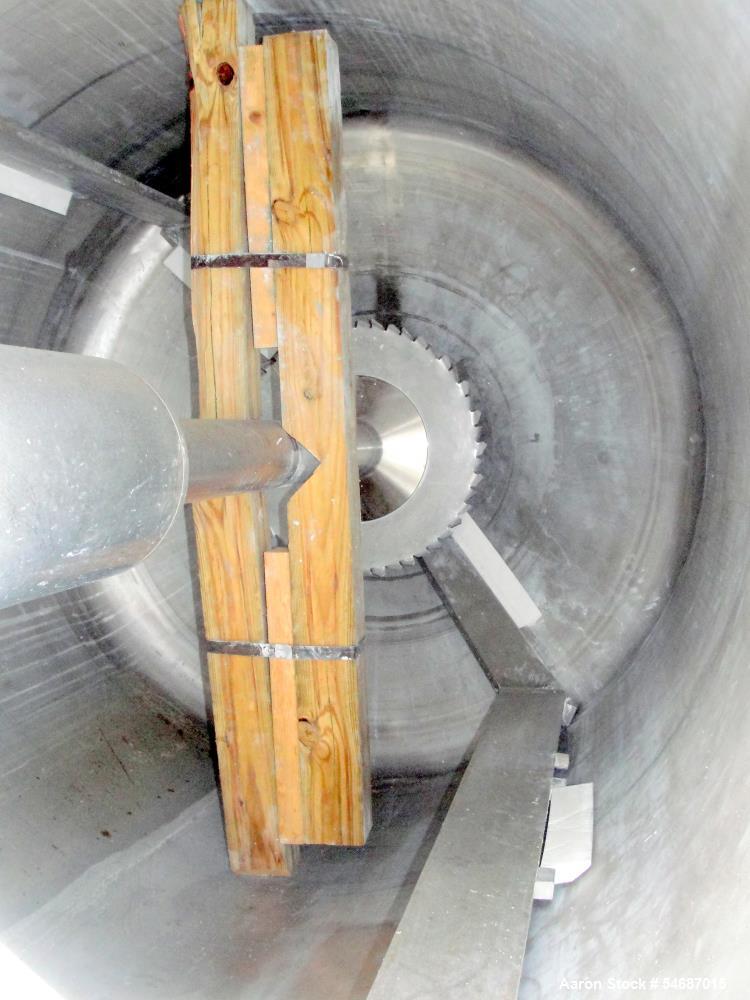

High-Speed Disperser Blade: Approximately 12"
-
Disperser Adjustment: Approximately 19" vertical travel
-
Disperser Lift: Hydraulic
-
Disperser Motor: Missing
-

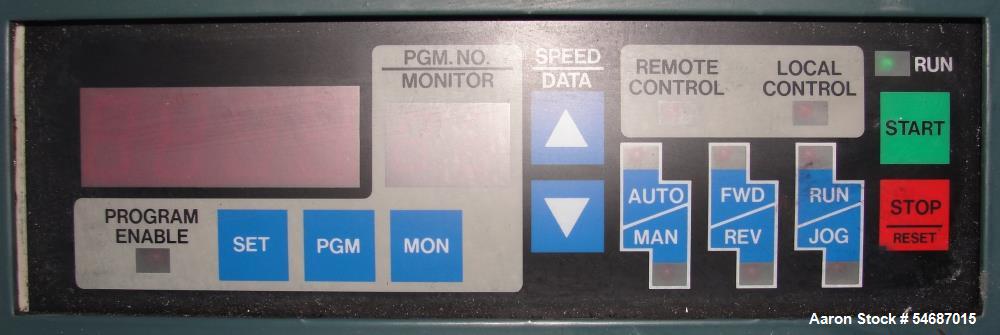

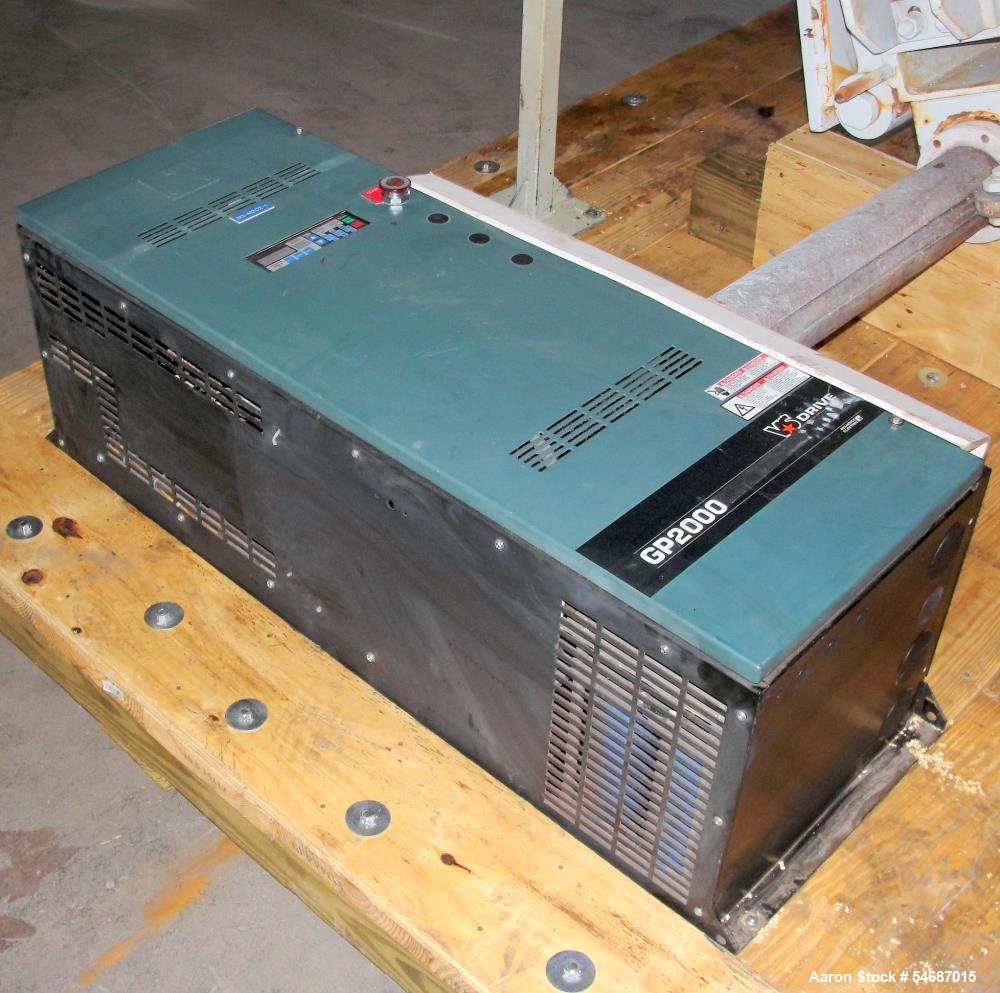

Included Drive Manufacturer: Reliance Electric
-
Drive Model: GP2000 VS / 2GU41100
-
Drive Type: Variable-speed constant-torque AC controller
-
Drive Rating: Designed for 100 HP motor
-
Top Connections: (3) 2" flanged
-
Additional Top Connections: (1) 1", (1) 4" and (1) 8" flanged
-
Sight Glass: 3"
-

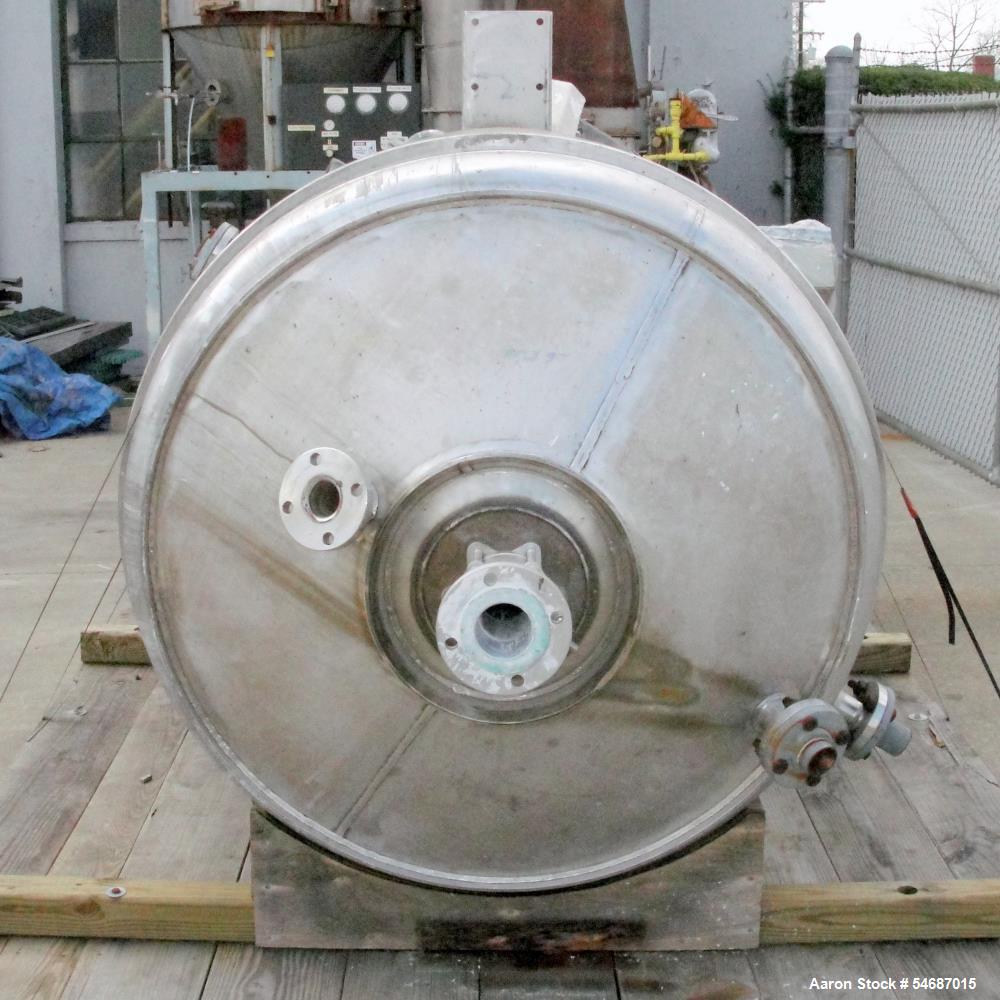

Bottom Discharge: 3" flanged center outlet
-
Discharge Valve: Ball valve
-
Jacket Connections: 2" flanged
-
Mounting: Previously mezzanine mounted
-
Mounting Lugs: (3) stainless steel
-
Approximate Overall Height: 160"
-
Approximate Overall Width: 54"
-
Condition: Good
APPLICATIONS
-
Vacuum process mixing
-
High-viscosity blending
-
High-speed dispersion
-
Scrape-wall agitation
-
Product deaeration
-
Heating under agitation
-
Cooling under agitation
-
Coatings production
-
Adhesive formulation
-
Ink manufacturing
-
Pigment dispersion
-
Chemical compounding
-
Cosmetic processing
-
Personal-care formulation
-
Resin blending
-
Emulsion production
-
Slurry processing
-
Batch formulation
-
Viscous liquid processing
-
Specialty chemical mixing
SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, formulation and process requirements, this mixer may be suitable for materials such as:
-
Paints
-
Industrial coatings
-
Architectural coatings
-
Adhesives
-
Sealants
-
Printing inks
-
Pigment dispersions
-
Color concentrates
-
Resins
-
Polymer formulations
-
Specialty chemicals
-
Chemical concentrates
-
Cosmetics
-
Lotions
-
Creams
-
Gels
-
Personal-care formulations
-
Emulsions
-
Suspensions
-
Slurries
-
Pastes
-
Viscous liquids
-
Liquid compounds
-
Other compatible products requiring vacuum mixing or dispersion
FAQ
-
WHAT IS THE CAPACITY OF THIS BÜHLER PROCESSING MIXER?
The vessel has an approximate total capacity of 1,500 liters, or approximately 400 gallons. -
IS THE MIXER RATED FOR FULL VACUUM?
Yes. The vessel is rated for full vacuum and 3 PSI at 250°F. -
WHAT IS THE JACKET RATING?
The jacket is rated for 50 PSI at 250°F and may be used for compatible heating or cooling processes. -
WHAT TYPE OF MIXING SYSTEM DOES THE UNIT HAVE?
The mixer combines a scrape agitator powered by a hydraulic motor with a separate high-speed disperser. -
WHAT SIZE IS THE DISPERSER BLADE?
The high-speed disperser is equipped with an approximately 12" blade. -
DOES THE DISPERSER MOVE VERTICALLY?
Yes. The disperser assembly has approximately 19" of vertical adjustment using a hydraulic lift system. -
IS THE HIGH-SPEED DISPERSER MOTOR INCLUDED?
No. The electric drive motor for the high-speed disperser is missing. -
WHAT DRIVE IS INCLUDED WITH THE DISPERSER SYSTEM?
The machine includes a Reliance Electric GP2000 VS Drive, Model 2GU41100, designed as a variable-speed constant-torque controller for a 100 HP motor. -
WHAT SIZE IS THE PRODUCT DISCHARGE?
Product discharges through a 3" flanged center outlet fitted with a ball valve. -
CAN THIS MIXER HANDLE VISCOUS MATERIALS?
The combination of scrape agitation and high-speed dispersion makes this type of equipment well suited for many compatible viscous liquid and formulated products. Suitability depends on viscosity, batch size and process requirements. -
WHAT TYPES OF PRODUCTS ARE COMMONLY PROCESSED IN THIS STYLE OF MIXER?
Possible products include coatings, adhesives, inks, chemical formulations, cosmetics, personal-care products, emulsions, slurries and other compatible liquid or viscous materials. -
CAN AARON EQUIPMENT HELP DETERMINE THE CORRECT REPLACEMENT MOTOR?
Yes. Aaron Equipment can help review the included Reliance drive, disperser assembly and required process duty to assist with identifying an appropriate replacement motor specification. -
CAN AARON EQUIPMENT HELP DETERMINE IF THIS MIXER WILL WORK FOR MY PROCESS?
Yes. Aaron Equipment can help review batch size, viscosity, mixing requirements, vacuum level, heating or cooling needs and dispersion requirements to determine whether this Bühler mixer may be suitable for your application. -
CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
