Stock No.: 53635001
Unused Accelon Model 50G-123 Nano-Emulsification System – Advanced Inline Processing Solution

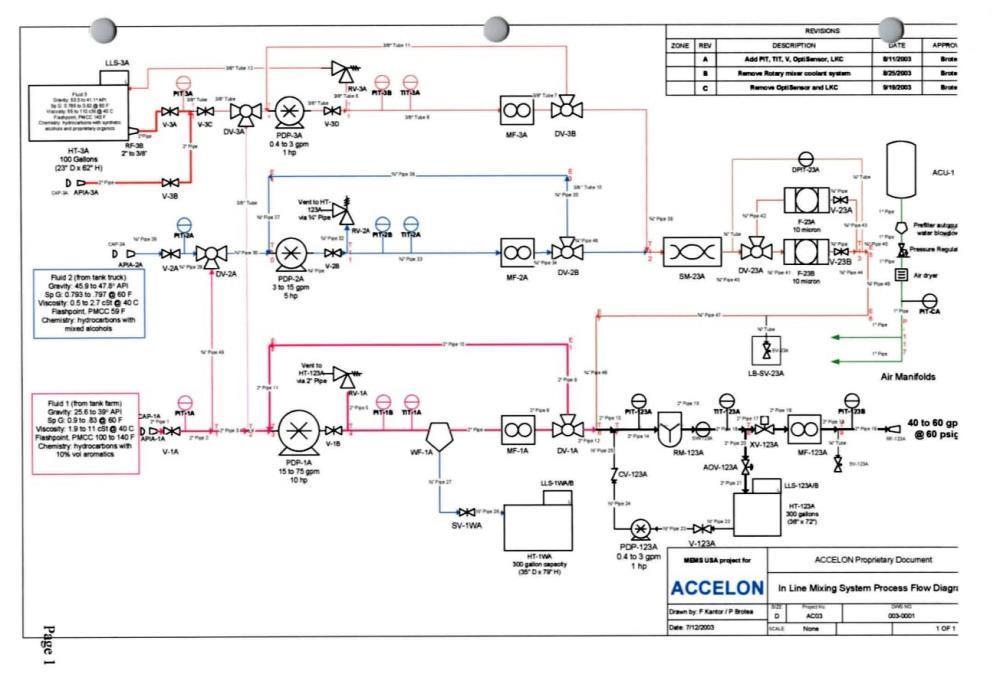

Unused Accelon Model # 50G-123, Nano-Emulsification System. Complete precision system to continuously and automatically in-line filter, meter, pump and nano-emulsify up to 76 gpm of immiscible liquids. Self-contained in a fully enclosed, highly portable, standard 20 X 8.6 footprint ISO module weighing less than 20,000 pounds, ideal for continuous production or intermittent use. Built to API oil industry quality standards, this in-line system nano-emulsifies up to 3 different liquids using on-board filters and a water coalescer to process fluids as delivered". Compact small footprint, user friendly controls, precise, efficient, low-cost production. Safe for flammable liquids -- Camlock hose quick-connections grounded for static electric safety with welded leak-proof stainless steel piping. Meets codes -- ASME, UL, and National Electric Code - Class 1, Division 2, Group D, explosion-proof, CSA (Canadian import authorized). All gear pumps are driven by costly feed-back controlled, variable speed motors to achieve precise real-time control of even viscous liquids over a wide turn-down flow range. Control valves are pneumatically actuated by an on-board air compressor or, in the event of power outage, by on-board back-up bottled nitrogen gas. You can easily pump, filter, meter, in-line mix, nano-emulsify, react, blend, record data, report flows and adjust compositions, all on-the-fly for consistent high quality products in the exact amounts where and when needed. Includes operator/service manual and how-to instructive DVD. Full-color touch screen PLC controller and instrumentation provide real time on-the-fly control and key parameter displays. Built in 2019. Reported to only been test run once. Among its many applications are: Making stable nano-emulsions of any pump-able immiscible liquids; Bio-nutrients and agriculture materials; Mixing lipids with reactants for improved transesterification; Preparing pharmaceutical feedstocks for rapid fermentation; Ind
-
Model50G-123
-
CategoryMixers
-
SubcategoryHomogenizer Mixers
Used equipment facts about this machine
Manufacturer Information
Manufacturer’s Info:
- Manufacturer: Accelon
- Model: 50G-123
- Year Built: 2019

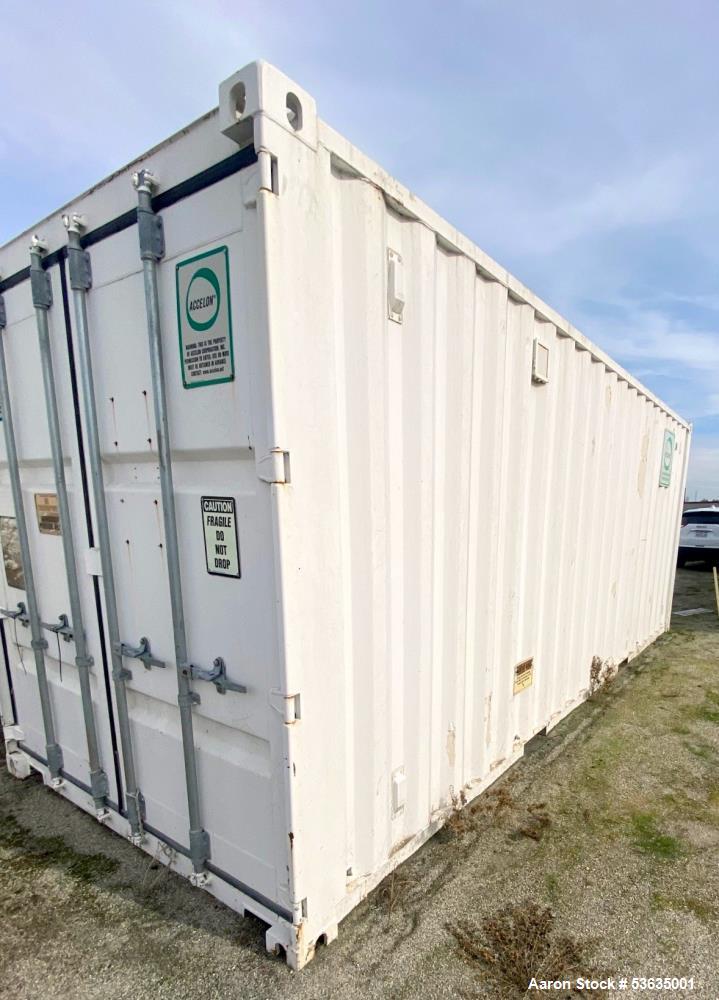

Description: The Accelon Model 50G-123 is a state-of-the-art nano-emulsification system designed for the continuous and automatic inline processing of immiscible liquids. Capable of handling flow rates up to 76 gallons per minute (GPM), this system efficiently filters, meters, pumps, and nano-emulsifies up to three different liquids simultaneously. Housed within a fully enclosed, portable ISO module measuring 20 feet x 8.6 feet and weighing under 20,000 pounds, it is ideal for both continuous production and intermittent use.
Key Features:

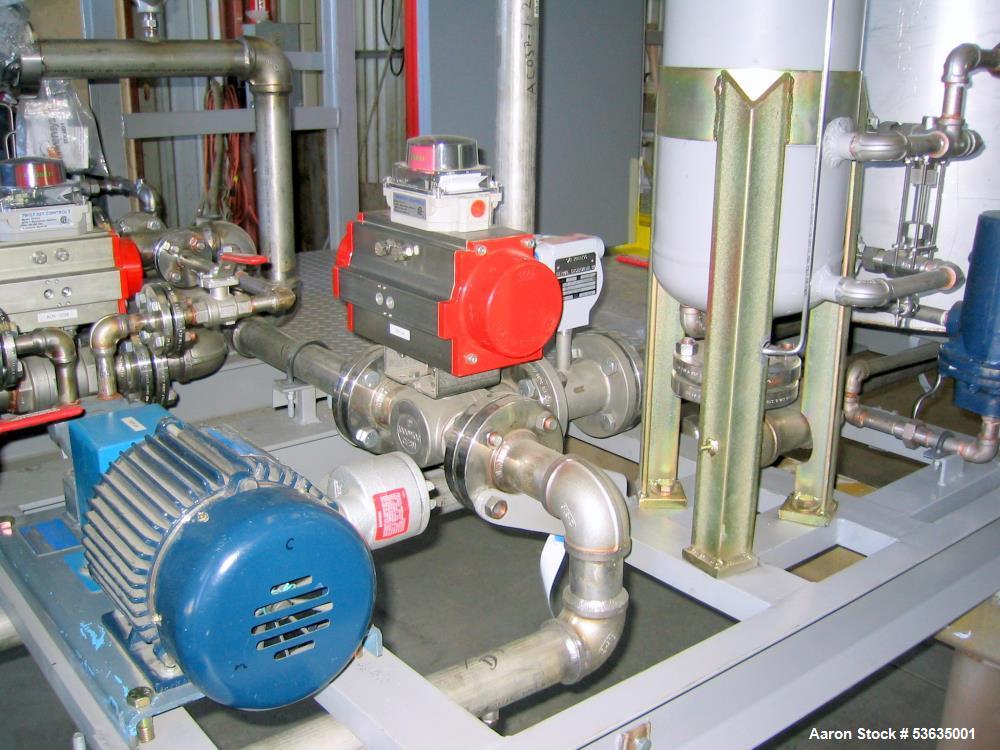

- High-Quality Construction: Built to API oil industry standards with welded stainless steel piping, ensuring durability and safety.
- Safety Compliance: Meets ASME, UL, and National Electric Code - Class 1, Division 2, Group D explosion-proof standards; CSA authorized for Canadian import.

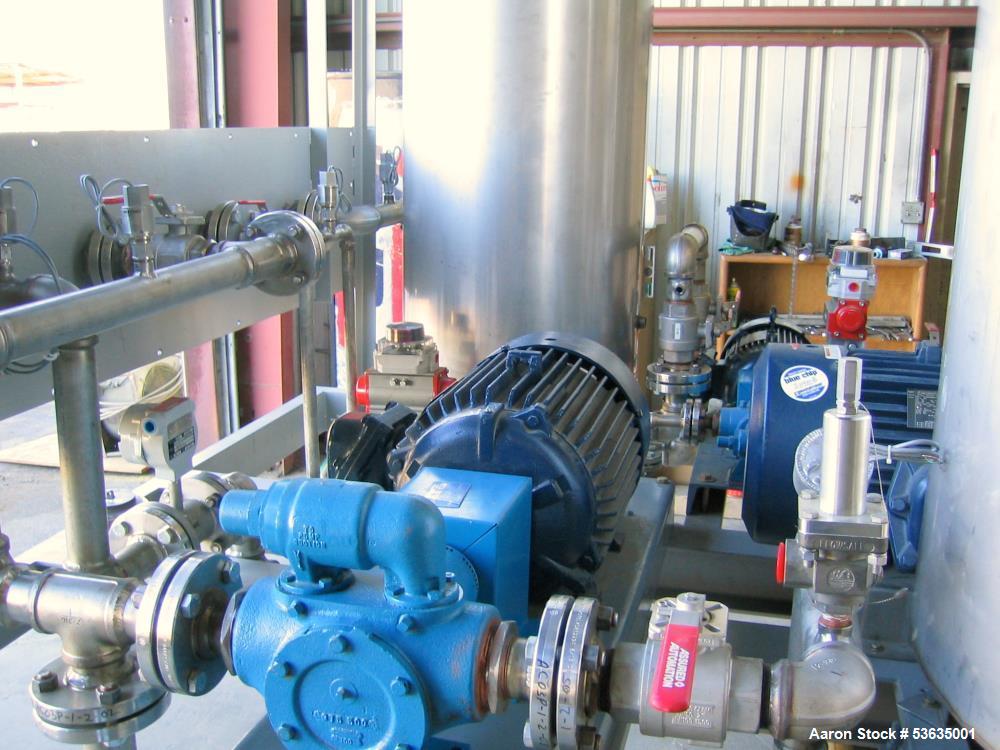

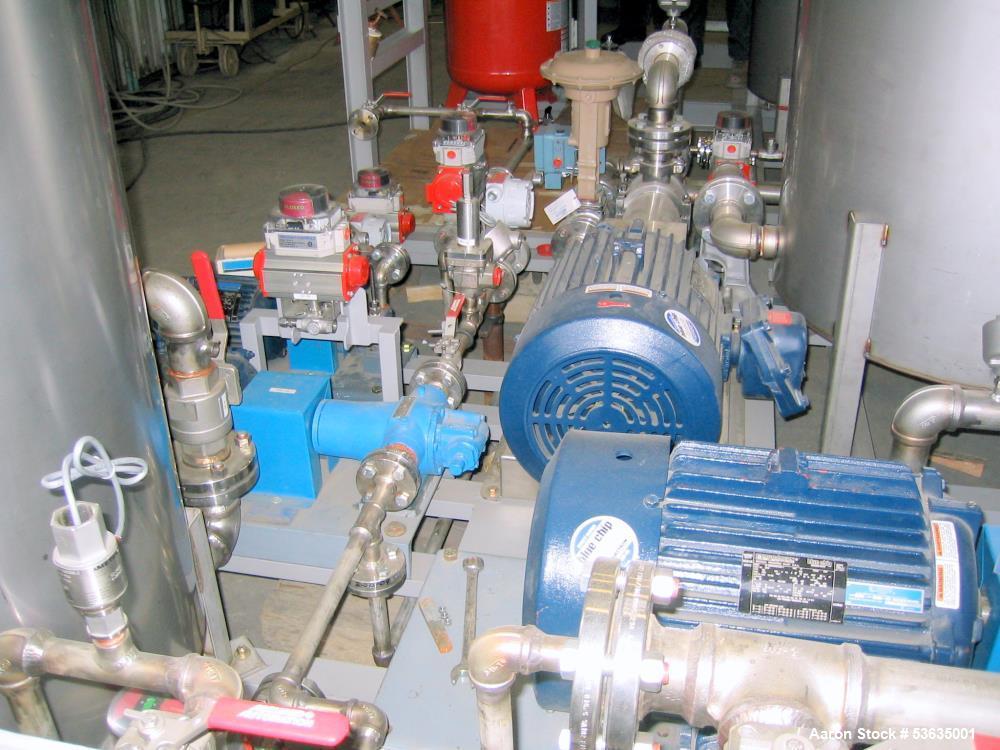

- Precise Control: Equipped with feedback-controlled variable speed motors for accurate real-time control of viscous liquids over a wide flow range.

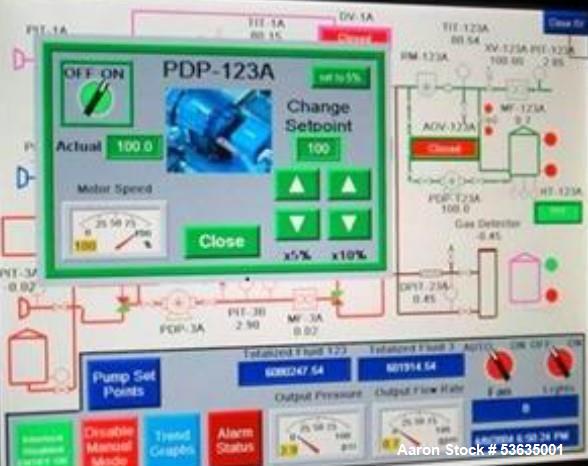

- Advanced Automation: Features a full-color touch screen PLC controller and instrumentation for real-time monitoring and adjustments.
- Self-Contained Operation: Includes onboard filters, a water coalescer, air compressor, and backup bottled nitrogen gas for pneumatic valve actuation.
- User-Friendly Design: Compact footprint with intuitive controls, accompanied by an operator/service manual and instructional DVD.
Specifications:
- Flow Rate: Up to 76 GPM
- Module Dimensions: 20 ft (L) x 8.6 ft (H)
- Weight: Less than 20,000 lbs
- Power Requirements: Standard 3-phase, 240V, 60 Hz electrical connection
- Safety Standards: ASME, UL, National Electric Code - Class 1, Division 2, Group D explosion-proof, CSA authorized
Applications: The Accelon 50G-123 is versatile and suitable for various industries, including:
- Fuel Industry: Creating stable nano-emulsions of ethanol, diesel, and other immiscible liquid fuels.
- Agriculture: Processing bio-nutrients and agricultural materials for enhanced absorption and efficacy.
- Biodiesel Production: Mixing lipids with reactants to improve transesterification processes.
- Pharmaceuticals: Preparing feedstocks for rapid fermentation and enhancing drug delivery systems.
- Cosmetics: Formulating stable nano-emulsions for creams, lotions, and other personal care products.
What Products Would This Be Used For?
- Nano-Emulsified Fuels: Ethanol-diesel blends and other alternative fuels.
- Agricultural Supplements: Liquid fertilizers and nutrient solutions.
- Pharmaceutical Preparations: Emulsified drug formulations for improved bioavailability.
- Cosmetic Products: Stable emulsions for skincare and beauty products.
