Used 2400 Liter working capacity Fryma model VME-2400 vacuum mixer. The tank has an overall height of 101" to the top of lid including legs and 87" to the top with the lid removed. The overall diamet...

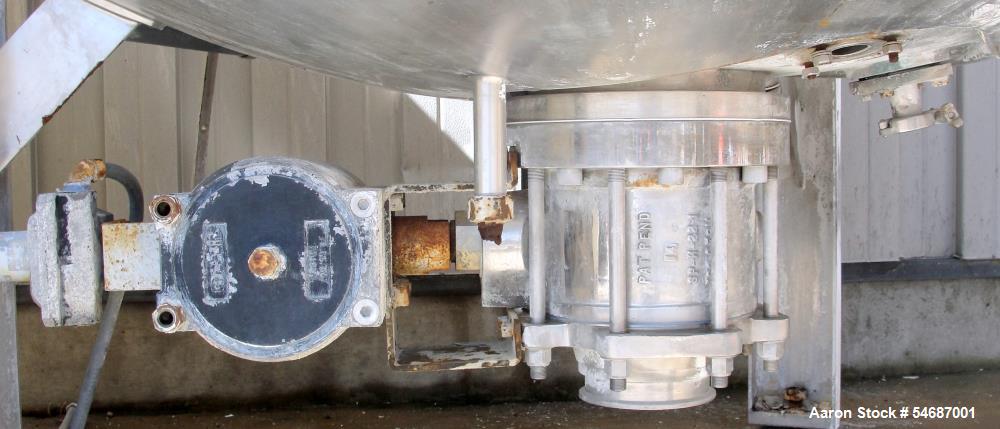

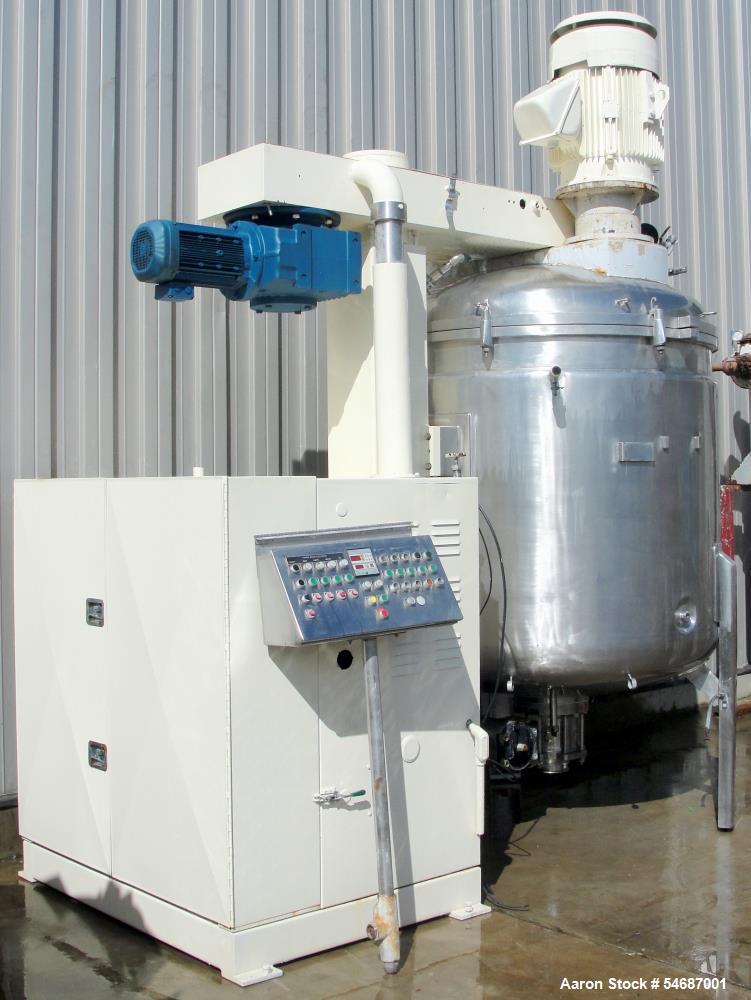

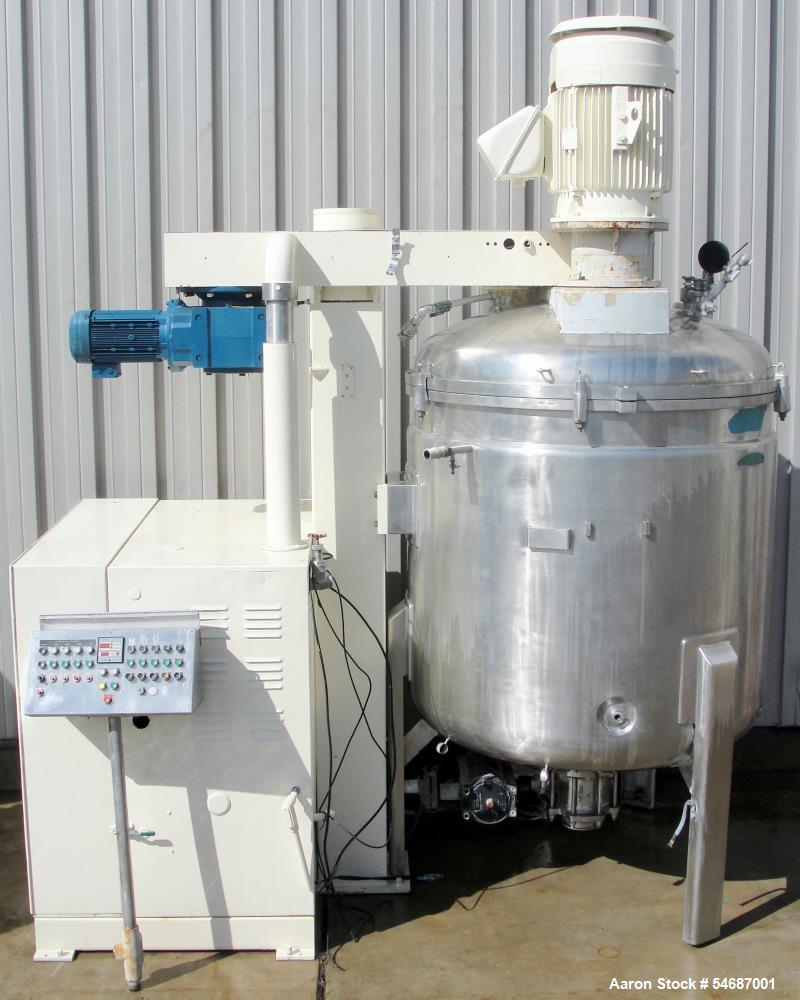

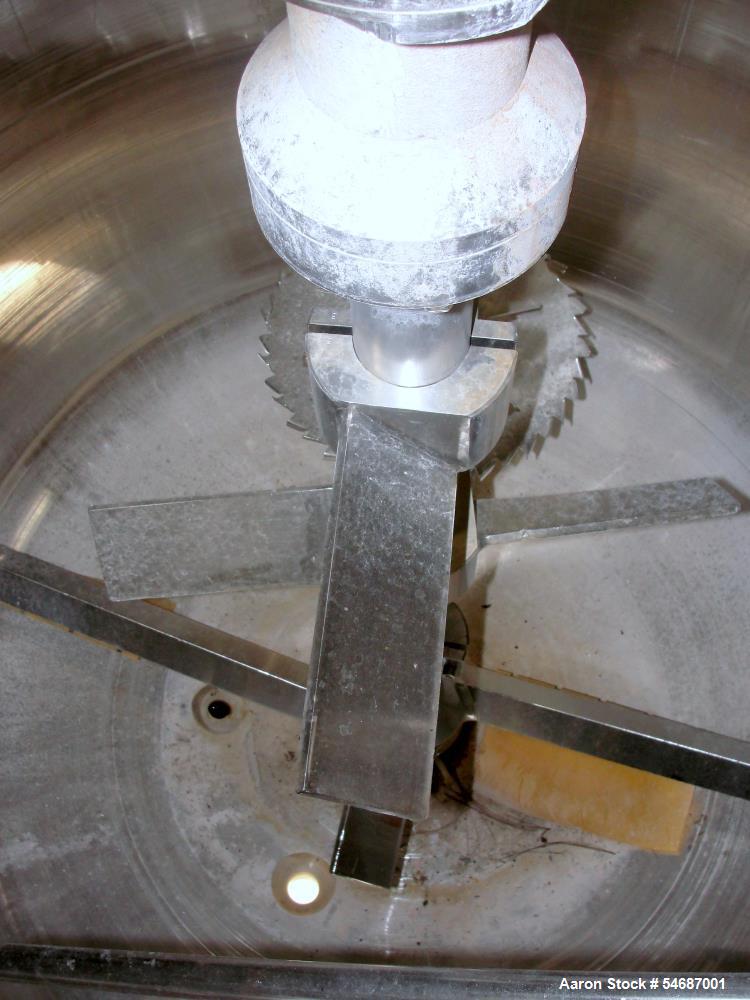

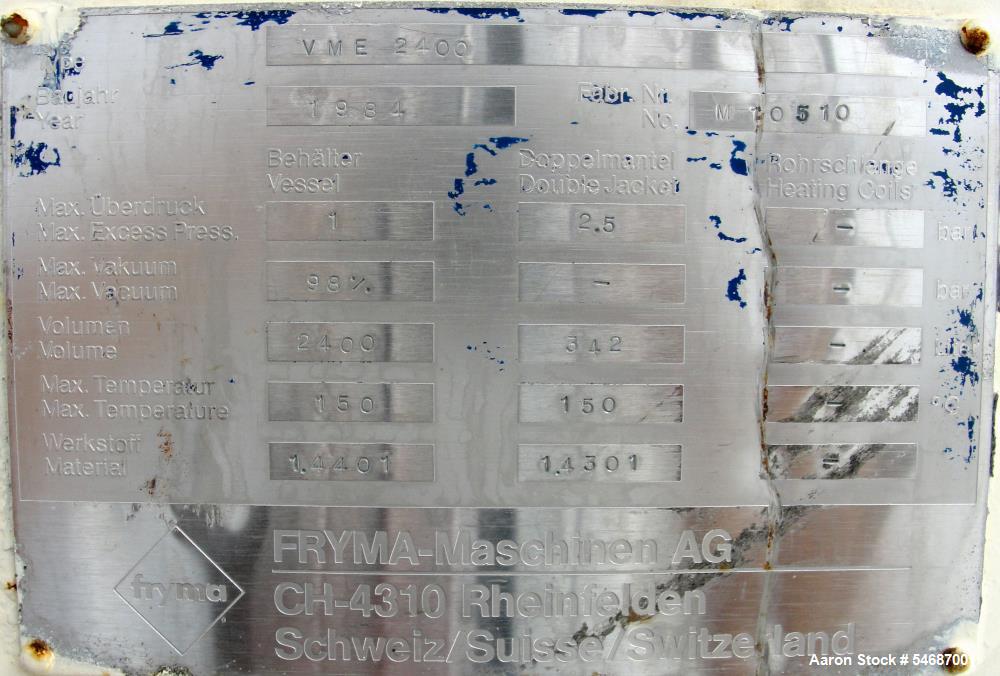

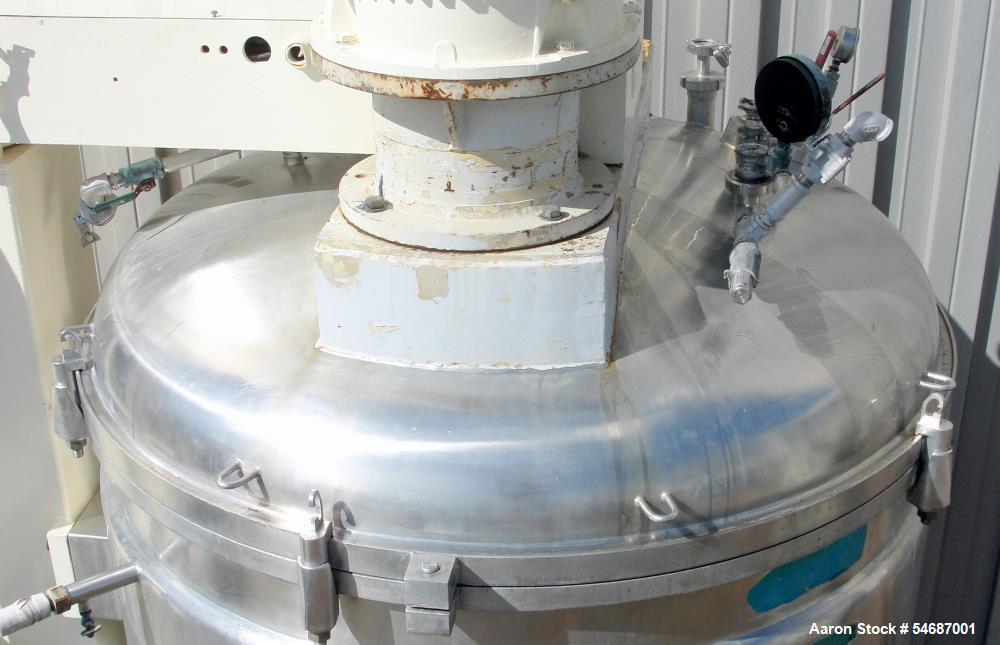

Used-2400 Liter working capacity Fryma model VME-2400 vacuum mixer. The tank has an overall height of 101" to the top of lid including legs and 87" to the top with the lid removed. The overall diameter of tank with jacket is 63". The interior dimensions are: 61" diameter, 54" straight side height, 11" dome top, and 11" dish bottom. The working temperatures are 150° C for the interior and the jacket. The interior has a pressure rating of -1/+1 bar and the jacket has a 2.5 bar rating. There are two agitator drives, a 7.5 hp motor that drives a center 3 prop agitator and a scrape agitator through a chain drive and a 50 hp motor that drives a disperser type agitator off to the side of the center shaft. The top has an 8" flanged opening that is clamped shut and 6" glass inspection port with light. The top also has a 2" sanitary, 1.5" sanitary, and (2) 1" threaded fittings. The inside of the unit is polished to pharmaceutical grade. The bottom has a 6" sanitary discharge with a pneumatically operated valve. Fabrication # M10510. Requires 230/ 460 vac 3 phase electrical supply. Previously used for toothpaste. Good Condition.
