Stock No.: 54687014
Used Bühler 1500 Liter Stainless Steel Jacketed Vacuum Mixer
-
ManufacturerBuhler Inc.
-
Model2GU41100
-
Serial #26694
-
CategoryMixers
-
SubcategoryHomogenizer Mixers
Used equipment facts about this machine
Manufacturer Information
MANUFACTURER INFORMATION
Bühler manufactures industrial processing equipment used for mixing, dispersing, grinding and related production applications. Vacuum mixer and process kettle systems are commonly used where controlled blending, deaeration, heating, cooling and high-speed dispersion are required for liquid, viscous and formulated products.
PRODUCT DESCRIPTION

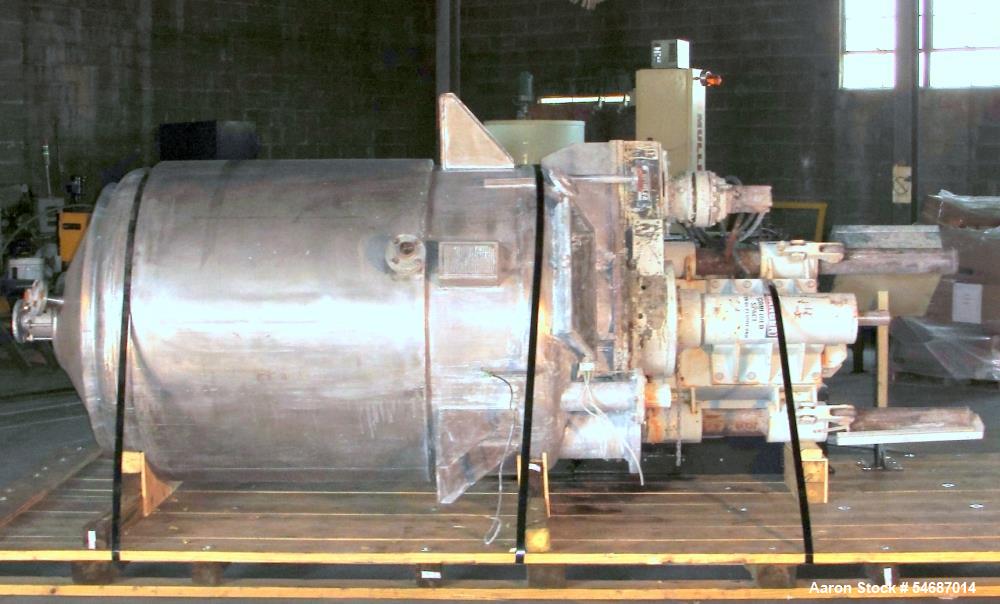

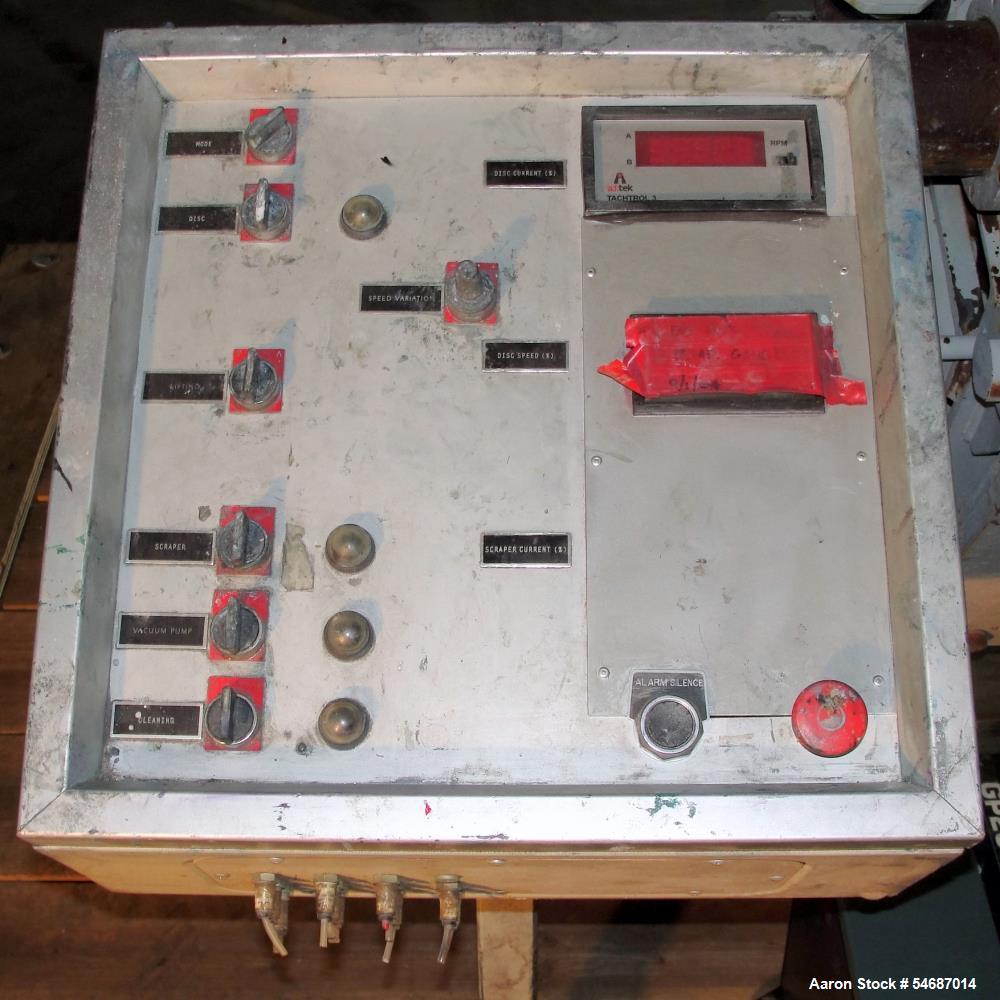

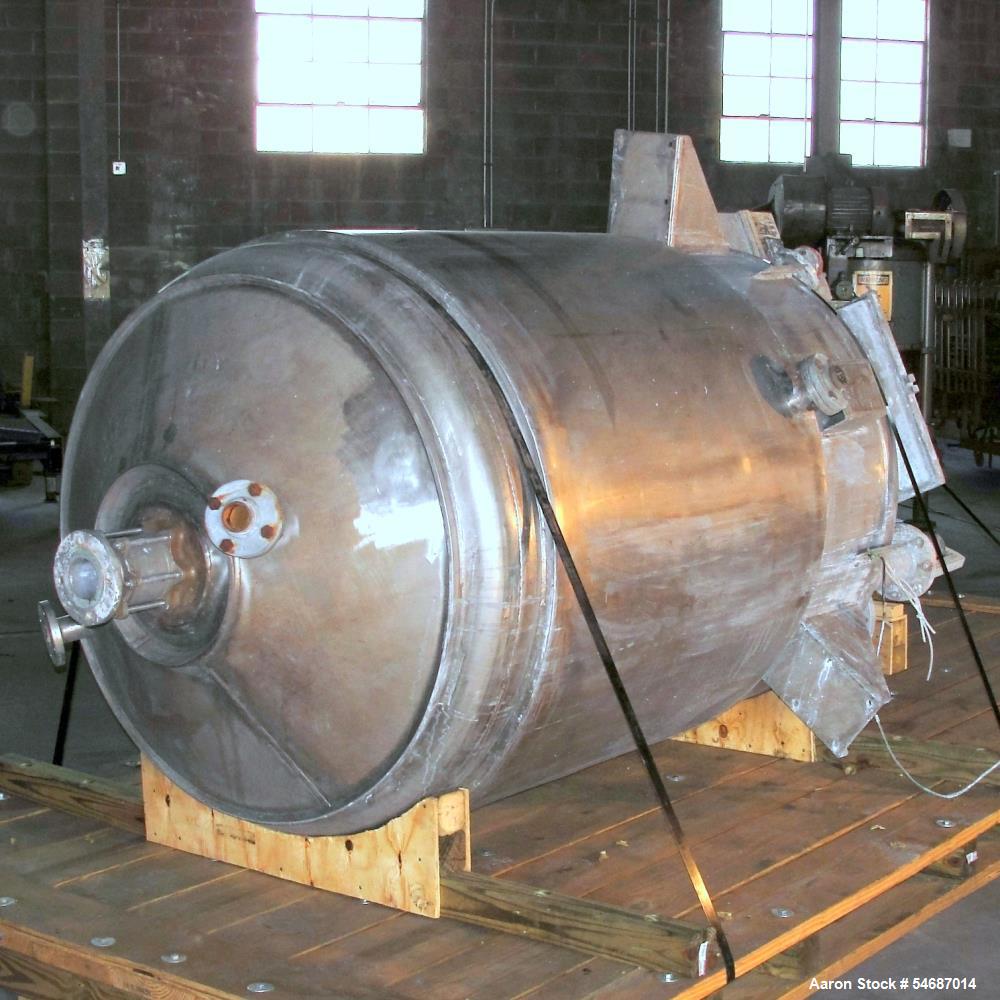

Used Bühler 1,500-liter / 400-gallon stainless steel jacketed vacuum mixer and process kettle, Serial #26695, National Board #25516, built 1995. The vessel is rated for full vacuum and 3 PSI at 250°F, with the jacket rated for 50 PSI at 250°F. Internal dimensions are approximately 51" diameter x 66" straight side with a 12" cone bottom and 10" dished top. The mixing system includes scrape agitation powered by a hydraulic motor and a 12" high-speed disperser blade with approximately 19" of vertical depth adjustment using a hydraulic lift system. The electric motor for the high-speed disperser is missing. The system includes a control panel and Reliance Electric GP2000 VS Drive, Model 2GU41100, a variable-speed constant-torque AC controller designed for a 100 HP motor. Top connections include three 2" flanged fittings, one 1" flanged fitting, one 4" flanged fitting, one 8" flanged fitting and a 3" sight glass. Bottom discharge is through a 3" flanged center outlet connected to a ball valve, and the jacket has 2" flanged connections. The vessel was previously mezzanine mounted and includes three stainless steel mounting lugs. Approximate overall dimensions are 160" high x 54" wide. Equipment is reported in good condition. Possible applications include vacuum mixing, blending, dispersing, heating and cooling of compatible coatings, adhesives, inks, chemicals, cosmetics, personal-care products and other viscous or liquid process materials.
SPECIFICATIONS
-
Manufacturer: Bühler
-
Equipment Type: Jacketed vacuum mixer / process kettle
-
Serial Number: 26695
-

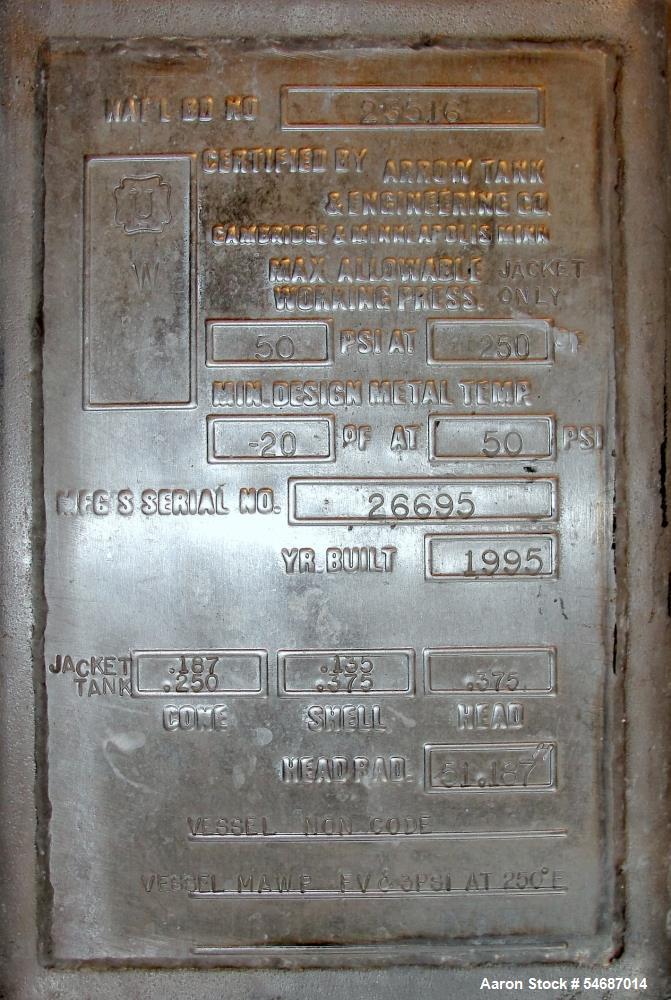

National Board Number: 25516
-
Year: 1995
-
Total Capacity: Approximately 1,500 liters / 400 gallons
-
Construction: Stainless steel
-
Vessel Pressure Rating: Full vacuum / 3 PSI at 250°F
-
Jacket Rating: 50 PSI at 250°F
-
Inside Diameter: Approximately 51"
-
Straight Side: Approximately 66"
-
Cone Bottom: Approximately 12"
-
Dished Top: Approximately 10"
-

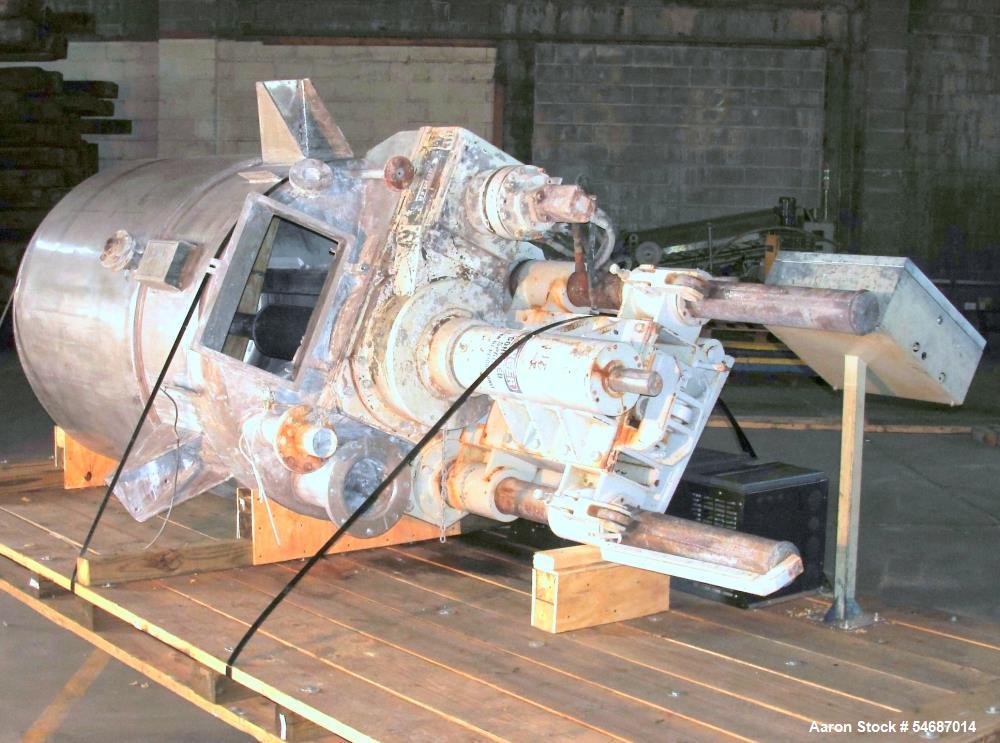

Agitation Type: Scrape agitator
-
Scrape Agitator Drive: Hydraulic motor
-

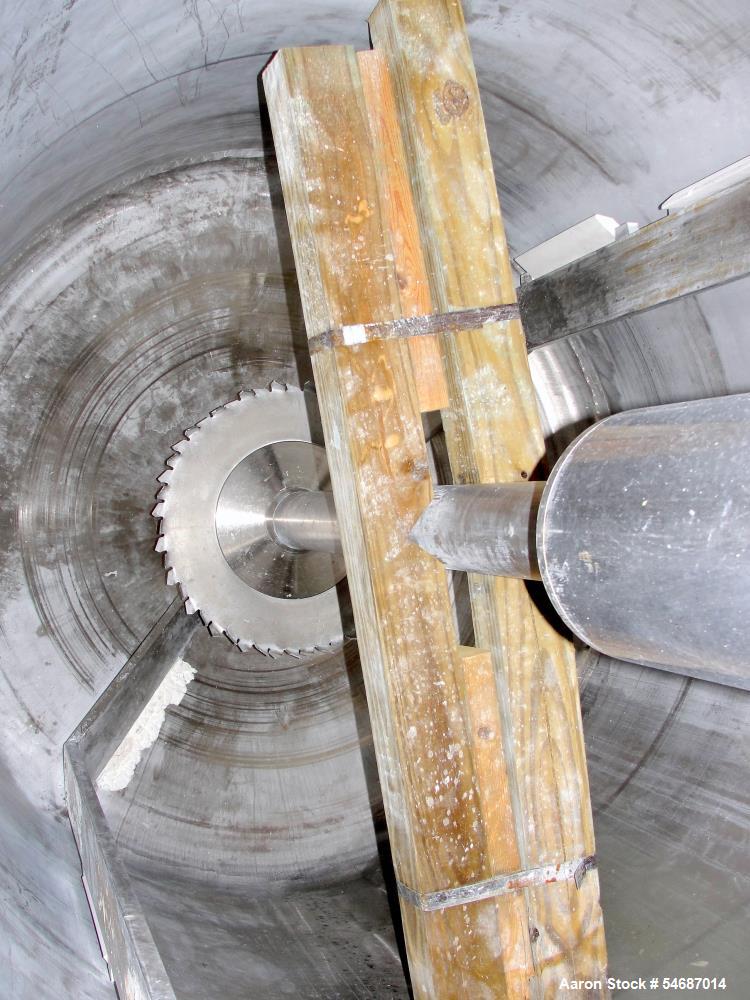

High-Speed Disperser Blade: Approximately 12"
-
Disperser Vertical Adjustment: Approximately 19"
-
Disperser Lift: Hydraulic
-
Disperser Motor: Missing
-

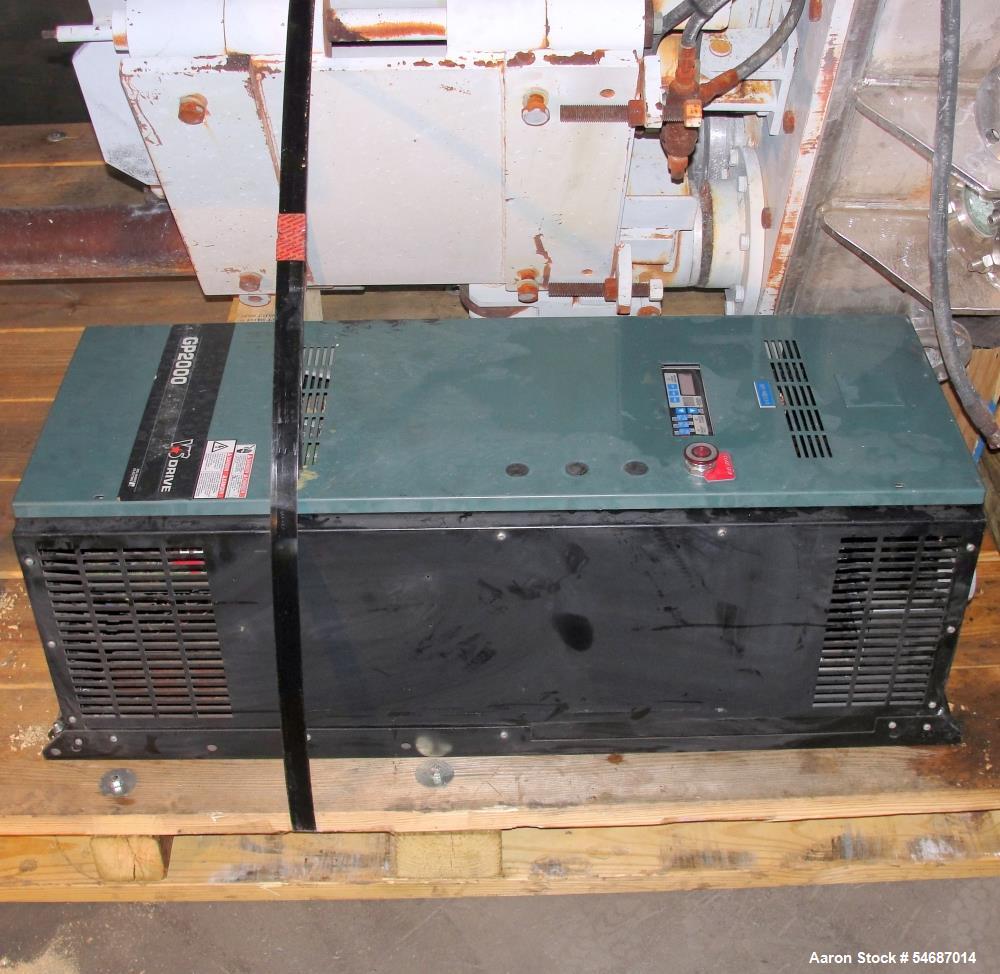

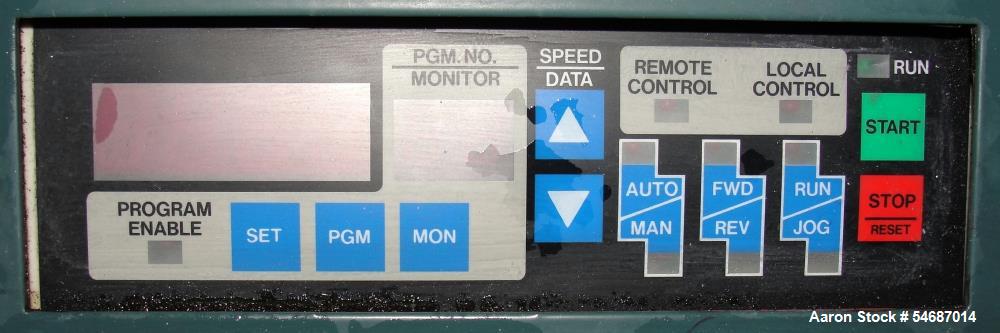

Included Drive: Reliance Electric GP2000 VS Drive
-
Drive Model: 2GU41100
-
Drive Type: Variable-speed constant-torque AC controller
-
Drive Motor Rating: Designed for 100 HP motor
-
Top Connections: (3) 2" flanged
-
Additional Top Connections: (1) 1", (1) 4" and (1) 8" flanged
-
Sight Glass: 3"
-

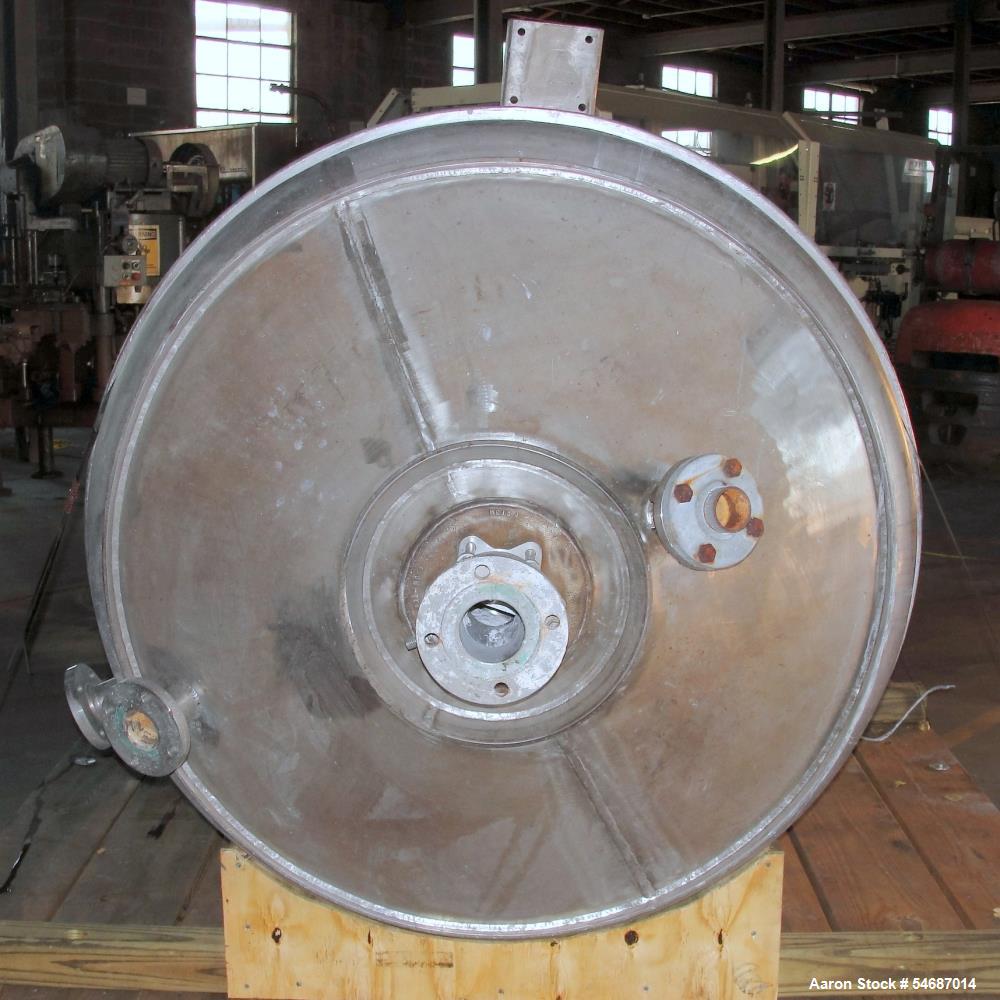

Bottom Discharge: 3" flanged center discharge
-
Discharge Valve: Ball valve
-
Jacket Connections: 2" flanged
-
Mounting: Previously mezzanine mounted
-
Mounting Lugs: (3) stainless steel
-
Approximate Overall Height: 160"
-
Approximate Overall Width: 54"
-
Condition: Good
APPLICATIONS
-
Vacuum mixing
-
Vacuum blending
-
High-speed dispersion
-
Low-shear scrape mixing
-
Heating and cooling
-
Deaeration under vacuum
-
Coatings manufacturing
-
Adhesive production
-
Ink processing
-
Chemical blending
-
Cosmetic manufacturing
-
Personal-care product processing
-
Paint and pigment dispersion
-
Resin blending
-
Emulsion processing
-
Viscous liquid mixing
-
Batch process mixing
-
Formulation and compounding
SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, formulation and process requirements, this equipment may be suitable for products such as:
-
Paints
-
Coatings
-
Adhesives
-
Sealants
-
Printing inks
-
Pigment dispersions
-
Resins
-
Polymer blends
-
Chemical formulations
-
Specialty chemicals
-
Cosmetics
-
Lotions
-
Creams
-
Gels
-
Personal-care products
-
Emulsions
-
Slurries
-
Pastes
-
Viscous liquids
-
Liquid concentrates
-
Other compatible liquid or semi-viscous formulations
FAQ
-
WHAT IS THE CAPACITY OF THIS BÜHLER VACUUM MIXER?
The vessel has an approximate total capacity of 1,500 liters, equivalent to approximately 400 gallons. -
CAN THE VESSEL OPERATE UNDER FULL VACUUM?
Yes. The vessel is rated for full vacuum and 3 PSI at 250°F. -
IS THE VESSEL JACKETED?
Yes. The jacket is rated for 50 PSI at 250°F and can be used for compatible heating or cooling processes. -
WHAT TYPE OF AGITATION DOES THE MIXER HAVE?
The system includes scrape agitation driven by a hydraulic motor along with a separate high-speed disperser. -
WHAT SIZE IS THE HIGH-SPEED DISPERSER?
The disperser uses an approximately 12" diameter blade. -
CAN THE DISPERSER HEIGHT BE ADJUSTED?
Yes. The disperser has approximately 19" of vertical adjustment using a hydraulic lift system. -
IS THE DISPERSER MOTOR INCLUDED?
No. The electric motor for the high-speed disperser is missing. -
DOES THE SYSTEM INCLUDE A VARIABLE-SPEED DRIVE?
Yes. A Reliance Electric GP2000 VS Drive, Model 2GU41100, is included. The drive is designed for a 100 HP motor. -
WHAT IS THE BOTTOM DISCHARGE SIZE?
The vessel has a 3" flanged center discharge connected to a ball valve. -
CAN THIS MIXER BE USED FOR COATINGS AND ADHESIVES?
Yes. Possible applications include compatible coatings, adhesives, inks, chemicals and other viscous or liquid formulations requiring mixing, dispersion, heating, cooling or vacuum processing. -
CAN AARON EQUIPMENT HELP DETERMINE WHAT MOTOR IS NEEDED FOR THE DISPERSER?
Yes. Aaron Equipment can help review the included drive, disperser assembly and process requirements to assist in determining an appropriate replacement motor specification. -
CAN AARON EQUIPMENT HELP DETERMINE IF THIS MIXER WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product viscosity, batch size, mixing requirements, heating or cooling needs and vacuum requirements to determine whether this Bühler mixer may be suitable for your application. -
CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
