Used IKA Works High Shear Mixer / Homogenizer – Stainless Steel, 20 HP

Manufacturer Information

• Manufacturer: IKA Works

• Equipment Type: High Shear Mixer / Inline Homogenizer

• Construction: Stainless Steel

• Mounting: Frame mounted

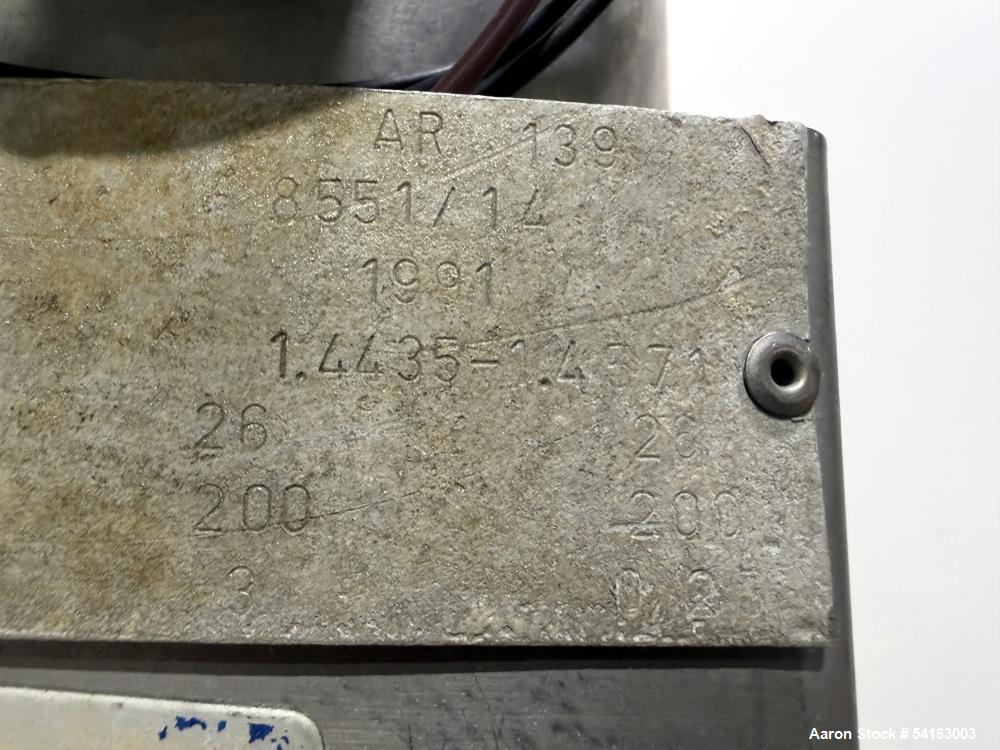

• Nameplate: No manufacturer’s tag present

• Application Type: Inline / recirculation high shear mixing

Description

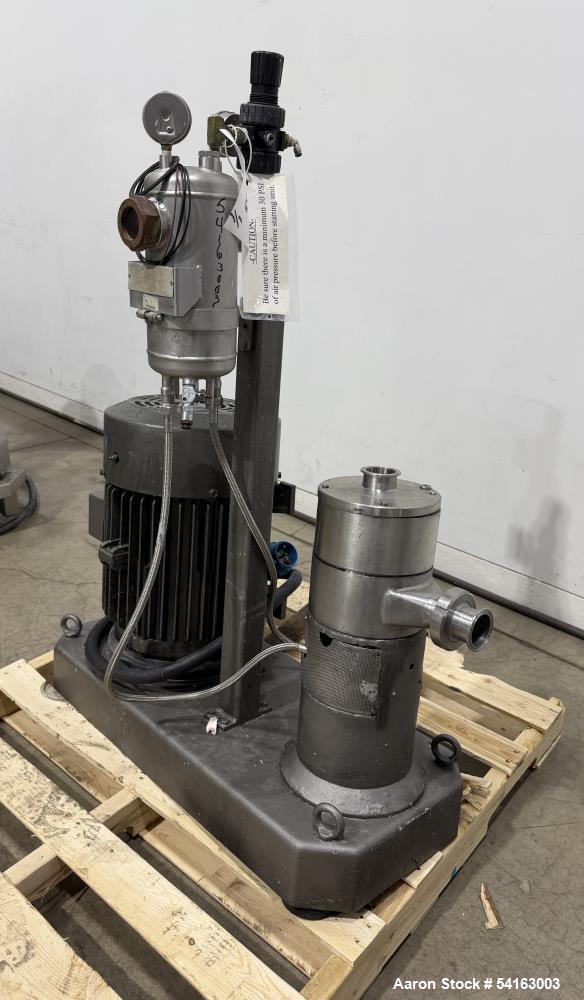

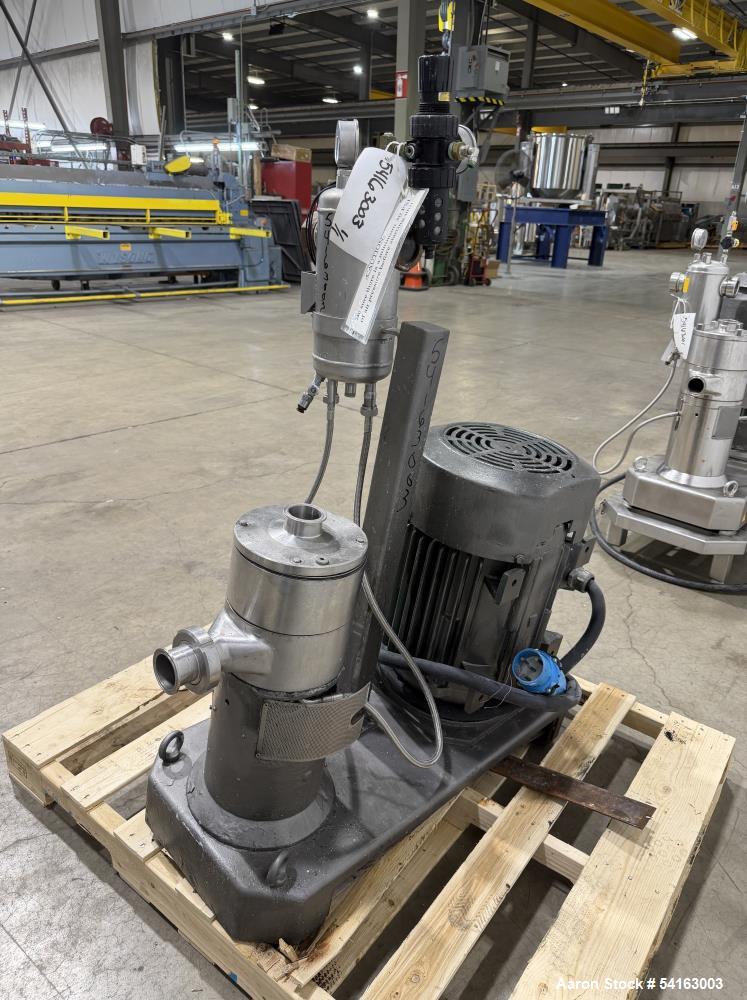

This used IKA Works mixer / homogenizer is a compact, high-performance high shear mixing unit designed for emulsification, dispersion, and homogenization of liquid and semi-liquid products. Featuring a stainless steel mixing chamber, sanitary connections, and a powerful 20 HP motor, this unit is well suited for food, pharmaceutical, cosmetic, and chemical processing applications.

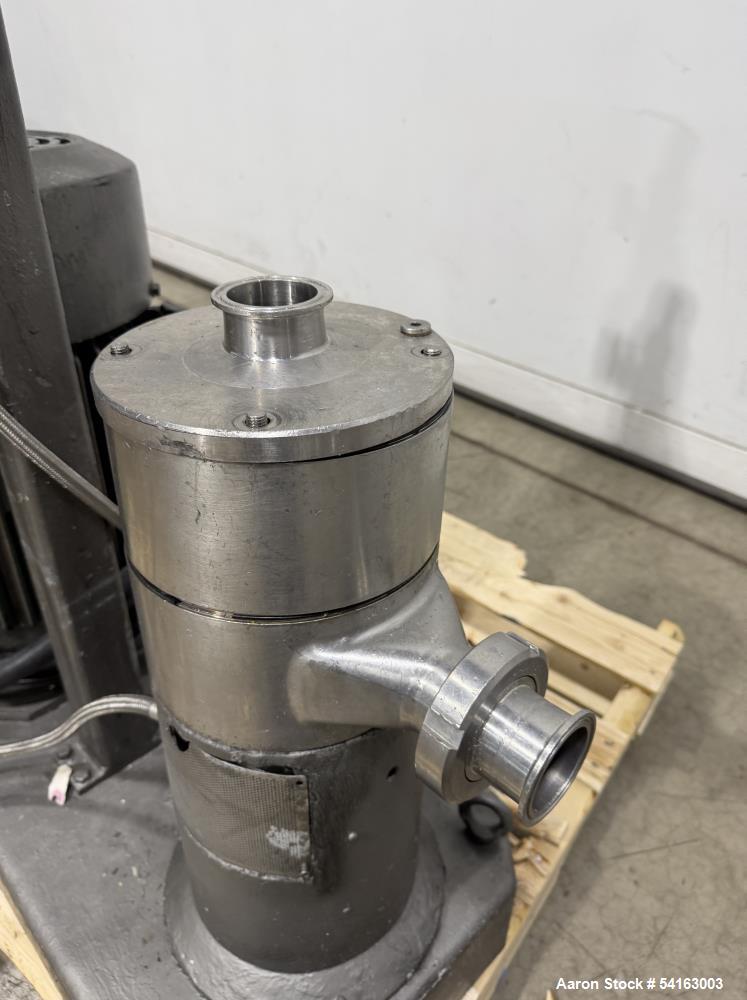

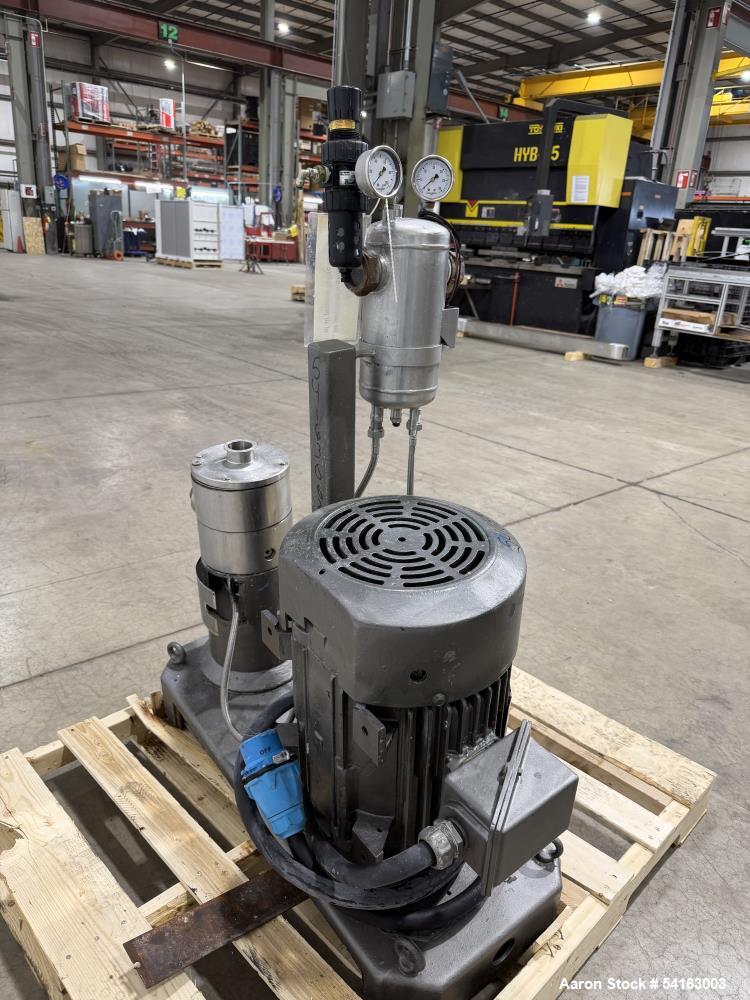

The mixer includes a top bolt-on cover with a 2-inch tri-clamp inlet, a 2-inch side bottom discharge, and a mounted expansion tank, supporting stable operation in inline or recirculation configurations. The frame-mounted design allows for straightforward integration into existing process systems.

Specifications

• Manufacturer: IKA Works

• Type: High shear mixer / inline homogenizer

• Construction: Stainless steel

Mixing Chamber

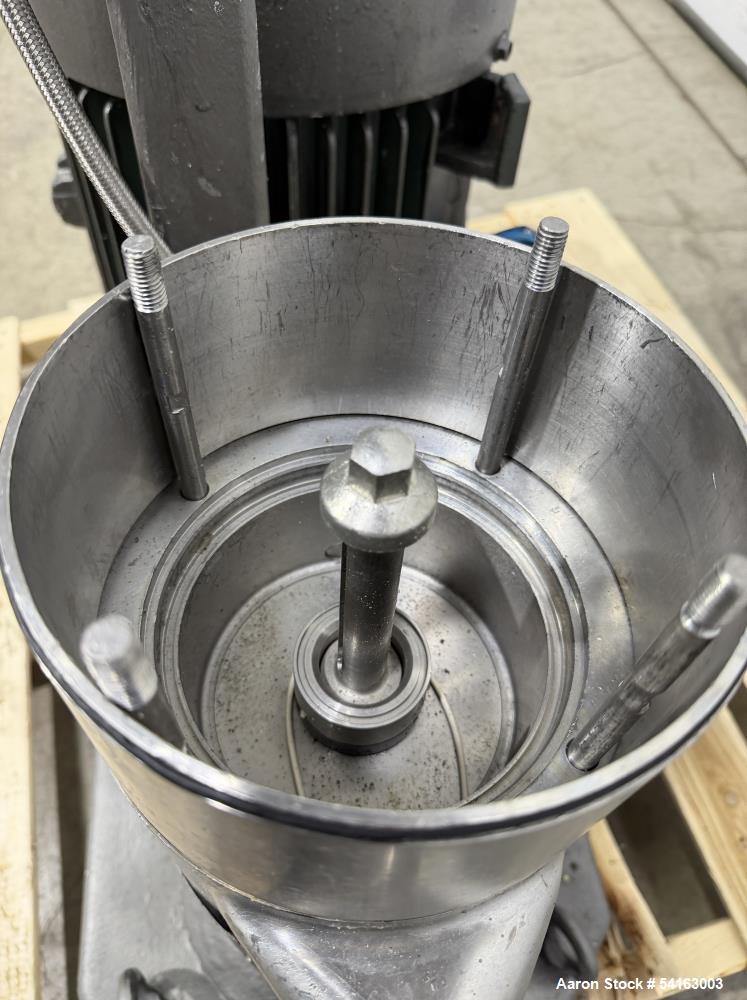

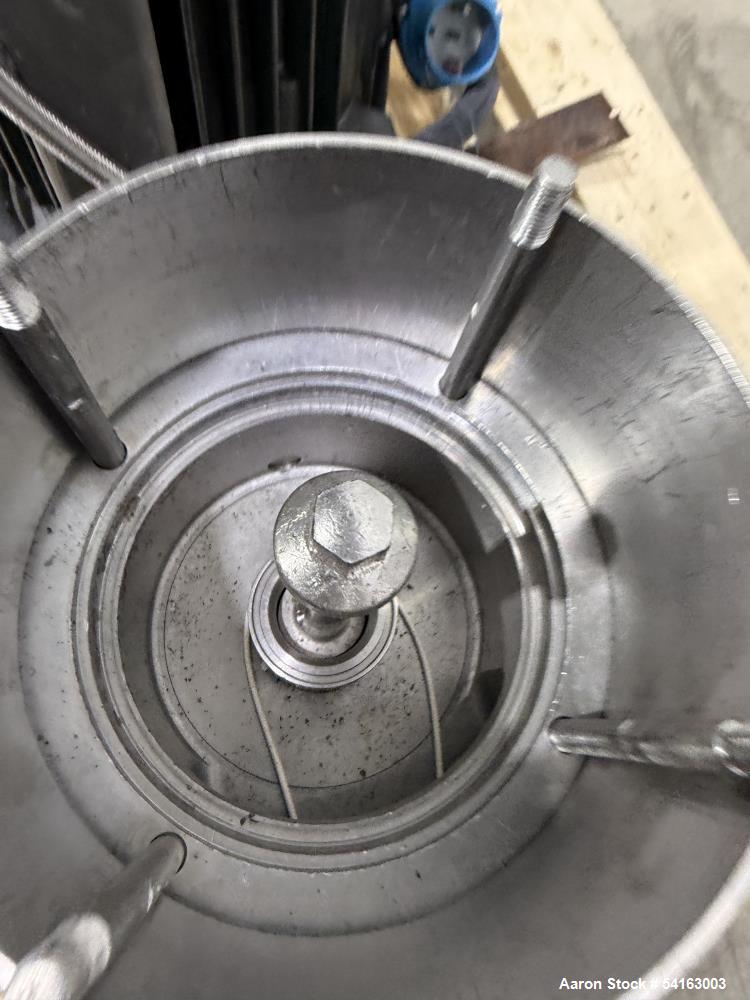

• Chamber Size: Approx. 7-1/2" diameter x 6" deep

• Top Inlet: 2" Tri-Clamp connection

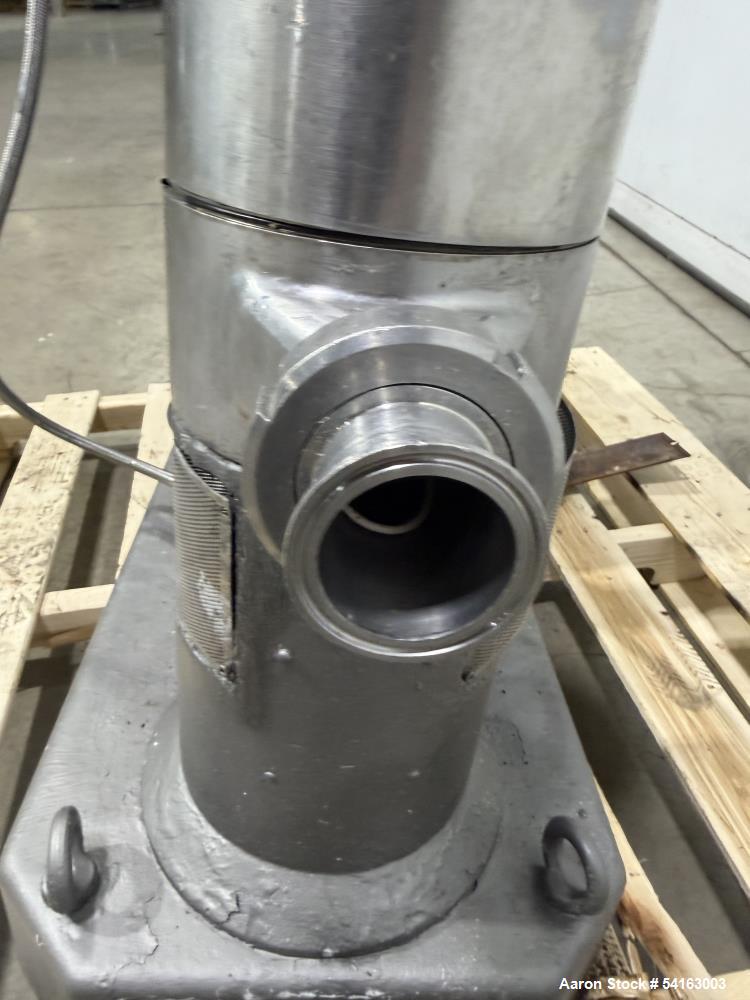

• Outlet: 2" side bottom outlet

• Cover: Bolt-on top cover

Drive & Electrical

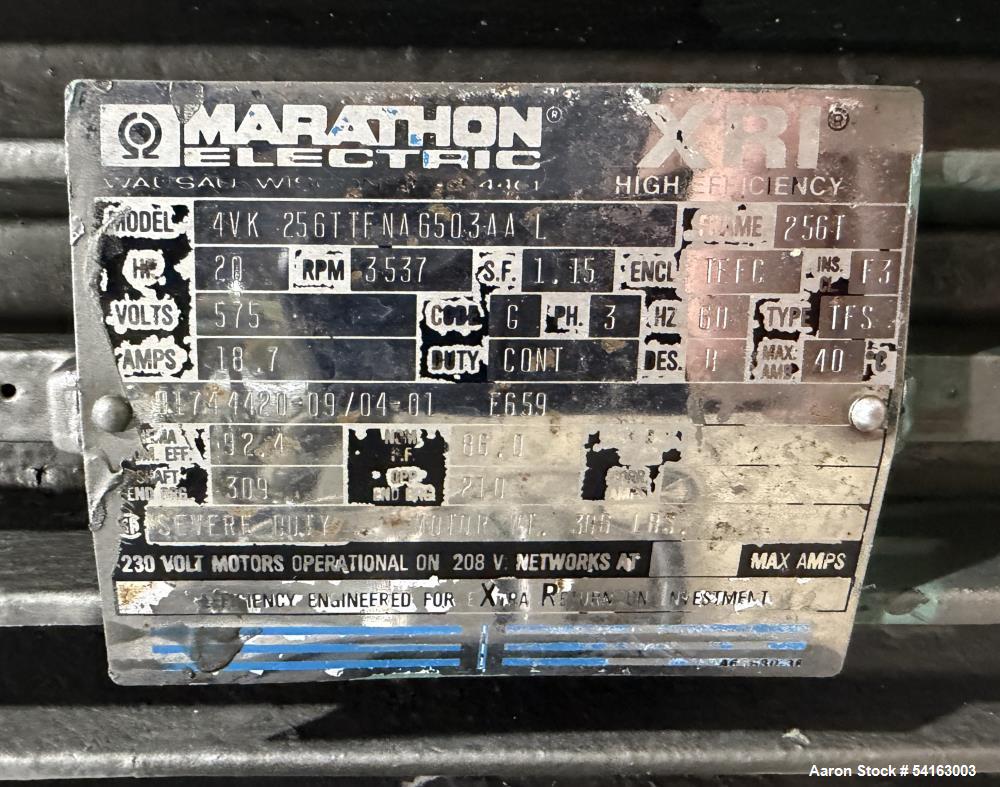

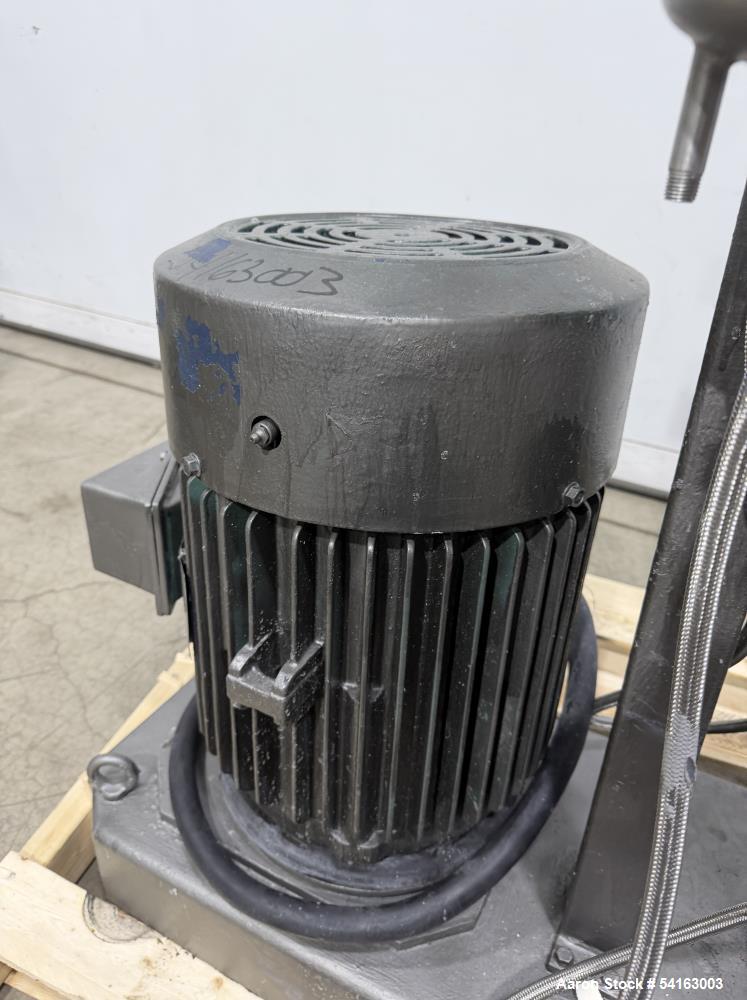

• Motor Power: 20 HP

• Motor Speed: 3,537 RPM

• Electrical: 3 Phase / 60 Hz / 575 Volt

Mounting & Accessories

• Frame mounted

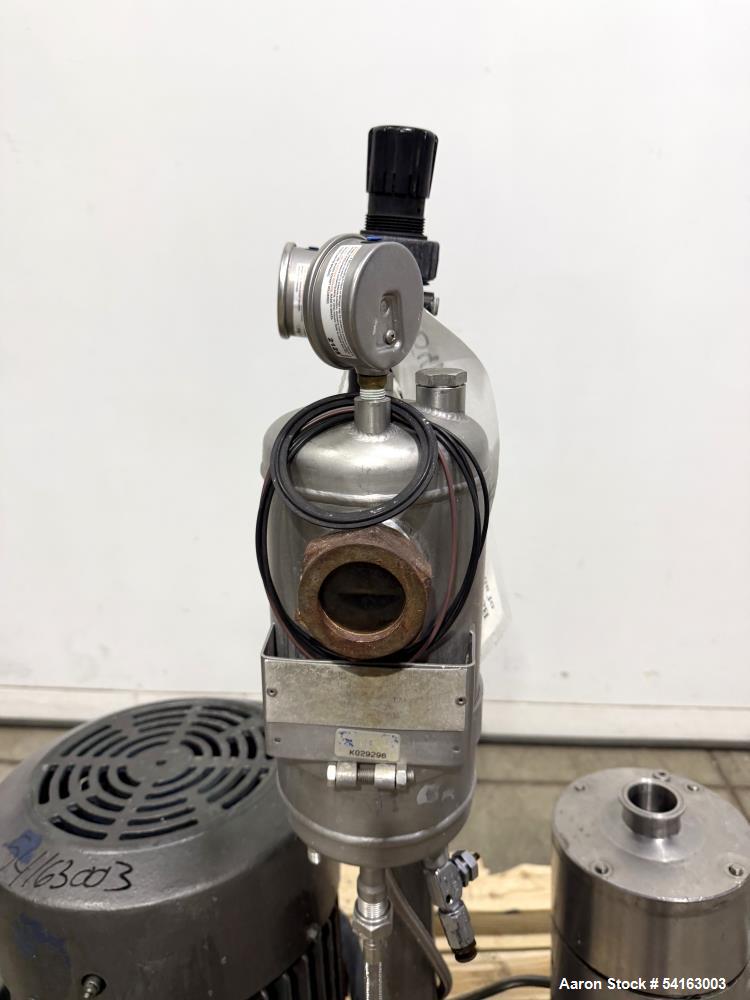

• Mounted expansion tank

Applications

• High shear mixing

• Emulsification

• Homogenization

• Powder dispersion

• Particle size reduction

• Sanitary liquid processing

What Might This Be Used For

• Creating stable emulsions

• Dispersing powders into liquids

• Homogenizing viscous formulations

• Improving product consistency and texture

• Inline or batch recirculation mixing

• Processing sanitary food, cosmetic, or pharmaceutical liquids

Products This Machine Is Commonly Used For

• Creams and lotions

• Ointments and gels

• Sauces and dressings

• Dairy products

• Pharmaceutical suspensions

• Cosmetic formulations

• Chemical dispersions

• Coatings

• Slurries

• Specialty liquid products
