Stock No.: 53624002
Industrial Hamilton CW 150-Gallon Steam Jacketed Kettle – Motorized Tilt

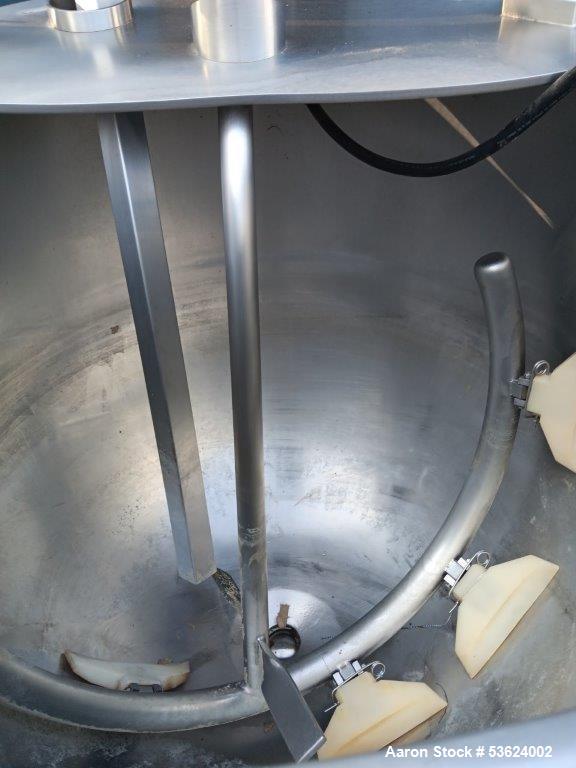

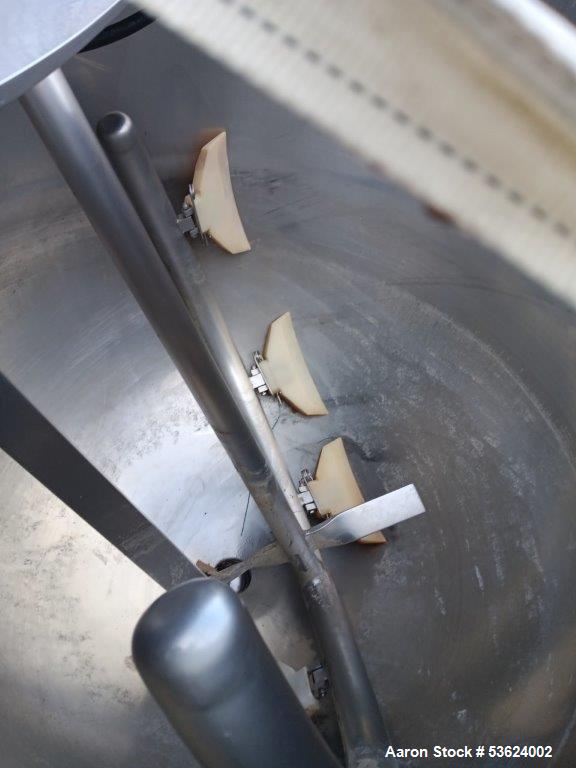

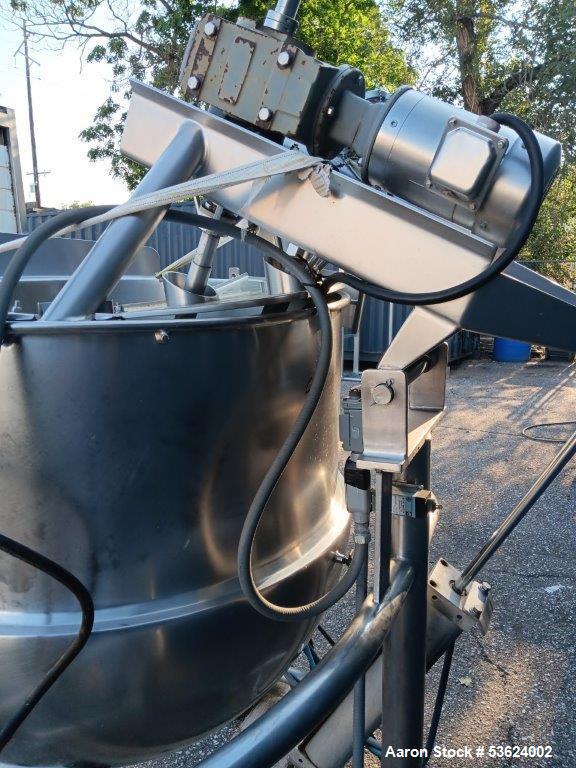

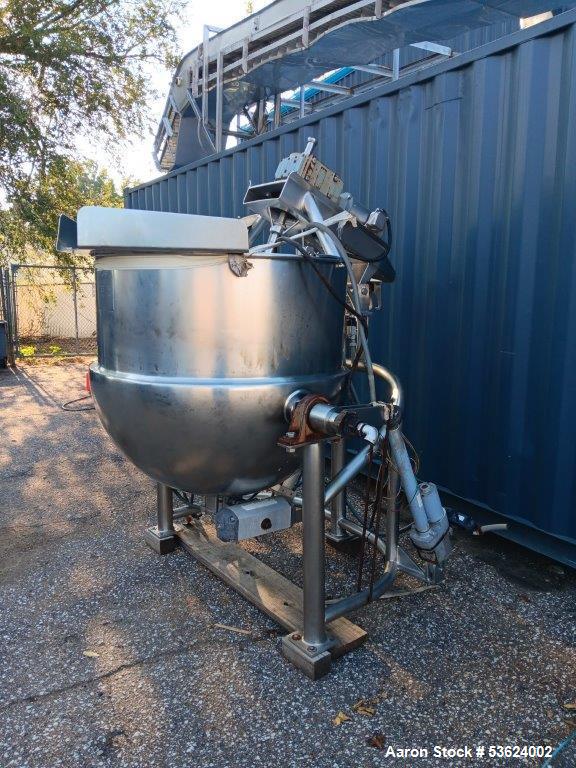

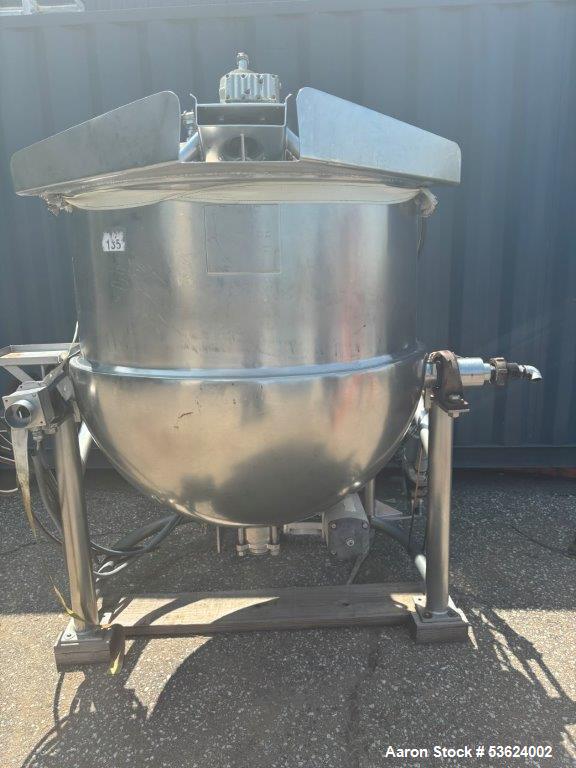

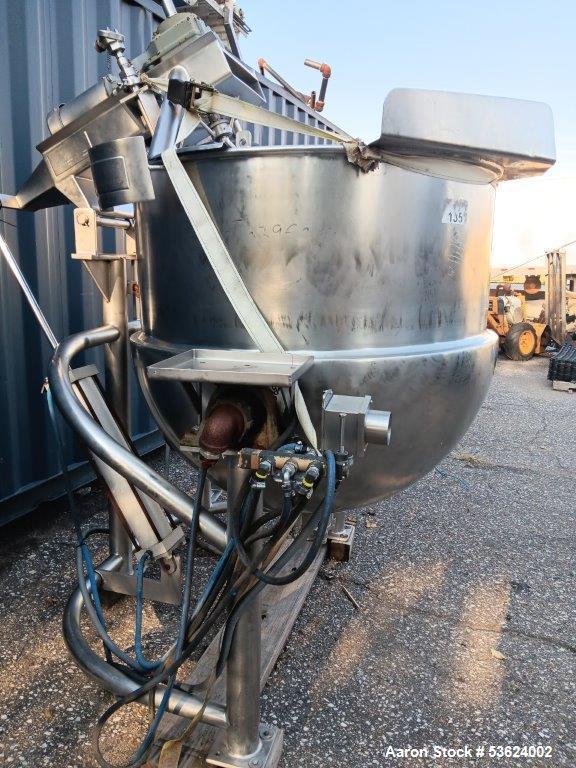

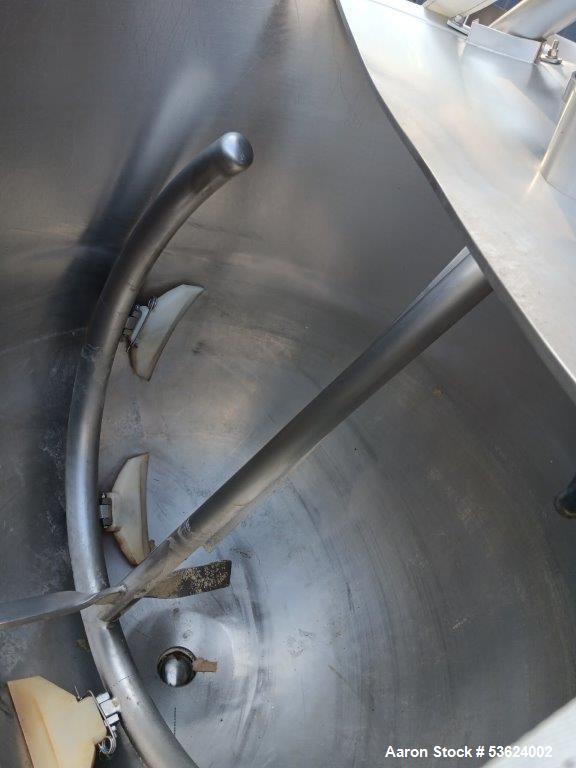

Used- Hamilton Style CW Tilting Kettle, 150 Gallon, 316 Stainless Steel. Approximate 44" diameter x 40" deep. Open top, jacketed hemispherical bottom. 304 Stainless steel jacket rated 100 psi at -20 to 328 degrees F. Top entering angled anchor style agitator with scrapers (missing 1 scraper), driven by a 3 hp, 3/60/208-230/460 volt, 1750 rpm gear motor, approximate 44.32 to 1 ratio (no gearbox tag). Air operated agitator tilt, motorized bowl tilt, pouring lip. 3" Center bottom outlet with valve. Mounted on a stainless steel frame with (3) leg. National Board # 278. Serial # F-5817-2. Built 2004.
-
ManufacturerHamilton
-

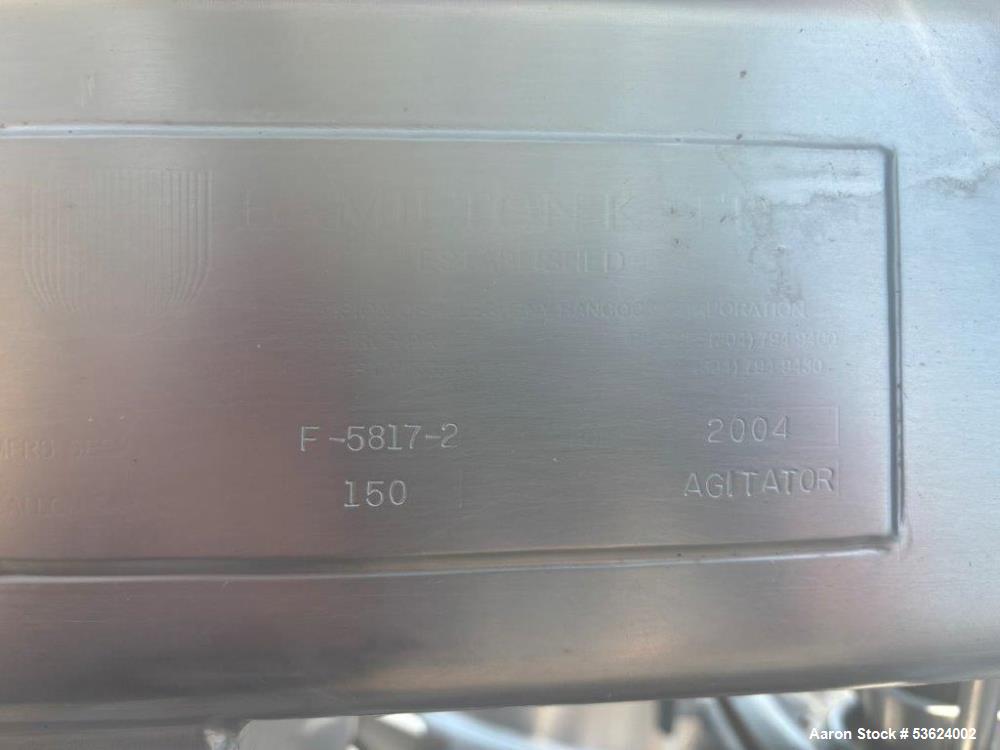

Serial #F-5817-2
-
CategoryKettles
-
SubcategoryStainless Steel 0-499 Gallon
-
Agitator Hp2
-
Agitator Ratio44.32:1
-
Agitator Rpm1750
-
BottomHemispherical
-
Diameter44"
-
Gallons150
-
Jacket Material304 Stainless Steel
-
Material Of Construction316 Stainless Steel
-
MountedMounted on 3 Legs
-
Outlet LocationBottom
-
Outlet Size3"
-
Pressure Jacket100psi
-
Straight Side40"
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Model: Hamilton Style CW Tilting Kettle
- Capacity: 150 Gallons
- Construction Material: 316 Stainless Steel
- Jacket Material: 304 Stainless Steel
- Year Built: 2004
- Serial Number: F-5817-2
- National Board Number: 278
Description:
This used Hamilton Style CW 150-gallon tilting kettle is designed for industrial food processing, pharmaceutical, and chemical applications, featuring an open-top, hemispherical bottom with a stainless steel jacket rated 100 PSI at -20°F to 328°F. The kettle is equipped with a top-entering angled anchor-style agitator with scrapers (one scraper is missing). It is powered by a 3 HP, 3-phase, 208-230/460V, 1750 RPM gear motor with an approximate 44.32:1 ratio. The unit includes air-operated agitator tilt, motorized bowl tilt, and a pouring lip for controlled dispensing. The 3" center bottom outlet with valve ensures efficient discharge. Mounted on a stainless steel three-leg frame, this kettle is built for durability and stability.
Specifications:
- Capacity: 150 Gallons
- Construction Material: 316 Stainless Steel
- Jacketed Bottom: 304 Stainless Steel, hemispherical
- Jacket Rating: 100 PSI @ -20°F to 328°F
- Agitator Type: Top-entering, anchor-style with scrapers (one scraper missing)
- Agitator Motor: 3 HP, 3-phase, 208-230/460V, 1750 RPM
- Gear Ratio: 44.32:1 (no gearbox tag)
- Tilt Mechanisms: Air-operated agitator tilt, motorized bowl tilt
- Discharge Outlet: 3" center bottom outlet with valve
- Mounting: Stainless steel frame with three legs
- National Board Number: 278
- Serial Number: F-5817-2
Applications:
- Food Processing – Cooking, mixing, and heating large batches
- Dairy & Beverage Industry – Pasteurization and blending
- Sauce & Soup Production – Ensures uniform heating and mixing
- Pharmaceutical & Cosmetic Manufacturing – Processing creams, gels, and ointments
- Chemical Processing – Mixing and heating chemical compounds
- Nutritional Supplements – Blending vitamins and liquid formulations
- Brewing & Distillation – Fermentation and liquid heating
- Soap & Detergent Production – Mixing and heating cleaning agents
- Canning & Preserving – Sterilization and cooking in batch processing
- Research & Laboratory Use – Controlled heating and blending
