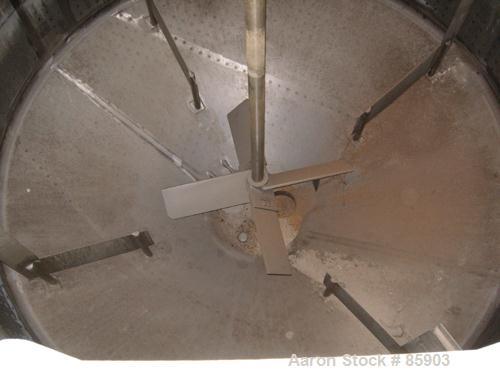

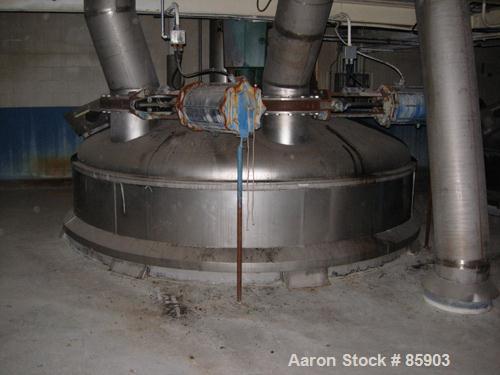

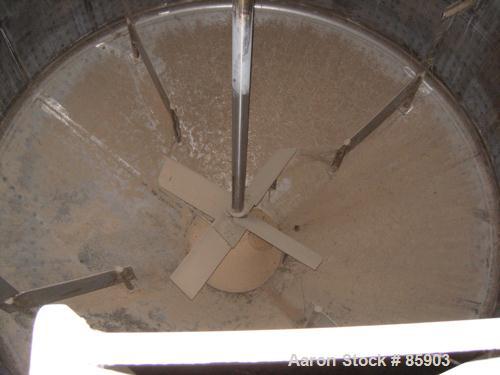

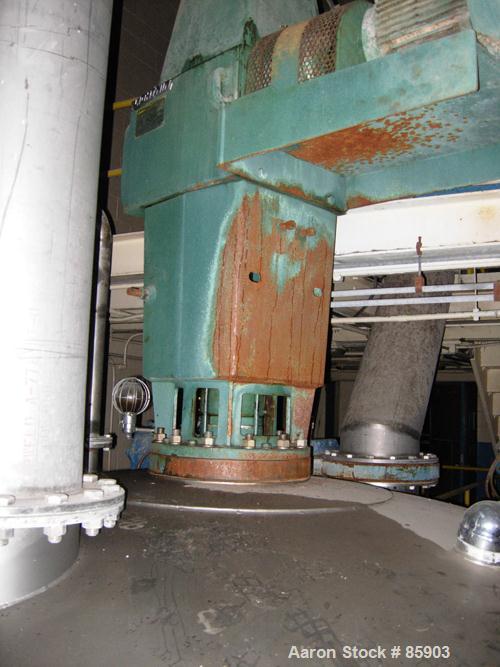

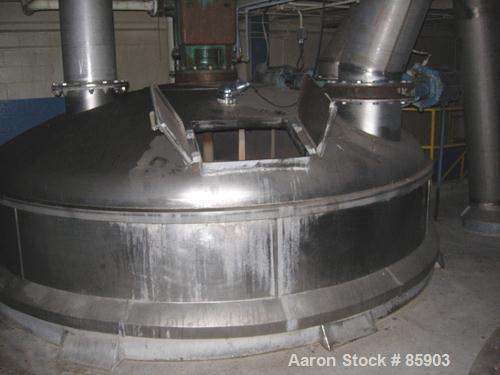

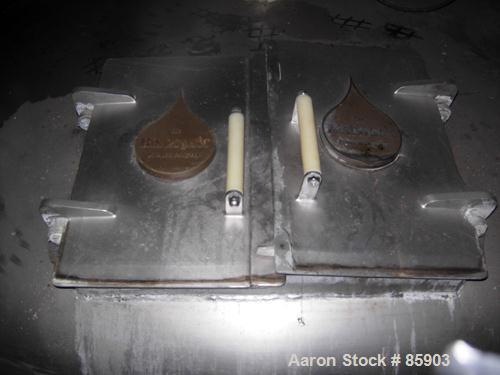

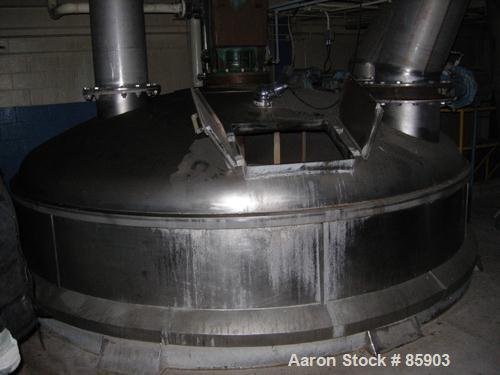

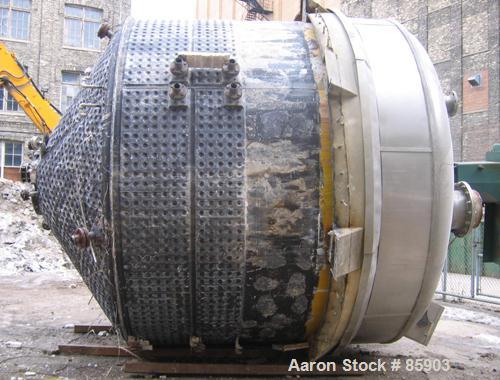

Used Bishopric Products Co (Enerfab Inc) 9000 Gallon Dimple Jacketed Mix Tank, 304 stainless steel. 12' diameter x 9'6" straight side. Dished top head, cone bottom. Dimple jacket is on bottom 1/2 of the straight side and on the cone bottom, rated 150 psi at 400 deg F. Top mounted Lightnin agitator, model 85-S-20. 20 hp motor, 25.53:1 ratio, 68 output rpm. Approximate 3-1/2" diameter stainless steel shaft with a 4 blade impeller. Internal top mounted sparge ring with (4) CIP spray balls. (4) Internal baffles mounted on the cone bottom and bottom sidewall of the tank. Internal ladder. Top openings: (1) 18" x 24" rectangular manway with hinged covers, (3) 16" flanged, (1) 4" flanged and (1) 6" flanged. Approximately (1) 10" and (1) 4" bottom outlet. Tank is insulated. Thru floor mounting with side lugs.
Used Bishopric Products Co (Enerfab Inc) 9000 Gallon Dimple Jacketed Mix Tank, 304 stainless steel. 12' diameter x 9'6" straight side. Dished top head, cone bottom. Dimple jacket is on bottom 1/2 of the straight side and on the cone bottom, rated 150 psi at 400 deg F. Top mounted Lightnin agitator, model 85-S-20. 20 hp motor, 25.53:1 ratio, 68 output rpm. Approximate 3-1/2" diameter stainless steel shaft with a 4 blade impeller. Internal top mounted sparge ring with (4) CIP spray balls. (4) Internal baffles mounted on the cone bottom and bottom sidewall of the tank. Internal ladder. Top openings: (1) 18" x 24" rectangular manway with hinged covers, (3) 16" flanged, (1) 4" flanged and (1) 6" flanged. Approximately (1) 10" and (1) 4" bottom outlet. Tank is insulated. Thru floor mounting with side lugs.
