Used DCI 15,000 Gallon 304 Stainless Steel Storage Tank | Jacketed | Cone Bottom | Skirt Mounted | Built 1995

🏭 Manufacturer

DCI, Inc. – Industry-leading U.S. manufacturer of stainless steel process vessels and storage tanks for food, beverage, chemical, and pharmaceutical industries. Known for ASME-quality fabrication and long-lasting tank designs.

📝 Description

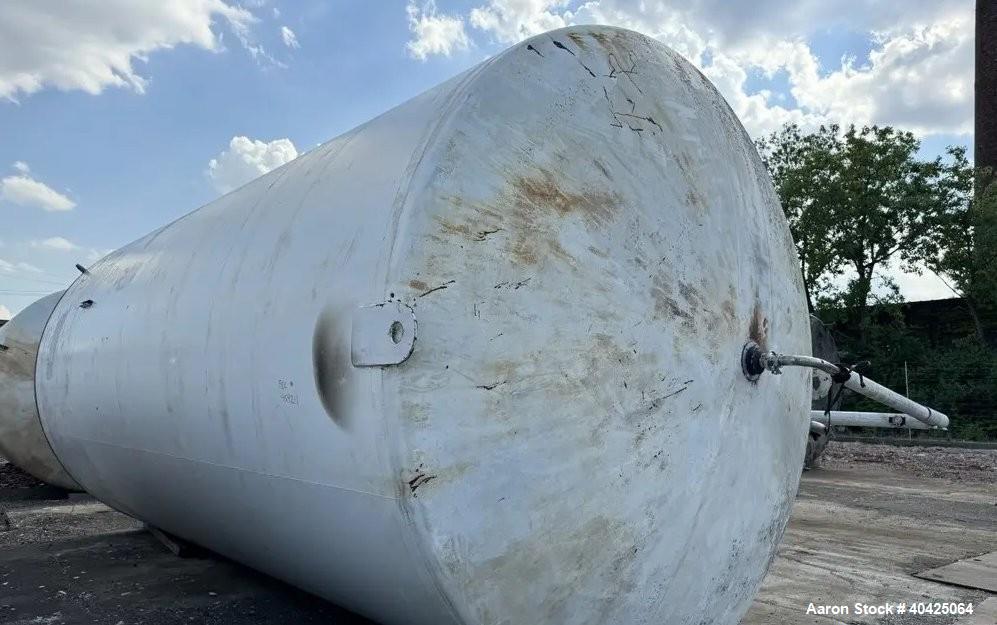

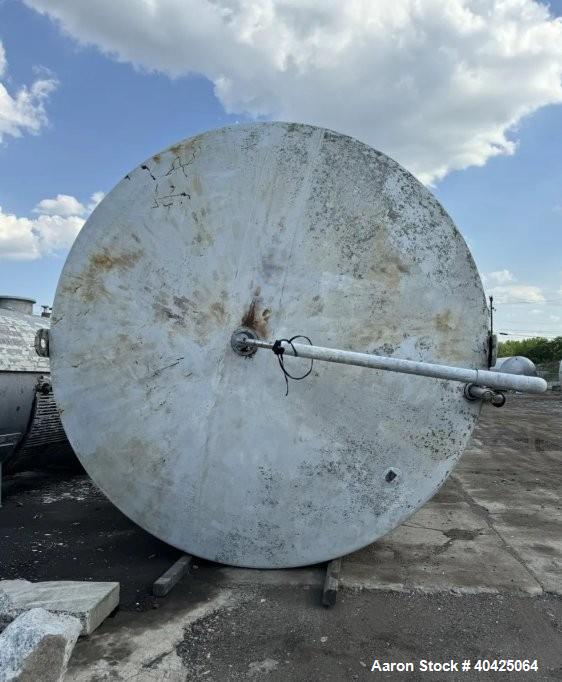

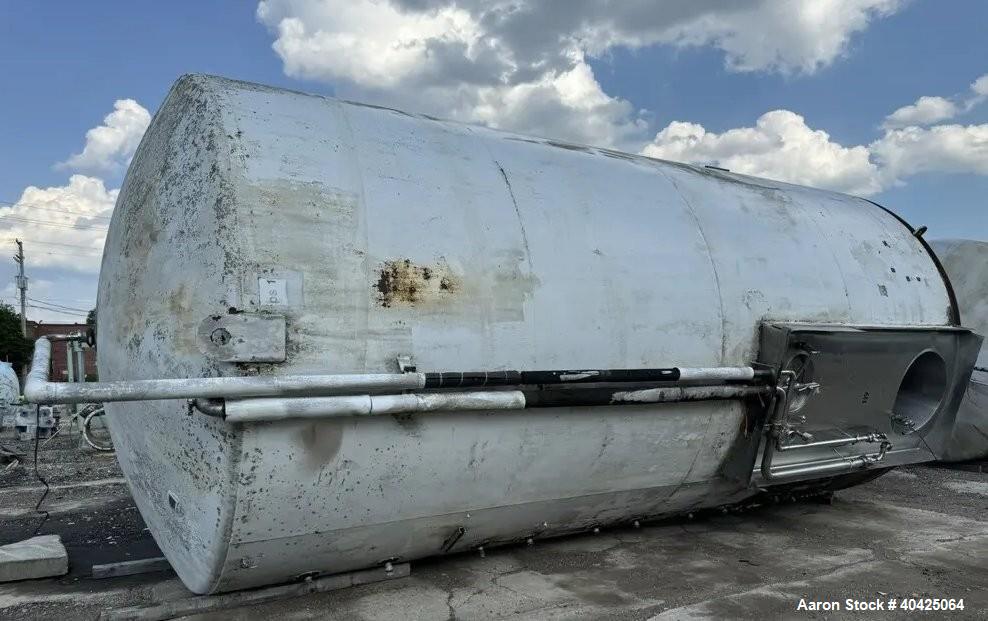

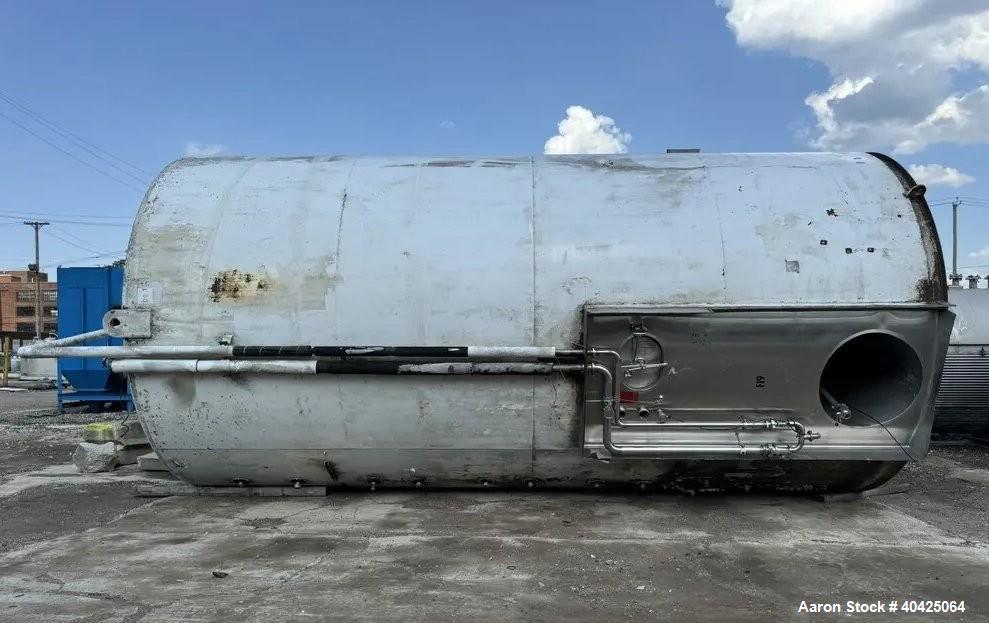

This Used 15,000 Gallon DCI Stainless Steel Storage Tank is constructed of 304 stainless steel, featuring a dish top and a 44” deep cone bottom for efficient drainage. Equipped with (4) jackets — three side-mounted (21” high each) and one taller side jacket (29” high), plus a bottom cone jacket rated 150 PSI @ 100°F — the tank provides heating or cooling capabilities.

The vessel is skirt mounted for structural support and insulation space, and includes a 16” x 20” side manway for internal access. With an inner diameter of 144" and 196" straight side, the tank stands approximately 379" overall height (OAH). Built in 1995, this is a high-volume, jacketed storage solution ideal for processing or bulk ingredient storage.

⚙️ Specifications

• Capacity: 15,000 gallons

• Material: 304 Stainless Steel

• Top: Dished

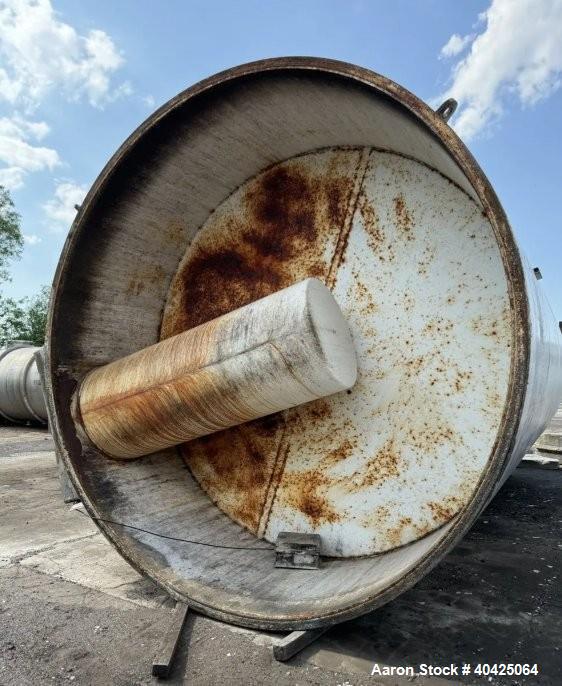

• Bottom: 44" Deep Cone Bottom

• Jackets:

  • (3) Side jackets – 21" high

  • (1) Side jacket – 29" high

  • (1) Cone bottom jacket – Rated 150 PSI @ 100°F

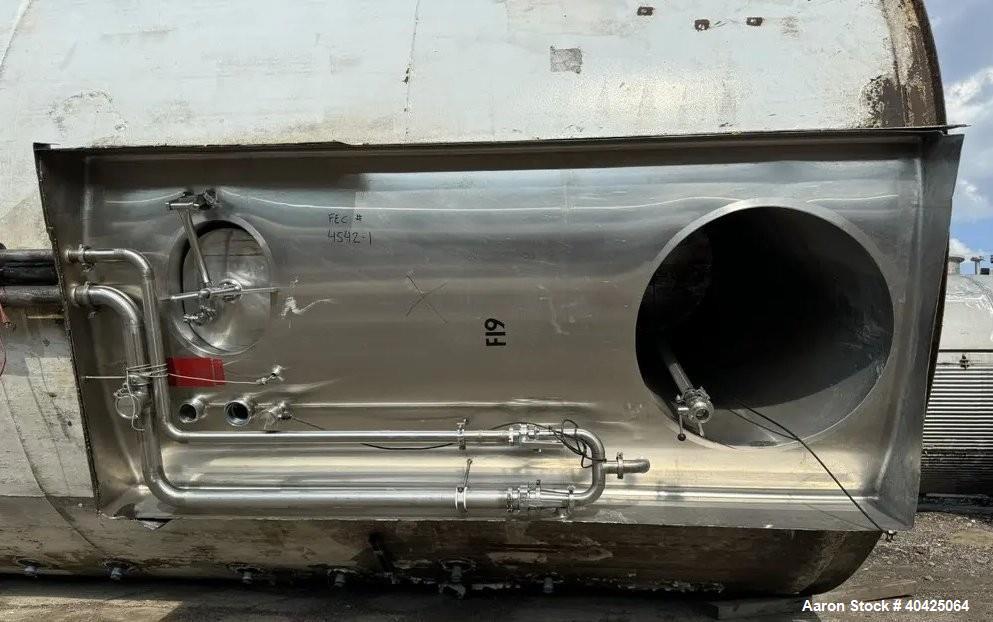

• Manway: 16” x 20” side access

• Mounting: Skirt-mounted

• Dimensions:

  • Inner Diameter: Approx. 144"

  • Straight Side Height: 196"

  • Overall Height: Approx. 379"

• Serial Number: 96PH52647

• Year Built: 1995

🧪 Applications

Ideal for sanitary or industrial use in:

• Beverage or dairy ingredient storage

• Food processing liquids

• Pharmaceutical-grade solutions

• Chemical blending or storage

• Bio-processing or fermentation

• Nutraceutical bulk storage

• Alcoholic beverage or distillation storage

• Water and utility tank systems

• Cosmetic or personal care liquids

• Agricultural liquid fertilizer or supplement storage

📦 What Products Would This Be Used For?

• Liquid sweeteners (HFCS, glucose)

• Water for injection (WFI) or RO water

• Vegetable or seed oils

• Dairy or whey-based ingredients

• Cleaning/CIP chemicals

• Fermentation broths or mash

• Pharmaceutical solvents or buffers

• Vinegar, wine, or spirits

• Agricultural nutrient solutions

• Cosmetic bases or emulsions
