Used Circleville Metal Works 750 Gallon 304 Stainless Steel Mix Tank | Anchor Agitator | 5 HP Motor | Dished Top & Bottom

Manufacturer Information:

• Manufacturer: Circleville Metal Works Inc.

• Model/Serial Number: CMW-940

• Capacity: ~750 Gallons

• Material: 304 Stainless Steel

• Year Built: 1975

• Condition: Used

• Tank Type: Mixing / Process Tank

• Agitator Drive: Philadelphia Gear Right-Angle Drive, Model MT04

• Drive Motor: 5 HP, 3 Phase, 60 Hz, 230/460V

• Mounting: 4-leg frame with 27” clearance

Description:

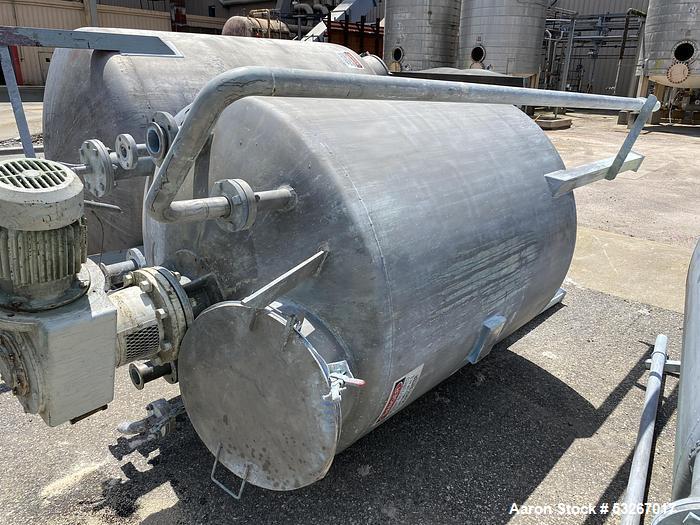

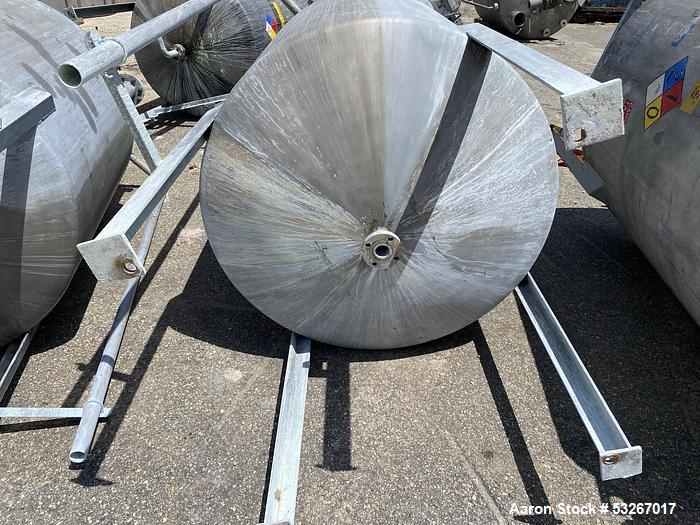

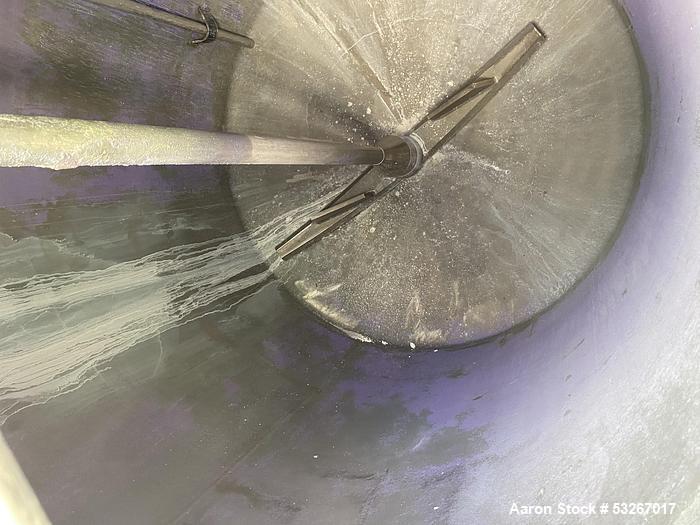

This used Circleville Metal Works stainless steel mixing tank has an approximate 750-gallon capacity and is constructed from 304 stainless steel for durability and general food or chemical use. The tank features a dished top and bottom, a 60" diameter, and 60" straight side height, with a 2" center bottom drain. The top includes a 20” manway and multiple fittings ranging from 1.5" to 4". It is equipped with an anchor-style agitator, powered by a Philadelphia Gear MT04 right-angle drive and 5 HP motor, delivering 84 RPM output for slow, thorough mixing. The unit is mounted on four legs with a 27” bottom clearance and is rated for 0.25 PSI @ 212°F.

Specifications:

• Capacity: ~750 gallons

• Material: 304 Stainless Steel

• Tank Type: Vertical Mix Tank

• Dimensions: 60" diameter x 60" straight side

• Top Head: Dished with 20" manway

• Bottom Head: Dished

• Pressure Rating: 0.25 PSI @ 212°F

• Drain Outlet: 2" center bottom drain

• Agitator Type: Anchor-style

• Agitator Drive: Philadelphia Gear Model MT04

• Drive Specs: 1750 RPM input / 84 RPM output

• Motor: 5 HP, 3/60/230-460V

• Mounting: 4 stainless legs, 27" discharge clearance

• Top Fittings:

  • (1) 20” manway

  • (2) 1.5” ports

  • (2) 2” ports

  • (3) 3” ports

  • (1) 4” port

Applications:

• Food processing and ingredient mixing

• Chemical blending and storage

• Beverage syrup or slurry preparation

• Cosmetics and personal care formulation

• Pharmaceutical intermediate mixing

• Sanitary and general industrial liquid batching

• Viscous product blending

• Fermentation with low-pressure requirements

• Buffer tank in process lines

• R&D or pilot plant batch processing

What might this be used for:

• Blending sauces, syrups, and creams in food production

• Mixing chemicals or polymers in industrial environments

• Preparing cosmetic or liquid personal care batches

• Maintaining homogeneous solutions during heating or cooling

• Serving as a sanitary buffer or holding tank in process flows
