Used C.E. Howard 850 Gallon Stainless Steel Jacketed Tank – 304 SS, ASME Rated

Manufacturer Information:

• Brand: C.E. Howard
• Capacity: 850 Gallons
• Material: 304 Stainless Steel
• Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)

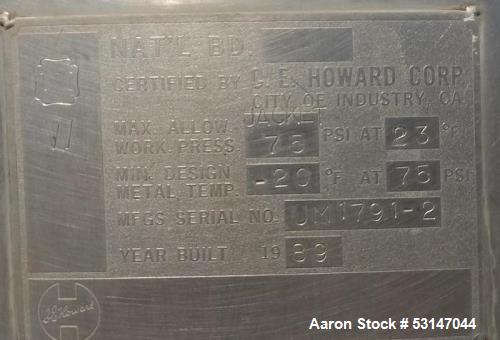

• ASME Rating: 75 PSI

Description:

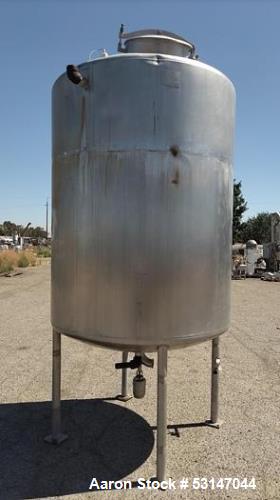

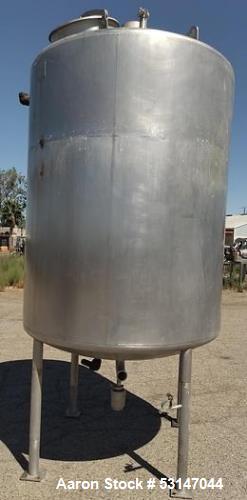

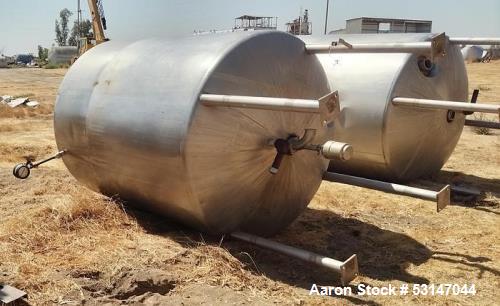

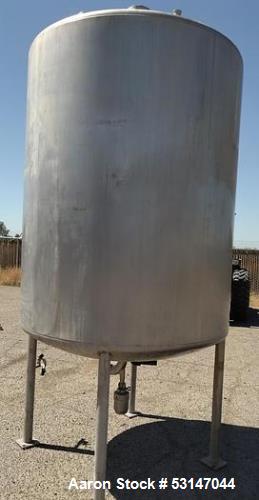

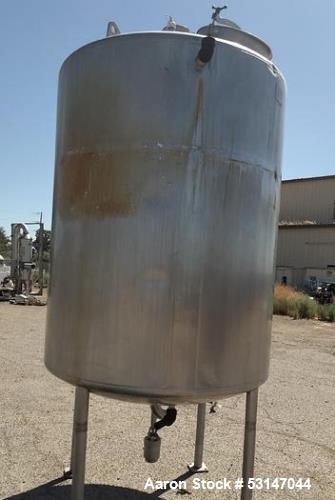

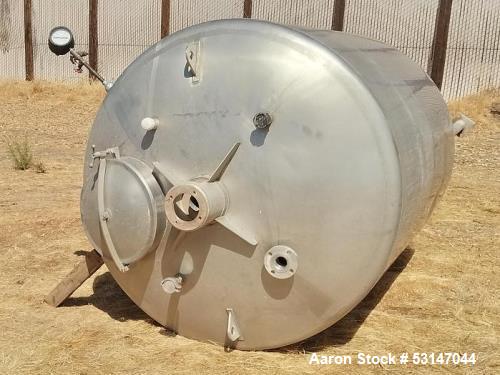

This used C.E. Howard 850-gallon stainless steel jacketed tank is a high-quality mixing and processing vessel, ideal for beverage, food, and pharmaceutical applications. Constructed from 304 stainless steel, it features a 5' diameter x 6-1/2' straight-side vessel with a dished top and bottom, providing an internal height of 7'1" from dish to dish.

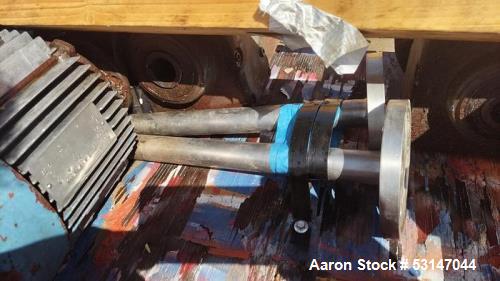

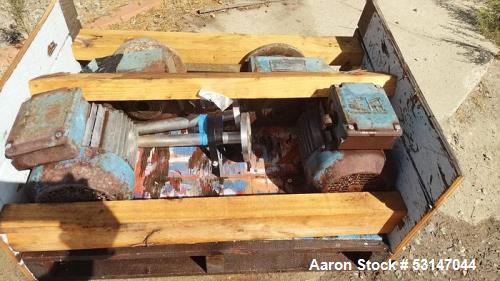

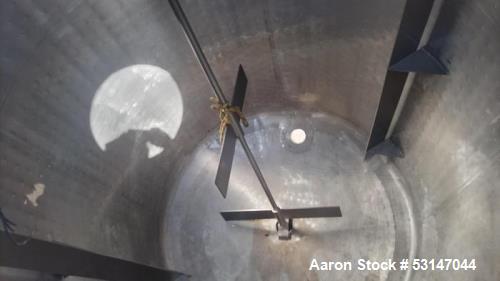

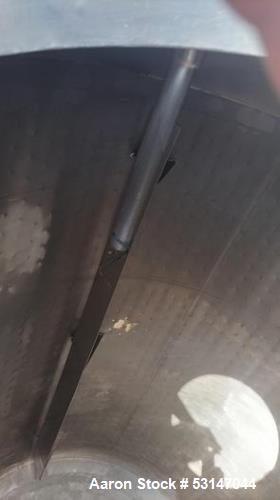

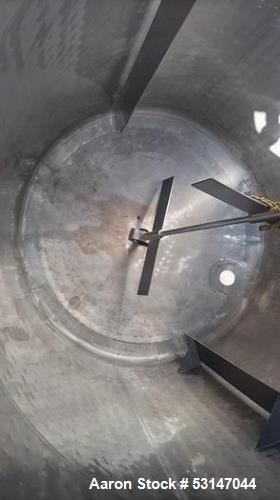

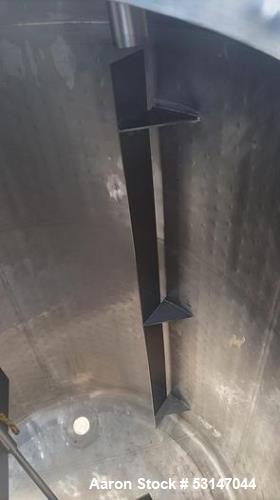

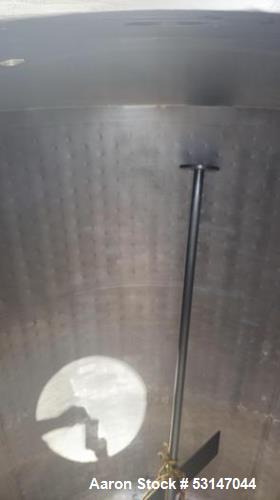

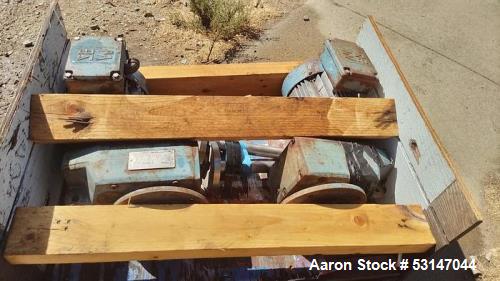

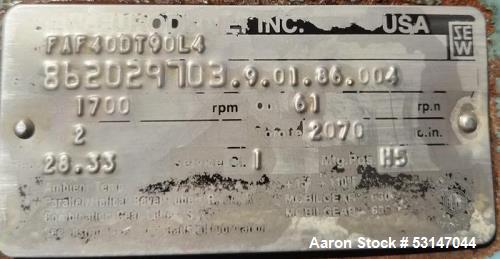

Internally, the tank includes (2) baffles and a top-entering agitator shaft equipped with two sets of 2-blade paddles, driven by a top-mounted drive through a gear reducer. The agitator system is powered by a 2 HP SEW Eurodrive gear motor (230/460V, 3/60Hz, 1700 RPM), delivering an output speed of 61 RPM.

The vessel is supported by 3'3" high stainless steel legs for stability and accessibility. The top head includes a 20" diameter manway, an 8" diameter flanged connection for motor mounting, and (4) 2" inlets. The bottom head features a 3" diameter center bottom outlet for efficient discharge. Additionally, the 2" diameter jacket connections ensure effective heat transfer.

Specifications:

• Capacity: 850 Gallons
• Material: 304 Stainless Steel
• Vessel Dimensions: 5' Diameter x 6-1/2' Straight Side
• Internal Height: 7'1" (Dish to Dish)
• Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)
• Jacket Rating: ASME Rated for 75 PSI
• Agitation System:
  • Top-Entering Agitator Shaft with Two Sets of 2-Blade Paddles
  • Drive System: Gear Reducer, SEW Eurodrive Gear Motor

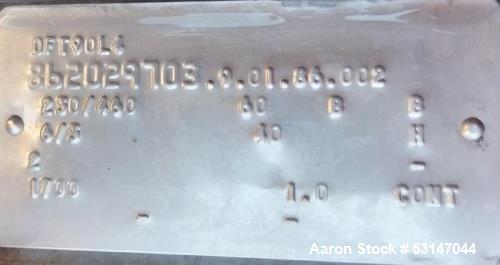

  • Motor Specs: 2 HP, 1700 RPM, 230/460V, 3/60Hz
  • Gearbox Output Speed: 61 RPM
• Top Head Features:
  • 20" Diameter Manway
  • 8" Diameter Flanged Connection for Motor Mounting
  • (4) 2" Inlets
• Bottom Head Features:
  • 3" Diameter Center Bottom Outlet
• Jacket Connections: 2" Diameter
• Mounting: 3'3" High Stainless Steel Legs
• Previous Use: Beverage Processing

Applications:

• Beverage Processing – Mixing, heating, and cooling of liquid products
• Food Processing – Blending and temperature-controlled storage of ingredients
• Pharmaceutical & Biotech – Precision heating and cooling applications
• Chemical Processing – Jacketed vessel for controlled reactions
• Dairy & Brewery Industry – Fermentation and liquid storage

Common Uses for This Tank:

• Mixing and processing of beverages
• Heating and cooling in food and pharmaceutical industries
• Chemical and biotech processing
• Dairy and brewery applications
