Used Sprinkman 3,767 Gallon Agitated Pressure Tank 304 SS, 45 PSI/FV,

Manufacturer: Sprinkman
Type: Agitated Pressure Tank / Mixing Vessel
Condition: Used
Year: 2017
Serial Number: 32314-B

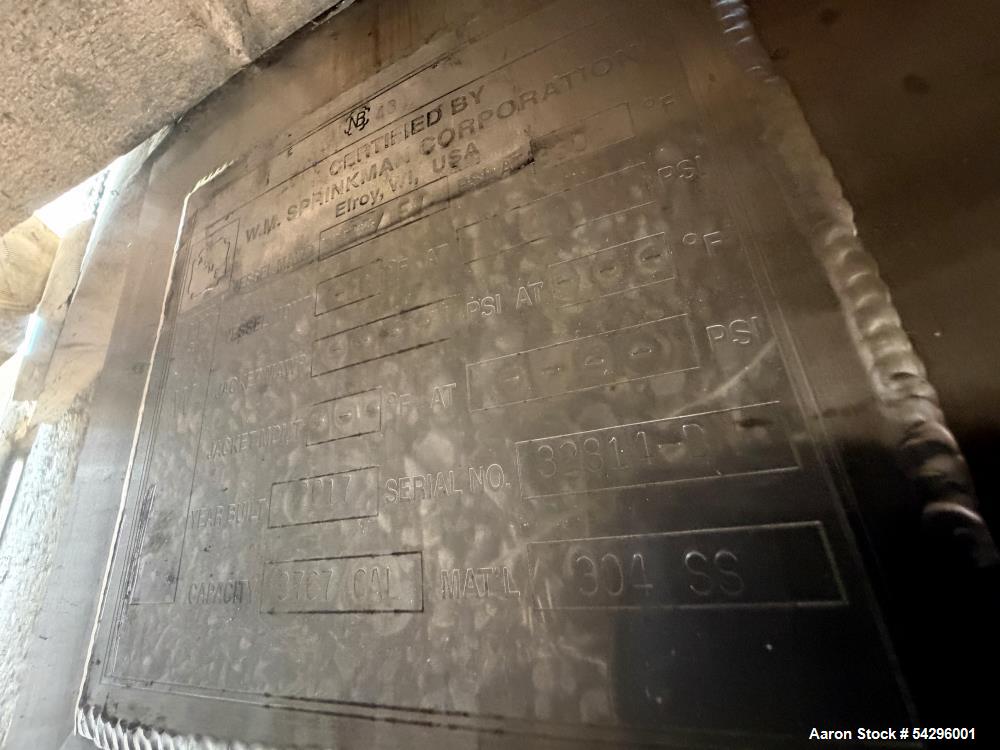

National Board #: 43

Description

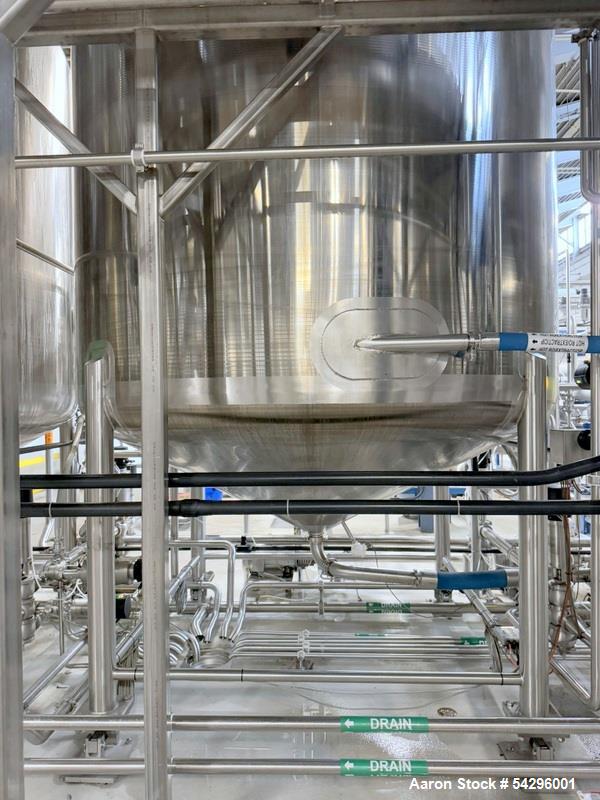

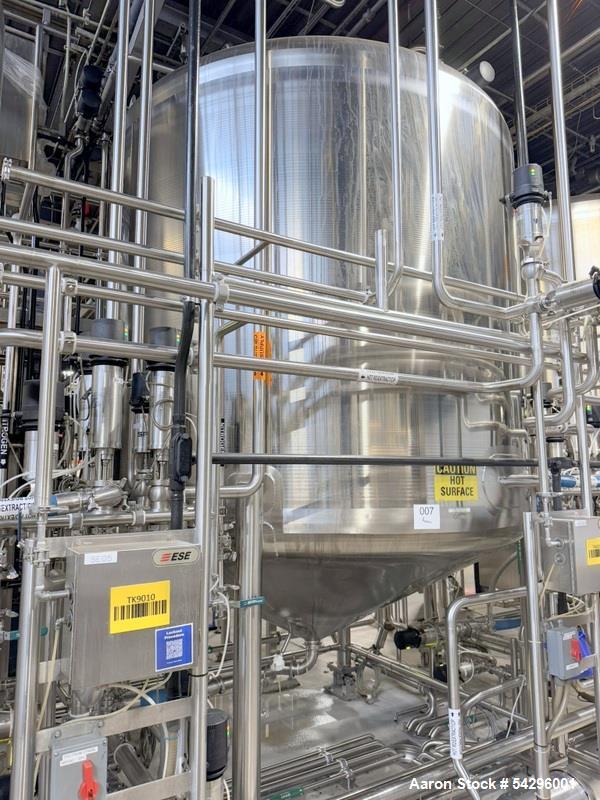

Used Sprinkman Agitated Pressure Tank, approximately 3,767 gallon capacity, designed for pressurized mixing, blending, and temperature-controlled processing in food, dairy, and industrial applications.

Constructed from 304 stainless steel, this vertical vessel is rated to 45 PSI/FV and capable of operating across a wide temperature range of -20°F to 350°F, making it ideal for demanding processing environments.

The tank features a top-mounted agitator driven by a 2 HP motor with a 66.42:1 reducer, delivering controlled mixing at low speeds for uniform product consistency. The vessel includes a slight dished top and cone bottom, ensuring structural integrity and efficient product discharge.

Equipped with multiple top and side ports, a 3" center bottom outlet, and mounted on four stainless steel legs, this tank is ready for integration into processing lines requiring pressure-rated mixing.

Specifications

• Manufacturer: Sprinkman
• Machine Type: Agitated Pressure Tank
• Capacity: Approx. 3,767 gallons
• Construction: 304 Stainless Steel
• Orientation: Vertical
• Condition: Used
• Year: 2017

Vessel Ratings

• Pressure Rating: 45 PSI / Full Vacuum (FV)
• Temperature Range: -20°F to 350°F

Dimensions

• Diameter: Approx. 94 inches
• Straight Side Height: Approx. 84 inches

Design Features

• Slight dished top

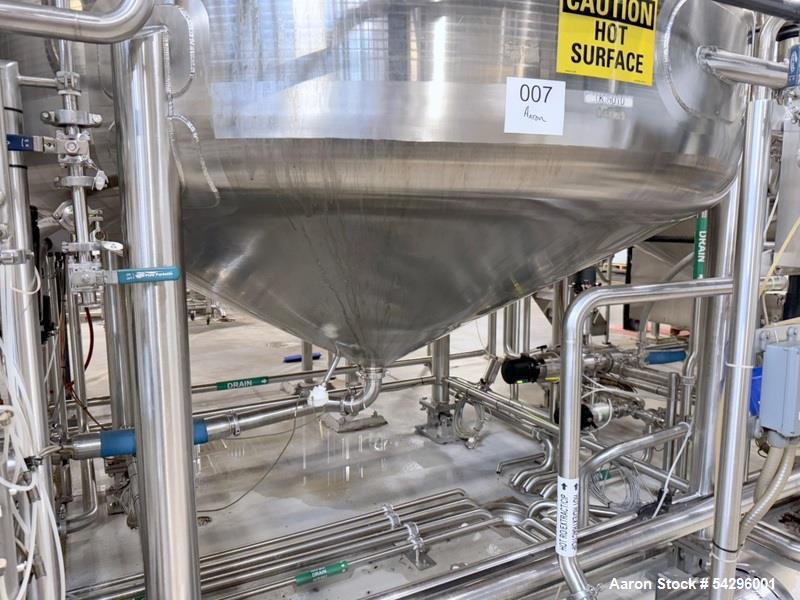

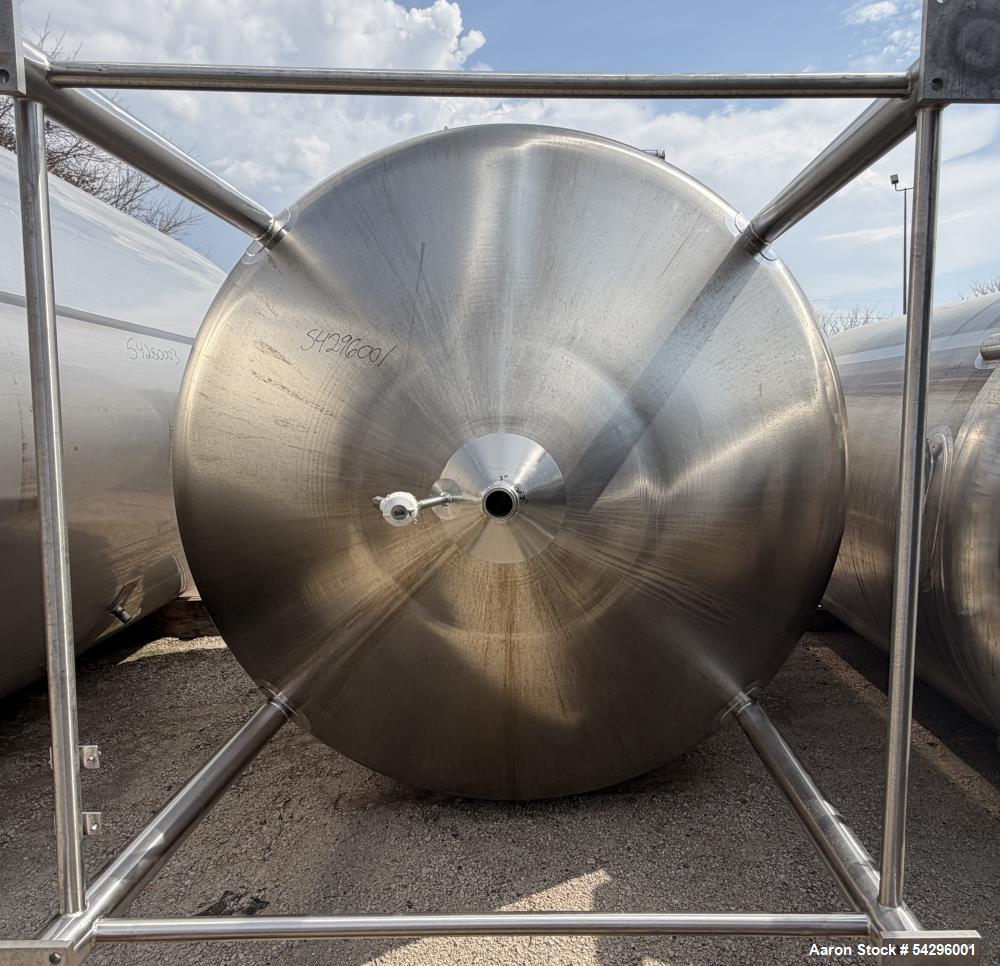

• Cone bottom

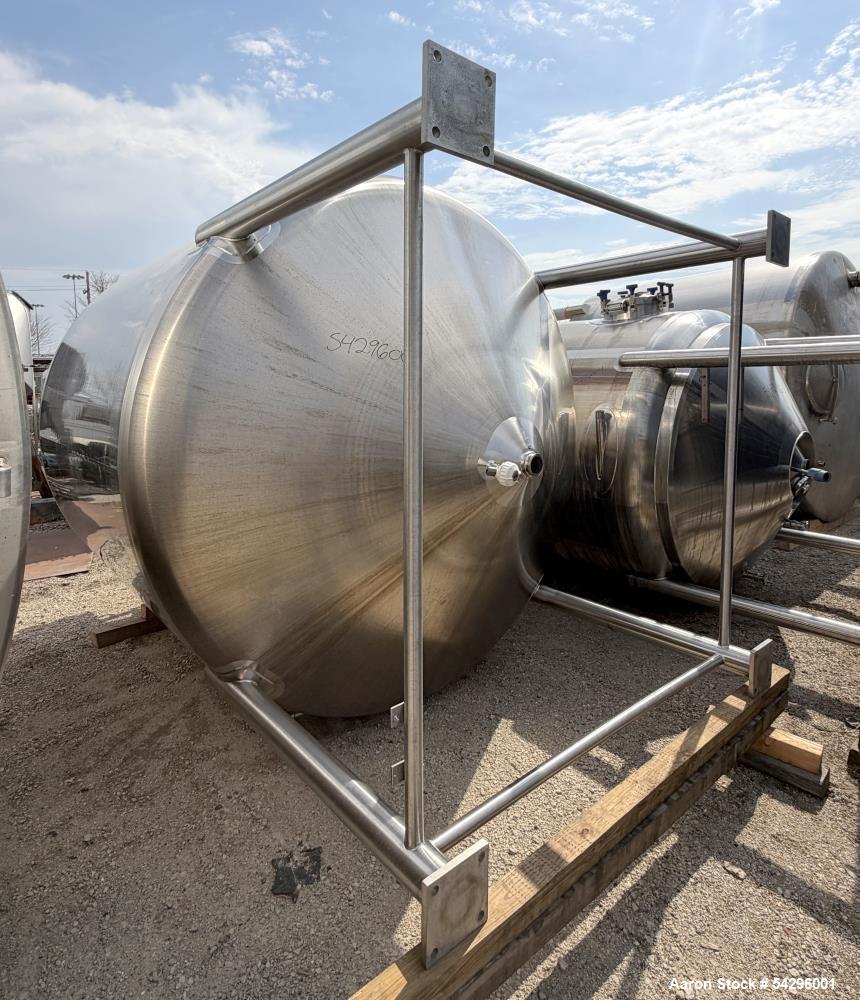

• Mounted on (4) stainless steel legs

Agitation System

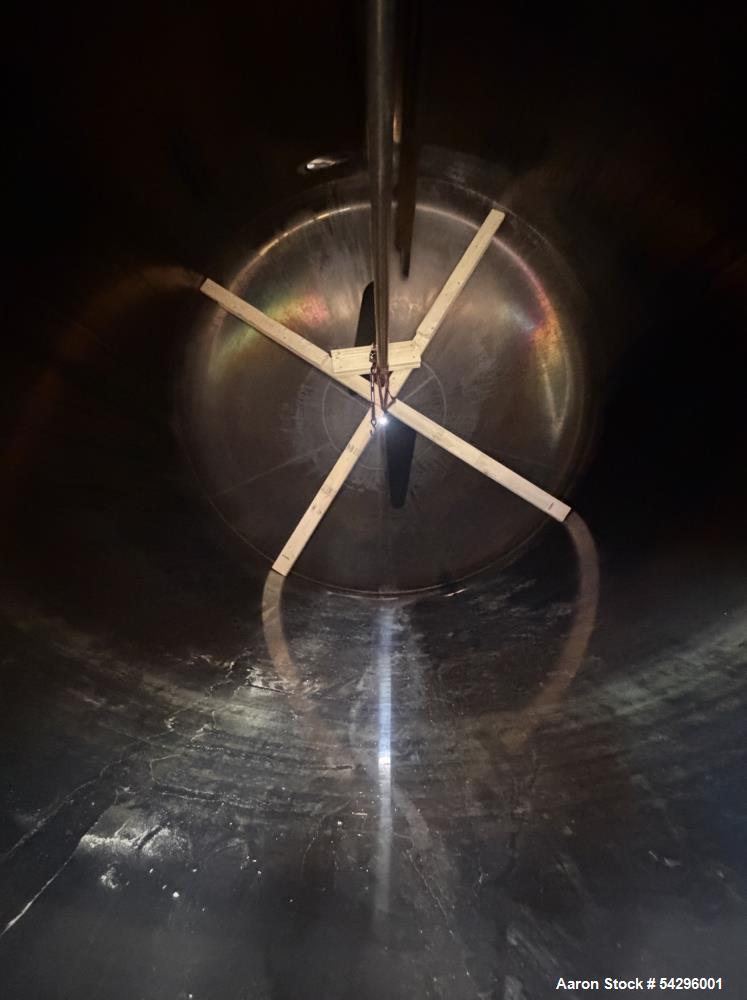

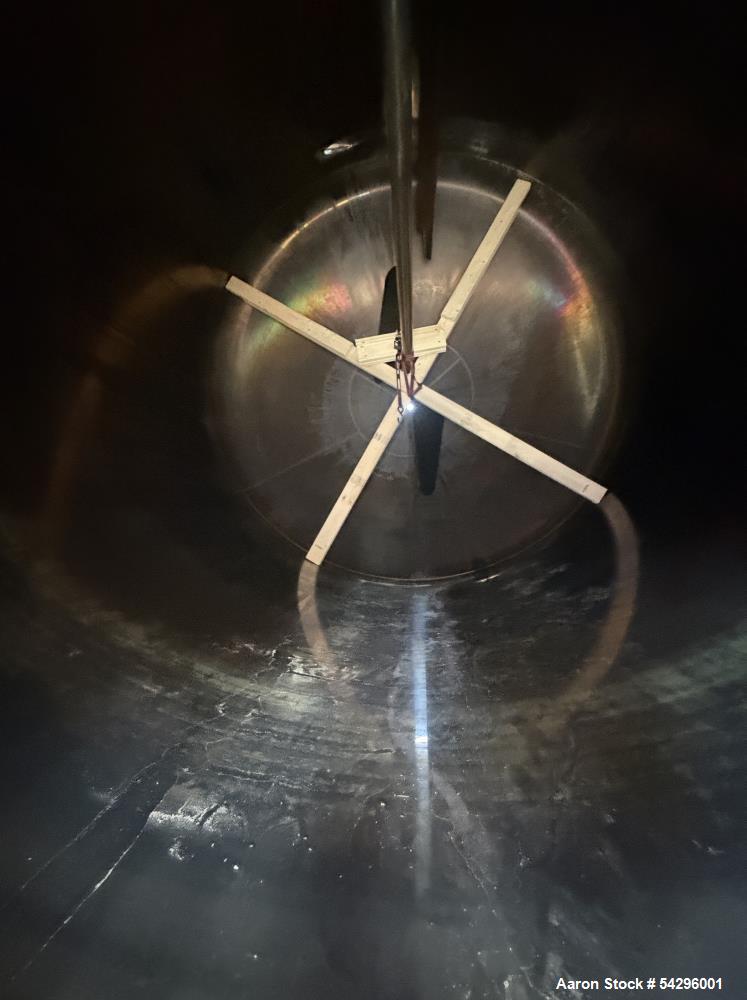

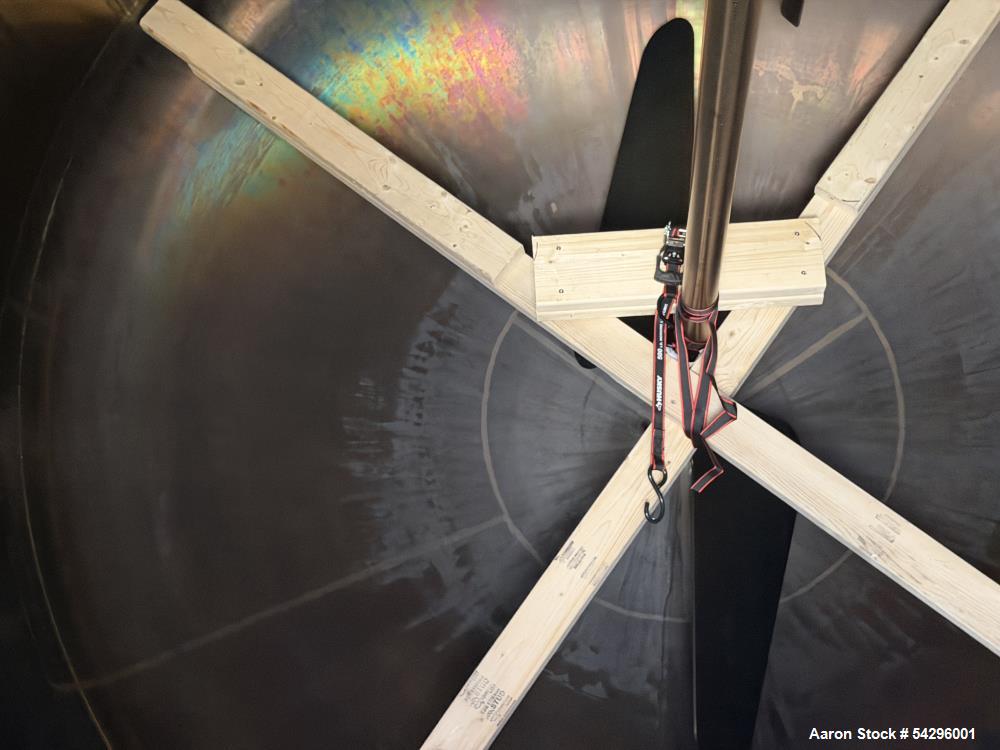

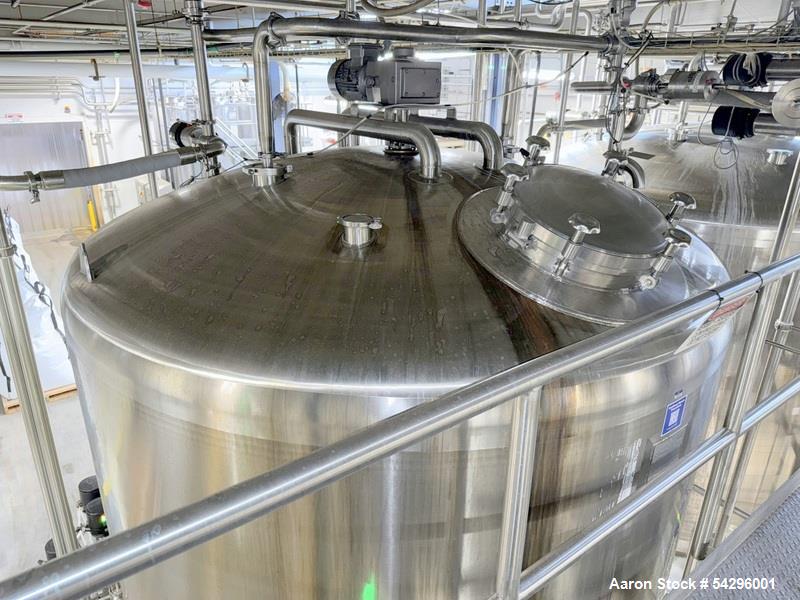

• Top-mounted agitator
• Motor: 2 HP
• Voltage: 230/460 V, 3 Phase, 60 Hz
• Motor Speed: 1730 RPM
• Gear Reducer Ratio: 66.42:1
• Low-speed mixing output

Openings & Connections

Top:

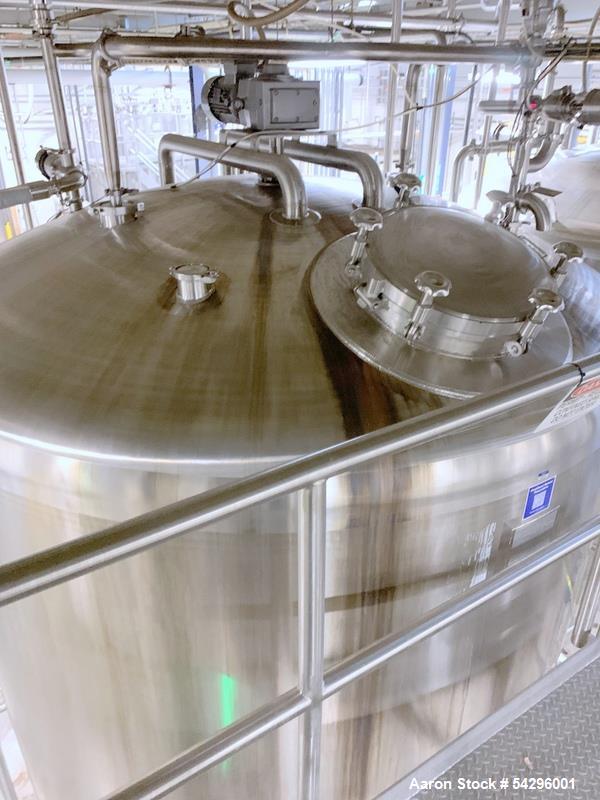

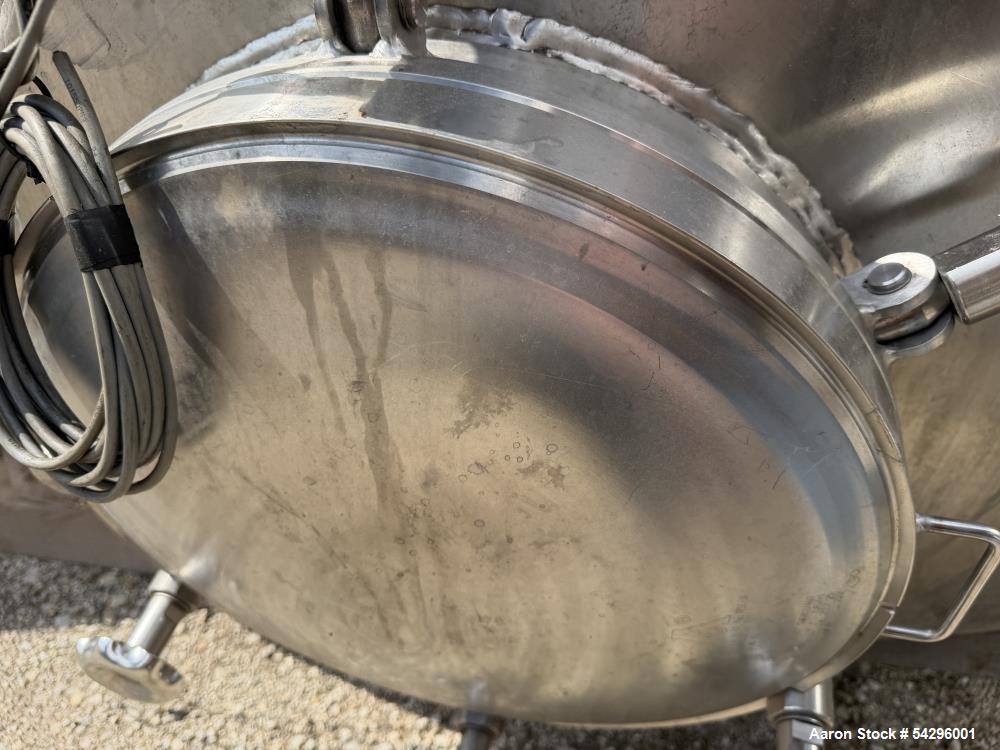

• 18" manway with cover
• (3) 4" nozzles
• (1) 3" nozzle
• (2) 2" nozzles

Side:

• (2) 2" ports

Bottom:

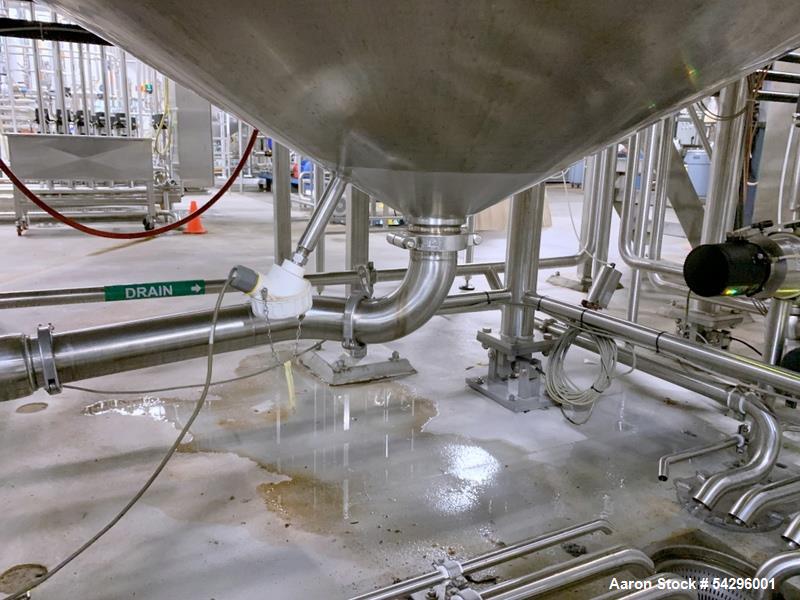

• 3" center bottom outlet
• Approx. 22" discharge height

Applications

• Dairy processing
• Food and beverage production
• Pharmaceutical mixing
• Chemical blending
• Nutraceutical processing
• Pressure mixing applications
• Batch processing systems
• Heated or cooled liquid processing
• Biotech processing
• Industrial liquid handling

What might this be used for

• Mixing products under pressure or vacuum
• Processing dairy or liquid food products
• Blending ingredients uniformly
• Maintaining controlled temperature processes
• Handling sanitary liquid formulations
• Supporting batch production operations
• Integrating with CIP or process systems
• Processing viscous or semi-viscous materials
• Ensuring product consistency
• Performing controlled agitation processes
