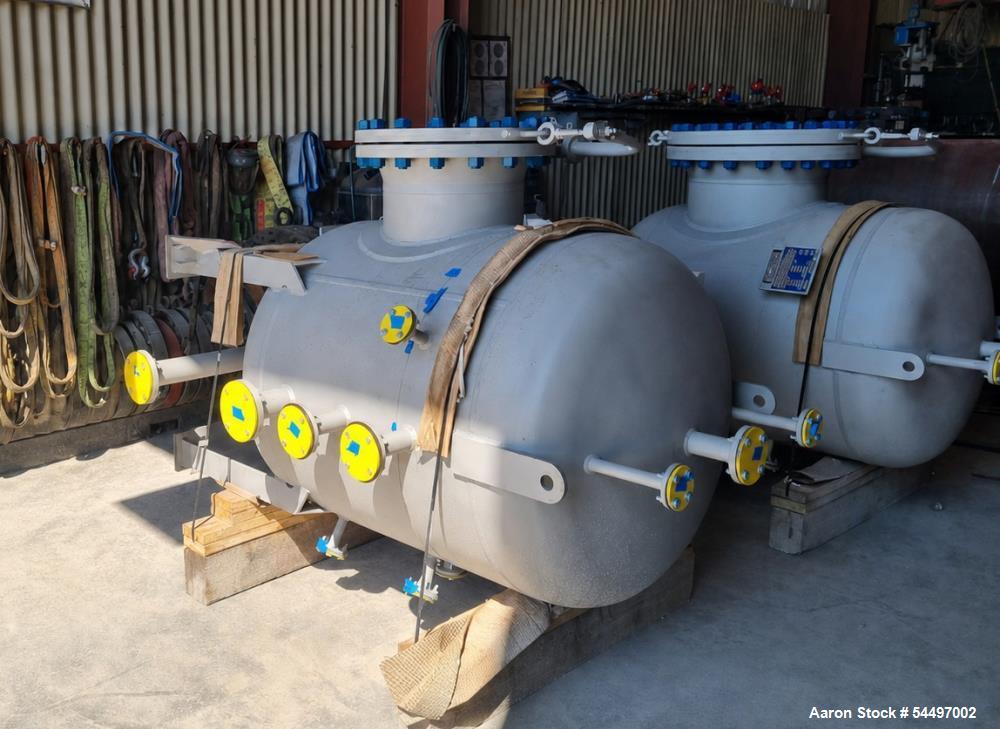

Unused CECO Peerless 316 Stainless Steel Oxygen Separator Pressure Vessel | 380 PSI ASME Vessel
Unused CECO Peerless 316 Stainless Steel Oxygen Separator Pressure Vessel | 380 PSI ASME Vessel. 42" ID Vertical Oxygen Separator, PMC Part No. VGSP-42I-380SS-001, Drawing No. 9558B-1, is a heavy-wall vertical ASME pressure vessel designed for high-pressure oxygen service and deflagration control applications. Fabricated entirely from 316 stainless steel in accordance with ASME Section VIII Division 1, 2023 Edition, the vessel is rated for full vacuum to 380 PSIG at 194F with a MAWP of 380 PSI at 194F, a MAP of 380 PSI at 100F, and an MDMT of -4F at 380 PSI. The separator is fully ASME U-stamped and National Board registered, requires RT1 radiography, and is hydrostatically tested to 494 PSI for one hour with no PWHT required. Construction includes a 1/2" thick SA-240-316 shell, 1/2" thick 2:1 ellipsoidal heads with 0.4024" minimum formed thickness, heavy-wall Schedule 160 drain and liquid outlet nozzles, reinforced manway assembly, four support legs, lifting lugs, and a davit arm assembly. The vessel includes multiple flanged process and instrumentation connections consisting of 2" inlet, liquid inlet, and outlet nozzles, 3" liquid outlet and drain nozzles, a 2" gas purging connection, 1" DPIT, pressure indicator, vent, and relief valve nozzles, dual 3/4" level gauge connections, dual 1" level controller connections, four 1" level switch connections, and an 18" Class 300 manway. Internal surfaces are oxygen cleaned with neoprene gaskets and flange covers installed for shipment, while the exterior is cleaned, de-scaled, and finished with a sugar blast coating. Estimated vessel weights are approximately 2,412 lbs empty, 5,154 lbs operating, and 5,163 lbs hydrotest weight, with an internal capacity of approximately 324 gallons and a center of gravity located 13.12" from datum. The engineering design package includes ASME VIII Division 1 stress calculations, nozzle reinforcement analysis, hydrostatic test verification, wind and seismic analysis, structural support calculations
| Manufacturer | PeerlessPeerless |
| Category | TanksTanks |
| Subcategory | Stainless 1000-4999 GalStainless 1000-4999 Gal |
Manufacturer Info
CECO Peerless is a leading manufacturer of engineered separation equipment, filtration systems, and high-pressure process vessels for industrial gas, energy, chemical, and environmental applications. Peerless vessels are widely used in oxygen service, gas separation, deflagration control, and high-purity processing environments requiring ASME-certified pressure containment.
Description
Unused CECO Peerless vertical oxygen separator vessel with approximately 324 gallon internal capacity, fabricated entirely from 316 stainless steel for high-pressure oxygen service and deflagration control applications. Vessel is manufactured in accordance with ASME Section VIII Division 1, 2023 Edition and is fully ASME U-stamped and National Board registered.
This heavy-wall separator vessel is rated for full vacuum to 380 PSIG at 194°F and includes extensive process, instrumentation, and safety connections. Construction features heavy-wall nozzles, reinforced manway assembly, support legs, davit arm assembly, lifting lugs, and oxygen-cleaned internal surfaces with neoprene gasket protection for shipment.
The engineering package includes ASME stress calculations, nozzle reinforcement analysis, hydrostatic test verification, structural support calculations, wind and seismic analysis documentation.
Specifications
General Information
- Manufacturer: CECO Peerless
- Type: Vertical Oxygen Separator Vessel
- PMC Part Number: VGSP-42I-380SS-001
- Drawing Number: 9558B-1
- Condition: Unused
- Construction Material: 316 Stainless Steel
- Orientation: Vertical
- Vessel Diameter: 42" ID
- Internal Capacity: Approximately 324 Gallons
Pressure & Temperature Ratings
- ASME Code: Section VIII Division 1, 2023 Edition
- MAWP:
- 380 PSIG at 194°F
- MAP:
- 380 PSI at 100°F
- MDMT:
- -4°F at 380 PSI
- Vacuum Rating:
- Full Vacuum
- Hydrostatic Test:
- 494 PSI for 1 Hour
- PWHT Required: No
- Radiography Requirement: RT1
Vessel Construction
- Shell Material:
- SA-240-316 Stainless Steel
- 1/2" Thick
- Head Type:
- 2:1 Ellipsoidal Heads
- Head Thickness:
- 1/2"
- 0.4024" Minimum Formed Thickness
- Support:
- Four Support Legs
- Additional Features:
- Reinforced Manway Assembly
- Lifting Lugs
- Davit Arm Assembly
Connections & Nozzles
- 2" Inlet Nozzle
- 2" Liquid Inlet Nozzle
- 2" Outlet Nozzle
- 3" Liquid Outlet Nozzle
- 3" Drain Nozzle
- 2" Gas Purging Connection
- 1" DPIT Connection
- 1" Pressure Indicator Connection
- 1" Vent Connection
- 1" Relief Valve Connection
- Dual 3/4" Level Gauge Connections
- Dual 1" Level Controller Connections
- Four 1" Level Switch Connections
- 18" Class 300 Manway
Cleaning & Finish
- Internal Surfaces:
- Oxygen Cleaned
- Shipment Protection:
- Neoprene Gaskets
- Flange Covers Installed
- Exterior Finish:
- Cleaned
- De-scaled
- Sugar Blast Coating
Weights
- Empty Weight:
- Approximately 2,412 lbs
- Operating Weight:
- Approximately 5,154 lbs
- Hydrotest Weight:
- Approximately 5,163 lbs
Engineering Documentation Included
- ASME VIII Division 1 Stress Calculations
- Nozzle Reinforcement Analysis
- Hydrostatic Test Verification
- Wind & Seismic Analysis
- Structural Support Calculations
Applications
- Oxygen separation systems
- High-pressure oxygen service
- Deflagration control
- Gas processing
- Industrial gas storage
- Cryogenic process systems
- Chemical processing
- Specialty gas handling
- Pressure containment
- Process safety systems
