Unused 2,000 Gallon 316 Stainless Steel Process Tank with Side Scrape Mixer

Manufacturer Information:
TSI / Todd Street Inc. Stainless Steel Fabricators manufactures stainless steel tanks and process vessels for sanitary, industrial, and specialty processing applications. This listing identifies the tank as an unused TSI 2,000 gallon vertical 316 stainless steel agitated tank equipped with a counter-rotating anchor style agitator, side scrapers, and stainless steel agitator bridge.

Main Product Description:

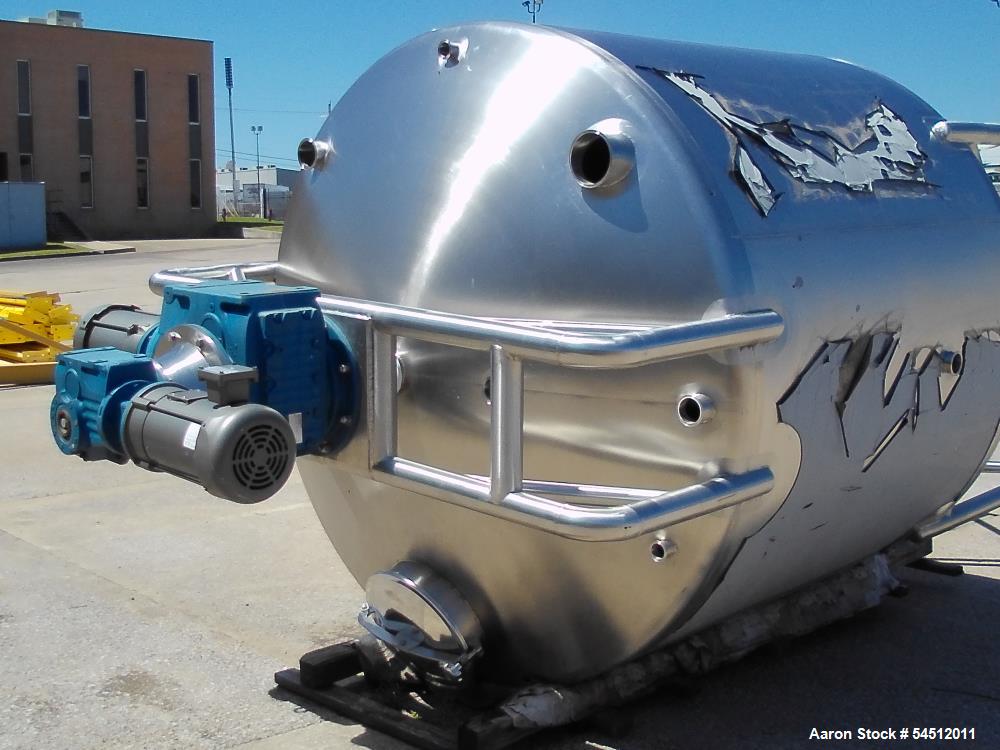

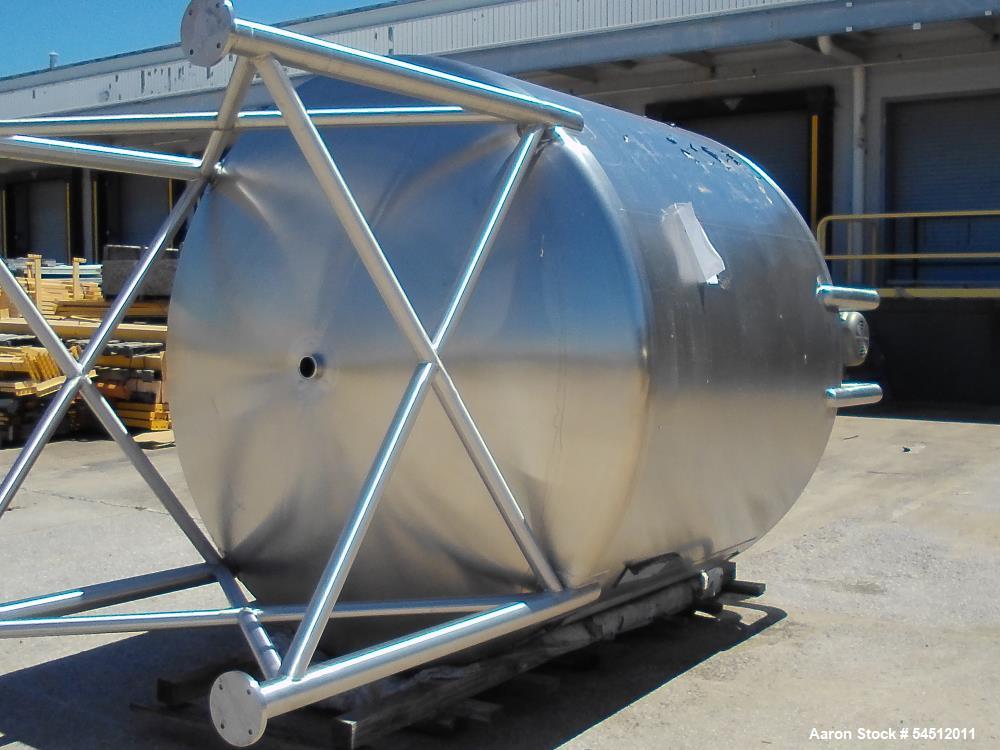

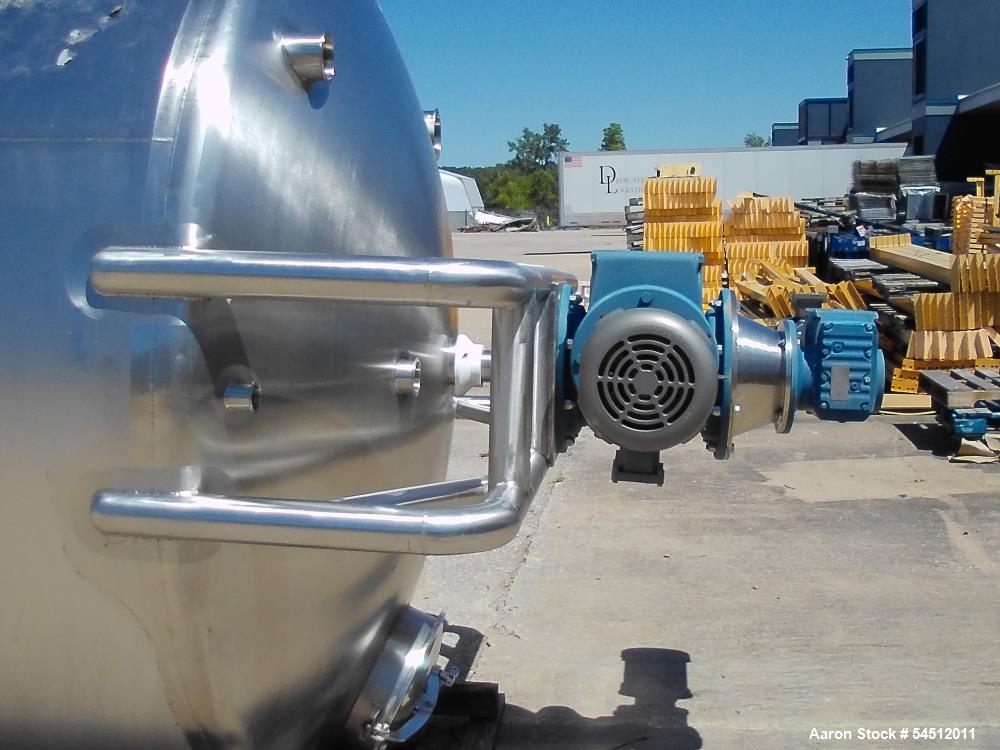

Unused TSI / Todd Street Inc. 2,000 gallon vertical 316 stainless steel agitated tank designed for mixing, blending, and processing liquid, semi-viscous, and specialty products. This vessel measures approximately 84" diameter x 72" straight side and features dished top and bottom heads, an 18" top manway, 3" center bottom outlet with approximately 56-1/4" discharge height, and four stainless steel support legs. The stainless steel top agitator bridge supports a top-entering counter-rotating anchor style agitator with side scrapers and inner flat bars, bottom supported, driven by listed 5//3 hp and 7.5//5 hp motors through a reducer with 8.48:1 ratio. Overall dimensions are approximately 84" x 96" x 192" tall, and a drawing is available.

Product Details:

• Stock number: 54512011
• Manufacturer: TSI / Todd Street Inc. Stainless Steel Fabricators
• Equipment type: vertical stainless steel agitated tank
• Capacity: 2,000 gallons
• Condition: unused
• Material of construction: 316 stainless steel
• Tank diameter: approximately 84"
• Straight side: approximately 72"
• Top head: dished
• Bottom head: dished
• Agitator bridge: stainless steel top agitator bridge

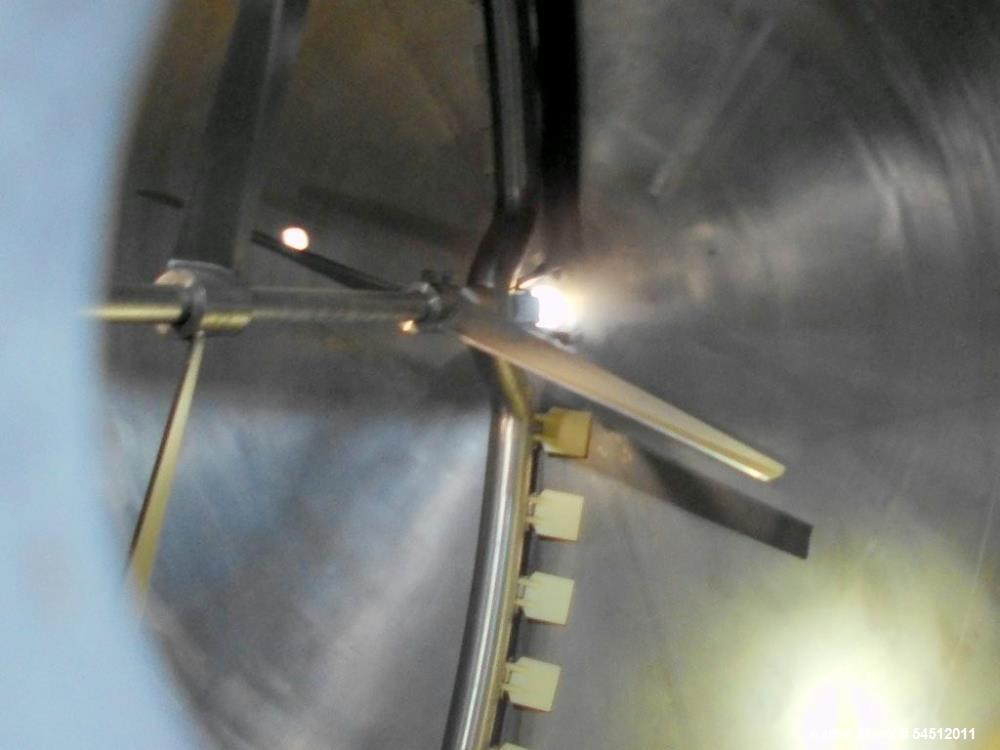

• Agitator type: top-entering counter-rotating anchor style agitator

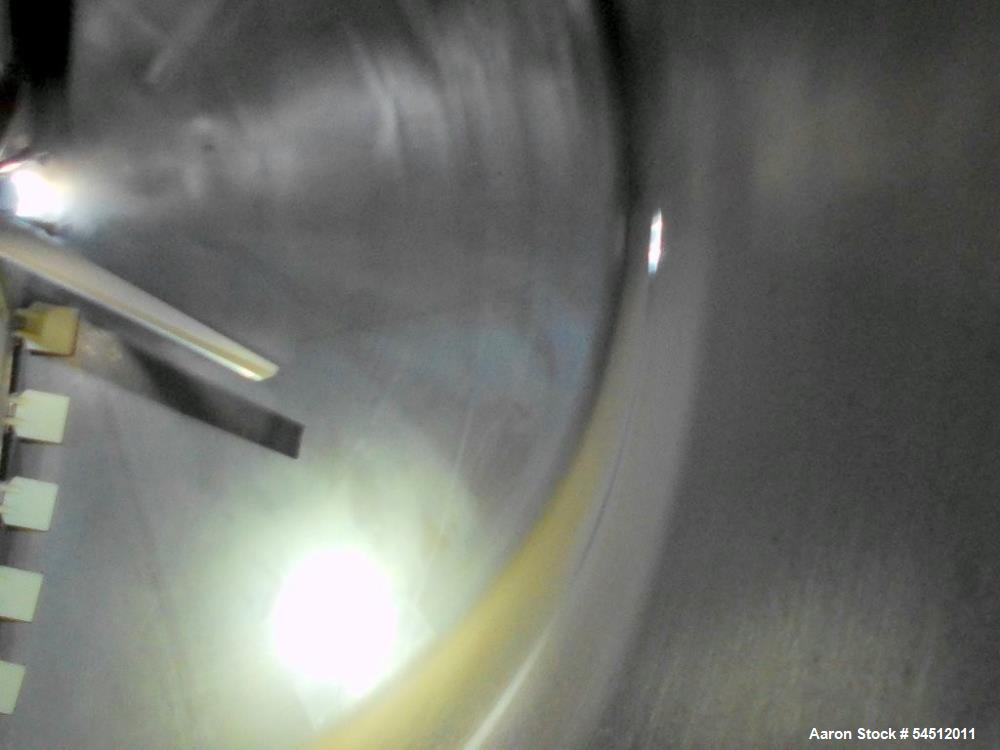

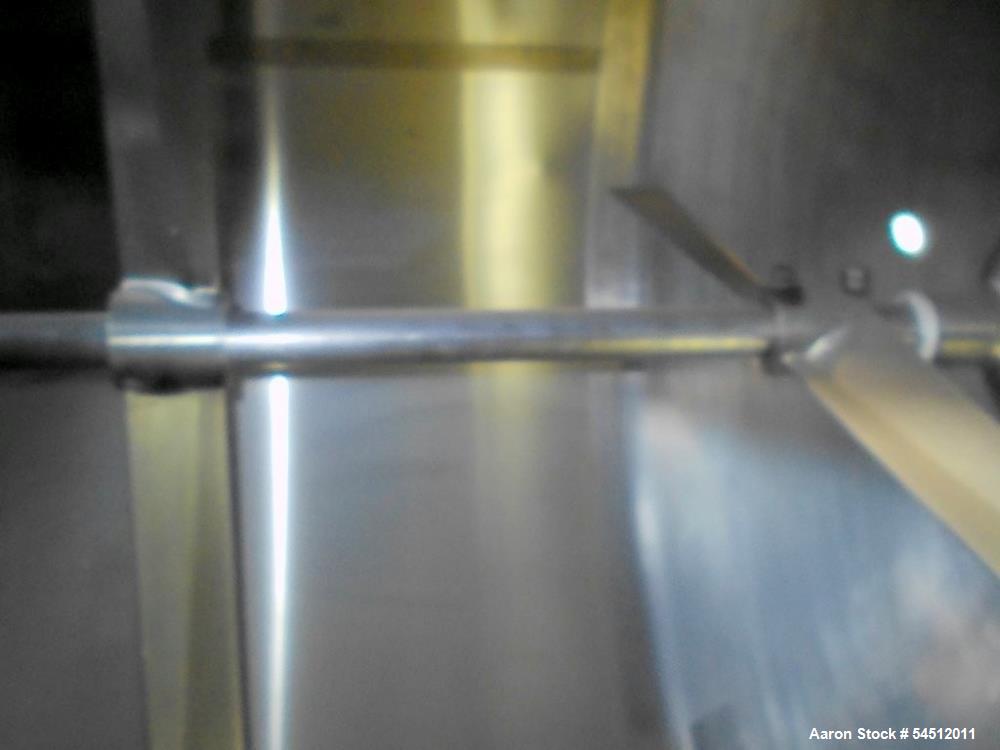

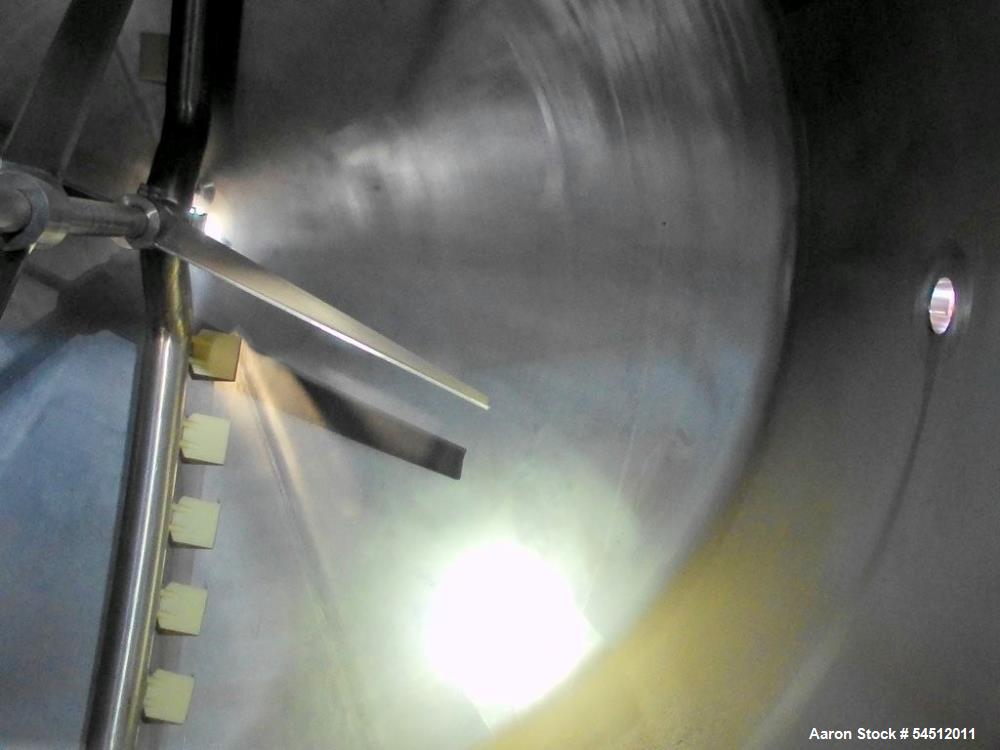

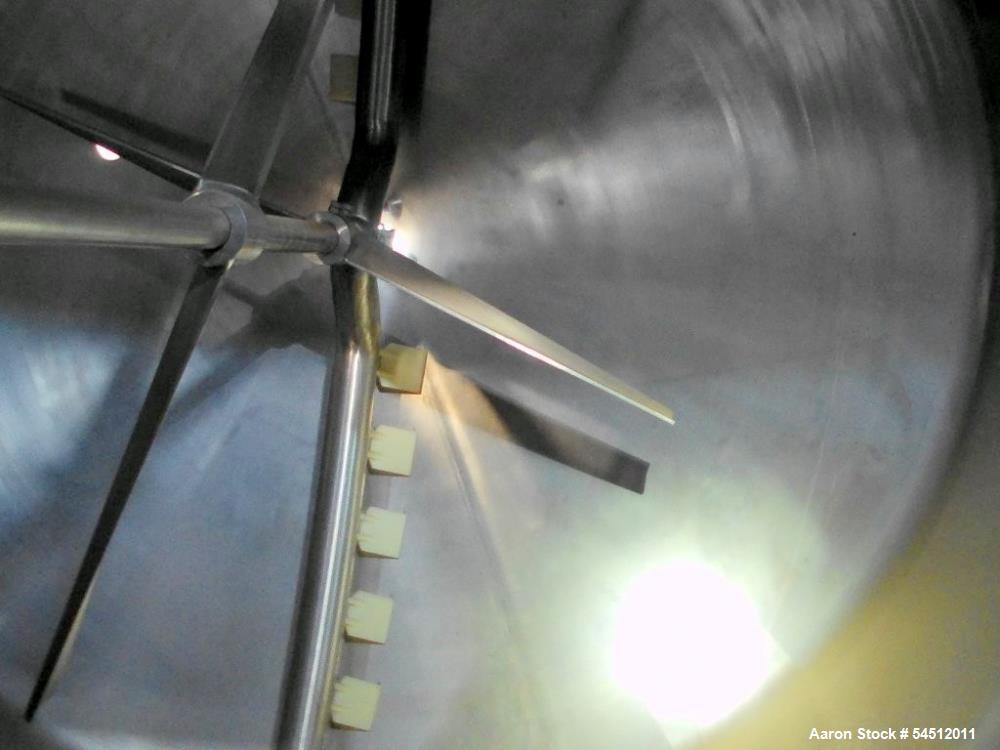

• Mixing features: side scrapers and inner flat bars
• Inner flat bars: 1/2" x 4"
• Agitator support: bottom supported

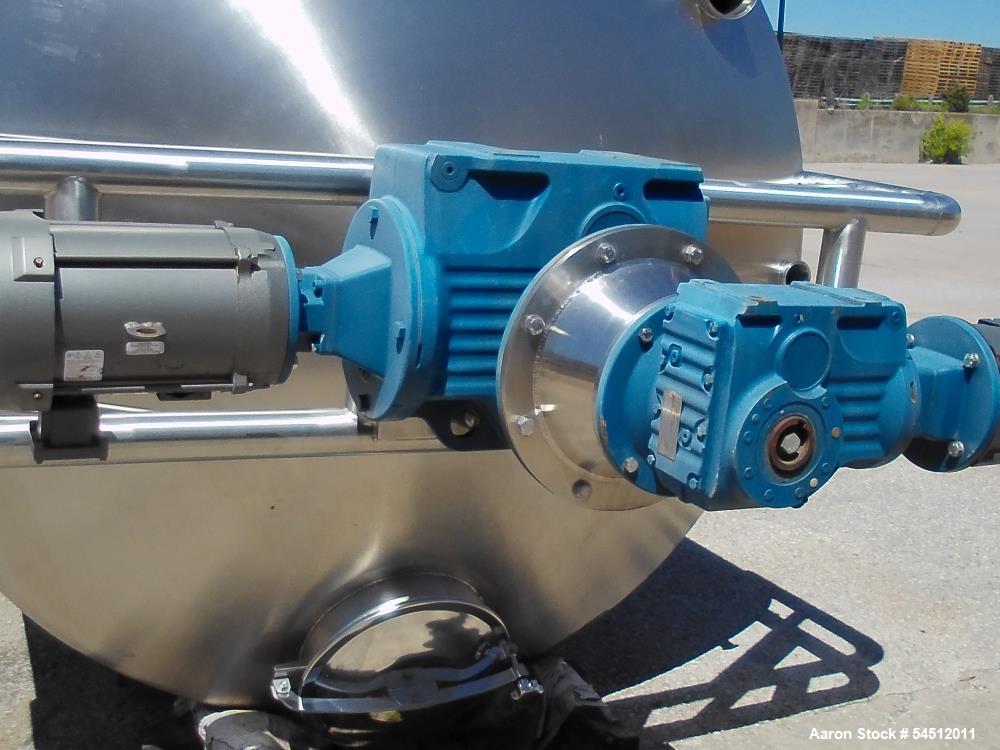

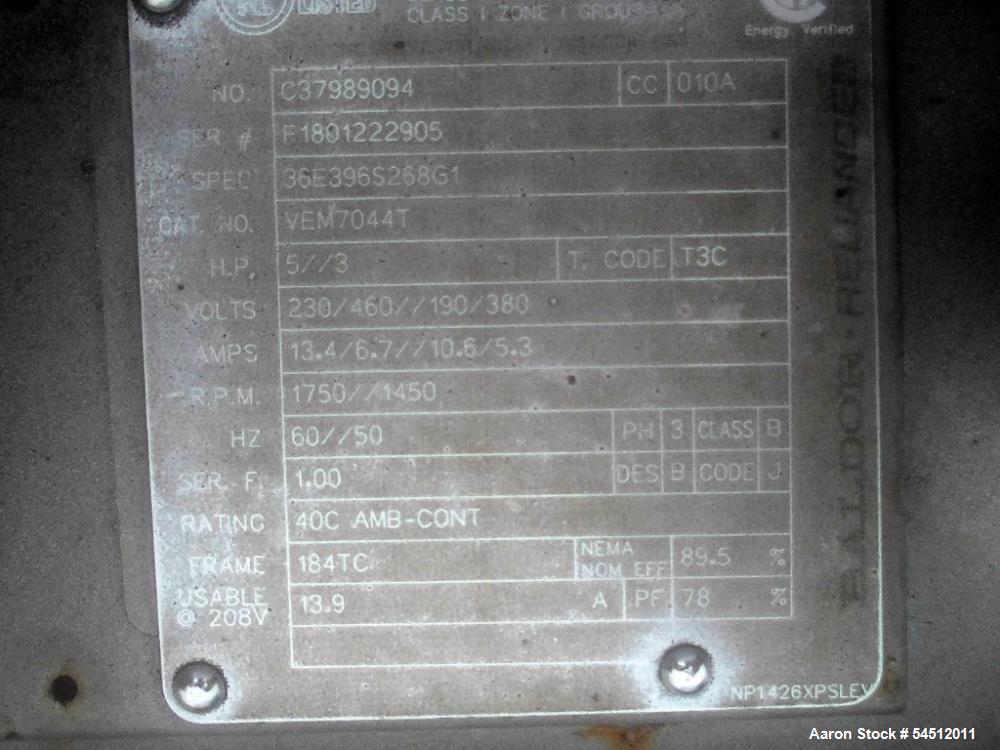

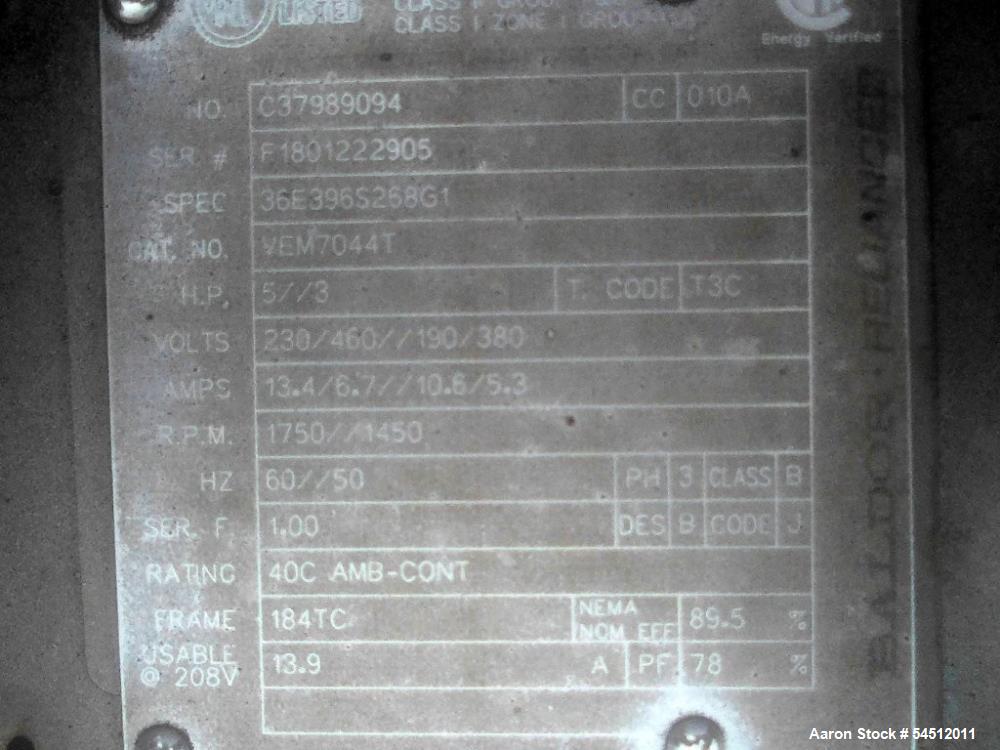

• Motor 1: 5//3 hp, 3 phase, 60//50 Hz, 230/460 - 190/380 volt, 1750/1450 rpm

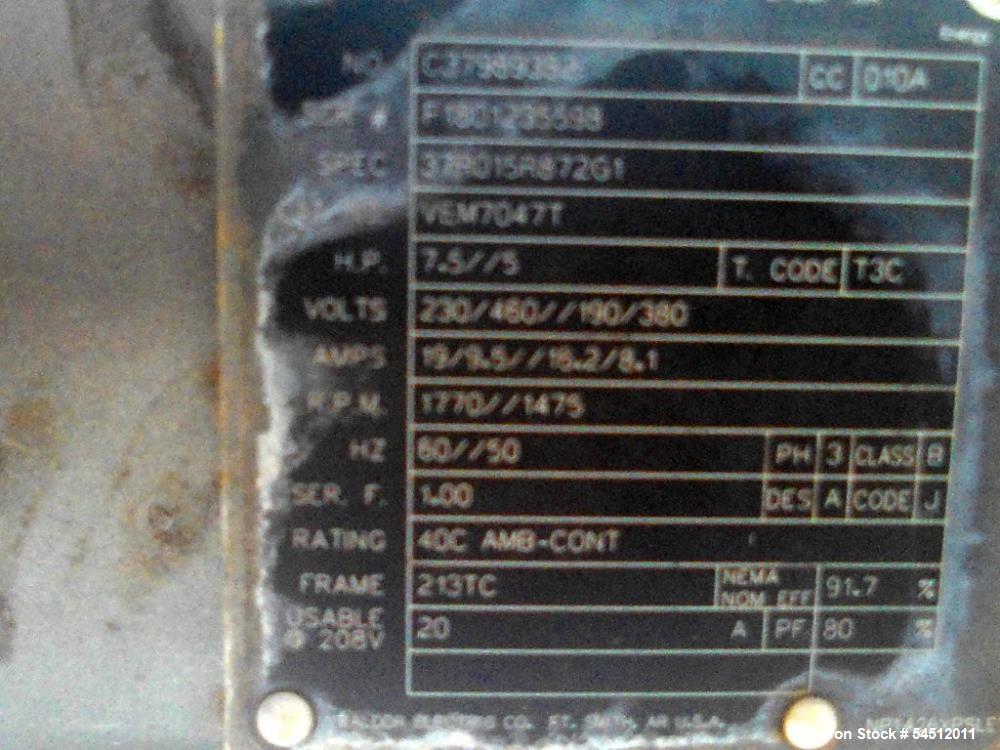

• Motor 2: 7.5//5 hp, 3 phase, 60//50 Hz, 230/460 - 190/380 volt, 1770/1475 rpm

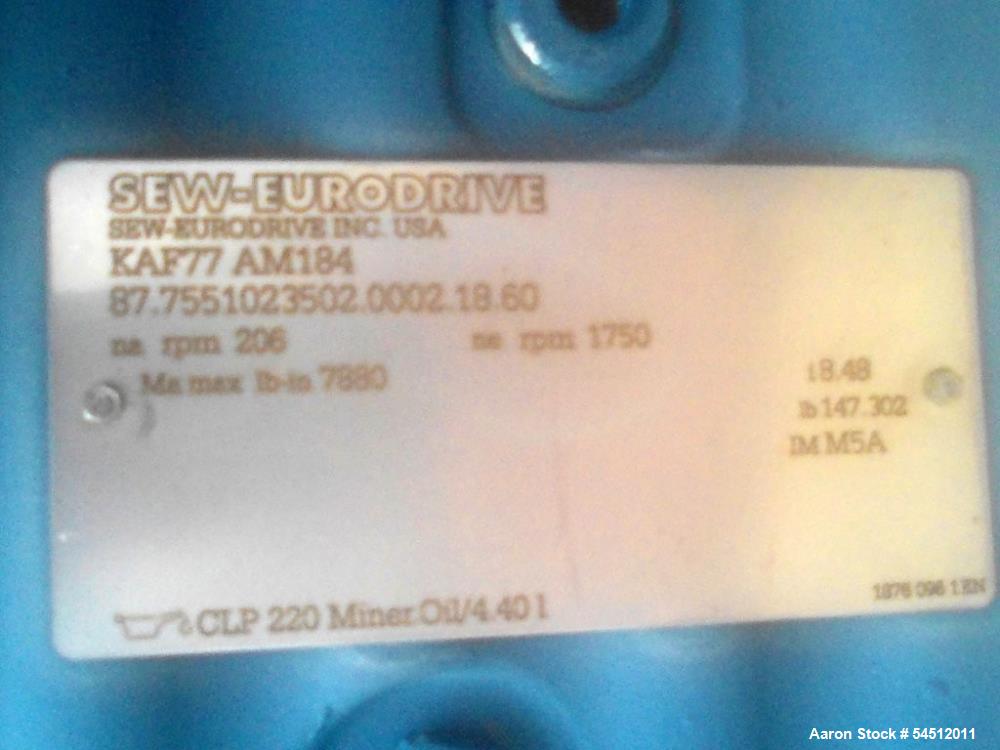

• Reducer ratio: 8.48:1

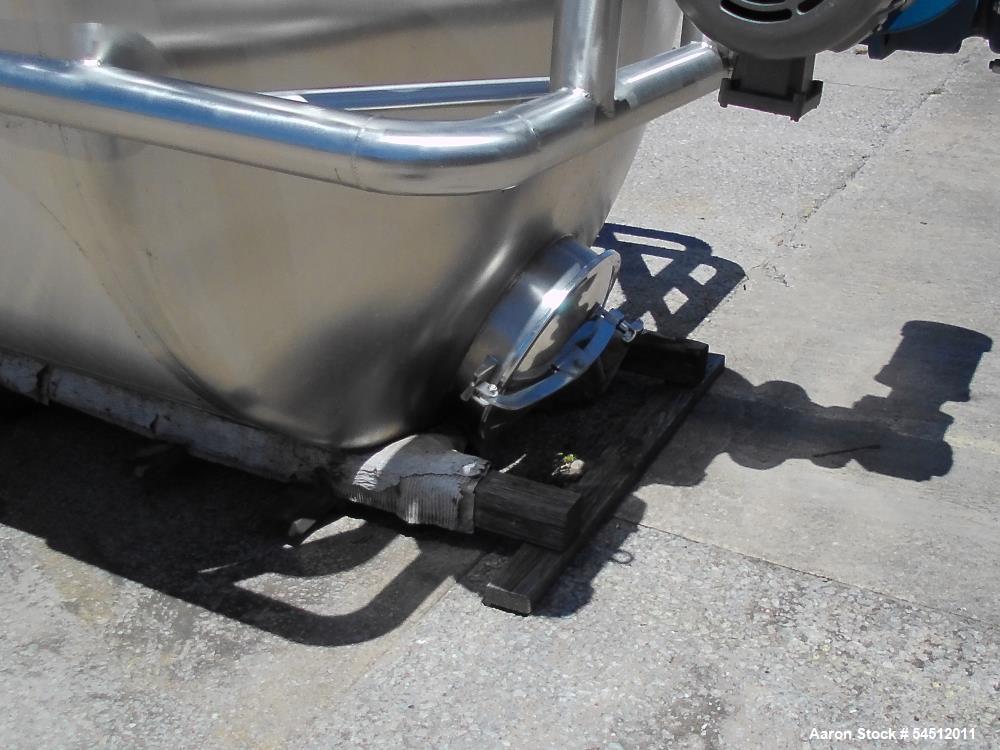

• Top manway: 18"
• Bottom outlet: 3" center bottom outlet
• Discharge height: approximately 56-1/4"

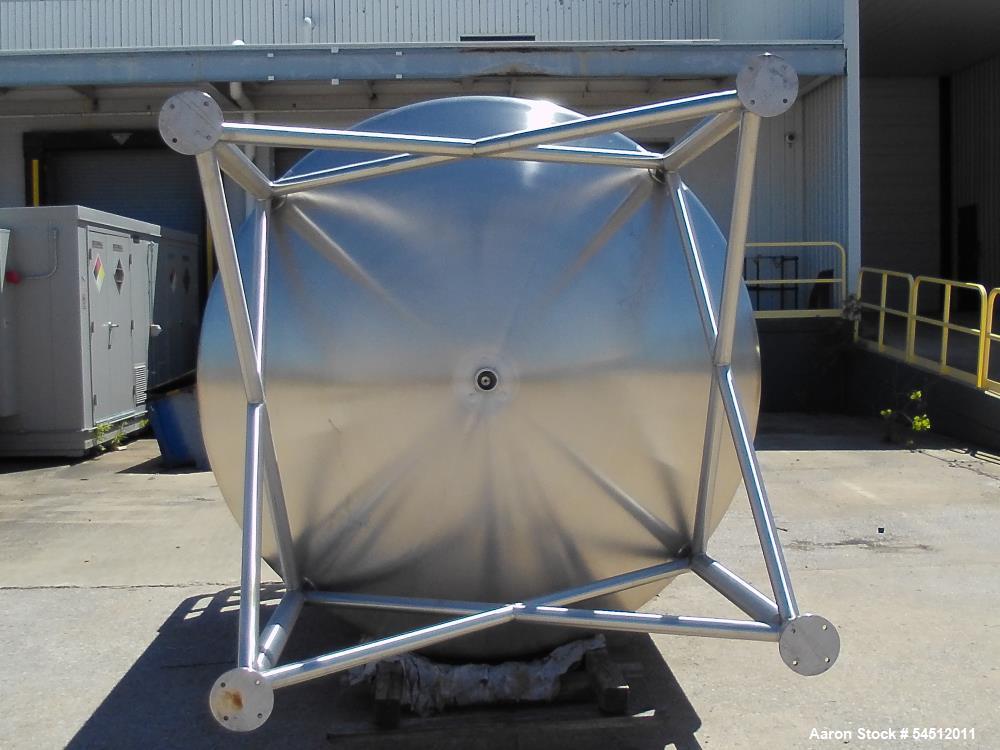

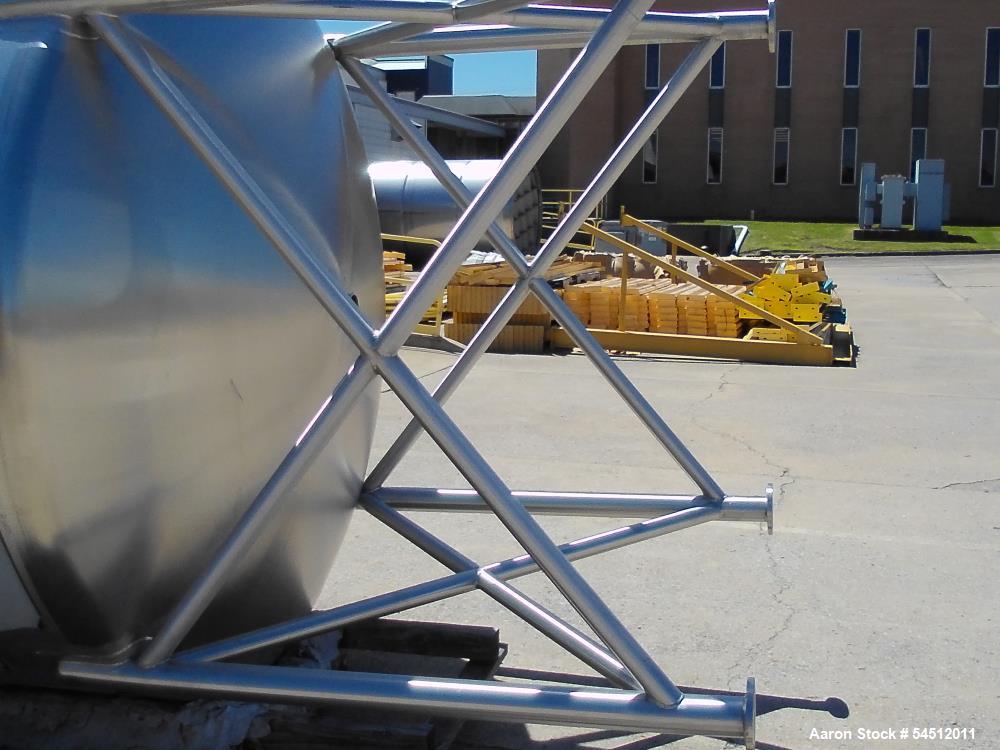

• Supports: mounted on four stainless steel legs
• Drawing: available
• Overall dimensions: approximately 84" x 96" x 192" tall
• Category: Tanks
• Subcategory: Stainless 1000-4999 Gal

Specifications:

• Manufacturer: TSI / Todd Street Inc. Stainless Steel Fabricators
• Capacity: 2,000 gallons
• Vessel orientation: vertical
• Construction: 316 stainless steel
• Condition: unused
• Diameter: approximately 84"
• Straight side height: approximately 72"
• Top head: dished
• Bottom head: dished
• Agitator: top-entering counter-rotating anchor style agitator
• Scraper design: side scrapers with inner flat bars
• Inner flat bar size: 1/2" x 4"
• Agitator bridge: stainless steel
• Agitator support: bottom supported
• Motor horsepower: 5//3 hp and 7.5//5 hp
• Electrical: 3 phase, 60//50 Hz, 230/460 - 190/380 volt
• Motor RPM: 1750/1450 rpm and 1770/1475 rpm
• Reducer ratio: 8.48:1
• Manway: 18" top manway
• Outlet: 3" center bottom outlet
• Discharge height: approximately 56-1/4"
• Legs: four stainless steel legs
• Overall dimensions: approximately 84" x 96" x 192" tall
• Drawing: available

Applications:

• Food processing
• Cosmetic processing
• Pharmaceutical processing
• Chemical processing
• Specialty product processing
• Liquid blending
• Viscous product mixing
• Batch mixing
• Emulsion preparation
• Cream and lotion blending
• Sauce and syrup processing
• Slurry mixing
• Product holding with agitation
• Side scrape mixing
• Heat-sensitive product processing, if heating/cooling features are confirmed separately
• Industrial process blending

Suitable Products / Materials:

• Food products
• Cosmetic creams
• Lotions
• Gels
• Sauces
• Syrups
• Liquid ingredients
• Semi-viscous products
• Pharmaceutical intermediates
• Chemical blends
• Specialty compounds
• Slurries
• Emulsions
• Pastes, if compatible with agitator design
• Products requiring wall scraping or improved vessel-side mixing

FAQs:

• WHAT IS THIS TSI 2,000 GALLON TANK USED FOR? This tank is used for mixing, blending, and processing liquid, semi-viscous, and specialty products in food, cosmetic, pharmaceutical, chemical, and industrial applications.
• IS THIS TANK USED OR UNUSED? The listing identifies this tank as unused.
• WHAT MATERIAL IS THE TANK MADE FROM? The listing states the tank is constructed of 316 stainless steel.
• WHAT TYPE OF AGITATOR DOES IT HAVE? The tank has a top-entering counter-rotating anchor style agitator with side scrapers and inner flat bars.
• DOES THE TANK HAVE SIDE SCRAPERS? Yes. The listing states the agitator includes side scrapers.
• WHAT IS THE TANK CAPACITY? The listed capacity is 2,000 gallons.
• WHAT ARE THE TANK DIMENSIONS? The tank is approximately 84" diameter x 72" straight side, with overall dimensions approximately 84" x 96" x 192" tall.
• WHAT TYPE OF HEADS DOES THE TANK HAVE? The listing states the tank has a dished top and dished bottom.
• WHAT OUTLET SIZE IS LISTED? The listing states the tank has a 3" center bottom outlet.
• IS A DRAWING AVAILABLE? Yes. The listing states a drawing is available.
