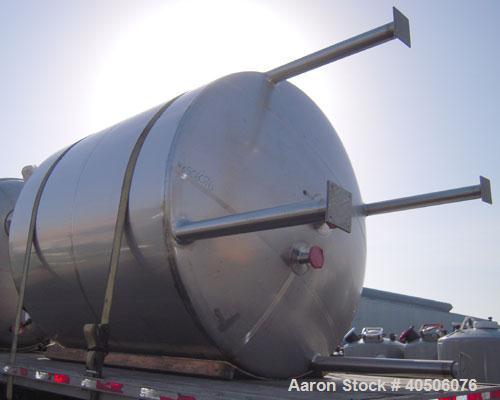

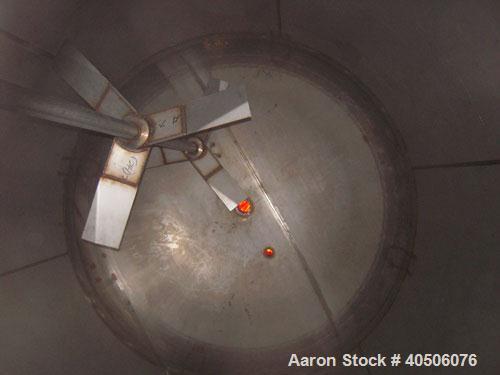

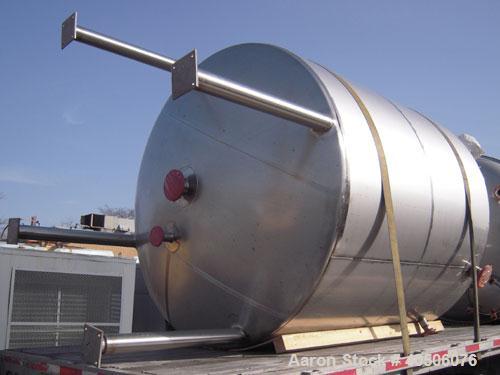

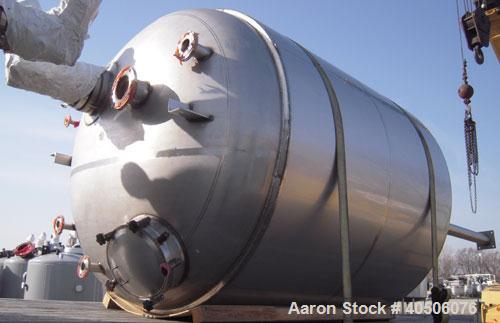

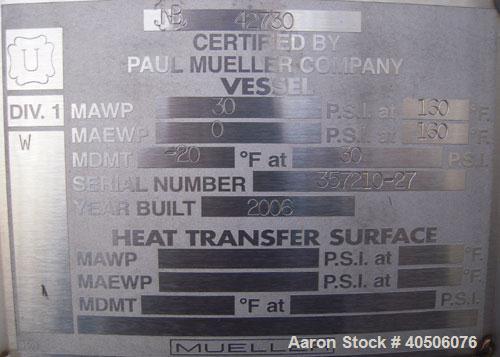

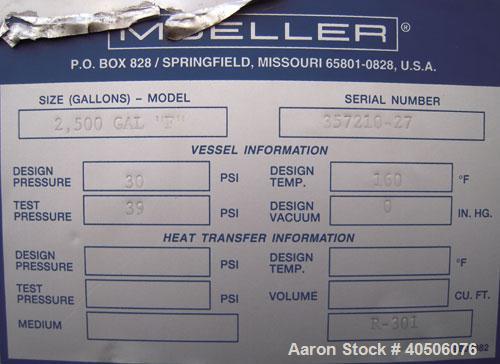

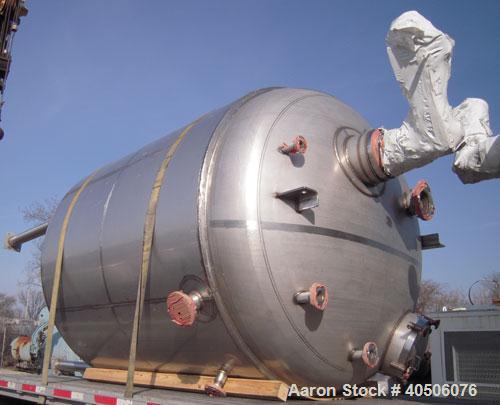

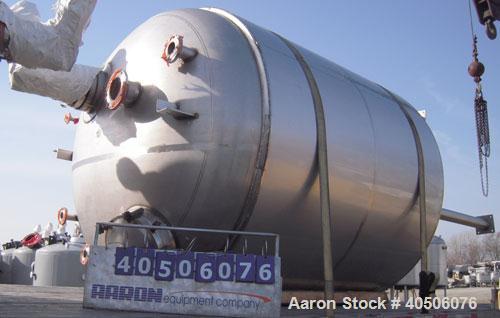

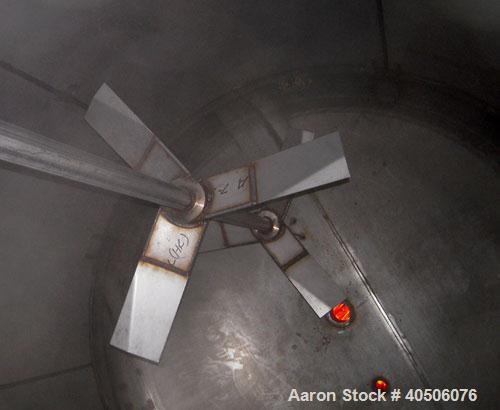

Unused- Mueller Pressure Tank, 2,500 Gallon, Model "F", 304L stainless steel, vertical. 90" diameter x 79" straight side, 2:1 elliptical top and bottom. Internal rated 30 psi at 160 deg F and -20 deg F at 30 psi. Insulated with foamglas and stainless steel sheathing. Off center top entering agitator with double mechanical seal assembly. 2" diameter x 113" long shaft with (2) 36" diameter 3 blade impellers, driven by a 5 hp, 3/60/230/460 volt gearmotor, approximate 101 output rpm, designed for viscosity of 25 cP. Openings: top 1", (2) 2", 3", 6", 8" drive, 18" manway with cover; side 2", 4"; bottom 2", 4" center. (2) top mounted lifting lugs. Mounted on 4 stainless steel legs, approximate 30" discharge height. Serial #357210-27, National Board #42730, built 2006.
Unused- Mueller Pressure Tank, 2,500 Gallon, Model "F", 304L stainless steel, vertical. 90" diameter x 79" straight side, 2:1 elliptical top and bottom. Internal rated 30 psi at 160 deg F and -20 deg F at 30 psi. Insulated with foamglas and stainless steel sheathing. Off center top entering agitator with double mechanical seal assembly. 2" diameter x 113" long shaft with (2) 36" diameter 3 blade impellers, driven by a 5 hp, 3/60/230/460 volt gearmotor, approximate 101 output rpm, designed for viscosity of 25 cP. Openings: top 1", (2) 2", 3", 6", 8" drive, 18" manway with cover; side 2", 4"; bottom 2", 4" center. (2) top mounted lifting lugs. Mounted on 4 stainless steel legs, approximate 30" discharge height. Serial #357210-27, National Board #42730, built 2006.
