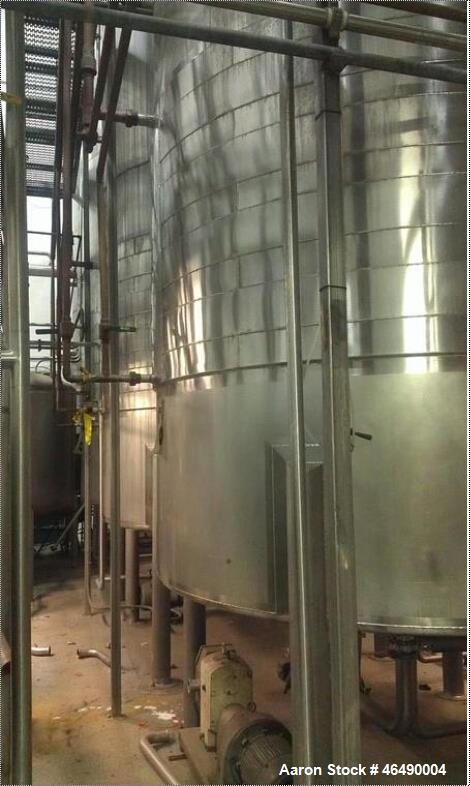

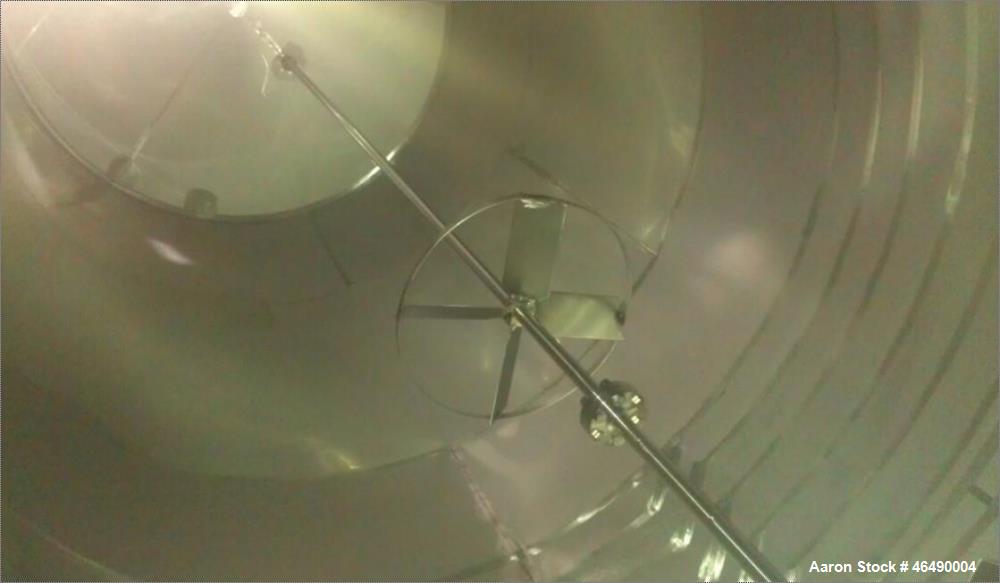

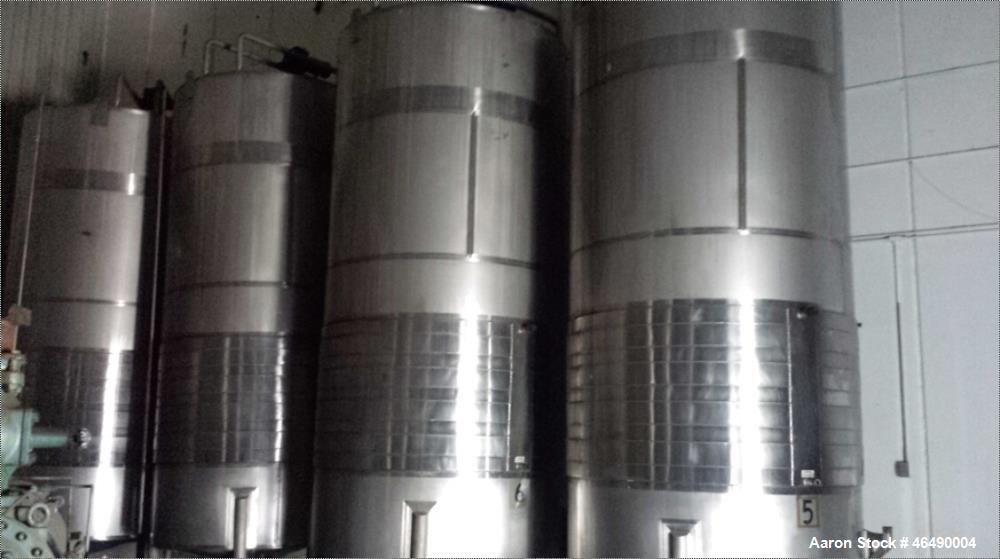

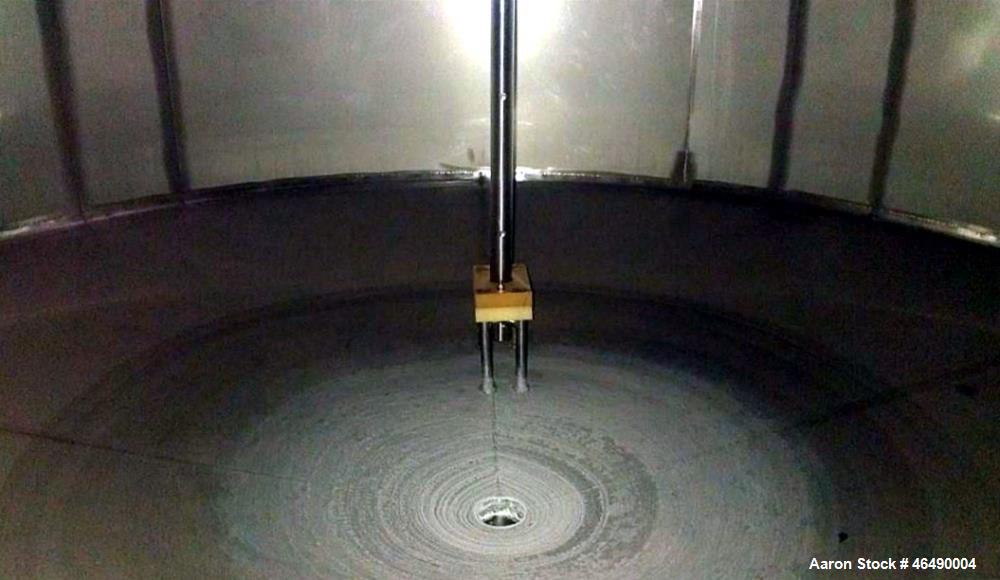

Used J.V. Northwest Tank, 4500 Gallon, 304 Stainless Steel, Vertical. 84" Diameter x 180" straight side, 15 degree coned top & bottom. Partial bottom sidewall channel cooling jacket approximate 46-1/2" wide rated 20 psi maximum. Off center fixed top agitator bridge with agitator. Approximate 1-1/2" diameter bottom supported shaft with a 4 blade turbine, driven by a 1hp, 3/60/230/460 volt gear motor, ratio 25 to 1, approximate 70 rpm output. Openings top 1-1/2" tri-clamp, 2" tri-clamp, 3" vent, 4" tri-clamp, 4" for agitator shaft, 20" man way. Side bottom 16" x 22" oval man way. 2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) stainless steel legs. Overall Height 22'3"
Used J.V. Northwest Tank, 4500 Gallon, 304 Stainless Steel, Vertical. 84" Diameter x 180" straight side, 15 degree coned top & bottom. Partial bottom sidewall channel cooling jacket approximate 46-1/2" wide rated 20 psi maximum. Off center fixed top agitator bridge with agitator. Approximate 1-1/2" diameter bottom supported shaft with a 4 blade turbine, driven by a 1hp, 3/60/230/460 volt gear motor, ratio 25 to 1, approximate 70 rpm output. Openings top 1-1/2" tri-clamp, 2" tri-clamp, 3" vent, 4" tri-clamp, 4" for agitator shaft, 20" man way. Side bottom 16" x 22" oval man way. 2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) stainless steel legs. Overall Height 22'3"
