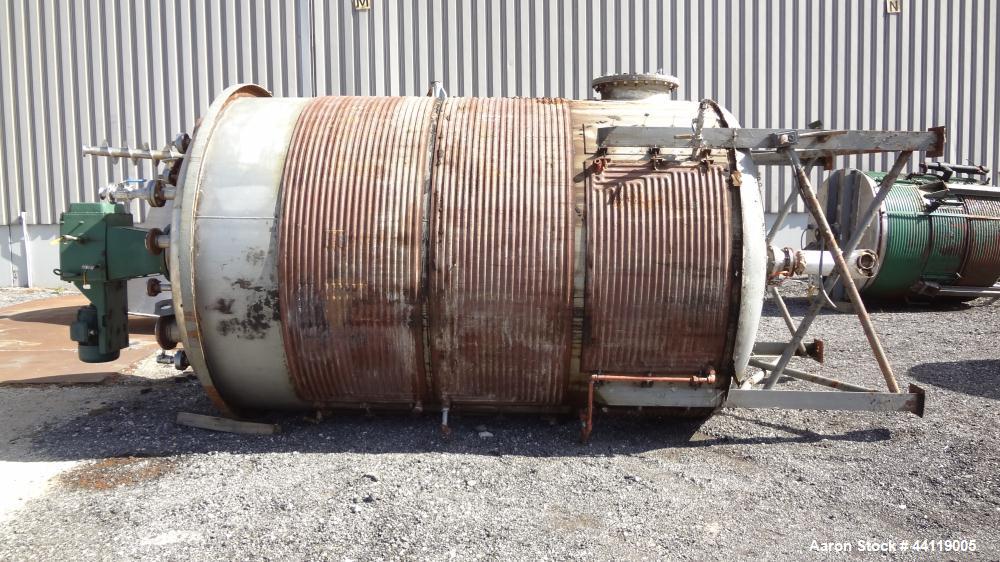

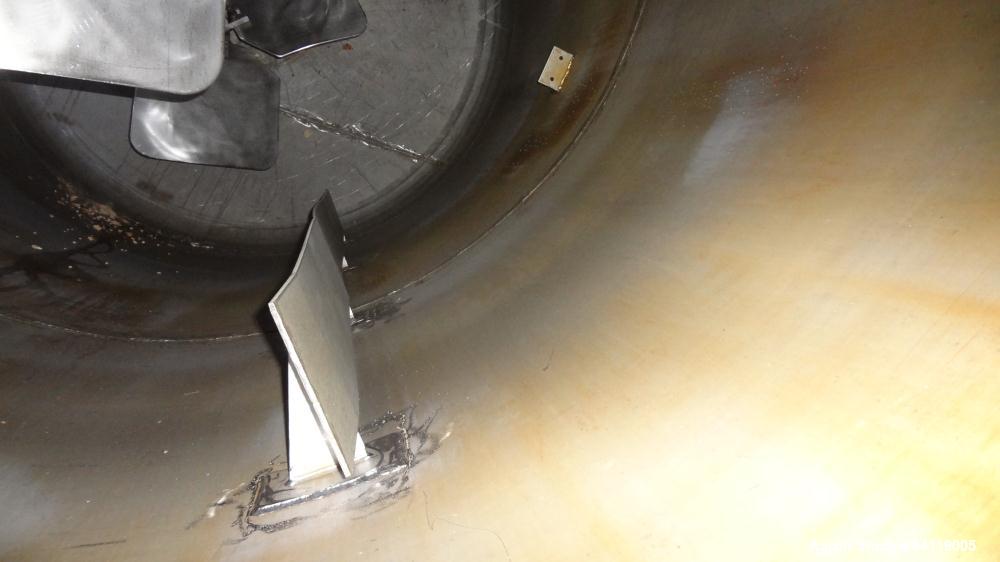

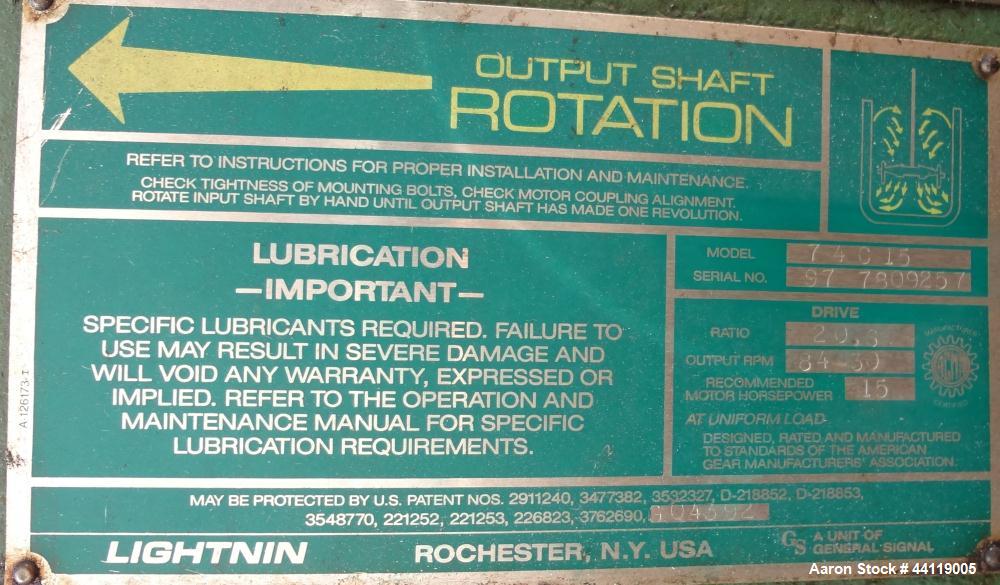

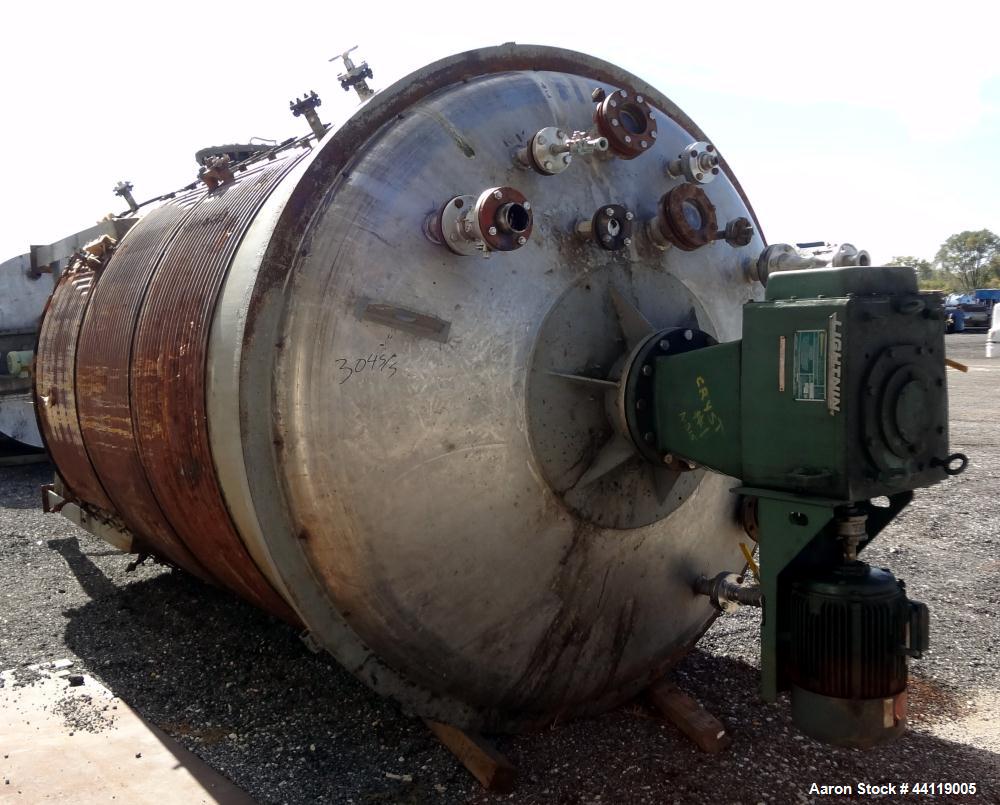

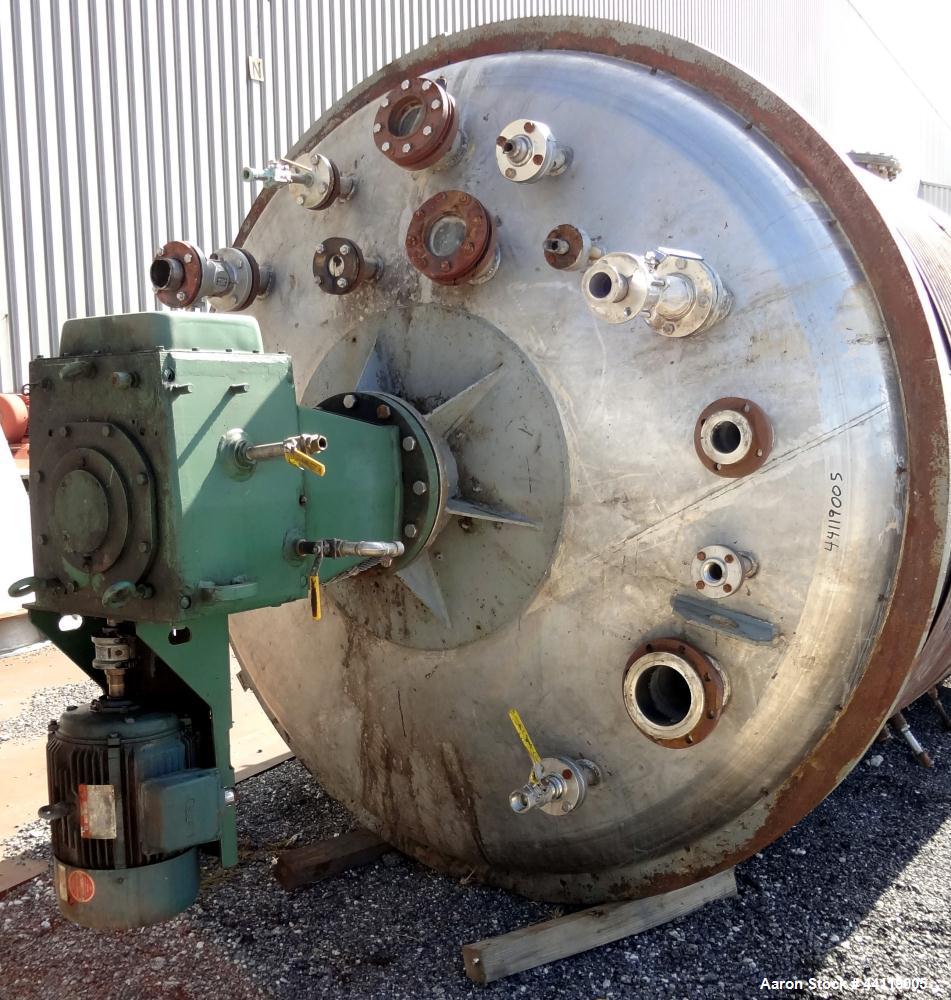

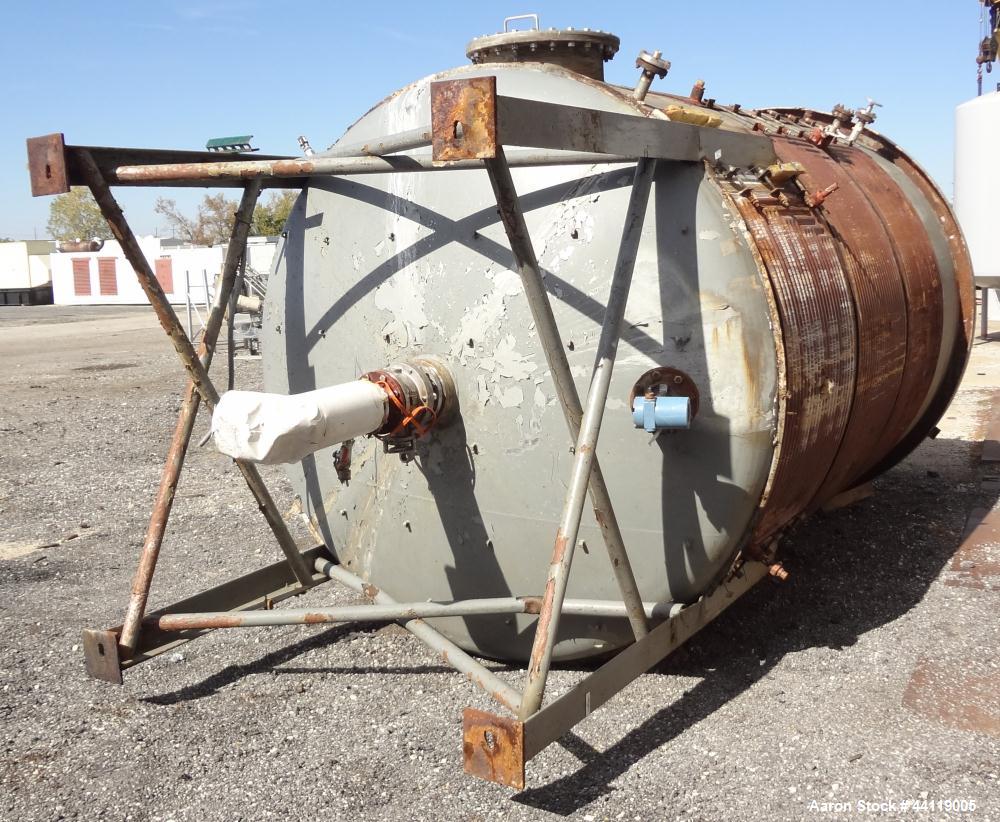

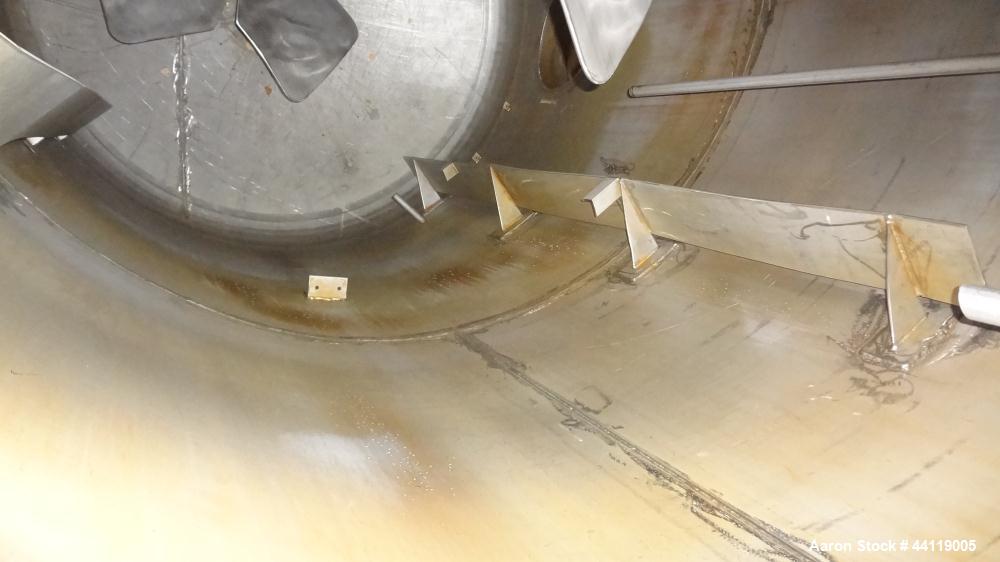

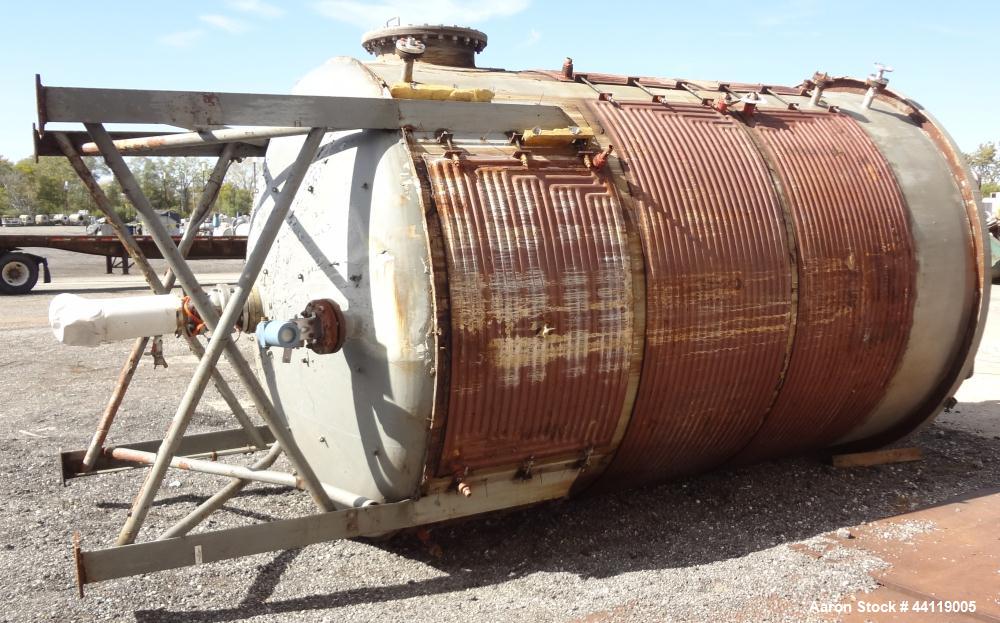

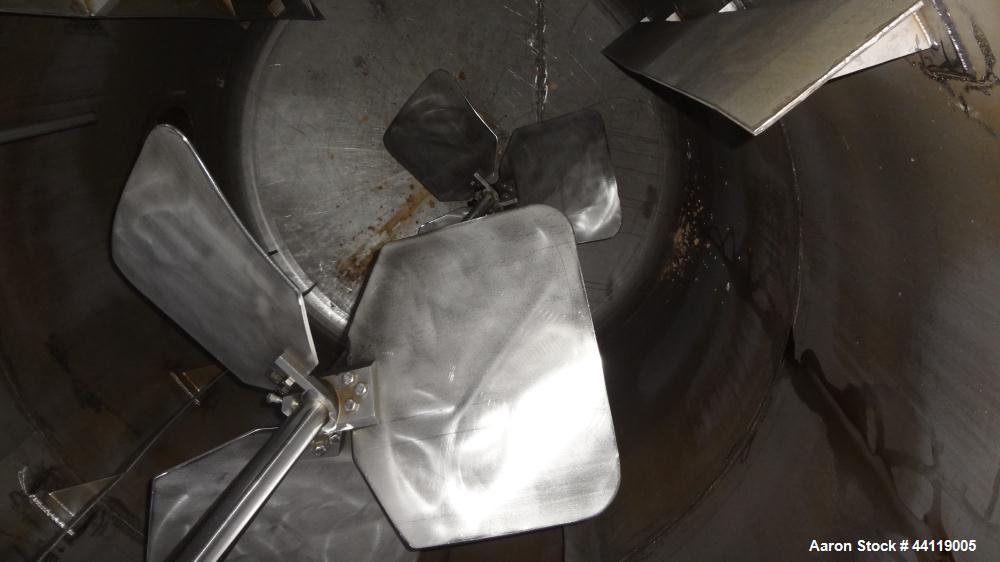

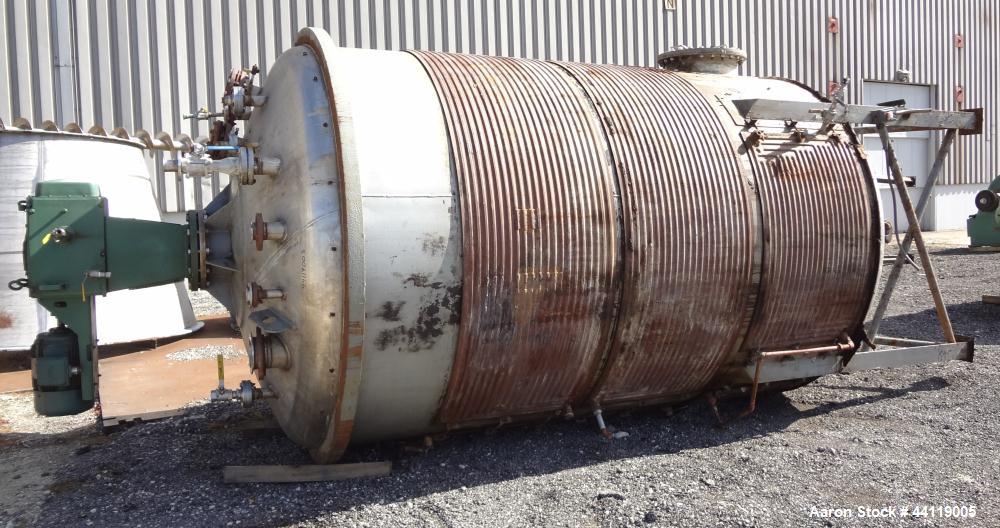

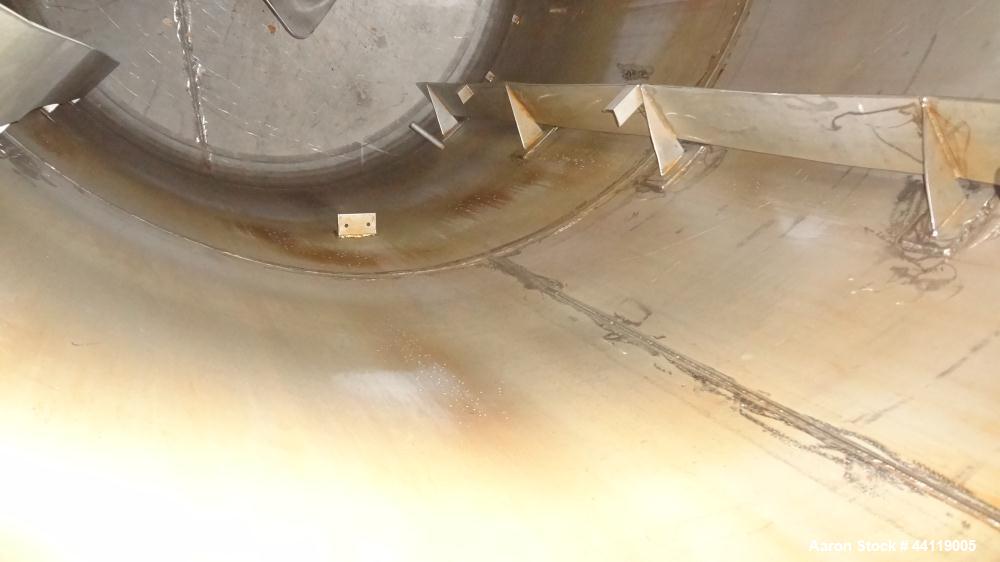

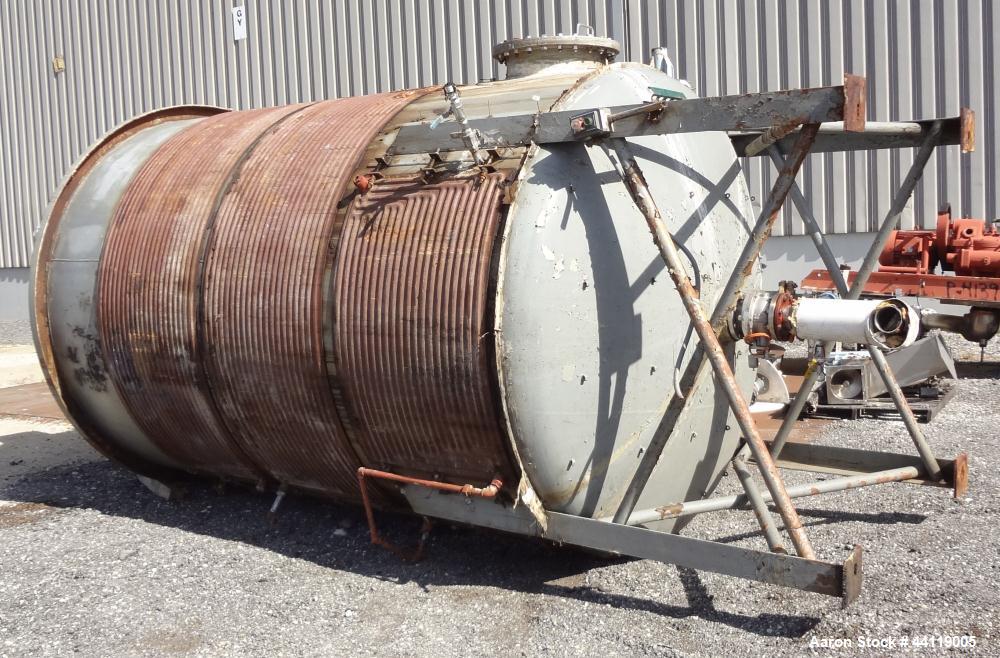

Used Imperial Steel Pressure Tank / Reactor, 4775 Gallon, 304 Stainless Steel, Vertical. 96" Diameter x 138" straight side, dished top and bottom. Internal rated 15 psi & Full Vacuum at 300 degrees F, Tranter strap on carbon steel panel coil jacket. Top entering Lightnin agitator, model 74C15, serial# 97/7809257, ratio 20.6 to 1, output rpm 84-30. Approximate 2” Diameter shaft with (2) 3 blade turbines, driven by a 15hp, 3/60/208-230/460 volt, 1765 rpm motor. (4) Sidewall baffles. Openings top 1-1/2”, (4) 2”, (3) 3", (2) 4” sight glass, 6”, 12” drive. Side bottom 20” man way with cover. 3” Center bottom outlet. Mounted on (4) carbon steel legs.
Used Imperial Steel Pressure Tank / Reactor, 4775 Gallon, 304 Stainless Steel, Vertical. 96" Diameter x 138" straight side, dished top and bottom. Internal rated 15 psi & Full Vacuum at 300 degrees F, Tranter strap on carbon steel panel coil jacket. Top entering Lightnin agitator, model 74C15, serial# 97/7809257, ratio 20.6 to 1, output rpm 84-30. Approximate 2” Diameter shaft with (2) 3 blade turbines, driven by a 15hp, 3/60/208-230/460 volt, 1765 rpm motor. (4) Sidewall baffles. Openings top 1-1/2”, (4) 2”, (3) 3", (2) 4” sight glass, 6”, 12” drive. Side bottom 20” man way with cover. 3” Center bottom outlet. Mounted on (4) carbon steel legs.
