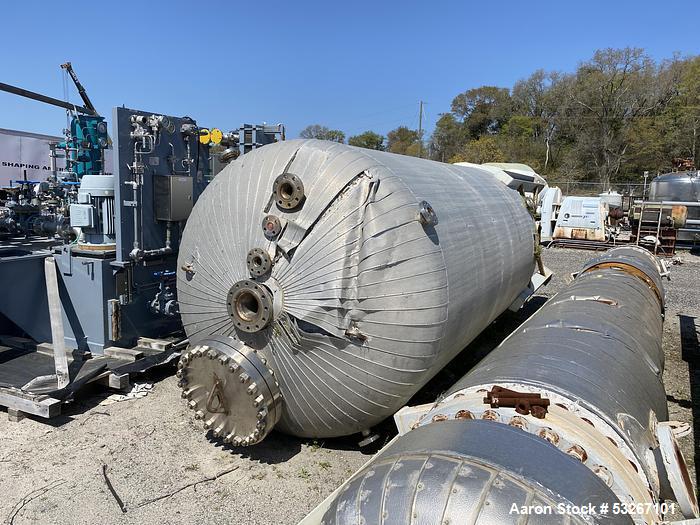

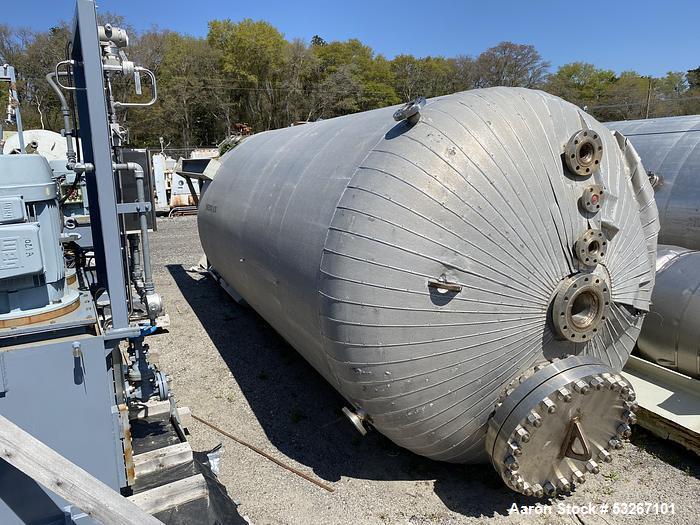

Used ExceleTech 2500 Gallon 304 Stainless Steel Vertical Pressure Tank – 430 PSI @ 450°F, 6' Dia x 12' Straight Side, Insulated

Manufacturer Info:

• Manufacturer: ExceleTech Inc.

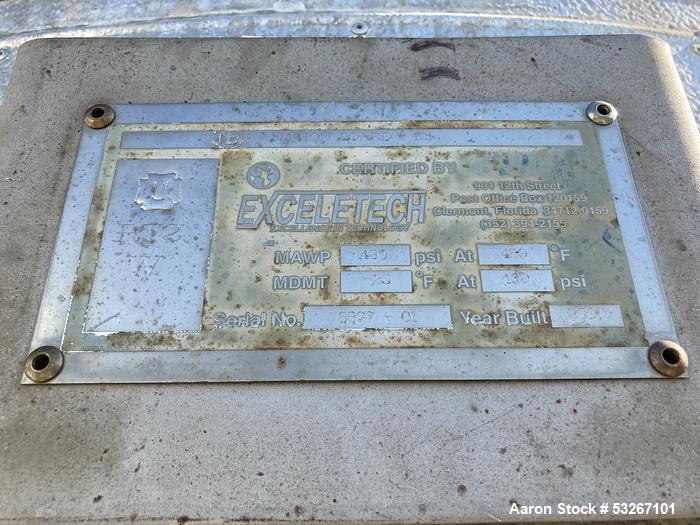

• Serial Number: 6377-01

• National Board #: 121

• Year Built: 2001

• Material: 304 Stainless Steel (product contact)

• Orientation: Vertical

• Mounting: (4) carbon steel legs

• Insulation: Insulated and wrapped with sheathing

Product Description:

This Used 2500 Gallon Vertical Pressure Tank by ExceleTech Inc. is a heavy-duty, high-pressure stainless steel vessel engineered for industrial process storage and handling. Constructed from 304 stainless steel, this vertical tank is rated for 430 PSI at 450°F, making it suitable for demanding thermal and pressure applications. The vessel features 1.25" thick shell walls, with hemispherical heads—1" thick bottom, 1.375" top—for structural integrity and thermal stability.

With a 6-foot diameter and 12-foot straight side, this tank includes multiple top fittings (including a 6" agitator nozzle) and a large 20" center bottom outlet. It also comes with twelve 2" side injection ports and an 18" manway for easy access. The tank is fully insulated and sheathed, and mounted on four robust carbon steel legs for secure, elevated installation.

Key Specifications:

• Capacity: Approx. 2,500 gallons

• Orientation: Vertical

• Dimensions: 6' diameter x 12' straight side

• Material: 304 Stainless Steel (product contact)

• Shell Thickness: 1.250"

• Bottom Head Thickness: 1.000"

• Top Head Thickness: 1.375"

• Internal Rating: 430 PSI @ 450°F

• Head Style: Welded hemispherical heads

• Top Fittings:

  • 18" manway

  • (1) 1" nozzle

  • (1) 2" nozzle

  • (1) 3" nozzle

  • (1) 6" agitator nozzle

• Bottom Outlet: 20" center bottom

• Side Ports: (12) 2" injection ports

• Mounting: (4) carbon steel legs

• Insulation: Full tank insulation with external sheathing

• National Board #: 121

• Serial Number: 6377-01

• Year of Manufacture: 2001

• Condition: Used

Applications:

• Chemical process fluid storage

• Steam-pressurized mixing or holding tank

• Pharmaceutical or food-grade high-temp service

• Thermal fluid heating systems

• Biofuel and renewable chemical storage

• High-pressure gas or solvent recovery systems

• Reactor tank or slurry blending with heat/pressure

• Jacketed pressure tank environments (external heating)

• Specialty process media requiring temperature control

• Industrial water or condensate return under pressure

What Might This Be Used For?

This pressure-rated tank is ideal for industrial processes requiring high temperature and pressure, such as chemical blending, pharmaceutical media storage, or thermal processing. The robust stainless construction, thick shell/head dimensions, and multi-port access make it adaptable for injection, agitation, and temperature-sensitive processing.
