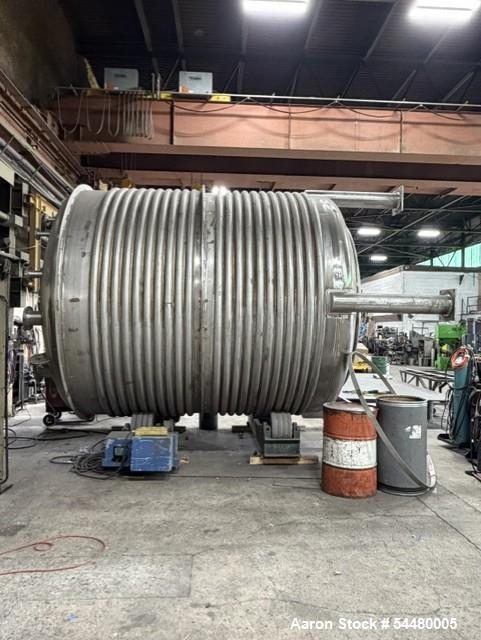

Unused Tolan Machinery 6,000 Gallon 316L Stainless Steel Reactor | #4 Polish Jacketed Process Vessel

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 6,000 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9514
Certification: National Board Certified

Description

Unused Tolan Machinery 6,000 gallon stainless steel reactor designed for high-pressure, vacuum, and temperature-controlled industrial processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this vessel is suitable for pharmaceutical, chemical, cosmetic, food, and specialty processing operations requiring corrosion resistance and sanitary construction.

The reactor features a half-pipe jacket on the shell and bottom head rated for full vacuum to 150 PSI at 350°F, allowing efficient thermal transfer for heating and cooling applications. The internal vessel is rated for full vacuum to 70 PSI at 350°F, supporting demanding reaction and mixing processes.

This unit includes a #4 polished interior finish for sanitary processing, mill finish exterior, 24” top manway, 12” agitator nozzle, and four internal baffles for improved product movement and mixing performance. Mounted on four heavy-duty legs and National Board certified, this reactor is engineered for large-scale industrial production environments.

Specifications

• Manufacturer: Tolan Machinery
• Capacity: 6,000 gallons
• Type: Jacketed reactor / pressure vessel
• Year Built: 2024
• Serial Number: 9514
• Certification: National Board certified

Vessel Construction

• Wetted Material: 316L stainless steel
• Non-Wetted Material: 304L stainless steel
• Internal Finish: #4 polish
• External Finish: Mill finish

Pressure & Temperature Ratings

Internal Vessel

• Rating: Full vacuum / 70 PSI
• Temperature Rating: 350°F

Jacket

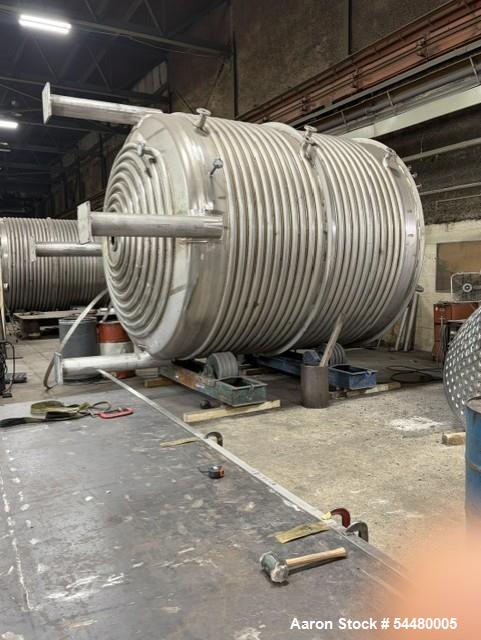

• Type: Half-pipe jacket (shell and bottom head)
• Rating: Full vacuum / 150 PSI
• Temperature Rating: 350°F

Dimensions

• Overall Diameter: 120”
• Vessel Height: 122”

Features

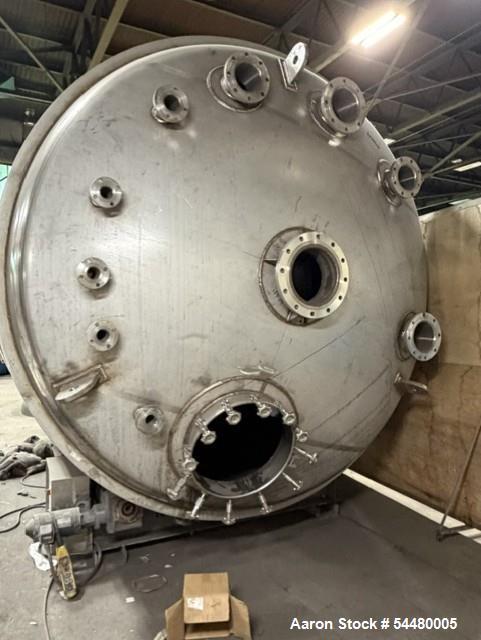

• 24” top manway
• 12” agitator nozzle
• (4) internal baffles
• (4) leg mounts

Applications

Ideal for large-scale blending, heating, cooling, emulsification, and pressure processing applications.

Products This Equipment Would Be Used For

• Pharmaceutical formulations
• Chemical compounds
• Cosmetic products
• Food ingredients
• Nutraceutical processing
• Adhesives and resins
• Specialty chemicals
• Biotech products
• Emulsions and slurries
• High-purity liquid processing
