Used 5,000 Gallon & Up Stainless Steel Reactors

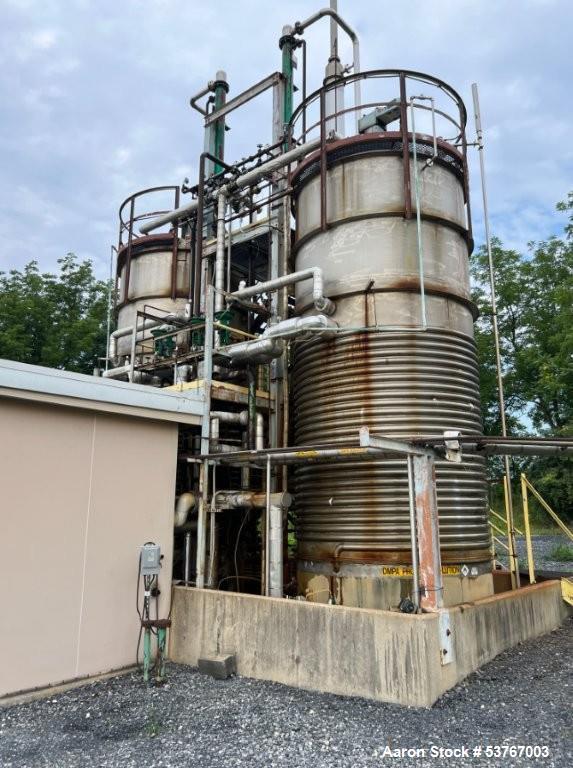

Stock# 53767003

Used 9,000 Gallon 316 SS Vertical Agitated Reactor | Half-Pipe Jacket | Full Vacuum | Internal Coil | Industrial Alloy Fabricators. Approx. 108" D x approx. 259" straight side. 6" D bottom outlet. Flat top and bottom. 15 PSI internal pressure. 300 degrees F internal temp. 50 PSI jacket pressure. 300 degrees F jacket temp. Half pipe/limpet jacket type. Full vacuum internal. 304 stainless steel jacket. Has internal coil. Has (4) sidewall mounted, full-length straight baffles. Wide sweep impeller. Two-tier, (3) blade agitator. 2.5 HP, 37 RPM drive. 1.5HP, 1155 RPM motor. NB 2033. Mounted on skirt. Built 1992.

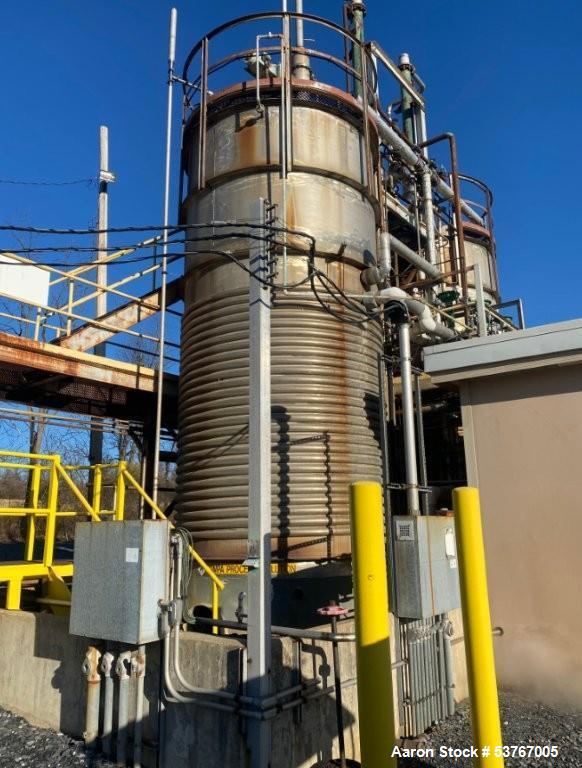

Stock# 53767005

Used 9,000 Gallon 316 Stainless Steel Jacketed Reactor with Internal Coil & Agitation | Industrial Alloy Fabricators. Stainless Steel 316. Approx. 108" D x approx. 259" straight side. 6" D bottom outlet. Dish top and bottom. 15 PSI internal pressure. 300 degrees F internal temp. 50 PSI jacket pressure. 300 degrees F jacket temp. Half pipe/limpet jacket type. Full vacuum internal. 304 stainless steel jacket. Has internal coil. Has (4) sidewall mounted, full-length straight baffles. Wide sweep impeller. Two-tier, (3) blade agitator. 2.5 HP, 37 RPM drive. 1.5HP, 1155 RPM motor. NB 2032. Mounted on skirt. Built 1992.

Stock# 14191139

Unused 304L Stainless Steel Reactor, 9100 Gallon Capacity. Manufactured by Borghi Srl. 8200 gallon working capacity. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. Half pipe jacketed on bottom half of shell and bottom head. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. (4) Lug mounted. Does not include motor and agitator. 20" top manway. Diameter 9.84 ft x height 19.03 ft. Weight 21,605 lb. National Board and PED (Double certification). Serial #PP052B, NB #5. Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

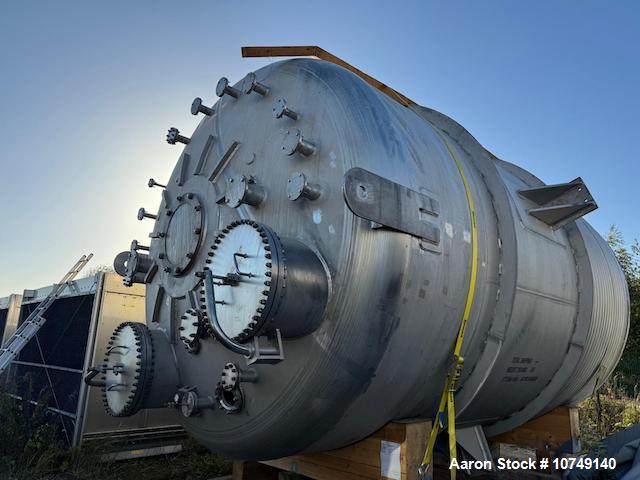

Stock# 10749135

Used 11,360 Gallon Kunshan Bexcelle Special Equipment 316L Stainless Steel Horizontal Pressure Vessel. On saddle supports. Shell rated MAWP FV/45 psi at 482 deg. F. MDMT -20 deg. F. at FV/45 psi. (4) Top mounted lifting lugs. Openings: Top 1", 1.5", (2)2", (4)3", 4", (3)10", 24" manway with davit. Sides & Heads 1.5", 2", 24" manway with davit. Bottom (2)2". Alloy :S. Diameter- 120" / Length- 192". Shell PSI :45. Full Vacuum. Shell Temp. Deg. F: 482. Code: NB. Wall :13/32". No Agitation. Top Head: Dished. Bottom Head: Dished.

Stock# 14191140

Unused 316L 12480 gallon Stainless Steel Reactor with Jacket and Double Internal Coils. Manufactured by Over Srl. Internal MAWP 87 psi @ 400 degrees F. Halfpipe jacket MAWP 174 psi @ 400F. (1) 1" Internal Coil MAWP 174PSI/FV@400F. (1) 2" Internal Coil rated MAWP 174PSI/FV@400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). NB #26, Serial #918-1. Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Stock# 14191141

Unused 316L Stainless Steel Reactor with Jacket and Double Internal Coils, 12480 gallon. Manufactured by Over Srl. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. (1) 1" Internal Coil MAWP 174PSI/FV@400F. (1) 2" Internal Coil rated MAWP 174PSI/FV@400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). NB #27, Serial #918-2. Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Stock# 14191142

Unused Stainless Steel Reactor, 12500 Gallon. Manufactured by Over. 316L stainless steel construction. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. 2" Internal Coil rated MAWP 174PSI/FV @ 400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). Built 2024. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Stock# 14191143

Unused 316L Stainless Steel 12500 Gallon Reactor. Manufactured by Over srl. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. 2" Internal Coil rated MAP 174PSI/FV @ 400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Stock# 14191138

Unused 13200 gallon 304L Stainless Steel Reactor. Manufactured by Borghi srl. 12500 gallon working capacity. Internal MAWP 87 psi @400F. Halfpipe MAWP 174 psi @400F. Half Pipe on bottom half of shell and bottom head. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. (4) Lug mounted. Does not include motor and agitator. 20" top manway. Dimensions 11.15 ft Dia x 19.69 ft tall. Weight 28660. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
