Unused Tolan Machinery 6,000 Gallon 316L Stainless Steel Reactor | Heavy Duty Jacketed Pressure Vessel

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 6,000 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9512

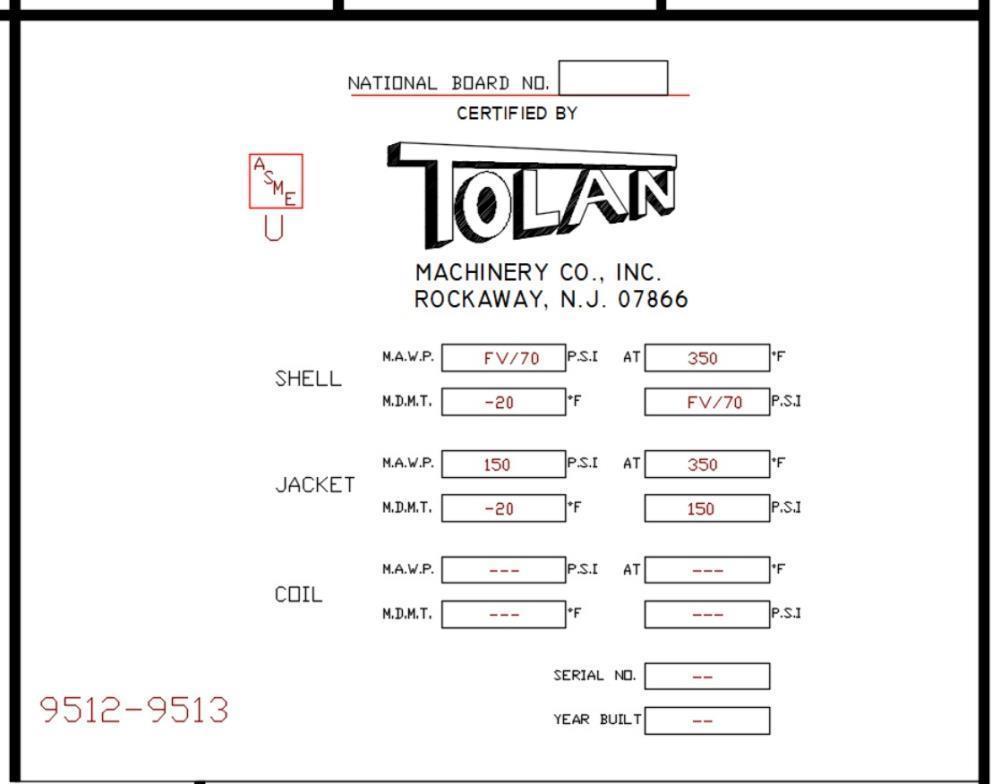

Certification: National Board Certified

Description

Unused Tolan Machinery 6,000 gallon stainless steel reactor engineered for high-capacity industrial processing under vacuum, pressure, and elevated temperature conditions. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this reactor is suitable for demanding pharmaceutical, chemical, food, biotech, and specialty manufacturing applications.

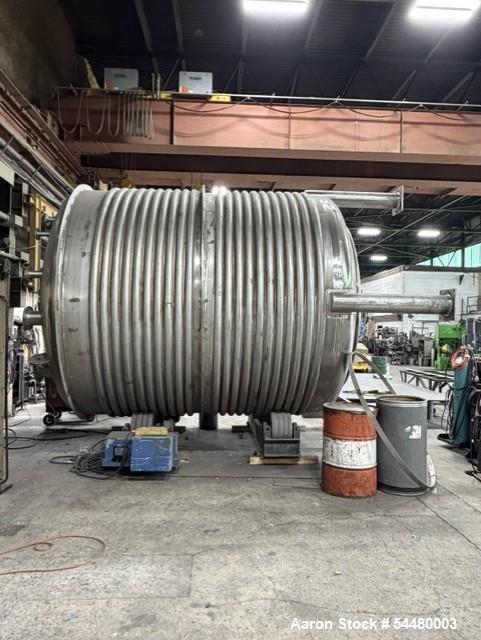

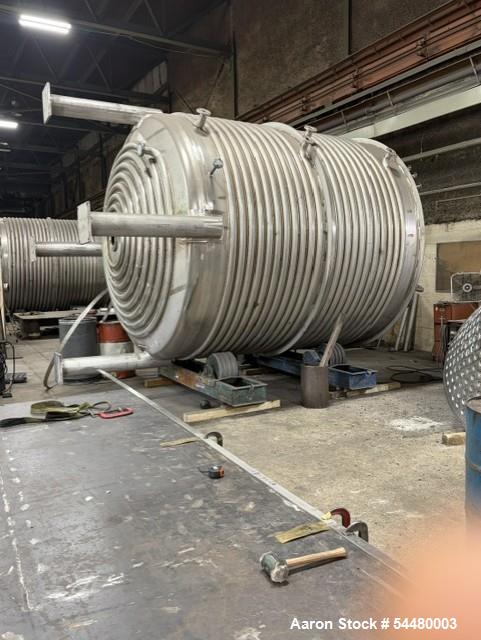

The vessel features a half-pipe jacket on the shell and bottom head rated for full vacuum to 150 PSI at 350°F, providing efficient thermal transfer for heating and cooling operations. The internal vessel is rated for full vacuum to 70 PSI at 350°F, allowing safe operation in pressure and vacuum processing environments.

Designed for large-scale production, the reactor includes a 24” top manway, 12” agitator nozzle, and four internal baffles for enhanced mixing efficiency and product movement. Mounted on four leg supports and National Board certified, this vessel combines heavy-duty construction with sanitary process capabilities.

Specifications

• Manufacturer: Tolan Machinery
• Capacity: 6,000 gallons
• Type: Jacketed reactor / pressure vessel
• Year Built: 2024
• Serial Number: 9512
• Certification: National Board certified

Vessel Construction

• Wetted Material: 316L stainless steel
• Non-Wetted Material: 304L stainless steel
• Internal Finish: Mill finish
• External Finish: Mill finish

Pressure & Temperature Ratings

Internal Vessel

• Rating: Full vacuum / 70 PSI
• Temperature Rating: 350°F

Jacket

• Type: Half-pipe jacket (shell and bottom head)
• Rating: Full vacuum / 150 PSI
• Temperature Rating: 350°F

Dimensions

• Overall Diameter: 120”
• Vessel Height: 122”

Features

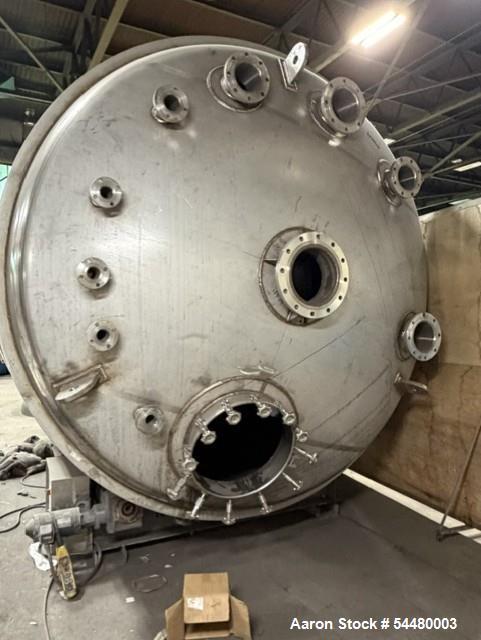

• 24” top manway
• 12” agitator nozzle
• (4) internal baffles
• (4) leg mounts

Applications

Ideal for large-scale reactions, blending, heating, cooling, and vacuum processing in sanitary and industrial environments.

Products This Equipment Would Be Used For

• Pharmaceutical formulations
• Chemical reactions
• Cosmetic products
• Food ingredients
• Nutraceutical products
• Adhesives and resins
• Specialty chemicals
• Biotech processing fluids
• Emulsions and slurries
• High-purity liquid processing
