Used 9,000 Gallon 316 SS Vertical Agitated Reactor | Half-Pipe Jacket | Full Vacuum | Internal Coil | Industrial Alloy Fabricators

🏭 Manufacturer Information

• Manufacturer: Industrial Alloy Fabricators

• Type: Vertical Batch-Type Agitated Reactor

• Capacity: Approx. 9,000 gallons

• Year Built: 1992

• National Board #: 2033

• Mounting: Skirt-mounted

⚙️ Product Description

This Used Industrial Alloy Fabricators Vertical Agitated Reactor is a heavy-duty, large-capacity 9,000-gallon stainless steel reaction vessel, designed for demanding batch-processing operations in chemical, pharmaceutical, petrochemical, food, and specialty manufacturing.

Constructed from 316 stainless steel (product contact surface) with a 304 stainless steel half-pipe/limpet jacket, this reactor supports 15 PSI internal pressure, full vacuum, and temperatures up to 300°F internally and through the jacket.

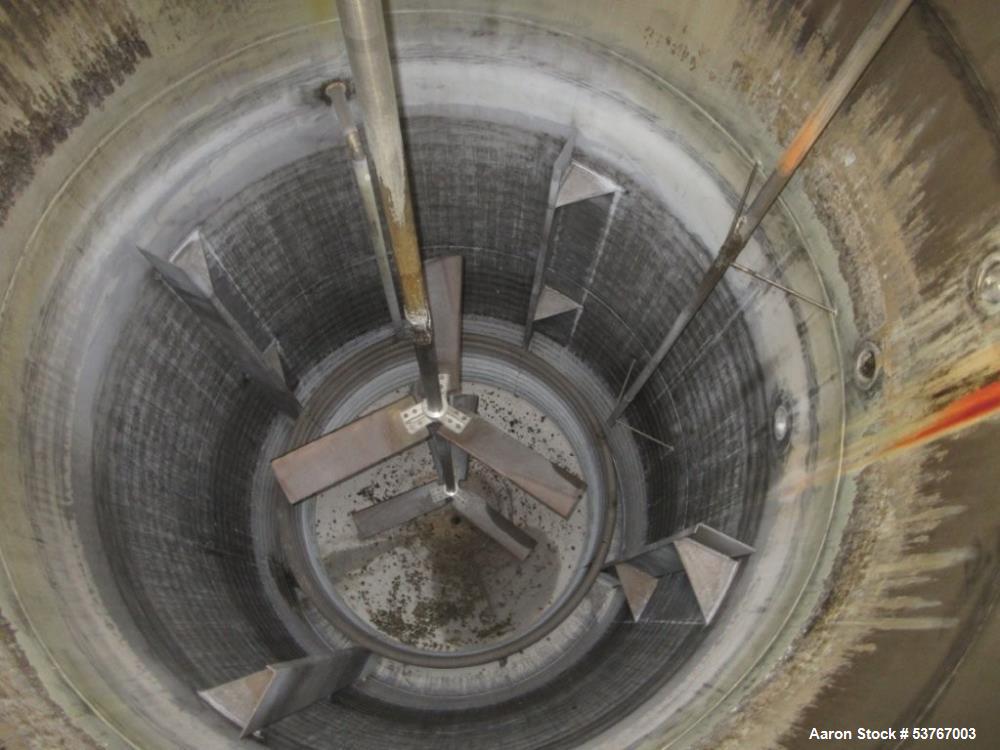

Equipped with an internal coil, four full-length baffles, a wide-sweep impeller, and a two-tier, three-blade agitator, this system ensures robust mixing, heat transfer, and blending performance for viscous, complex, or temperature-sensitive formulations.

The reactor bottom includes a 6" discharge, and the entire unit is supported on a skirt-mounted base for stability.
This vessel’s combination of capacity, agitation flexibility, and jacketed heating/cooling capability makes it suitable for a wide range of industrial applications.

📏 Specifications

• Capacity: ~9,000 gallons

• Material: 316 Stainless Steel (internal), 304 Stainless Steel (jacket)

• Dimensions:

  • Diameter: ~108"

  • Straight Side Height: ~259"

• Head Style: Flat top and flat bottom

• Bottom Outlet: 6" diameter

• Internal Pressure Rating: 15 PSI

• Internal Temperature Rating: 300°F

• Full Vacuum Internal: Yes

• Jacket Type: Half-pipe / Limpet

• Jacket Pressure Rating: 50 PSI

• Jacket Temperature Rating: 300°F

• Internal Coil: Yes

• Agitation System:

  • Wide sweep impeller

  • Two-tier, 3-blade agitator

  • (4) Full-length straight baffles

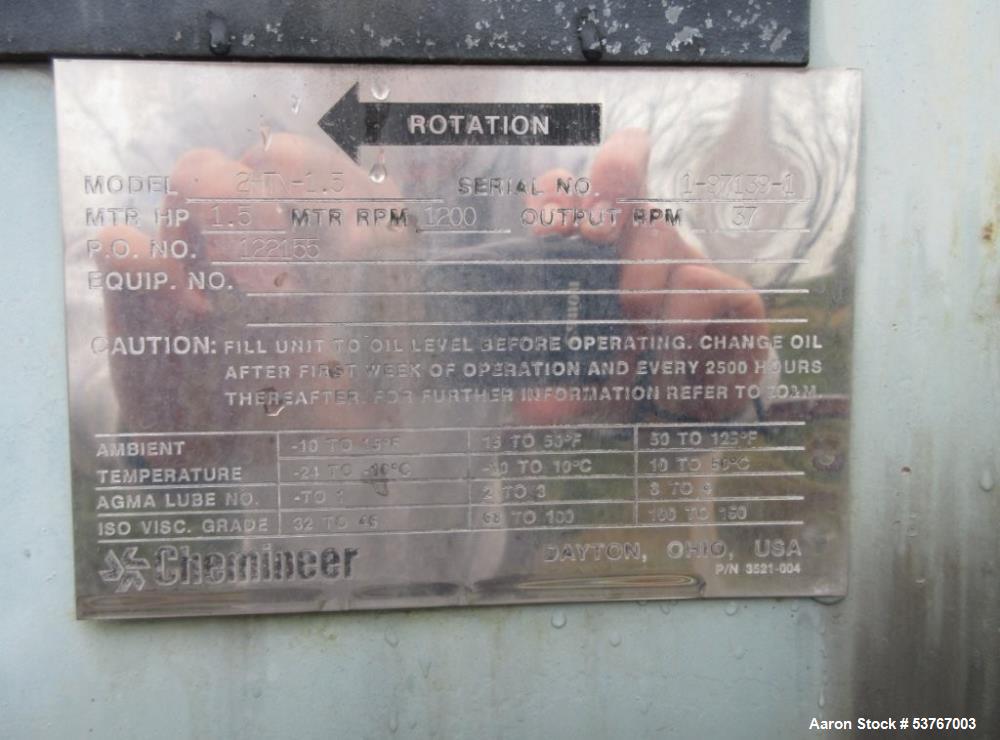

  • Drive: 2.5 HP @ 37 RPM

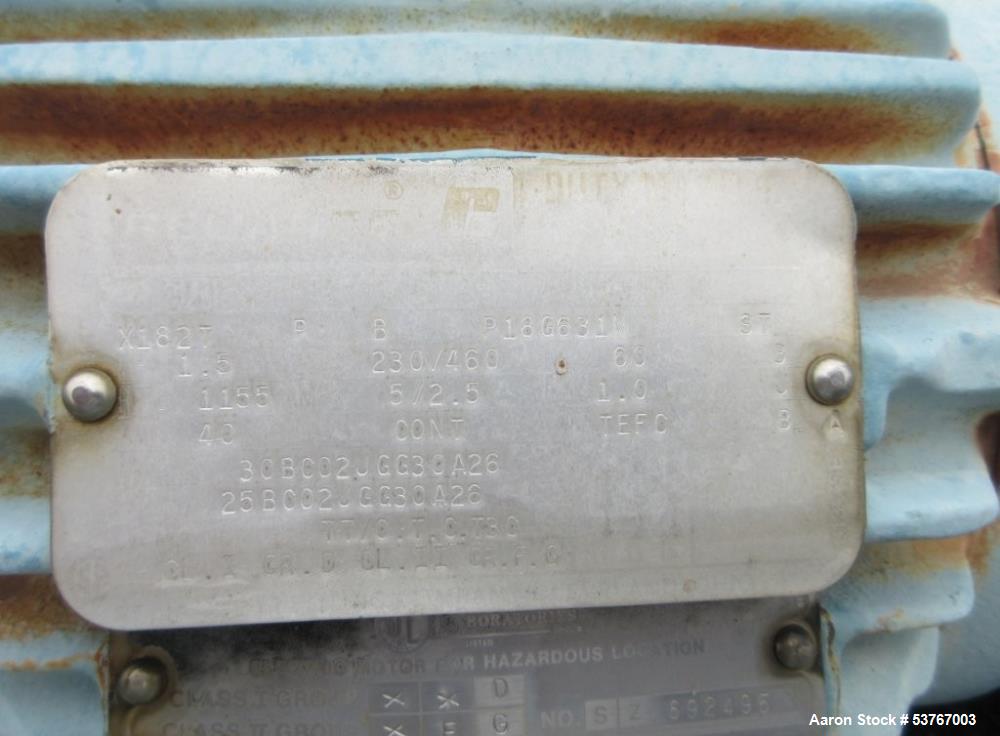

  • Motor: 1.5 HP @ 1155 RPM

• Mounting: Skirt

• National Board #: 2033

• Year Built: 1992

🧩 Applications

• Chemical reaction & blending

• Solvent-based batch processing

• Polymer and resin production

• Pharmaceutical batch formulation

• Specialty chemical manufacturing

• Petrochemical process blending

• High-volume mixing operations

• Heat transfer and thermal processing

• Viscous product agitation

• Industrial catalyst and slurry production

⚗️ What Might This Be Used For

This reactor is ideal for large-scale reaction, mixing, and thermal processing where temperature control, agitation, and corrosion resistance are critical.
Its half-pipe jacket + internal coil design enables efficient heating/cooling for exothermic reactions, thermal-sensitive blends, or high-viscosity mixing.

🧱 Products That Could Be Processed in This Reactor

• Resins and polymers

• Adhesives and coatings

• Specialty chemicals

• Pharmaceutical intermediates

• Petrochemical blends

• Industrial solvents and mixtures

• Food-grade syrups or extracts

• Fermentation or biological media

• Slurries and suspensions

• High-viscosity formulations
