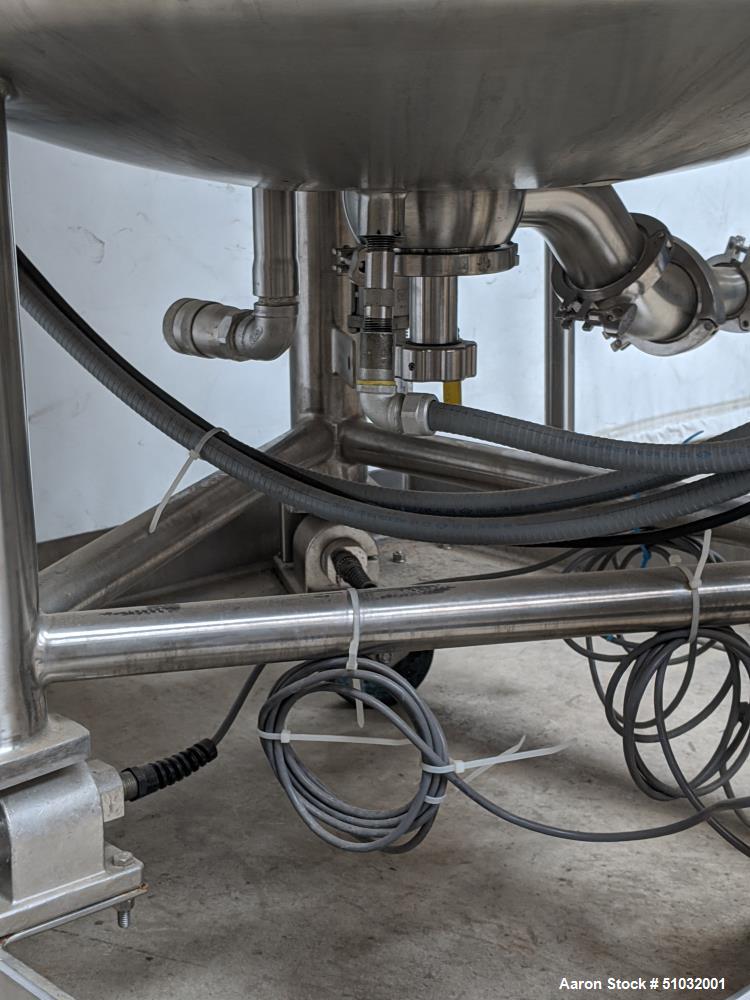

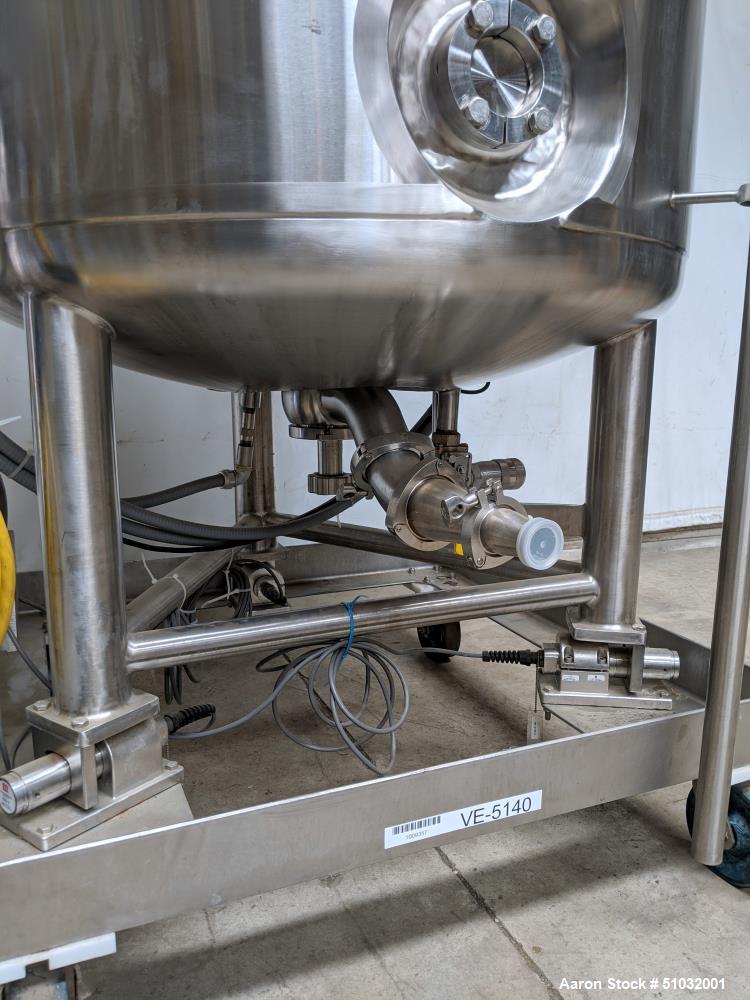

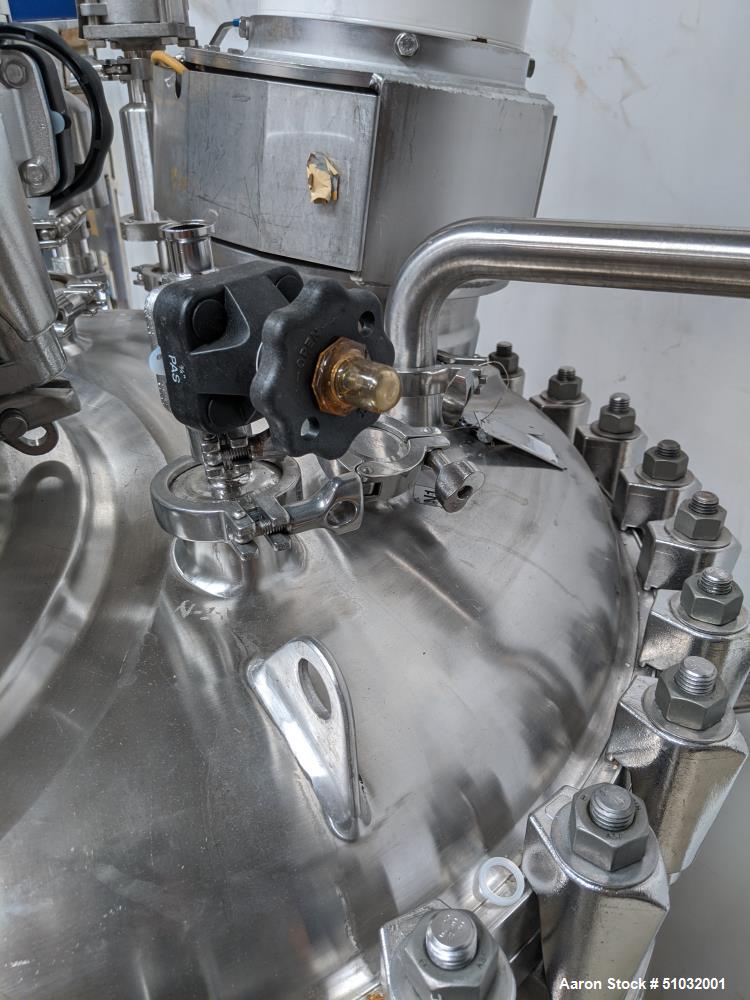

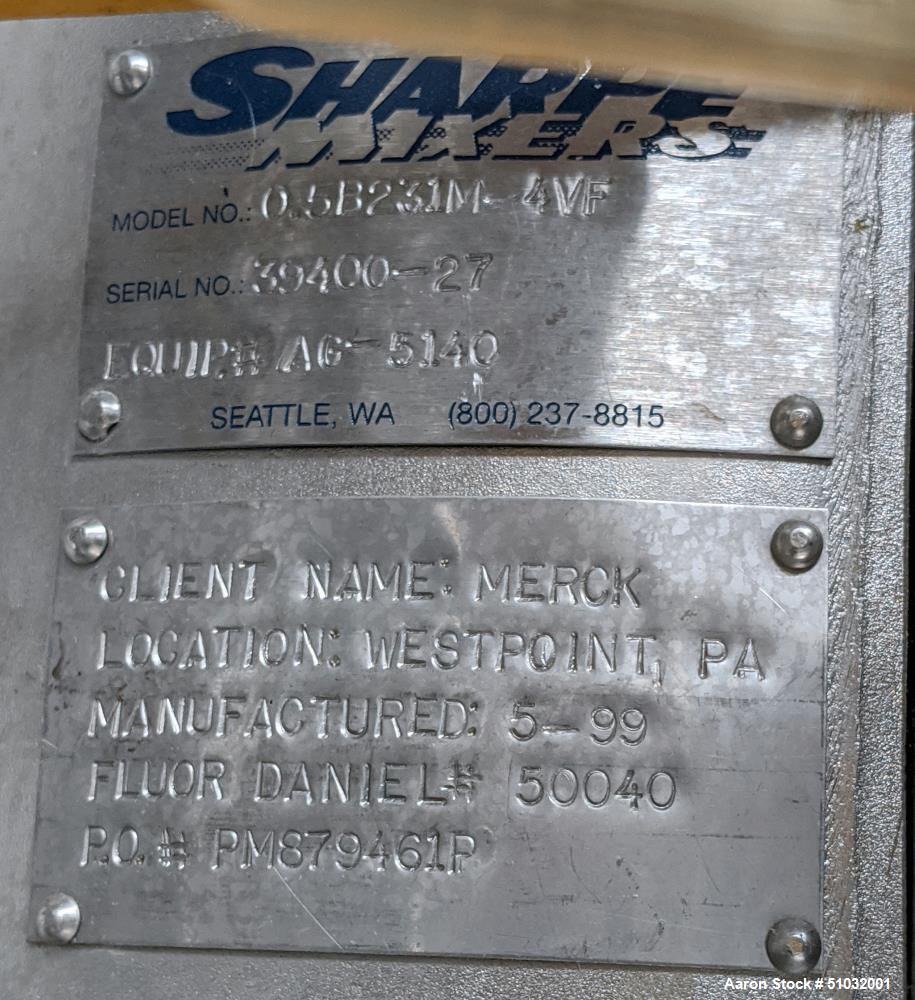

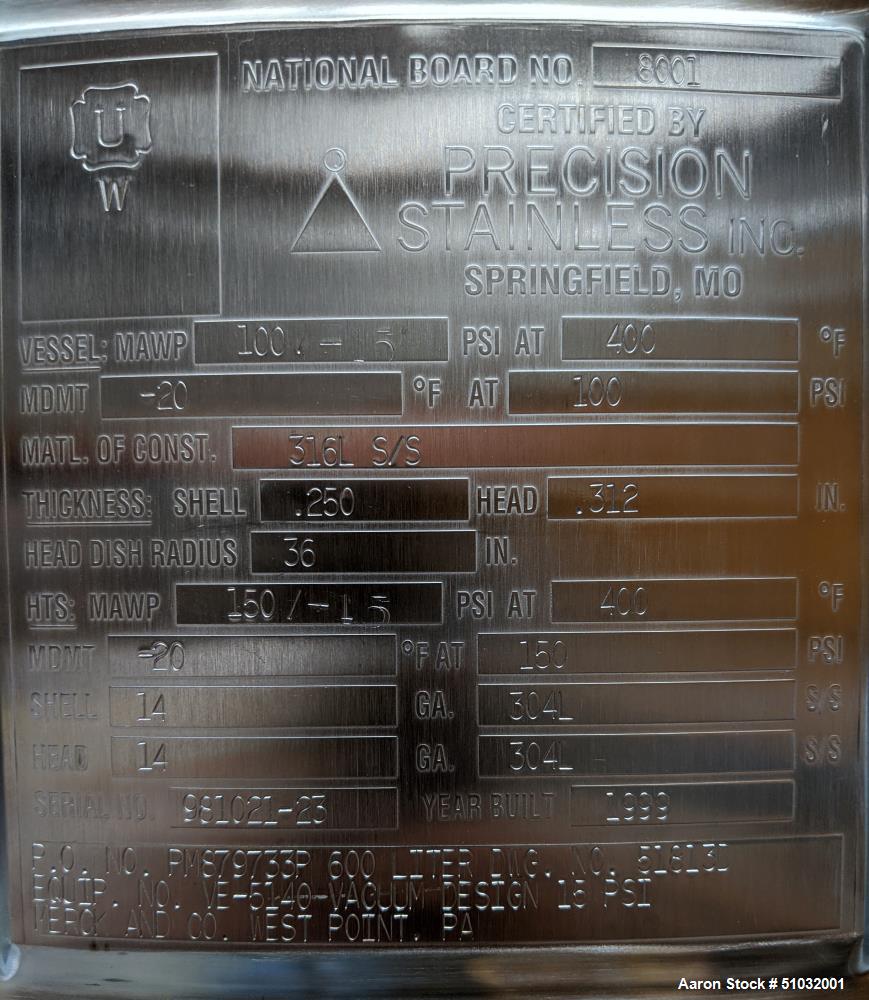

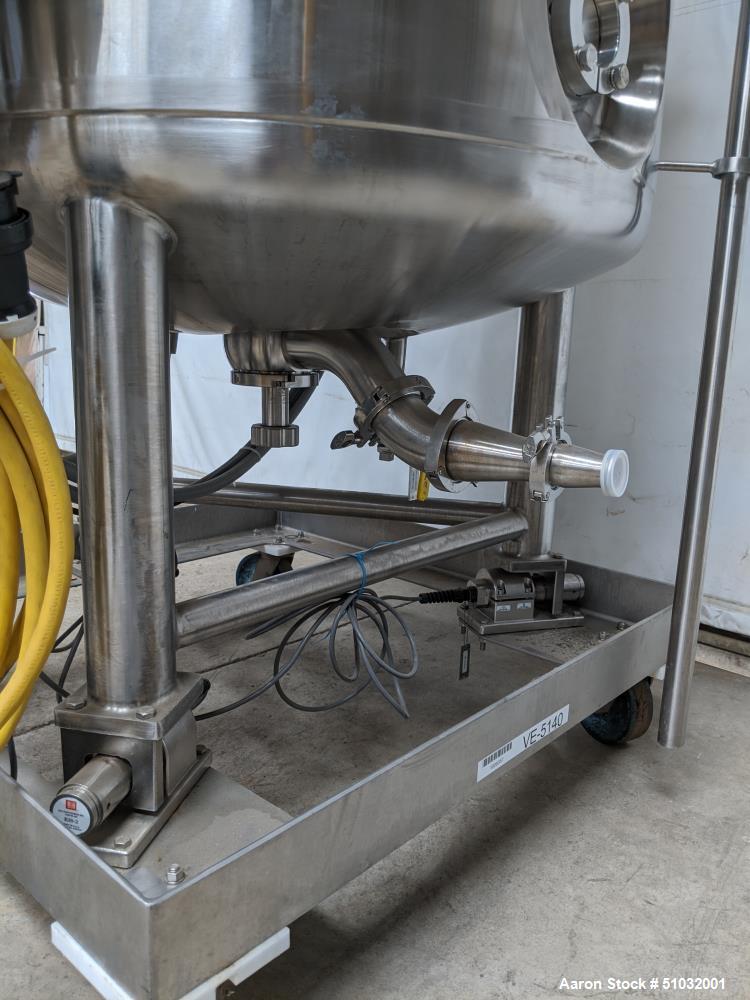

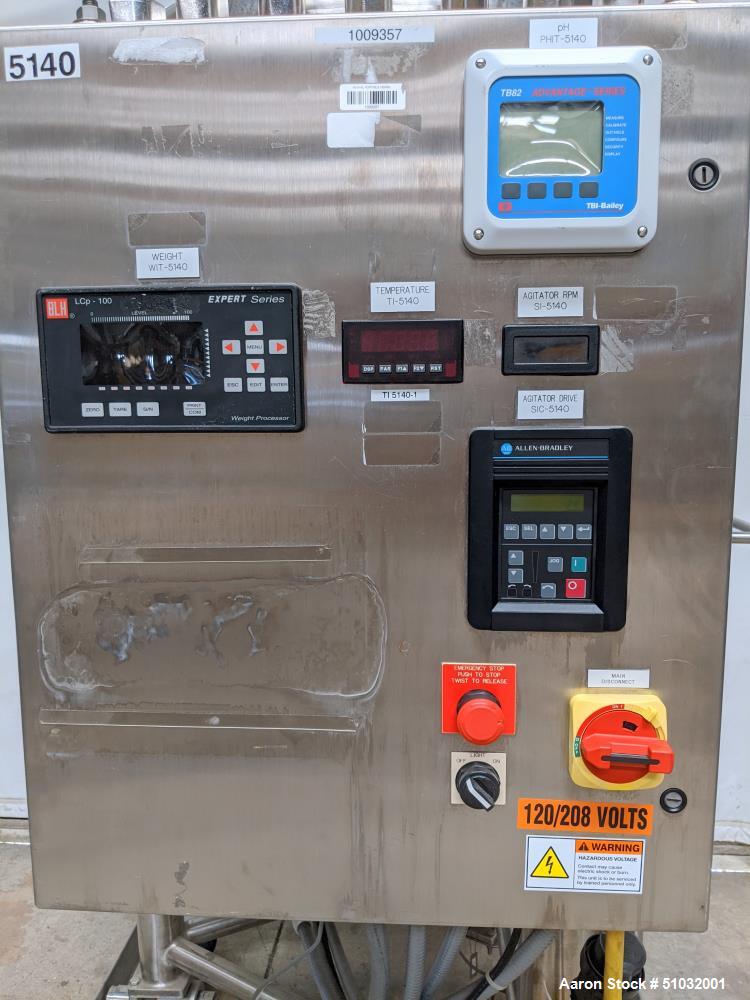

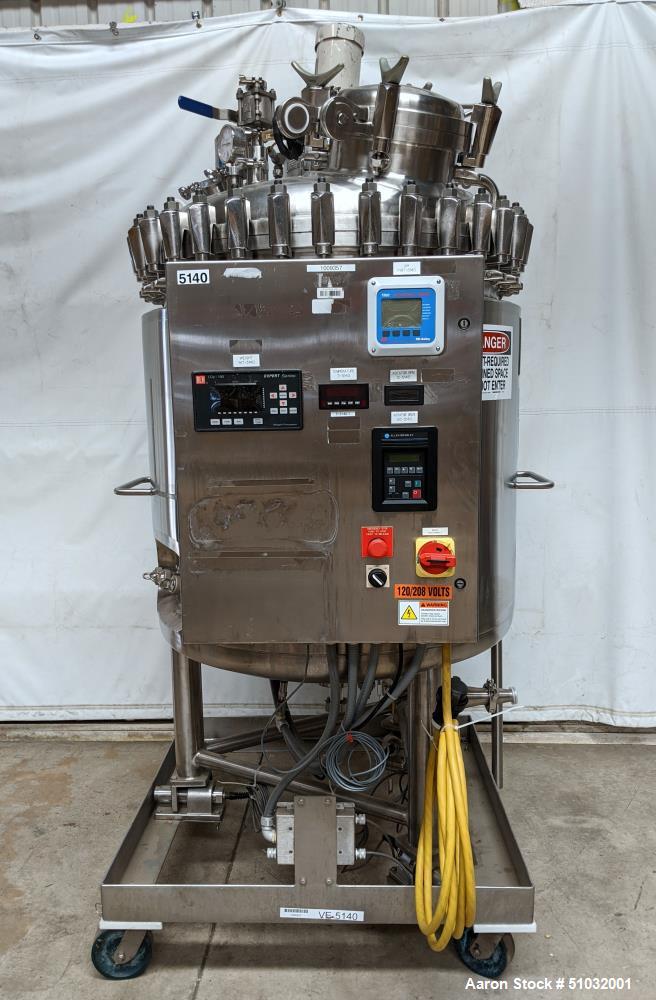

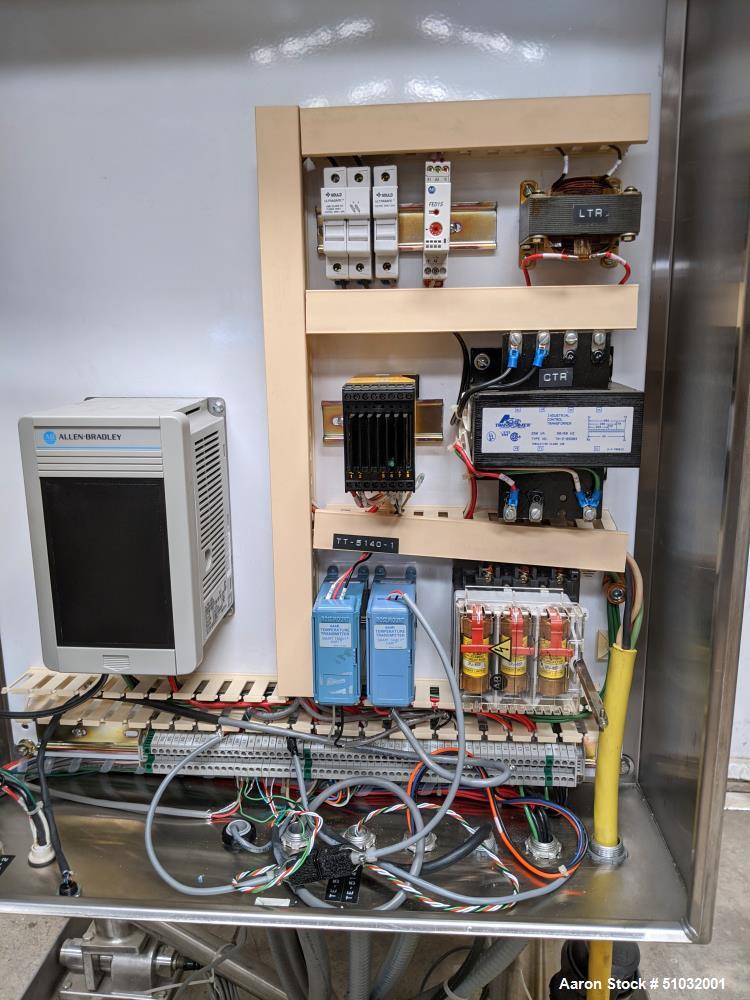

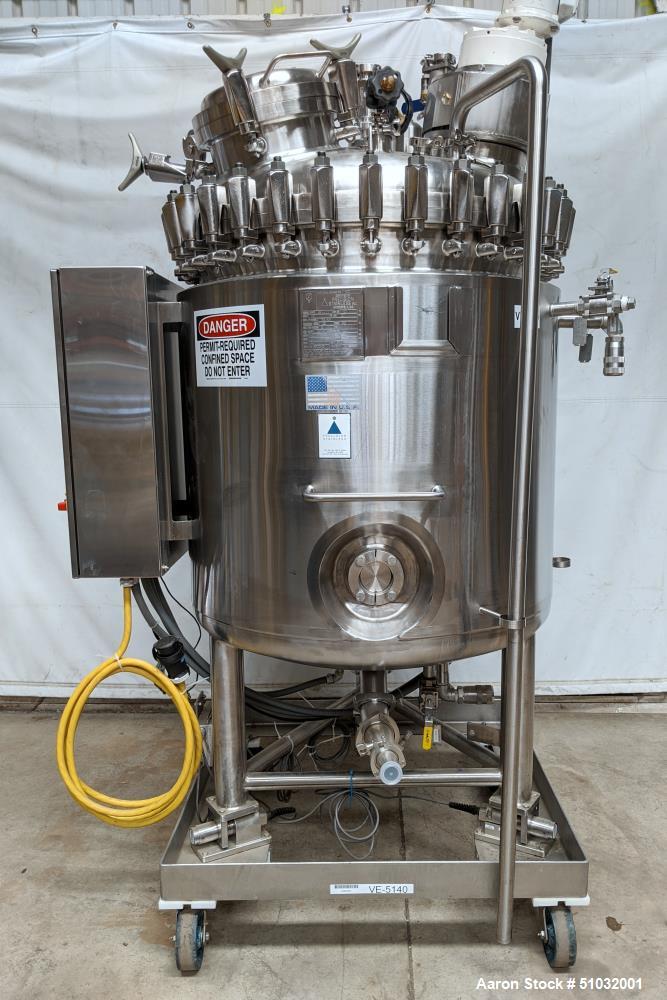

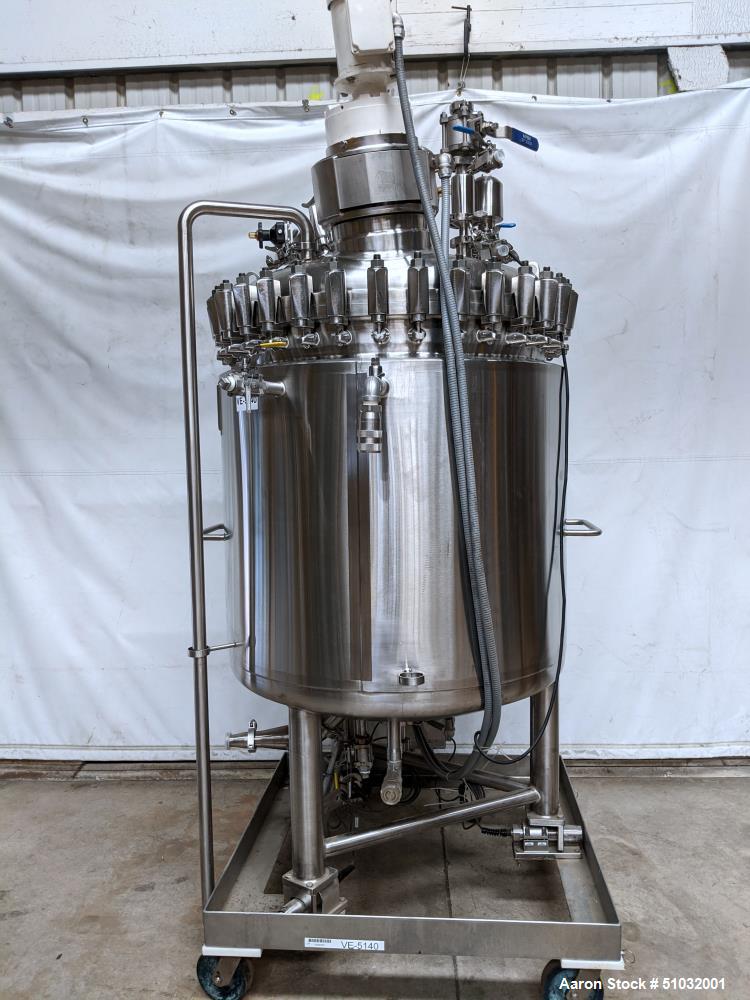

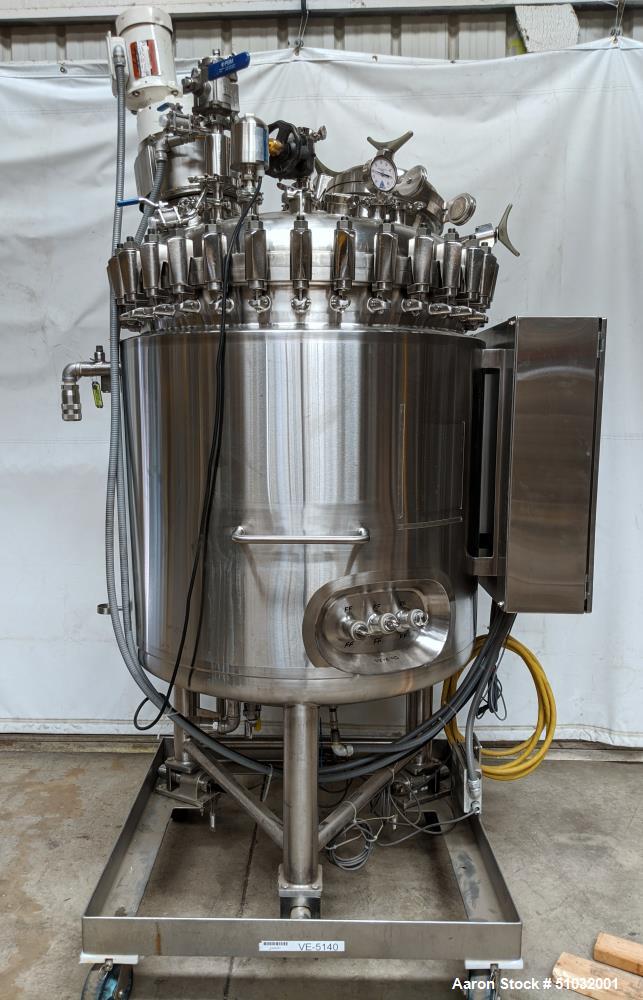

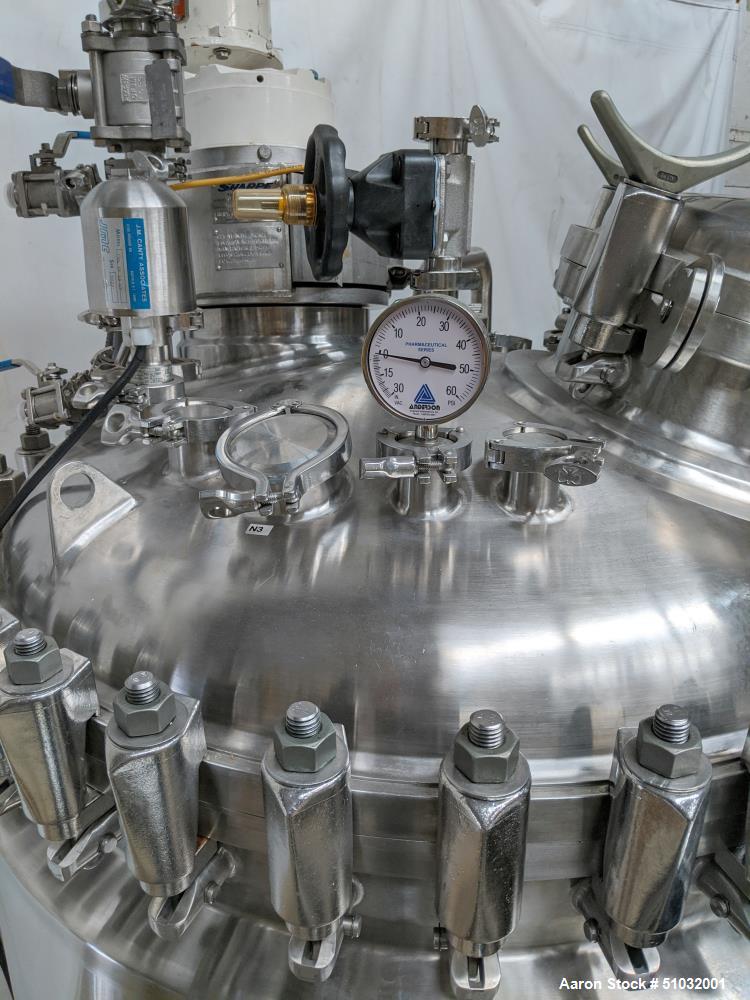

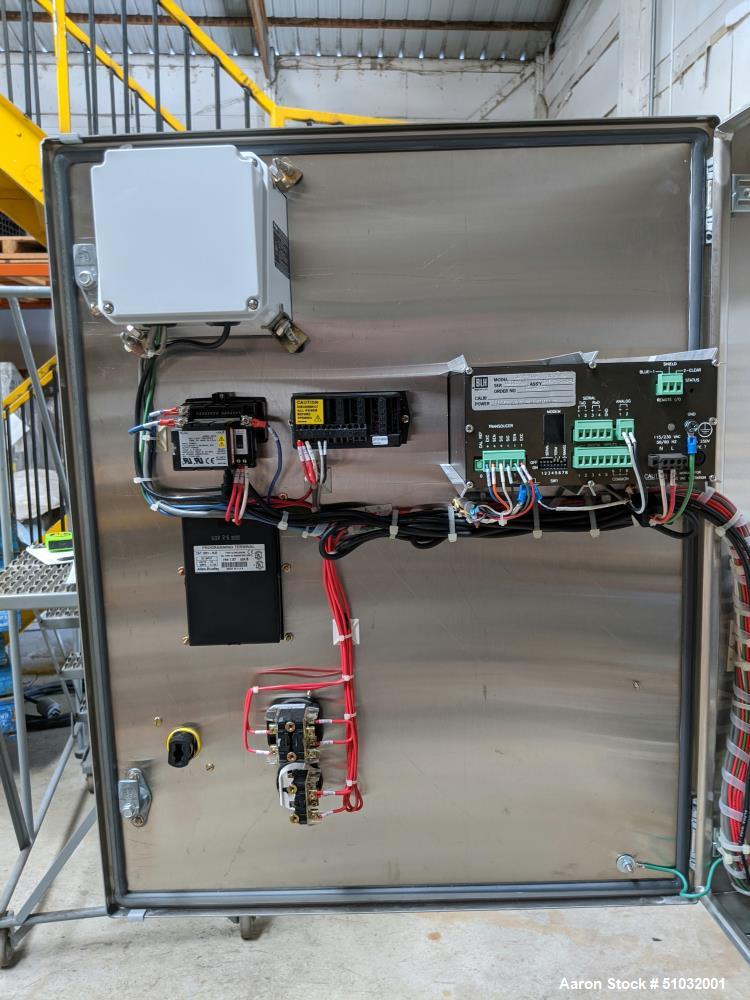

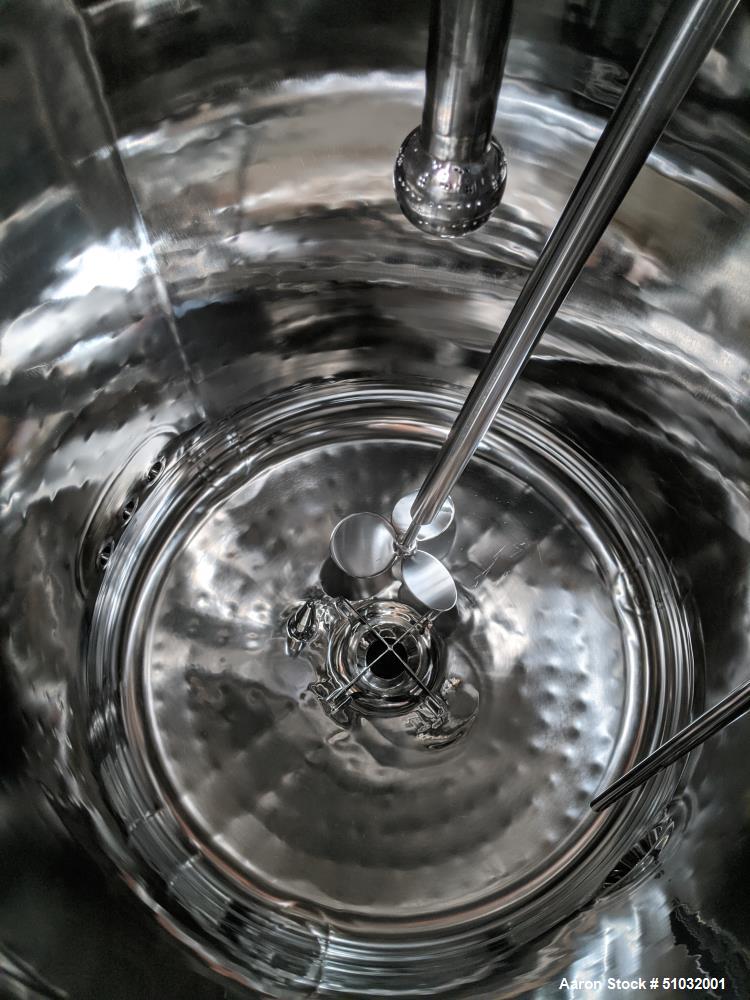

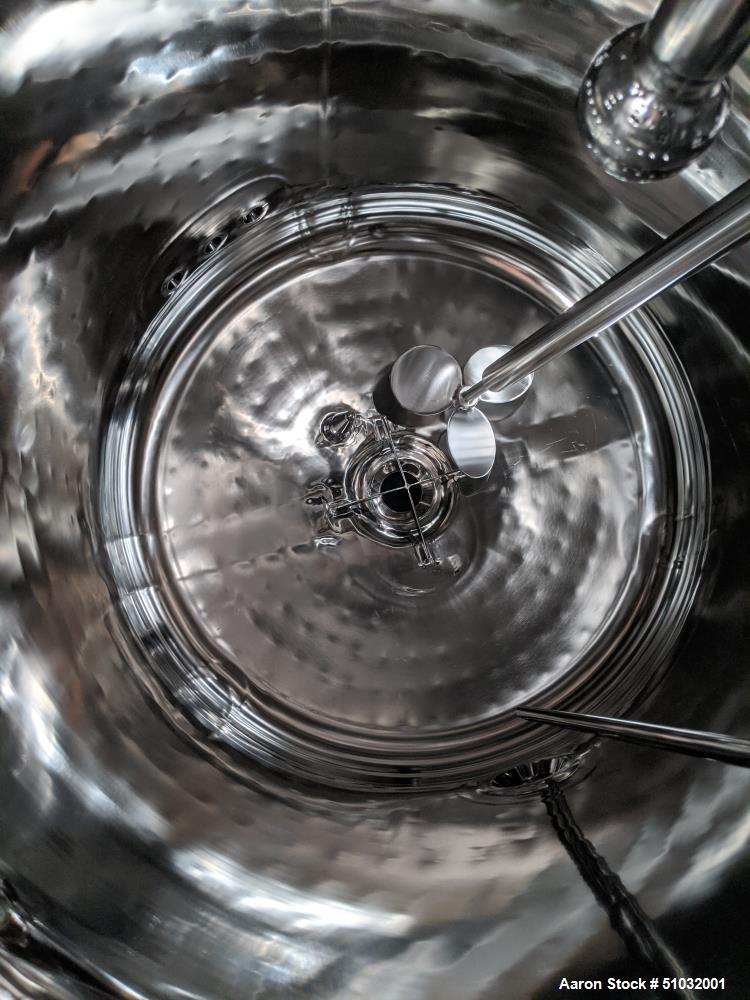

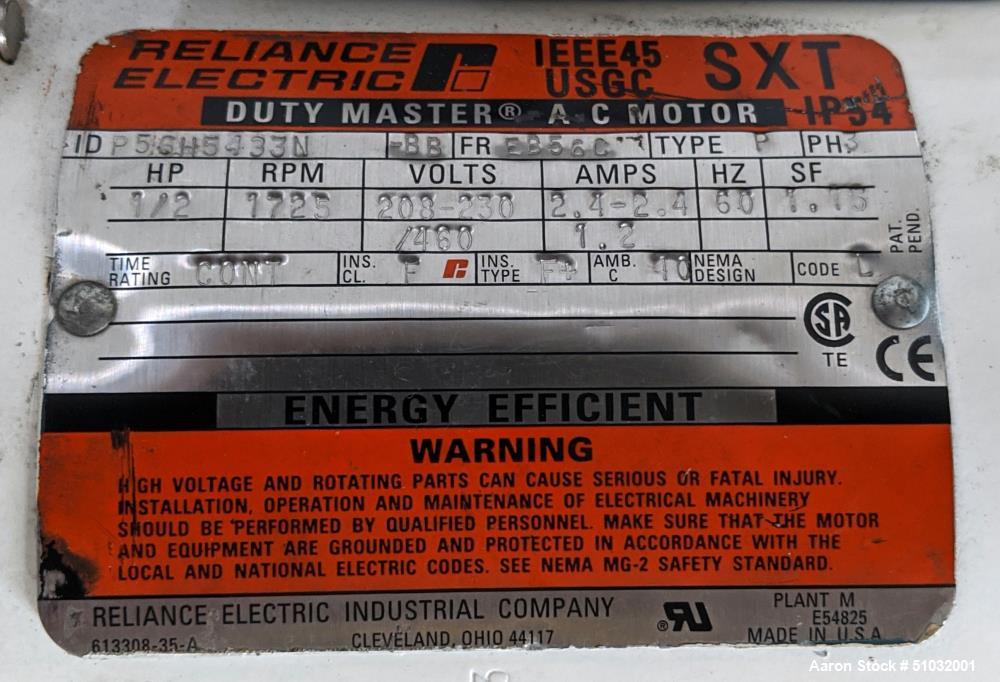

Used Precision Stainless Reactor, 600 Liter (158.5 Gallon), 316L Stainless Steel, Vertical. Approximate 36" diameter x 40" straight side, clamp down dished top head and dished bottom. Internal rated 100 PSI at 400 degrees F, vacuum designed 15 psi. 304L Stainless steel dimple jacket rated at 150/-15 PSI at 400 degrees F. Off center top entering Sharpe Mixer agitator, Model 0.5B231M-4VF, Serial # 39400-27, 3-blade prop, driven by 1/2 hp, 3/60/208-230/460 volt, 1725 rpm motor. Openings top: 12" manway with cover, (5) 1-1/2", (3) 2", (2) 3" diameter tri-clamp, side: (3) 1-1/2", (1) 3" capped. 4" Center bottom outlet with valve, reducer to 3" to 2" to 1-1/2" tri-clamp. Approximate 21" discharge height. (1) Spray ball. Cabinet mounted controls. Mounted on portable base with casters. National Board # 8001, Serial # 981021-23. Built 1999.
