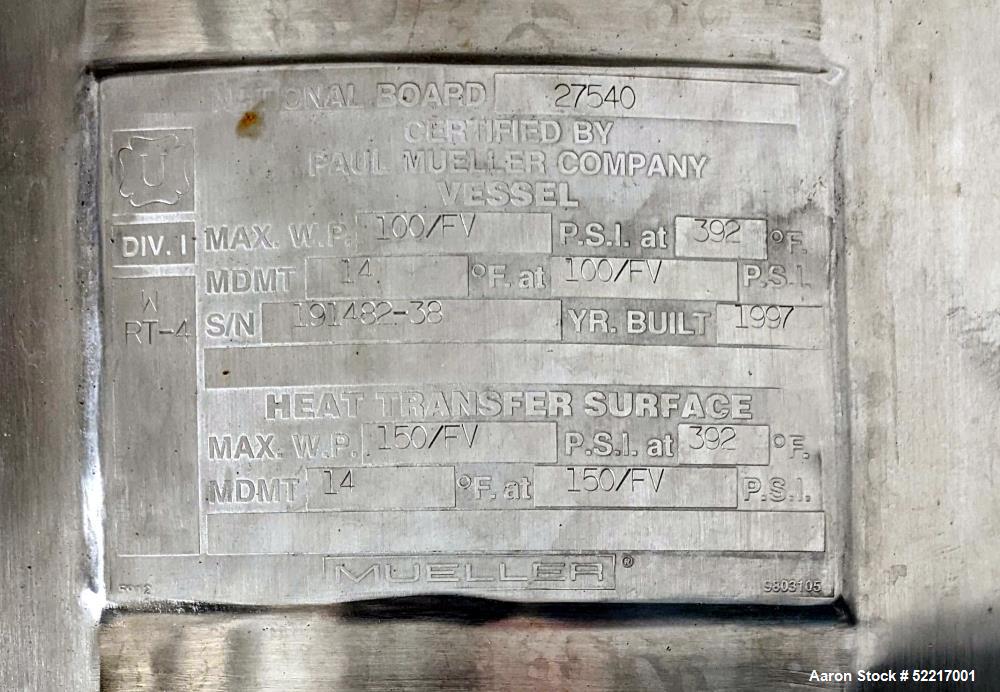

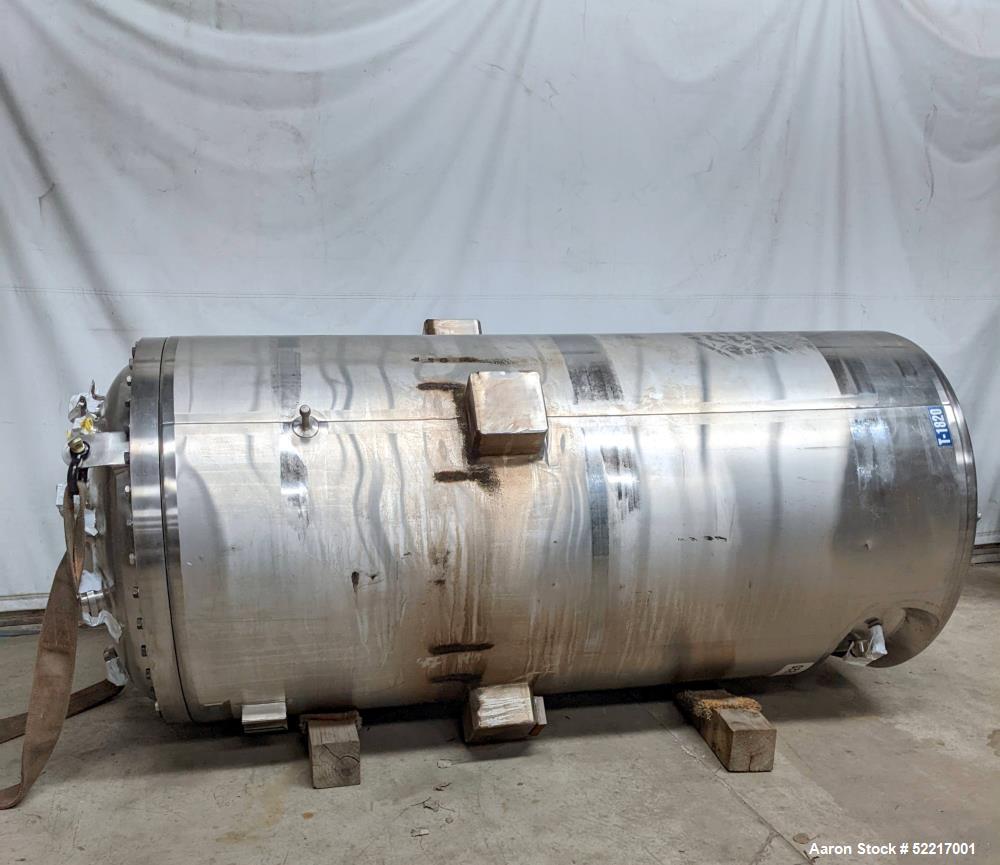

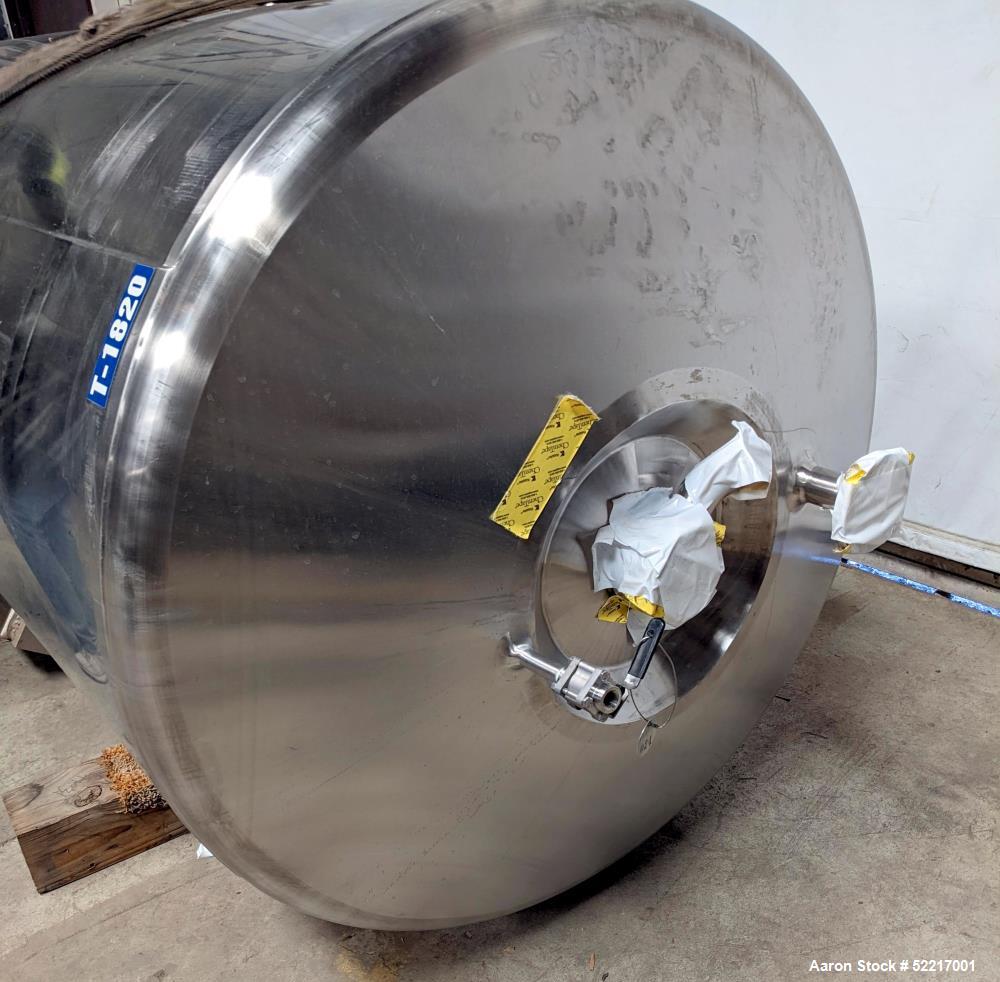

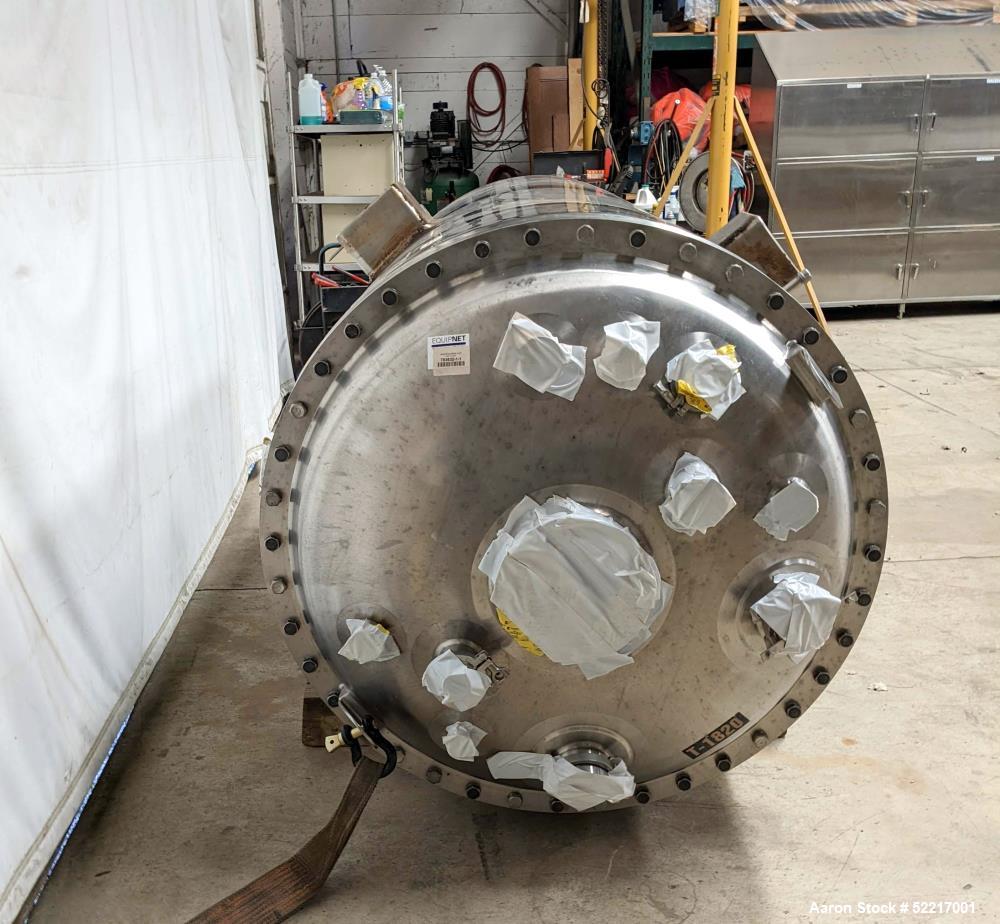

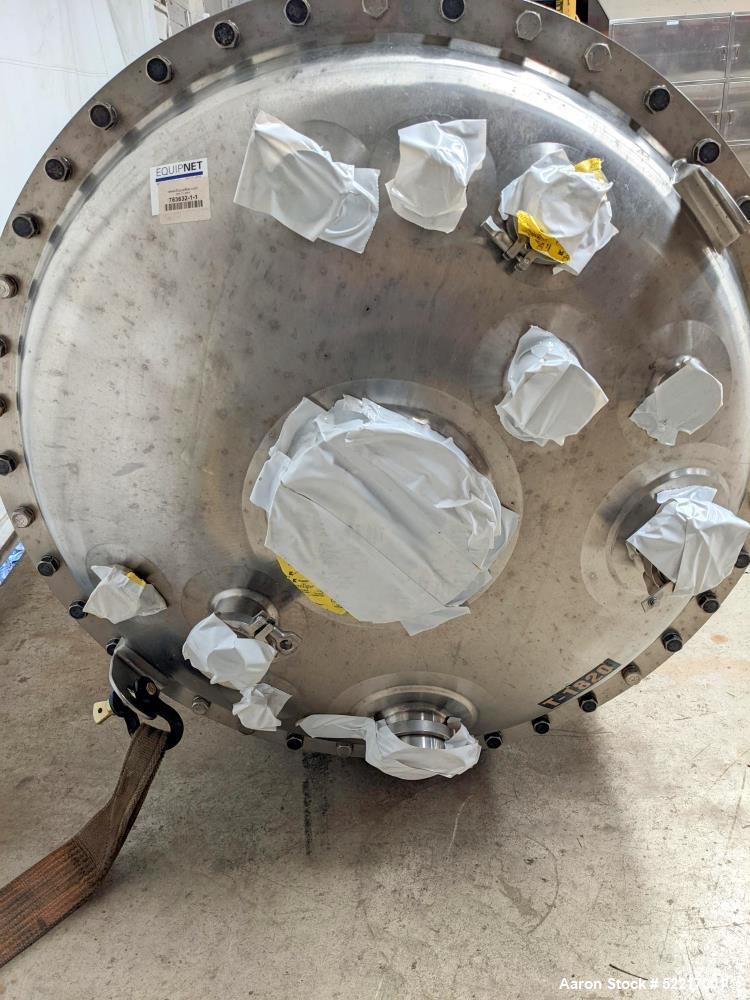

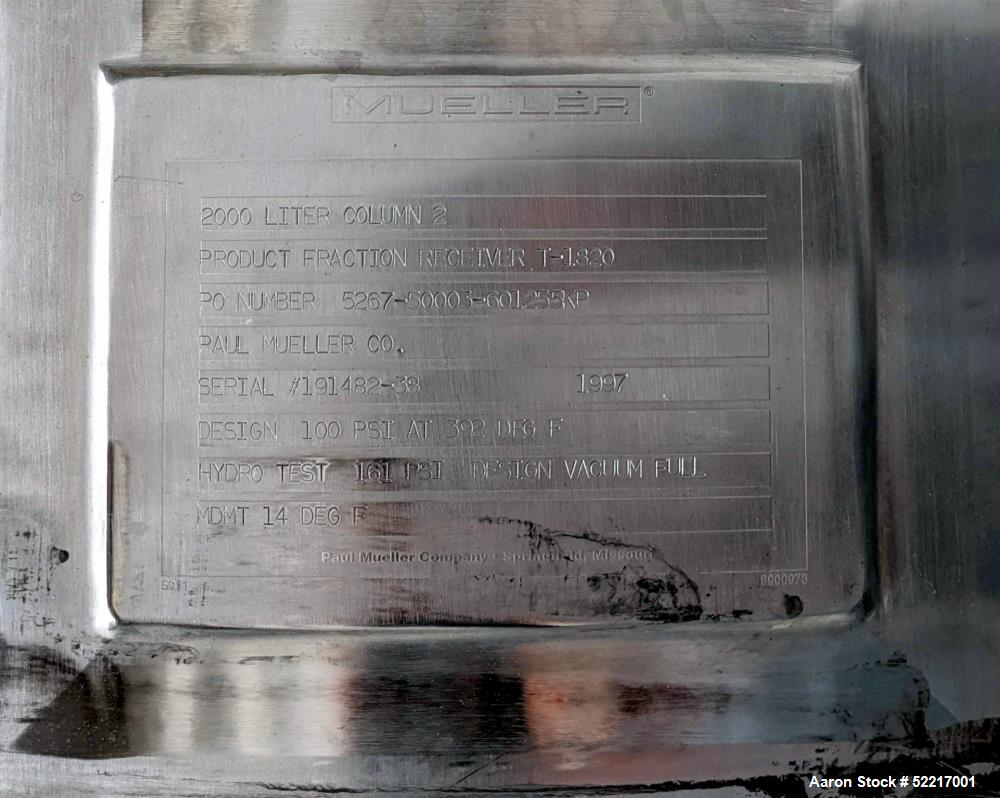

Used Paul Mueller Reactor, 2,000 Liter / 530 Gallon, 316 Stainless Steel, Vertical. Approximate 42" diameter x 90" straight side. Internal rated 100 psi at 392 degrees F. Dimple Jacket rated 150 psi at 392 degrees F. Dished head and bottom. Openings: 11" diameter top center flange 6" opening. (3) 2" dia tri-clamp (1) reduced to 1 1/2", (3) 3" dia tri-clamp (2) with reducer to 1 1/2." (1) 2 1/2" tri-clamp, (2) 5" dia tri-clamp sight glass. 4-1/2" c.b.o.less valve with 2" dia outlet(1) 2" dia side bottom outlet. (1) 1 1/2" dia npt temperature probe port. (2) Fixed Baffles. Dual spray balls. Side lug mounted. Serial# 191482-38, National Board# 27540. Mixer and bottom valve are not included.
Used Paul Mueller Reactor, 2,000 Liter / 530 Gallon, 316 Stainless Steel, Vertical. Approximate 42" diameter x 90" straight side. Internal rated 100 psi at 392 degrees F. Dimple Jacket rated 150 psi at 392 degrees F. Dished head and bottom. Openings: 11" diameter top center flange 6" opening. (3) 2" dia tri-clamp (1) reduced to 1 1/2", (3) 3" dia tri-clamp (2) with reducer to 1 1/2." (1) 2 1/2" tri-clamp, (2) 5" dia tri-clamp sight glass. 4-1/2" c.b.o.less valve with 2" dia outlet(1) 2" dia side bottom outlet. (1) 1 1/2" dia npt temperature probe port. (2) Fixed Baffles. Dual spray balls. Side lug mounted. Serial# 191482-38, National Board# 27540. Mixer and bottom valve are not included.
