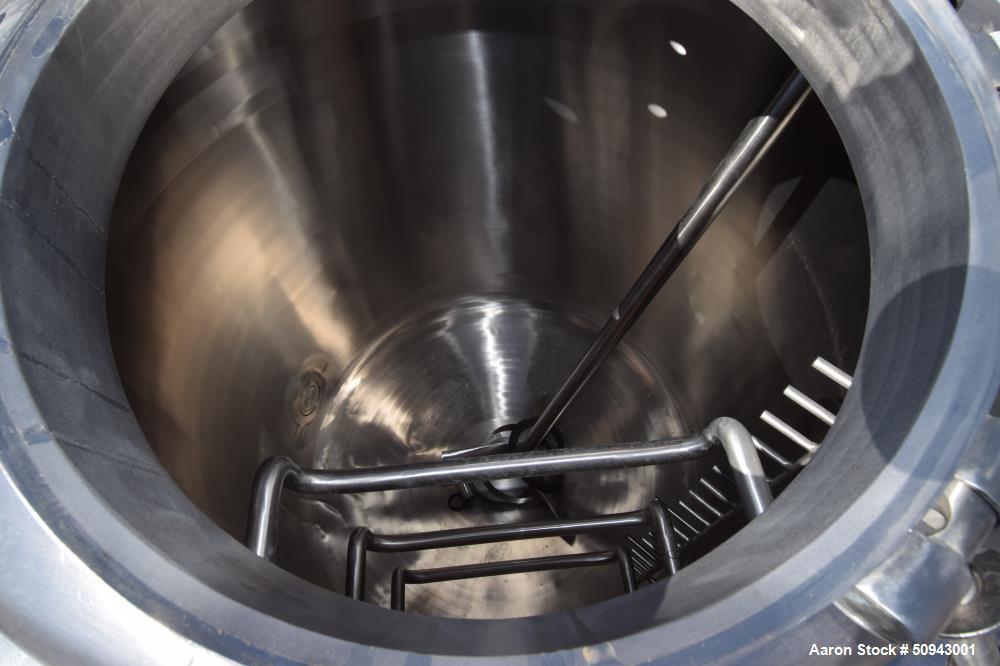

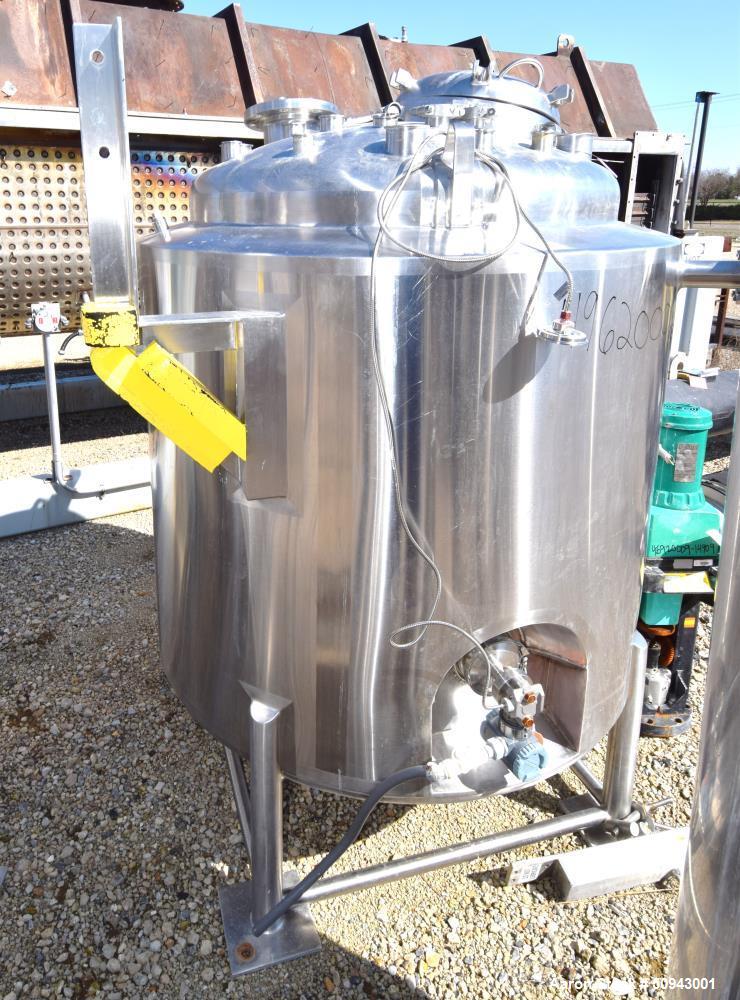

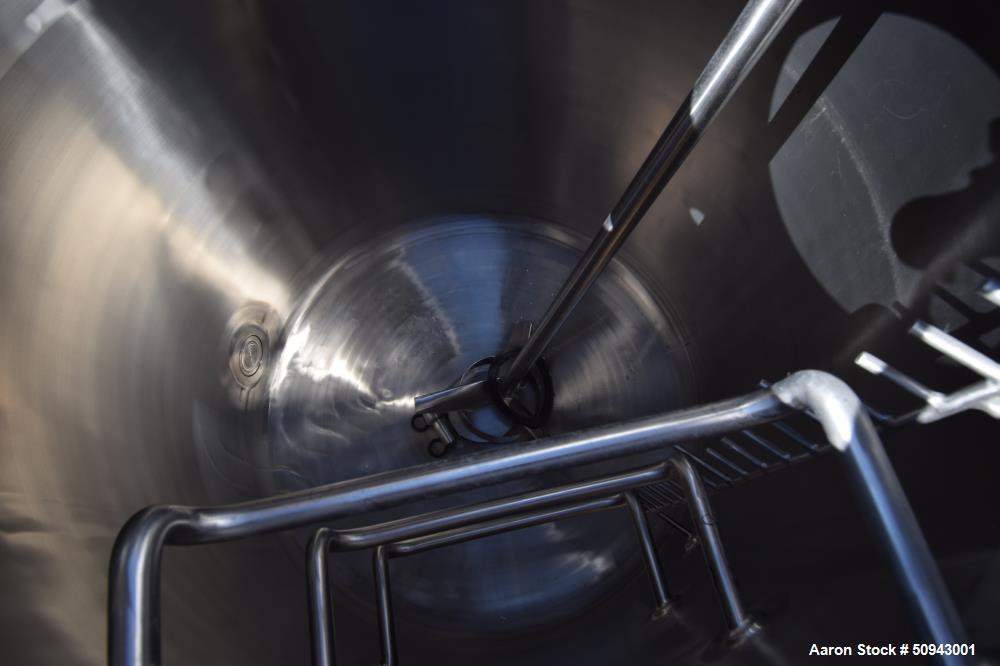

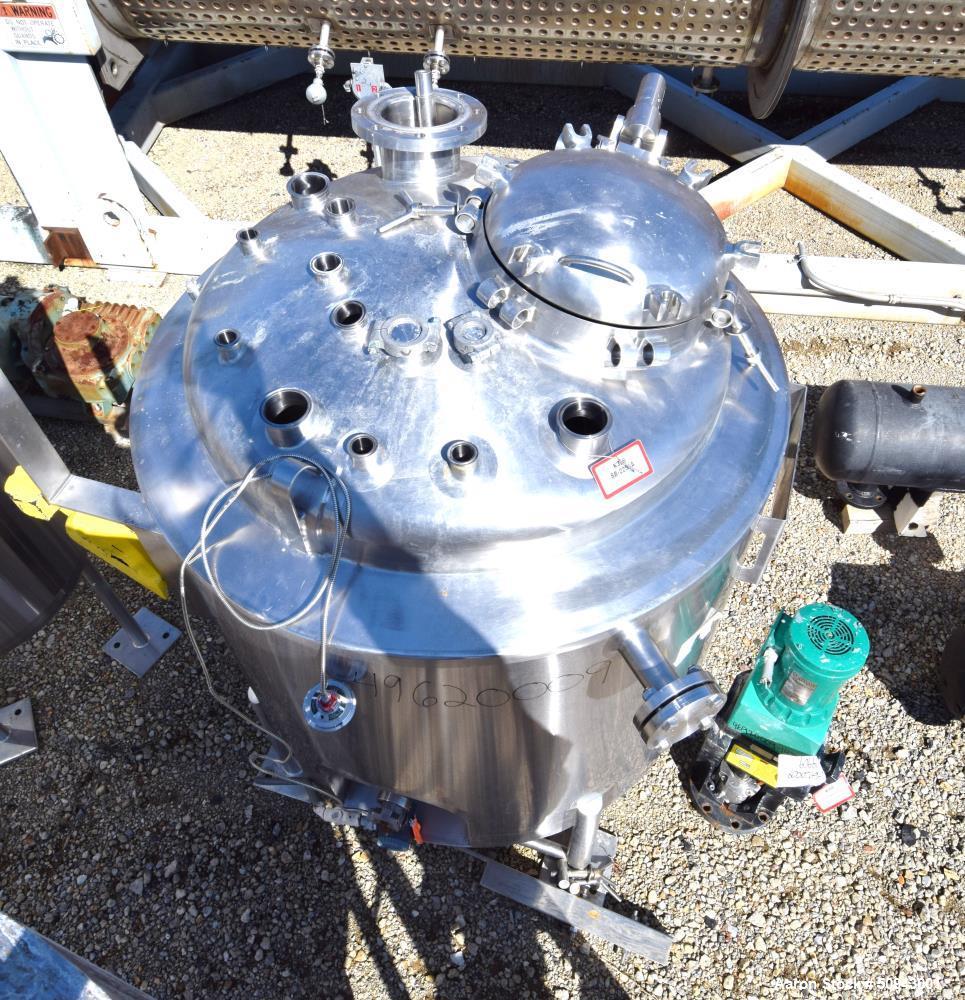

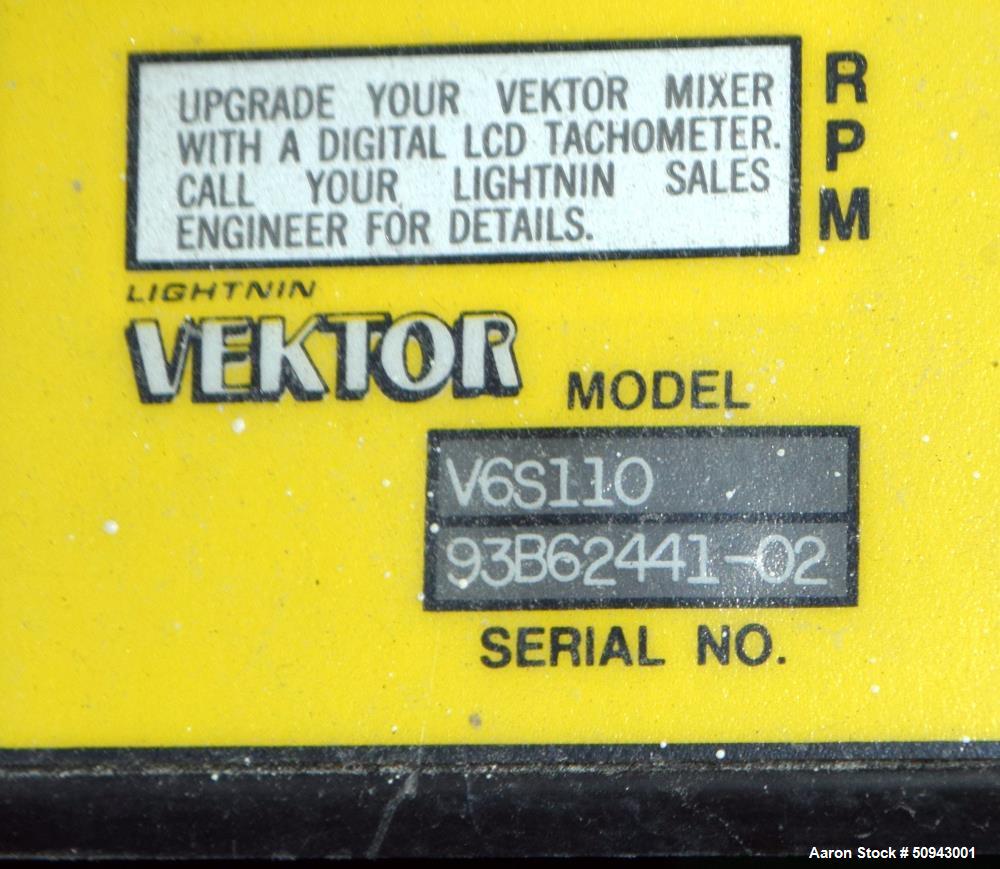

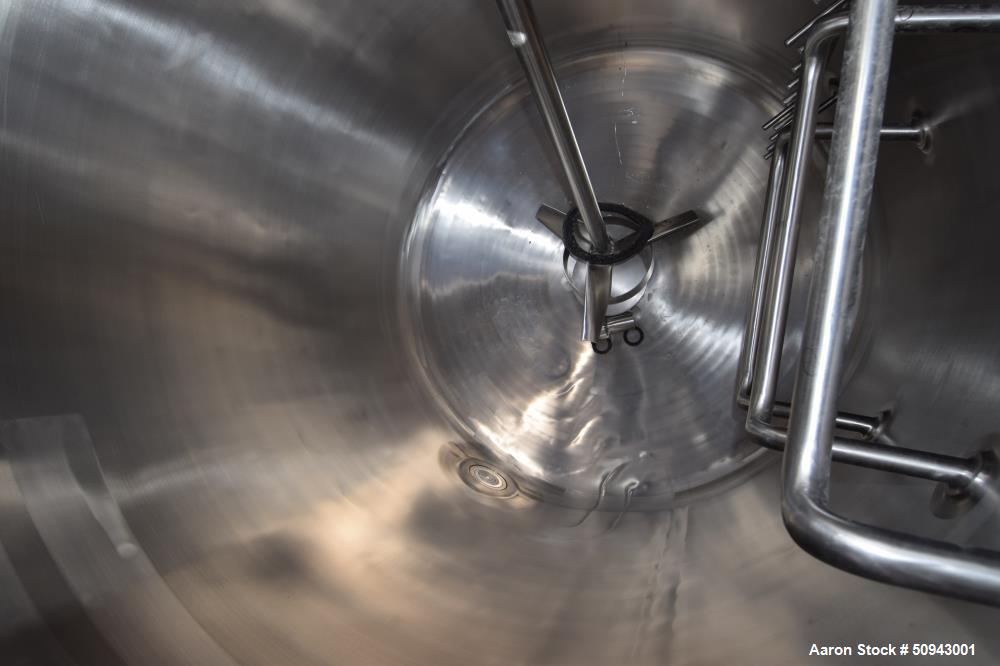

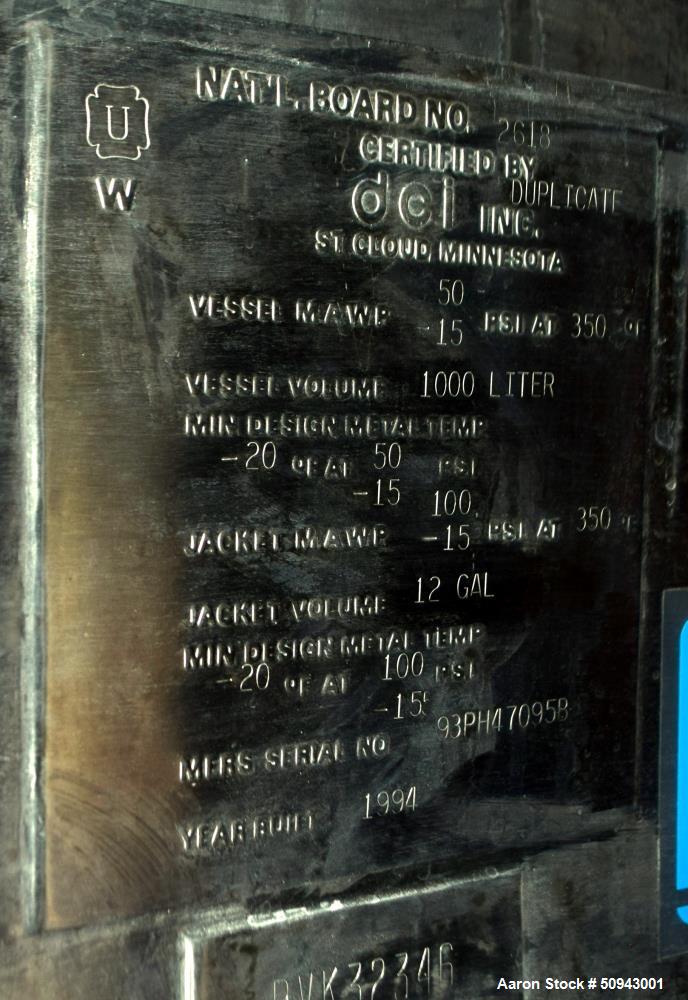

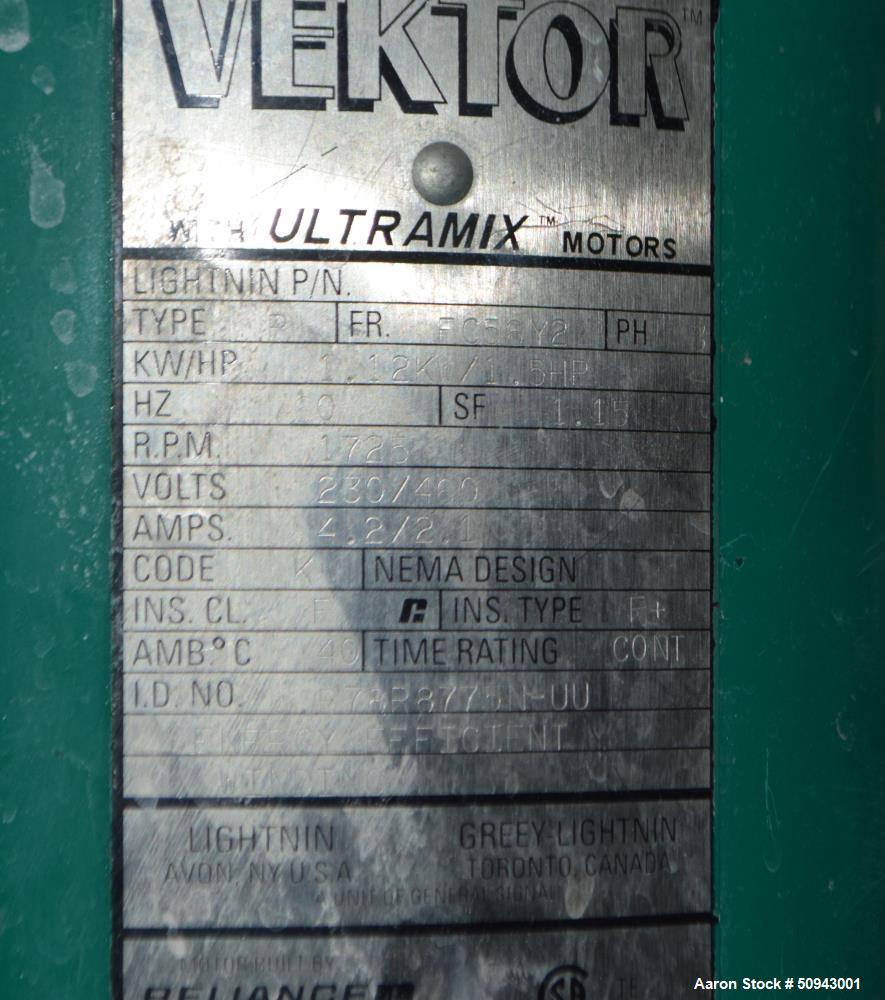

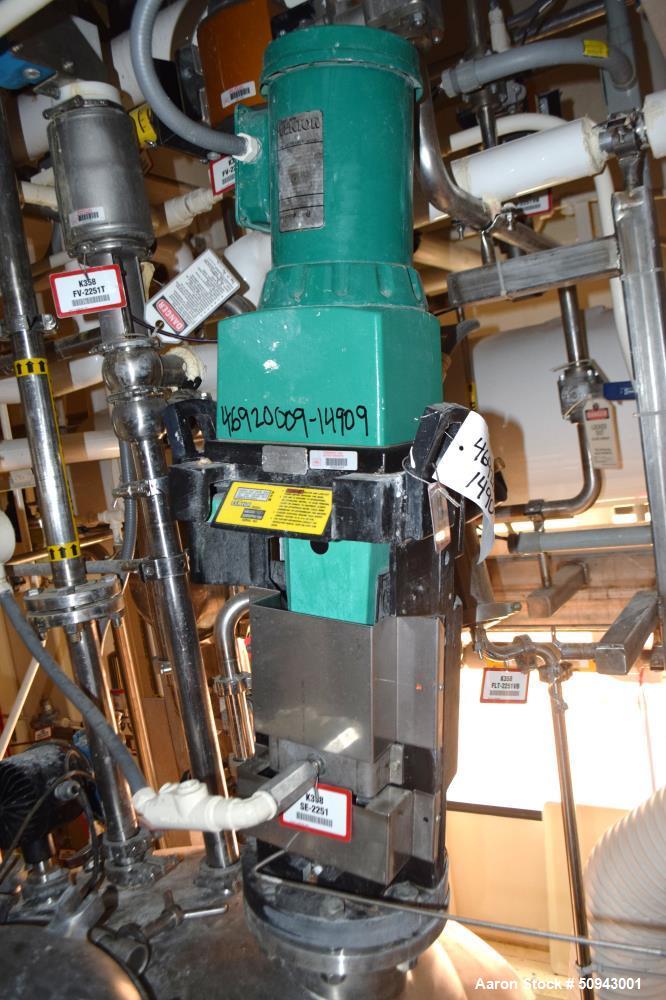

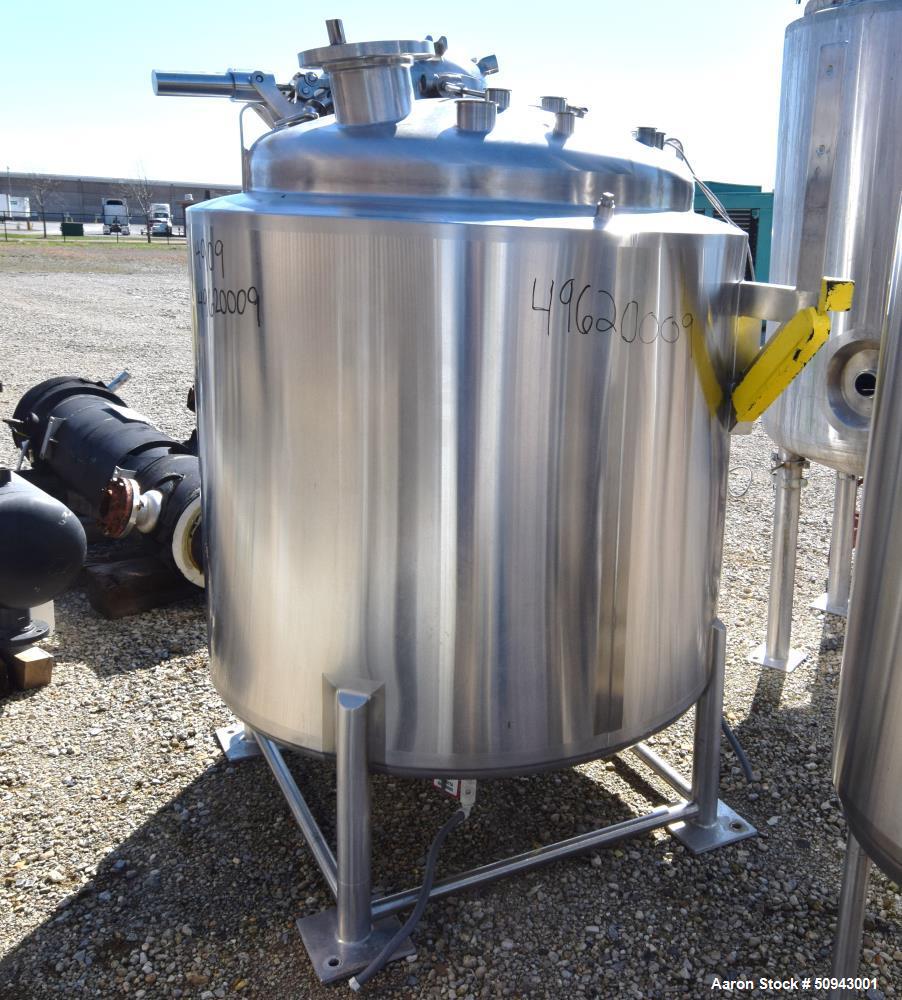

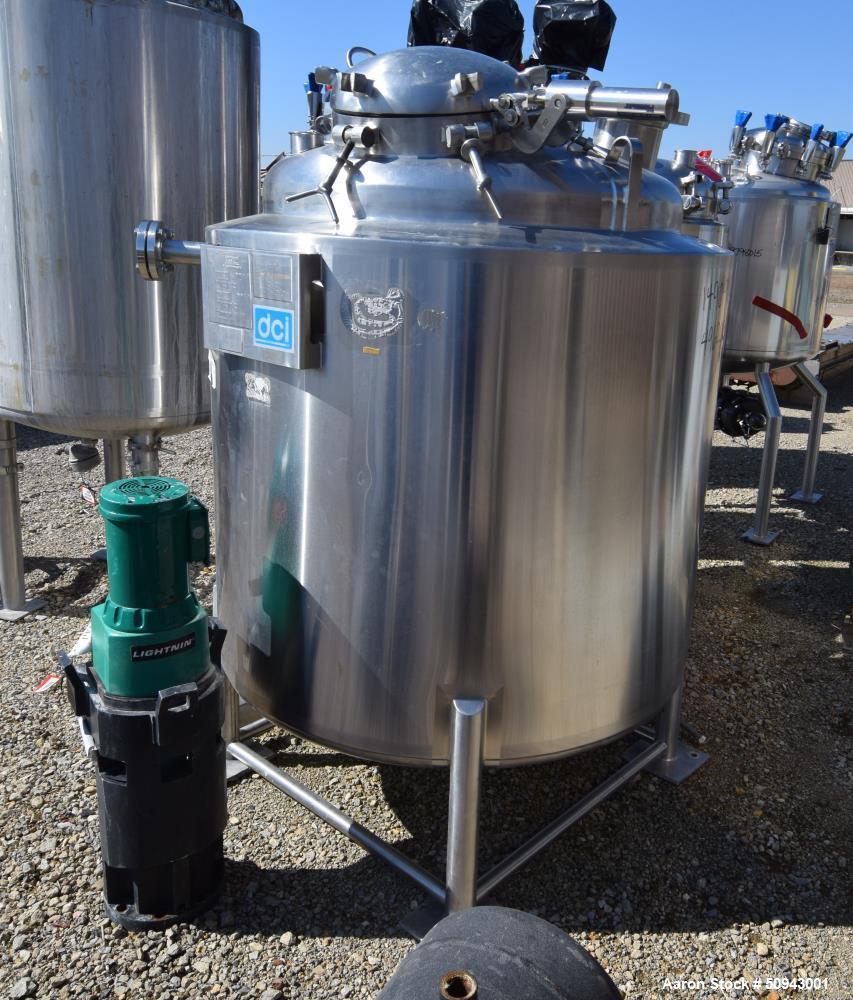

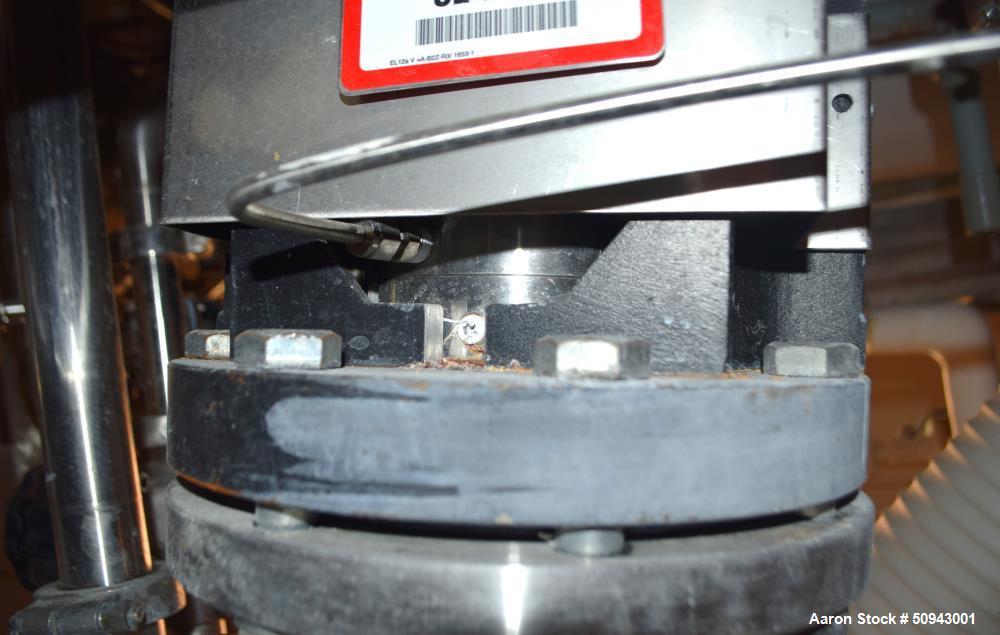

Used DCI Reactor, 1,000 Liter (264 Gallon), 316L Stainless Steel, Vertical. 42" Diameter x 42" straight side, dished top and bottom. Internal rated 50/-15 (Full Vacuum) psi at -20 to 350 degrees F., 2" 316L stainless steel 1/2 pipe coil jacket rated 100/-15 (Full Vacuum) psi at -20 to 350 degrees F. Insulated with 4" Inswool fiberglass, and 304L stainless steel sheathing. Off center top entering Lightnin Vektor agitator, Model V6S110, Serial # 93B62441-02. Approximately 1-1/2" diameter shaft with a 3 blade turbine and mechanical seal, driven by a 1.5 hp, 3/60/230/460 volt, 1725 rpm motor. (2) Spray balls, internal sidewall ladder. Openings top: (3) 1-1/2" tri-clamp, (6) 2" tri-clamp, (3) 3" tri-clamp, 6" drive, 18" manway with a 3" tri-clamp, and 4" sight glass in the cover. 3" Tri-clamp center bottom outlet. Mounted on 4 stainless steel legs. Serial # 93-PH-47095B, National Board # 2618. Built 1994.
Used DCI Reactor, 1,000 Liter (264 Gallon), 316L Stainless Steel, Vertical. 42" Diameter x 42" straight side, dished top and bottom. Internal rated 50/-15 (Full Vacuum) psi at -20 to 350 degrees F., 2" 316L stainless steel 1/2 pipe coil jacket rated 100/-15 (Full Vacuum) psi at -20 to 350 degrees F. Insulated with 4" Inswool fiberglass, and 304L stainless steel sheathing. Off center top entering Lightnin Vektor agitator, Model V6S110, Serial # 93B62441-02. Approximately 1-1/2" diameter shaft with a 3 blade turbine and mechanical seal, driven by a 1.5 hp, 3/60/230/460 volt, 1725 rpm motor. (2) Spray balls, internal sidewall ladder. Openings top: (3) 1-1/2" tri-clamp, (6) 2" tri-clamp, (3) 3" tri-clamp, 6" drive, 18" manway with a 3" tri-clamp, and 4" sight glass in the cover. 3" Tri-clamp center bottom outlet. Mounted on 4 stainless steel legs. Serial # 93-PH-47095B, National Board # 2618. Built 1994.
