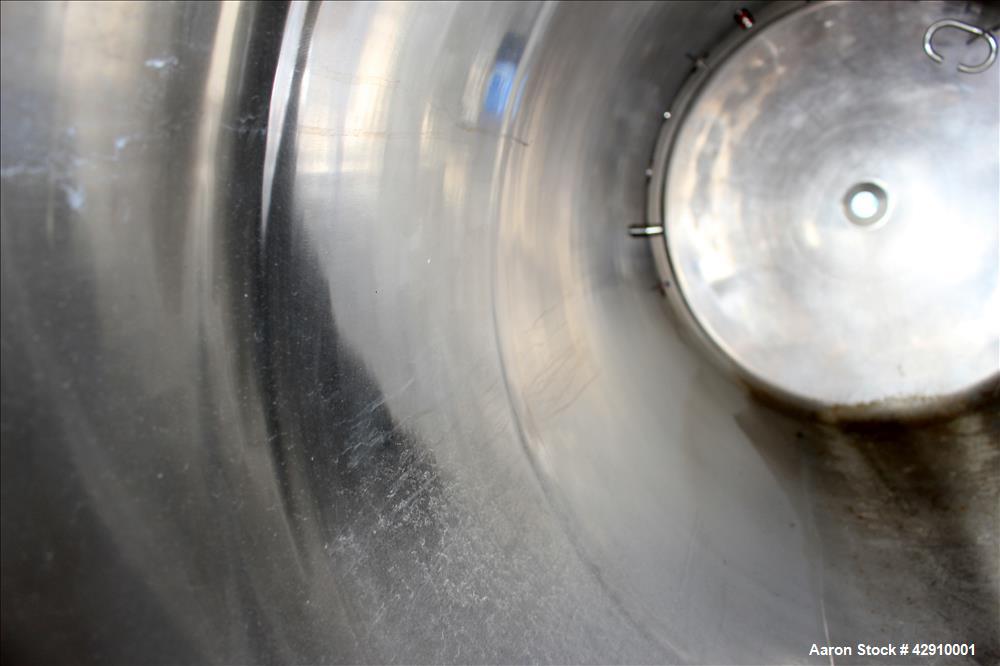

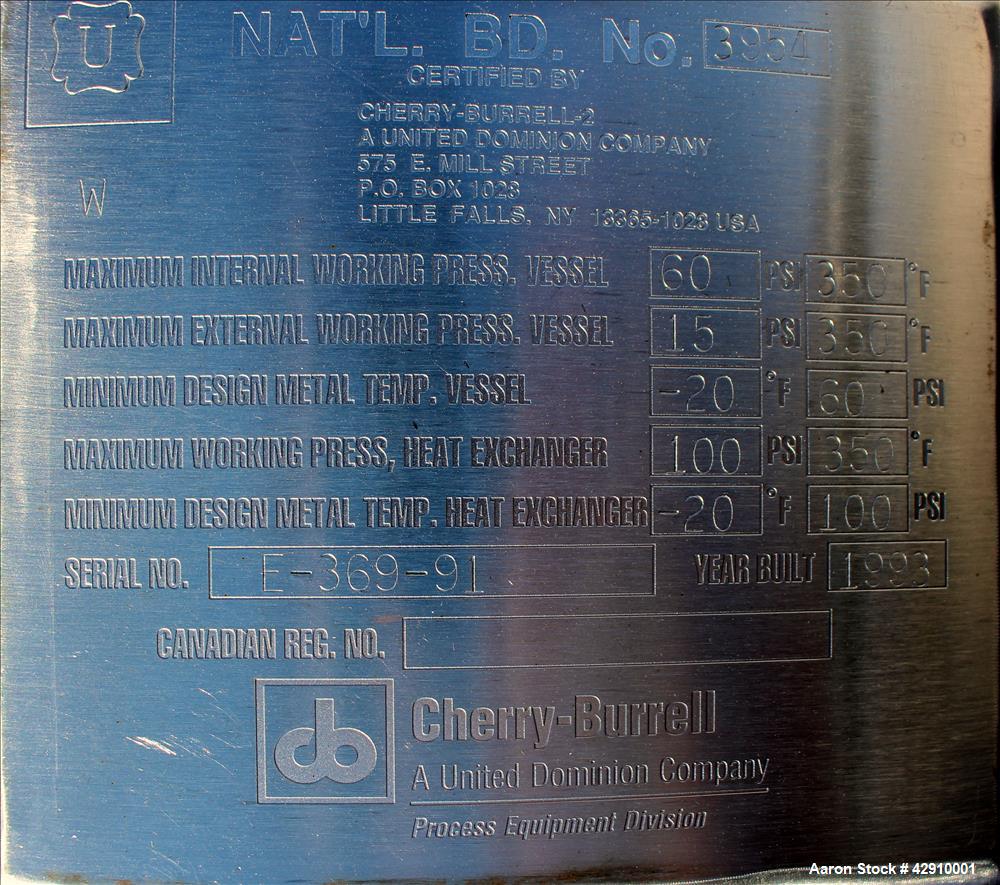

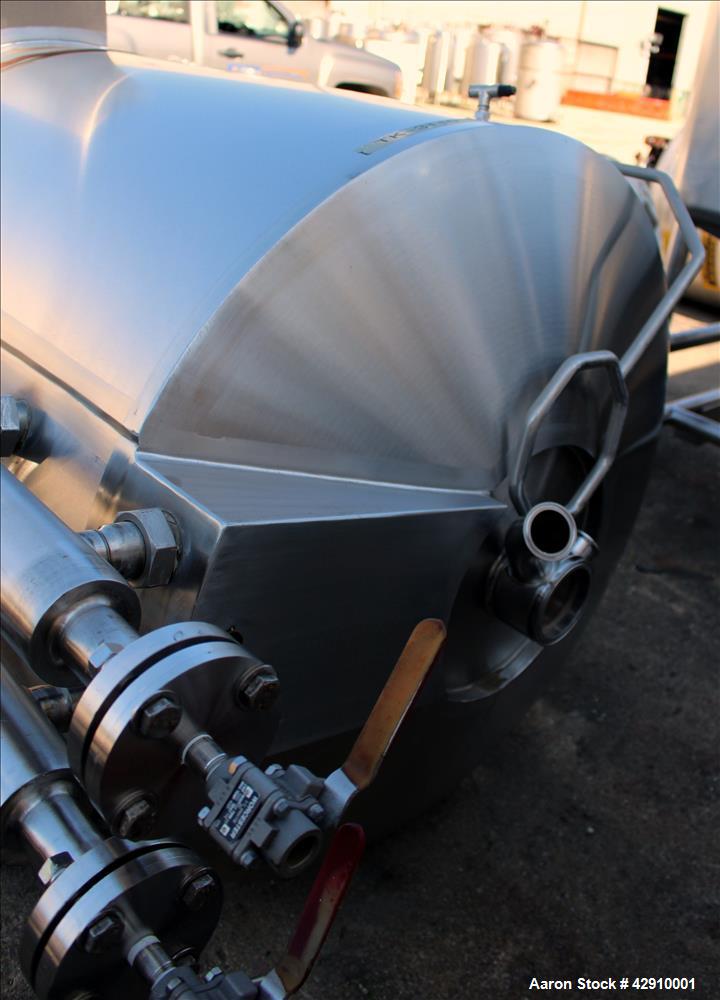

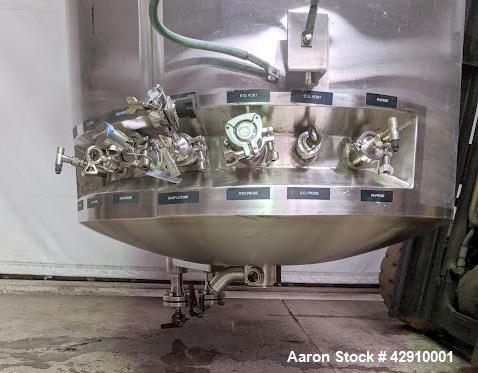

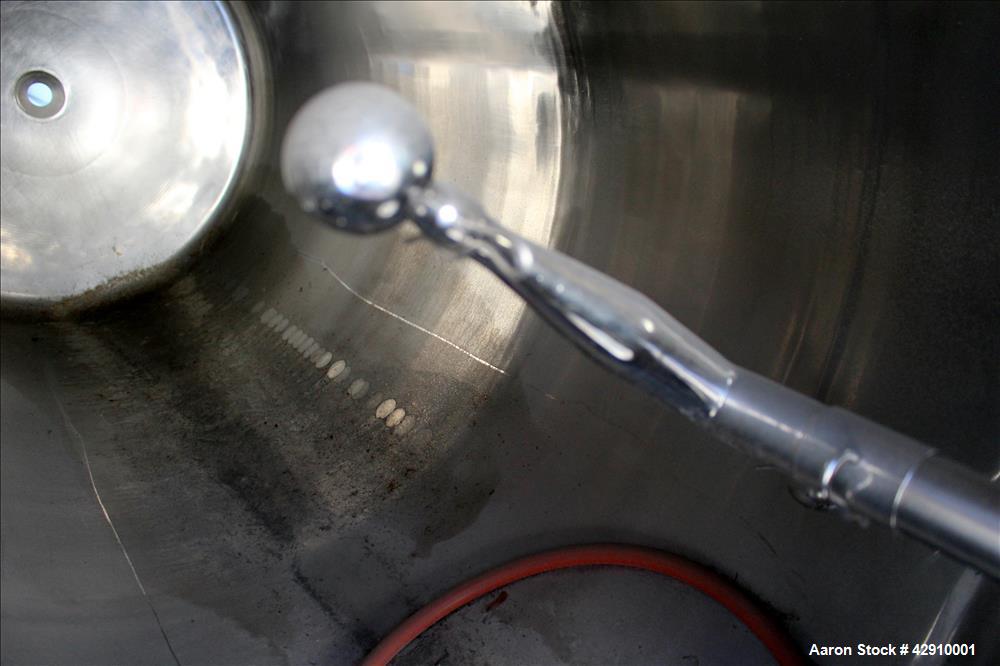

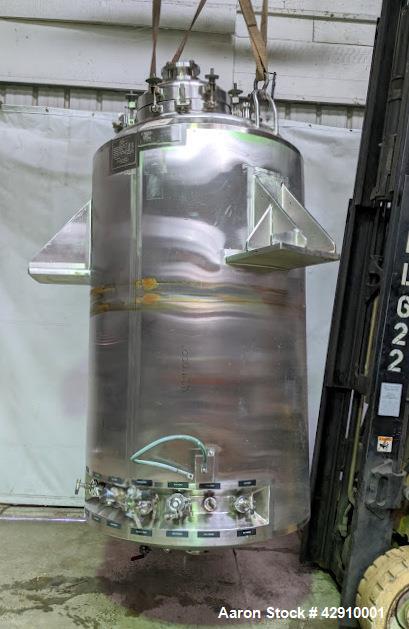

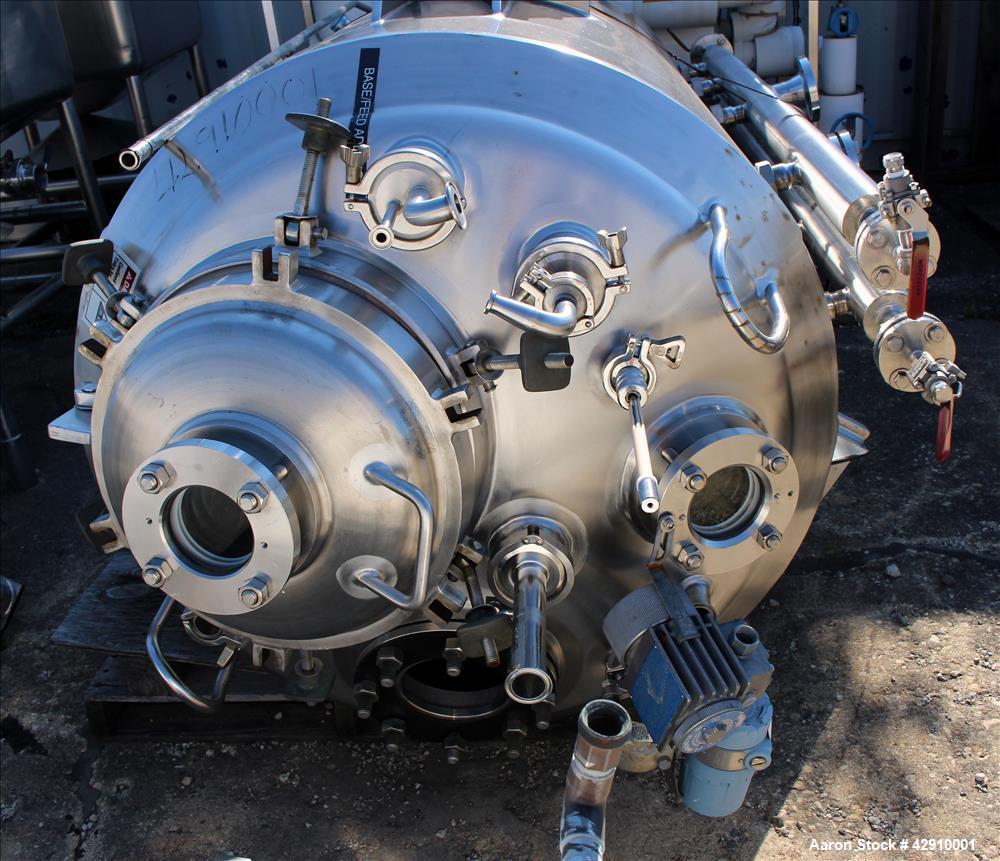

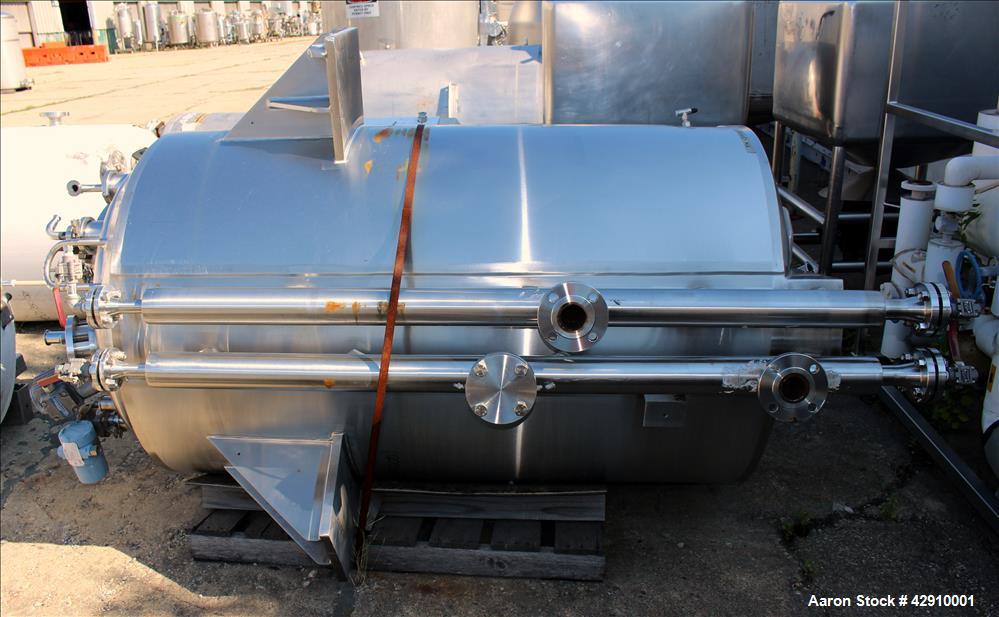

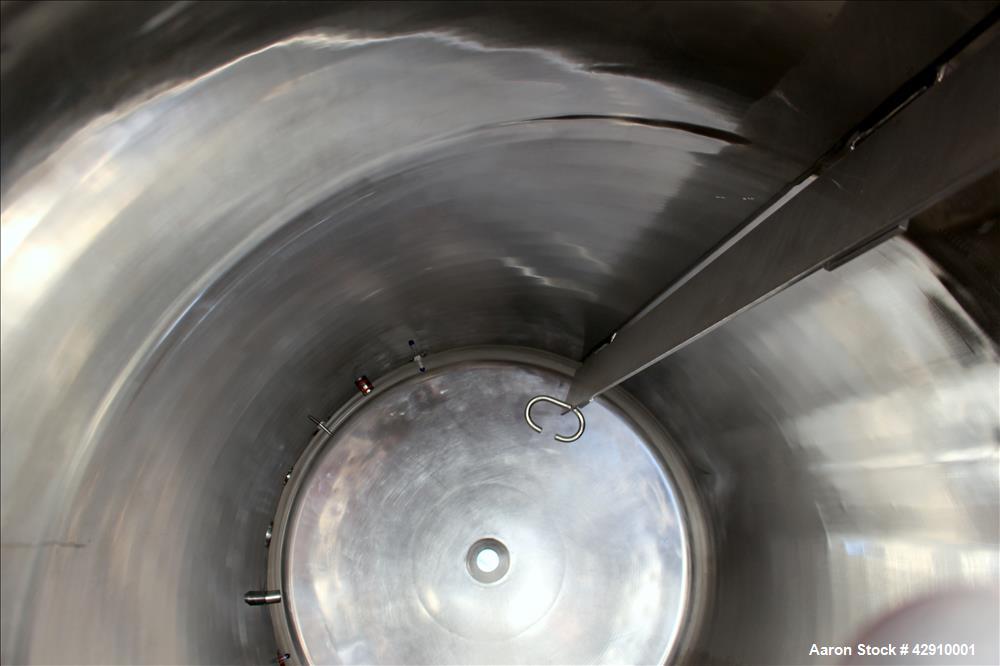

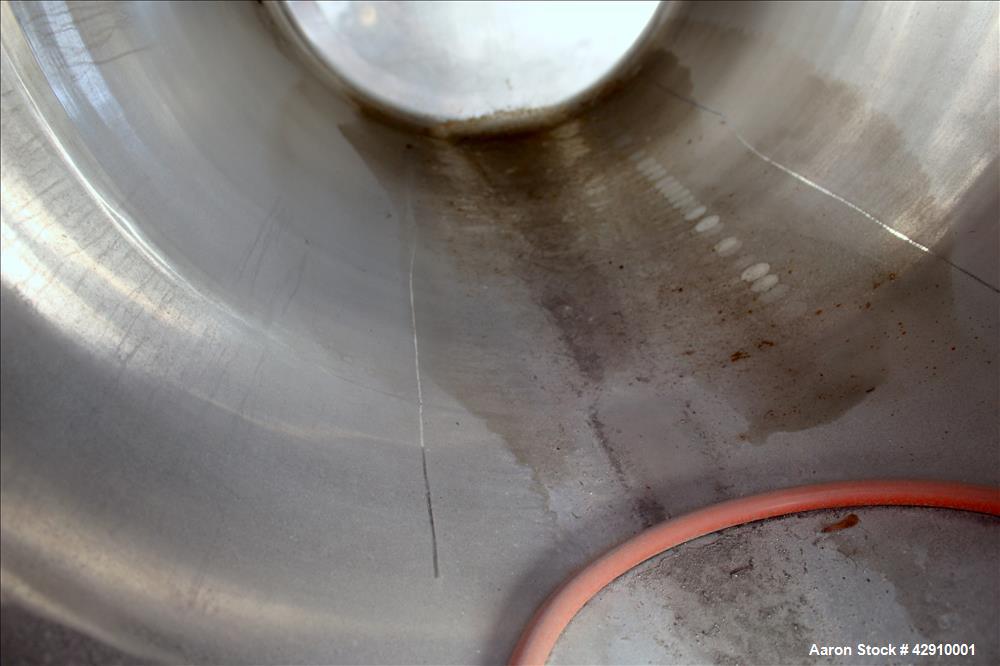

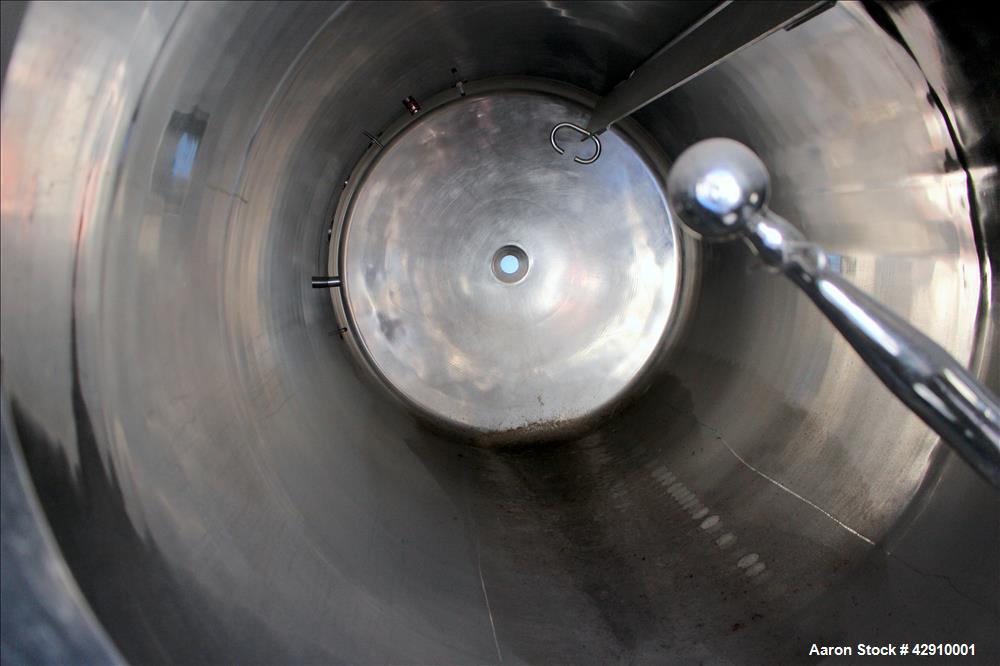

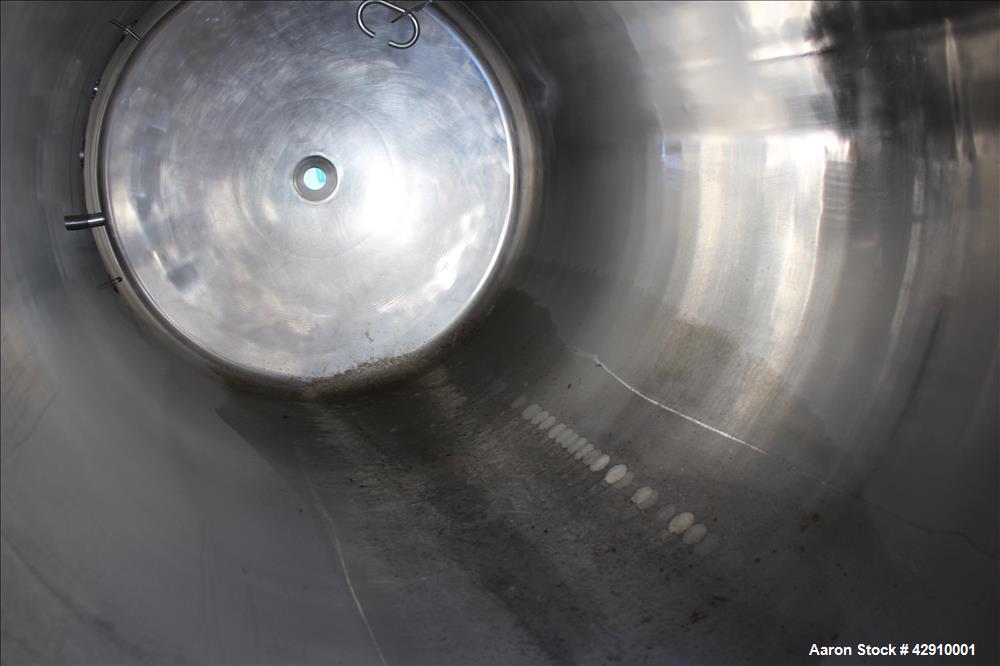

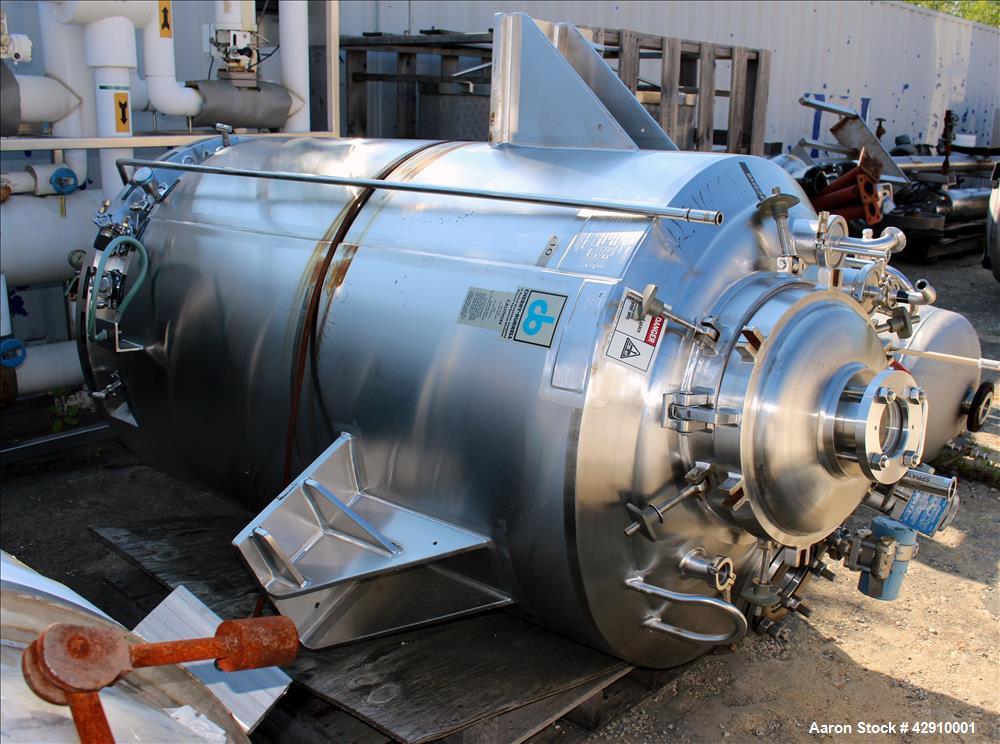

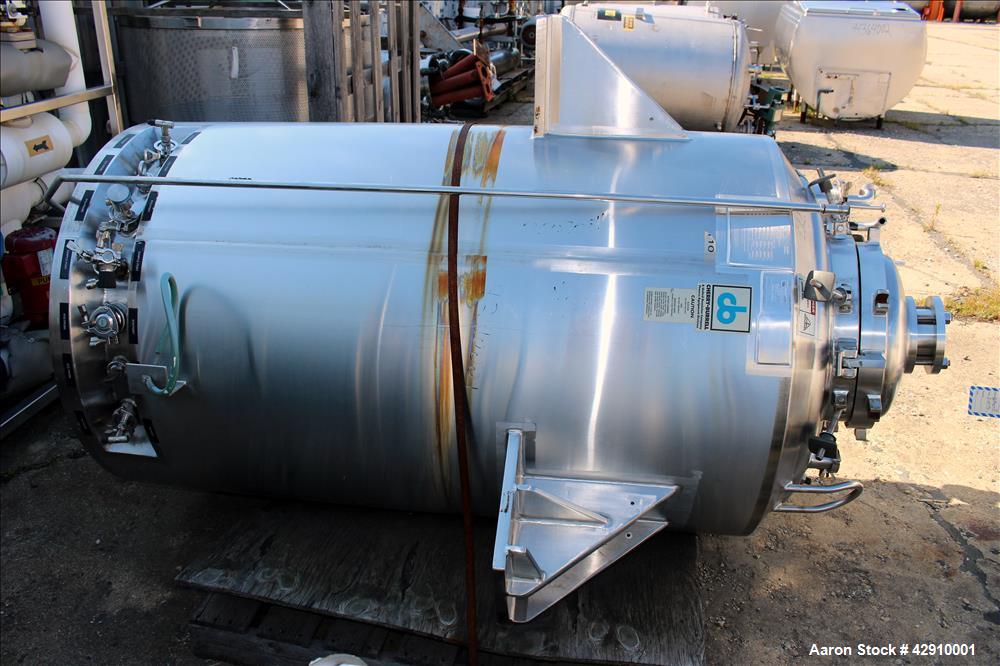

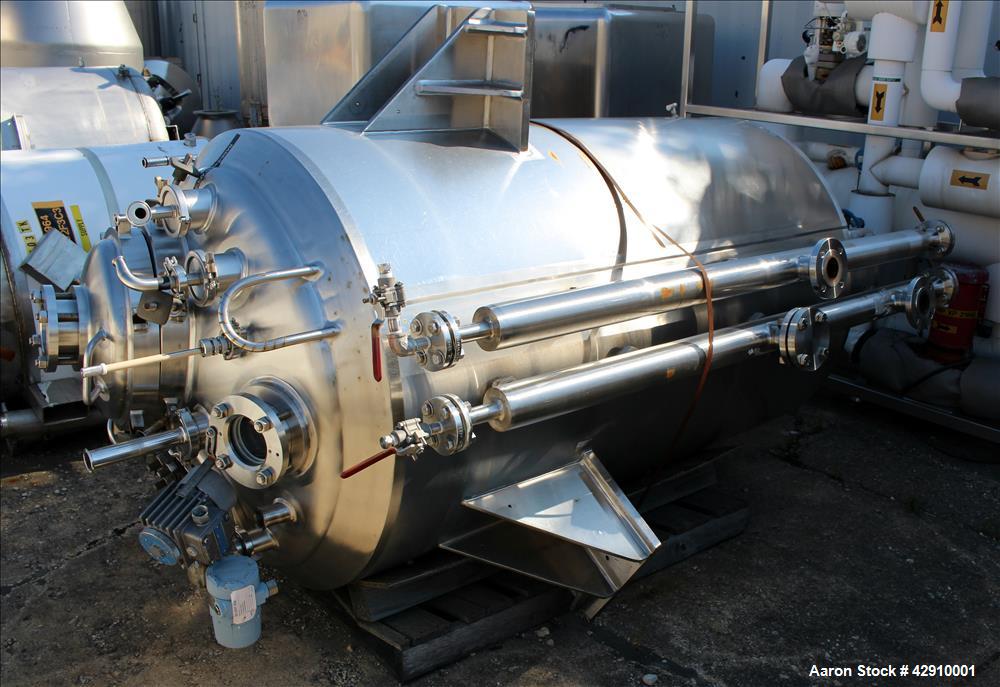

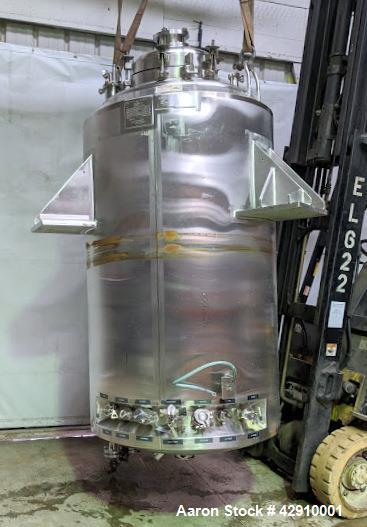

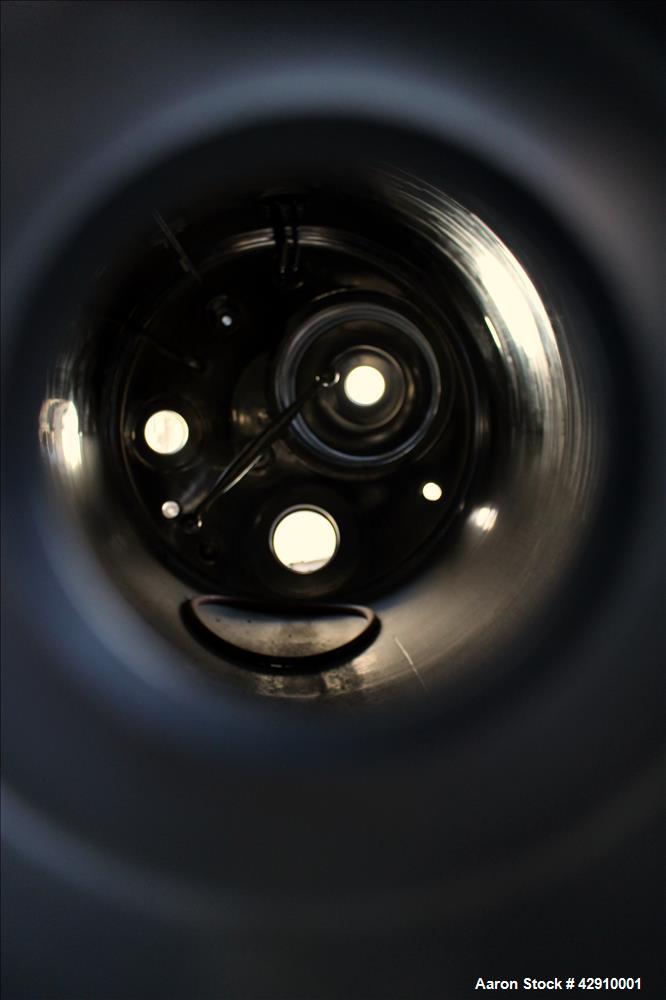

Used Cherry Burrell Reactor, 320 Gallon, 316L Stainless Steel, Vertical. 36" Diameter x 66" straight side, dished top and bottom. Electropolished internal rated 60 psi and FV at -20 to 350 degrees F. 304 Stainless steel channel jacket on side wall, and dimple jacket on bottom head rated 100 psi at -20 to 350 degrees F. Insulated with 2" high density mineral wool on side wall, 2" soft fiberglass on bottom head, and 304 stainless steel sheathing. (1) Side wall baffle, (2) Spray balls. Openings top (3) 1-1/2" 2", (2) 3", 4" sight glass, 6" off center drive, 16" man way with a 4" sight glass in the cover. 2" Center bottom outlet. Mounts on (3) stainless steel side lugs.
