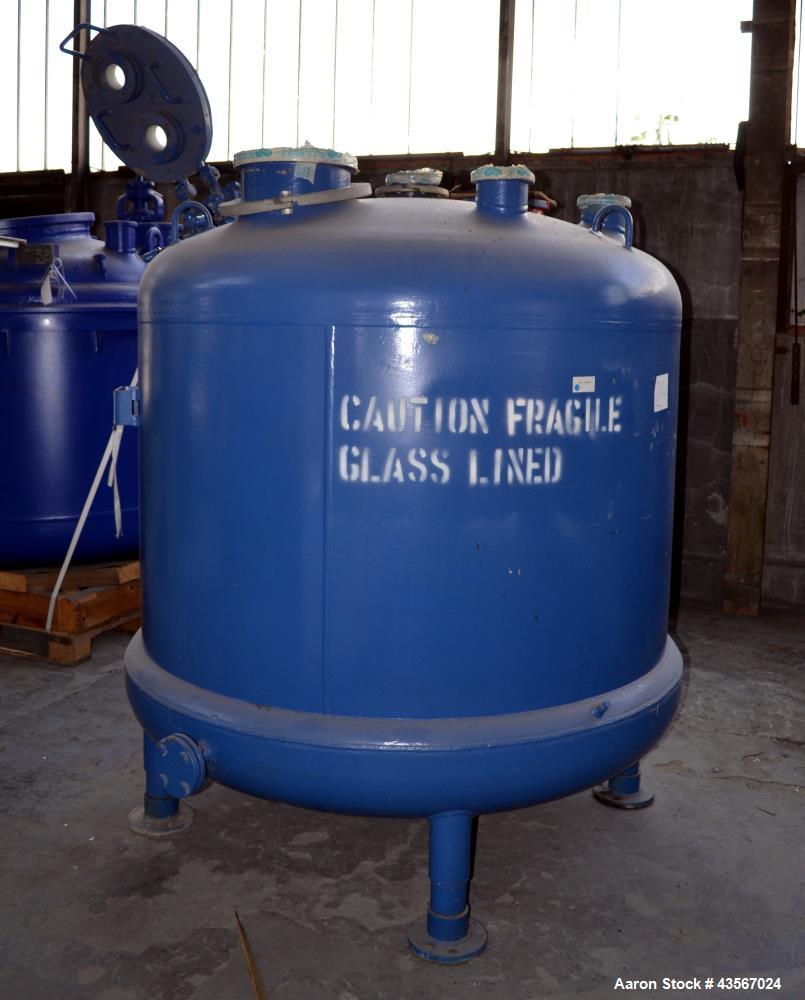

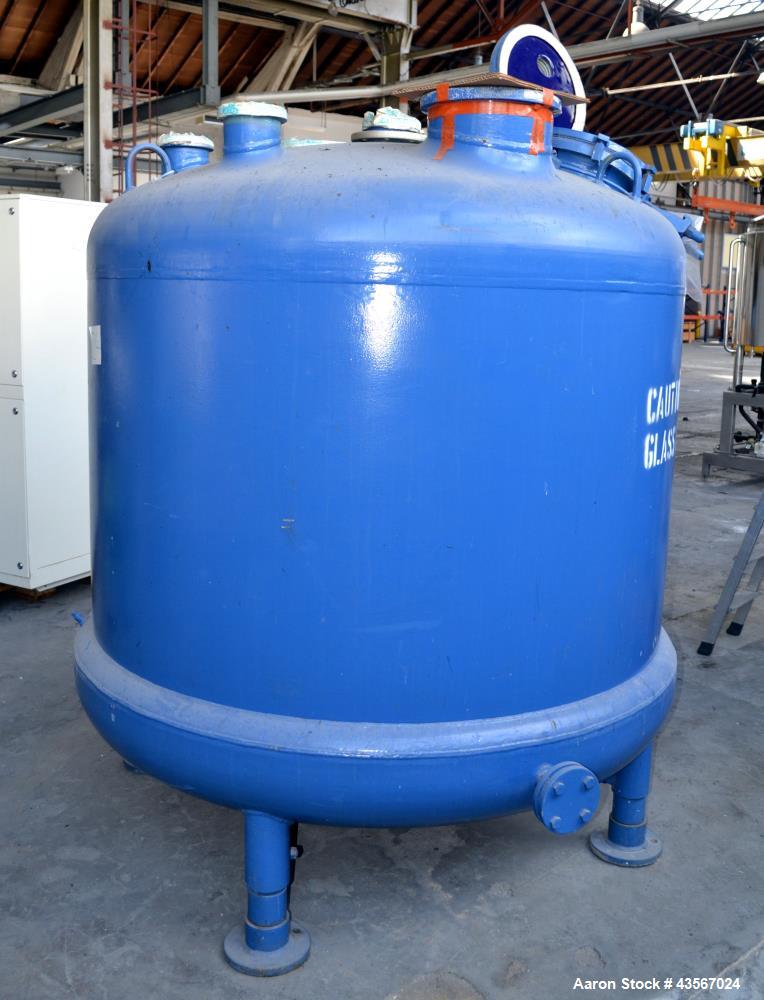

Used Tycon 2834L Glass-Lined Reactor – 748 Gallon, Blue Glass, Vertical, 6-Bar Jacket

Manufacturer Information:

• Brand: Tycon
• Type: Glass-Lined Reactor
• Capacity: 2834 Liters (748.88 Gallons)

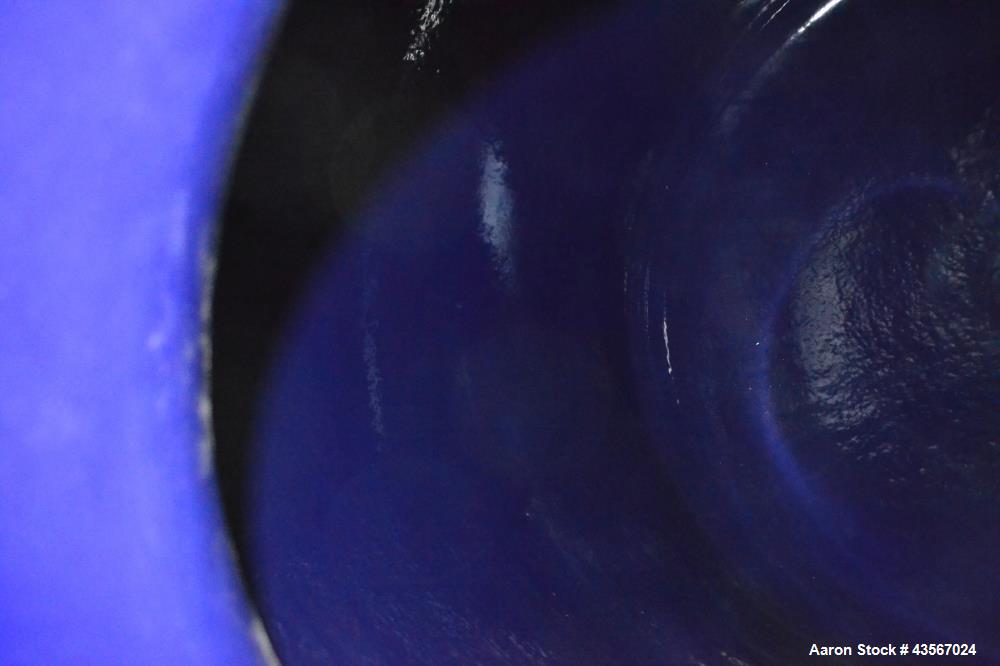

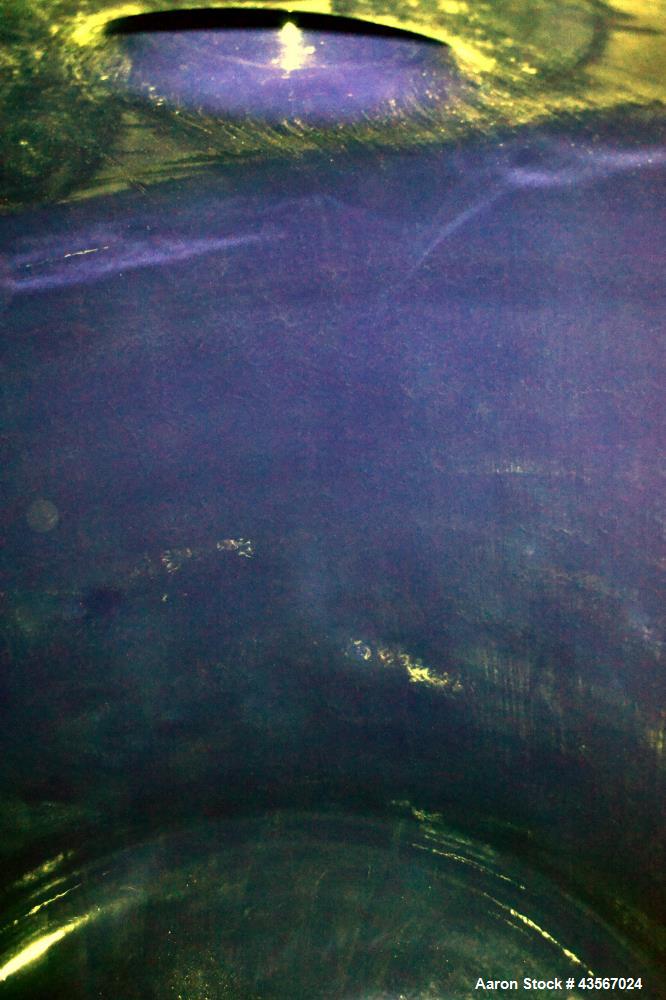

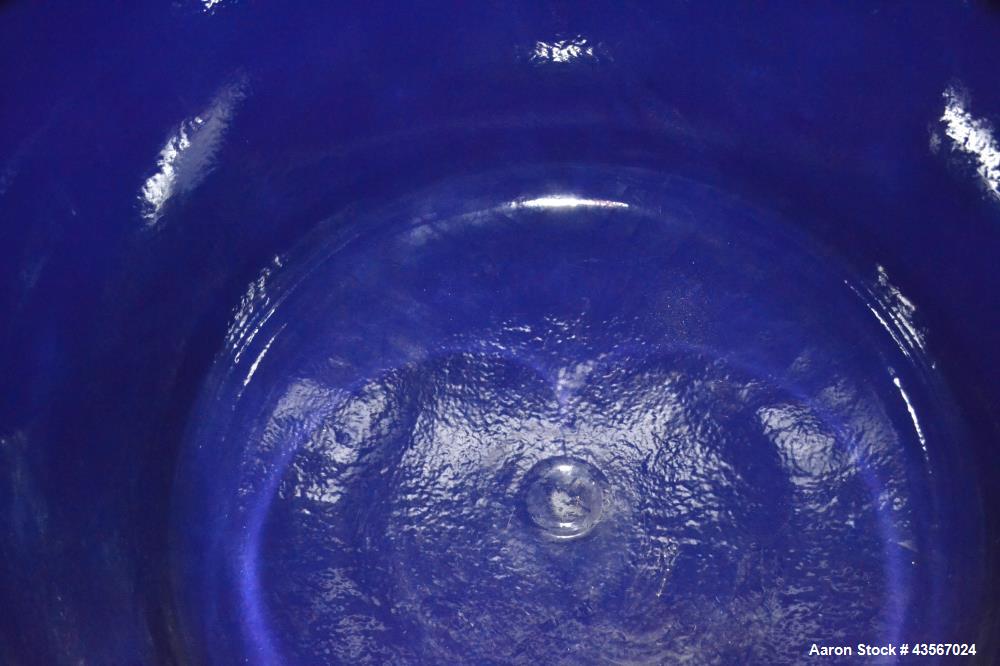

• Lining: Blue Glass

Description:

This used Tycon 2834L (748.88 Gallon) Glass-Lined Reactor is a high-capacity industrial vessel, designed for chemical, pharmaceutical, and industrial processing applications requiring corrosion resistance and thermal stability.

Constructed with durable blue glass lining, this reactor is ideal for handling acidic, corrosive, and high-temperature reactions. The vertical configuration with dished top and bottom ensures efficient mixing and controlled processing conditions.

The reactor is internally rated for -1 to 3.2 bar (-14.5 to 46.4 psi) at 200°C (392°F), and its carbon steel jacket is rated for 6 bar (87 psi) at 200°C (392°F), making it suitable for temperature-controlled processing.

Key Features:

• Top Openings:

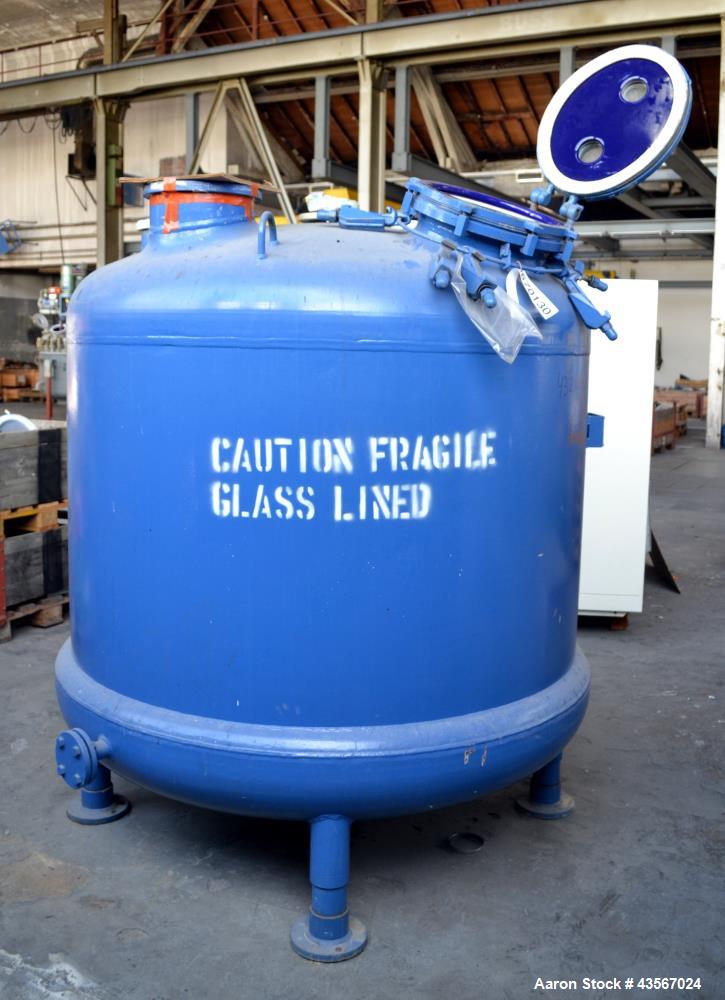

  • 12” x 16” Oval Manway with 2” Sight Glass in the cover
  • (3) 4” Openings
  • (2) 10” Openings
• Bottom Outlet for efficient material discharge

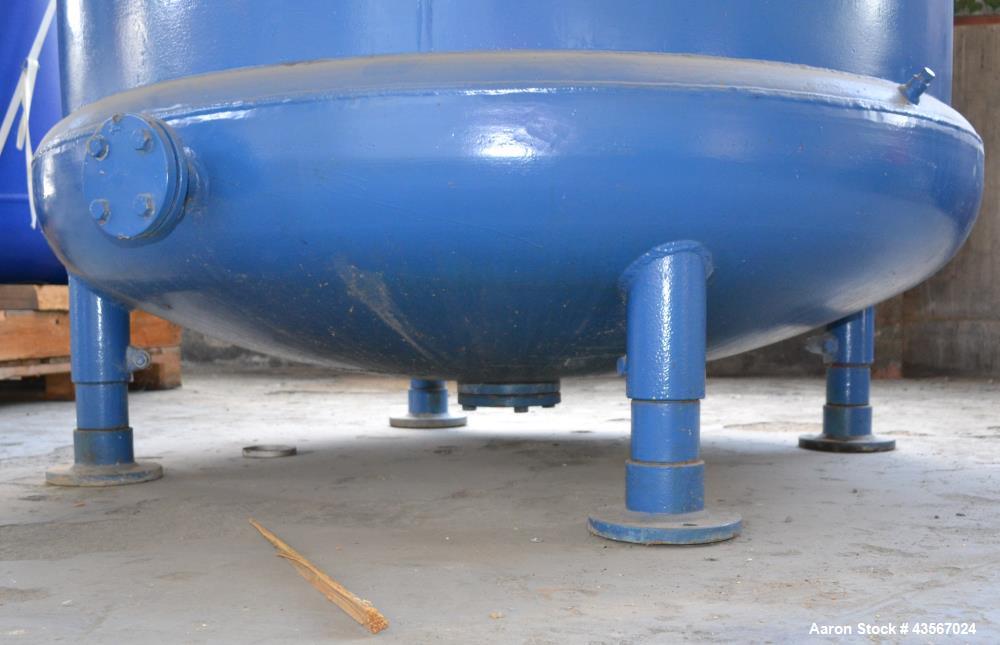

• Mounted on 4 Legs for stability and structural support

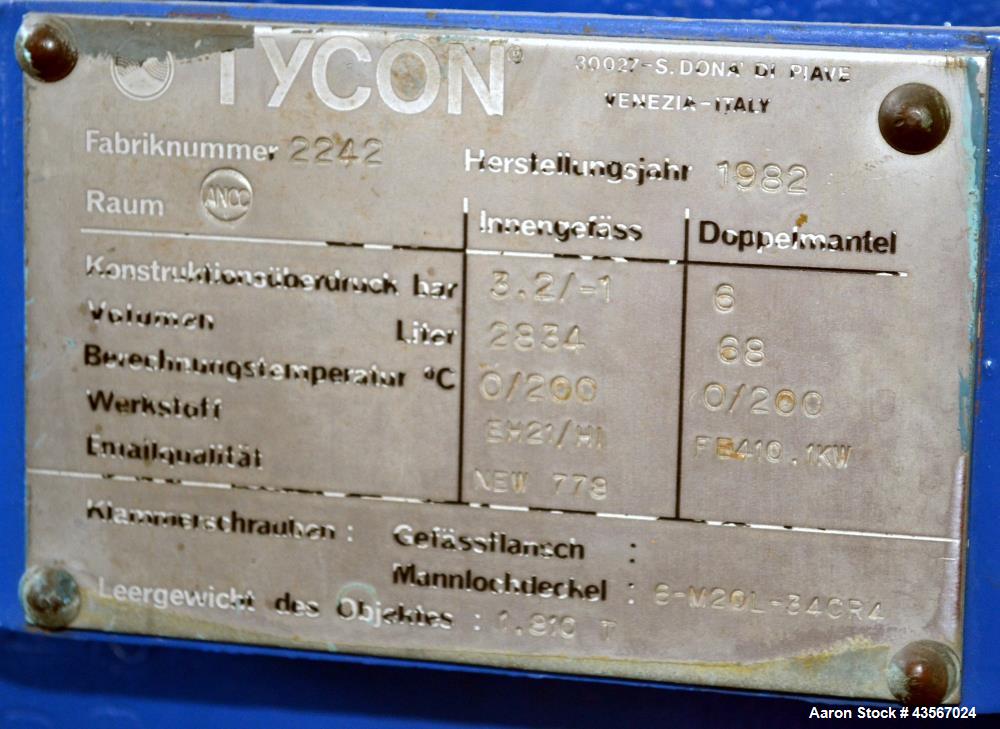

Serial #: 2242

Specifications:

• Capacity: 2834 Liters (748.88 Gallons)
• Construction: Glass-Lined, Carbon Steel Jacket
• Orientation: Vertical
• Vessel Dimensions: 62” Diameter x 48” Straight Side
• Ends: Dished Top & Bottom
• Internal Pressure Rating: -1 to 3.2 bar (-14.5 to 46.4 psi)
• Jacket Pressure Rating: 6 bar (87 psi)
• Temperature Range: Up to 200°C (392°F)
• Top Openings:
  • 12” x 16” Oval Manway with 2” Sight Glass
  • (3) 4” Openings
  • (2) 10” Openings
• Bottom Outlet
• Mounting: 4-Leg Stand for Stability
• Serial #: 2242

Applications:

• Pharmaceutical & Biotech – Chemical synthesis, fermentation, and active ingredient production
• Chemical Processing – Corrosive material handling, solvent reactions, and high-temperature applications
• Industrial Manufacturing – Large-scale batch processing and reaction control
• Food & Beverage – Processing of food-grade chemicals and specialty ingredients
• Research & Development – Pilot-scale testing and chemical formulation

What Products Would This Be Used For?

• API (Active Pharmaceutical Ingredient) production
• Specialty chemical synthesis
• High-temperature acid and solvent reactions
• Polymer and resin production
• Industrial coatings and adhesives manufacturing
