Used 3V Tech 5,000 Gallon Glass-Lined Reactor – Model BE5000

Manufacturer Information:

• Manufacturer: 3V Tech
• Model: BE5000
• Condition: Used
• Year Built: 2013
• National Board Number: 65
• Serial Number: 1082

Manufacturing Data:

Reactor Vessel:

• Capacity: 5,000 Gallons
• Inner Diameter: 108 inches
• Straight Side Height: 110 inches
• Material: Glass-Lined Steel
• Pressure Rating:
  • Internal: 90 PSI & Full Vacuum at 400°F
  • Jacketed: 125 PSI & Full Vacuum at 400°F
• Jacketed: Yes, for temperature control

Agitation System:

• Agitator Type: 4-Blade Agitator with Baffle

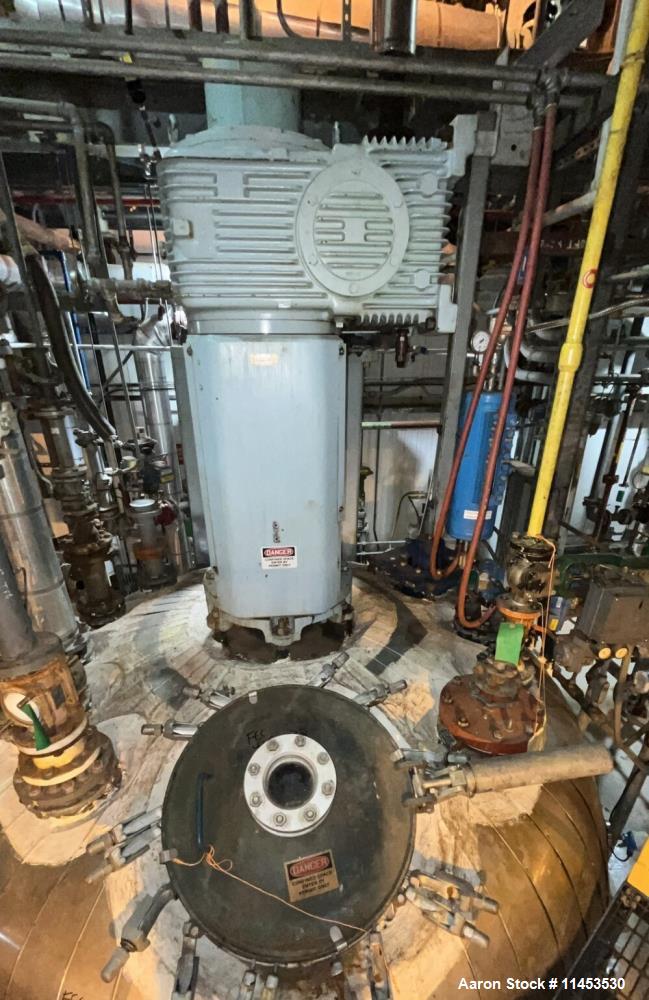

• Agitator Drive: 10SRW Pfaudler Agitator Drive with Mechanical Seal
• Motor: Not Included

Description:

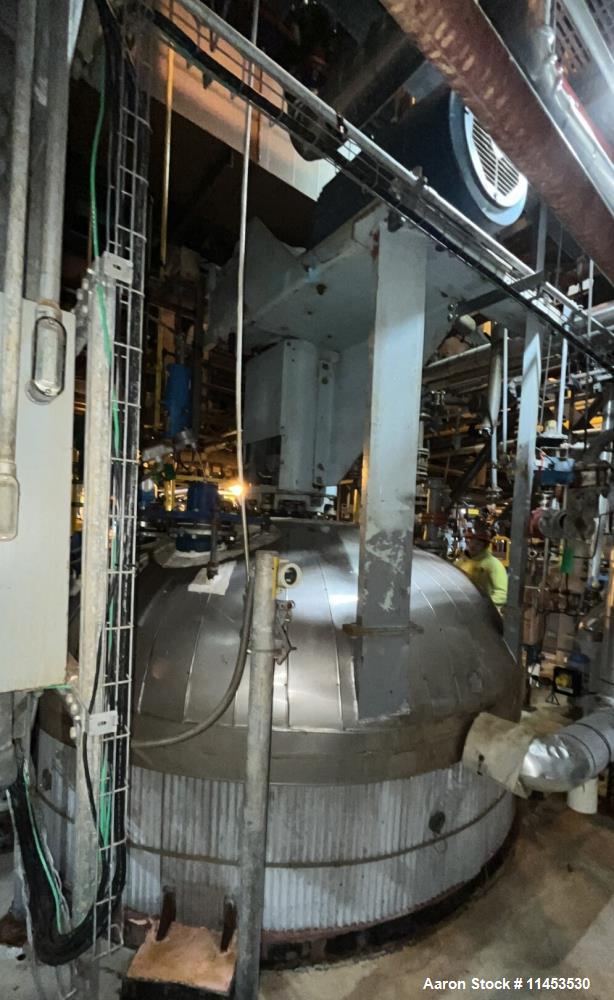

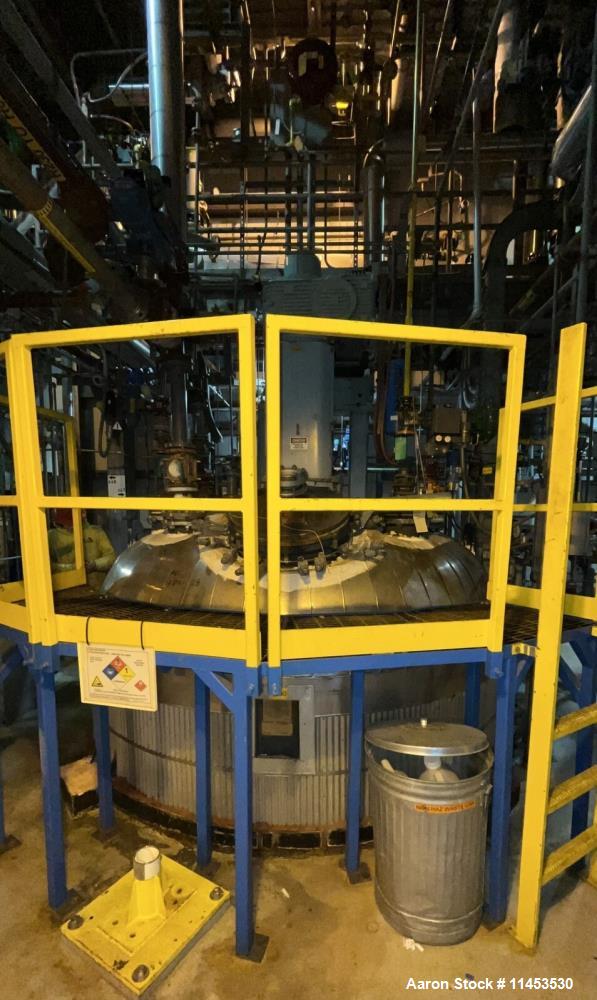

The Used 3V Tech 5,000 Gallon Glass-Lined Reactor (Model BE5000) is a high-capacity, corrosion-resistant vessel, designed for chemical, pharmaceutical, and industrial batch processing.

Built with a glass-lined interior, this reactor ensures optimal chemical resistance, making it ideal for handling corrosive materials and high-purity reactions. The reactor is rated for 90 PSI and full vacuum operation at up to 400°F, with a jacketed design rated for 125 PSI, allowing for precise heating and cooling control.

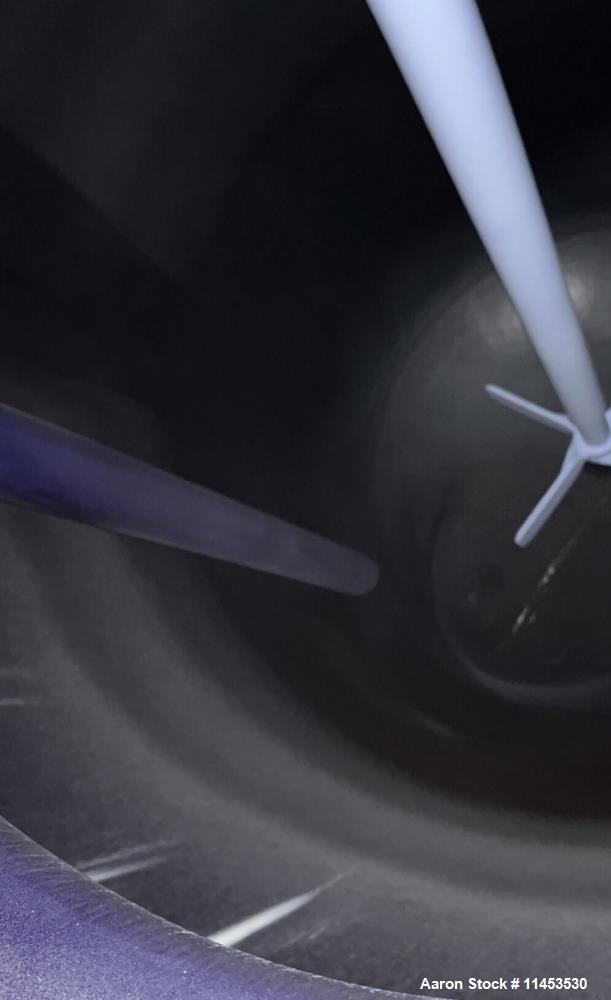

Equipped with a 10SRW Pfaudler agitator drive with a mechanical seal, this system provides consistent mixing performance. The 4-blade agitator and baffle system ensure efficient blending, heat transfer, and reaction uniformity.

While the motor is not included, the reactor remains a cost-effective, reliable solution for companies needing a high-capacity glass-lined processing vessel.

Specifications:

• Capacity: 5,000 Gallons
• Internal Pressure Rating: 90 PSI / Full Vacuum at 400°F
• Jacket Pressure Rating: 125 PSI / Full Vacuum at 400°F
• Inner Diameter: 108 inches
• Straight Side Height: 110 inches
• Material: Glass-Lined Steel
• Agitator System: 4-Blade Agitator with Baffle
• Agitator Drive: 10SRW Pfaudler with Mechanical Seal
• Motor: Not Included
• Year Built: 2013
• National Board Number: 65
• Serial Number: 1082
• Condition: Used, Good Working Order

Applications:

• Pharmaceutical batch reactions & mixing
• Chemical processing & high-purity applications
• Specialty polymers & resins production
• API (Active Pharmaceutical Ingredient) synthesis
• Fine chemicals & specialty chemical manufacturing
• Biochemical & industrial fermentation processes
• Adhesives, coatings, and sealant mixing
• Corrosive material processing

What Products Would This Be Used For?

• Pharmaceutical API production & synthesis
• Chemical compound mixing & reactions
• Resins, adhesives, and polymer formulations
• Specialty coatings & industrial sealants
• Food-grade & nutraceutical ingredient processing
• Bioprocessing & fermentation applications
• High-purity & corrosive material containment
