Stock #
54182001

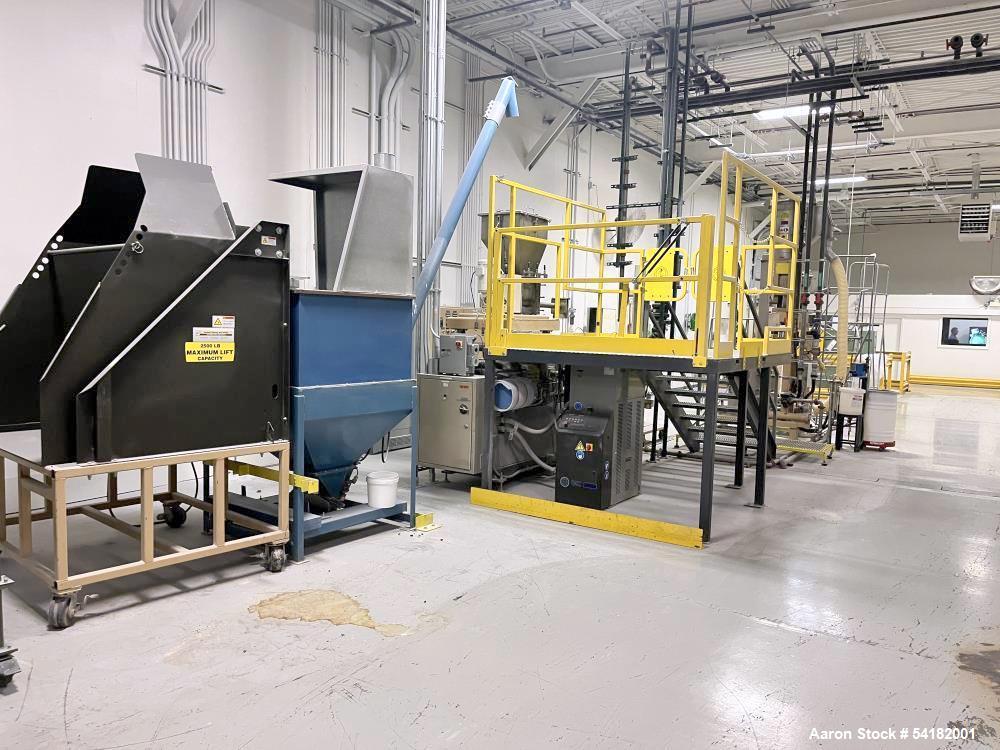

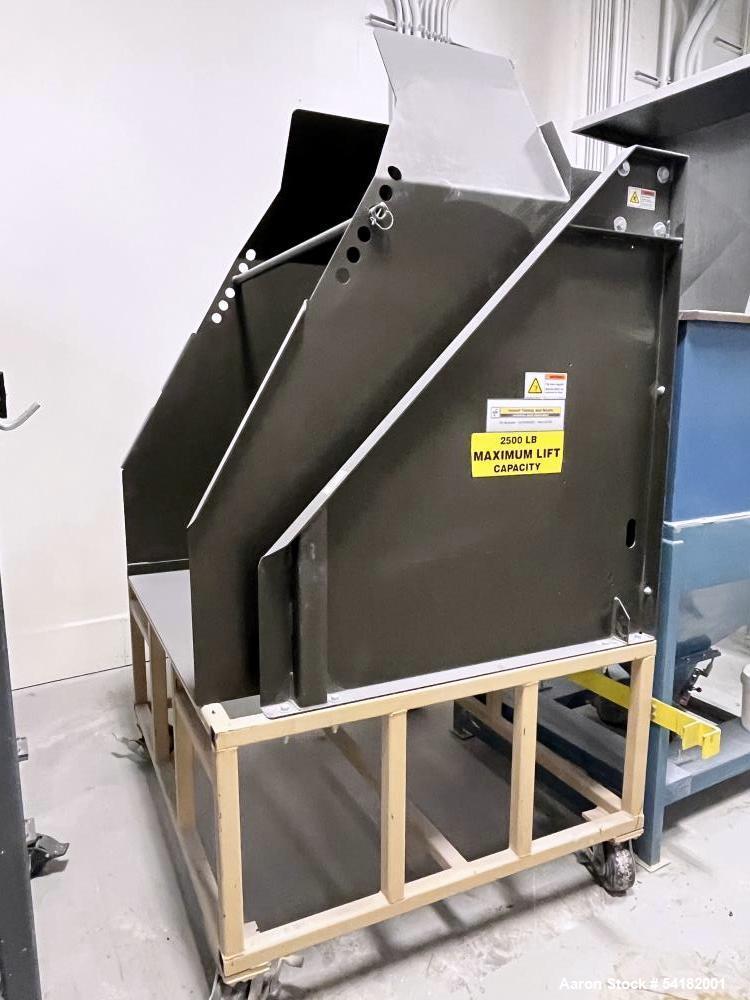

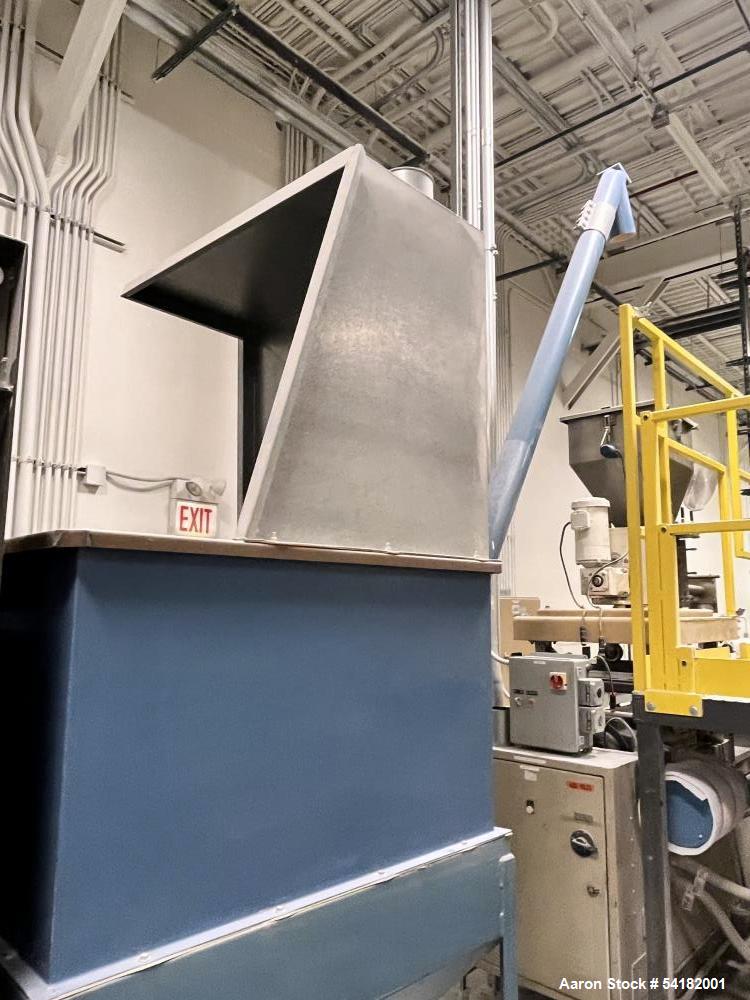

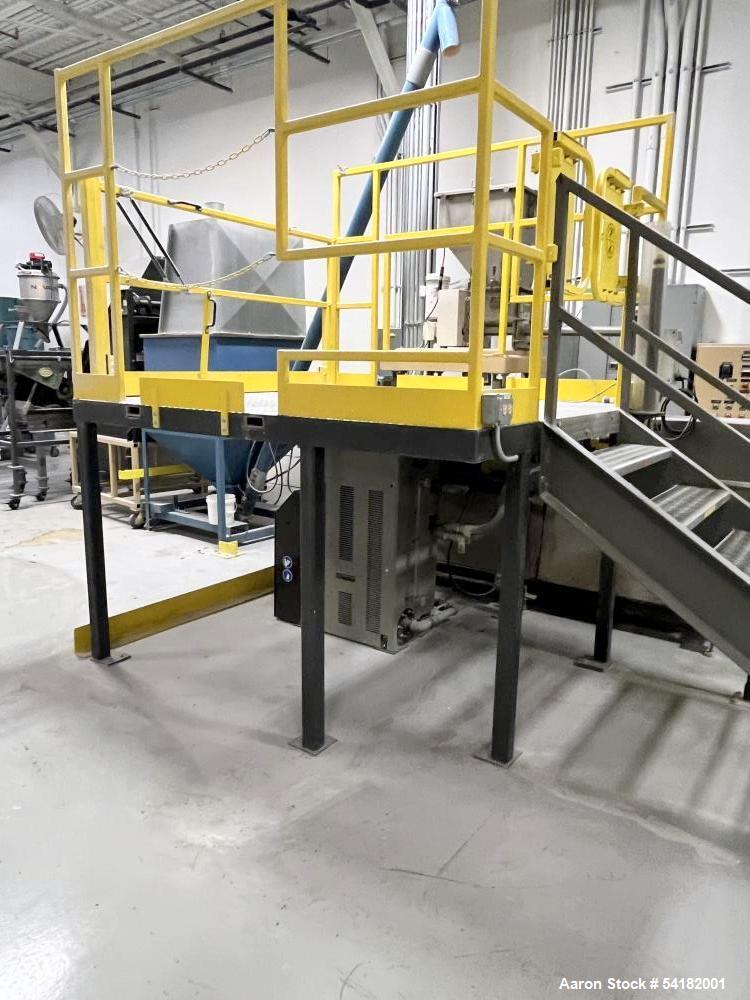

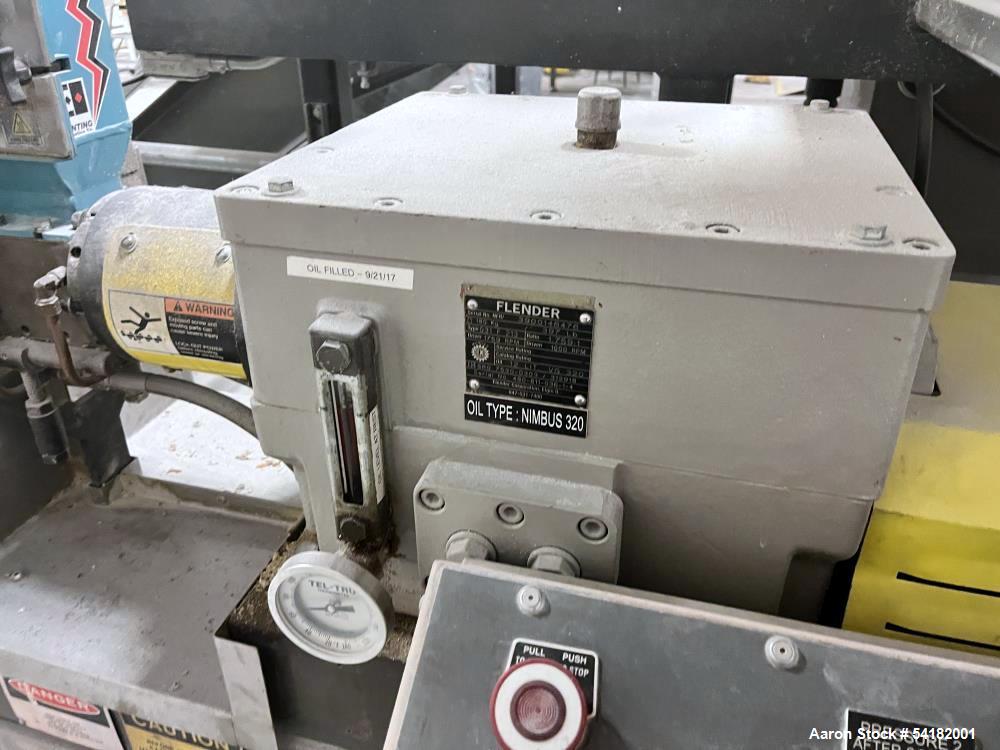

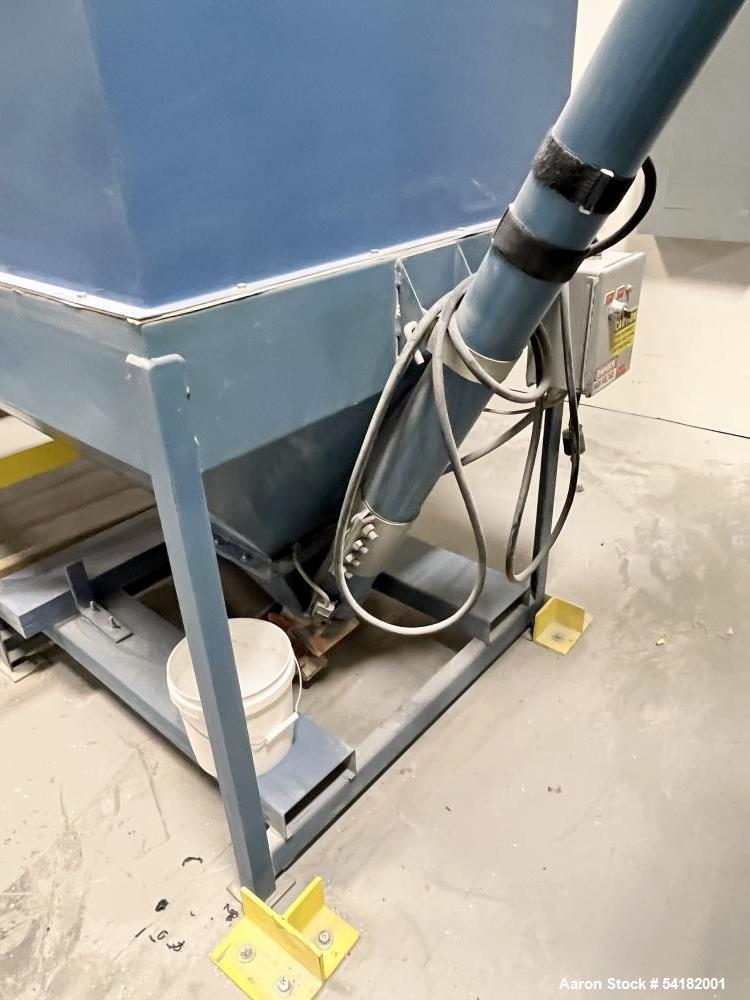

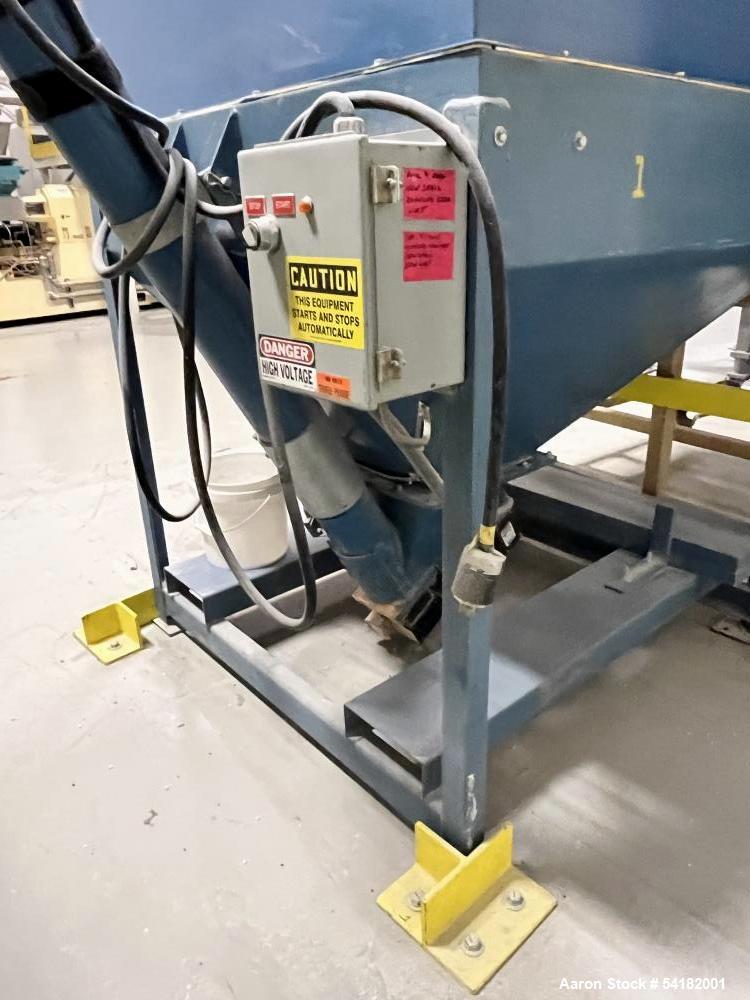

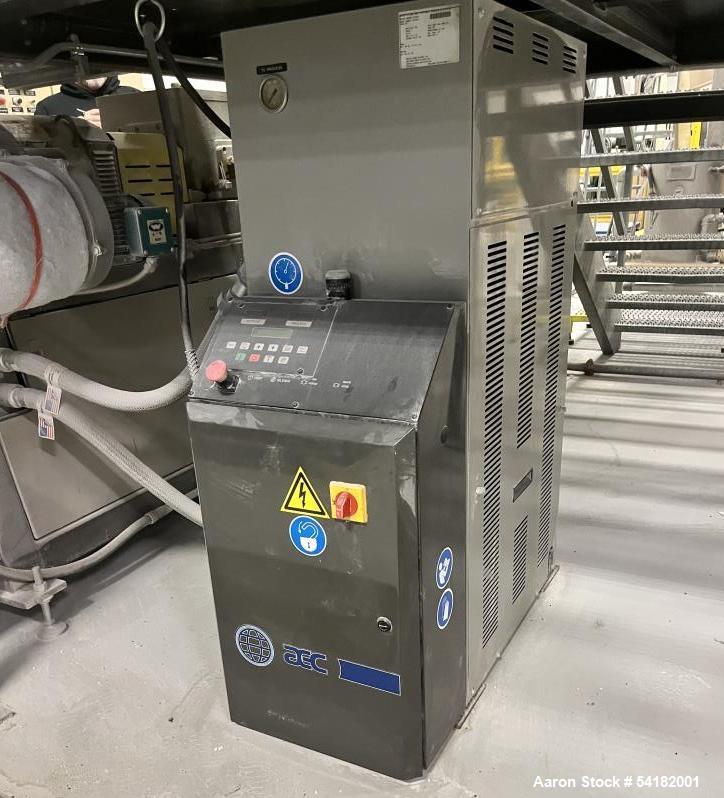

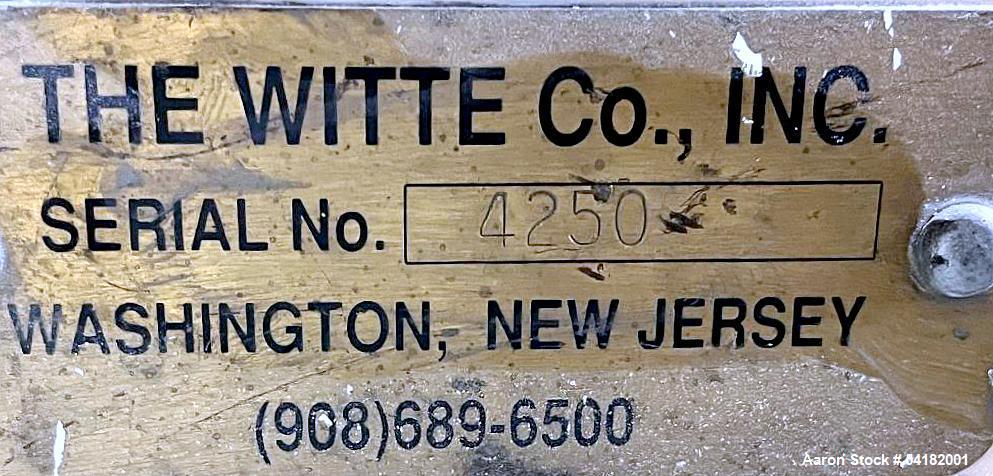

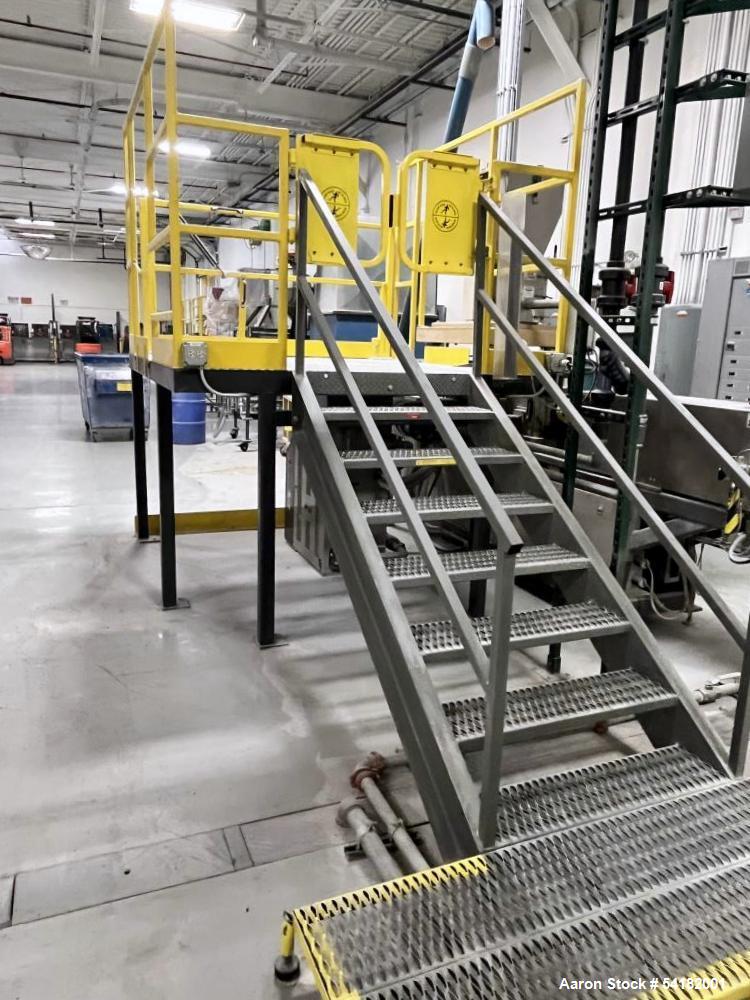

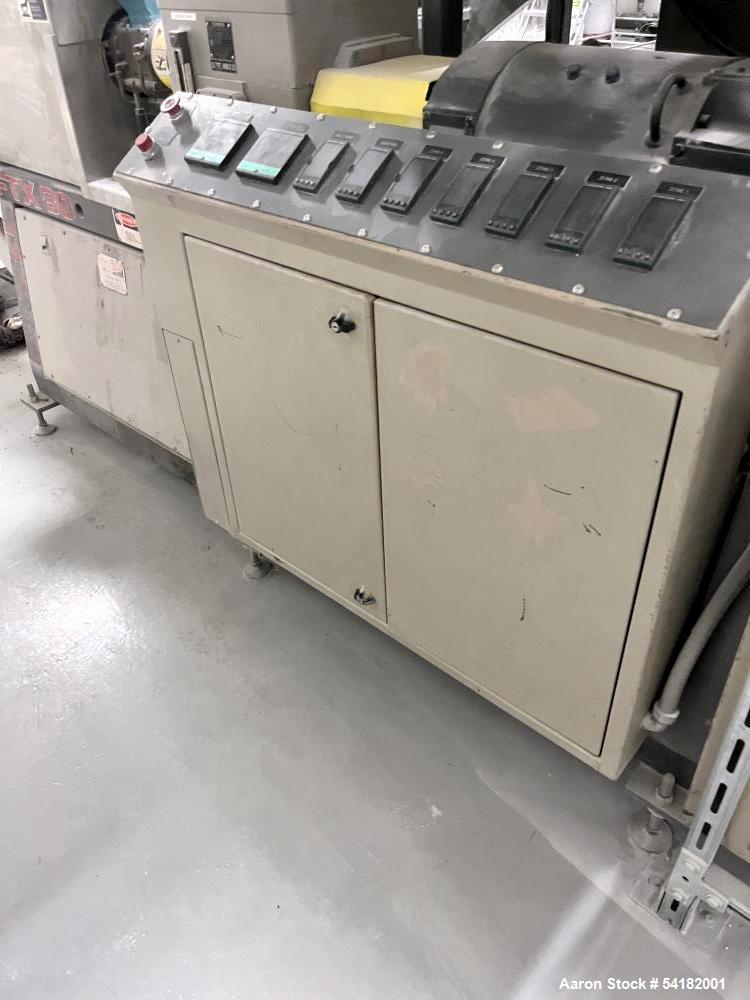

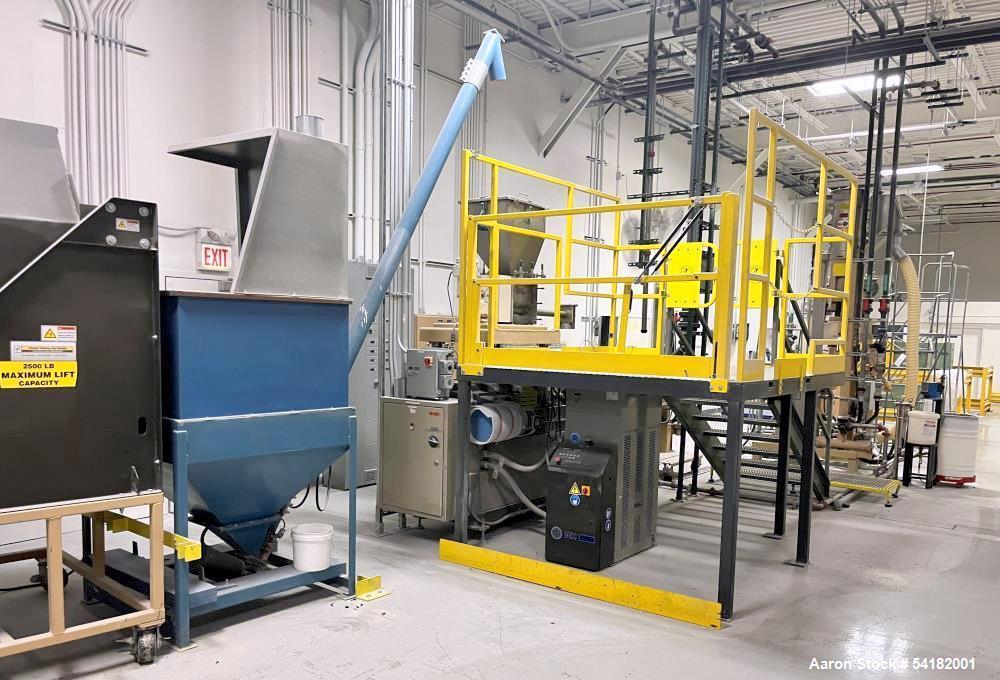

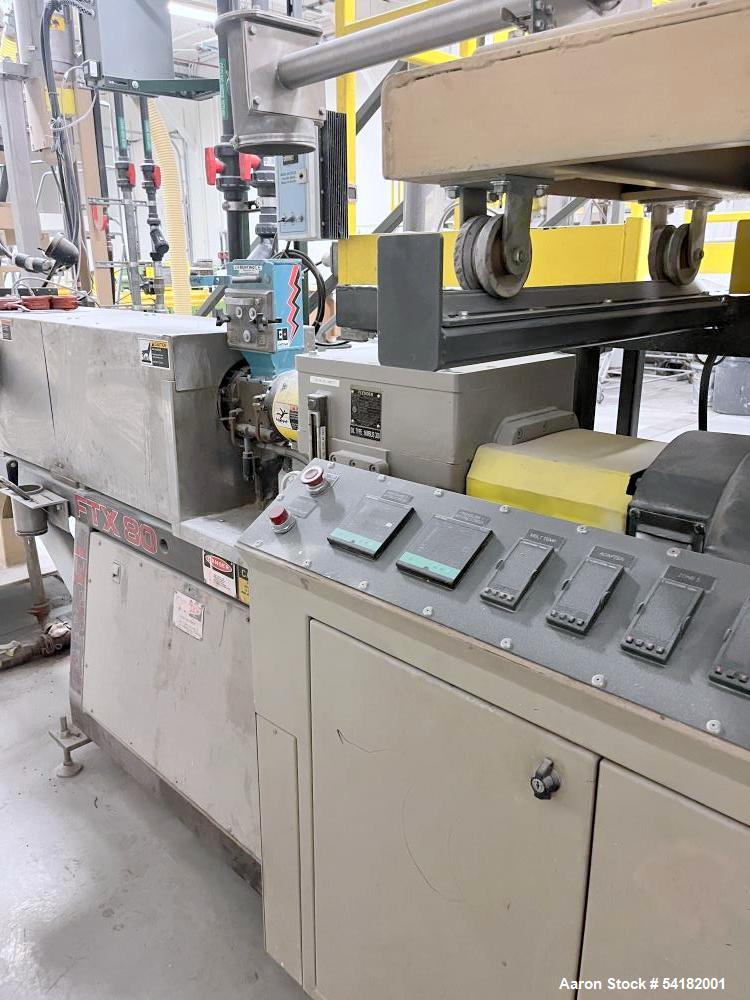

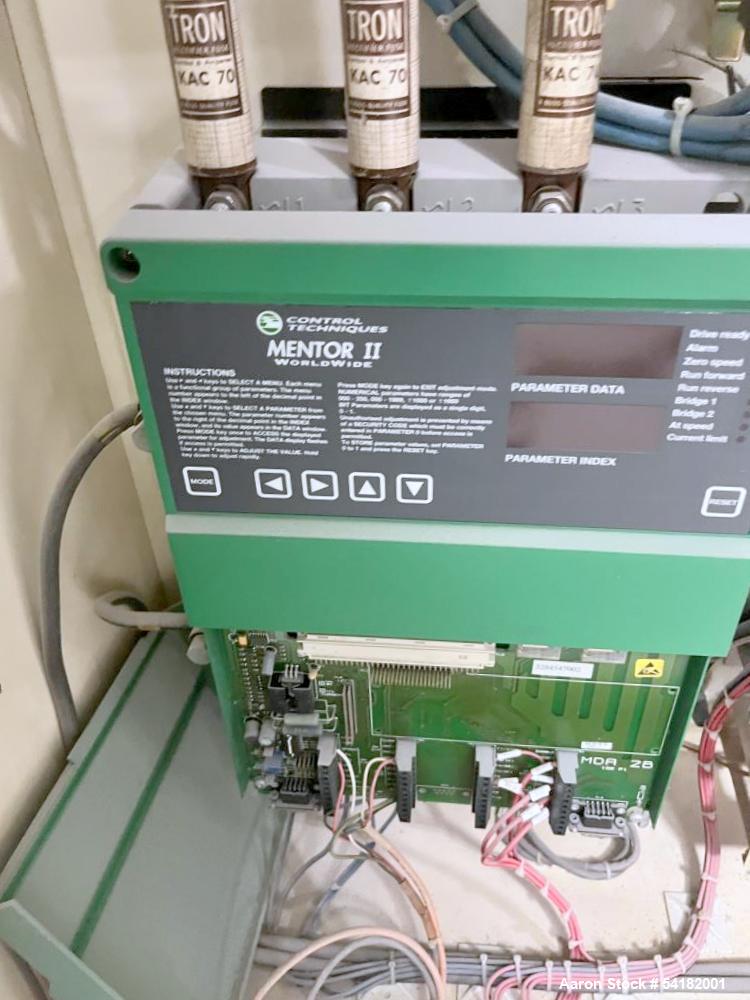

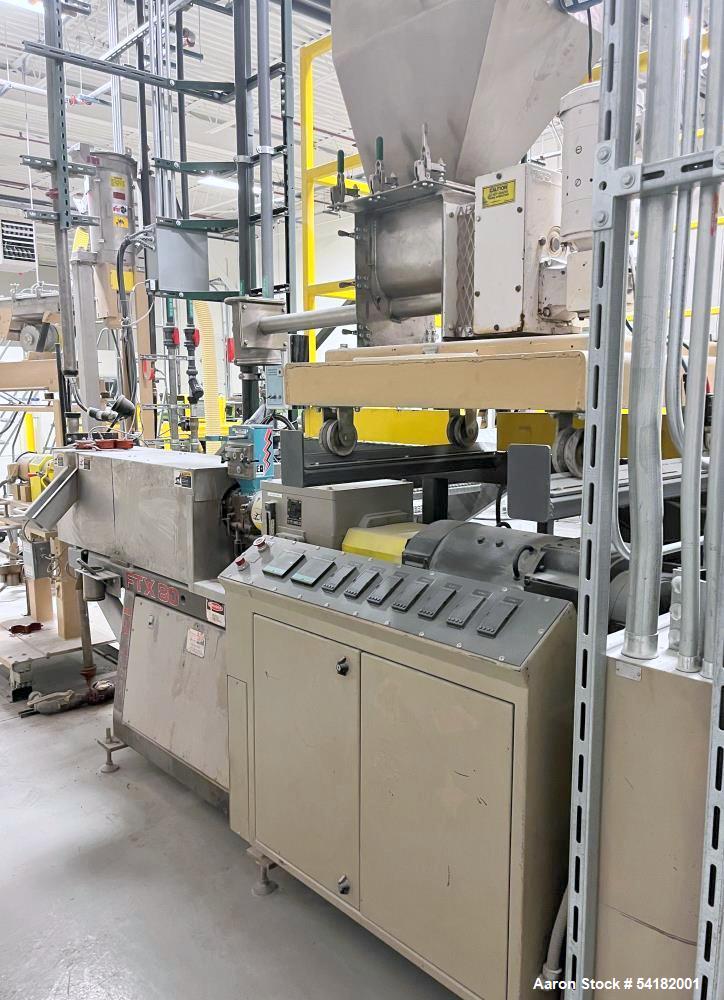

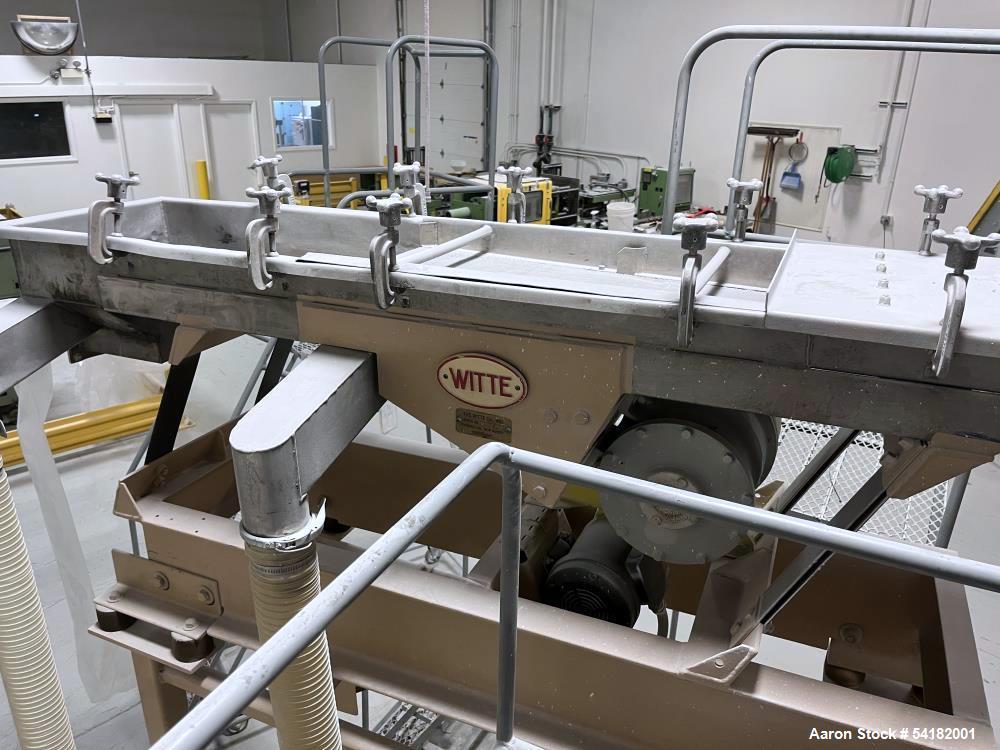

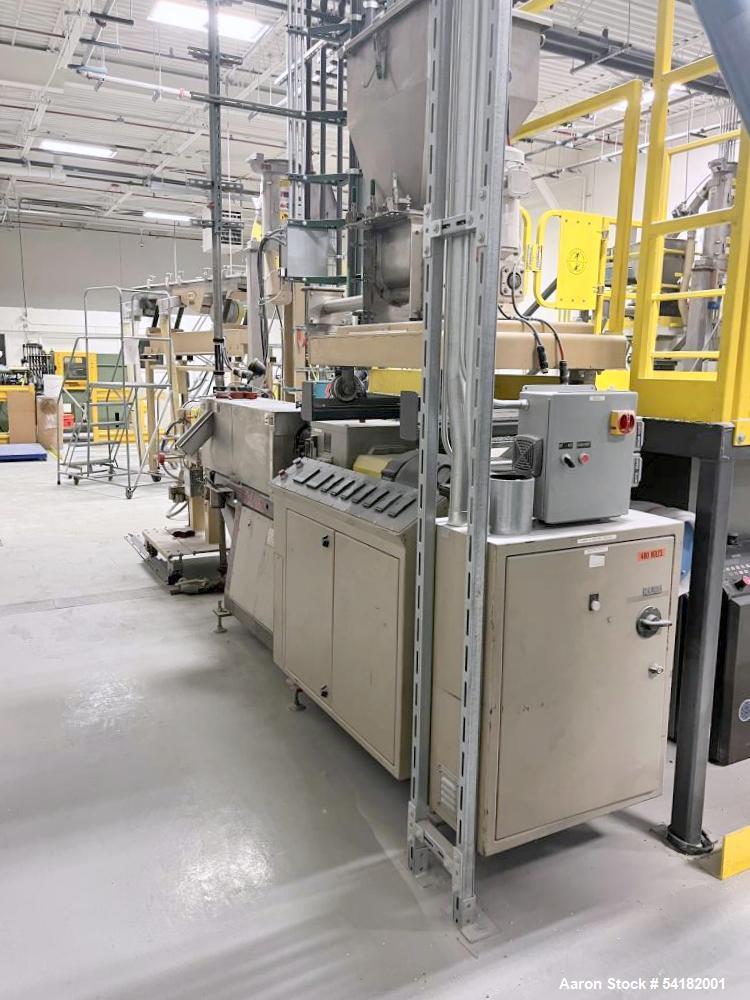

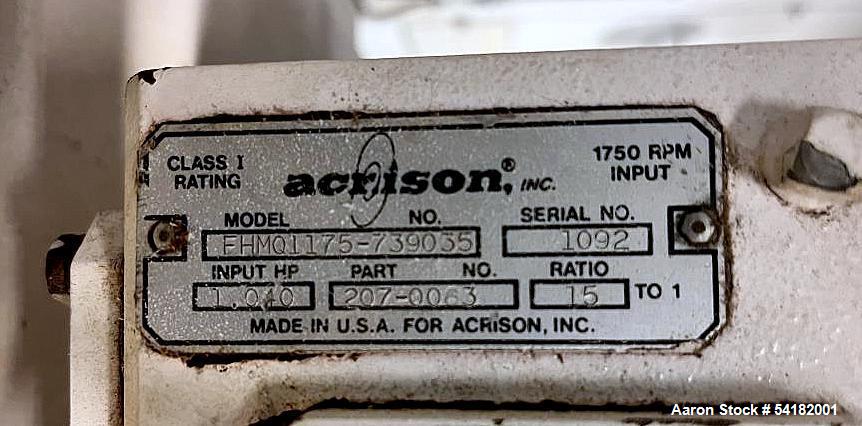

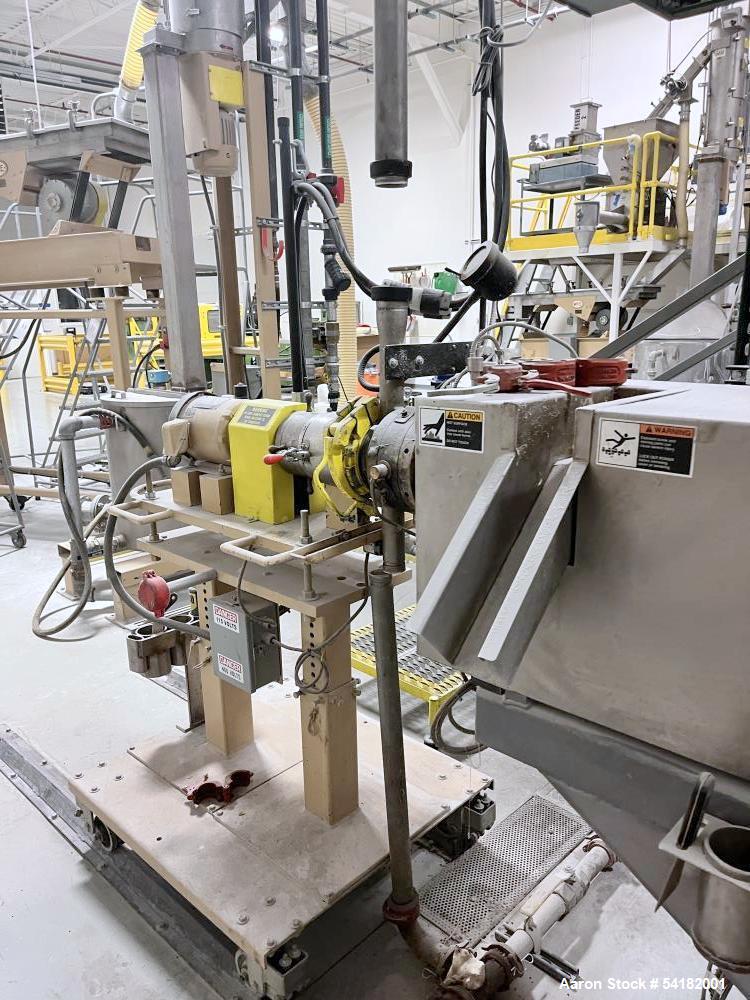

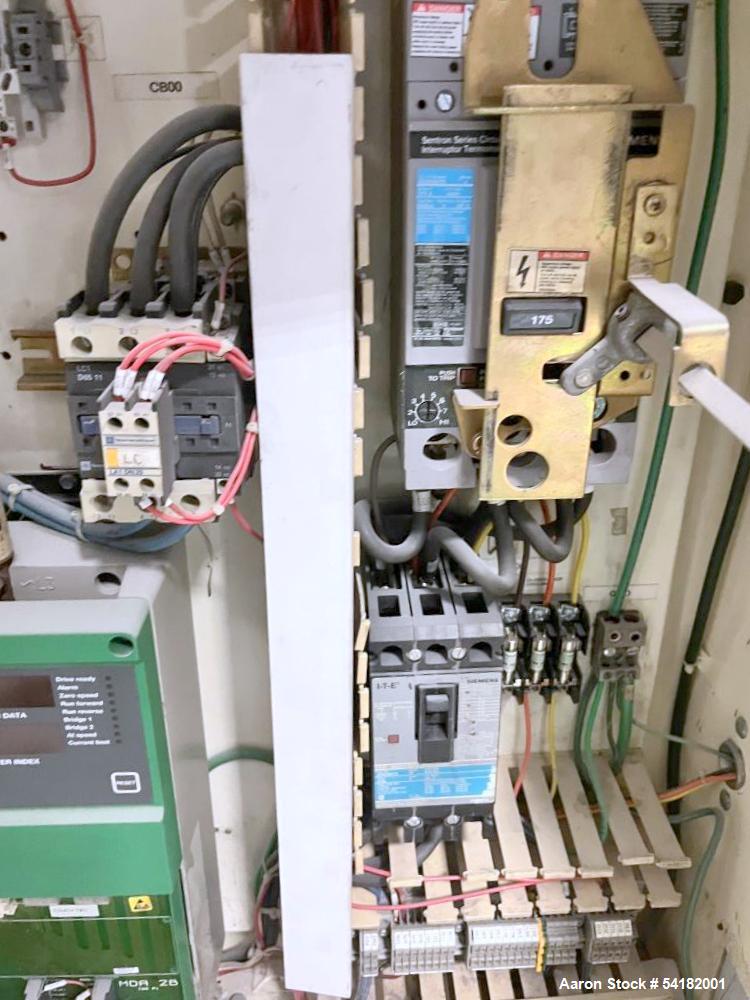

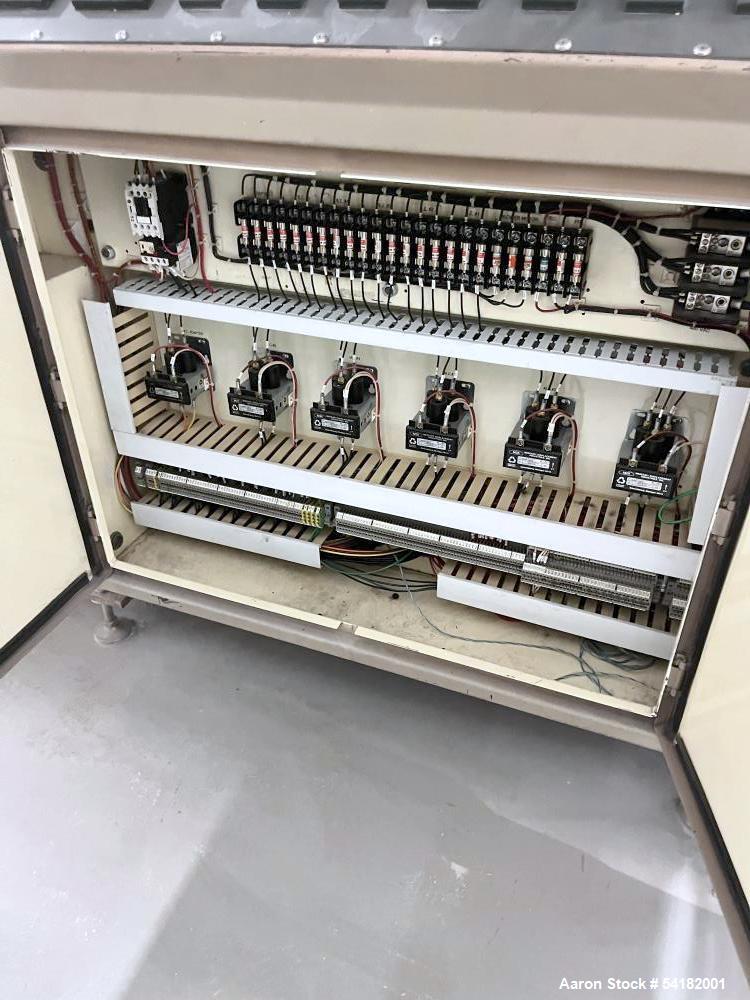

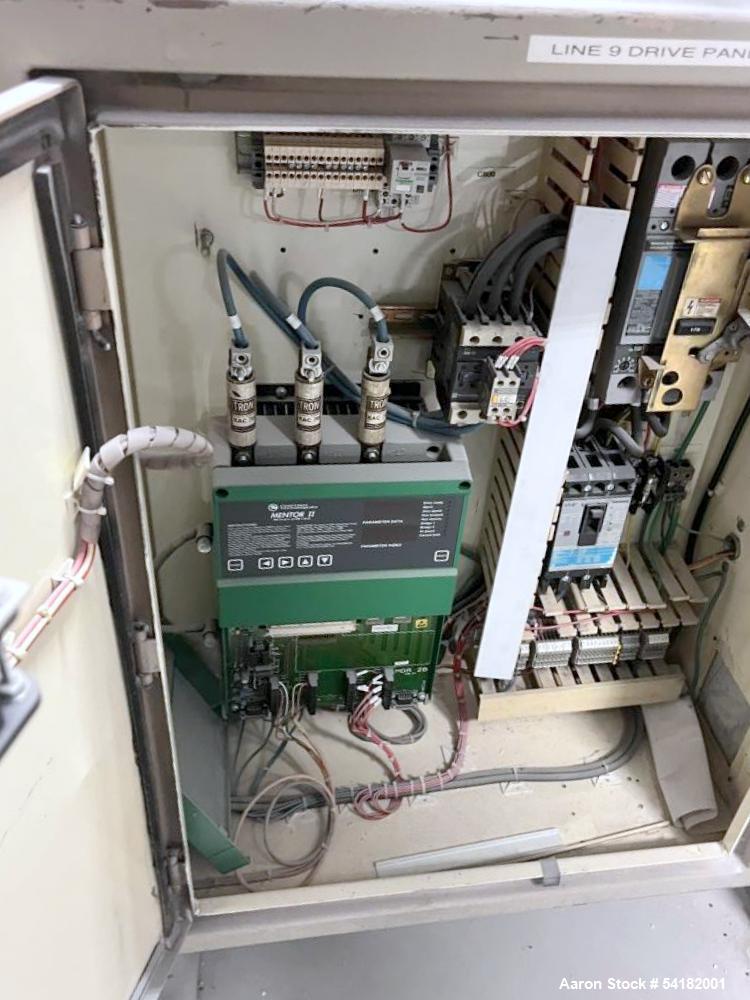

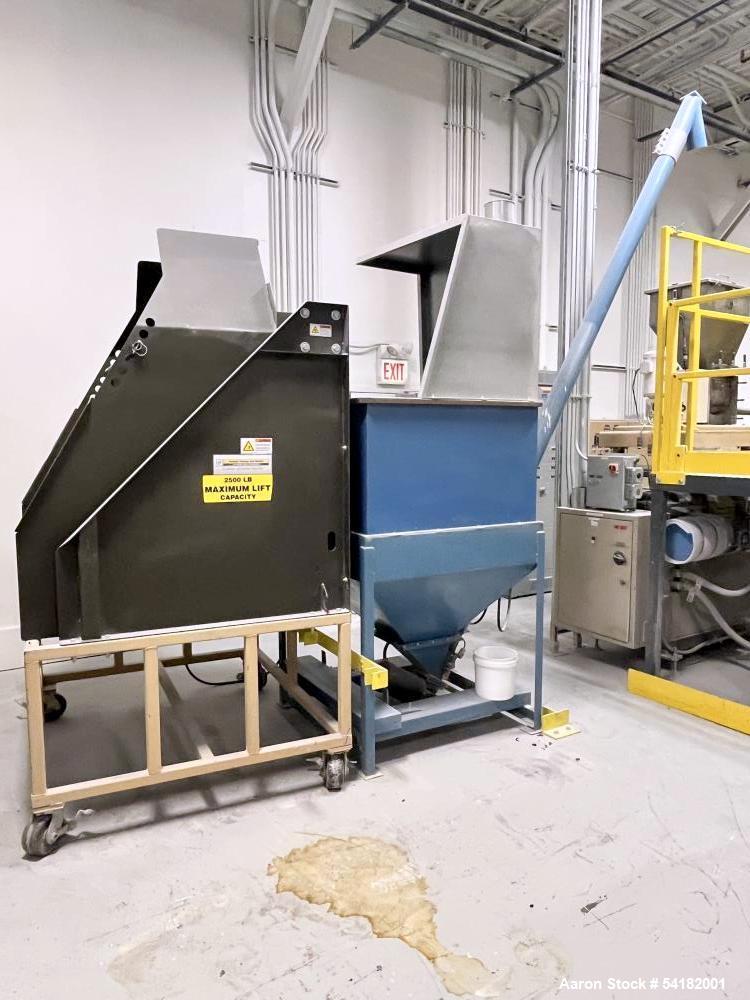

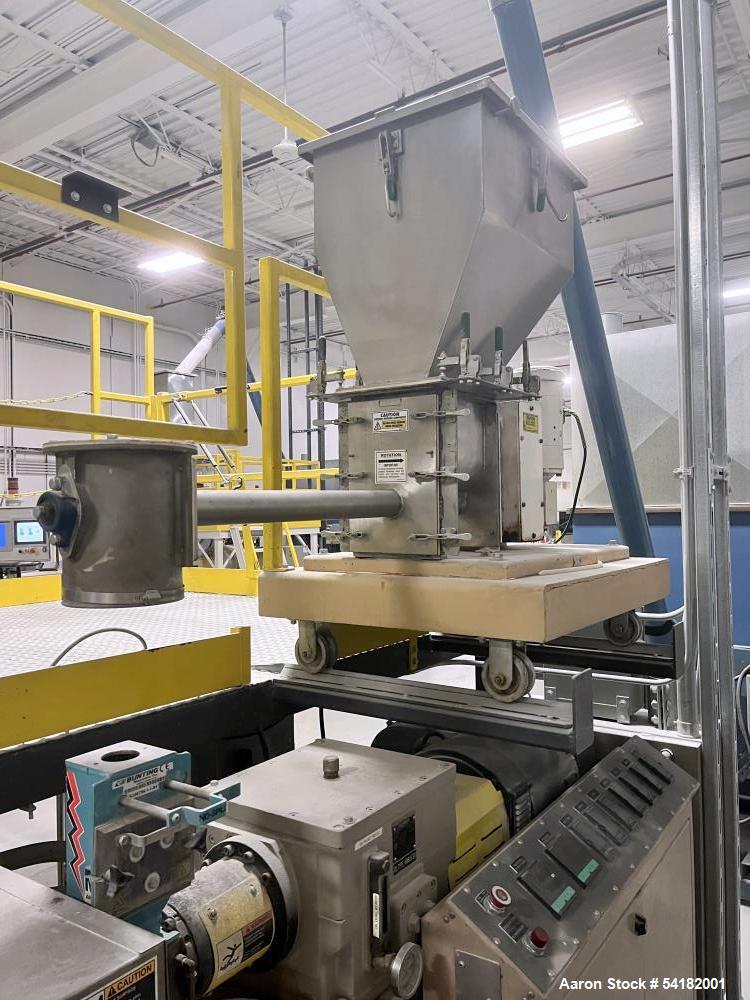

Used Farrel Twin Screw Pelletizing Line Consisting Of: (1) Farrel 37 mm FTX80 co-rotating twin screw extruder, 5 zone electrically heated, water cooled, approximately 40:1 L/D. Driven by a 25 hp, 500 volt, 1750/2300 rpm DC motor thru a Flender reducer, ratio 1.759 to 1. (1) Control panel with Mentor drive and temperature controllers. Serial # 956129. Includes (1) AEC TCU100-0 temperature controller, (1) Acrison feeder with mezzanine, (1) Gala underwater pelletizing system consisting of: (1) 2hp cutting head, model 5MUP, serial# 890502, (1) Model 20 gpm water tank, serial# 8260554, (1) Model 8.1B.F. spin dryer, serial# 860554, (1) Witte approximate 16" wide x 70" long screener, serial# 4250. (1) hopper with inclined screw feeder.
Used Equipment Facts About This Machine
π Manufacturer Info:
-
Main Extruder Manufacturer: Farrel
-

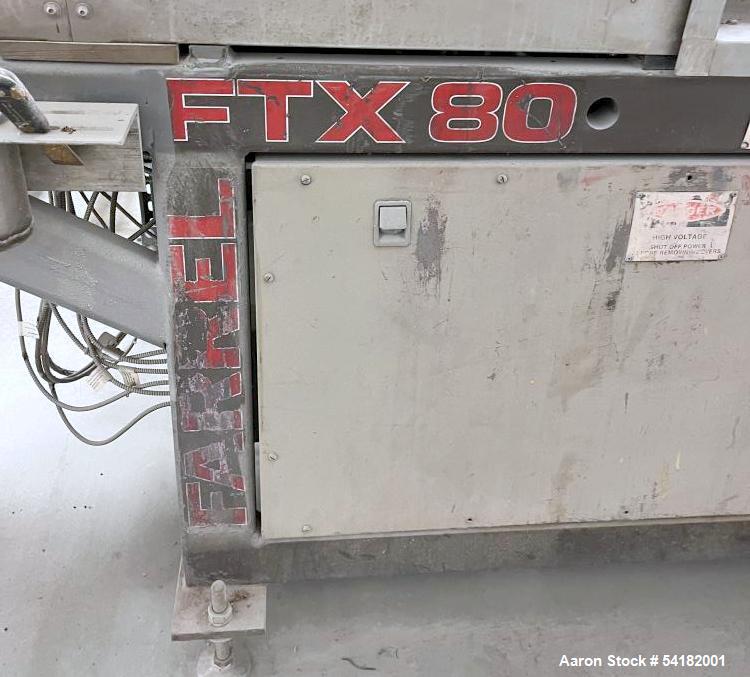

Model: FTX80 (37mm Co-Rotating Twin Screw)
-
Auxiliaries:
-
Pelletizer: Gala
-
Feeder: Acrison
-
Screener: Witte
-
Temperature Control: AEC
-

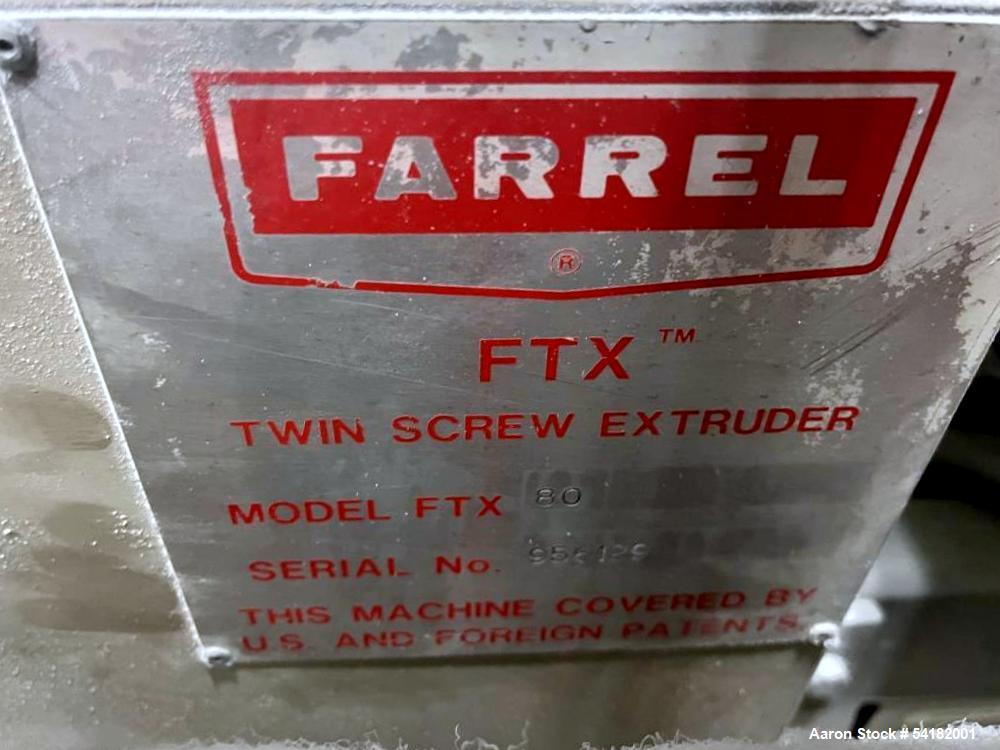

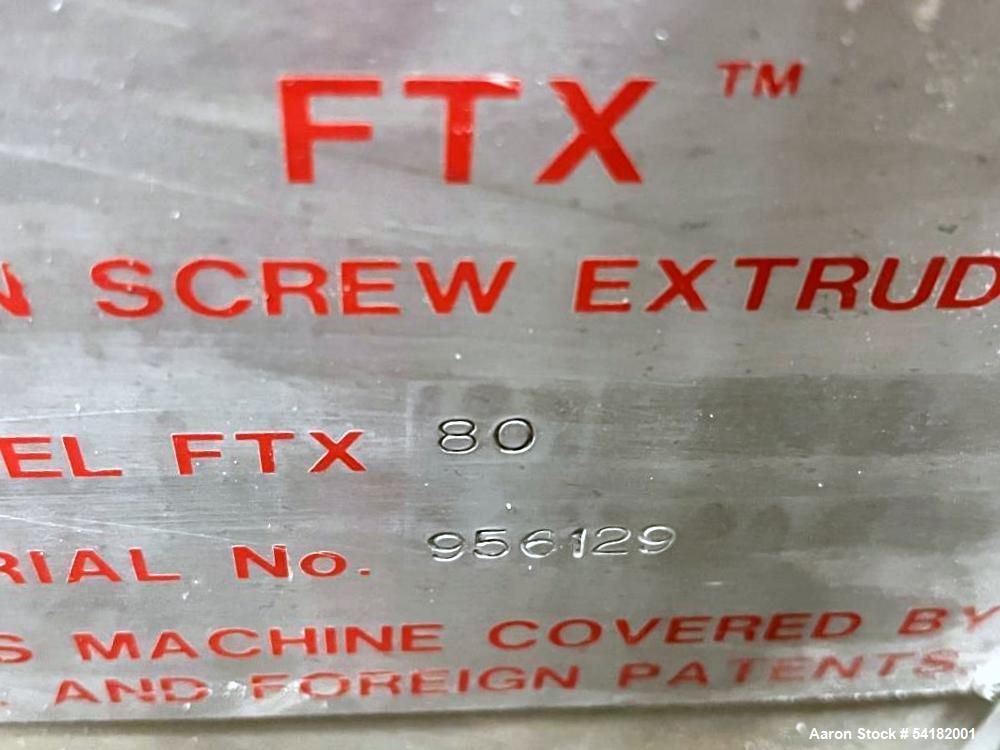

Serial Number: 956129 (Extruder)
-
Condition: Used
π Description:

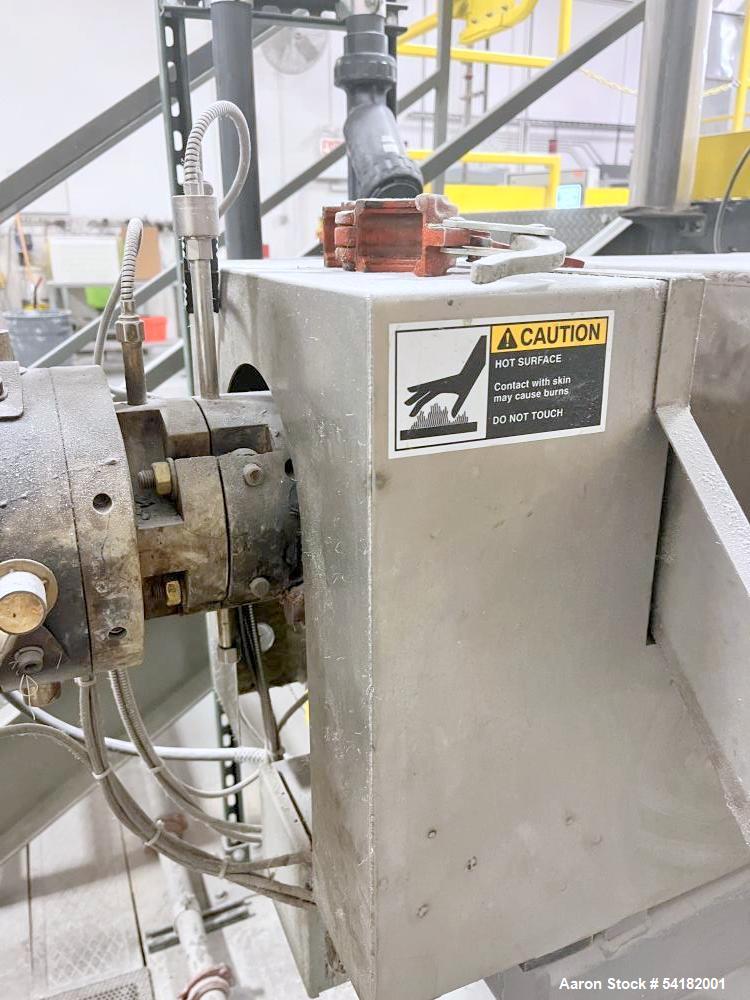

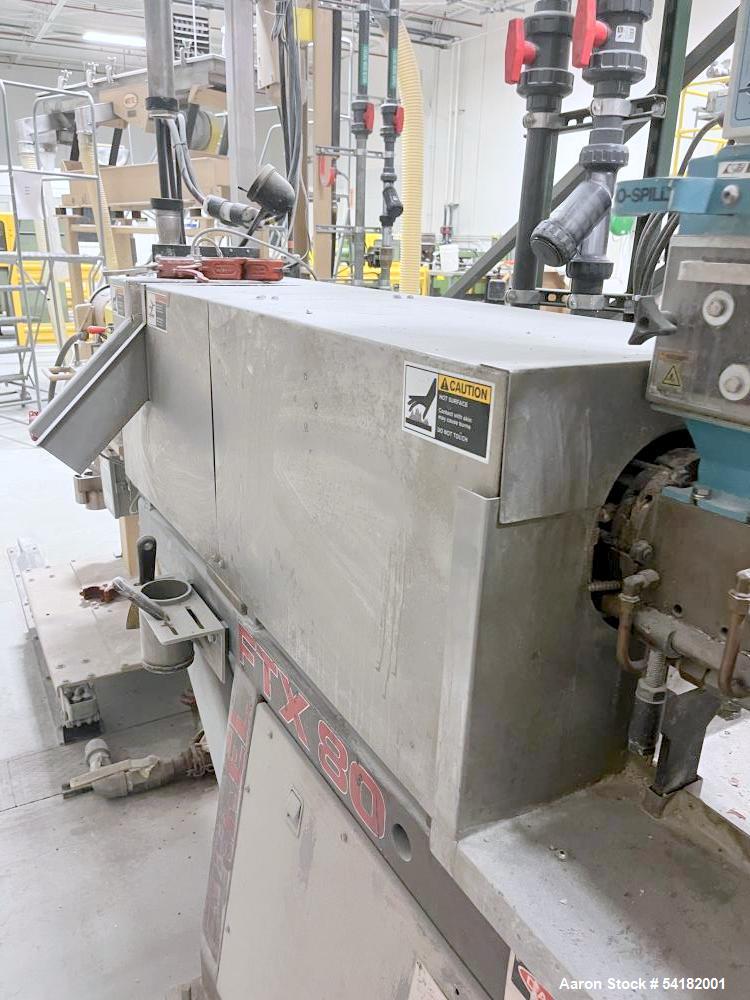

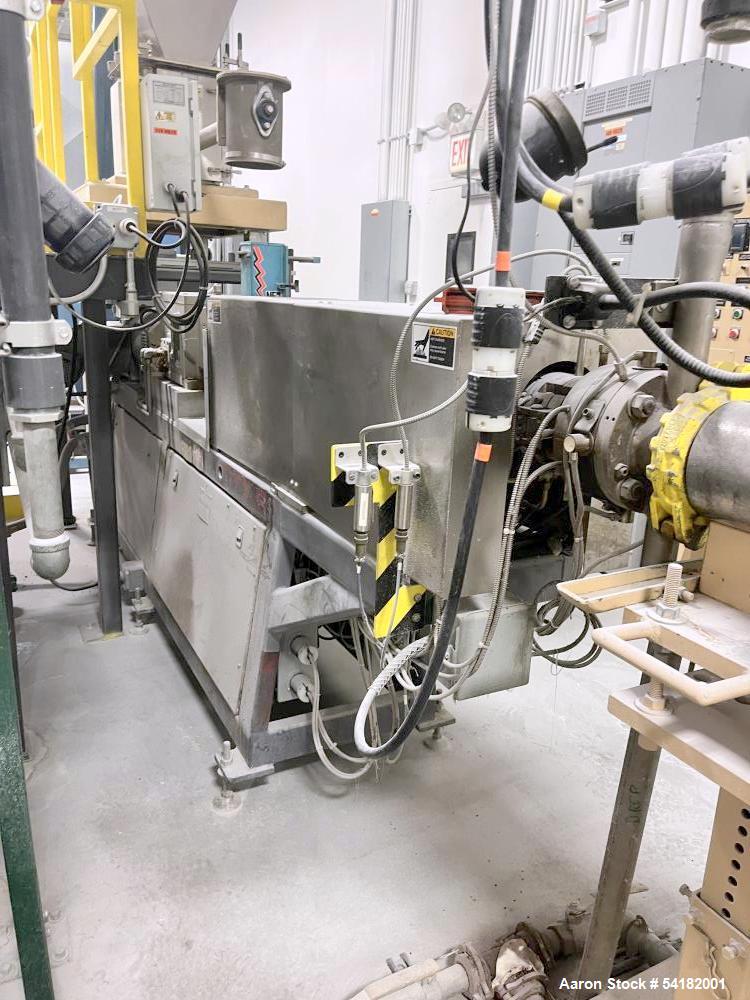

This Used Farrel FTX80 Twin Screw Pelletizing Line is a complete plastic compounding and pellet production system, featuring a 37mm co-rotating twin screw extruder with a 40:1 L/D ratio. The extruder is electrically heated, water-cooled, and driven by a 25 HP DC motor via a Flender reducer.
The system includes a Gala underwater pelletizing system with spin dryer, Acrison feeder mounted on mezzanine, and Witte screener for post-processing. Ideal for polymer compounding, masterbatch production, or engineering resins processing.
π Specifications:

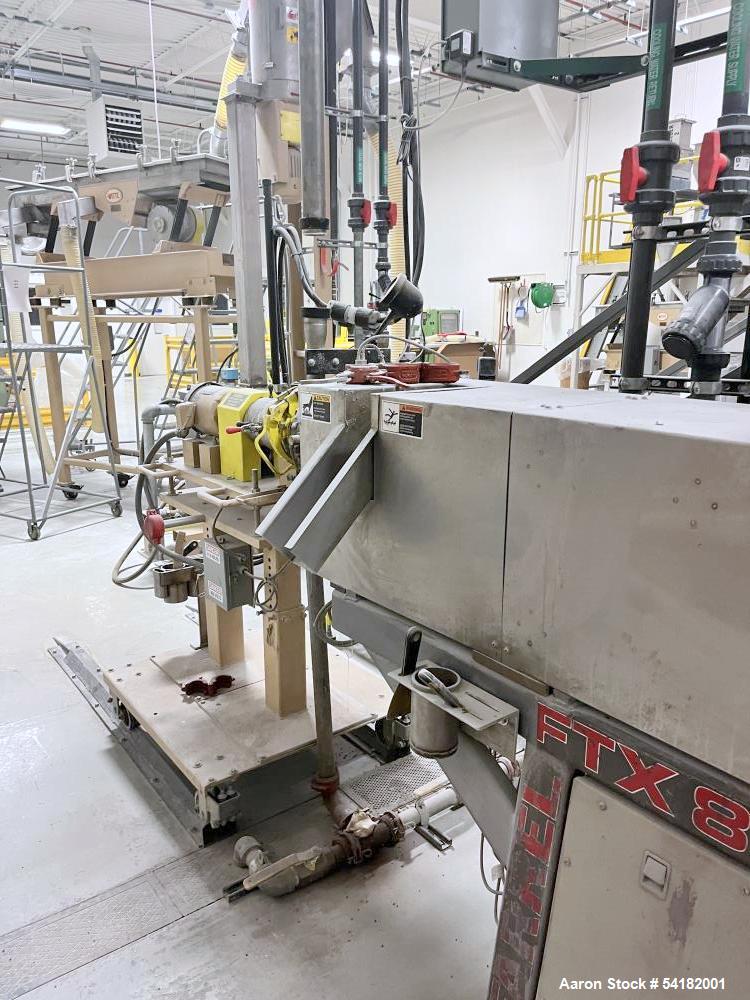

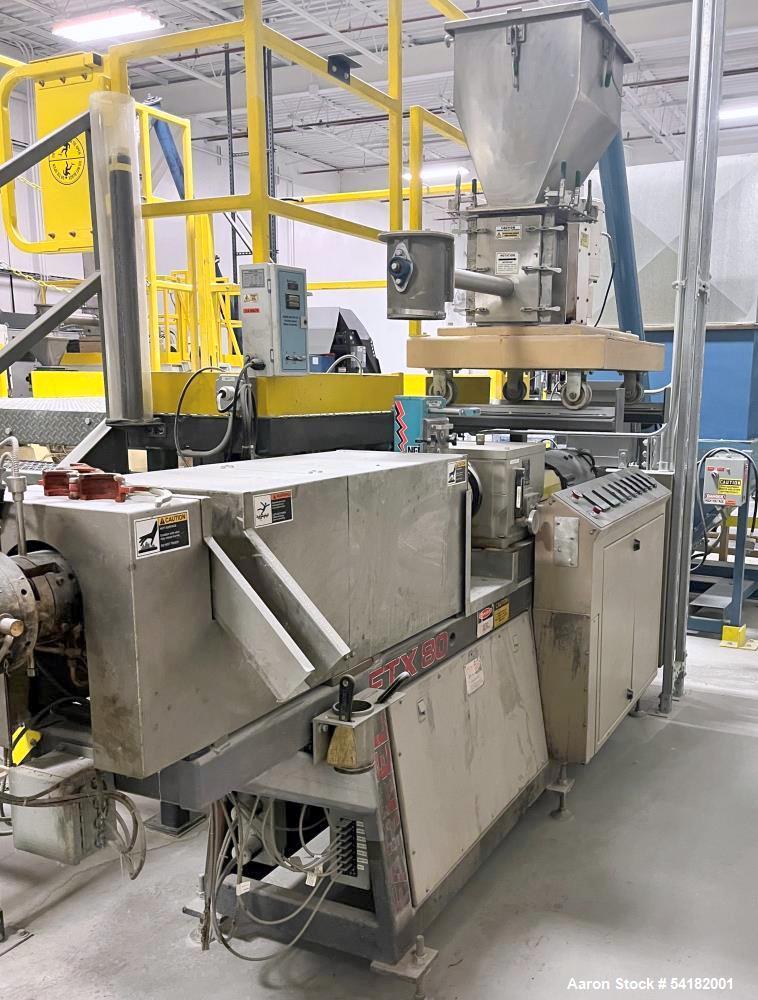

π§ Extruder:
-

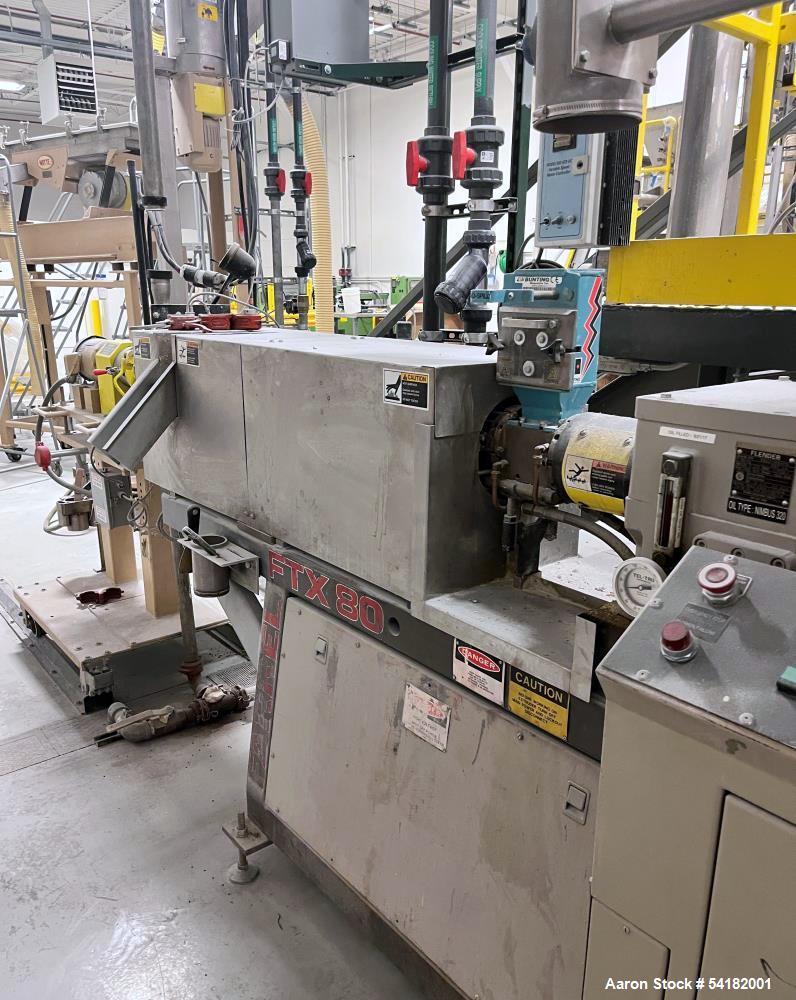

Model: FTX80 (Farrel)
-
Screw Diameter: 37 mm
-
Configuration: Co-rotating twin screw
-
L/D Ratio: Approx. 40:1
-
Zones: 5 electrically heated, water-cooled
-

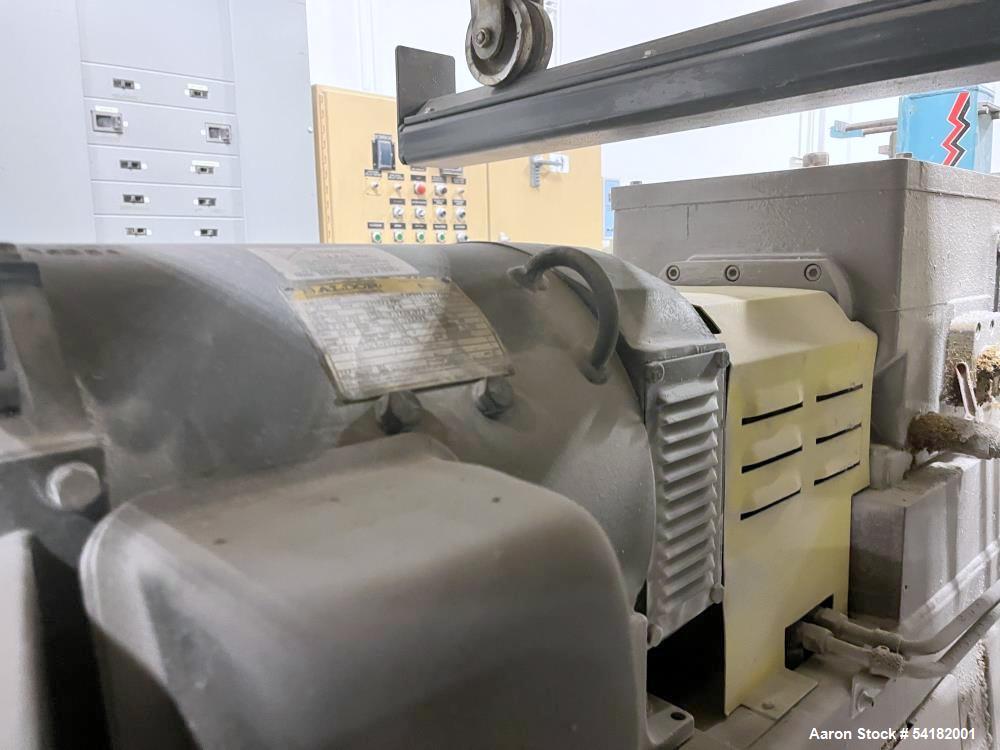

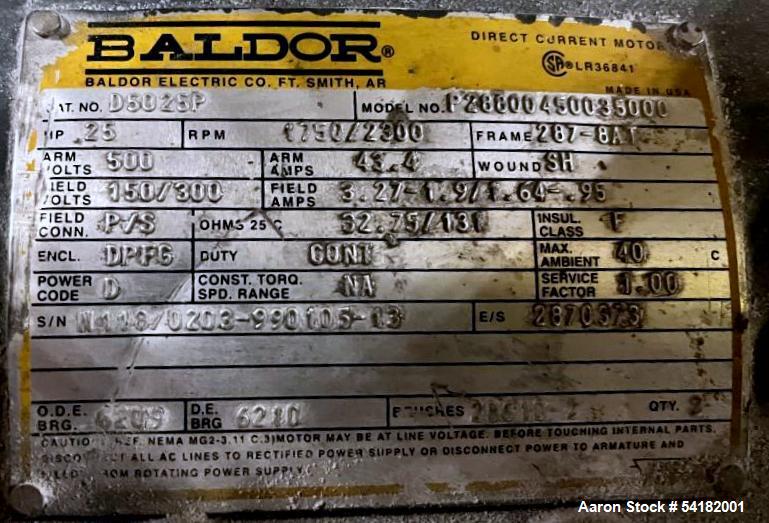

Drive Motor: 25 HP, 500V DC, 1750/2300 RPM
-

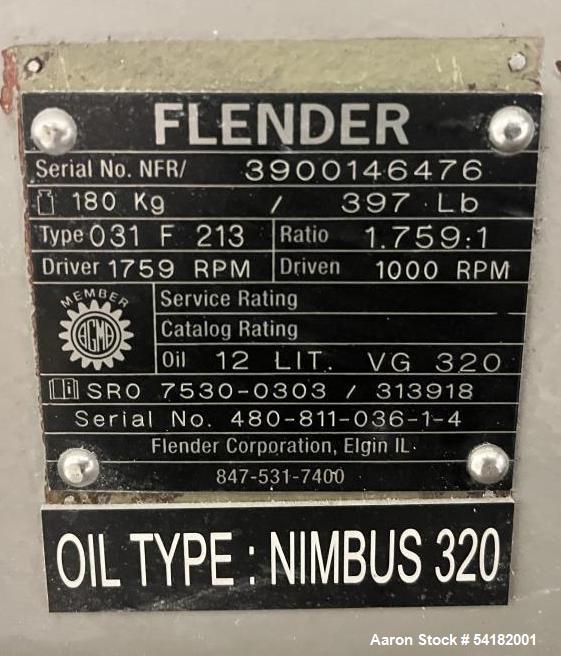

Gear Reducer: Flender, 1.759:1 ratio
-
Serial Number: 956129
π Controls:

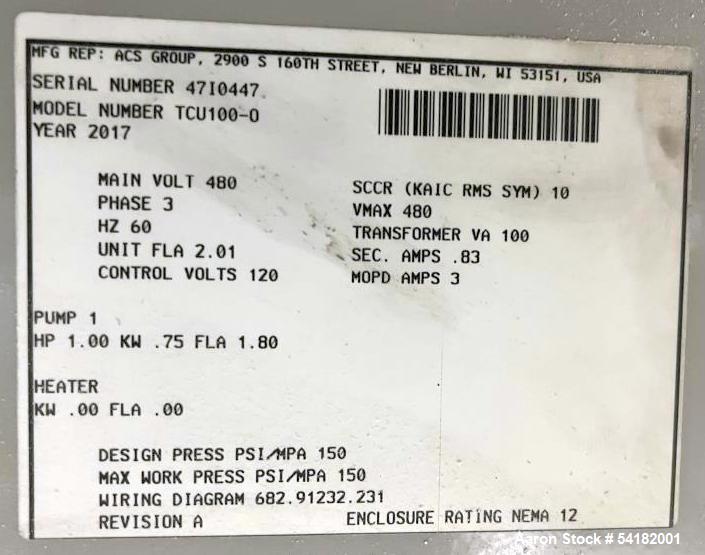

π‘οΈ Temperature Control Unit:

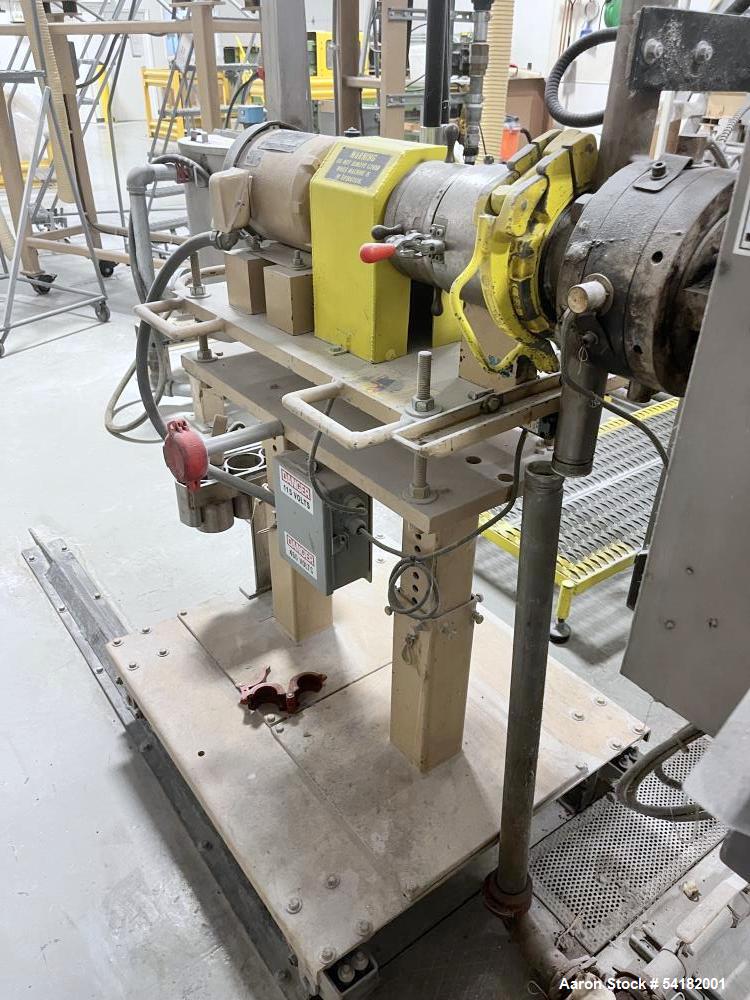

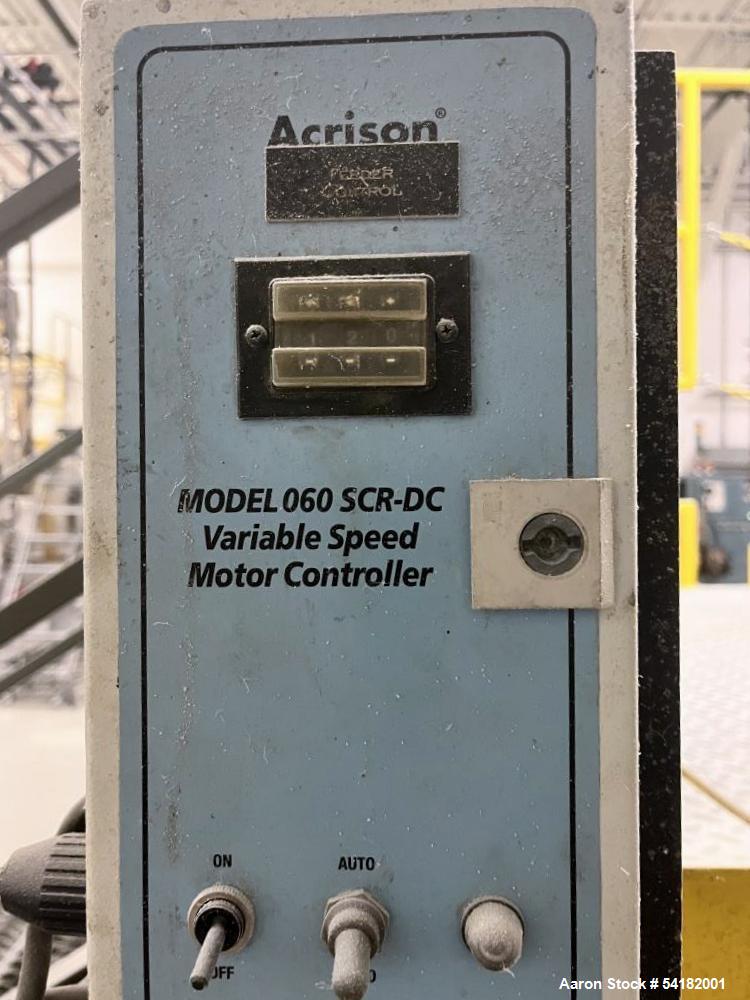

βοΈ Feeding System:

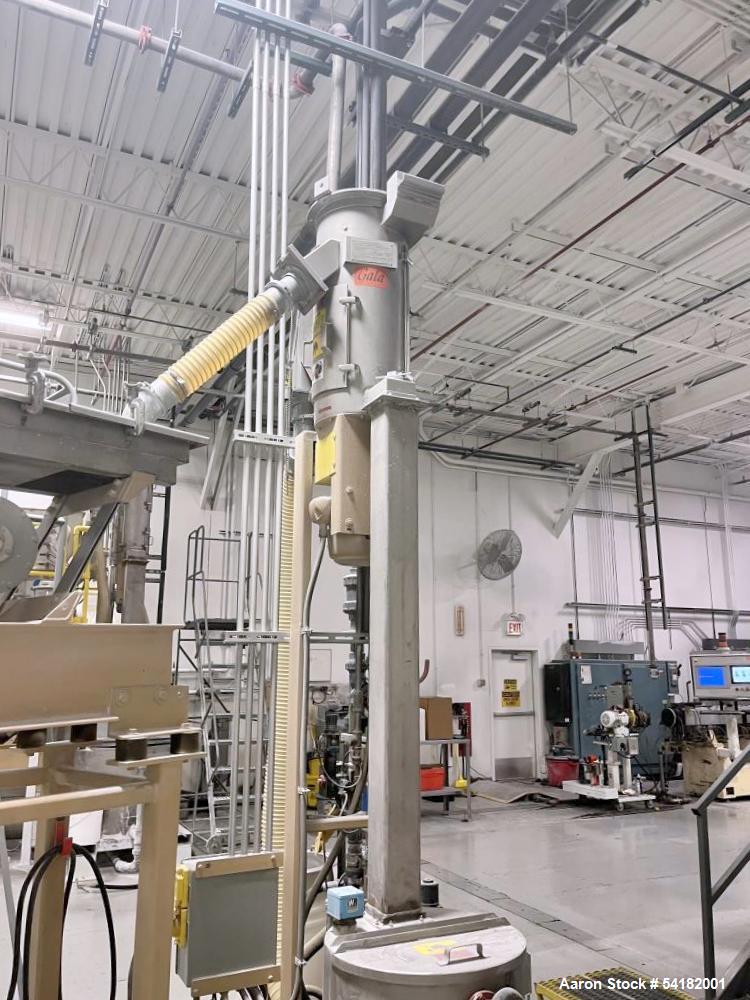

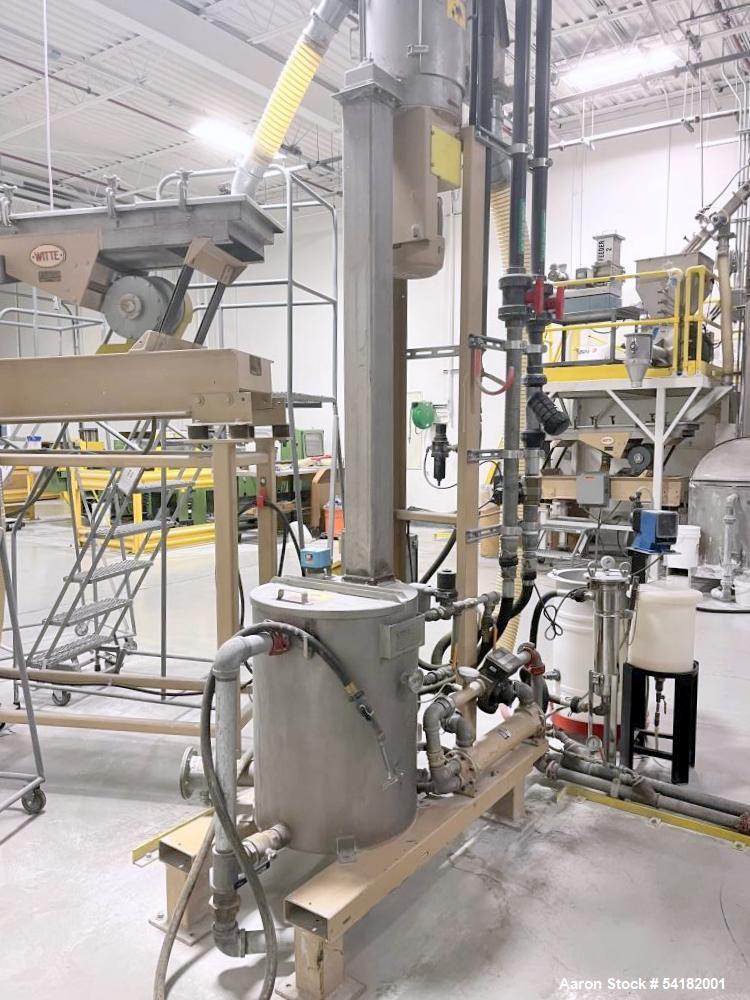

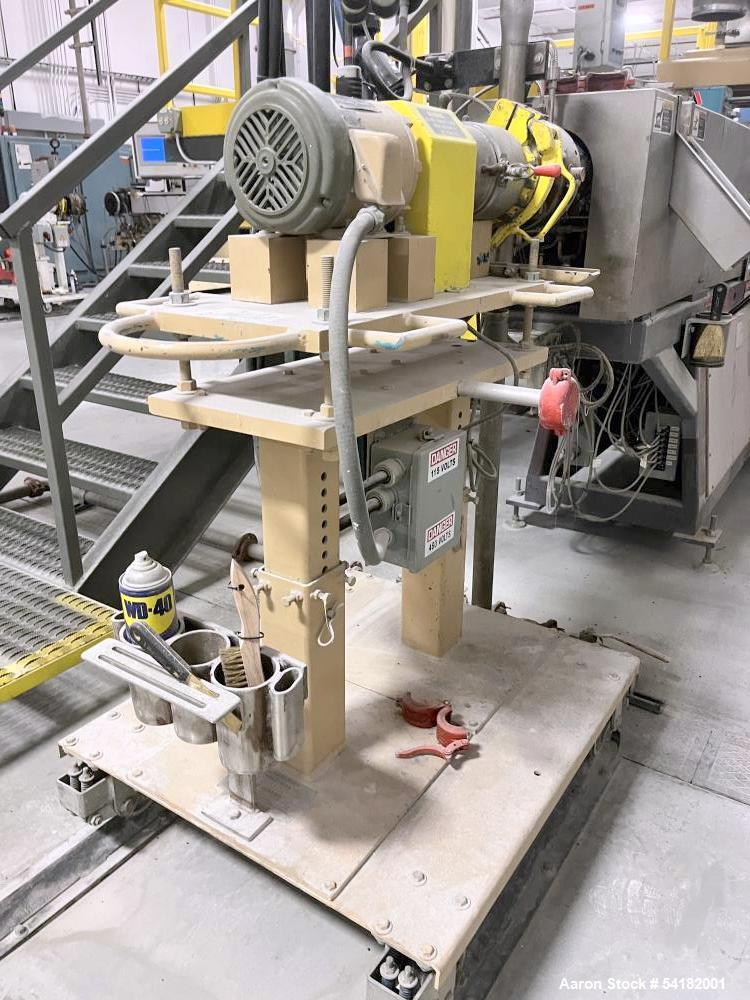

π§ Gala Underwater Pelletizing System:
-

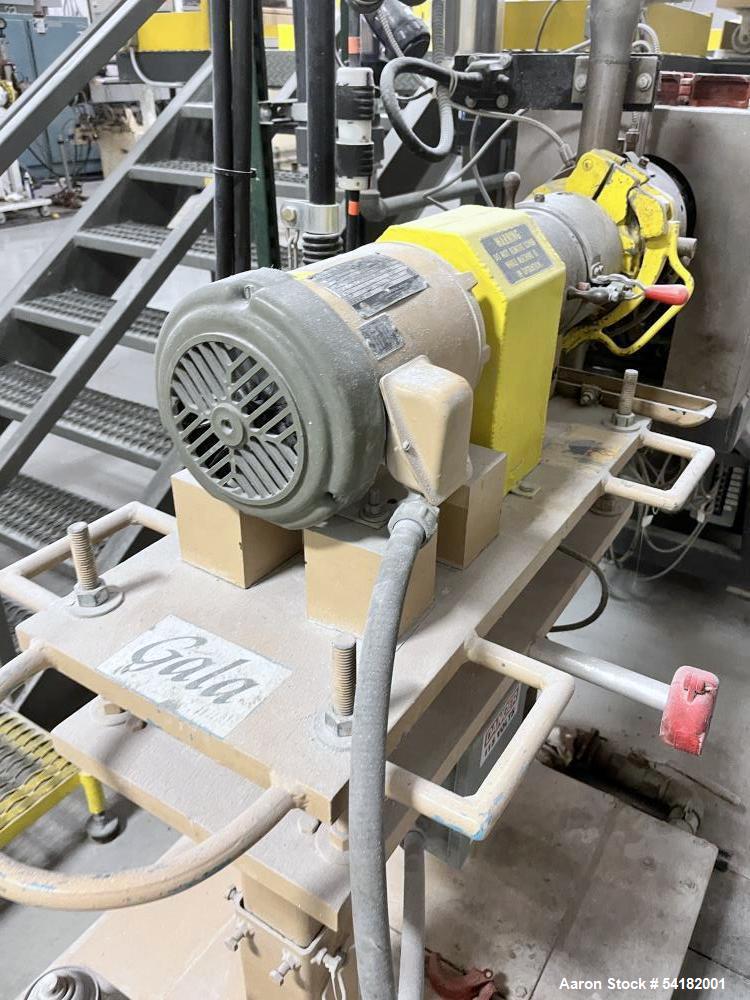

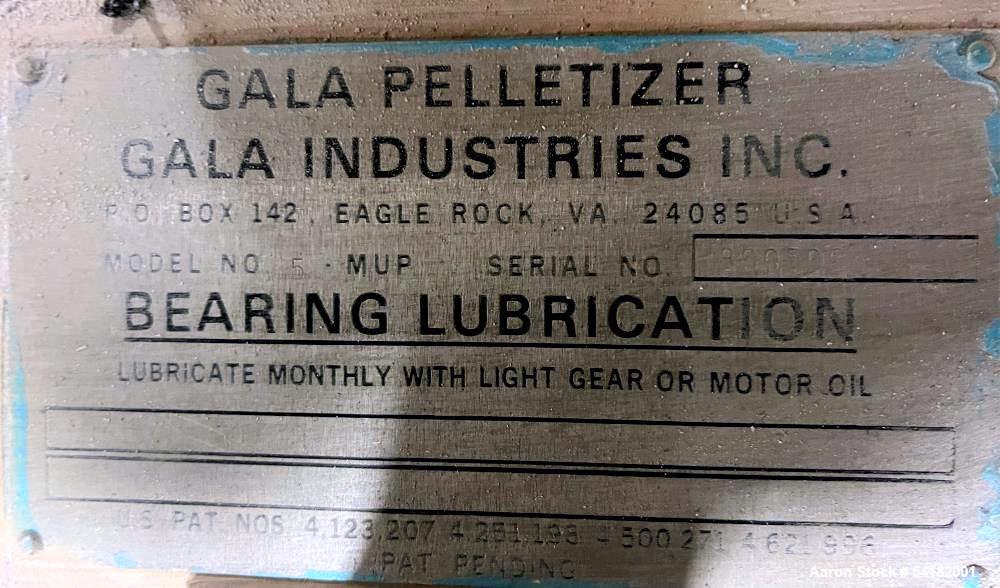

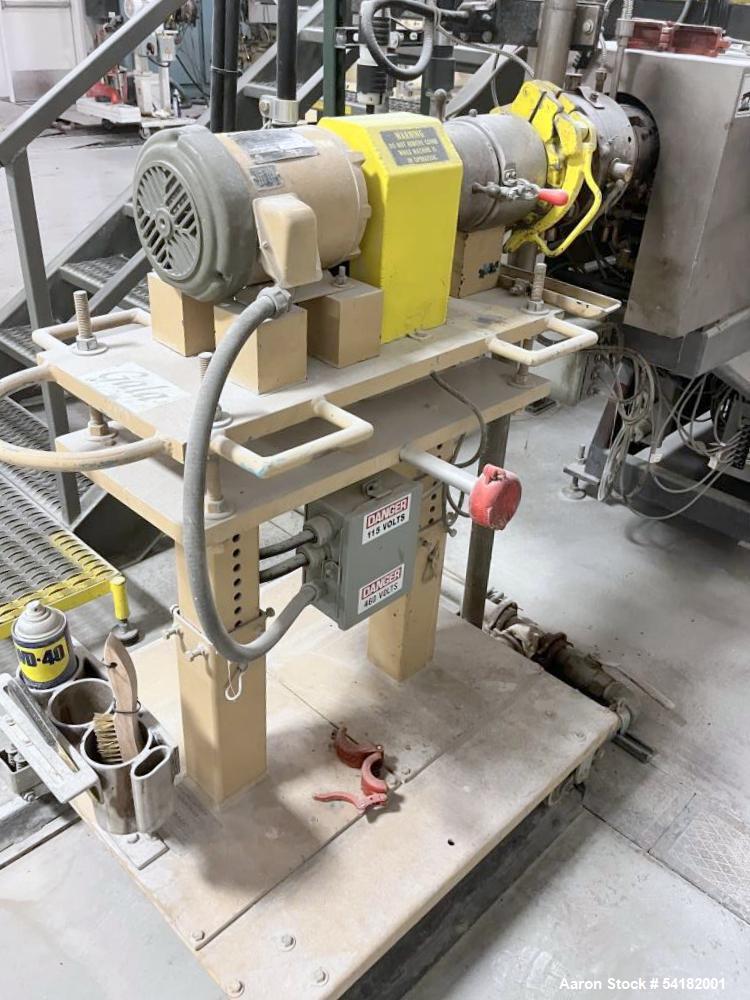

Cutter Head: Model 5MUP, 2 HP motor, Serial# 890502
-

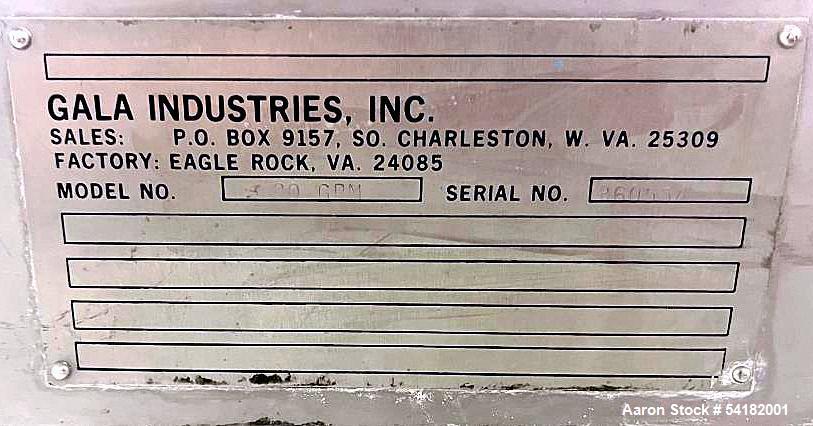

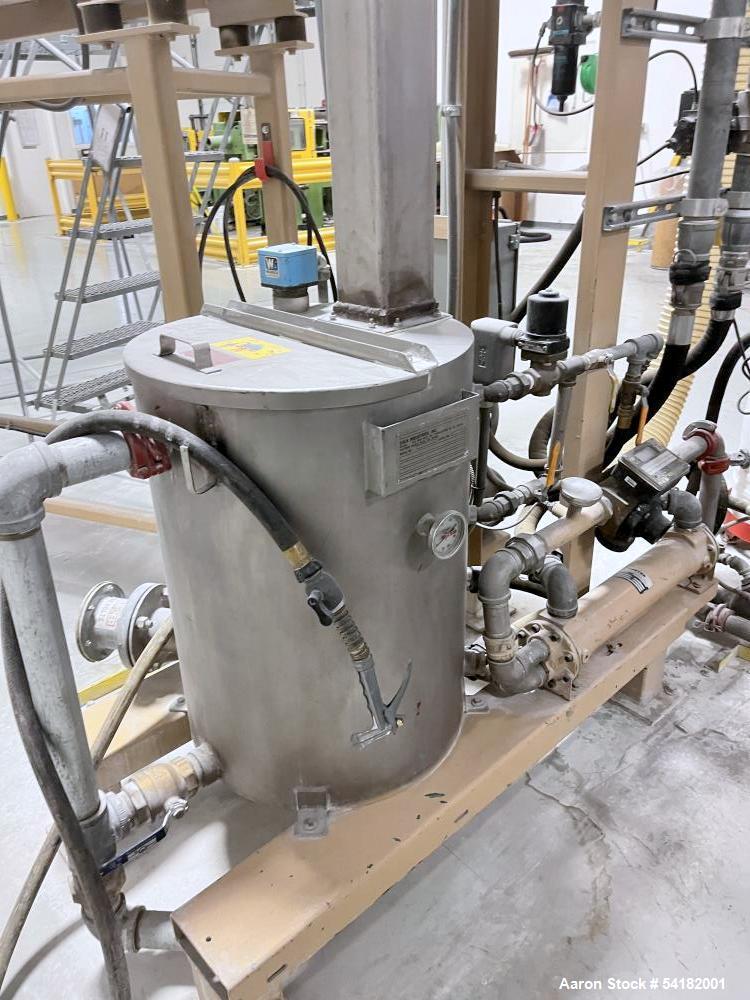

Water Tank: 20 GPM, Serial# 8260554
-

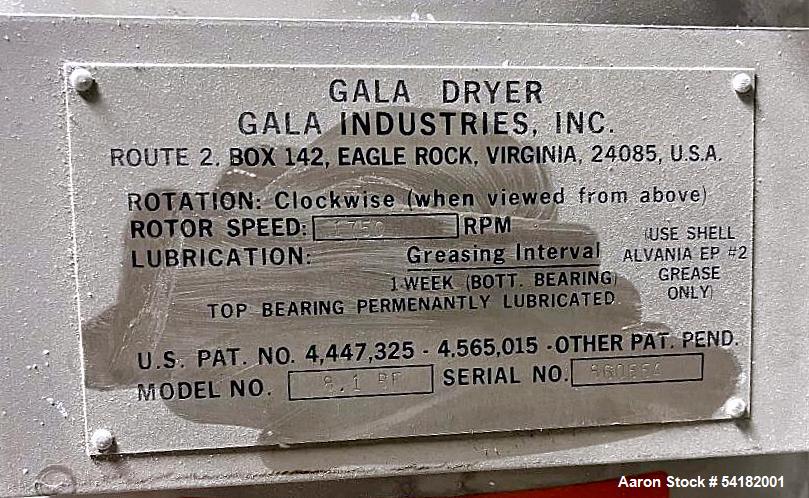

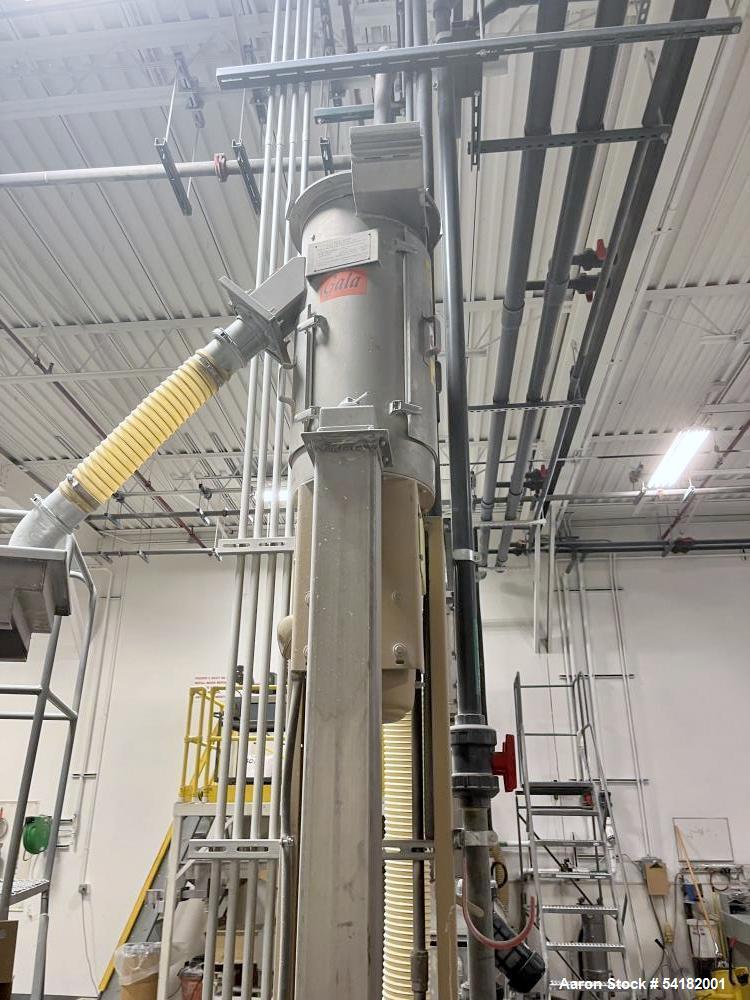

Spin Dryer: Model 8.1B.F., Serial# 860554

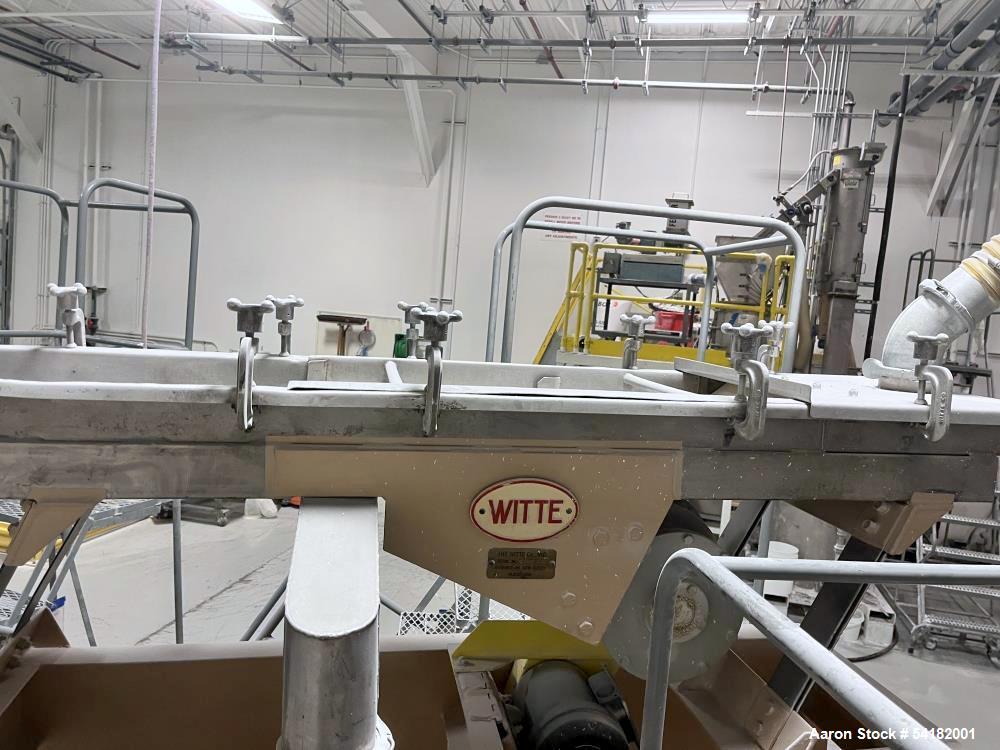

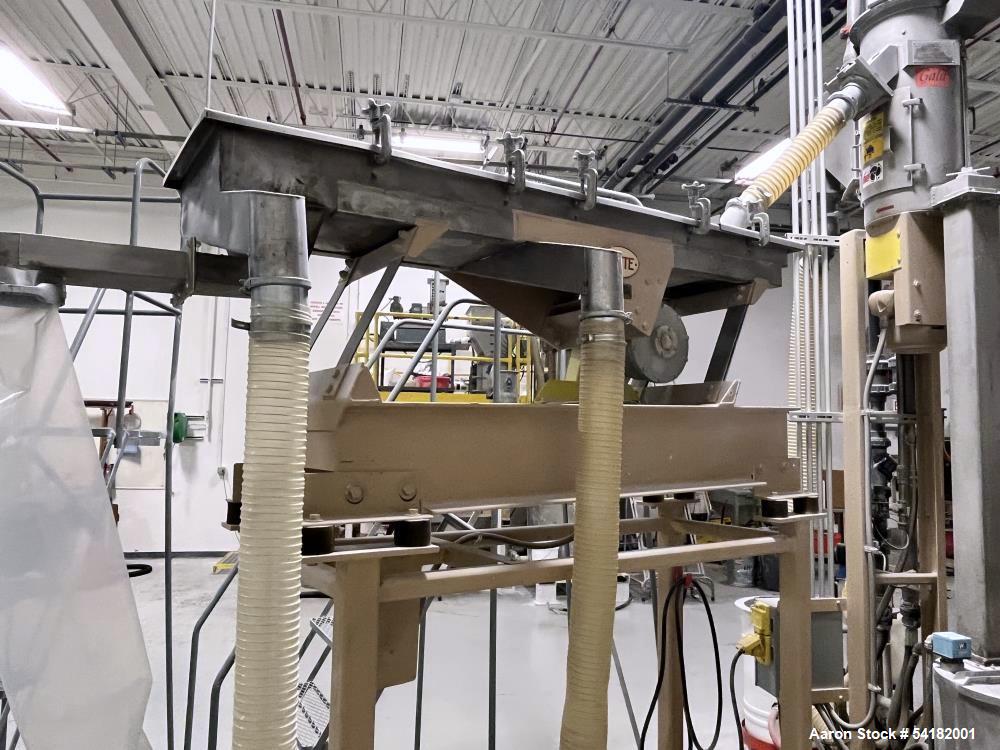

π Post-Pellet Screening:
π§° Applications:
-
Plastic pelletizing and granulation
-
Masterbatch and color concentrate manufacturing
-
Polymer compounding (filled or unfilled)
-
Thermoplastic elastomer processing
-
High-performance engineering polymers
-
Recycling and reprocessing of plastics
-
Custom compounding operations
-

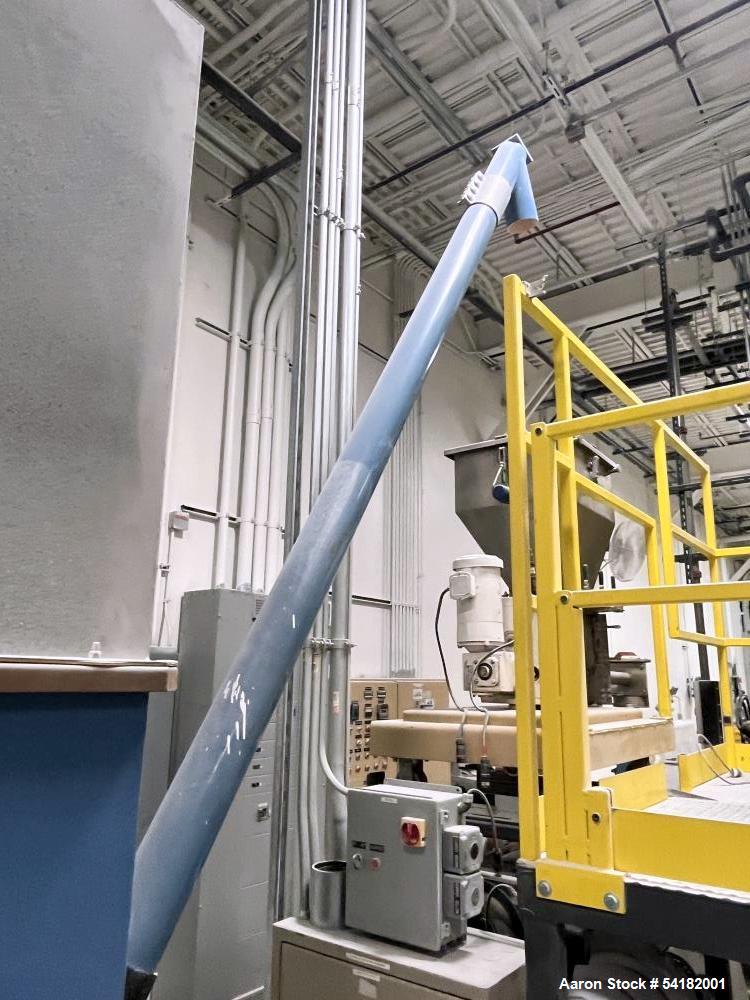

Pilot plant and R&D production lines
-
Additive dispersion in polymers
-
Water-ring or underwater pelletizing lines
π¦ Products This Is Used For:
-
Polypropylene pellets
-
Polyethylene compounds
-
ABS or SAN resins
-
TPE and TPU pellets
-
Filled compounds (glass, talc, etc.)
-
Flame retardant compounds
-
Color masterbatch pellets
-
Biodegradable plastic compounds
-
Nylon and PA blends
-
Engineering thermoplastics
