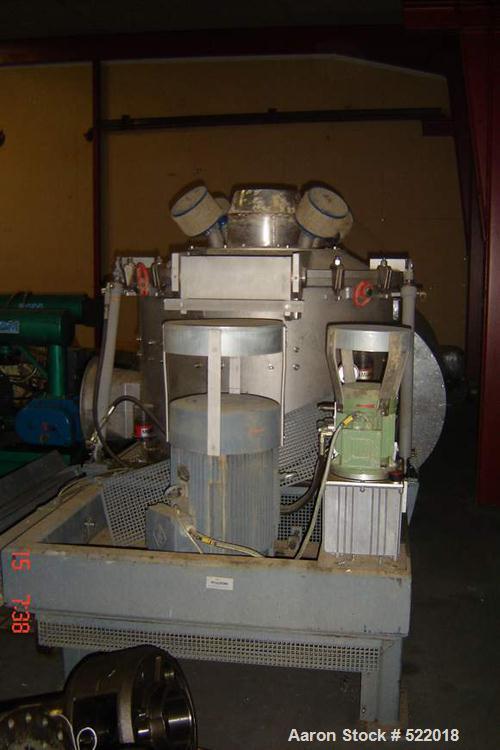

USED: Netzsch-Condux double driven air classifying mill, type CSM560. Material of construction is stainless steel on product contact parts. Carbon steel housing and frame. Inside (1) 41" (1044mm) diameter grinding/milling disc with a speed of max 2100 rpm by a 75 hp/380-400 volt/50 cycle/3 ph belt driven XP motor and (1) 22" (560mm) diameter classifier wheel with a speed of max 2000 rpm by a 25 hp/380 volt/50cycle/3 ph belt driven XP motor. Nominal air flow 3528 cfm (6000m3/hr). Includes removable bolted top cover with air filters, feed device, product air, in and outlet. Carbon steel frame mounted. On 4 support legs with floor fastening flanges. Overall dimensions: 122" (3100mm) long x 49" (1250mm) wide x 70" (1780mm) high.
USED: Netzsch-Condux double driven air classifying mill, type CSM560. Material of construction is stainless steel on product contact parts. Carbon steel housing and frame. Inside (1) 41" (1044mm) diameter grinding/milling disc with a speed of max 2100 rpm by a 75 hp/380-400 volt/50 cycle/3 ph belt driven XP motor and (1) 22" (560mm) diameter classifier wheel with a speed of max 2000 rpm by a 25 hp/380 volt/50cycle/3 ph belt driven XP motor. Nominal air flow 3528 cfm (6000m3/hr). Includes removable bolted top cover with air filters, feed device, product air, in and outlet. Carbon steel frame mounted. On 4 support legs with floor fastening flanges. Overall dimensions: 122" (3100mm) long x 49" (1250mm) wide x 70" (1780mm) high.
