Used Hosokawa Alpine Turboplex ATP 315/3 Ultrafine Air Classifier System – Ceramic Lined, 6–150 Micron, 3-Wheel High Efficiency Design

Manufacturer Information

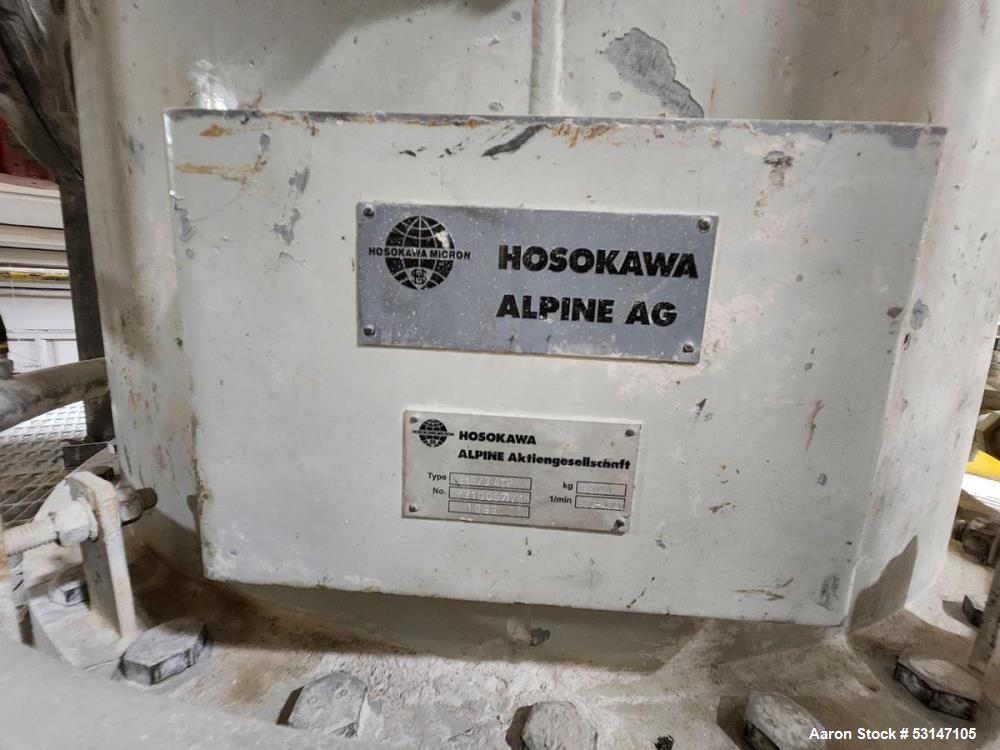

Manufacturer: Hosokawa Alpine AG
Model: Turboplex ATP 315/3
Classifier Type: Ultrafine Dynamic Air Classifier
Lining: Ceramic-lined classifying wheels & vessel
Dust Collector: Hosokawa Alpine High Performance Filter Baghouse
Blower: Reitz Ventilatoren High Performance Blower
Application: Abrasive ultrafine powder classification

Hosokawa Alpine is a global leader in powder and particle processing technology, specializing in air classification, micronization, and size reduction systems for minerals, chemicals, pharmaceuticals, and advanced materials.

Description

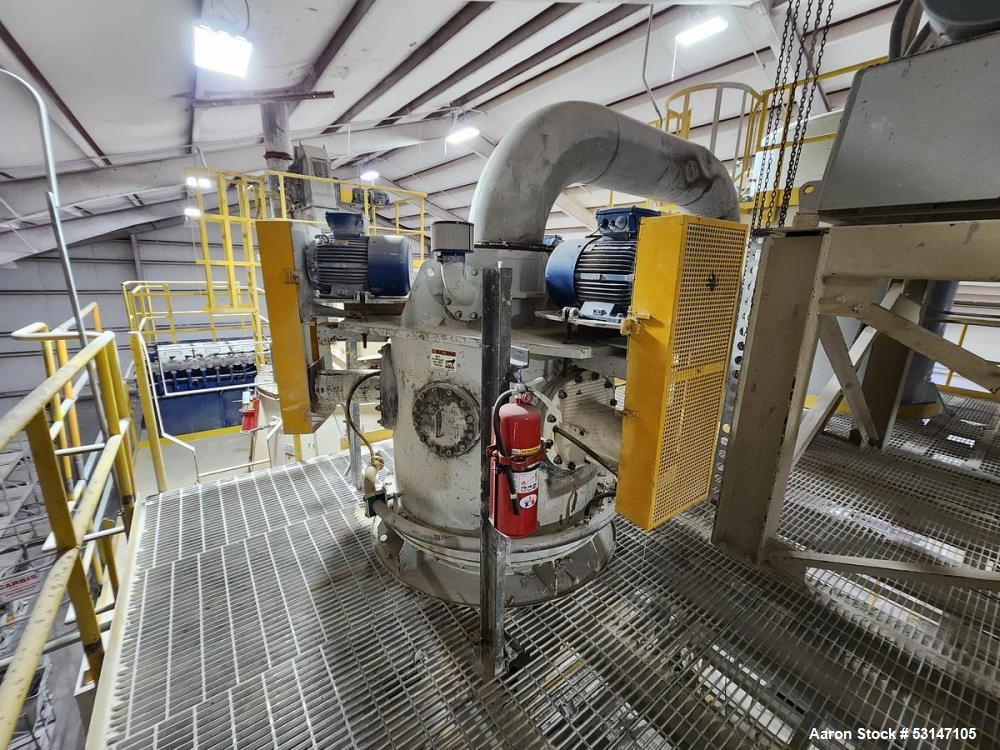

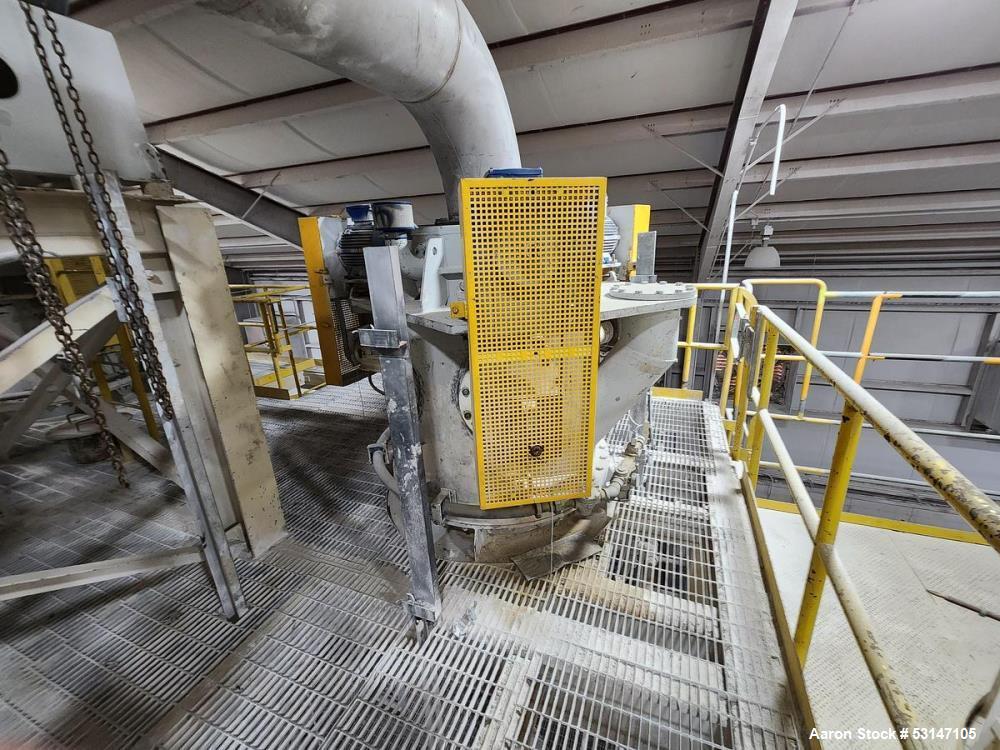

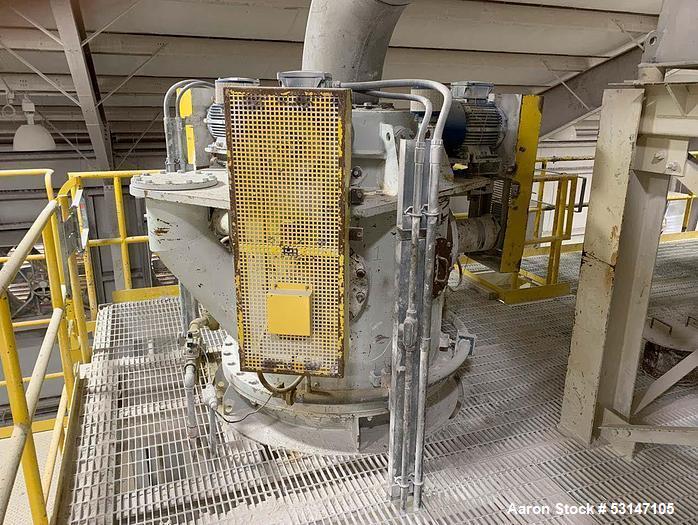

This Used Hosokawa Alpine Turboplex ATP 315/3 Ultrafine Air Classifier System is engineered for precision separation of fine and ultrafine powders in demanding abrasive applications. Featuring ceramic-lined classifying wheels and vessel, this unit is specifically designed for high-wear materials such as minerals, ceramics, and industrial fillers.

The classifier is rated for fineness ranging from 6 to 150 microns, with a feed rate capacity of 1,500–7,500 kg/hour. It incorporates three (3) 315mm diameter classifying wheels, each driven by an 11 kW motor (33 kW total installed classifier power) via V-belt drive. Wheel speeds range from 400–4,000 RPM, allowing precise control over cut point and particle size distribution.

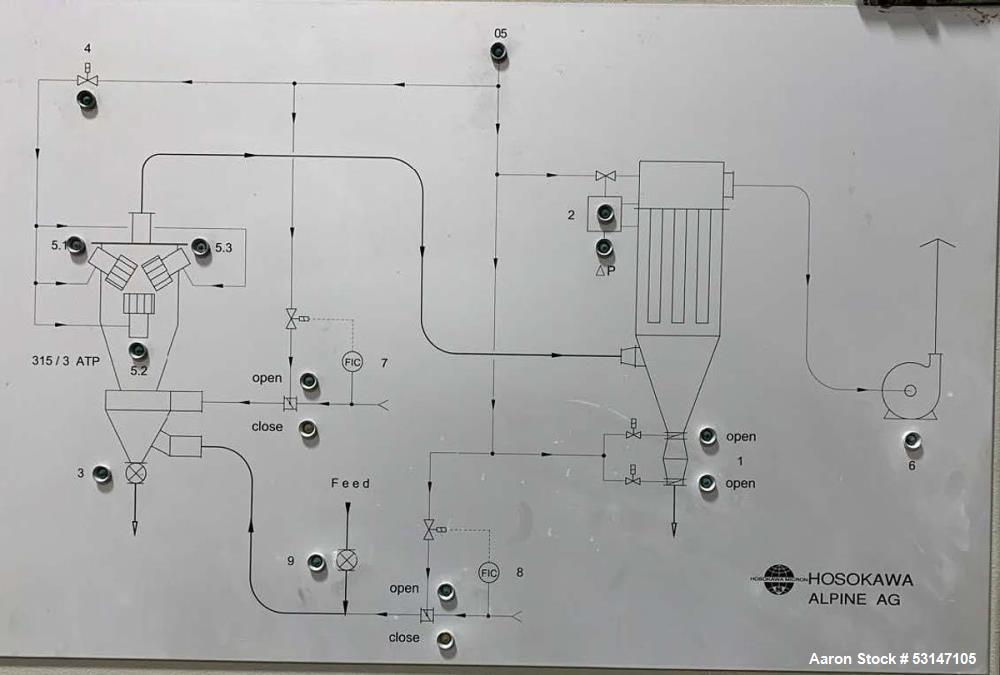

The system includes a Hosokawa Alpine high-performance baghouse dust collector and a Reitz Ventilatoren blower driven by a 90 kW motor, rated for 125 m³/min airflow at 3 PSI static pressure, delivering efficient airflow and dust control for closed-loop classification.

This configuration offers a scale-up factor F=7.5, making it ideal for production-scale ultrafine separation.

Classifier Specifications

• Manufacturer: Hosokawa Alpine

• Model: Turboplex ATP 315/3

• Classification Range: 6–150 microns

• Feed Rate: 1,500–7,500 kg/hour

• Classifying Wheels: (3) x 315mm diameter

• Wheel Speed: 400–4,000 RPM

• Wheel Drive: (3) x 11 kW motors (33 kW total)

• Drive Type: V-belt

• Air Flow Rate: 9,000 m³/hour

• Scale-Up Factor: F = 7.5

• Construction: Ceramic-lined for abrasive materials

Performance (Fines Yield)

• 1 ton/hour at 8 µm

• 2.1 ton/hour at 20 µm

• 3 ton/hour at 45 µm

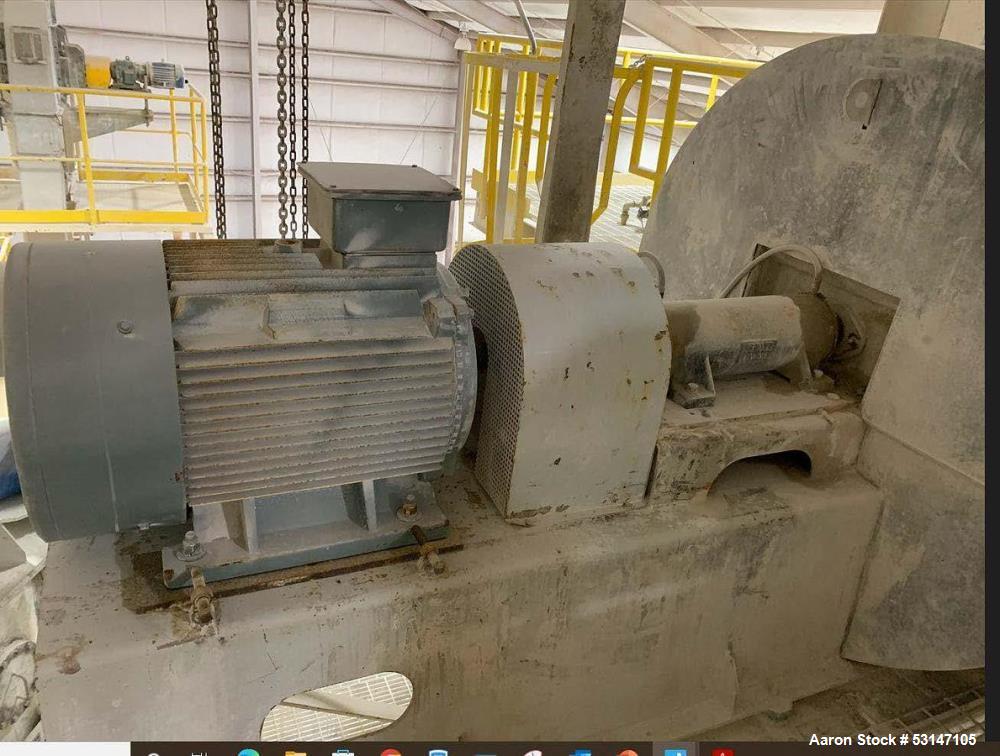

Blower Specifications

• Manufacturer: Reitz Ventilatoren

• Motor: 90 kW

• Air Flow: 125 m³/min

• Static Pressure: 3 PSI

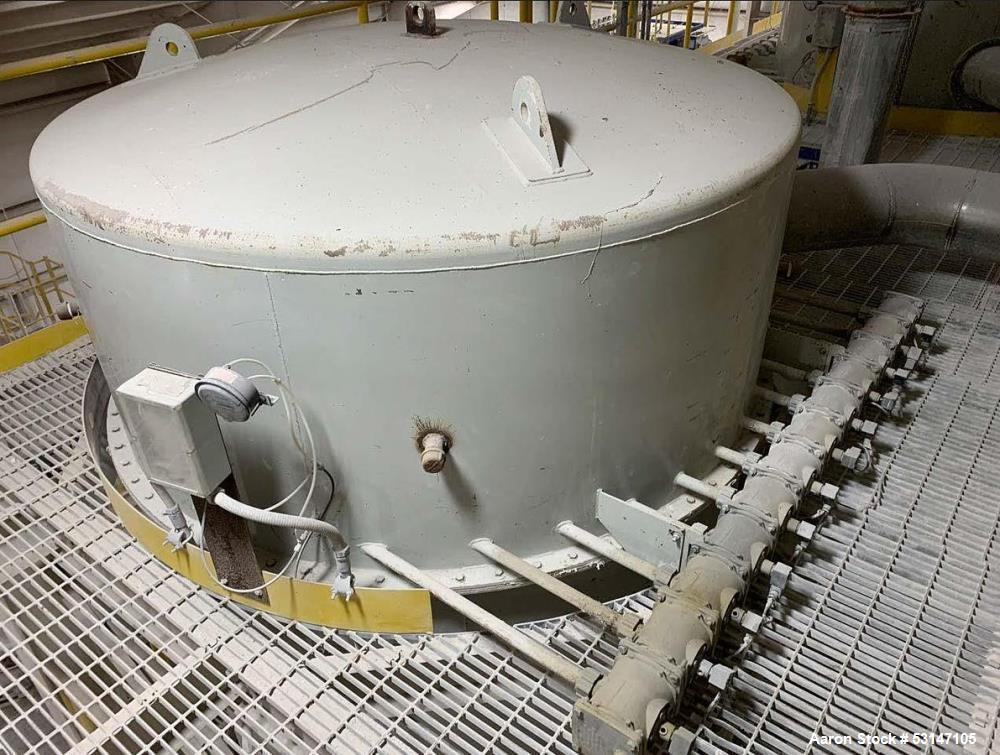

Dust Collection System

• Manufacturer: Hosokawa Alpine

• Type: High Performance Filter Baghouse

• Application: Ultrafine powder dust control

• Designed for closed-loop classification systems

Applications

• Mineral filler classification

• Calcium carbonate processing

• Silica powder separation

• Ceramic powder refinement

• Toner powder production

• Metal powder classification

• Industrial pigment processing

• Abrasive material separation

• Refractory powder processing

• Specialty chemical powders

What Might This Be Used For?

• Ultrafine mineral separation

• Tight particle size control production

• Abrasive material classification

• Closed-loop milling systems

• Battery material refinement

• Advanced ceramics manufacturing

• High-performance filler production

• Contract toll processing

• Pigment and coating additive production

• Industrial powder plant expansion
