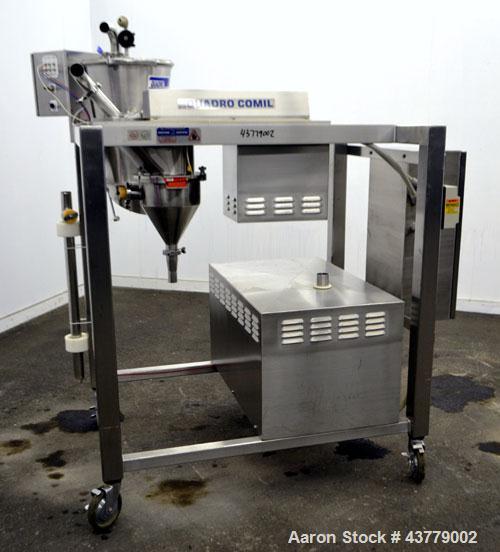

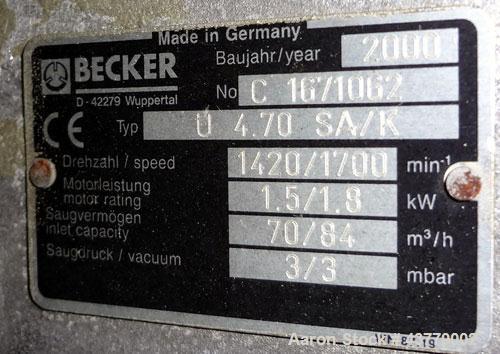

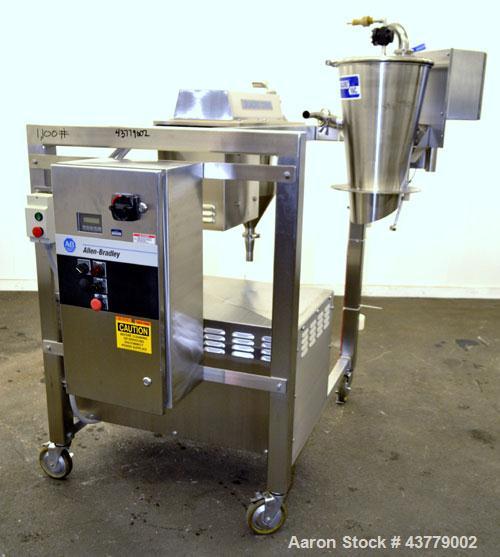

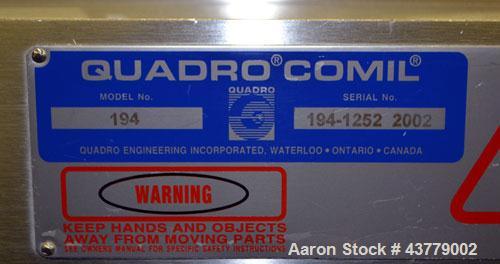

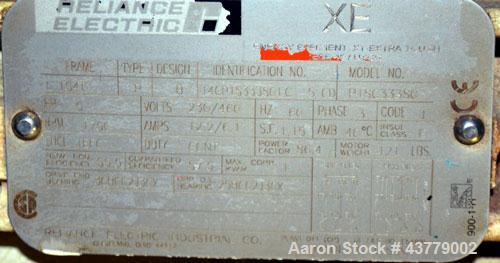

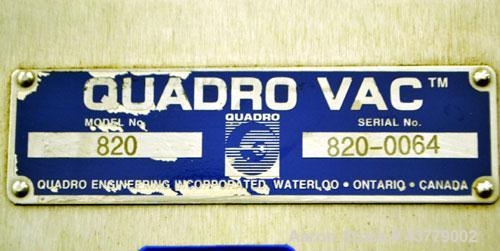

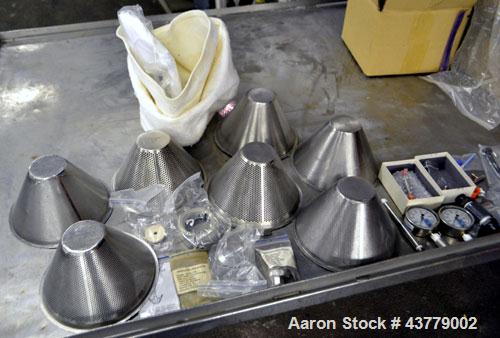

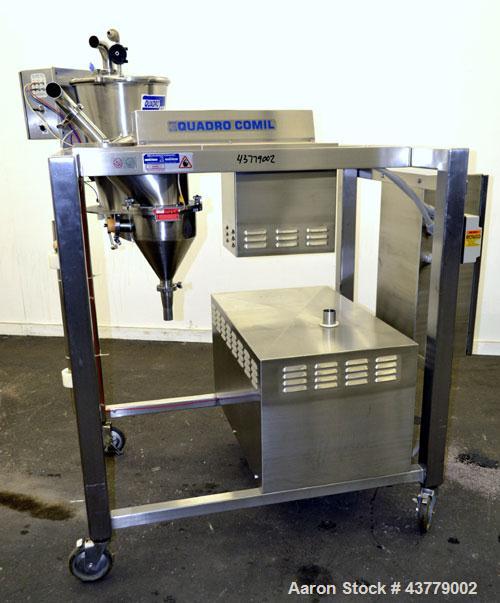

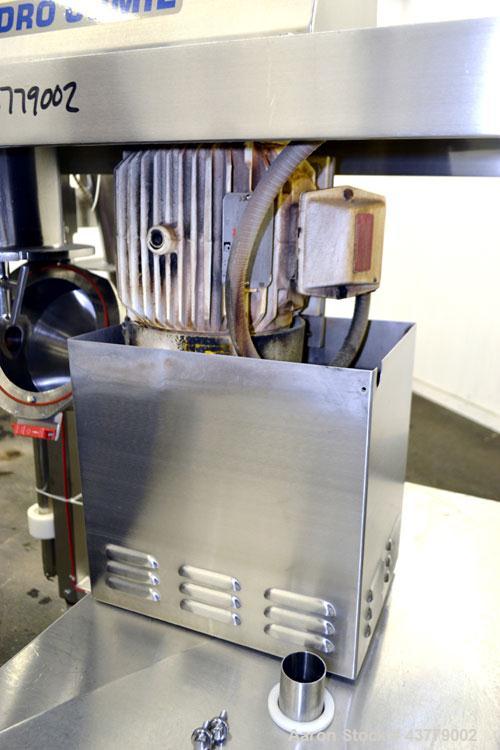

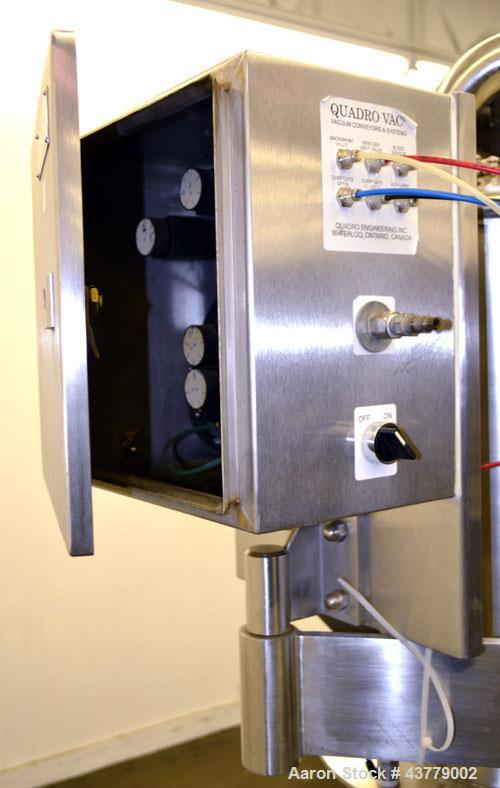

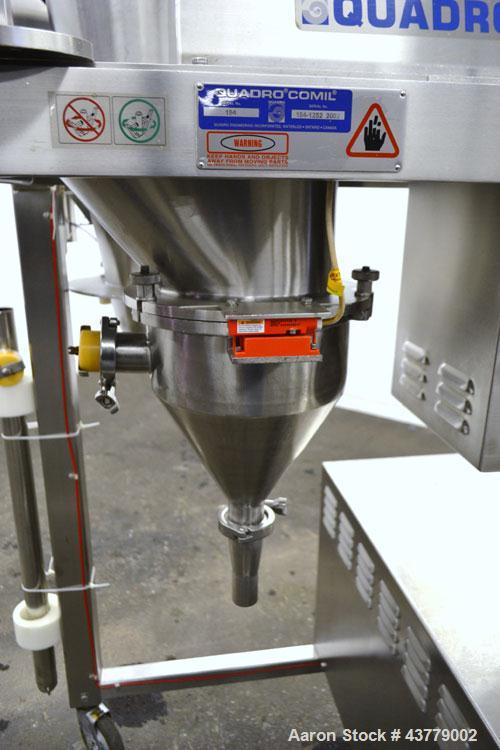

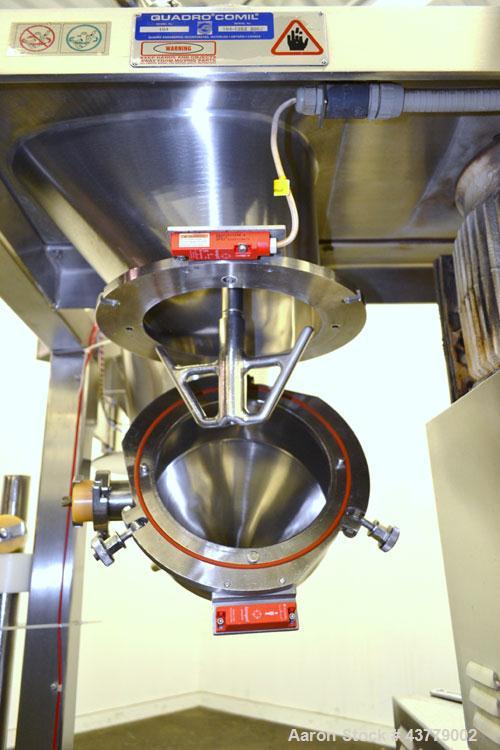

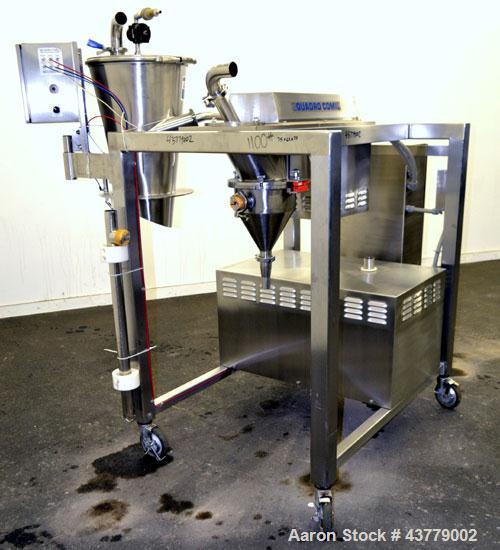

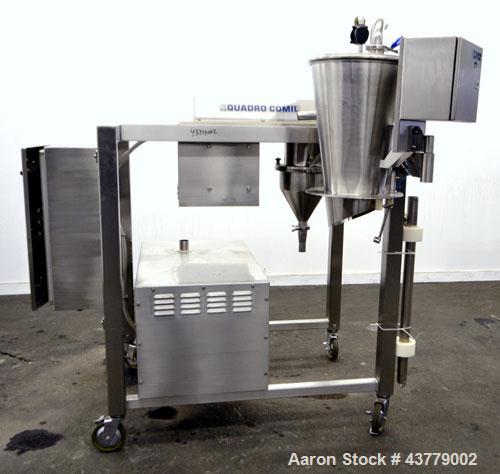

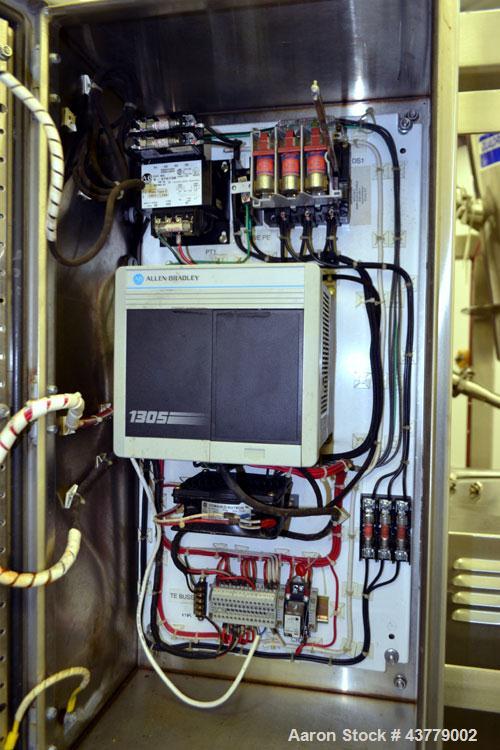

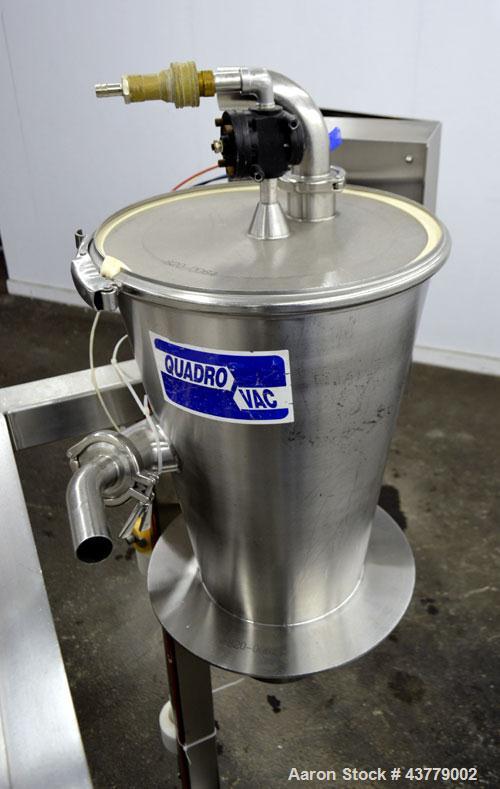

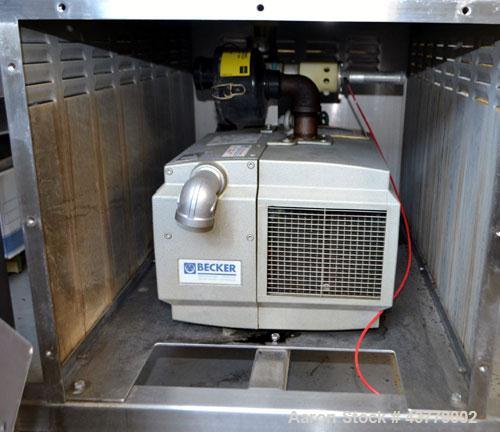

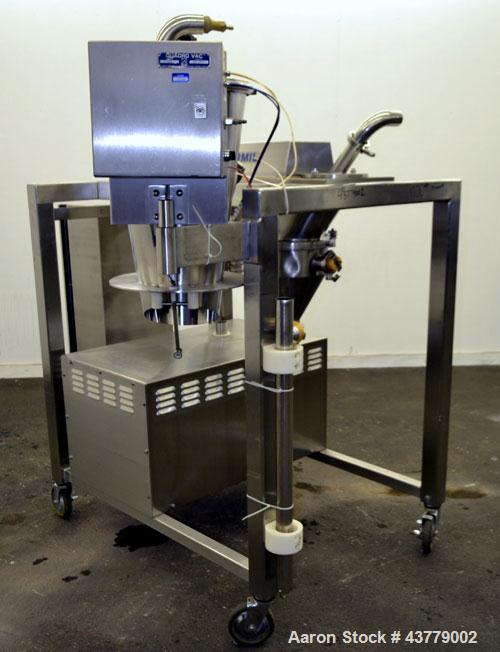

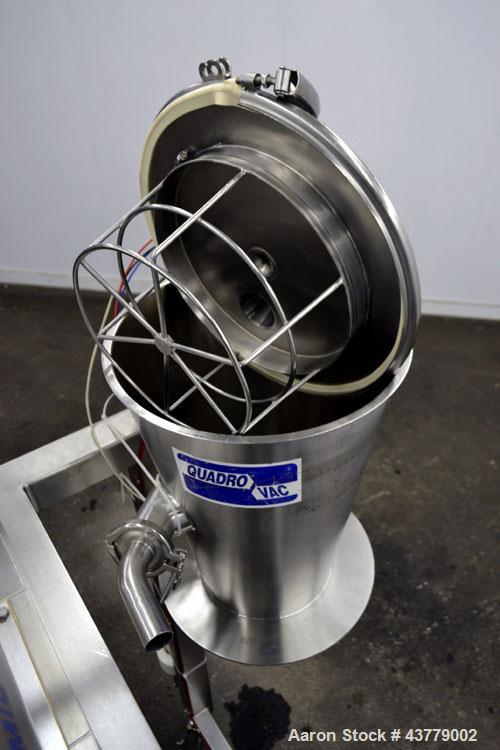

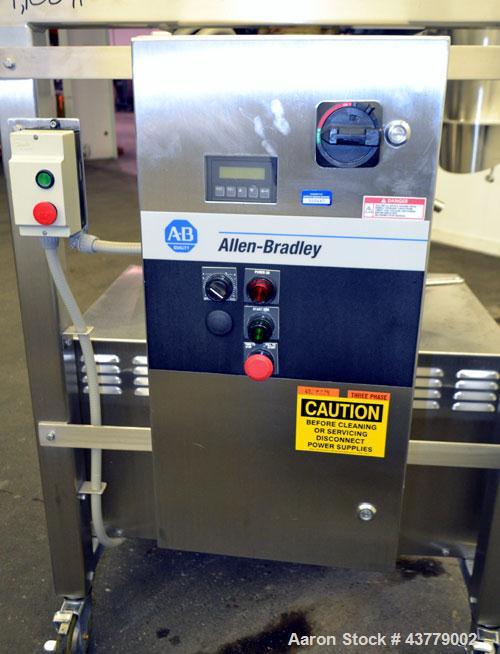

Used Quadro Comil, Model 194 Ultra, 316 Stainless Steel. Approximately 8" diameter impeller, with screens. Screen sizes are round holes, 0.018", 0.032", 0.062", 0.075", 0.094", 0.117", 0.125". Approximate capacity up to 4000 pounds an hour. 2" Tri-clamp top feed, bottom discharge with swing away discharge shroud. Driven by a 5 hp, 3/60/230/460 volt, 1750 rpm motor. Unit includes a Quadro Vac vacuum conveying system, model 820, serial #820-0117. Consisting of (1) hopper assembly with 2.2 square feet filter, (1) Becker vacuum pump, model U 4.70 SA/K, and (1) Allen-Bradley control panel with a 1305 drive. All mounted on 304 stainless steel frame with casters. Built 2002.
Used Quadro Comil, Model 194 Ultra, 316 Stainless Steel. Approximately 8" diameter impeller, with screens. Screen sizes are round holes, 0.018", 0.032", 0.062", 0.075", 0.094", 0.117", 0.125". Approximate capacity up to 4000 pounds an hour. 2" Tri-clamp top feed, bottom discharge with swing away discharge shroud. Driven by a 5 hp, 3/60/230/460 volt, 1750 rpm motor. Unit includes a Quadro Vac vacuum conveying system, model 820, serial #820-0117. Consisting of (1) hopper assembly with 2.2 square feet filter, (1) Becker vacuum pump, model U 4.70 SA/K, and (1) Allen-Bradley control panel with a 1305 drive. All mounted on 304 stainless steel frame with casters. Built 2002.
